BHiLYNX+ DL Enduro Carbon 9.8
- Motor
- DJI Avinox M2S150 Nm; 1300 W peak
- Battery
- 800 WhIntegrated, non-removable
- Travel F / R
- 180 / 170 mm
- Wheels
- 29"
- Frame
- Carbon
Overview

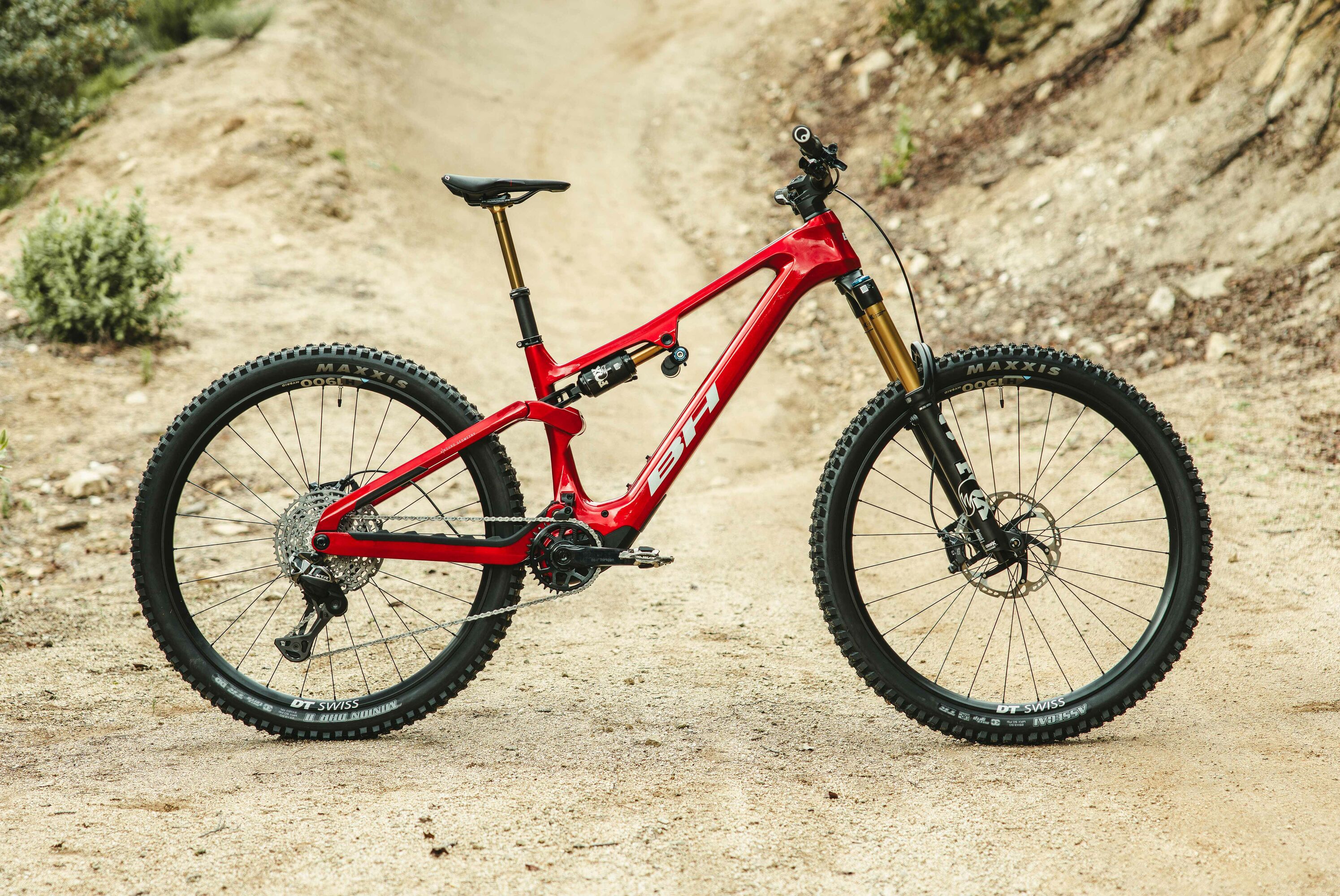

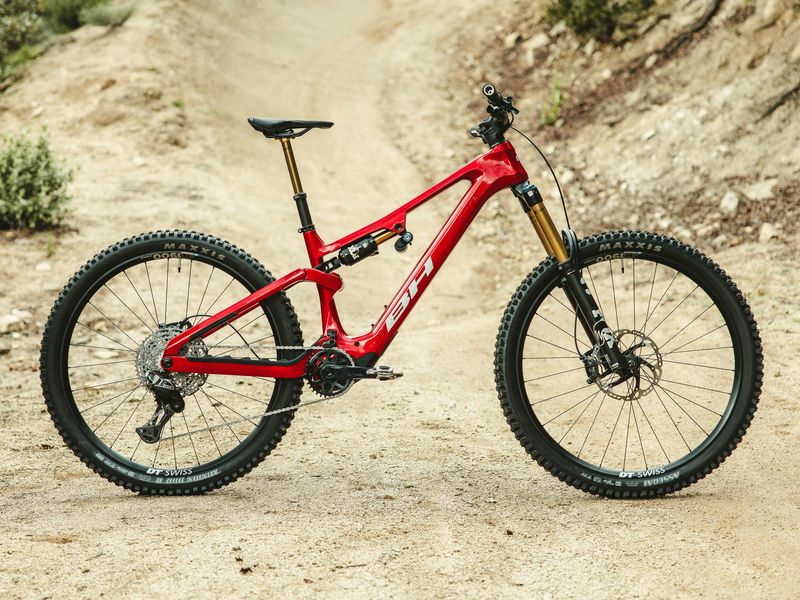

The BH iLYNX+ DL Enduro Carbon 9.8 (€8,999.90) is the top build of the iLYNX+ DL Enduro: DJI Avinox M2S (150 Nm) with 800 Wh, FOX 38 FLOAT Factory fork, FOX FLOAT X2 Factory shock, Shimano XTR DI2 12sp and Shimano XT 4 Piston brakes.

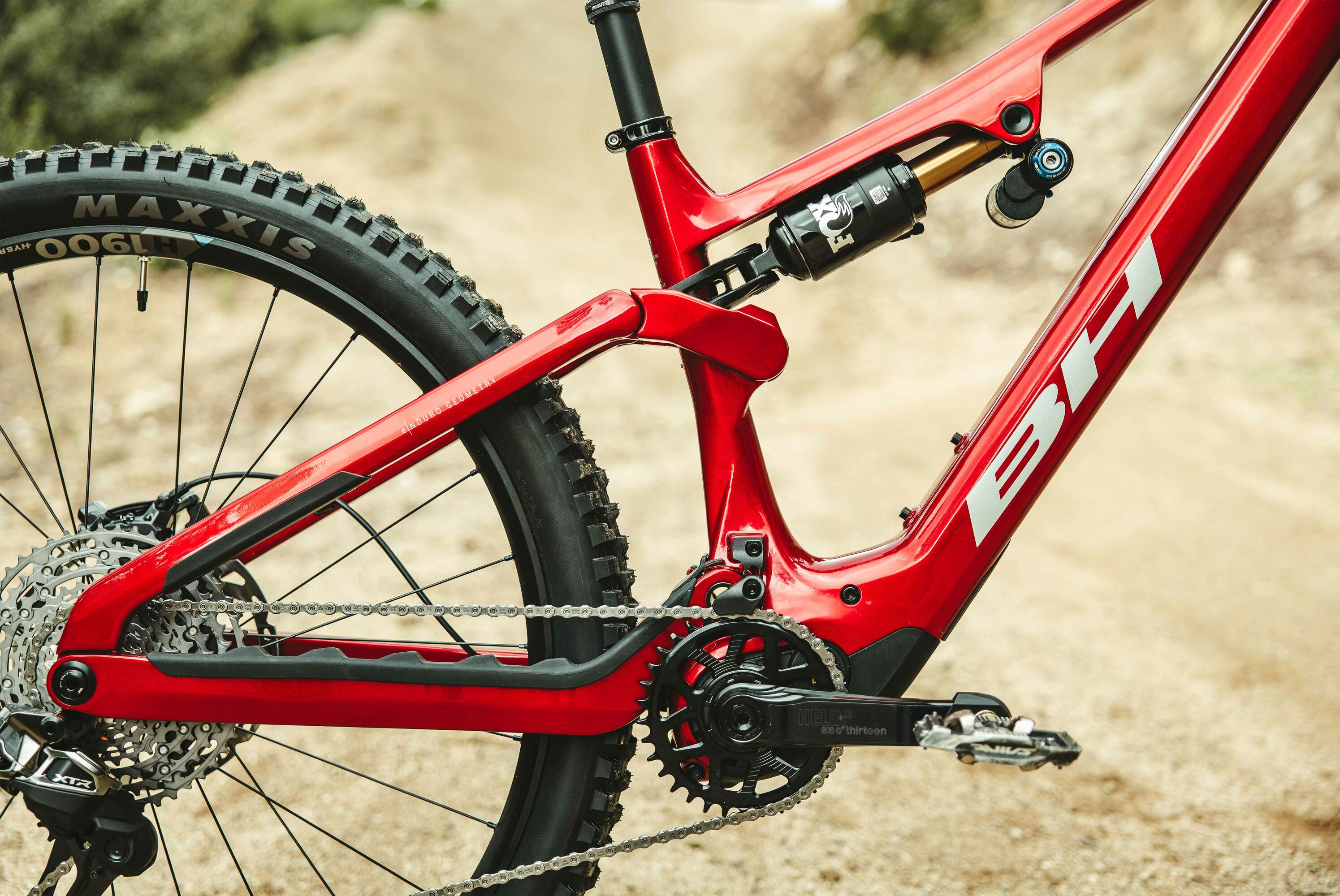

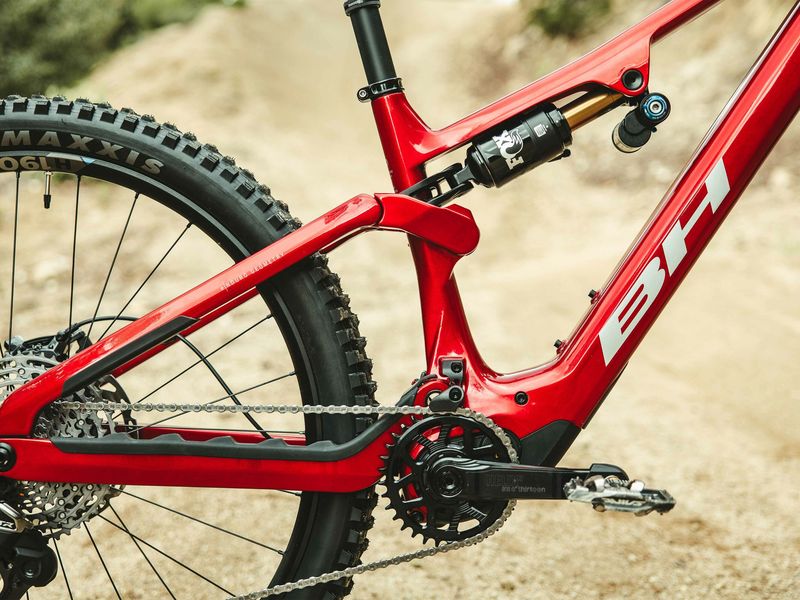

The iLYNX+ DL Enduro is the long-travel version of the iLYNX+ DL platform: 170 mm of Split Pivot rear travel, 29-inch wheels and 160–180 mm forks, offered in alloy and carbon frames.

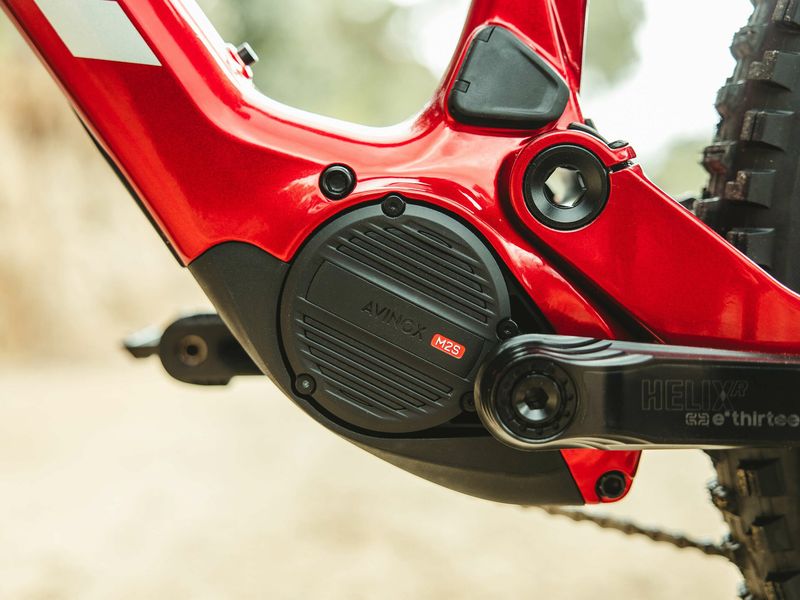

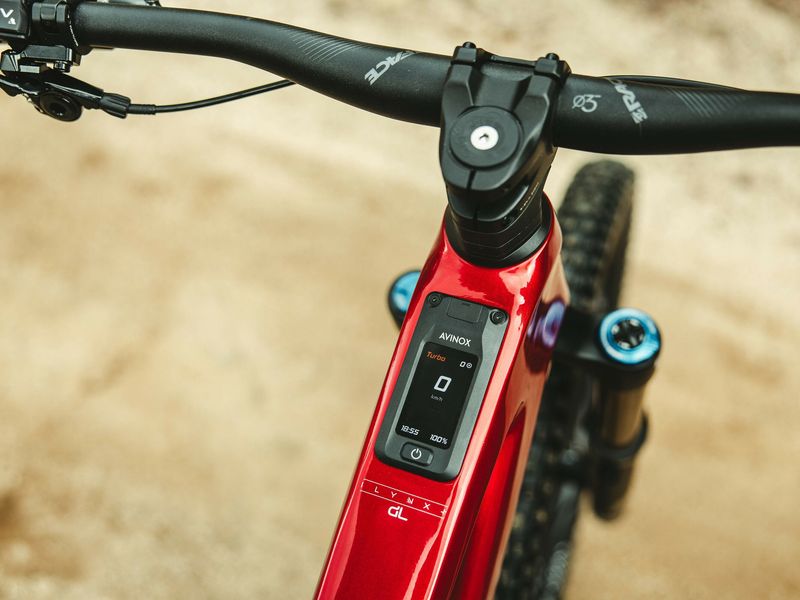

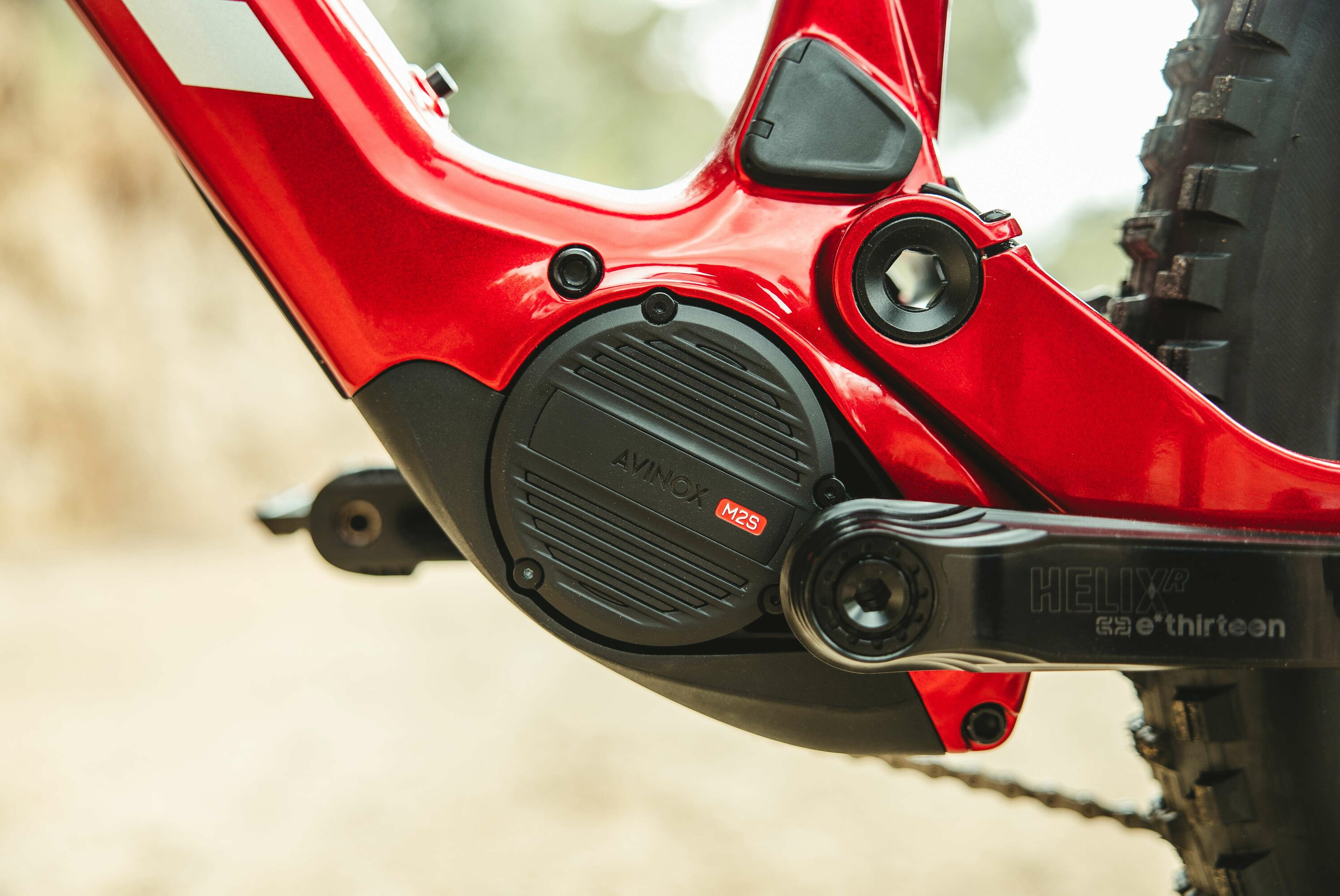

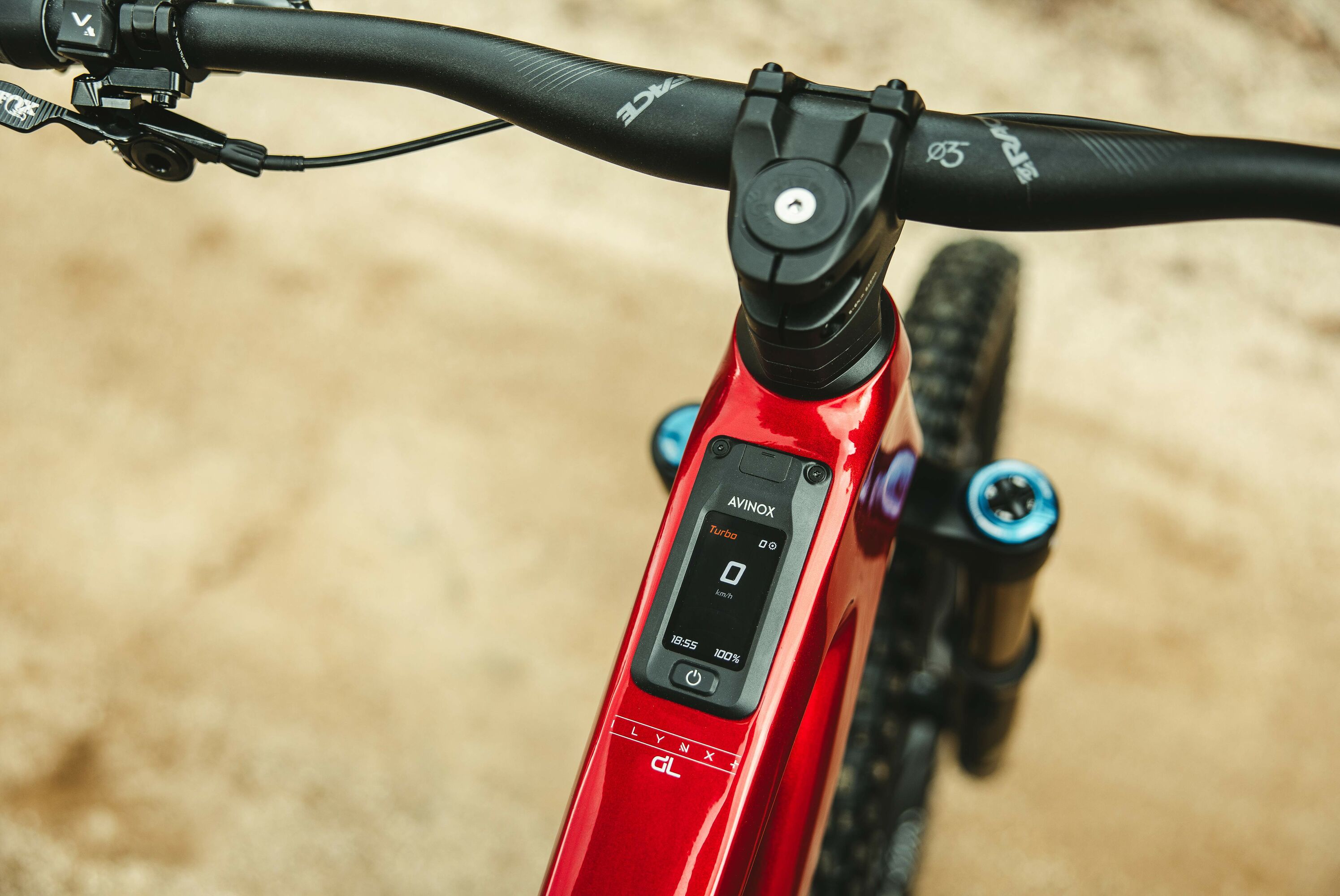

It uses the DJI Avinox M2S motor (150 Nm, 1300 W peak) with a non-removable 800 Wh battery (BH quotes up to 157 km range) and a frame-integrated 2-inch OLED display with wireless controllers.
- DJI Avinox M2S: 150 Nm, 1300 W peak
- 800 Wh battery
- 170 mm rear, 160–180 mm fork
- Alloy or carbon frame, 29" wheels
Gallery
Photos: BH Bikes
Full specifications
Frame & suspension
- Frame

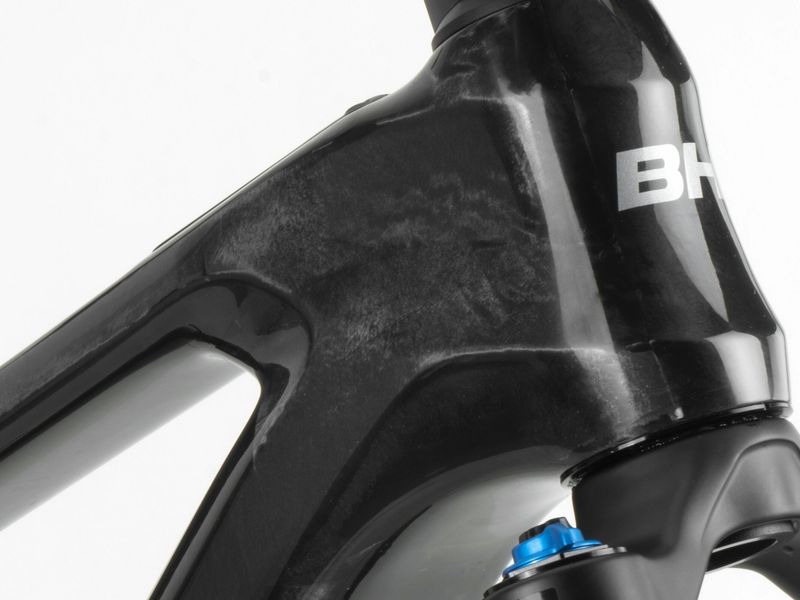

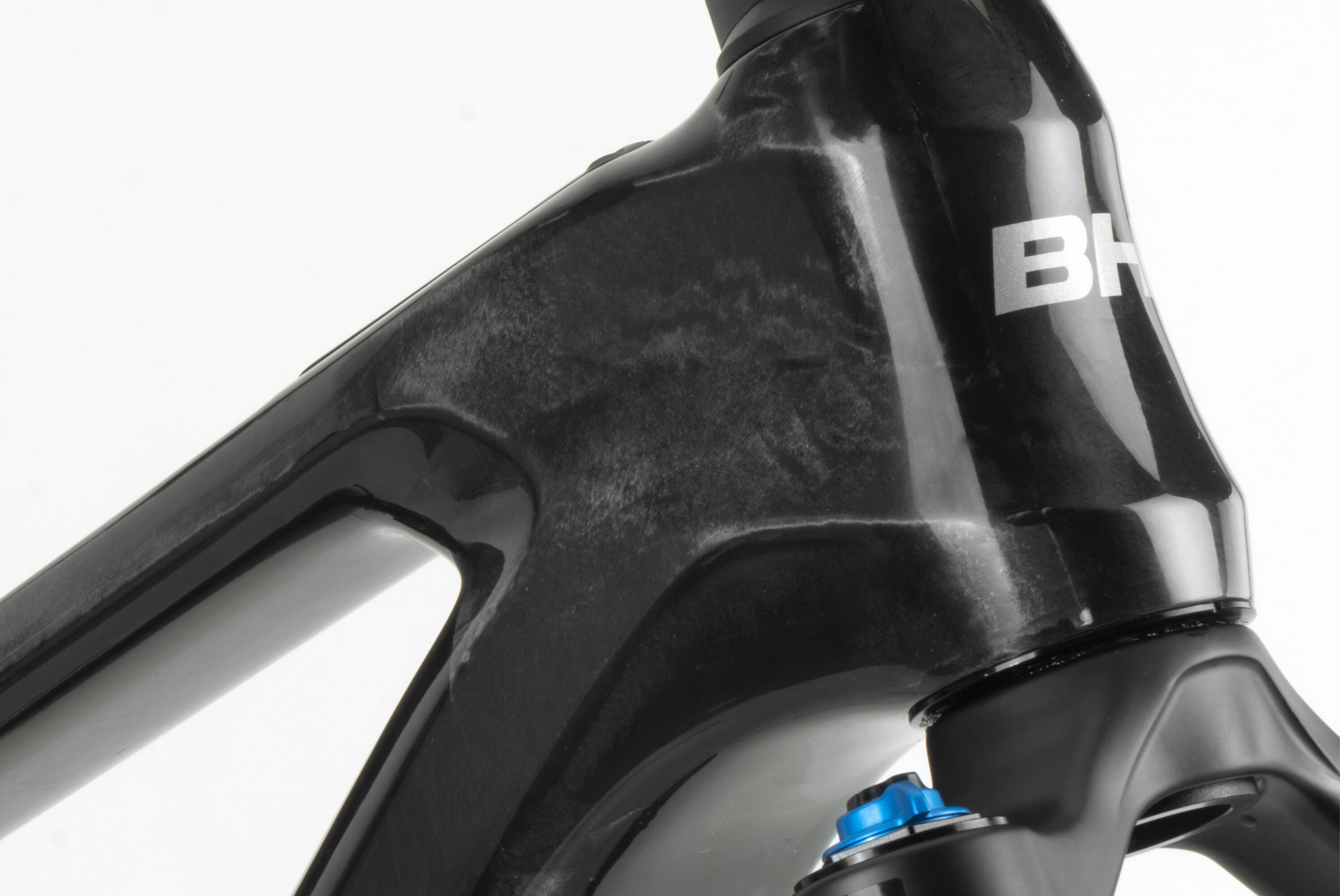

- iLynx+DL, BCL Carbon Layup, 170 mm FS Carbon 29"
- Rear shock
- FOX FLOAT X2 Factory
- Fork
- FOX 38 FLOAT Factory 180mm 15QR
E-system
- Battery system
- Non Removable
- Battery
- 800Wh
- Motor
- Avinox M2S
- Display
- Avinox DP100 +Wireles Rem
Drivetrain
- Shifters
- Shimano XTR DI2
- Rear derailleur
- Shimano XTR DI2 12sp
- Crankset
- EThirteen 34T 160mm
- Cassette
- Shimano CSM9200 12sp (1051T)
- Chain
- Shimano CNM8100
Brakes
- Front brake
- Shimano XT 4 Piston, 203mm
- Rear brake
- Shimano XT 4 Piston, 203mm
Wheels & tyres
- Wheelset
- DT Swiss H1700 TR
- Tyres
- Maxxis Assegai TPI60/Minion TPI120 TerraEXO TR 29X2,5
- Hubs
- DT Swiss
- Spokes
- Stainless Steel
Cockpit
- Saddle
- Prologo Proxim Nembo
- Seat clamp
- Alloy
- Seatpost
- Fox Trasfer Factory 31,6
- Handlebar
- Race Face Aeffect Riser 35, 780mm
- Stem
- Satori URSA 35
- Headset
- Acros AIX327 ICR BL.
- Grips
- Ergon GE10 EVO
Other
- Chainstay protector
- Double Integrated
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
iLYNX+ DL Enduro geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| H1Seat tube length | 396 mm | 416 mm | 436 mm | 476 mm |
| H2Head tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| H3Fork length | 588 mm | 588 mm | 588 mm | 588 mm |
| H4Top tube length | 584 mm | 613 mm | 638 mm | 660 mm |
| H5Front centre | 796 mm | 827 mm | 855 mm | 879 mm |
| H6Chainstay length | 450 mm | 450 mm | 450 mm | 450 mm |
| H7Wheelbase | 1245 mm | 1276 mm | 1304 mm | 1328 mm |
| H8BB drop | 24 mm | 24 mm | 24 mm | 24 mm |
| A1Seat tube angle | 78° | 78° | 78° | 78° |
| A2Head tube angle | 63.5° | 63.5° | 63.5° | 63.5° |
| Reach | 445 mm | 472 mm | 495 mm | 515 mm |
| Stack | 629 mm | 638 mm | 647 mm | 655 mm |
Source: BH.
iLYNX+ DL Enduro: builds compared
iLYNX+ DL Enduro range →| iLYNX+ DL Enduro 9.0 | iLYNX+ DL Enduro Carbon 9.5 | iLYNX+ DL Enduro 9.1 | iLYNX+ DL Enduro Carbon 9.6 | iLYNX+ DL Enduro Carbon 9.7 | iLYNX+ DL Enduro Carbon 9.8 | |
|---|---|---|---|---|---|---|
| Price | €5,399.90 | €5,999.90 | €5,999.90 | €6,999.90 | €7,999.90 | €8,999.90 |
| Frame | Alloy | Carbon main frame, alloy rear | Alloy | Carbon main frame, alloy rear | Carbon | Carbon |
| Fork | FOX 36 AWL 160mm 15QR | FOX 36 AWL 160mm 15QR | FOX 38 FLOAT Performance 180mm 15QR | FOX 38 FLOAT Performance 180mm 15QR | FOX 38 FLOAT Factory 180mm 15QR | FOX 38 FLOAT Factory 180mm 15QR |
| Shock | FOX FLOAT Rhythm | FOX FLOAT Rhythm | FOX FLOAT X Performance | FOX FLOAT X Performance | FOX FLOAT X Factory | FOX FLOAT X2 Factory |
| Derailleur | Shimano Deore 12sp | Shimano XT 12sp | Shimano XT 12sp | Shimano XT DI2 12sp | Shimano XT DI2 12sp | Shimano XTR DI2 12sp |
| Brakes | Shimano MT520 4 Piston | Shimano MT520 4 Piston | Shimano MT520 4 Piston | Shimano XT 4 Piston | Shimano XT 4 Piston | Shimano XT 4 Piston |
| Display | Avinox DCP100 +Wireles Rem | Avinox DCP100 +Wireles Rem | Avinox DCP100 +Wireles Rem | Avinox DCP100 +Wireles Rem | Avinox DP100 +Wireles Rem | Avinox DP100 +Wireles Rem |
iLYNX+ DL Enduro Carbon 9.8: FAQ
How much does the BH iLYNX+ DL Enduro Carbon 9.8 cost?
€8,999.90 (RRP Spain, VAT incl.). The iLYNX+ DL Enduro range runs from €5,399.90 (iLYNX+ DL Enduro 9.0) to €8,999.90 (iLYNX+ DL Enduro Carbon 9.8). Prices vary by country and dealer.
What motor and battery does the BH iLYNX+ DL Enduro Carbon 9.8 have?
DJI Avinox M2S (150 Nm; 1300 W peak). 800 Wh battery — integrated, non-removable.
How much suspension travel does the BH iLYNX+ DL Enduro Carbon 9.8 have?
180 mm at the fork and 170 mm at the rear, on 29" wheels.
What sizes does the BH iLYNX+ DL Enduro Carbon 9.8 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the iLYNX+ DL Enduro Carbon 9.8 and the iLYNX+ DL Enduro Carbon 9.7?
They share the iLYNX+ DL Enduro frame platform and motor; the differences are in the parts — shock: FOX FLOAT X2 Factory vs FOX FLOAT X Factory; derailleur: Shimano XTR DI2 12sp vs Shimano XT DI2 12sp; price: €8,999.90 vs €7,999.90.
