CommencalMeta Power SX Avinox Ride
- Motor
- DJI Avinox M2S150 Nm (boost mode); 1,300 W
- Battery
- 800 WhDJI Avinox integrated battery; 600 Wh on size S
- Travel F / R
- 170 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
- Weight
- 25 kgManufacturer figure (minimum weight, size M, without pedals)
Overview
The Commencal Meta Power SX Avinox Ride (€6,950) is the entry build of the Meta Power SX Avinox: DJI Avinox M2S (150 Nm) with 800 Wh, RockShox Domain Gold R fork, RockShox Deluxe Select shock, Shimano XT LinkGlide and TRP DHR EVO Comp brakes. Claimed weight is 25 kg.
The Meta Power SX Avinox is Commencal's alloy enduro e-MTB built around DJI's Avinox M2S drive unit, rated at 150 Nm and 1,300 W in boost mode (130 Nm in normal operation). The fully integrated battery holds 800 Wh on sizes M to XL and 600 Wh on size S, and every build gets the Avinox DP100 touchscreen display.
The triple-butted 6066 alloy frame (claimed 4.8 kg) gives 160 mm of rear travel through Commencal's Virtual Contact System (VCS) linkage, runs a 29-inch front and 27.5-inch rear wheel and ships with RideWrap protective film. Forks are 160 or 170 mm depending on build; claimed weights range from 24.1 to 26 kg (size M, without pedals).
- DJI Avinox M2S: 150 Nm, 1,300 W boost
- 800 Wh battery (600 Wh on size S)
- 160 mm VCS rear, 160-170 mm fork, mullet
- Alloy frame, DP100 touchscreen display

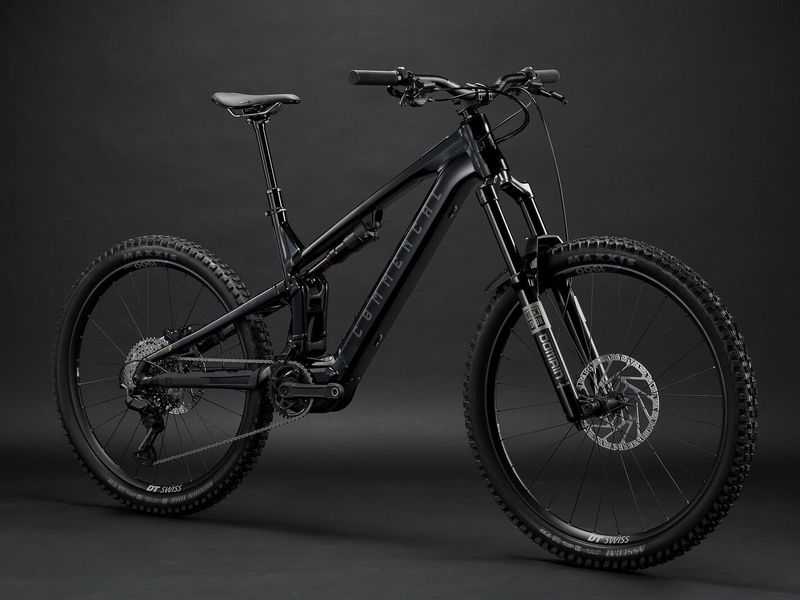

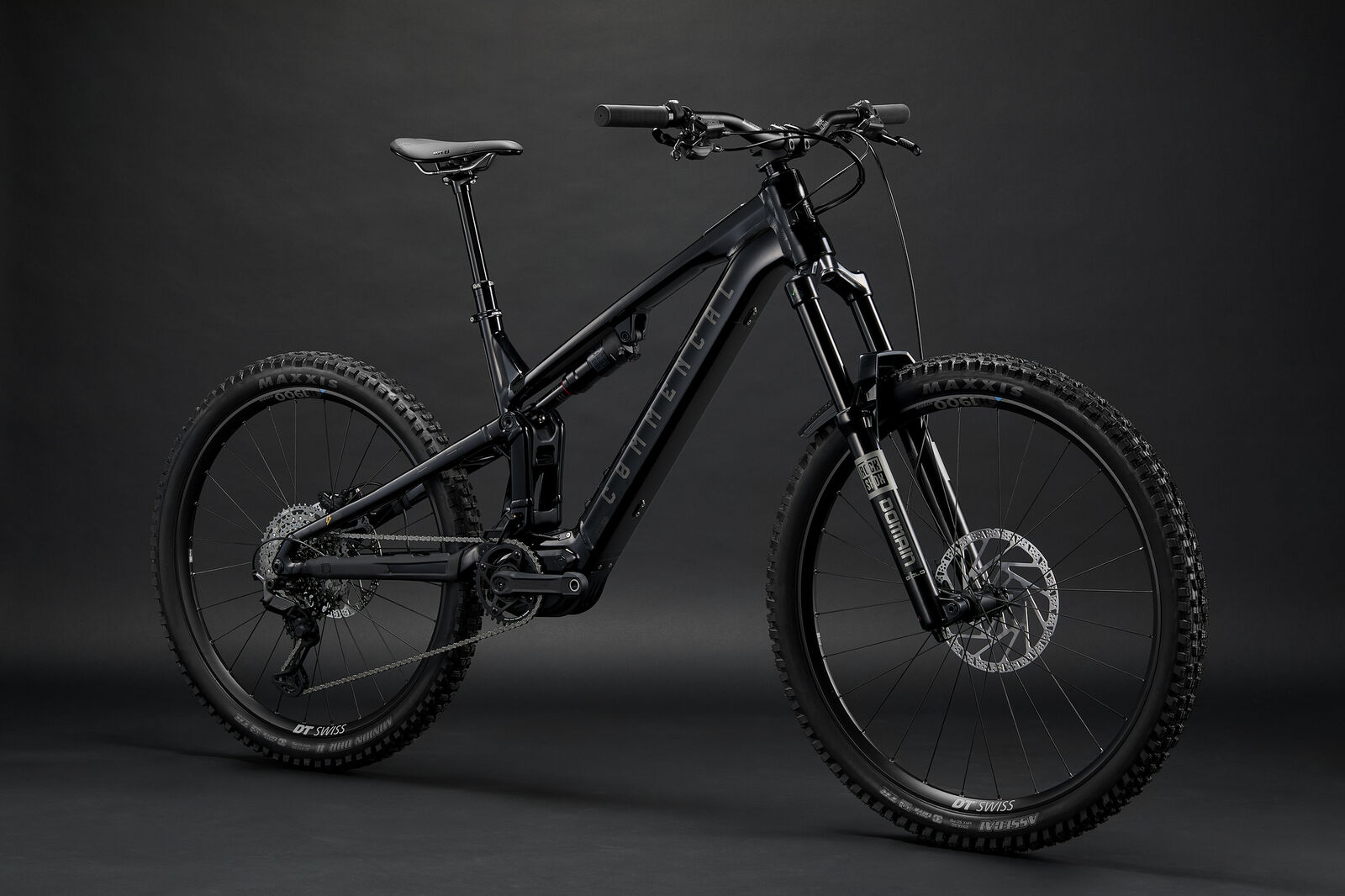

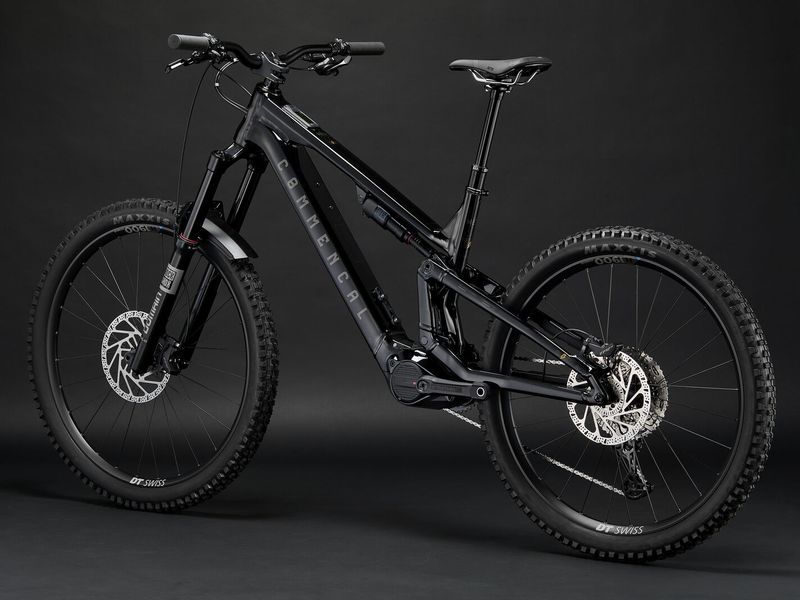

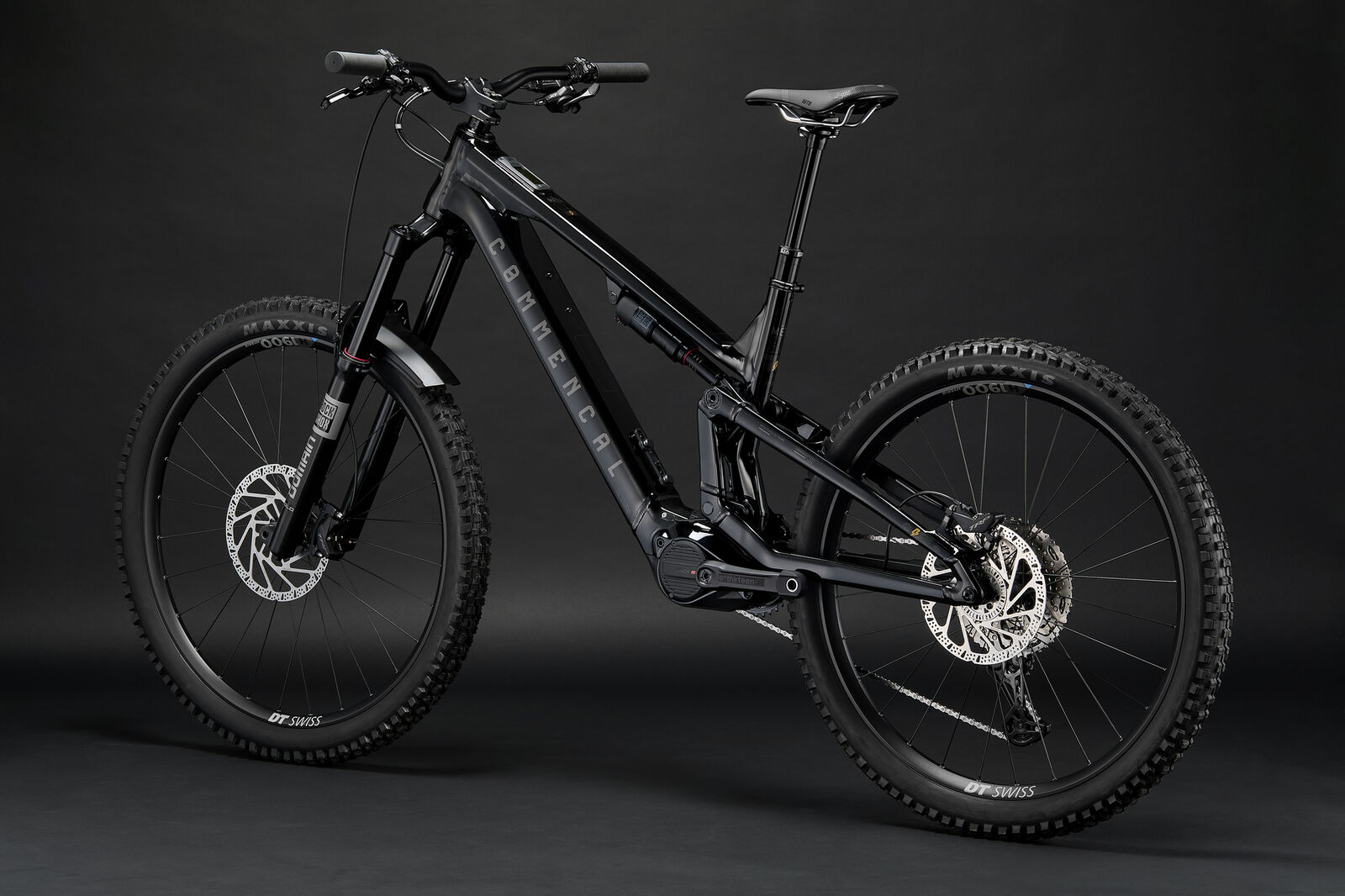

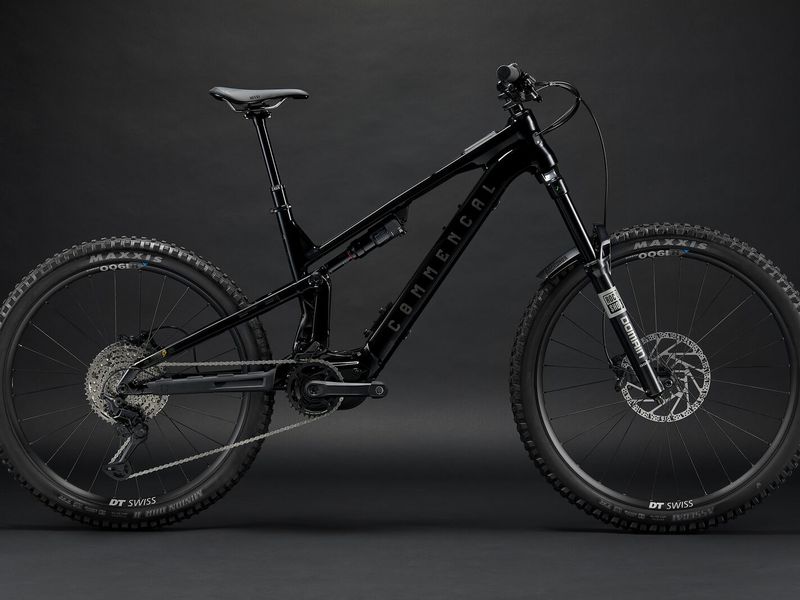

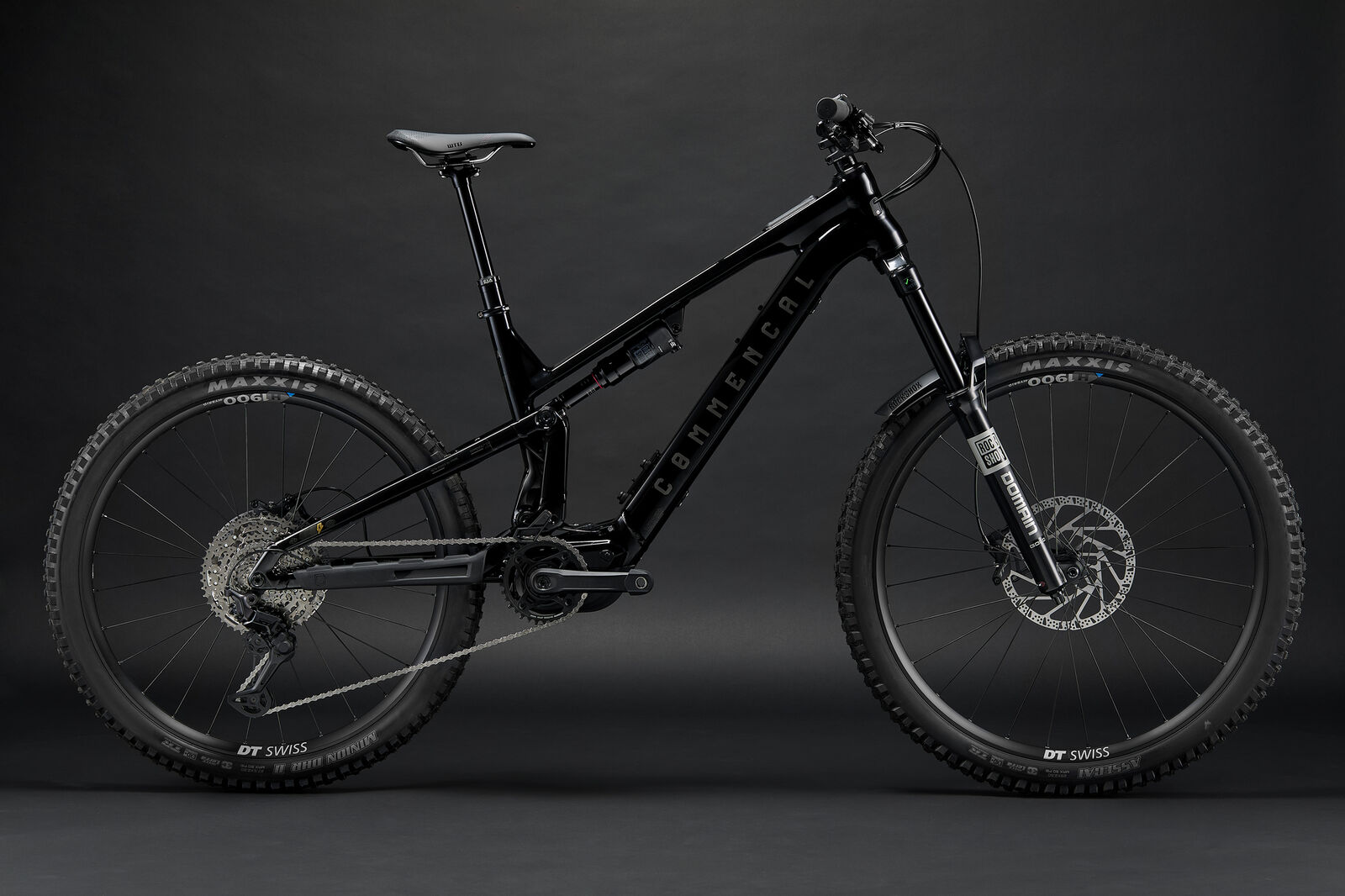

Gallery
Photos: Commencal
Full specifications
Frame & suspension
- Frame
- Meta Power SX Avinox, 160 mm travel, 29"-27.5", Alloy 6066, triple butted tubes, T4, T6
- Rear shock
- RockShox Deluxe Select, 230 x 60 mm, DebonAir+ Linear XL, LSR

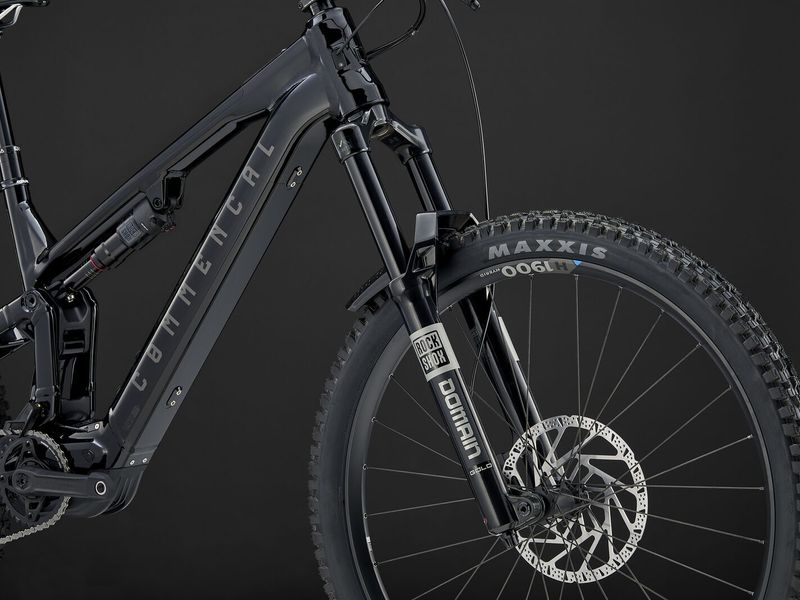

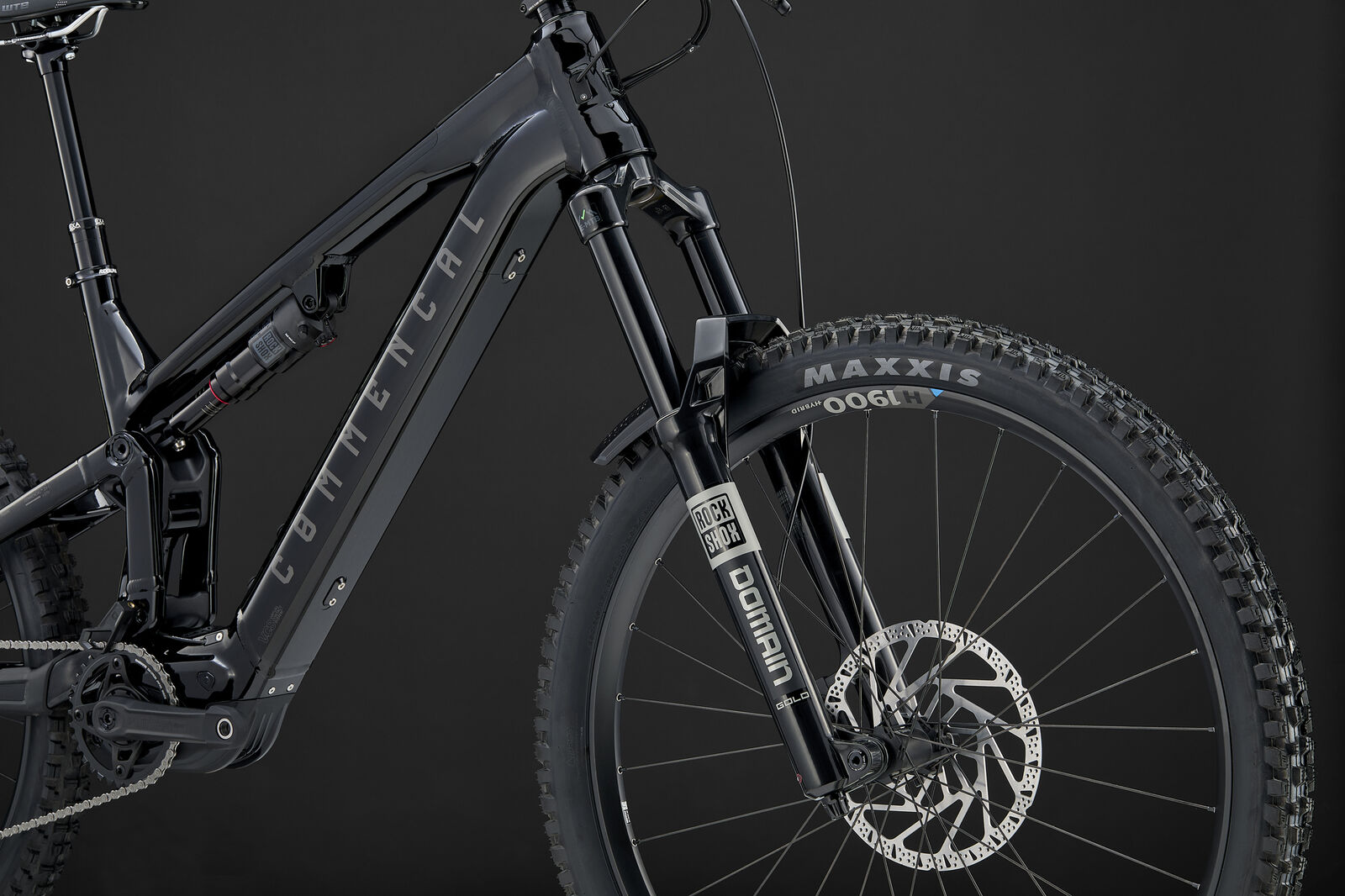

- Fork
- RockShox Domain Gold R, 170 mm travel, 29", Motion Control damper, LSR, Boost (15 x 110 mm), 44 mm offset
- Headset
- Acros ZS56/ZS66, Alloy cups, stainless steel & sealed bearings
- Frame weight
- 4,795 kg / 10,57 lb
E-system
- Motor
- Avinox M2S, 150 Nm peak torque with a 1,300 W boost mode, and 130 Nm / 1300 W in normal operation
- Battery
- Avinox, 600 Wh on S, 800 Wh on M / L / XL, Fully integrated main battery, Avinox 508w Fast Battery charger

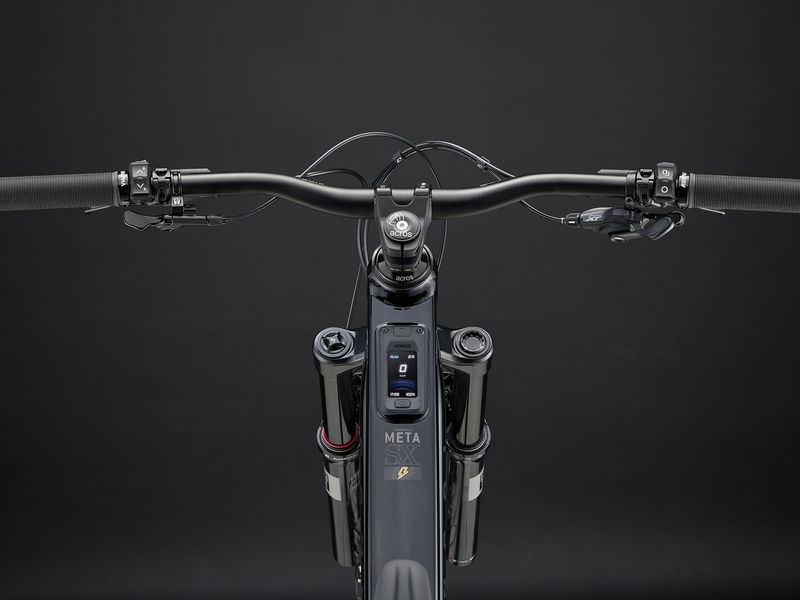

- Display
- Avinox DP100 : Integrated and colored touchscreen providing a large range of information : speed, ride mode, battery range, charge level, fitness data, elevation gain, altitude and many more. It also features a USB-C port, GPS sensor, barometer, compass, 4G connection and even a theft alarm system., Switch: Avinox BC100, Wireless controller.

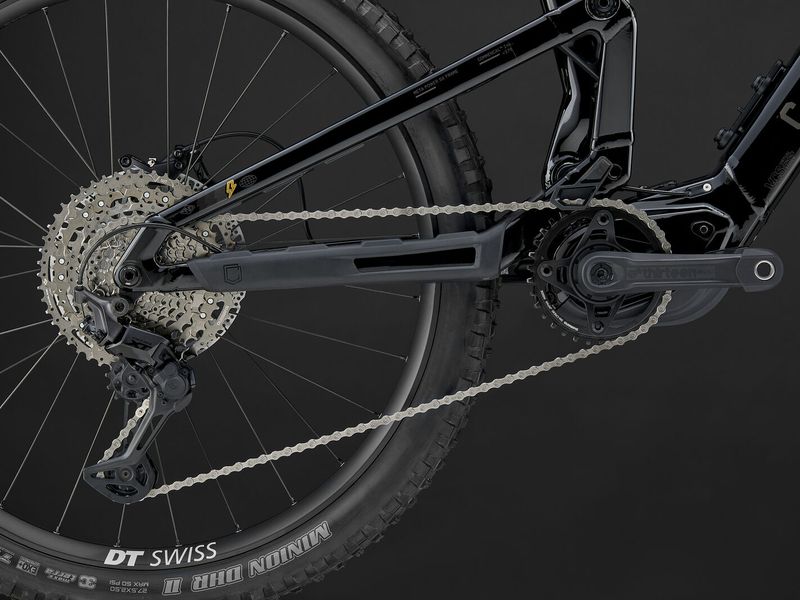

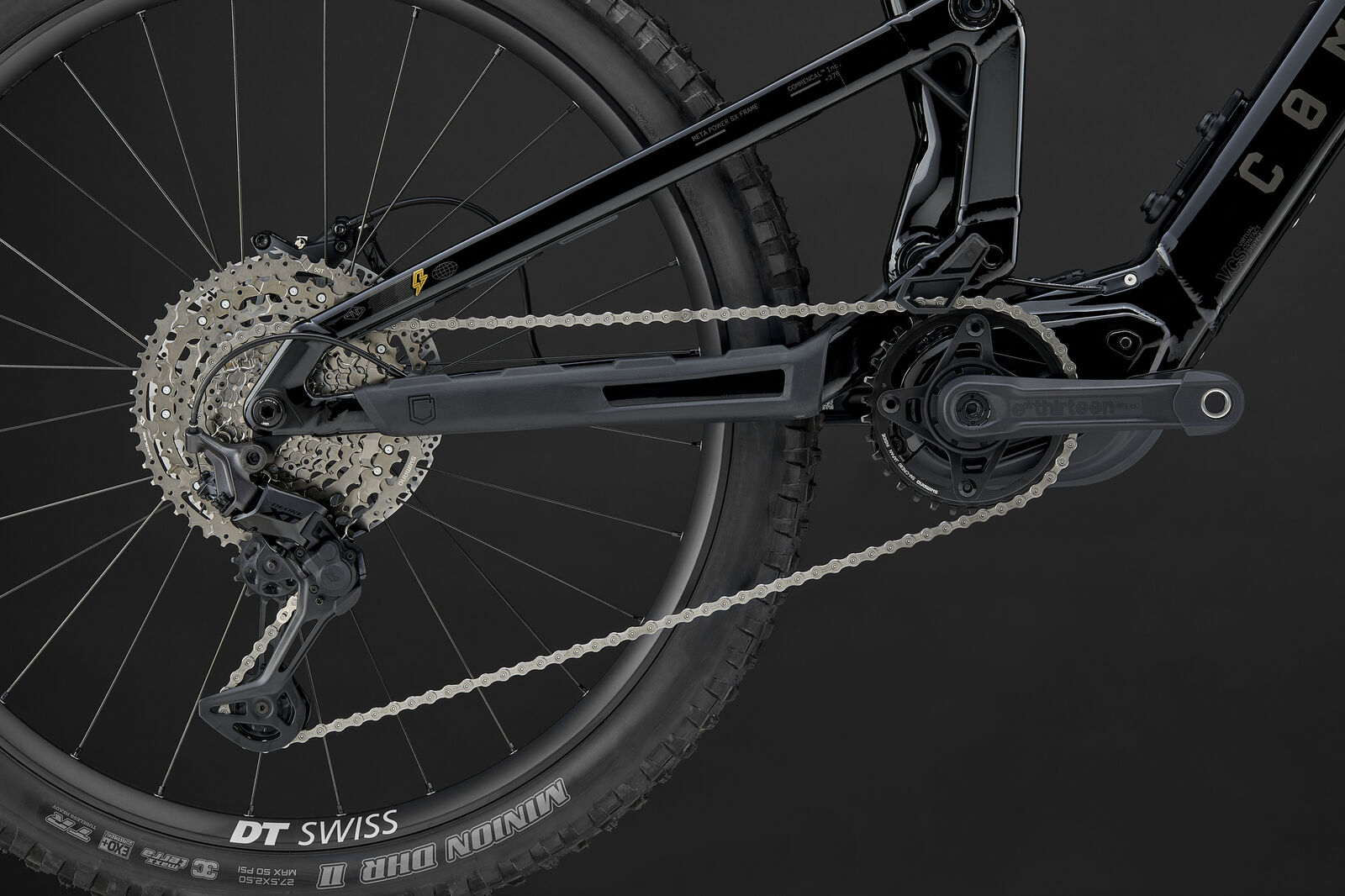

Drivetrain
- Shifters
- Shimano XT LinkGlide, 11s
- Chain guide
- Ride Alpha, 32-34t
- Rear derailleur
- Shimano XT LinkGlide, 11s
- Crankset
- E13 Helix Core, 155 mm crank arms, Chainring : Shimano SM-CRE80, 34t
- Chain
- Shimano Cues LinkGlide, CN-LG500, 11s
- Cassette
- Shimano Cues LinkGlide, CS-LG400, 11s, 11-50t
Brakes
- Brakes
- TRP DHR EVO Comp, 4 pistons, Rotors: TRP 6-bolt, 220 mm/203 mm
Wheels & tyres
- Rims
- DT Swiss H 1900, Rear: 27.5", 28h, 30 mm inner width - Front: 29", 28h, 30 mm inner width
- Hubs
- DT Swiss 370 Hybrid, Rear: 28h, sealed bearings, 12 x 148 mm, Hyperglide - Front: 28h, sealed bearings, 15 x 110 mm
- Spokes
- DT Swiss Hybrid 1, Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
- Tyres
- Rear: Maxxis Minion DHRII - Front: Maxxis Assegai, Rear: 27.5x2.50WT, 3C MaxxTerra, EXO+, TR- Front: 29x2.50WT, 3C MaxxTerra, EXO+, TR

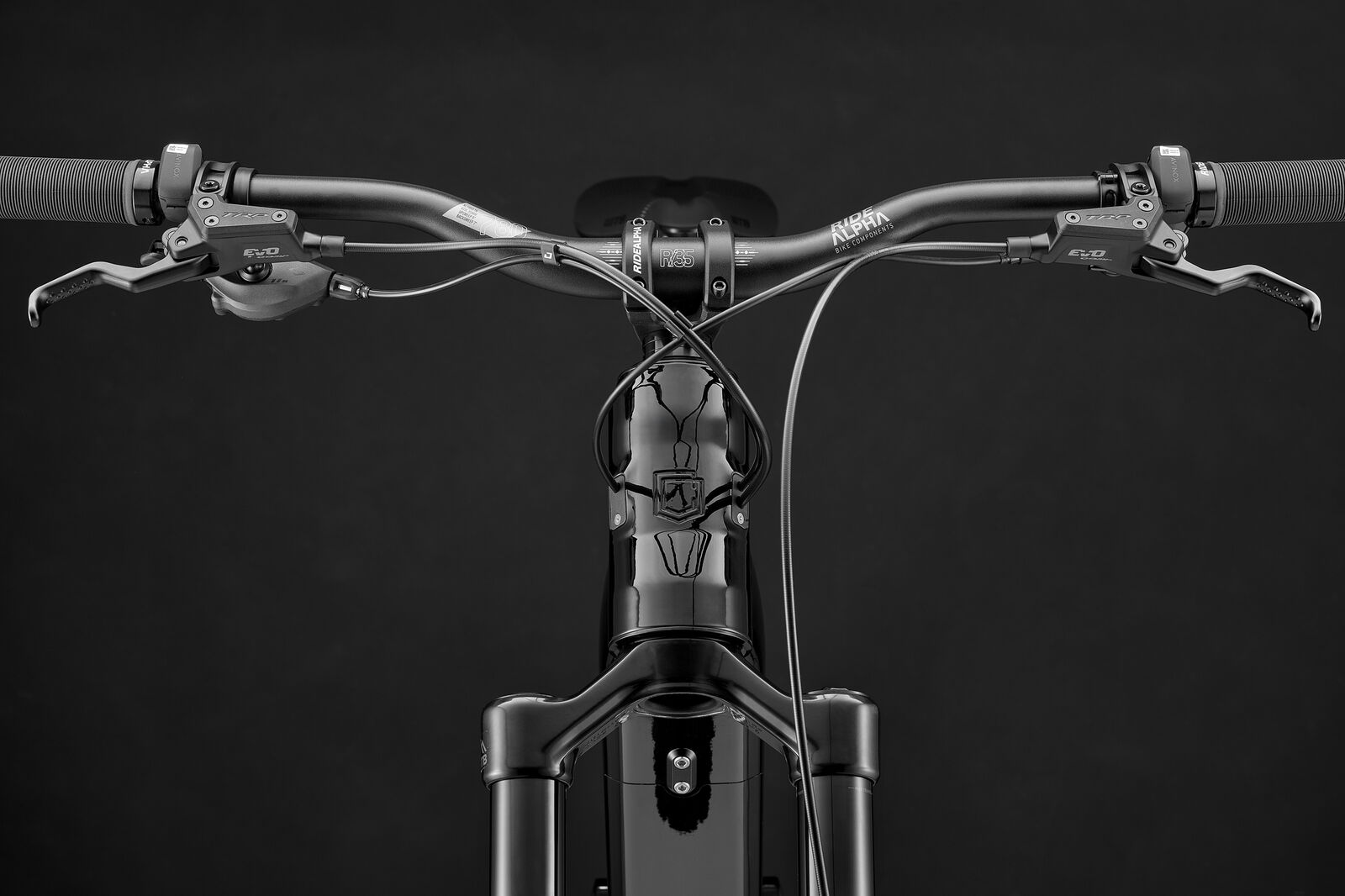

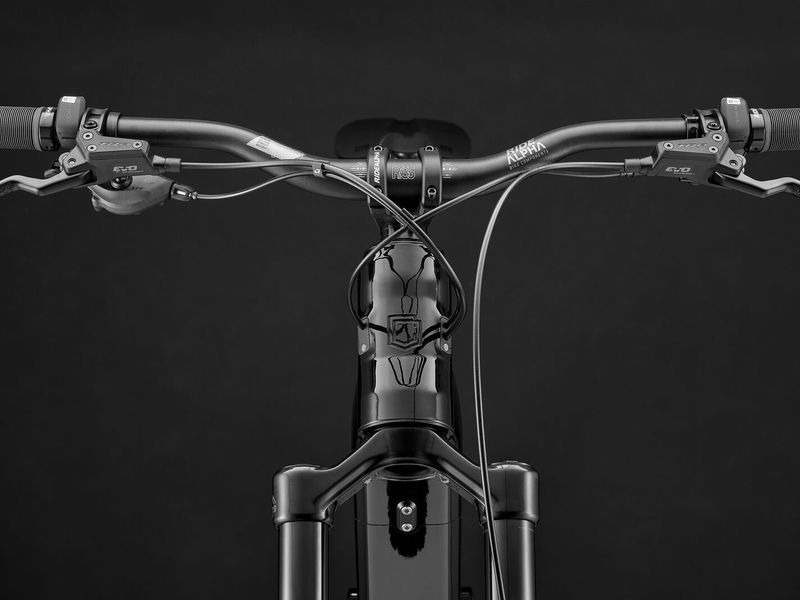

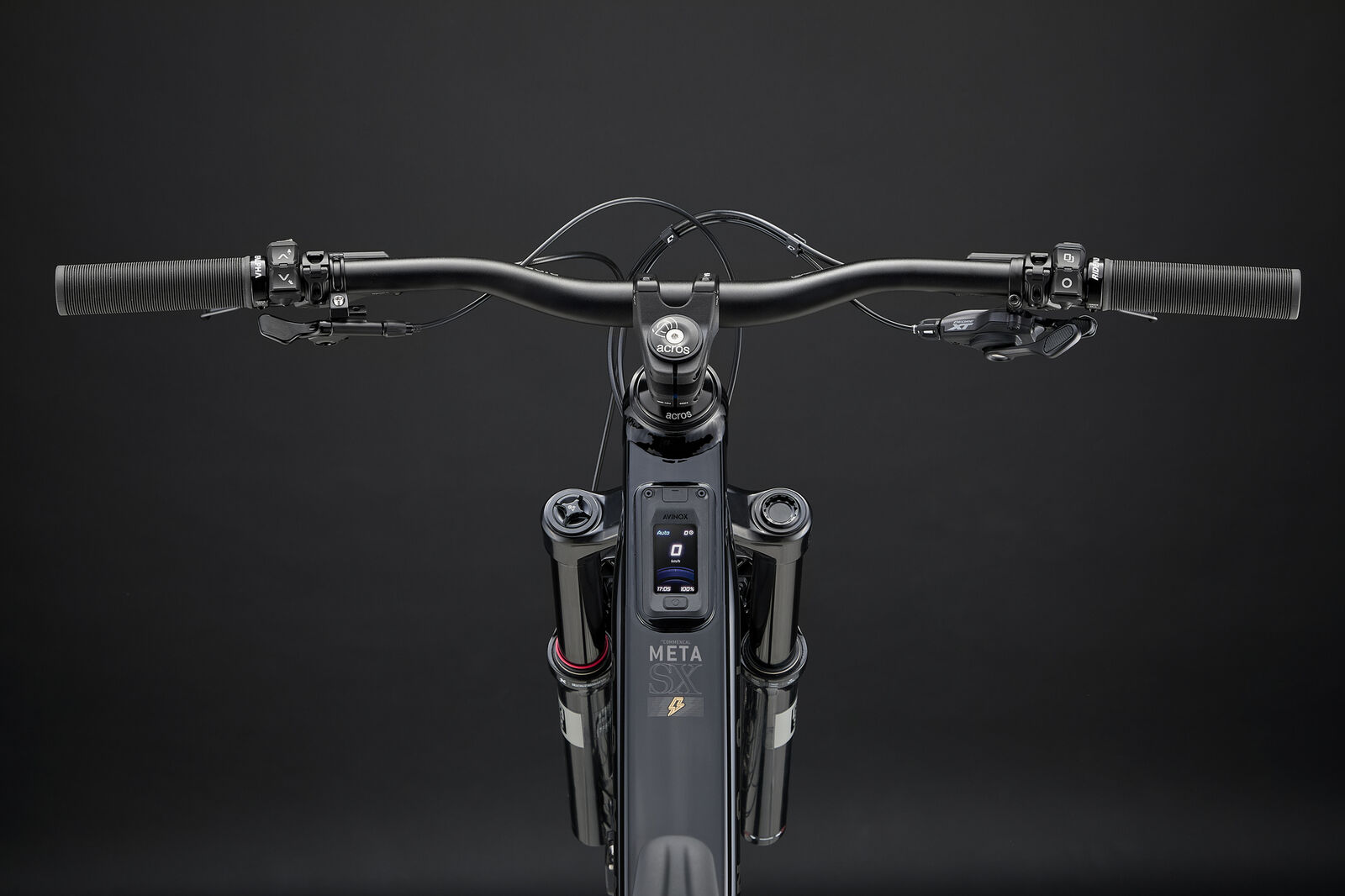

Cockpit
- Stem
- Ride Alpha 40, 40 mm extension, 31.8 mm
- Handlebar
- Ride Alpha R27 760 on S - Ride Alpha R35 780 on M / L - Ride Alpha R35 800 on XL, 31.8 mm, 760 mm width, 27 mm rise, Alloy 7050 on S - 31.8 mm, 780 mm - width, 35 mm rise, Alloy 7050 on M / L - 31.8 mm, 800 mm width, 35 mm rise, Alloy 7050 on XL
- Grips
- Ride Alpha Mushroom, Soft compound, single clamp, black
- Seatpost
- KS 900i, 150 mm on S - 170 mm on M - 190 mm on L/XL
- Saddle
- WTB Solano Crmo, 142 x 240 mm, Medium
- Pedals
- Crankbrothers Stamp 1
Other
- Colour
- Pure Black, Shiny Finish
- Accessories
- RideWrap Lotus Pro™ protection film applied, motor protector, chain stay protector, seat stay protector, fork fender, Fidlock base.
- Weight
- 25 kg / 55,11 lbs, Minimum weight for M size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Meta Power SX Avinox geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| 2Seat Tube Angle | 77.9° | 77.9° | 77.9° | 77.9° |
| 3Head Tube Angle | 64° | 64° | 64° | 64° |
| 4Head Tube Length | 130 mm | 134.5 mm | 140 mm | 140 mm |
| 5Wheelbase | 1236 mm | 1258 mm | 1290.4 mm | 1315.4 mm |
| 6Top Tube Length | 576.6 mm | 597.7 mm | 624.1 mm | 649.1 mm |
| 7Chainstay Length | 445 mm | 445 mm | 450 mm | 450 mm |
| 9Fork Length | 576 mm | 576 mm | 576 mm | 576 mm |
| 10Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| 11Reach | 440 mm | 460 mm | 485 mm | 510 mm |
| 12Stack | 638.3 mm | 642.3 mm | 647.3 mm | 647.3 mm |
Source: Commencal.
Meta Power SX Avinox: builds compared
Meta Power SX Avinox range →| Meta Power SX Avinox Ride | Meta Power SX Avinox Essential | Meta Power SX Avinox RockShox | Meta Power SX Avinox Signature | Meta Power SX Avinox Podium | |
|---|---|---|---|---|---|
| Price | €6,950 | €7,900 | €8,400 | €9,500 | €10,950 |
| Frame | Alloy | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox Domain Gold R, 170 mm travel | Fox 36 Performance 160 mm, 29" | RockShox Zeb Ultimate 170 mm 2027, 29" | Fox 36 Factory 160 mm, 29" | Fox Podium Factory 160 mm, 29" |
| Shock | RockShox Deluxe Select | Fox Float X Performance | RockShox Super Deluxe Select 2027 | Fox Float X Factory | Fox Float X2 Factory |
| Derailleur | Shimano XT LinkGlide | SRAM Eagle 90 T-TYPE | SRAM Eagle 90 | SRAM GX Eagle T-TYPE | SRAM X0 Eagle T-TYPE |
| Brakes | TRP DHR EVO Comp | TRP DH-R EVO PRO | SRAM Maven Base | Shimano XT | Shimano XT |
| Wheels | DT Swiss H 1900, Rear: 27.5" | DT Swiss H 1900, Rear: 27.5" | DT Swiss H 1900, Rear: 27.5" | DT Swiss HX1700, Rear: 27.5" | DT Swiss HX 1700, Rear: 27.5" |
| Display | Avinox DP100 : Integrated and colored touchscreen providing a large range of information : speed | Avinox DP100 : Integrated and colored touchscreen providing a large range of information : speed | Avinox DP100 : Integrated and colored touchscreen providing a large range of information : speed | Avinox DP100 : Integrated and colored touchscreen providing a large range of information : speed | Avinox DP100 : Integrated and colored touchscreen providing a large range of information : speed |
| Weight | 25 kg | 24.7 kg | 26 kg | 24.1 kg | 25 kg |
Meta Power SX Avinox Ride: FAQ
How much does the Commencal Meta Power SX Avinox Ride cost?
€6,950 (RRP France (commencal.com EU store), VAT incl.). The Meta Power SX Avinox range runs from €6,950 (Meta Power SX Avinox Ride) to €10,950 (Meta Power SX Avinox Podium). Prices vary by country and dealer.
How much does the Commencal Meta Power SX Avinox Ride weigh?
Commencal quotes 25 kg. The lightest Meta Power SX Avinox build is the Meta Power SX Avinox Signature at 24.1 kg.
What motor and battery does the Commencal Meta Power SX Avinox Ride have?
DJI Avinox M2S (150 Nm (boost mode); 1,300 W). 800 Wh battery — dJI Avinox integrated battery; 600 Wh on size S.
How much suspension travel does the Commencal Meta Power SX Avinox Ride have?
170 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Commencal Meta Power SX Avinox Ride come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Meta Power SX Avinox Ride and the Meta Power SX Avinox Essential?
They share the Meta Power SX Avinox frame platform and motor; the differences are in the parts — fork: RockShox Domain Gold R vs Fox 36 Performance 160 mm; shock: RockShox Deluxe Select vs Fox Float X Performance; derailleur: Shimano XT LinkGlide vs SRAM Eagle 90 T-TYPE; claimed weight: 25 kg vs 24.7 kg; price: €6,950 vs €7,900.
