CommencalMeta Power TR Bosch Ride
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 625 WhBosch PowerTube 625; PowerMore 250 range extender compatible
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 24.5 kgManufacturer figure (average weight, size S, without pedals)
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
At €5,800 the Meta Power TR Ride is the cheapest TR: Bosch CX (85 Nm), 625 Wh, RockShox 35 Gold fork, Deluxe Select+ shock, SRAM SX and G2 brakes. Claimed 24.5 kg.
The Meta Power TR Bosch Ride is one of 5 builds of the Commencal Meta Power TR. About the Meta Power TR range and all its builds →

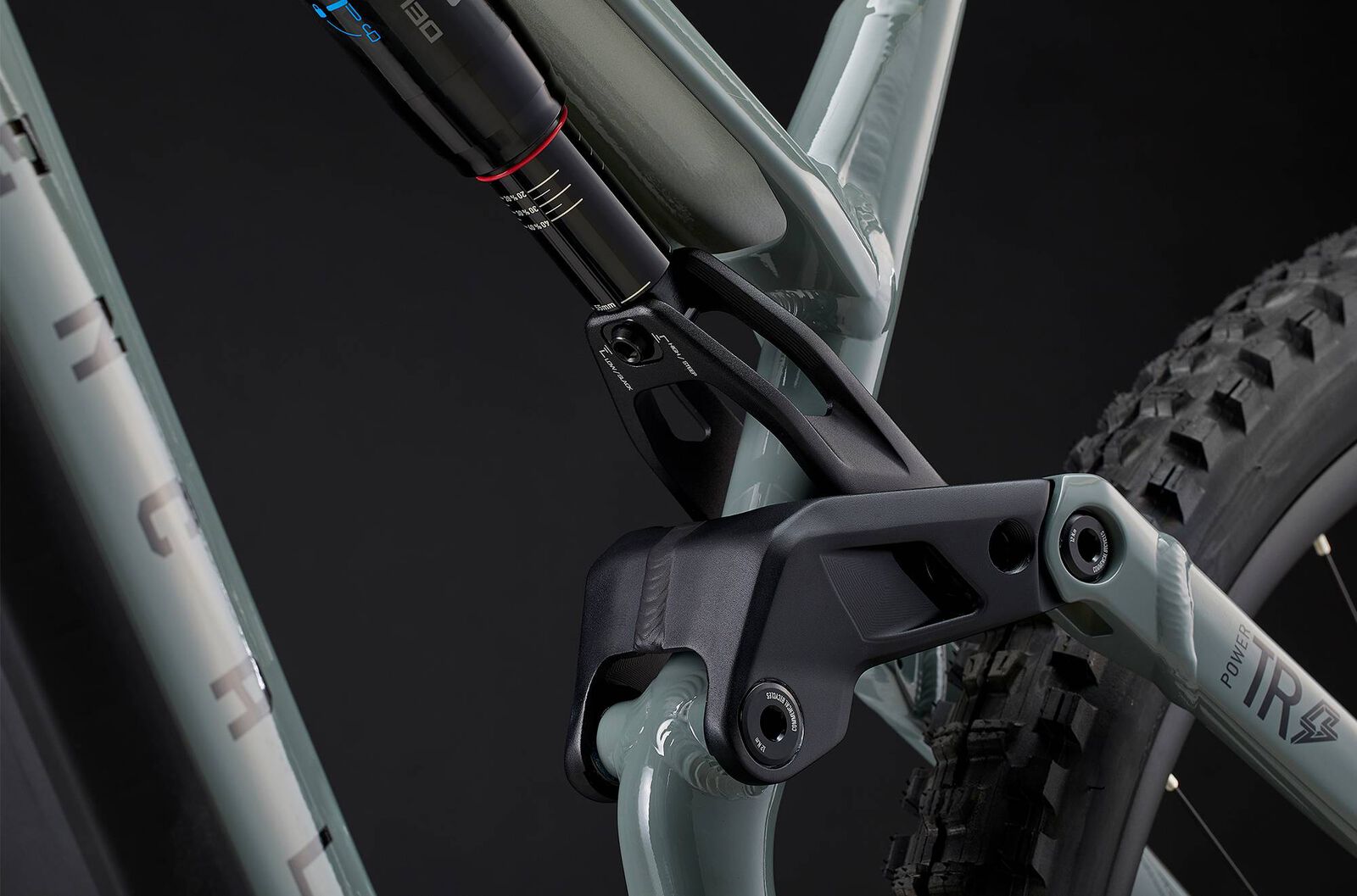

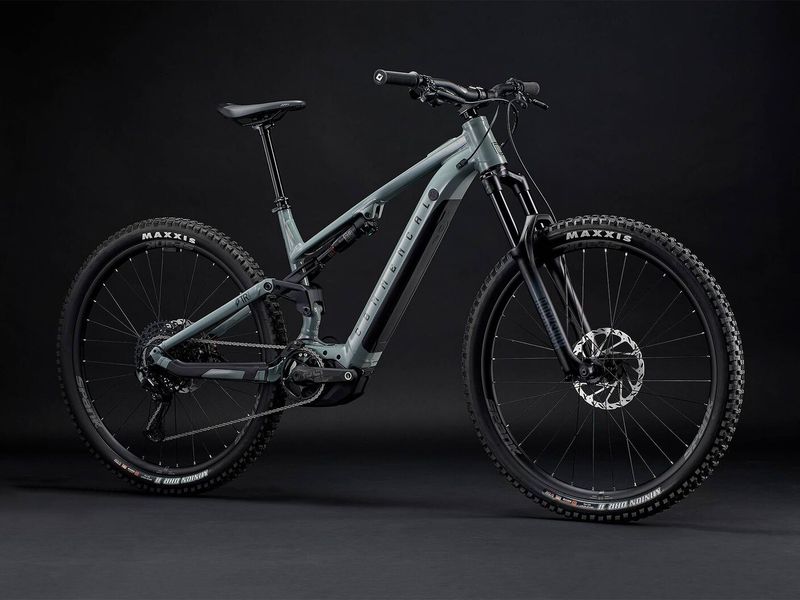

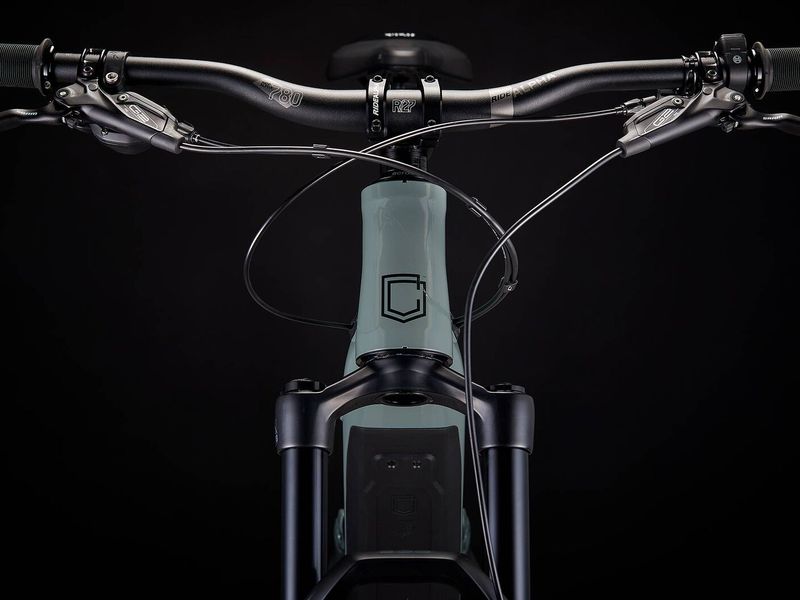

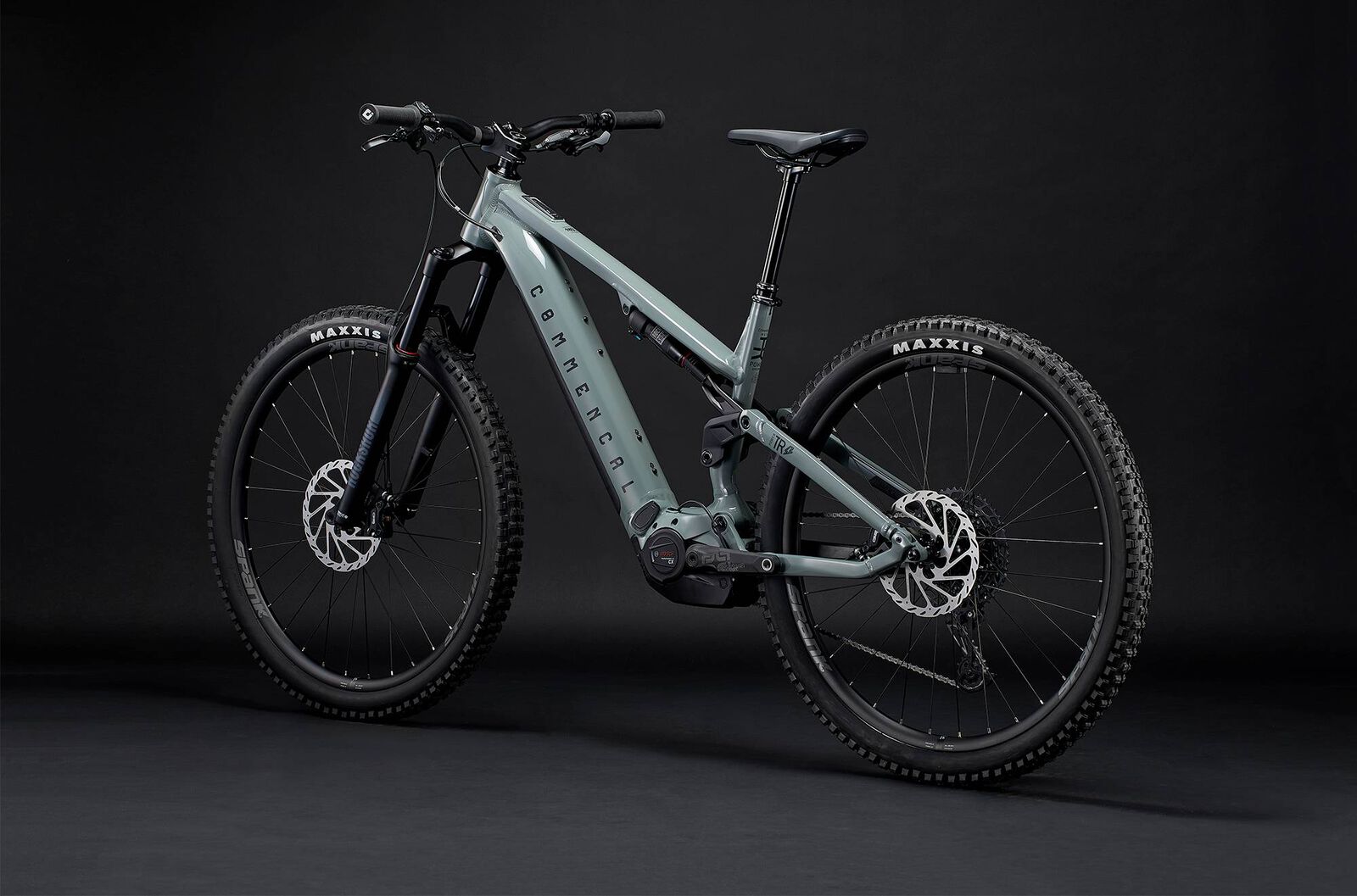

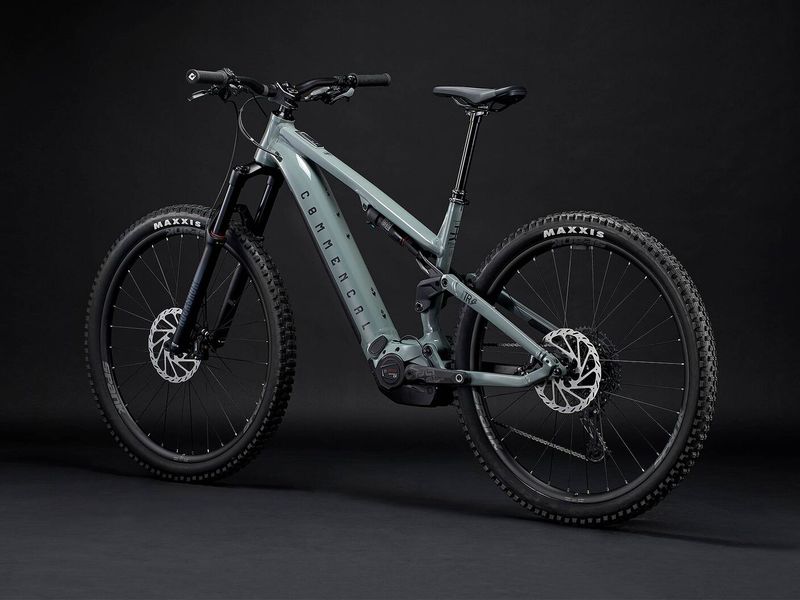

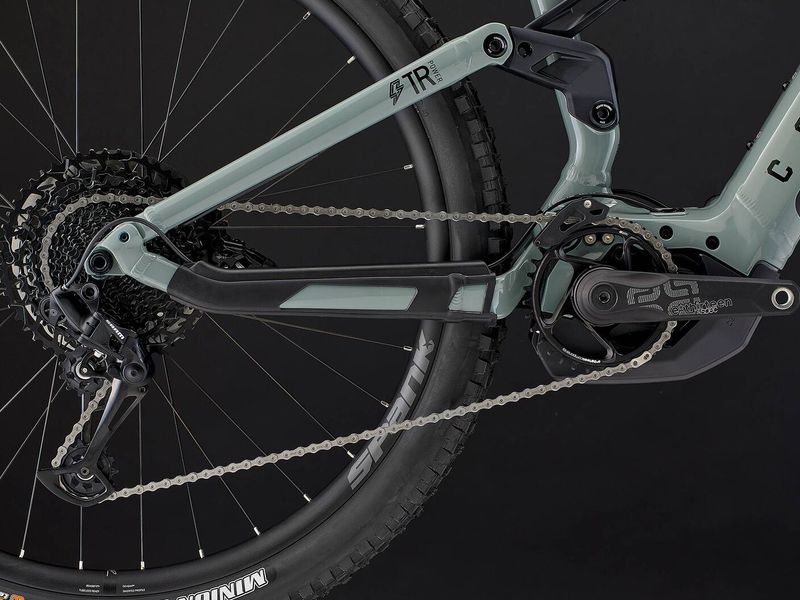

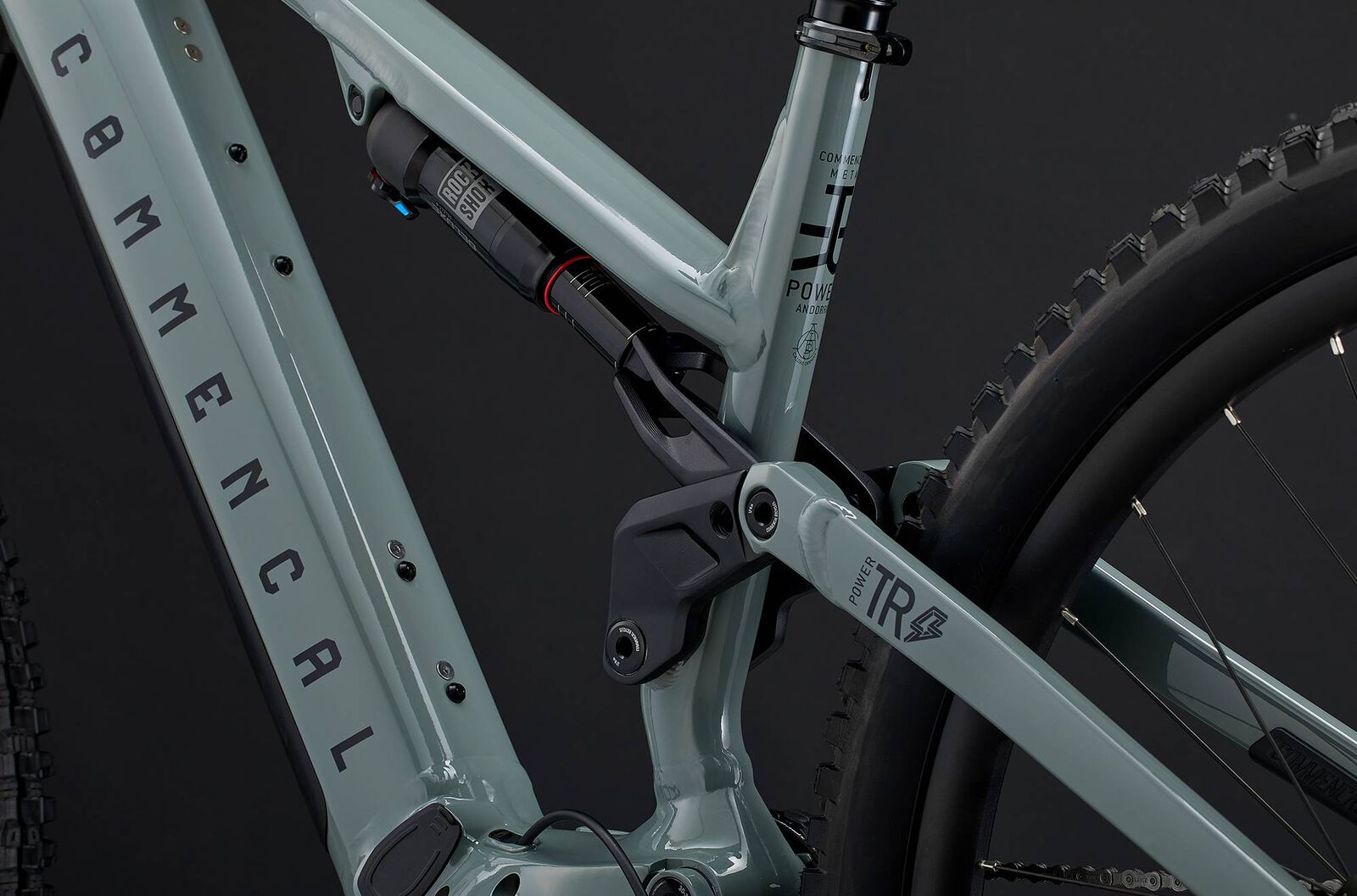

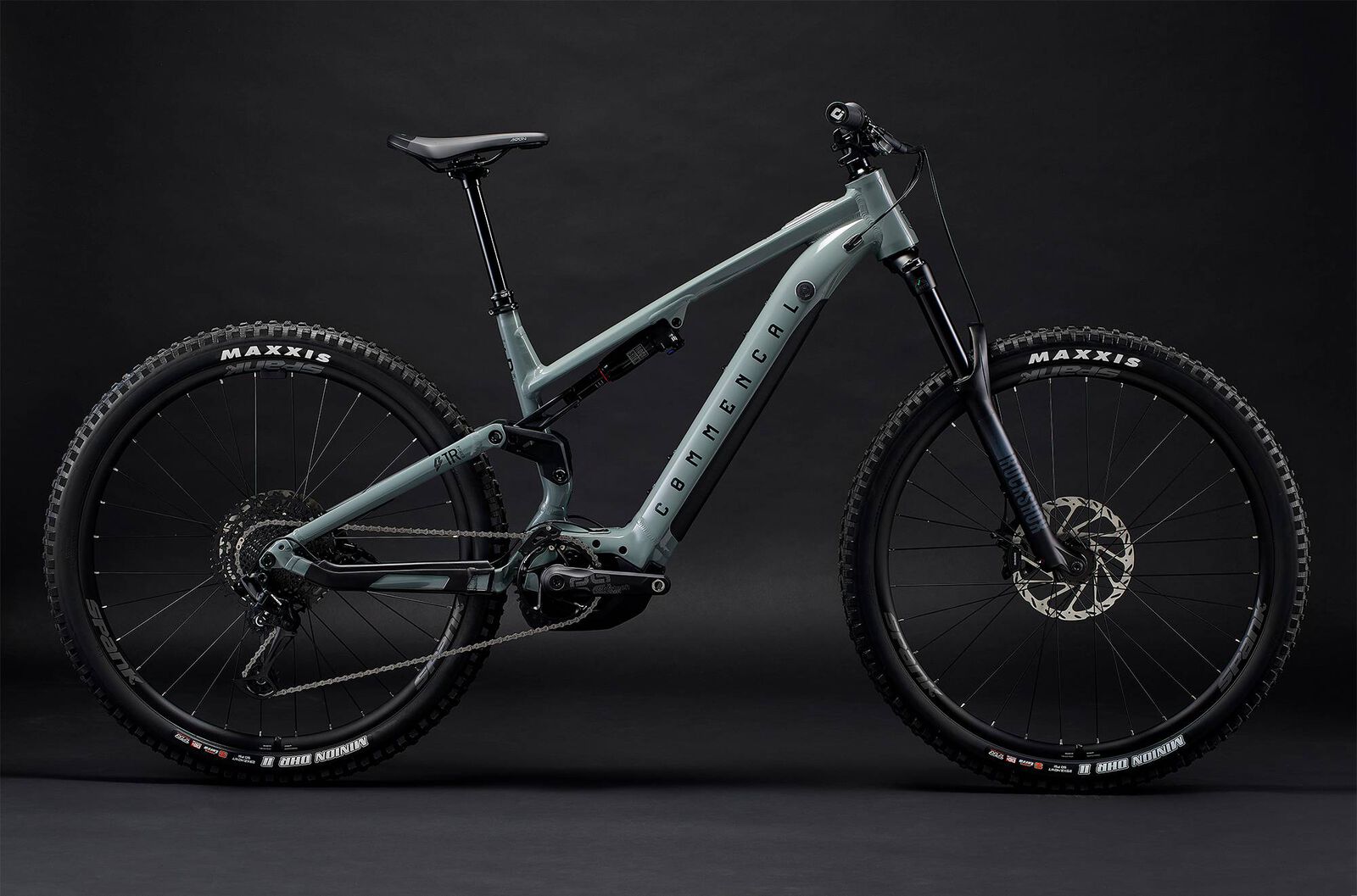

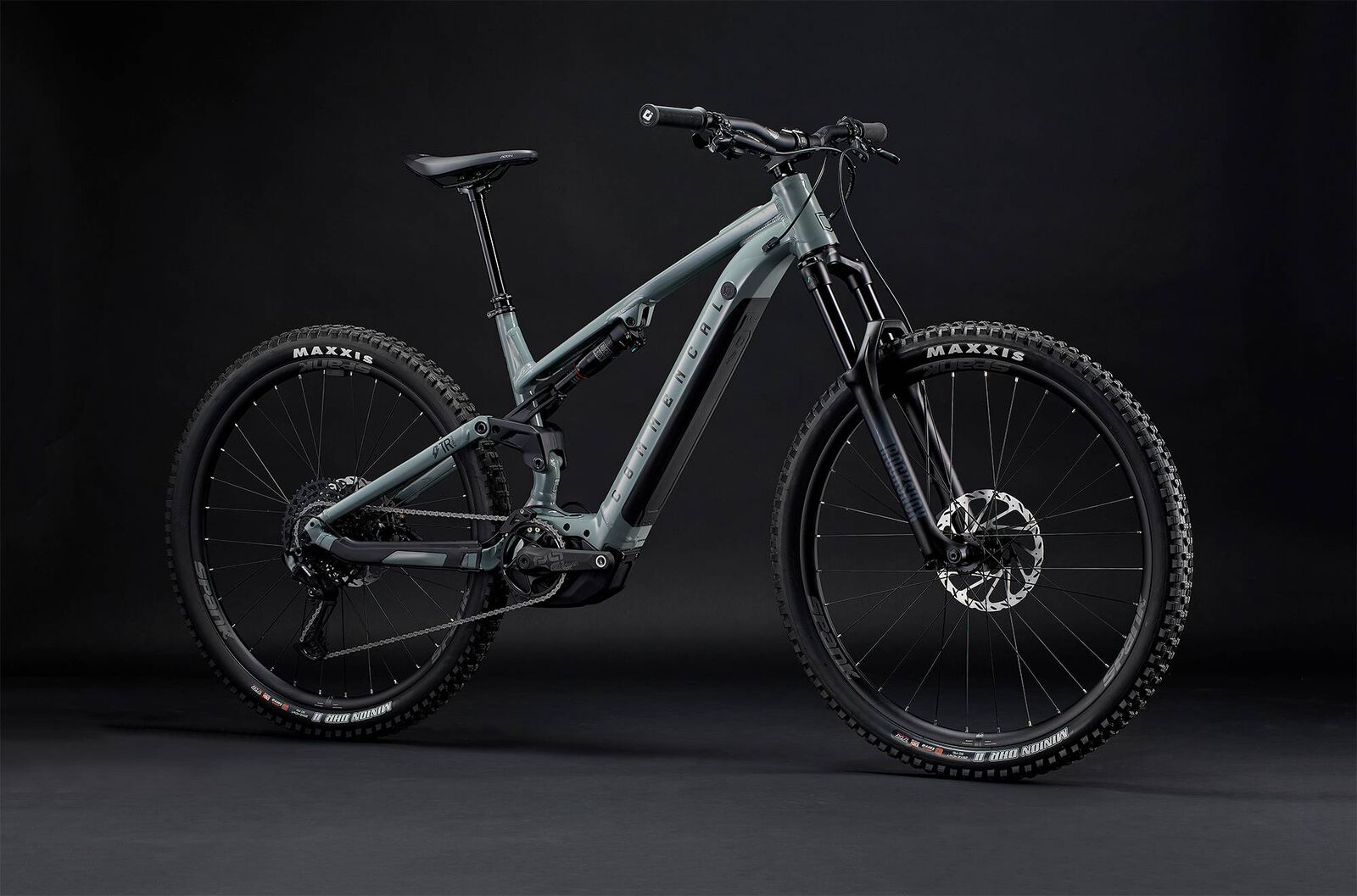

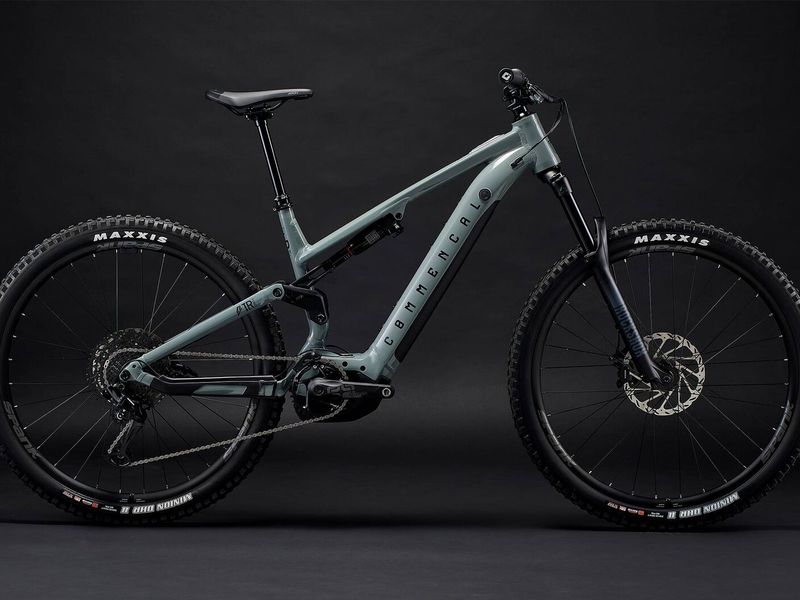

Gallery
Photos: Commencal
Full specifications
Frame & suspension
- Frame
- Meta Power TR V4, 140 mm, 29", Alloy 6066, triple butted tubes, T4, T6.

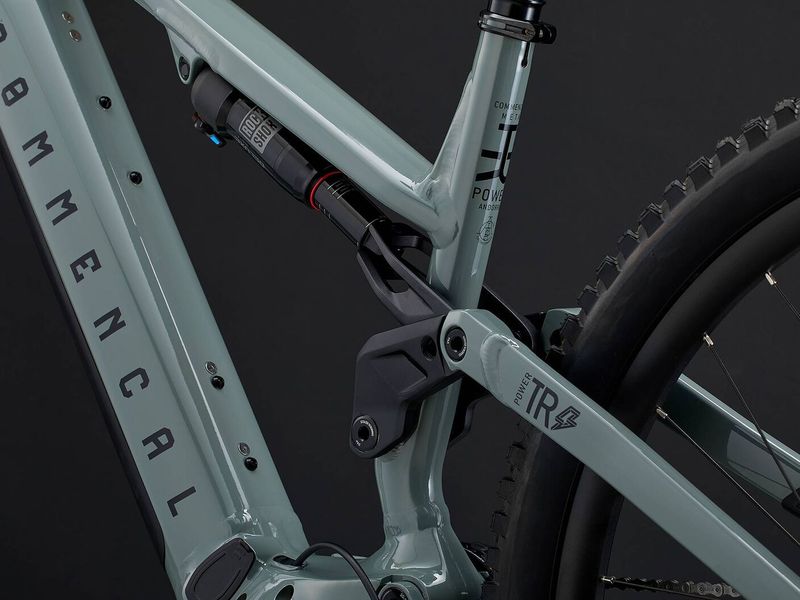

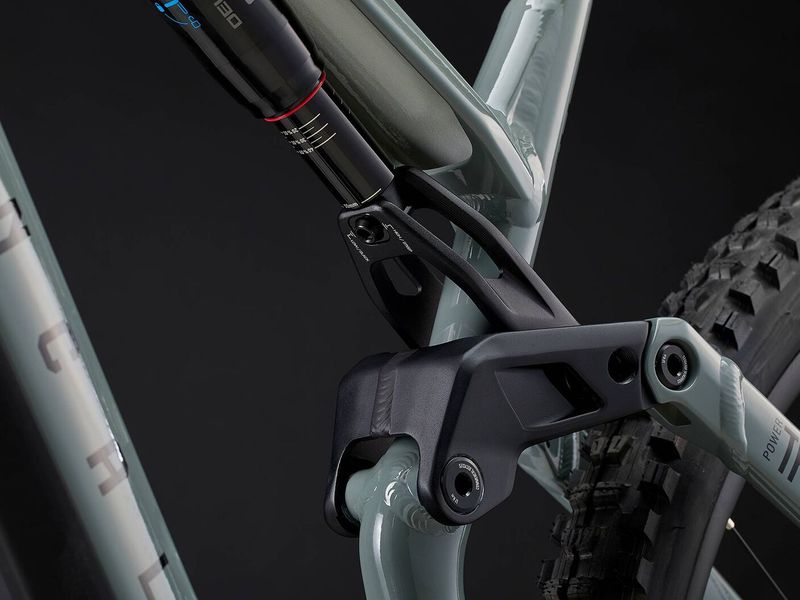

- Rear shock
- RockShox Deluxe Select +, 210 x 55 mm, RT damper, DebonAir, rebound, 2 position compression (open/firm), 1 Token neg. 4 Token pos.
- Fork
- RockShox 35 Gold RL, 150 mm travel, 29", Motion Control damper, DebonAir, rebound, LSC to lock, (Boost 15 x 110 mm), 44 mm offset, 0 Token
- Headset
- Acros ZS56 / ZS66, Alloy cups, sealed bearings
- Frame weight
- 4,1 kg / 9.03 lb
E-system
- Motor
- Bosch Performance Line CX, Max. torque: 85N.m, 250W
- Battery
- Bosch PowerTube 625, 625Wh, Bosch 4A Charger, Compact size & lightweight, Compatible w/Bosch PowerMore 250 for extra range
- Display
- Bosch System Controller, Bosch Mini Remote currently not available in the USA

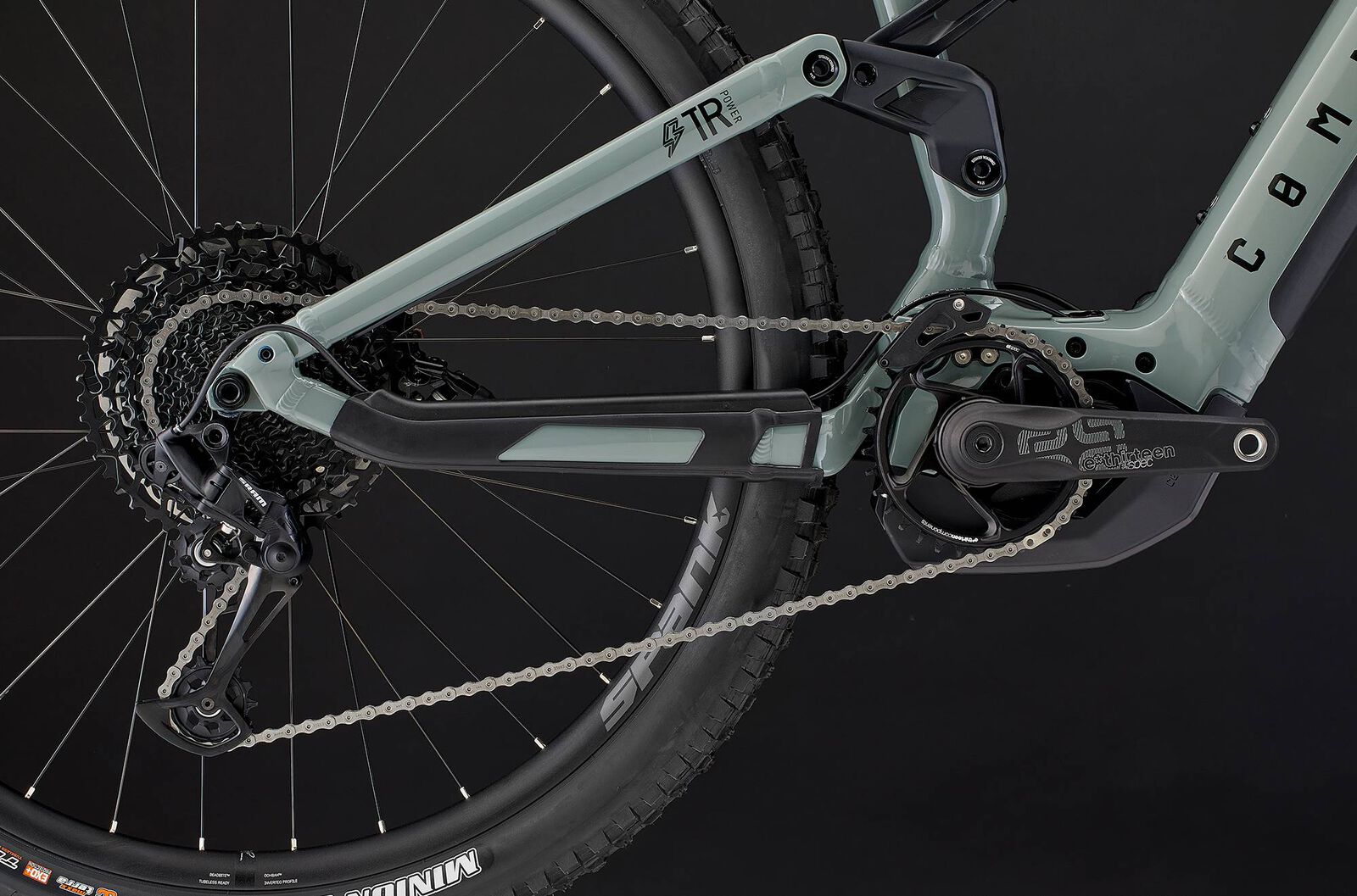

Drivetrain
- Shifters
- SRAM SX Eagle, 12s
- Chain guide
- Ride Alpha Upper Guide, 32-34t
- Rear derailleur
- SRAM SX Eagle, 12s
- Crankset
- E13 E*Spec Plus Bosch CX, 160 mm crank arms, Chainring: E13 E*Spec Plus Bosch CX, 34t, direct mount
- Chain
- SRAM NX Eagle, 12s
- Cassette
- SRAM PG-1210, 12s, 11-50t
Brakes
- Brakes
- SRAM G2 RE, 4 pistons, steel-backed metal sintered pads, Rotors: SRAM G2 200 mm, 6-bolt
Wheels & tyres
- Rims
- Rear: Spank Spike Race 33 - Front: Spank Spike Race 33, Rear: 29", 32h, 28 mm inner width - Front: 29", 32h, 28 mm inner width
- Hubs
- Rear: Formula eHL-148S - Front: Formula DC-711, Rear: 32h, 12 x 148 mm, sealed bearings, e-bike specific, Shimano Hyperglide - Front: 32h, 15 x 110 mm, sealed bearings
- Spokes
- Sapim Strong, J-Bend, 2.34/2.0mm, double butted, stainless, with Nylok, black
- Tyres
- Rear: Maxxis DHR II - Front: Maxxis DHR II, Rear: 29" x 2.4" WT, 3C Maxx Terra, Exo+, Tubeless Ready - Front: 29" x 2.4" WT, 3C Maxx Terra, Exo+, Tubeless Ready
Cockpit
- Stem
- Ride Alpha 40 External, 40 mm extension, 31,8 mm

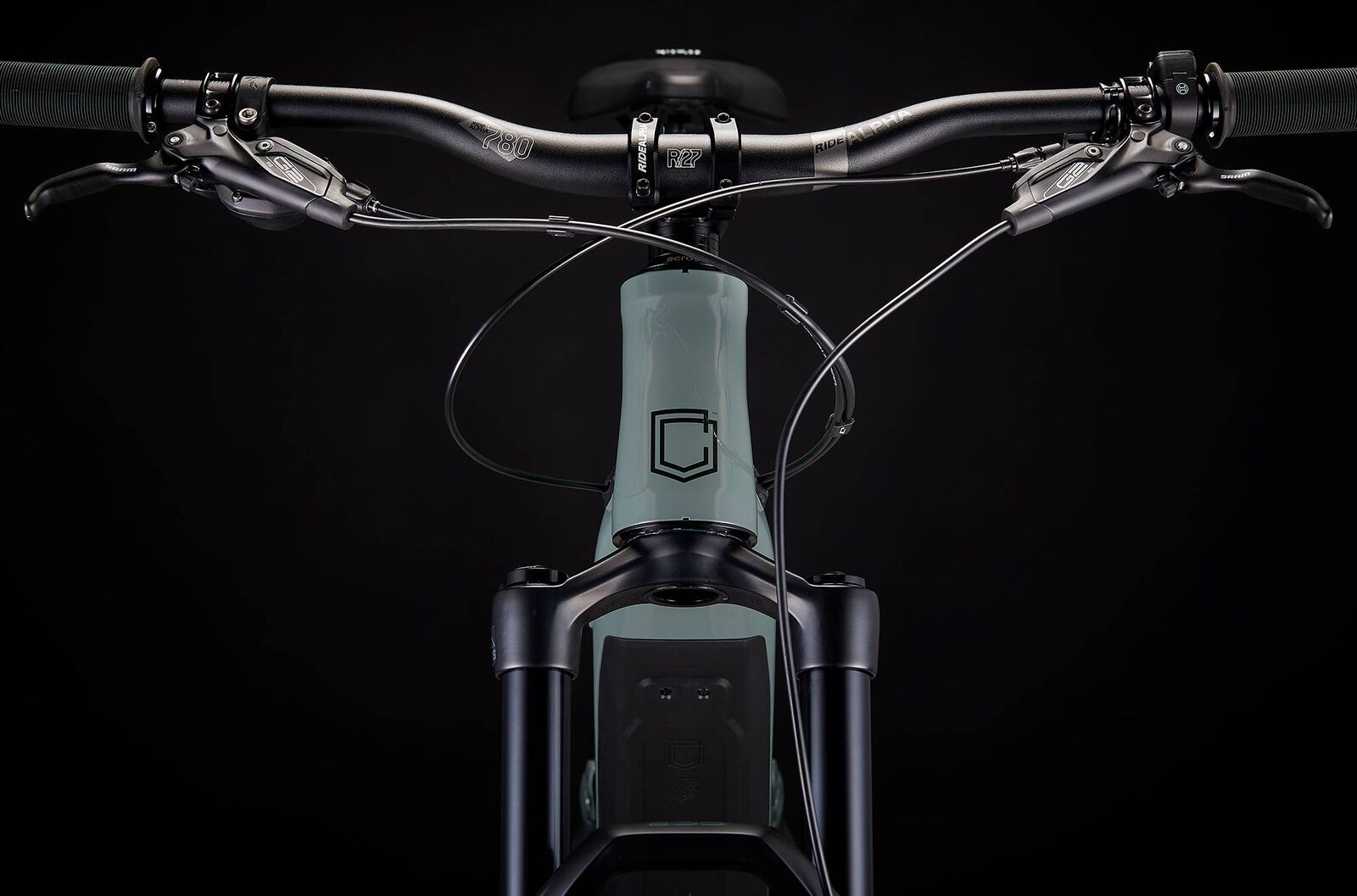

- Handlebar
- Ride Alpha R20 POWER on S - Ride Alpha R27 POWER on M / L / XL, Internal Di2 cable routing - 31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL
- Grips
- ODI Longneck, Soft compound, single clamp, black
- Seatpost
- KS Rage I, 31.6 mm, travel: 125 mm on S, 170 mm on M/L, 190 mm on XL, SouthPaw alloy remote
- Saddle
- Fizik Terra Aidon X5, 145 mm width, S-Alloy Mobius rails
- Pedals
- Ride Alpha CNC
Other
- Colour
- Pyrite Grey, Shiny finish
- Accessories
- Motor protector, chainstay protector, seatstay protector
- Weight
- 24.5 kg / 54 lb, Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Meta Power TR geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| 2Seat Tube Angle | 77.1° / 77.5° | 77.1° / 77.5° | 77.1° / 77.5° | 77.1° / 77.5° |
| 3Head Tube Angle | 64.1° / 64.5° | 64.1° / 64.5° | 64.1° / 64.5° | 64.1° / 64.5° |
| 4Head Tube Length | 120 mm | 125 mm | 130 mm | 130 mm |
| 5Wheelbase | 1231 / 1230 mm | 1253 / 1252 mm | 1280 / 1279 mm | 1305 / 1304 mm |
| 6Top Tube Length | 580 / 579 mm | 601 / 600 mm | 627 / 626 mm | 652 / 651 mm |
| 7Chainstay Length | 454 / 453 mm | 454 / 453 mm | 454 / 453 mm | 454 / 453 mm |
| 8BB drop | 25.5 / 21 mm | 25.5 / 21 mm | 25.5 / 21 mm | 25.5 / 21 mm |
| 9Fork Length | 566 mm | 566 mm | 566 mm | 566 mm |
| 10Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| 11Reach | 436 / 440 mm | 456 / 460 mm | 481 / 485 mm | 506 / 510 mm |
| 12Stack | 607 / 604 mm | 612 / 609 mm | 616 / 613 mm | 616 / 613 mm |
Where two values are given: Low / High geometry position. Source: Commencal.
Meta Power TR: builds compared
Meta Power TR range →| Meta Power TR Bosch Ride | Meta Power TR Bosch Essential | Meta Power TR Bosch Race | Meta Power TR Bosch Öhlins Edition | Meta Power TR Bosch Limited | |
|---|---|---|---|---|---|
| Price | €5,800 | €6,800 | €7,500 | €8,000 | €8,200 |
| Frame | Alloy | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox 35 Gold RL, 150 mm travel | Fox 36 Performance E-Bike, 150 mm travel | RockShox Lyrik Ultimate, 160 mm travel | Öhlins RXF36 m.2 Air, 150 mm travel | Fox 36 Factory, 160 mm travel |
| Shock | RockShox Deluxe Select + | Fox Float DPS Performance | RockShox Super Deluxe Coil Ultimate | Öhlins TTX22 Air | Fox Float X2 Factory |
| Derailleur | SRAM SX Eagle | Shimano SLX | SRAM GX Eagle | Shimano Deore XT | Shimano Deore XT |
| Brakes | SRAM G2 RE | Shimano SLX | TRP DH-R Evo | Shimano XT | Shimano XT M8120 |
| Wheels | Rear: Spank Spike Race 33 - Front: Spank Spike Race 33, Rear: 29" | Rear: DT Swiss H1900 Spline - Front: DT Swiss H1900 Spline, Rear: 29" | Rear: DT Swiss HX1700 Spline - Front: DT Swiss HX1700 Spline, Rear: 29" | Rear: DT Swiss HX1700 Spline - Front: DT Swiss HX1700 Spline, Rear: 29" | DT Swiss XM1700 Spline, 29" |
| Display | Bosch System Controller | Bosch System Controller | Bosch System Controller | Bosch System Controller | Bosch System Controller |
| Weight | 24.5 kg | 24.4 kg | 24.3 kg | 23.8 kg | 23.8 kg |
Meta Power TR Bosch Ride: FAQ
What is the difference between the Meta Power TR Bosch Ride and the Meta Power TR Bosch Essential?
They share the Meta Power TR frame platform and motor; the differences are in the parts: fork: RockShox 35 Gold RL vs Fox 36 Performance E-Bike; shock: RockShox Deluxe Select + vs Fox Float DPS Performance; derailleur: SRAM SX Eagle vs Shimano SLX; claimed weight: 24.5 kg vs 24.4 kg; price: €5,800 vs €6,800.
