CommencalMeta Power TR Bosch Limited
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 625 WhBosch PowerTube 625; PowerMore 250 range extender compatible
- Travel F / R
- 160 / 140 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 23.8 kgManufacturer figure (average weight, size S, without pedals)
Overview
The Commencal Meta Power TR Bosch Limited (€8,200) is the top build of the Meta Power TR: Bosch Performance Line CX (85 Nm) with 625 Wh, Fox 36 Factory fork, Fox Float X2 Factory shock, Shimano Deore XT and Shimano XT M8120 brakes. Claimed weight is 23.8 kg.
The Meta Power TR V4 is the all-mountain e-MTB that Commencal calls its most versatile e-bike: 140 mm of rear travel, 150 or 160 mm forks depending on build and 29-inch wheels on a triple-butted 6066 alloy frame (claimed 4.1 kg).
It uses the Bosch Performance Line CX motor (85 Nm) with a 625 Wh PowerTube battery that works with the Bosch PowerMore 250 range extender. The frame offers Low and High geometry positions, and claimed weights are 23.8 to 24.5 kg (size S average).
- Bosch Performance Line CX, 85 Nm
- 625 Wh battery, PowerMore 250 option
- 140 mm rear / 150-160 mm fork, 29-inch
- Low / High geometry positions

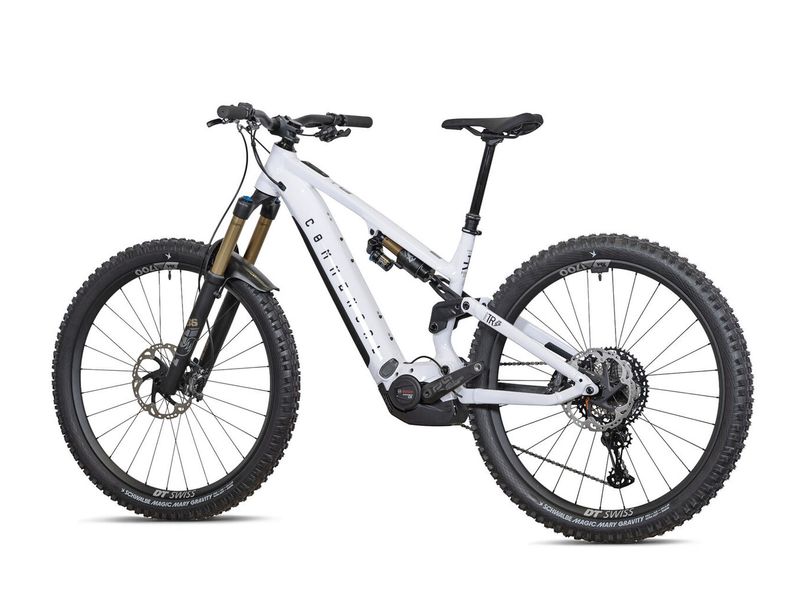

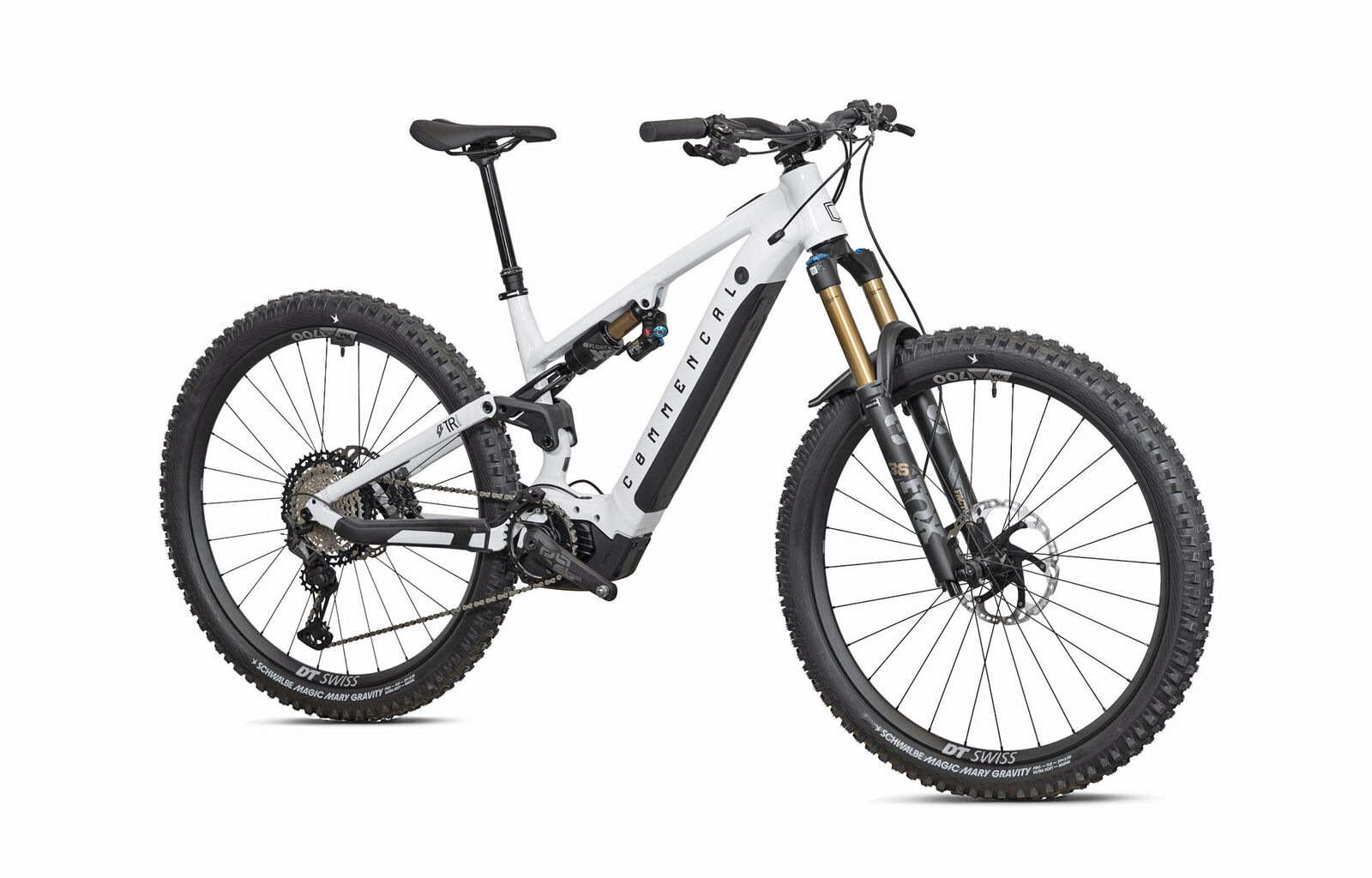

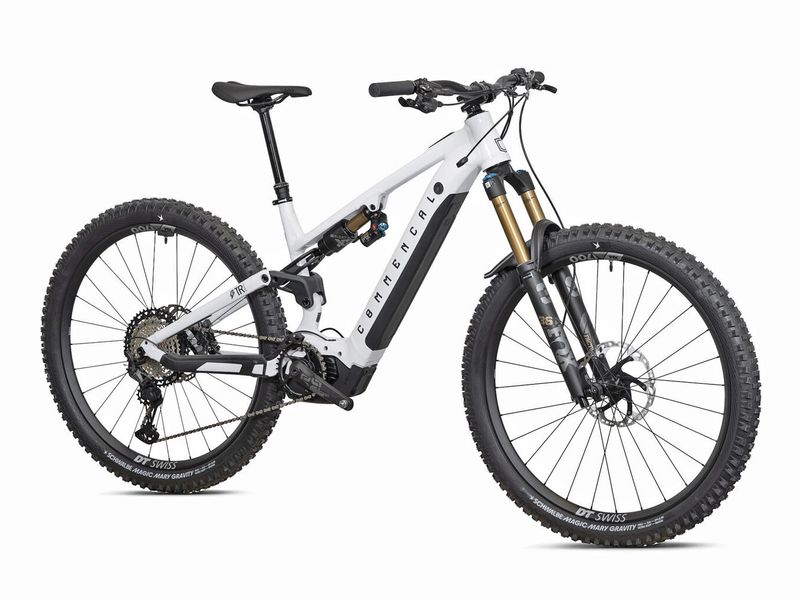

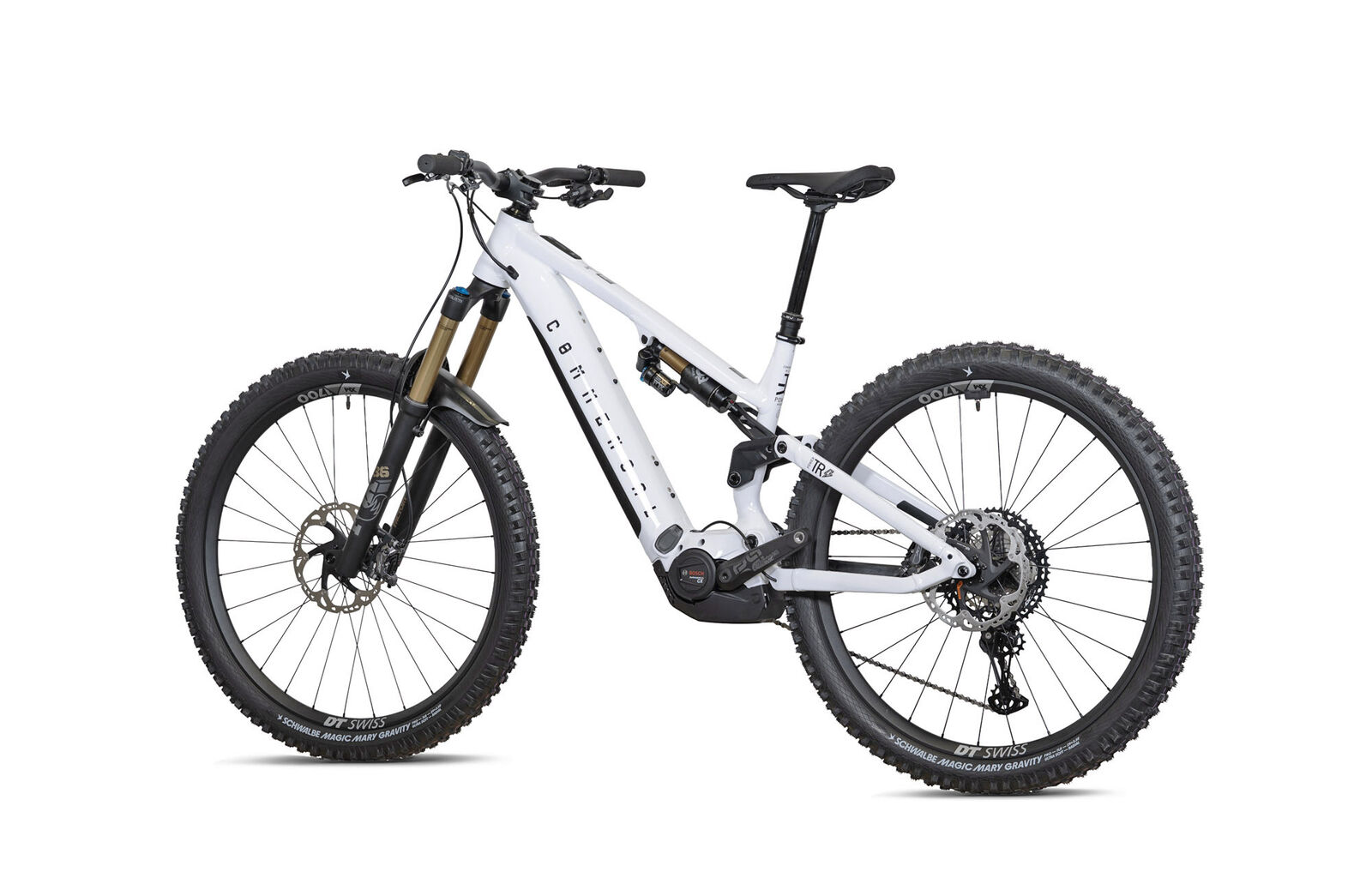

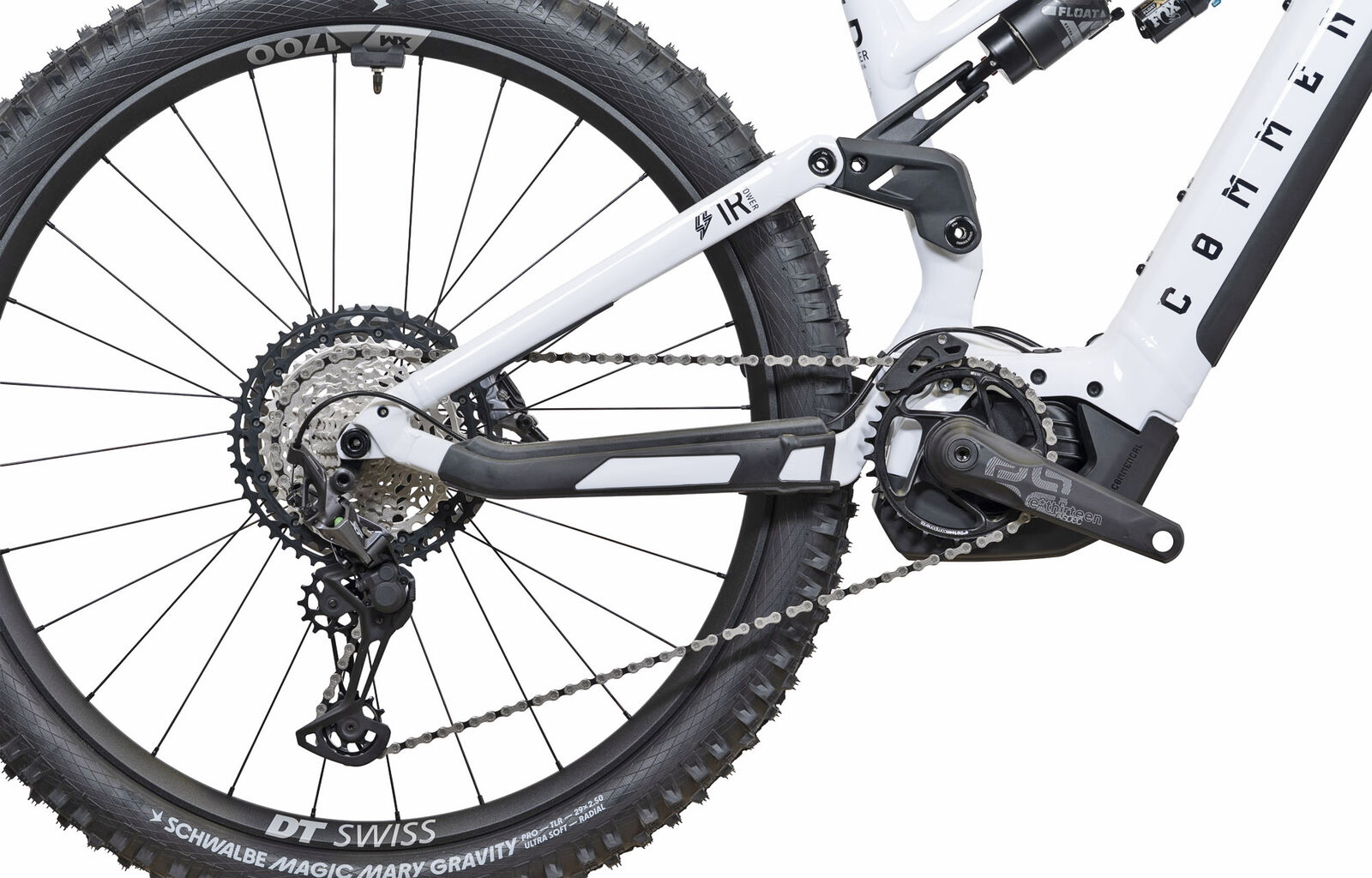

Gallery
Photos: Commencal
Full specifications
Frame & suspension
- Frame
- Meta Power TR V4, 140 mm, 29", Alloy 6066, triple butted tubes, T4, T6.

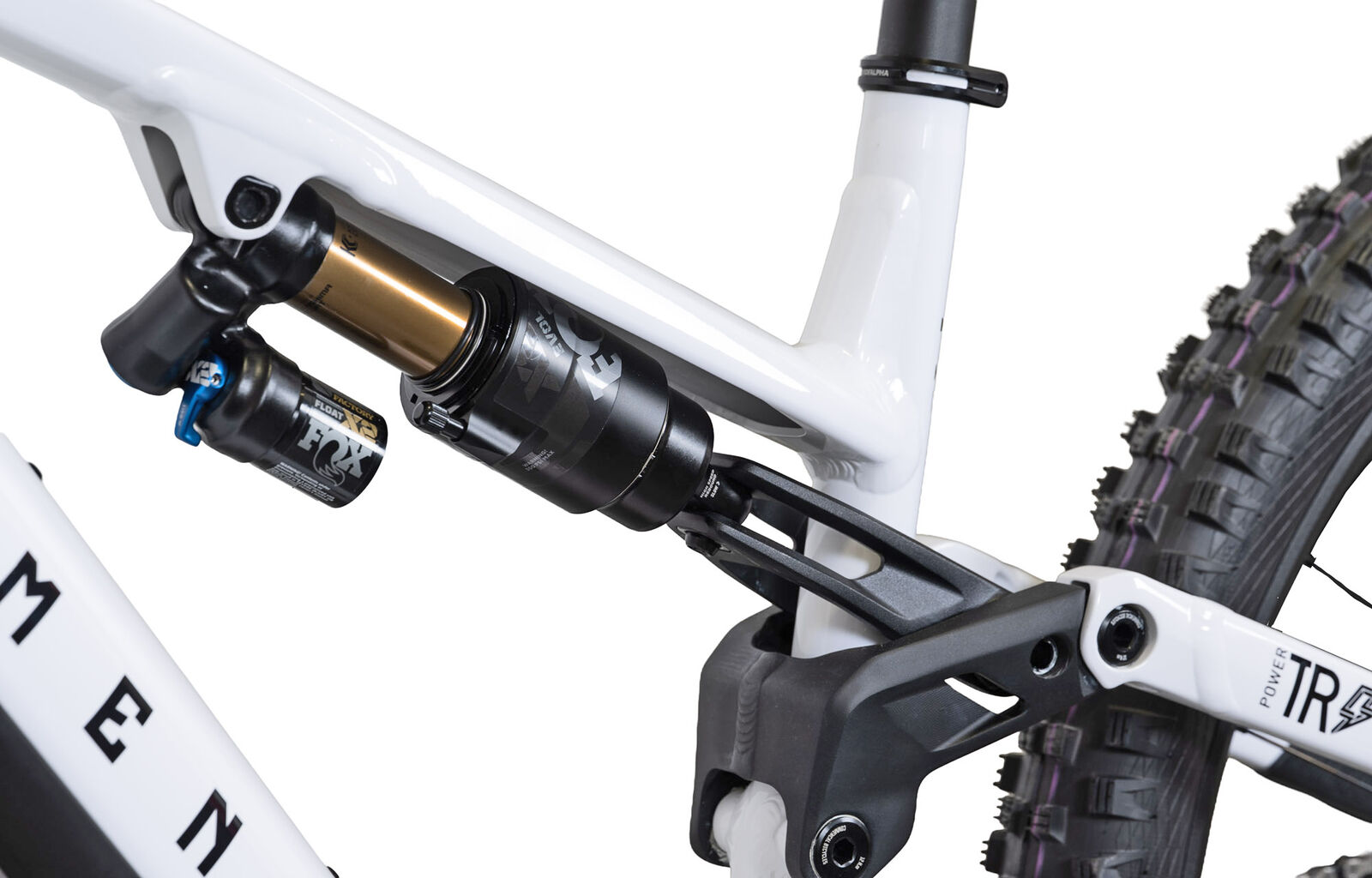

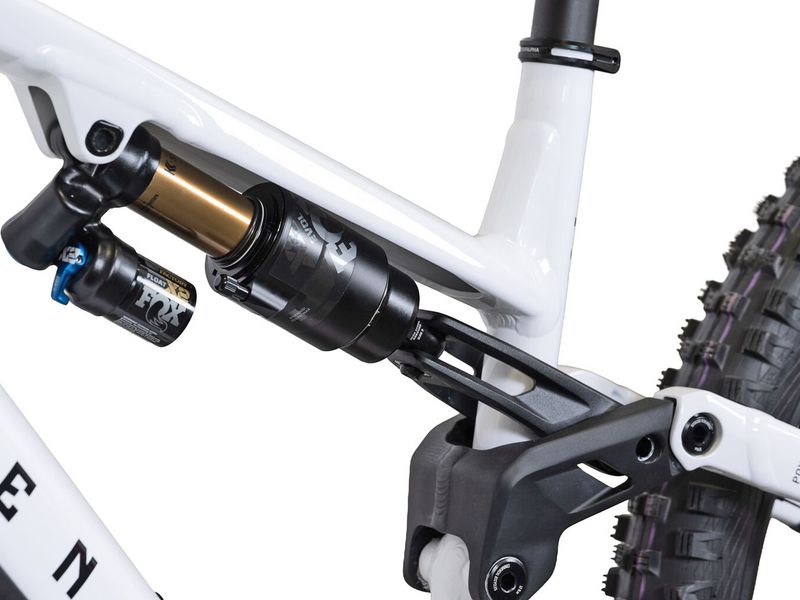

- Rear shock
- Fox Float X2 Factory, 210 x 55 mm, HSC, LSC, HSR, LSR, 2-position adjustment
- Fork
- Fox 36 Factory, 160 mm travel, 29", Grip 2 damper, HSC, LSC, HSR, LSR, Boost (15 x 110 mm), 44 mm offset, 1 spacer
- Headset
- Acros ZS56 / ZS66, Alloy cups, sealed bearings
- Frame weight
- 4,1 kg / 9.03 lb
E-system
- Motor
- Bosch Performance Line CX Gen 4, Max. torque: 85N.m, 250W
- Battery
- Bosch PowerTube 625, 625Wh, Bosch 4A Charger, Compact size & lightweight, Compatible w/Bosch PowerMore 250 for extra range
- Display
- Bosch System Controller, Bosch Mini Remote currently not available in the USA

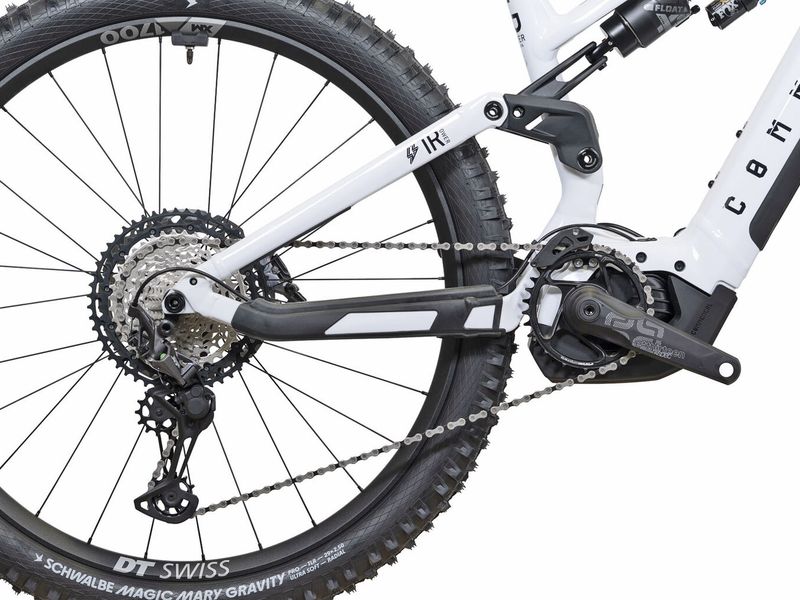

Drivetrain
- Shifters
- Shimano Deore XT, 12s
- Chain guide
- Ride Alpha, 32-34t
- Rear derailleur
- Shimano Deore XT, 12s
- Crankset
- E13 E*Spec, Plus Bosch CX, 160 mm crank arms, Chainring : E13 E*Spec, Plus Bosch CX, 34t, direct mount
- Chain
- Shimano Deore XT, 12s
- Cassette
- Shimano Deore XT, 12s, 10-51t
Brakes
- Brakes
- Shimano XT M8120, 4 pistons, I-Spec EV compatible, Rotors : Shimano SM-RT86, 203 mm, 6 holes
Wheels & tyres
- Rims
- DT Swiss XM1700 Spline, 29", 28h, 30 mm inner width
- Hubs
- DT Swiss 350, Rear : 28h, 12 x 148 mm, sealed bearings - Front : 28h, 15 x 110 mm, sealed bearings
- Spokes
- DT Swiss Hybrid 1, Straightpull, 2.34/2.0mm, double butted, stainless, with ProLock, black
- Tyres
- Schwalbe Magic Mary, Rear : 29x2.50 Gravity Pro Radial Addix Ultra Soft - Front : 29x2.50 Gravity Pro Radial Addix Soft
Cockpit
- Stem
- Ride Alpha 40 mm, 40 mm extension, 31,8 mm

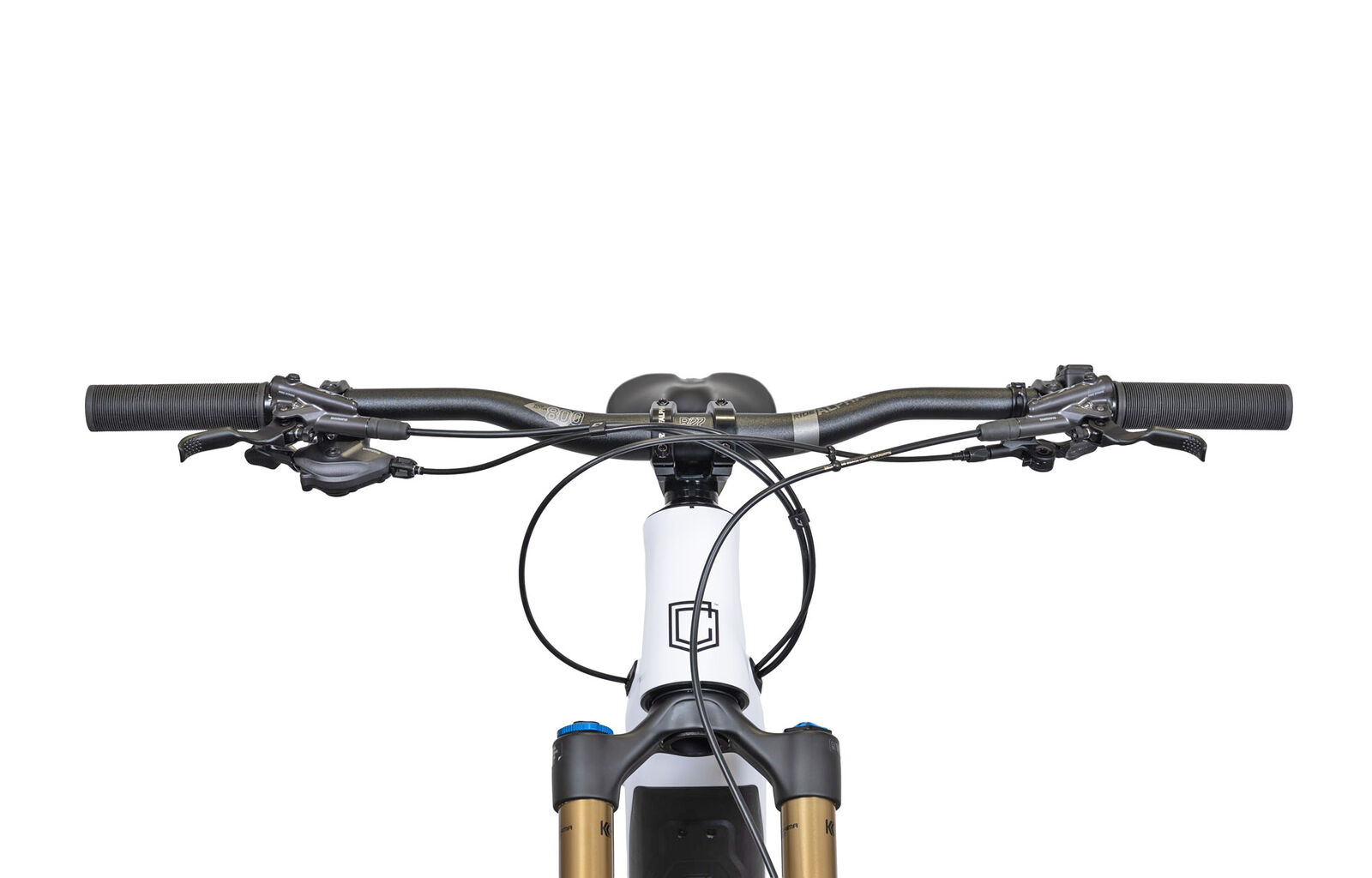

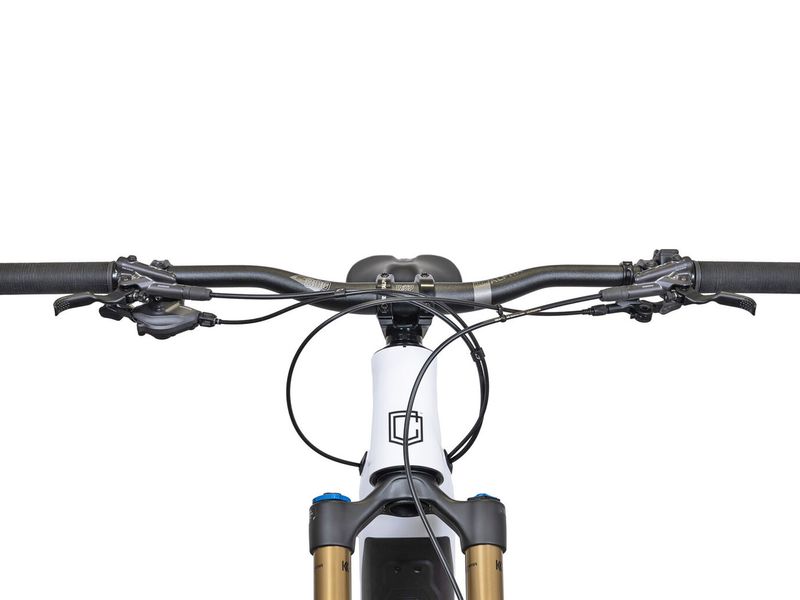

- Handlebar
- Ride Alpha R27 800, 800 mm width, 27 mm rise, Alloy
- Grips
- Ride Alpha Mushroom, Soft compound, single clamp, black
- Seatpost
- KS Lev Integra, 31.6 mm, 175 mm
- Saddle
- SDG Bel Air, Bel air V3 Lux Alloy
- Pedals
- No
Other
- Colour
- Pure White, Shiny Finish
- Accessories
- Down tube protector, chainstay protector, seatstay protector, Fox 36 specific fender
- Weight
- 23.8 kg / 52.5 lb, Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Meta Power TR geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| 1Seat Tube Length | 380 mm | 420 mm | 440 mm | 460 mm |
| 2Seat Tube Angle | 77.1° / 77.5° | 77.1° / 77.5° | 77.1° / 77.5° | 77.1° / 77.5° |
| 3Head Tube Angle | 64.1° / 64.5° | 64.1° / 64.5° | 64.1° / 64.5° | 64.1° / 64.5° |
| 4Head Tube Length | 120 mm | 125 mm | 130 mm | 130 mm |
| 5Wheelbase | 1231 / 1230 mm | 1253 / 1252 mm | 1280 / 1279 mm | 1305 / 1304 mm |
| 6Top Tube Length | 580 / 579 mm | 601 / 600 mm | 627 / 626 mm | 652 / 651 mm |
| 7Chainstay Length | 454 / 453 mm | 454 / 453 mm | 454 / 453 mm | 454 / 453 mm |
| 8BB drop | 25.5 / 21 mm | 25.5 / 21 mm | 25.5 / 21 mm | 25.5 / 21 mm |
| 9Fork Length | 566 mm | 566 mm | 566 mm | 566 mm |
| 10Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
| 11Reach | 436 / 440 mm | 456 / 460 mm | 481 / 485 mm | 506 / 510 mm |
| 12Stack | 607 / 604 mm | 612 / 609 mm | 616 / 613 mm | 616 / 613 mm |
Where two values are given: Low / High geometry position. Source: Commencal.
Meta Power TR: builds compared
Meta Power TR range →| Meta Power TR Bosch Ride | Meta Power TR Bosch Essential | Meta Power TR Bosch Race | Meta Power TR Bosch Öhlins Edition | Meta Power TR Bosch Limited | |
|---|---|---|---|---|---|
| Price | €5,800 | €6,800 | €7,500 | €8,000 | €8,200 |
| Frame | Alloy | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox 35 Gold RL, 150 mm travel | Fox 36 Performance E-Bike, 150 mm travel | RockShox Lyrik Ultimate, 160 mm travel | Öhlins RXF36 m.2 Air, 150 mm travel | Fox 36 Factory, 160 mm travel |
| Shock | RockShox Deluxe Select + | Fox Float DPS Performance | RockShox Super Deluxe Coil Ultimate | Öhlins TTX22 Air | Fox Float X2 Factory |
| Derailleur | SRAM SX Eagle | Shimano SLX | SRAM GX Eagle | Shimano Deore XT | Shimano Deore XT |
| Brakes | SRAM G2 RE | Shimano SLX | TRP DH-R Evo | Shimano XT | Shimano XT M8120 |
| Wheels | Rear: Spank Spike Race 33 - Front: Spank Spike Race 33, Rear: 29" | Rear: DT Swiss H1900 Spline - Front: DT Swiss H1900 Spline, Rear: 29" | Rear: DT Swiss HX1700 Spline - Front: DT Swiss HX1700 Spline, Rear: 29" | Rear: DT Swiss HX1700 Spline - Front: DT Swiss HX1700 Spline, Rear: 29" | DT Swiss XM1700 Spline, 29" |
| Display | Bosch System Controller | Bosch System Controller | Bosch System Controller | Bosch System Controller | Bosch System Controller |
| Weight | 24.5 kg | 24.4 kg | 24.3 kg | 23.8 kg | 23.8 kg |
Meta Power TR Bosch Limited: FAQ
How much does the Commencal Meta Power TR Bosch Limited cost?
€8,200 (RRP France (commencal.com EU store), VAT incl. Reduced to €6,300 on commencal.com at time of capture (Oct 2026).). The Meta Power TR range runs from €5,800 (Meta Power TR Bosch Ride) to €8,200 (Meta Power TR Bosch Limited). Prices vary by country and dealer.
How much does the Commencal Meta Power TR Bosch Limited weigh?
Commencal quotes 23.8 kg. The lightest Meta Power TR build is the Meta Power TR Bosch Öhlins Edition at 23.8 kg.
What motor and battery does the Commencal Meta Power TR Bosch Limited have?
Bosch Performance Line CX (85 Nm). 625 Wh battery — bosch PowerTube 625; PowerMore 250 range extender compatible.
How much suspension travel does the Commencal Meta Power TR Bosch Limited have?
160 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Commencal Meta Power TR Bosch Limited come in?
M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Meta Power TR Bosch Limited and the Meta Power TR Bosch Öhlins Edition?
They share the Meta Power TR frame platform and motor; the differences are in the parts — fork: Fox 36 Factory vs Öhlins RXF36 m.2 Air; shock: Fox Float X2 Factory vs Öhlins TTX22 Air; price: €8,200 vs €8,000.
