AmflowPL Carbon Pro
- Motor
- DJI Avinox M1105 Nm (120 Nm Boost); 1000 W peak
- Battery
- 800 WhIntegrated
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Carbon
- Weight
- 20.2 kgManufacturer figure (size M, 800 Wh, without pedals, tubeless)
Overview

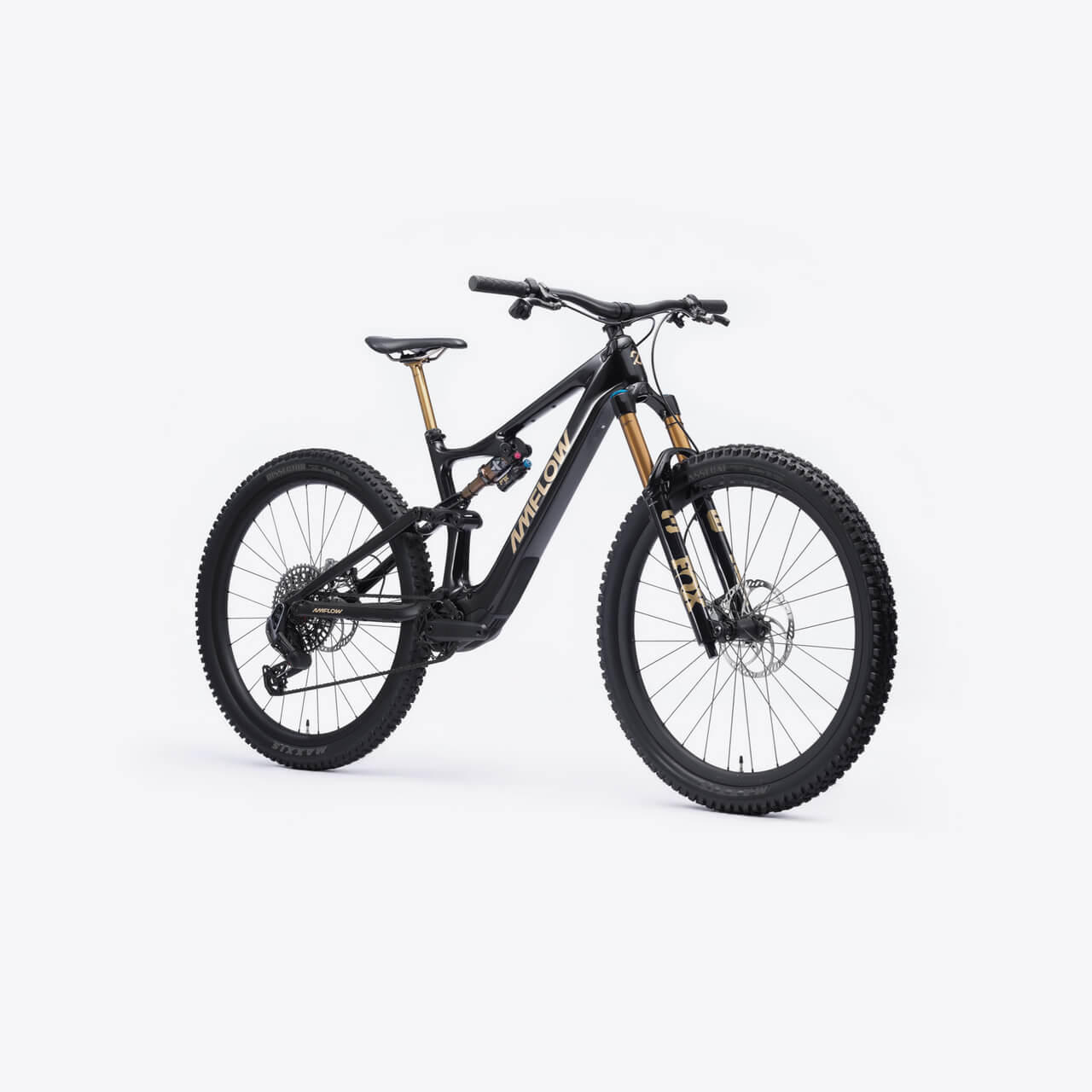

The Amflow PL Carbon Pro (€9,999) is the top build of the PL Carbon: DJI Avinox M1 (105 Nm, 120 Nm Boost) with 800 Wh, FOX 36 Factory fork, FOX FLOAT X Factory shock, SRAM X0 Eagle Transmission and Magura MT7 Pro brakes. Claimed weight is 20.2 kg.
The PL Carbon was Amflow's first bike, launched in July 2024 as a full-power eMTB around DJI's Avinox M1 drive unit: 105 Nm continuous torque, with 120 Nm and 1000 W available in the 60-second Boost mode. It uses an integrated 800 Wh battery, a 12A/508W fast charger and a 2-inch OLED touchscreen built into the frame. Amflow quotes 2.27 kg for the carbon frame (size M).
The four-bar frame has 150 mm of rear travel and is designed around a 160 mm fork, with 29-inch wheels (a 27.5-inch rear wheel fits via flip chips), a 64.5° head angle, 77° effective seat angle and 445 mm chainstays. Claimed weights are 20.2 kg for the PL Carbon Pro and 21.1 kg for the PL Carbon (800 Wh, size M, without pedals).
- DJI Avinox M1: 105 Nm, 120 Nm / 1000 W Boost
- 800 Wh integrated battery, 508 W fast charger
- 150 mm rear / 160 mm fork, 29-inch wheels
- 2.27 kg carbon frame, from 20.2 kg
Gallery
Photos: Amflow
Full specifications
Frame & suspension
- Frame
- Amflow PL Carbon Frame, 150mm rear travel, Compatible with 27.5" and 29" rear wheels
- Colour
- Cosmic Black
- Fork
- 2026 FOX 36 Factory, 160mm travel, GRIP X2 Damper, 15×110mm, 44mm rake
- Rear shock

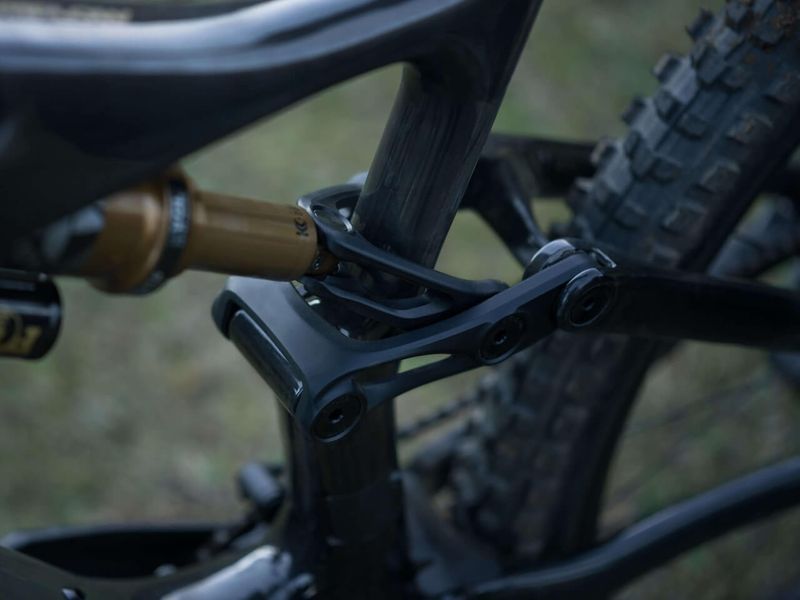

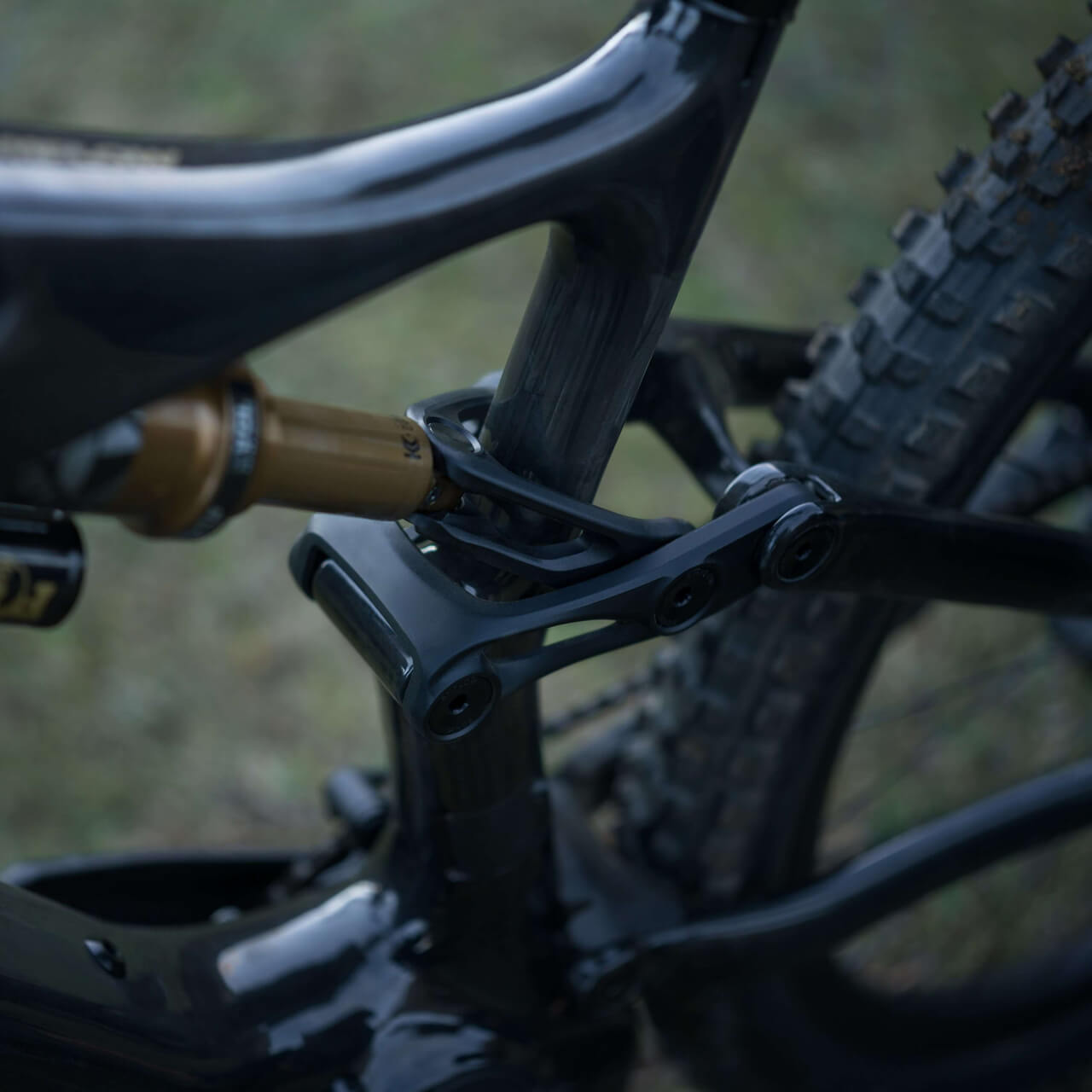

- 2026 FOX FLOAT X Factory, Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever w/ LSC adjustment
E-system
- Motor

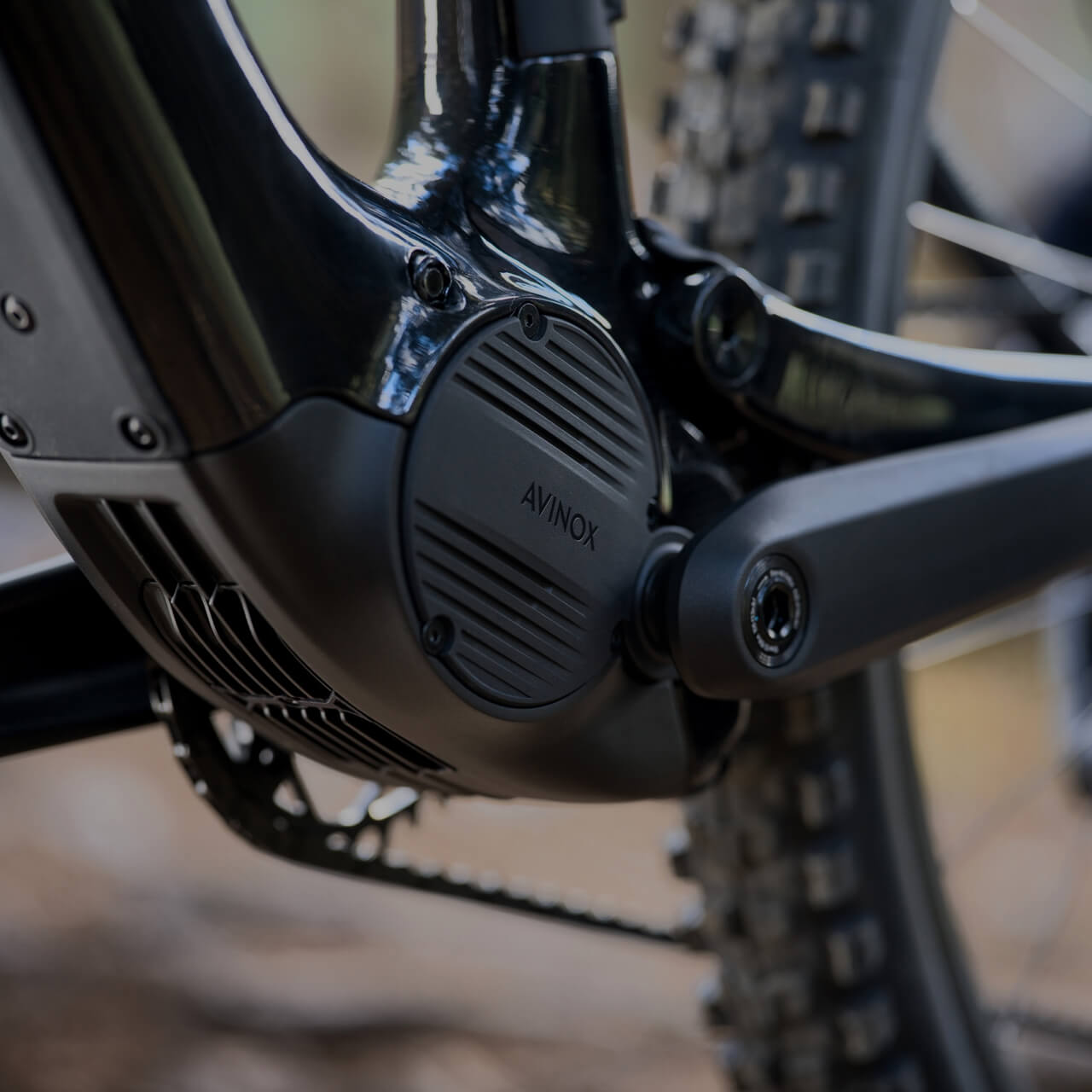

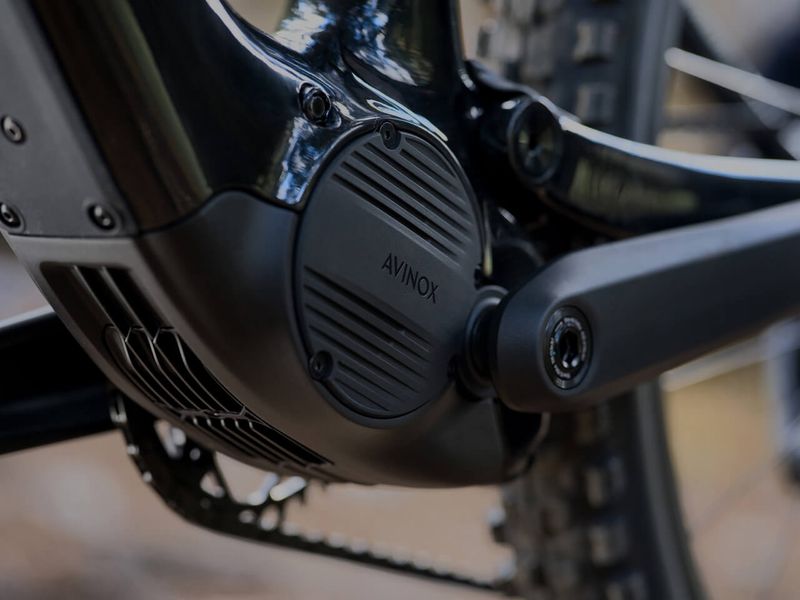

- Avinox M1 Drive Unit: 105 N·m
- Display

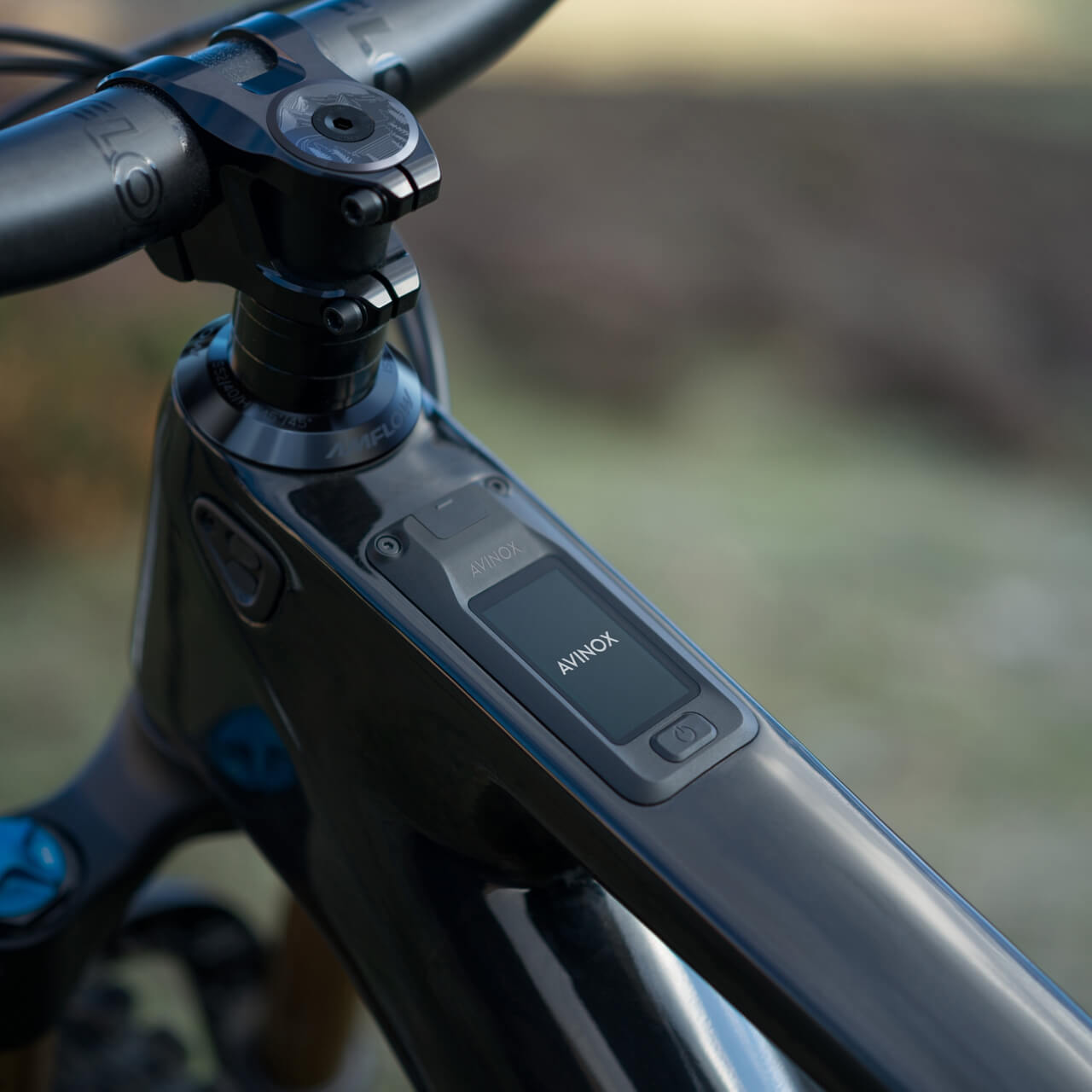

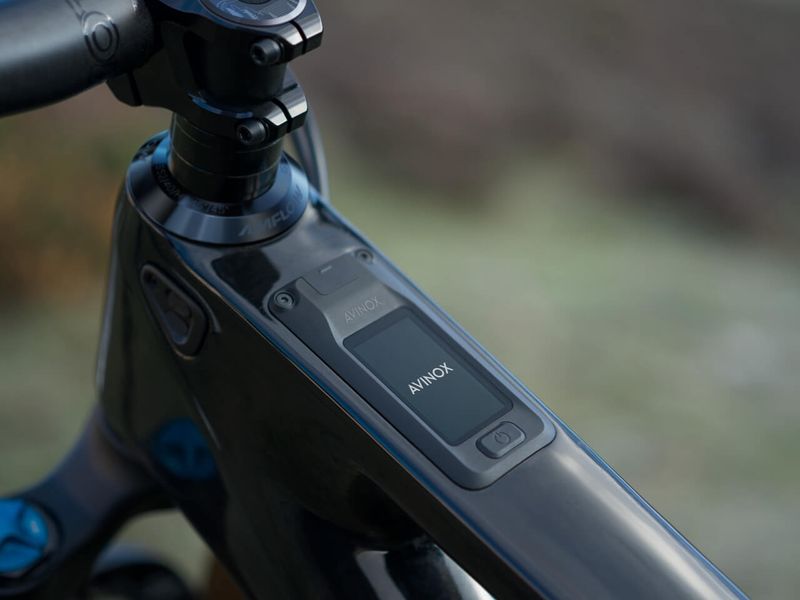

- Avinox Screen, 2-inch OLED Control Display
- Battery
- Avinox Integrated Battery, 800Wh
- Remote
- Avinox Wireless Controllers, Right and left sides
- Charger
- Avinox Fast Charger, 12A/508W
Drivetrain
- Rear derailleur
- SRAM X0 Eagle Transmission Derailleur w/ power cable
- Chainring
- SRAM Eagle Transmission E-MTB Chainring 104BCD 34T
- Shifter
- SRAM AXS Pod Controller
- Cassette
- SRAM XS-1295 Eagle Transmission 10-52T
- Chain
- SRAM X0 Eagle Transmission Flattop Chain
- Crankset
- Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)
Brakes
- Brakes

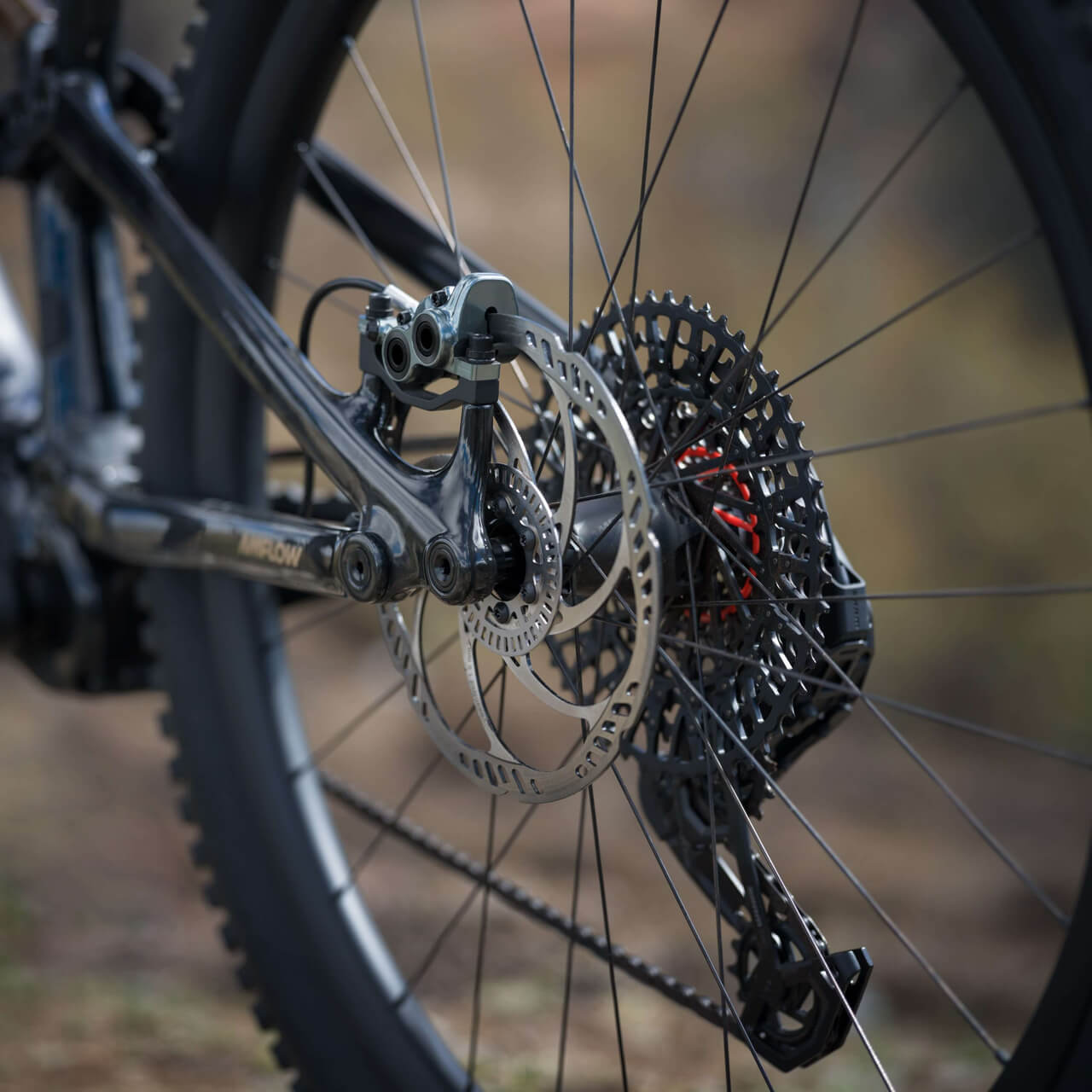

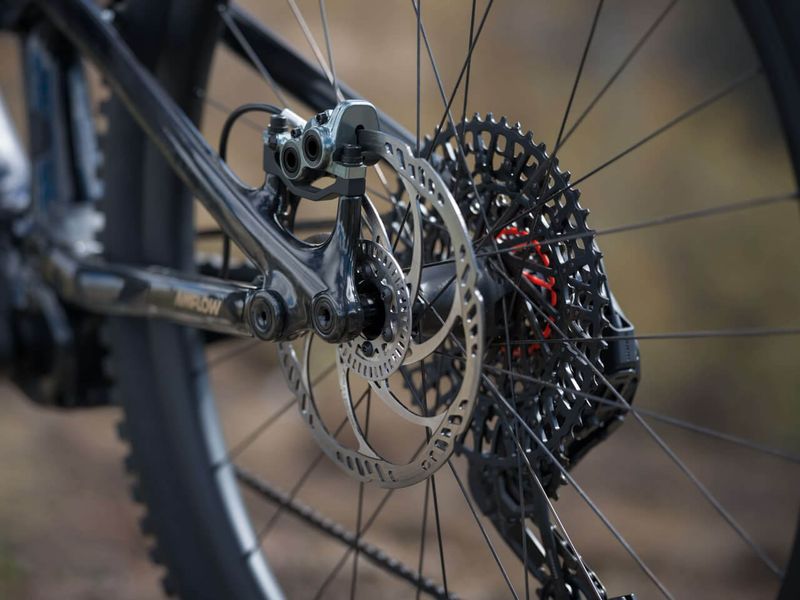

- Magura MT7 Pro hydraulic disc brake, HC lever, 4-piston caliper, 203mm Storm HC Rotor (front and rear)
Wheels & tyres
- Wheelset
- Amflow HMC-30
- Rims
- Carbon, 29", 30mm internal width, 28H, tubeless ready
- Spokes
- SAPIM E-Light Straightpull
- Front hub
- Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 28h, straight-pull, 6-bolt
- Rear hub
- Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 28h, straight-pull, 6-bolt, 78T
- Front tyre
- Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR
- Rear tyre
- Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR
Cockpit
- Handlebar

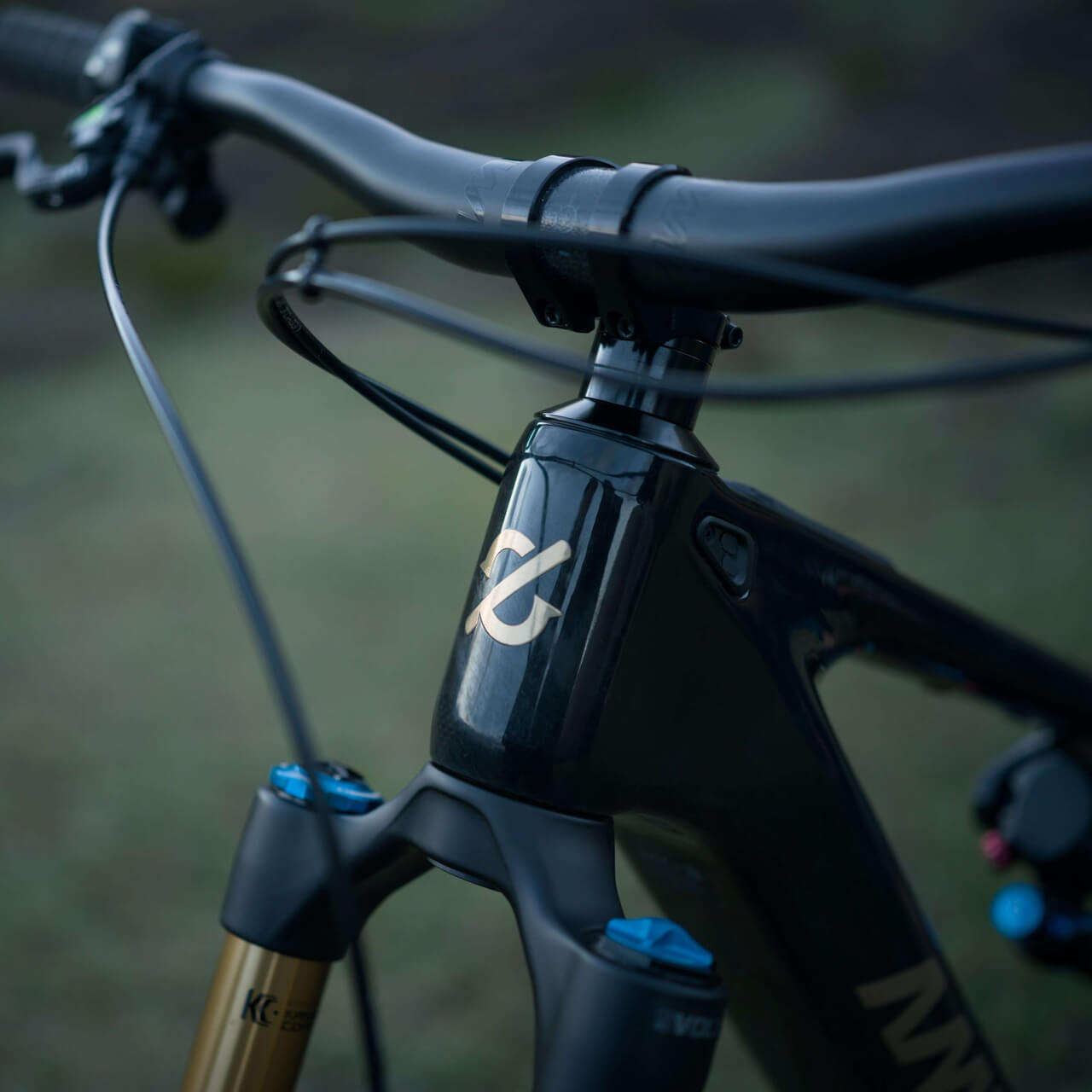

- Amflow Enduro Carbon Handlebar, 25mm rise, 800mm wide, 5-degree upsweep, 9-degree backsweep
- Grips
- Amflow Enduro Grips
- Stem
- Amflow Enduro Stem, One-piece CNC, Length: 35mm, Clamping diameter: 35mm
- Saddle
- Ergon SM PRO M/L
- Seatpost
- Fox Transfer Factory, Travel adjustable in 5mm, M: 125-150mm, L/XL: 155-180mm, XXL: 185-210mm
Other
- Included accessories
- Quick Start Guide; Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25); Shock Pump; Front and Rear Lights
- Weight
- 20.2 kg (size M, manufacturer figure)
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
PL Carbon geometry
| Size | M | L | XL | XXL |
|---|---|---|---|---|
| AReach | 452 mm | 475 mm | 500 mm | 525 mm |
| BStack Height | 618 mm | 628 mm | 641 mm | 655 mm |
| CStandover Height | 780 mm | 785 mm | 790 mm | 795 mm |
| DFront Center | 782 mm | 810 mm | 844 mm | 873 mm |
| EFork Length | 570 mm | 570 mm | 570 mm | 570 mm |
| FWheelbase | 1227 mm | 1255 mm | 1289 mm | 1318 mm |
| GChainstay Length | 445 mm | 445 mm | 445 mm | 445 mm |
| HBottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| IBottom Bracket Height | 345.5 mm | 345.5 mm | 345.5 mm | 345.5 mm |
| JEffective Top Tube Length | 595 mm | 620 mm | 648 mm | 676 mm |
| KHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| LHead Tube Length | 105 mm | 115 mm | 130 mm | 145 mm |
| MActual Seat Tube Angle | 70° | 70° | 70° | 70° |
| NEffective Seat Tube Angle | 77° | 77° | 77° | 77° |
| OSeat Tube Height | 430 mm | 450 mm | 470 mm | 500 mm |
Source: Amflow.
PL Carbon: builds compared
PL Carbon range →| PL Carbon | PL Carbon Pro | |
|---|---|---|
| Price | €6,499 | €9,999 |
| Frame | Carbon | Carbon |
| Fork | 2026 FOX 36 Performance, 160mm travel | 2026 FOX 36 Factory, 160mm travel |
| Shock | 2026 FOX Float Performance | 2026 FOX FLOAT X Factory |
| Derailleur | SRAM Eagle 70 Transmission Derailleur | SRAM X0 Eagle Transmission Derailleur w/ power cable |
| Brakes | Magura MT5 hydraulic disc brake | Magura MT7 Pro hydraulic disc brake |
| Wheels | Alloy, 29" | Carbon, 29" |
| Display | Avinox Screen | Avinox Screen |
| Weight | 21.1 kg | 20.2 kg |
PL Carbon Pro: FAQ
How much does the Amflow PL Carbon Pro cost?
€9,999 (RRP Germany, VAT incl.). The PL Carbon range runs from €6,499 (PL Carbon) to €9,999 (PL Carbon Pro). Prices vary by country and dealer.
How much does the Amflow PL Carbon Pro weigh?
Amflow quotes 20.2 kg. It is the lightest build of the PL Carbon.
What motor and battery does the Amflow PL Carbon Pro have?
DJI Avinox M1 (105 Nm (120 Nm Boost); 1000 W peak). 800 Wh battery — integrated.
How much suspension travel does the Amflow PL Carbon Pro have?
160 mm at the fork and 150 mm at the rear, on 29" wheels.
What sizes does the Amflow PL Carbon Pro come in?
M, L, XL, XXL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the PL Carbon Pro and the PL Carbon?
They share the PL Carbon frame platform and motor; the differences are in the parts — fork: 2026 FOX 36 Factory vs 2026 FOX 36 Performance; shock: 2026 FOX FLOAT X Factory vs 2026 FOX Float Performance; derailleur: SRAM X0 Eagle Transmission Derailleur w/ power cable vs SRAM Eagle 70 Transmission Derailleur; claimed weight: 20.2 kg vs 21.1 kg; price: €9,999 vs €6,499.
