PropainEkano AL Trail Swedish Gold
- Motor
- DJI Avinox M2125 Nm (boost); 1100 W peak
- Battery
- 600 WhAvinox, permanently installed
- Travel F / R
- 160 / 150 mm
- Wheels
- 29" or Mix 29" / 27.5"
- Frame
- Alloy
Watching this bike? Get new models and updates on Telegram →
Overview
The Swedish Gold build costs €6,554 and is all about Öhlins: an RXF 36 fork and TTX2 Air shock, with Formula Cura 4 brakes. Still Avinox M2 and 600 Wh.
The Ekano AL Trail Swedish Gold is one of 4 builds of the Propain Ekano AL Trail. About the Ekano AL Trail range and all its builds →

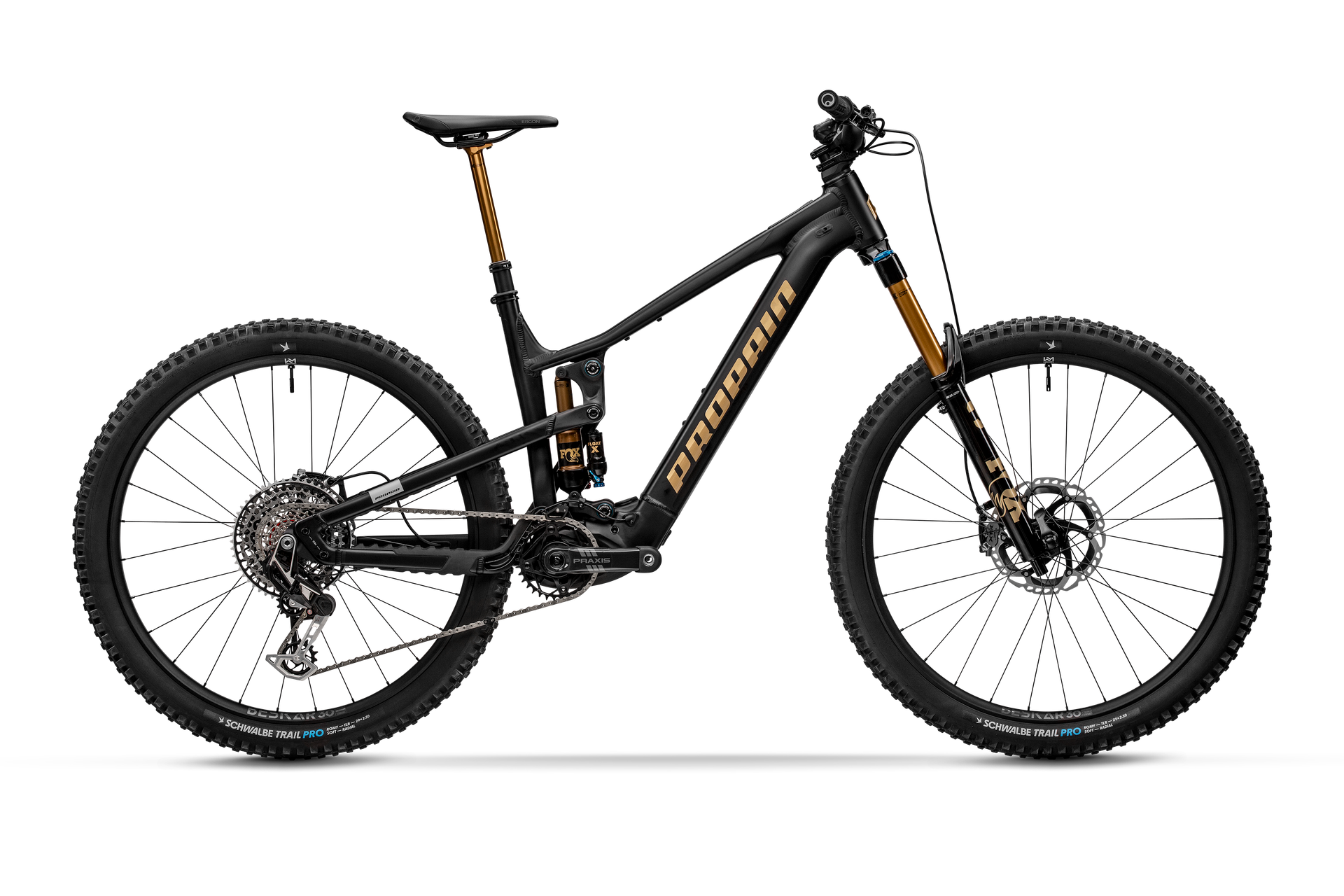

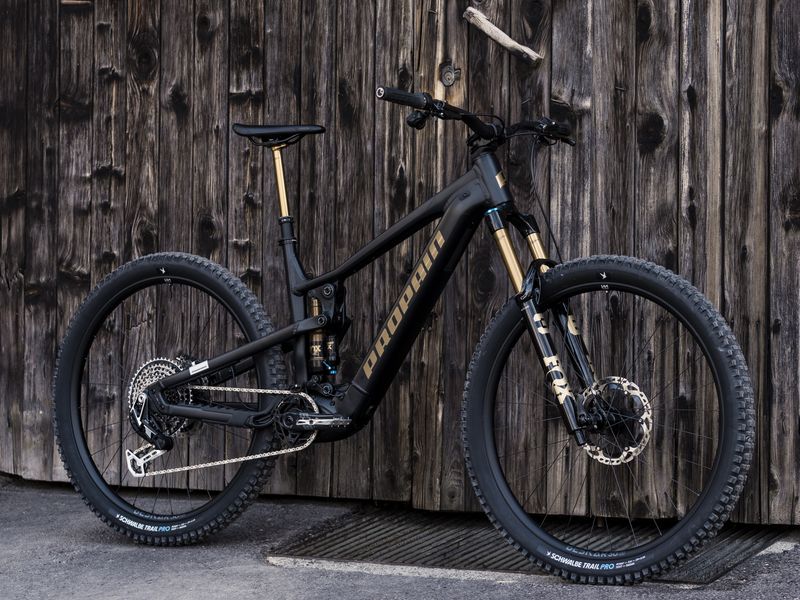

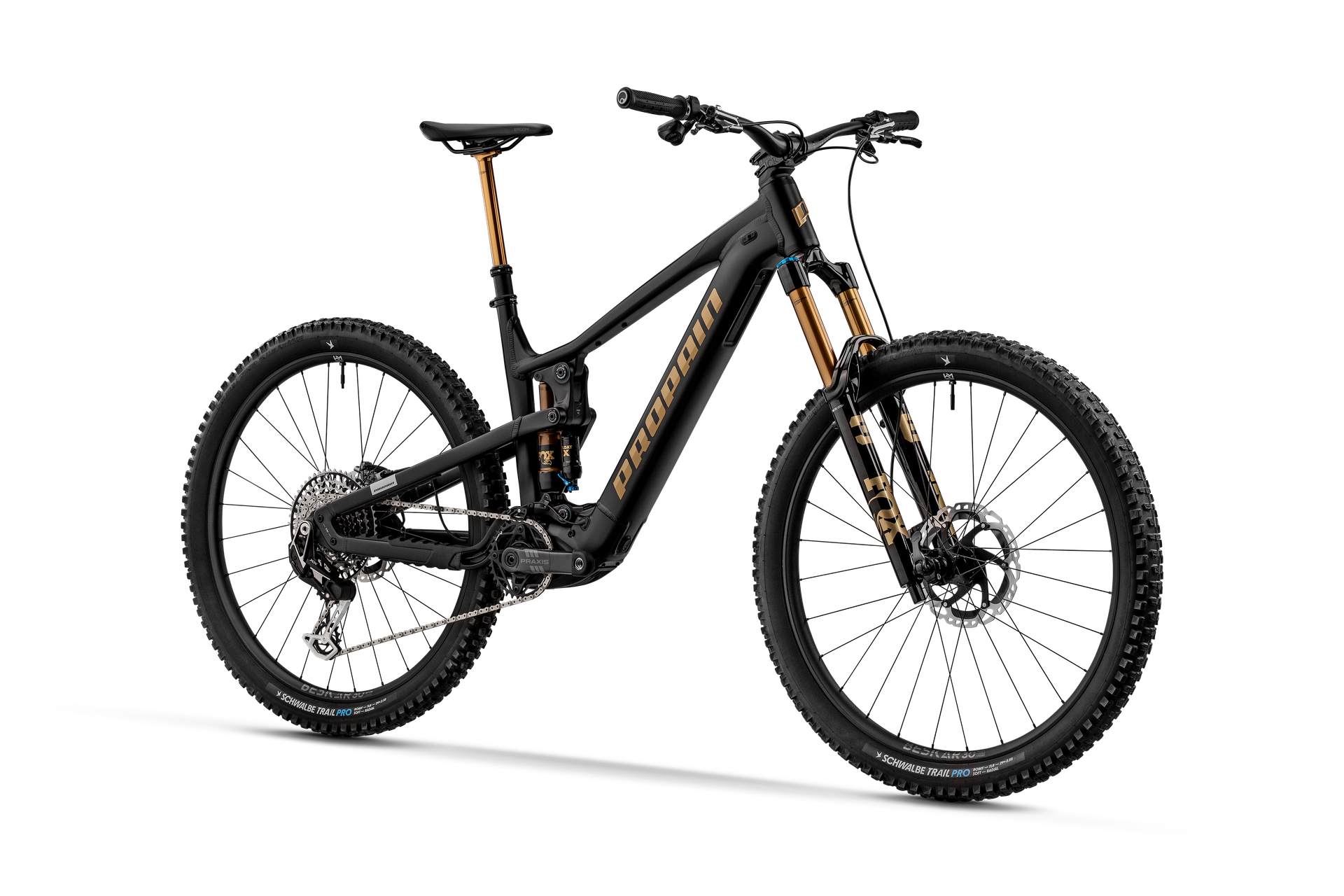

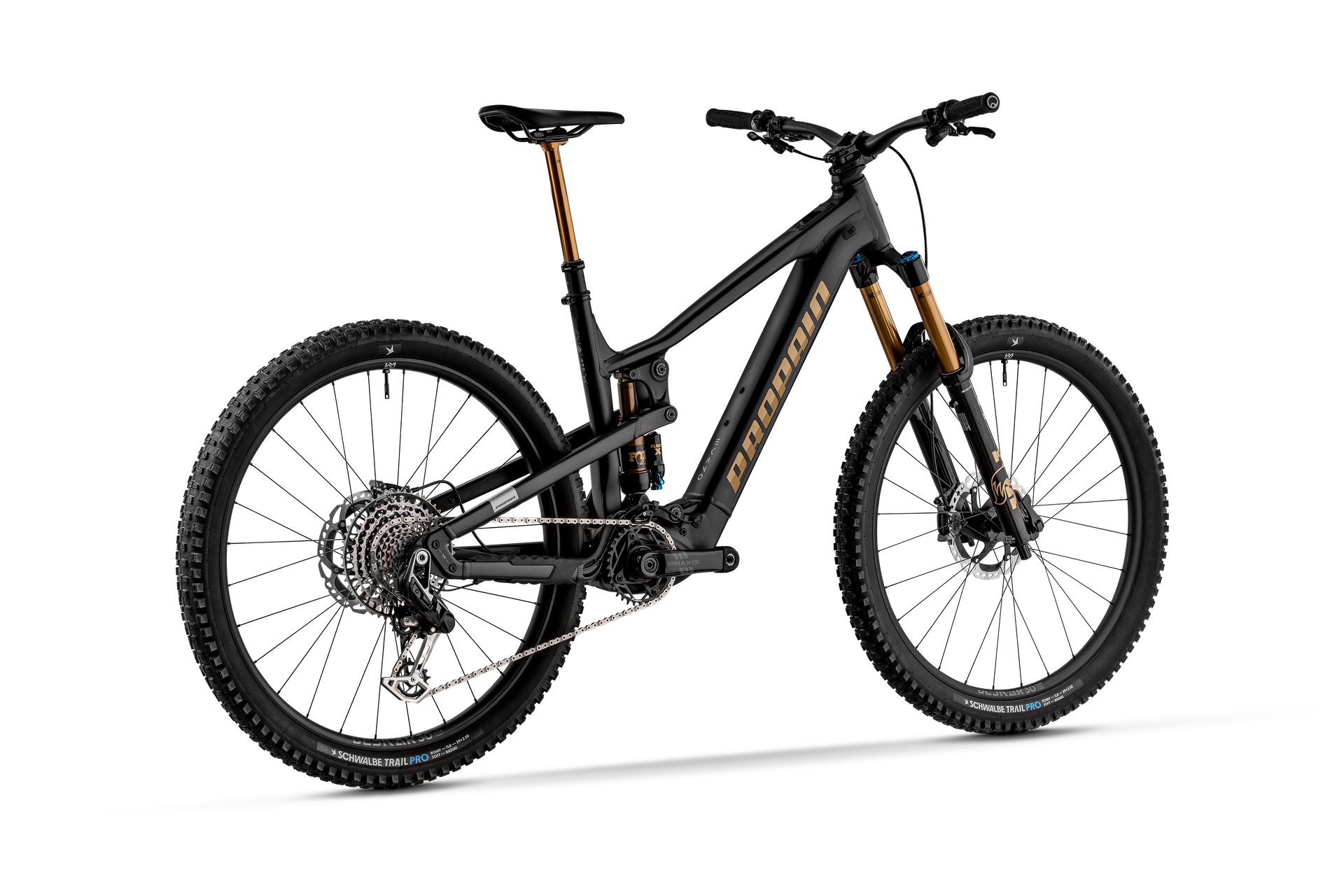

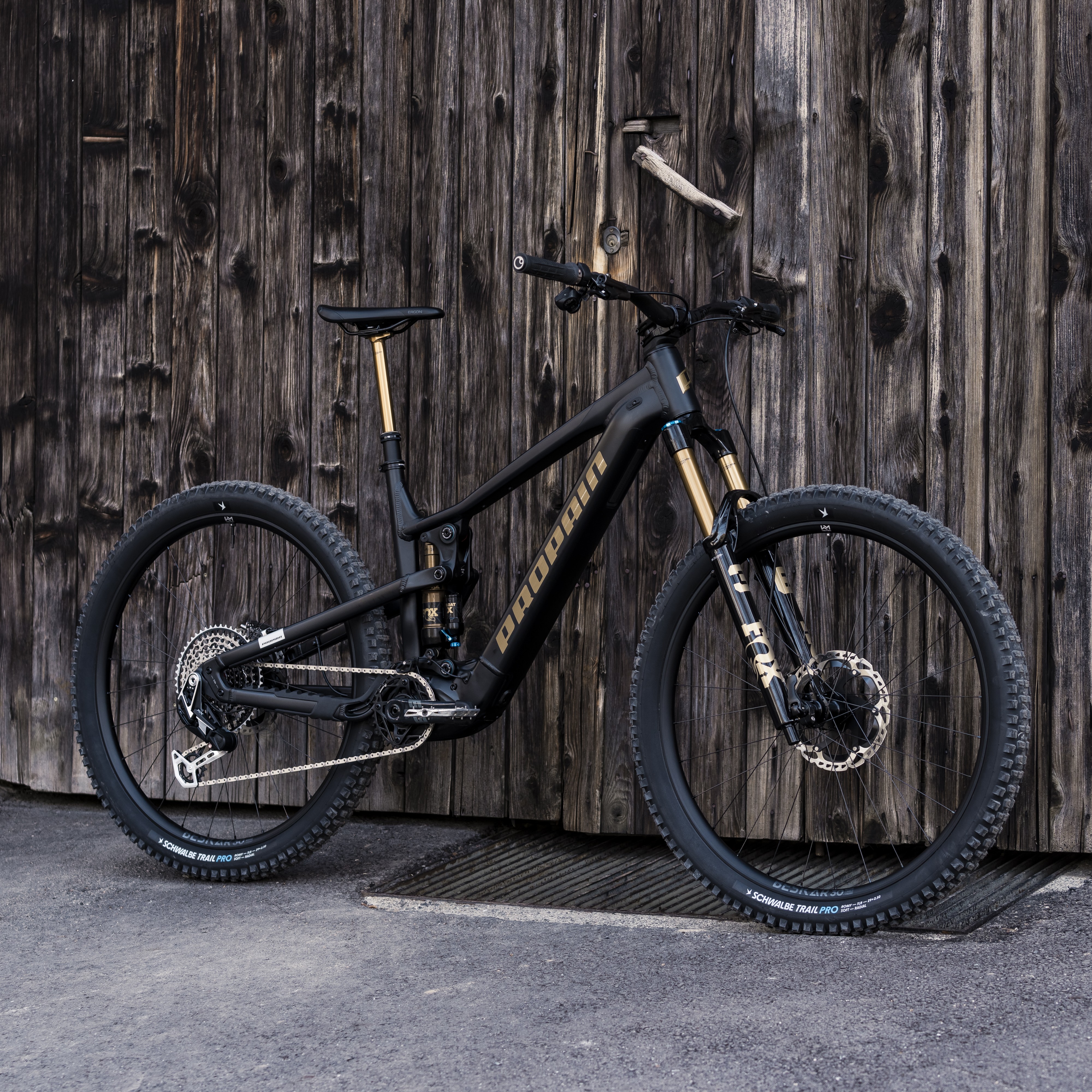

Gallery
Photos: Propain
Full specifications
Frame & suspension
- Fork
- Öhlins RXF 36 160 mm
- Rear shock
- Öhlins TTX2 Air
E-system
- Motor
- Avinox M2 Motor
- Battery
- Avinox 600 Wh Battery
- Display
- Avinox DPC100 Display
- Display
- Avinox DPC100 Display Avinox 4A / 168W charger
Drivetrain
- Rear derailleur
- SRAM Eagle 70 Transmission (1x12)
- Crankset
- Practice TYPE2 ALLOY 155 mm 34T
Brakes
- Brakes
- Formula Cura 4 Silver Polished 200mm / 200mm
Wheels & tyres
- Wheelset
- DT Swiss HX 1700 spline
- Tyres
- Continental Kryptonite Enduro
Cockpit
- Stem
- Classic Internal & Sixpack Millenium
- Handlebar
- Sixpack Millenium 805 30mm Rise
- Grips
- ERGON GDH Team
- Seatpost
- OneUP V3
- Saddle
- Ergon SM10 Enduro
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Ekano AL Trail geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AFrame height | 410 mm | 430 mm | 455 mm | 480 mm |
| BFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| CFork length | 576 mm | 576 mm | 576 mm | 576 mm |
| DHead tube length | 110 mm | 115 mm | 120 mm | 130 mm |
| EReach | 439 mm | 454 mm | 479 mm | 504 mm |
| FStack | 631 mm | 636 mm | 639 mm | 649 mm |
| GHead angle | 63.9° | 63.9° | 63.9° | 63.9° |
| HSeat angle – real | 77.5° | 77.5° | 77.5° | 77.5° |
| ISeat angle – effective | 78.4° | 78.4° | 78.4° | 78.4° |
| JTop tube length | 571 mm | 585 mm | 611 mm | 638 mm |
| KBB offset | 29″: 31 mm Mix: 11 / 31 mm | 29″: 31 mm Mix: 11 / 31 mm | 29″: 31 mm Mix: 11 / 31 mm | 29″: 31 mm Mix: 11 / 31 mm |
| LChainstay length | 29″ | Mix – long: 452 mm Mix – short: 447 mm | 29″ | Mix – long: 452 mm Mix – short: 447 mm | 29″ | Mix – long: 452 mm Mix – short: 447 mm | 29″ | Mix – long: 452 mm Mix – short: 447 mm |
| MWheelbase | 29″ | Mix – long: 1229 mm Mix – short: 1224 mm | 29″ | Mix – long: 1246 mm Mix – short: 1241 mm | 29″ | Mix – long: 1273 mm Mix – short: 1268 mm | 29″ | Mix – long: 1303 mm Mix – short: 1298 mm |
Source: Propain. Chainstay/wheelbase depend on dropout (long/short) and BB offset on wheel setup, as listed by Propain. 160 mm fork table, recommended position.
Ekano AL Trail: builds compared
Ekano AL Trail range →| Ekano AL Trail Base | Ekano AL Trail Swedish Gold | Ekano AL Trail Ultimate | Ekano AL Trail Factory | |
|---|---|---|---|---|
| Price | €4,999 | €6,554 | €8,641 | €9,335 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox Psylo Gold RC 160 mm | Öhlins RXF 36 160 mm | RockShox Lyrik Ultimate 160 mm | Fox 36 Factory Grip X2 160 mm |
| Shock | RockShox Deluxe Select | Öhlins TTX2 Air | RockShox Super Deluxe Ultimate | Fox Float X |
| Derailleur | SRAM Eagle 70 Transmission (1x12) | SRAM Eagle 70 Transmission (1x12) | SRAM XO Transmission (1x12) | SRAM XX Transmission (1x12) |
| Brakes | SRAM DB8 Stealth 200mm / 200mm | Formula Cura 4 Silver Polished 200mm / 200mm | SRAM Maven Silver 200mm / 200mm | Shimano XTR M9220 203mm / 203mm |
| Display | Avinox DPC100 Display | Avinox DPC100 Display | Avinox DPC100 Display | Avinox DP100 Display |
Ekano AL Trail Swedish Gold: FAQ
What is the difference between the Ekano AL Trail Swedish Gold and the Ekano AL Trail Ultimate?
They share the Ekano AL Trail frame platform; the differences are in the parts: fork: Öhlins RXF 36 160 mm vs RockShox Lyrik Ultimate 160 mm; shock: Öhlins TTX2 Air vs RockShox Super Deluxe Ultimate; derailleur: SRAM Eagle 70 Transmission (1x12) vs SRAM XO Transmission (1x12); price: €6,554 vs €8,641.
