PropainEkano AL Trail Ultimate
- Motor
- DJI Avinox M2S150 Nm (boost); 1300 W peak
- Battery
- 800 WhAvinox, permanently installed
- Travel F / R
- 160 / 150 mm
- Wheels
- 29" or Mix 29" / 27.5"
- Frame
- Alloy
Overview
The Propain Ekano AL Trail Ultimate (€8,641) is a mid-range build of the Ekano AL Trail: DJI Avinox M2S with 800 Wh, RockShox Lyrik Ultimate 160 mm fork, RockShox Super Deluxe Ultimate shock, SRAM XO Transmission (1x12) and SRAM Maven Silver 200mm / 200mm brakes.
The Ekano AL Trail is Propain's aluminium full-power trail e-MTB (third-generation Ekano), built around the DJI Avinox drive: the M2 motor (125 Nm in boost, 1100 W peak) or M2S (150 Nm, 1300 W), with a permanently installed 600 or 800 Wh battery depending on build.
The PRO10 rear end delivers 150 mm of travel paired with a 160 mm fork, and the bike can be ordered on 29-inch or mixed wheels. Propain sells it direct as preset builds that can be customised in the configurator; sizes run S to XL.
- DJI Avinox M2 / M2S, up to 150 Nm
- 600 or 800 Wh battery
- 160 mm fork / 150 mm PRO10 rear
- 29" or mixed wheels, alloy frame

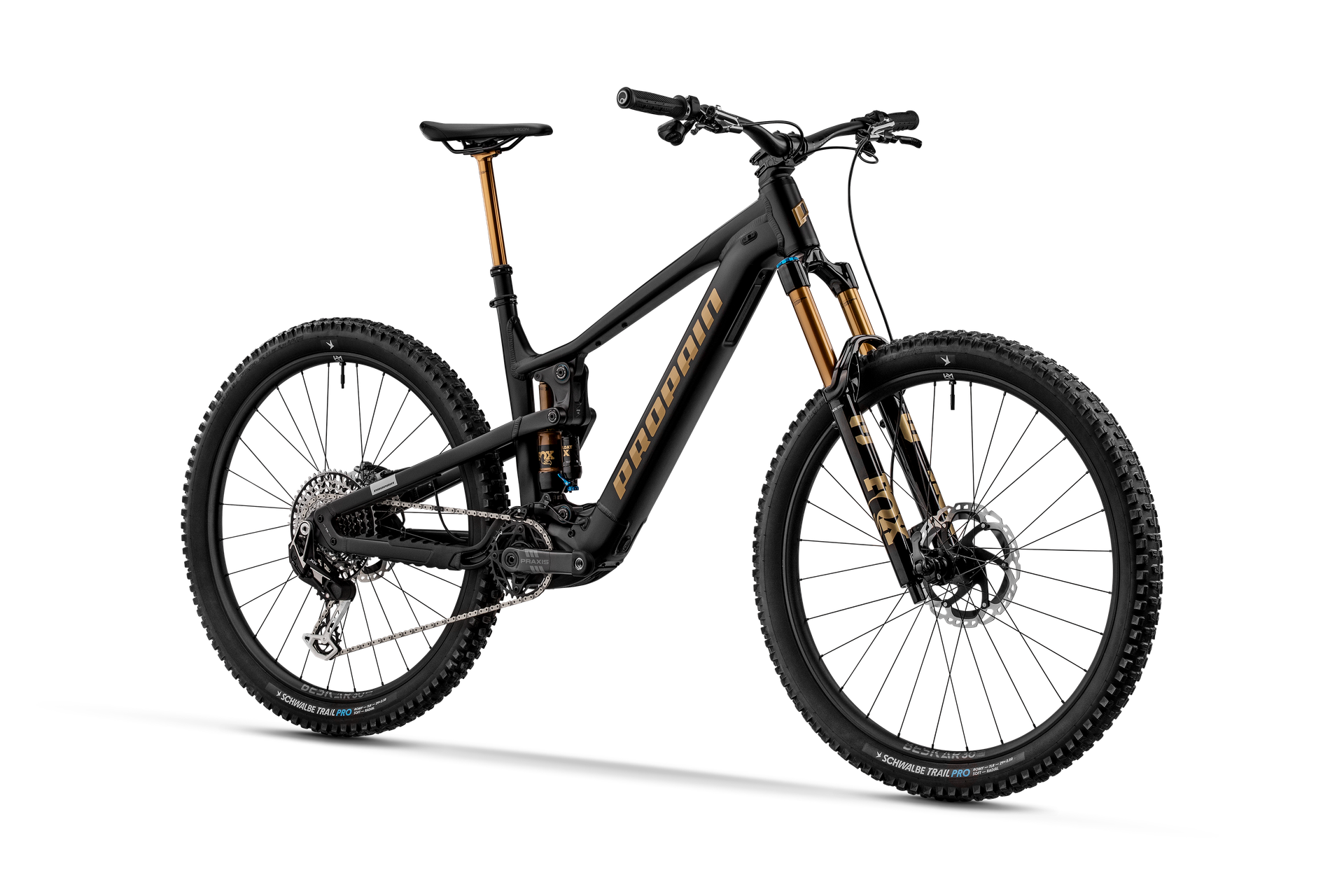

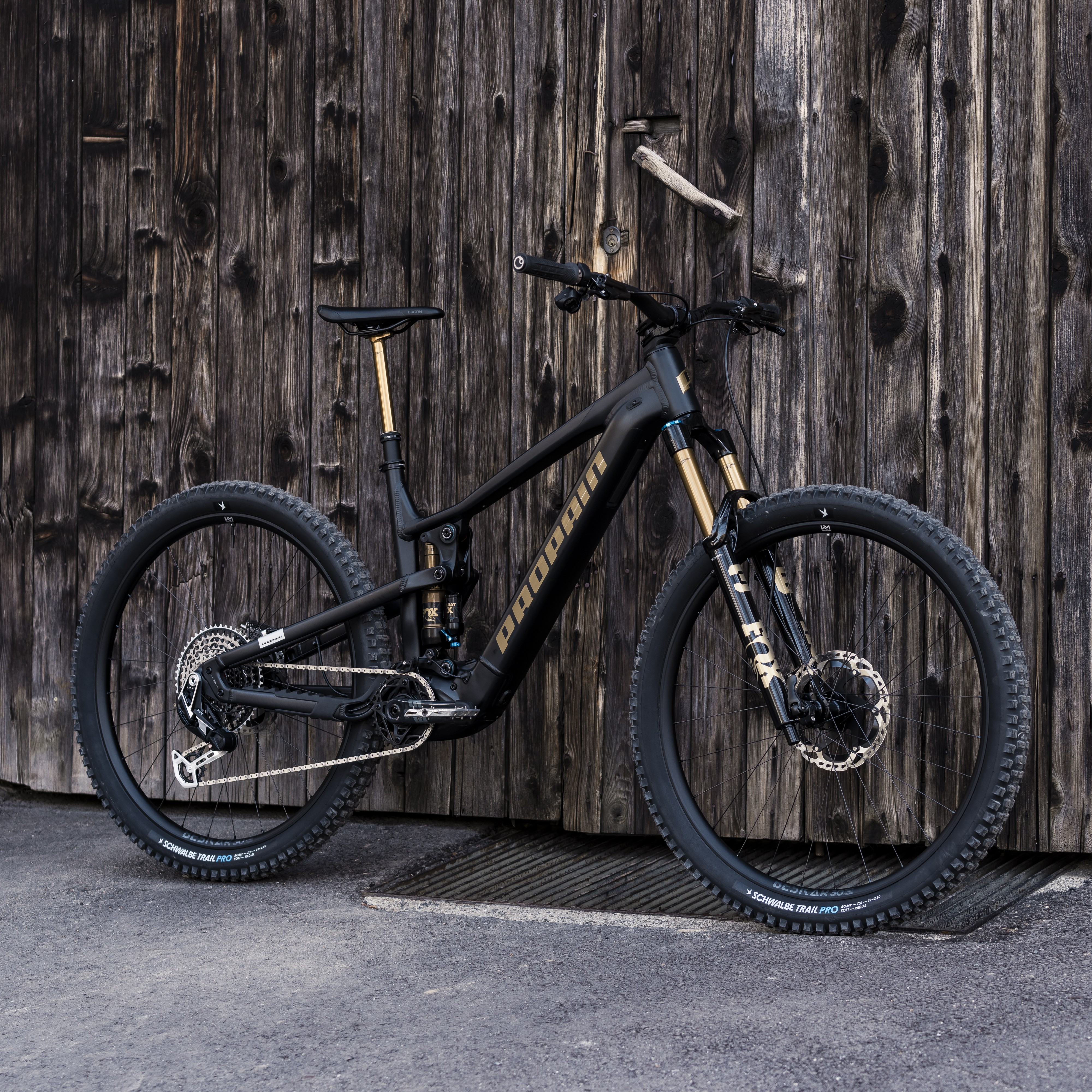

Gallery

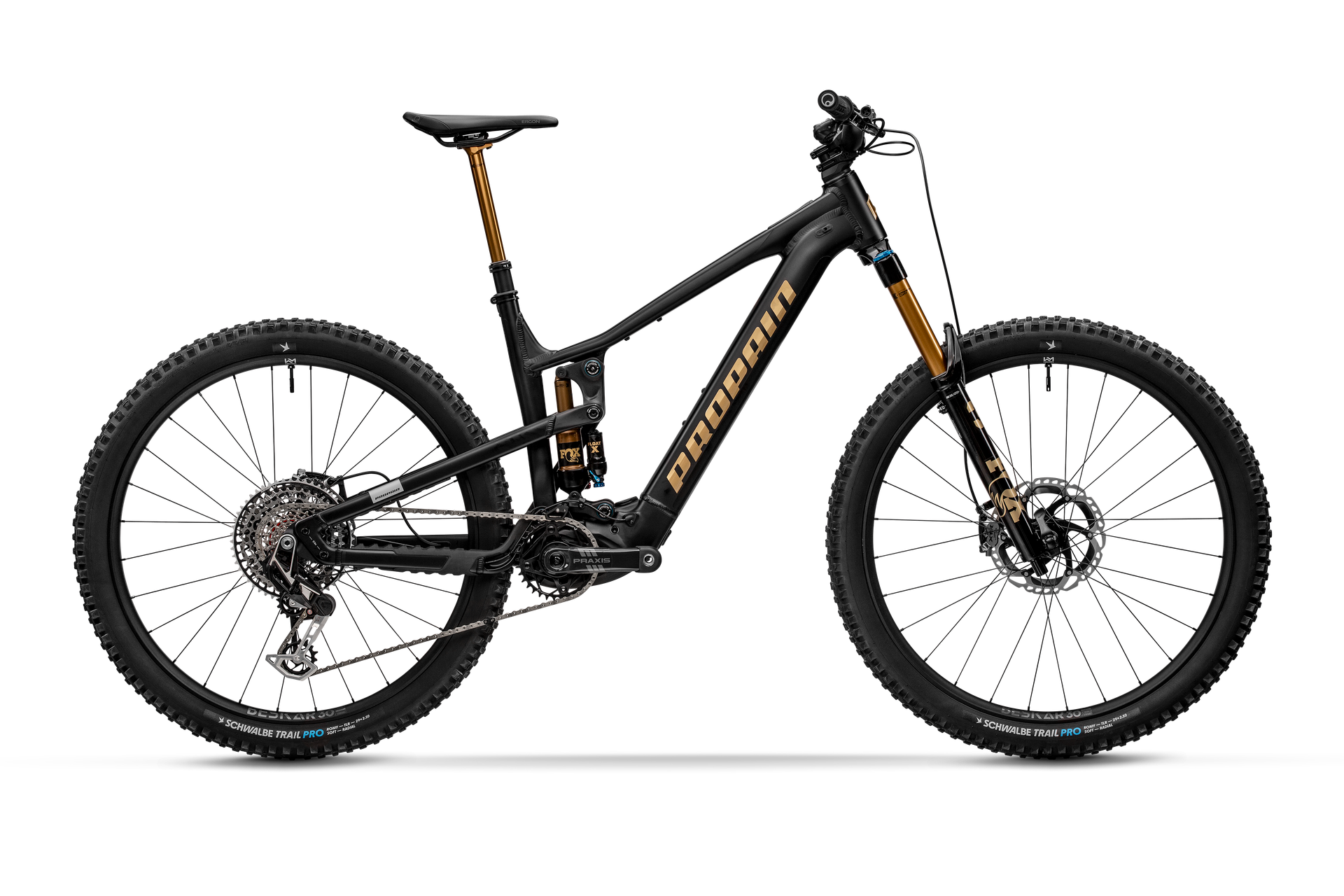

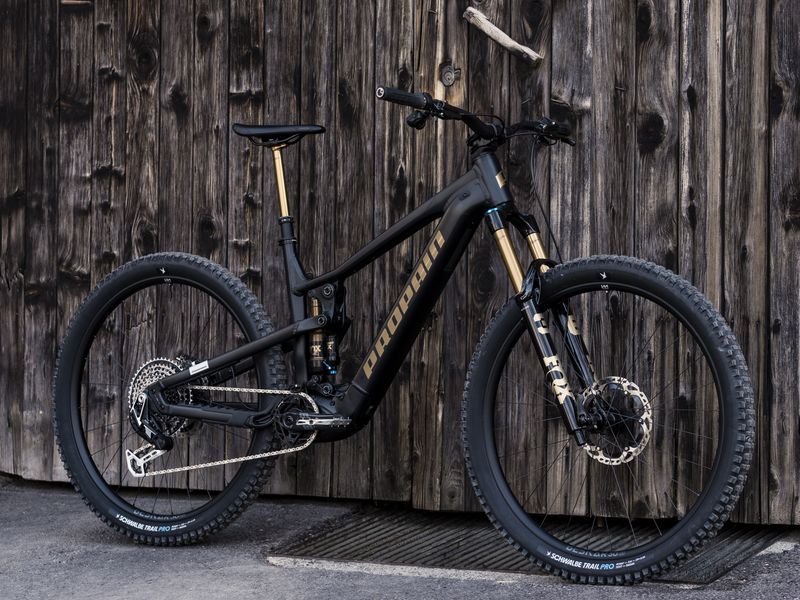

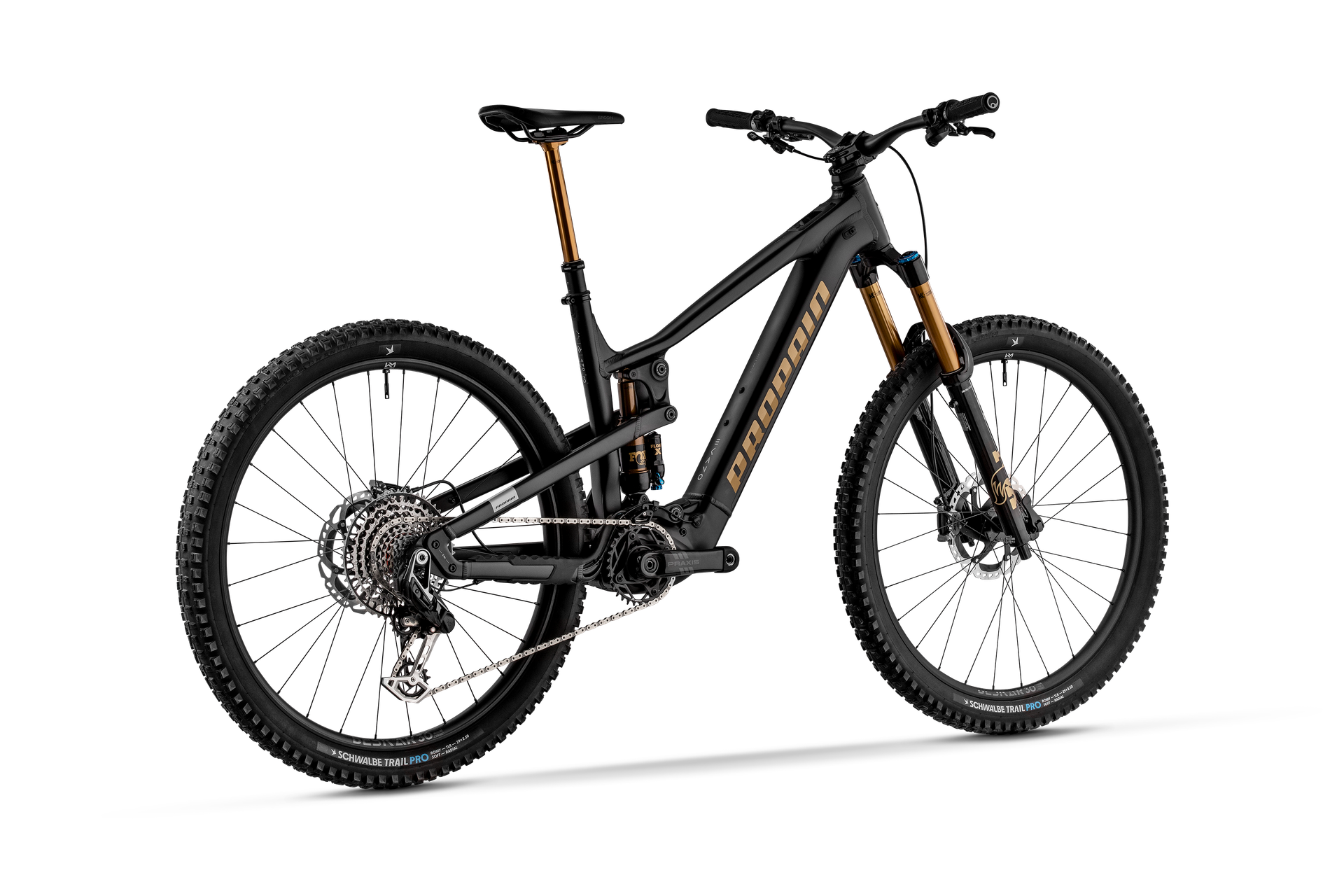

Photos: Propain
Full specifications
Frame & suspension
- Fork
- RockShox Lyrik Ultimate 160 mm
- Rear shock
- RockShox Super Deluxe Ultimate
E-system
- Motor
- Avinox M2S Motor
- Battery
- Avinox 800 Wh Battery
- Display
- Avinox DPC100 Display
- Charger
- Avinox Fast Charger 12 A / 508 W Charger
Drivetrain
- Rear derailleur
- SRAM XO Transmission (1x12)
- Crankset
- Practice TYPE2 ALLOY 155 mm 34T
Brakes
- Brakes
- SRAM Maven Silver 200mm / 200mm
Wheels & tyres
- Wheelset
- NEWMEN Beskar Light / Base
- Tyres
- Schwalbe Albert Trail Radial
Cockpit
- Stem
- Classic Internal & Sixpack Millenium
- Handlebar
- OneUp V2 Carbon
- Grips
- ERGON GDH Team
- Seatpost
- RockShox Reverb AXS
- Saddle
- ERGON SM Enduro Comp
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Ekano AL Trail geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| AFrame height | 410 mm | 430 mm | 455 mm | 480 mm |
| BFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| CFork length | 576 mm | 576 mm | 576 mm | 576 mm |
| DHead tube length | 110 mm | 115 mm | 120 mm | 130 mm |
| EReach | 439 mm | 454 mm | 479 mm | 504 mm |
| FStack | 631 mm | 636 mm | 639 mm | 649 mm |
| GHead angle | 63.9° | 63.9° | 63.9° | 63.9° |
| HSeat angle – real | 77.5° | 77.5° | 77.5° | 77.5° |
| ISeat angle – effective | 78.4° | 78.4° | 78.4° | 78.4° |
| JTop tube length | 571 mm | 585 mm | 611 mm | 638 mm |
| KBB offset | 29″: 31 mm Mix: 11 / 31 mm | 29″: 31 mm Mix: 11 / 31 mm | 29″: 31 mm Mix: 11 / 31 mm | 29″: 31 mm Mix: 11 / 31 mm |
| LChainstay length | 29″ | Mix – long: 452 mm Mix – short: 447 mm | 29″ | Mix – long: 452 mm Mix – short: 447 mm | 29″ | Mix – long: 452 mm Mix – short: 447 mm | 29″ | Mix – long: 452 mm Mix – short: 447 mm |
| MWheelbase | 29″ | Mix – long: 1229 mm Mix – short: 1224 mm | 29″ | Mix – long: 1246 mm Mix – short: 1241 mm | 29″ | Mix – long: 1273 mm Mix – short: 1268 mm | 29″ | Mix – long: 1303 mm Mix – short: 1298 mm |
Source: Propain. Chainstay/wheelbase depend on dropout (long/short) and BB offset on wheel setup, as listed by Propain. 160 mm fork table, recommended position.
Ekano AL Trail: builds compared
Ekano AL Trail range →| Ekano AL Trail Base | Ekano AL Trail Swedish Gold | Ekano AL Trail Ultimate | Ekano AL Trail Factory | |
|---|---|---|---|---|
| Price | €4,999 | €6,554 | €8,641 | €9,335 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox Psylo Gold RC 160 mm | Öhlins RXF 36 160 mm | RockShox Lyrik Ultimate 160 mm | Fox 36 Factory Grip X2 160 mm |
| Shock | RockShox Deluxe Select | Öhlins TTX2 Air | RockShox Super Deluxe Ultimate | Fox Float X |
| Derailleur | SRAM Eagle 70 Transmission (1x12) | SRAM Eagle 70 Transmission (1x12) | SRAM XO Transmission (1x12) | SRAM XX Transmission (1x12) |
| Brakes | SRAM DB8 Stealth 200mm / 200mm | Formula Cura 4 Silver Polished 200mm / 200mm | SRAM Maven Silver 200mm / 200mm | Shimano XTR M9220 203mm / 203mm |
| Display | Avinox DPC100 Display | Avinox DPC100 Display | Avinox DPC100 Display | Avinox DP100 Display |
Ekano AL Trail Ultimate: FAQ
How much does the Propain Ekano AL Trail Ultimate cost?
€8,641 (RRP Germany, VAT incl. (preset build; configurable)). The Ekano AL Trail range runs from €4,999 (Ekano AL Trail Base) to €9,335 (Ekano AL Trail Factory). Prices vary by country and dealer.
What motor and battery does the Propain Ekano AL Trail Ultimate have?
DJI Avinox M2S (150 Nm (boost); 1300 W peak). 800 Wh battery — avinox, permanently installed.
How much suspension travel does the Propain Ekano AL Trail Ultimate have?
160 mm at the fork and 150 mm at the rear, on 29" or Mix 29" / 27.5" wheels.
What sizes does the Propain Ekano AL Trail Ultimate come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Ekano AL Trail Ultimate and the Ekano AL Trail Factory?
They share the Ekano AL Trail frame platform and motor; the differences are in the parts — fork: RockShox Lyrik Ultimate 160 mm vs Fox 36 Factory Grip X2 160 mm; shock: RockShox Super Deluxe Ultimate vs Fox Float X; derailleur: SRAM XO Transmission (1x12) vs SRAM XX Transmission (1x12); price: €8,641 vs €9,335.
