OrangePhase Avinox Factory
- Motor
- DJI Avinox M2S130 Nm; 150 Nm in Boost
- Battery
- 800 WhFixed integrated battery (3.74 kg)
- Travel F / R
- 160 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview

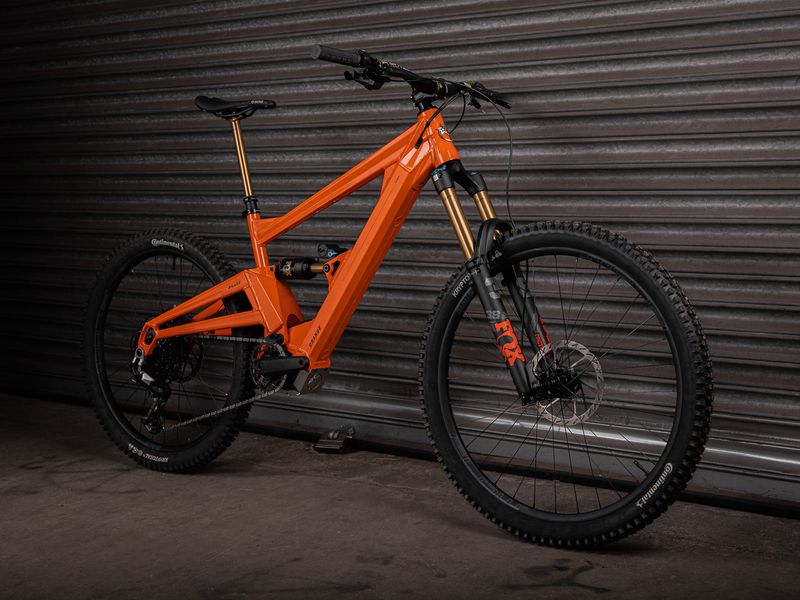

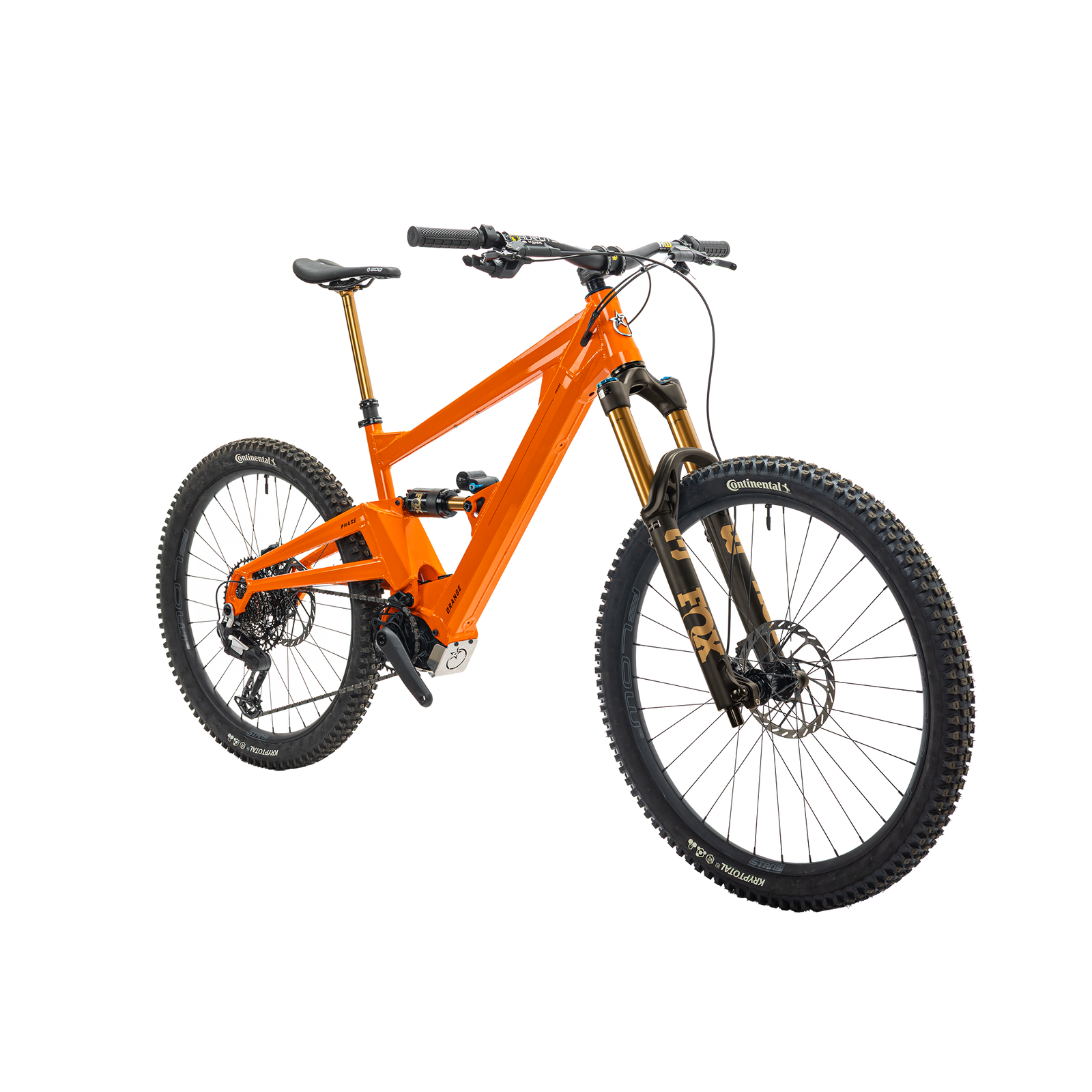

The Orange Phase Avinox Factory (£8,750) is a mid-range build of the Phase Avinox: DJI Avinox M2S motor with 800 Wh, Fox 38 Factory Grip X2 29x160 fork, Fox Float X2 Factory 205x65 shock, Sram Eagle 90 Transmission and Sram Maven Silver 200/200 brakes. Orange does not publish a claimed weight.

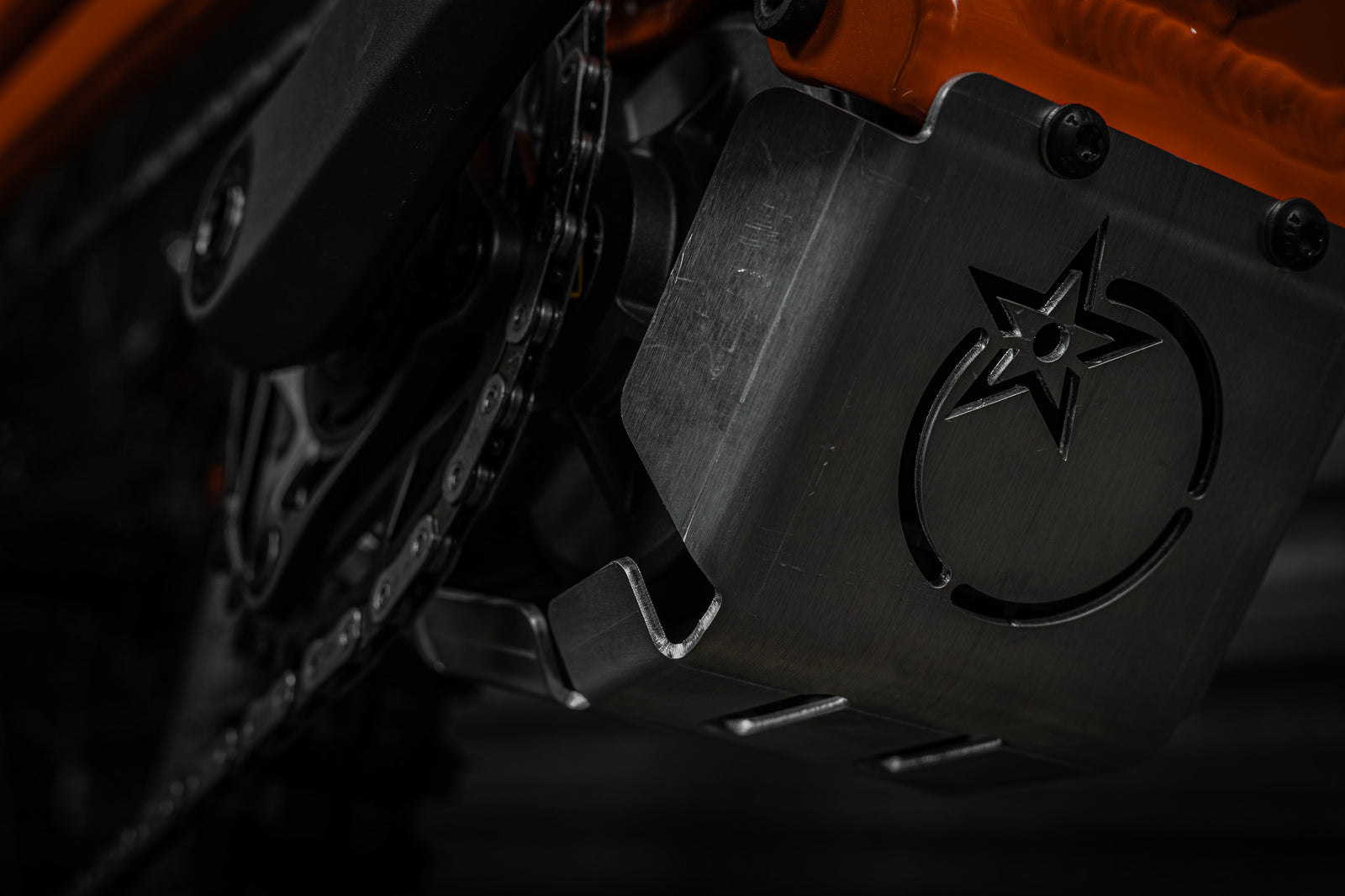

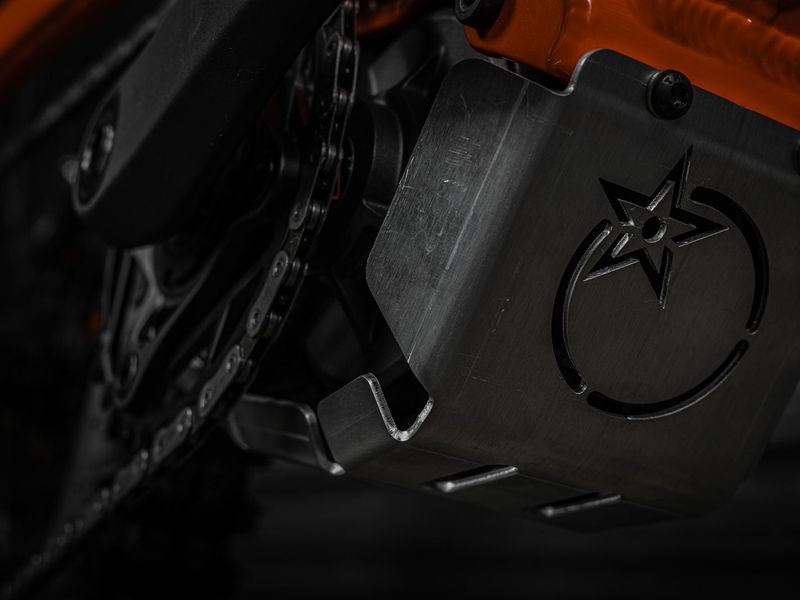

The Phase is Orange's 160 mm trail/all-mountain e-MTB, now powered by the DJI Avinox M2S drive unit (130 Nm, 150 Nm in Boost; 1300 W, 1500 W in Boost) with a fixed 800 Wh battery. The frame is made in Orange's UK factory from 6061-T6 aluminium sheet folded into a monocoque front end, with a 205x65 trunnion shock, Boost 148 rear, UDH dropout and an aluminium bashguard.
It rolls on MX wheels (29" front, 27.5" rear) with 160 mm of travel front and rear and a reduced-offset fork. Orange quotes a 64° head angle, 76° seat angle and around 480 mm reach in size L; the new tube set houses the Avinox display in the top tube and uses shorter seat tubes for longer droppers. Frames carry a 5-year warranty with limited lifetime crash replacement.
- DJI Avinox M2S: 130 Nm (150 Nm Boost), 800 Wh
- 160 mm front and rear, MX wheels
- UK-made 6061-T6 aluminium monocoque frame
- 64° head angle, 76° seat angle, UDH

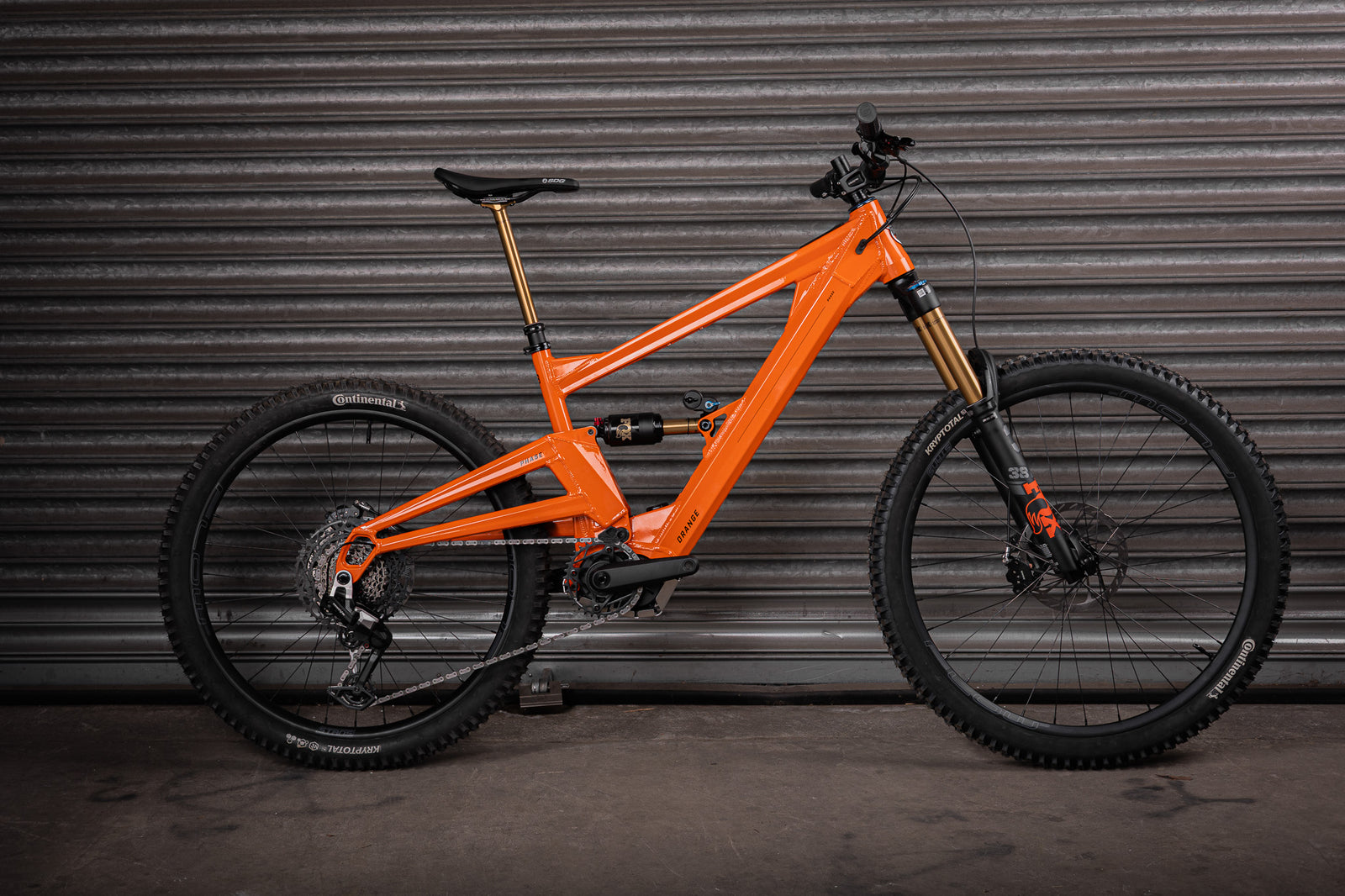

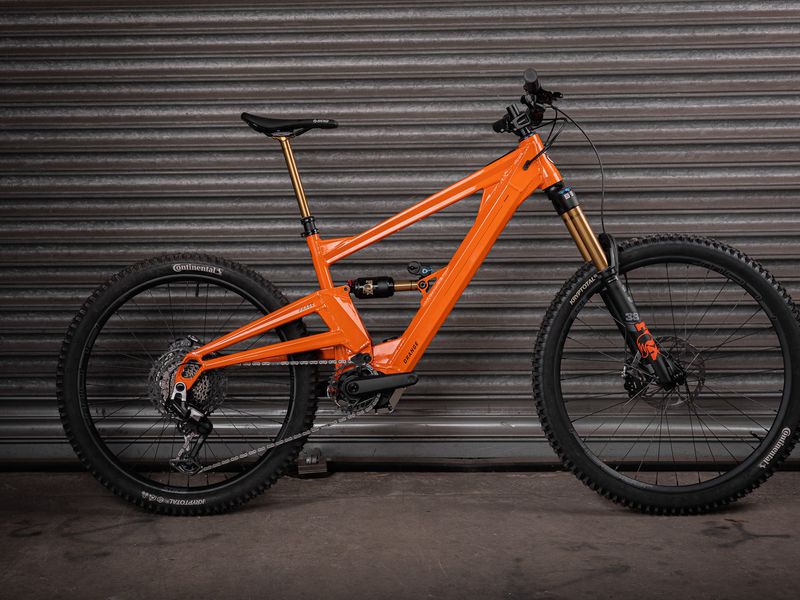

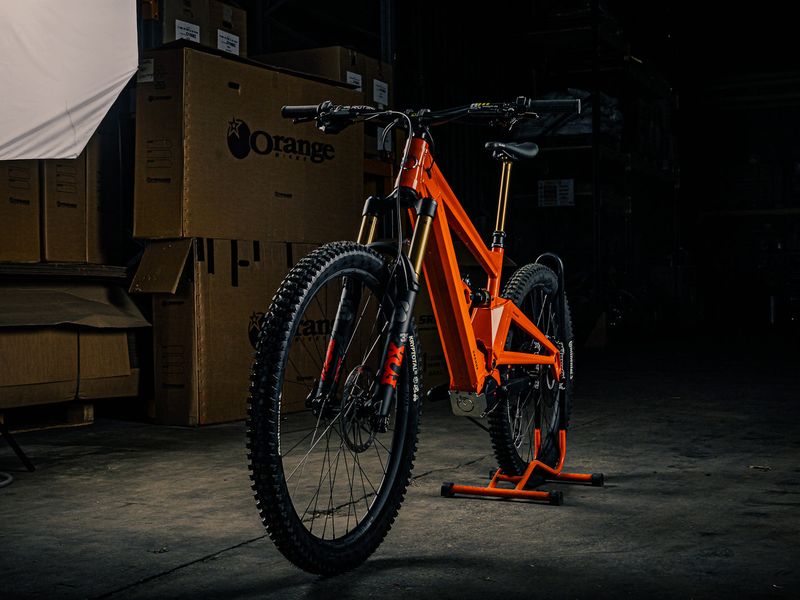

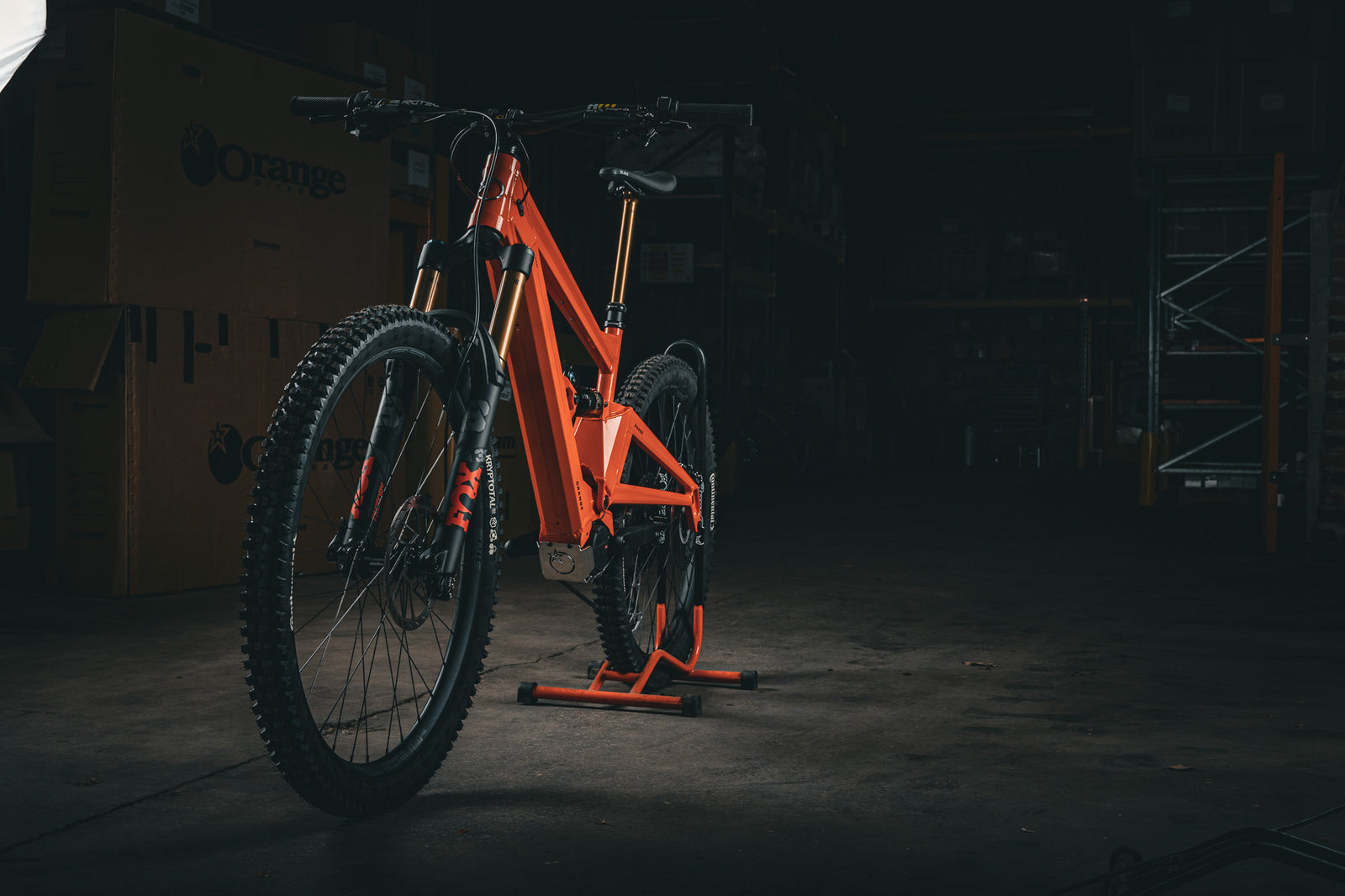

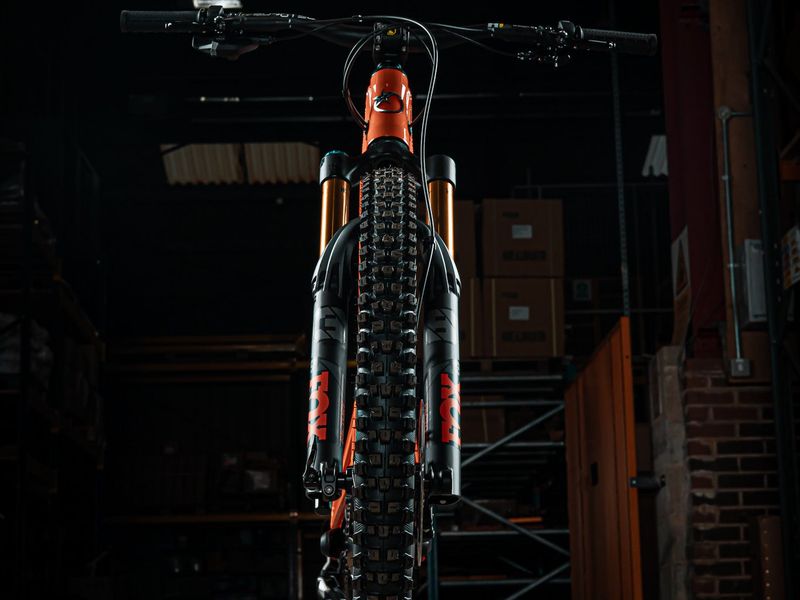

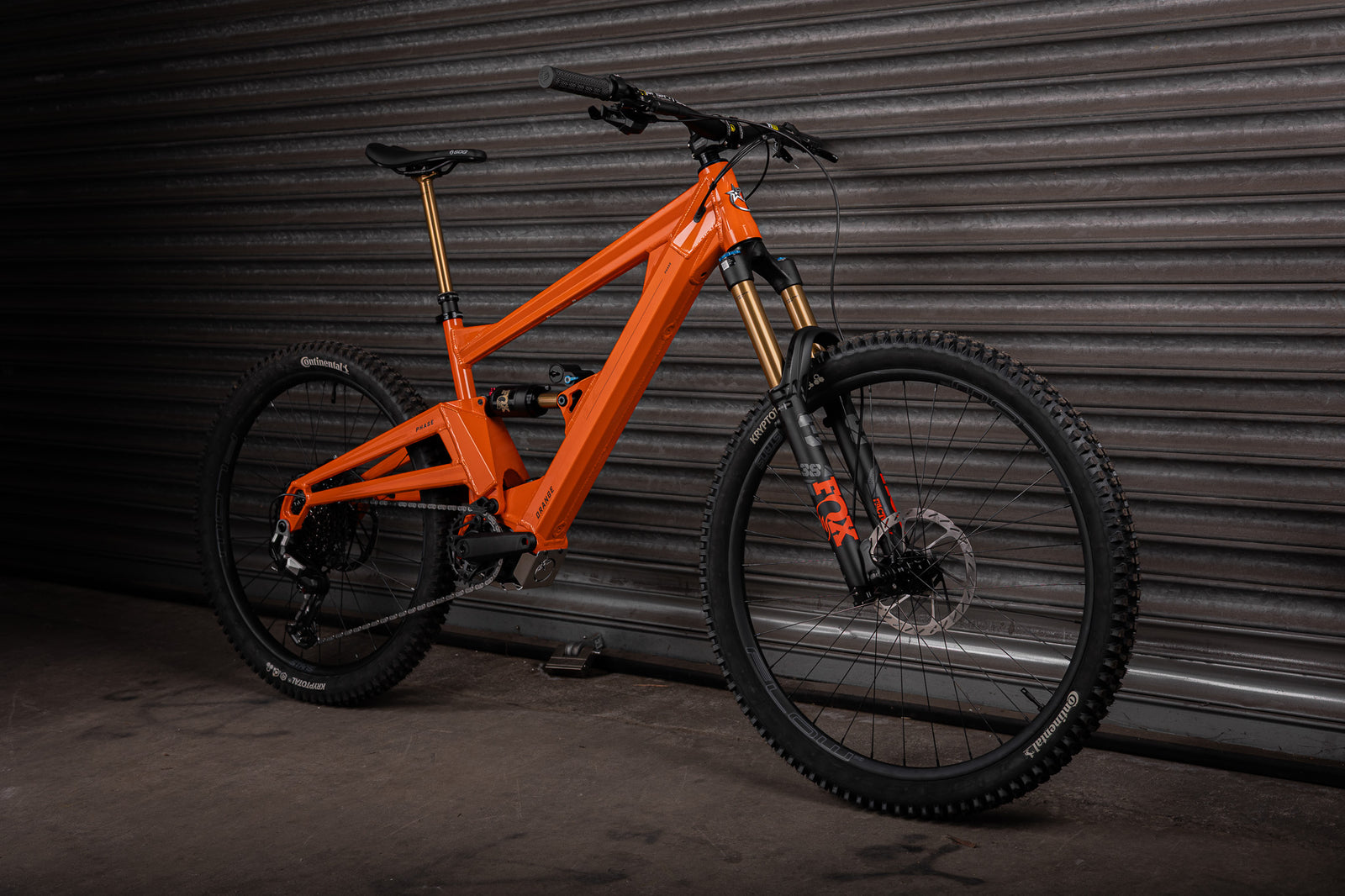

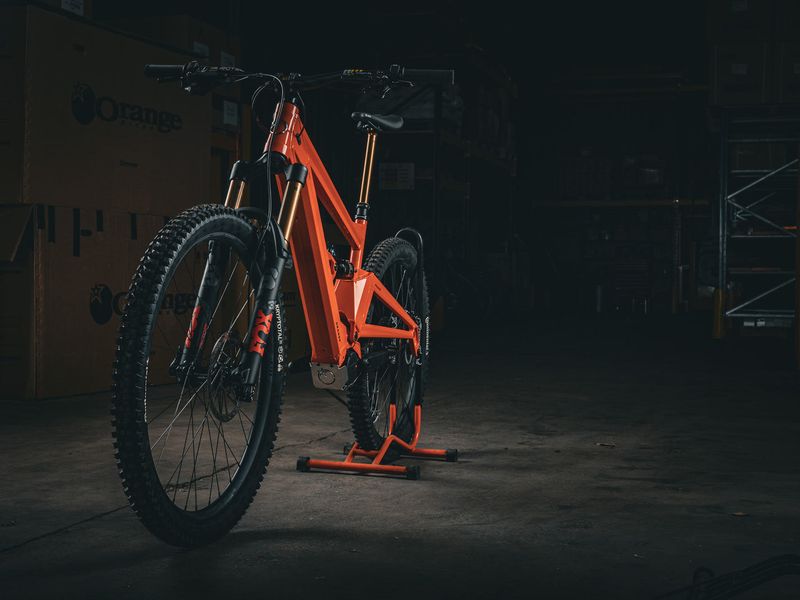

Gallery
Photos: Orange
Full specifications
Frame & suspension
- Wheel size
- 29" front / 27.5" rear (MX)
- Travel
- 160 mm fork / 160 mm rear
- Frame
- 6061-T6 Monocoque UK Formed Custom Aluminium Tubing
- Fork

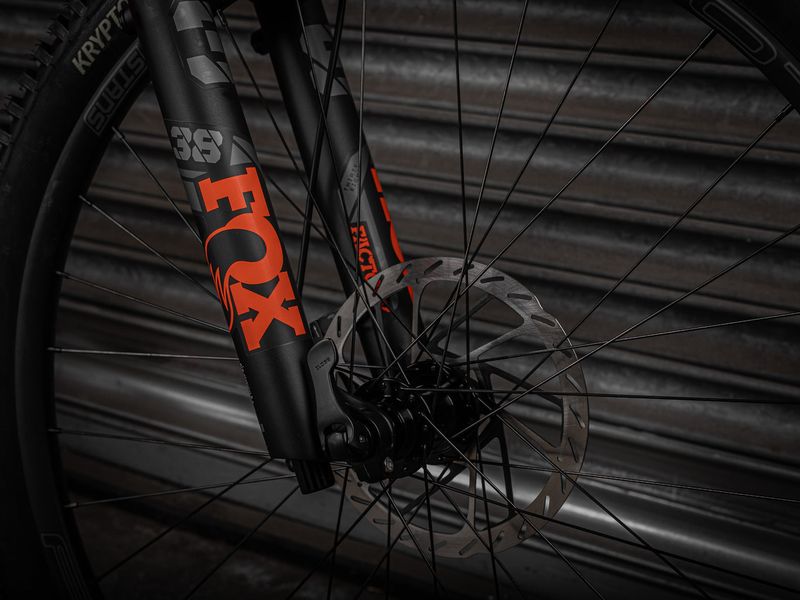

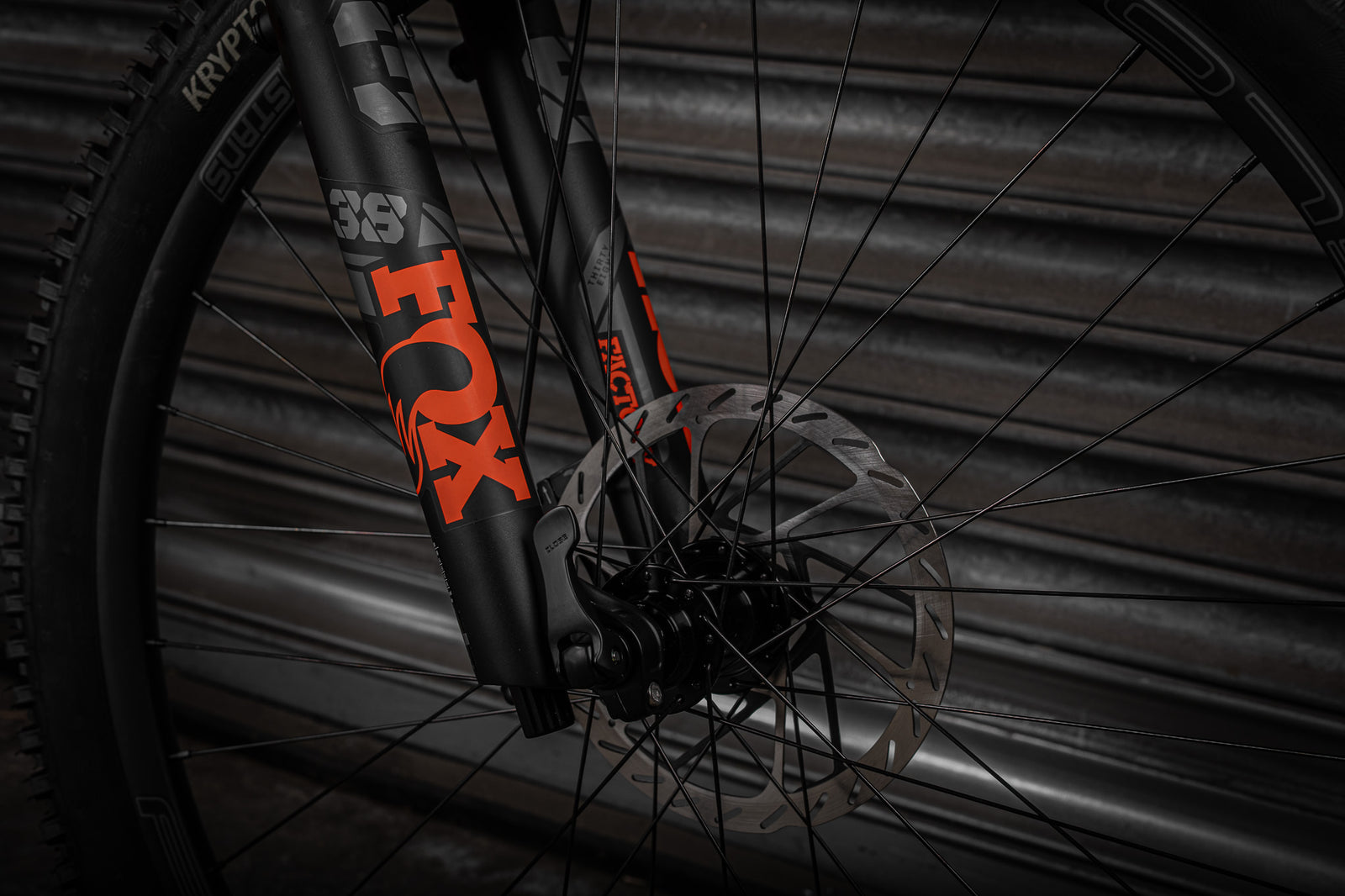

- Fox 38 Factory Grip X2 29x160
- Rear axle
- Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
- Rear shock
- Fox Float X2 Factory 205x65
- Headset
- Cane Creek ZS49/ZS56
E-system
- Motor
- M2S motor 130Nm, max 150Nm (Boost)
- Motor power
- 1300W output, max 1500w (Boost)
- Battery
- 800Wh fixed battery 3.74Kg
- Display
- DP100 display Full function 2” OLED touch screen
- Controller
- BC100 controller LH
- Charger
- 12A Fast charger
- Motor Weight
- 2.6Kg
Drivetrain
- Rear derailleur
- Sram Eagle 90 Transmission
- Chain
- Sram Eagle 70 Transmission
- Shifters
- Sram Eagle 90 Transmission
- Cassette
- Sram 1270 Eagle Transmission 10-52t
- Bottom Bracket
- DJI Avinox
- Crankset
- Sram Eagle 90 Transmission 165mm 34t
Brakes
- Brakes
- Sram Maven Silver 200/200
Wheels & tyres
- Wheelset
- Hope Pro 5 Hubs & Stans Flow MK4
- Tyres
- Continental Kryptotal Soft 2.4
Cockpit
- Stem
- Burgtec Enduro 42.5mm
- Saddle
- SDG Strange Bel Air III
- Handlebars
- Burgtec Ridewide 800 x 30mm
- Grips
- Strange Grappler Lock-On
- Dropper post
- Fox Transfer Factory
- Seat Clamp
- Strange Bolted
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Phase Avinox geometry
| Size | M | L | XL |
|---|---|---|---|
| Seat Tube Length | 16" | 17" | 18" |
| AHead Angle | 64° | 64° | 64° |
| BSeat Angle (Effective) | 76° | 76° | 76° |
| DTop Tube (effective) | 625 mm | 645 mm | 665 mm |
| EBB Height (from ground) | 343 mm | 343 mm | 343 mm |
| BB height (from axles) | -11 mm | -11 mm | -11 mm |
| FChainstay | 448 mm | 448 mm | 448 mm |
| GHead Tube | 130 mm | 140 mm | 150 mm |
| HWheel base | 1259 mm | 1281 mm | 1303 mm |
| JReach | 465 mm | 480 mm | 500 mm |
| KStack | 641 mm | 650 mm | 659 mm |
| TRear Travel | 160 mm | 160 mm | 160 mm |
Source: Orange.
Phase Avinox: builds compared
Phase Avinox range →| Phase Avinox RS | Phase Avinox Factory | Phase Prestige | |
|---|---|---|---|
| Price | £8,250 | £8,750 | £9,600 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Zeb Select + 29x160 | Fox 38 Factory Grip X2 29x160 | Fox 38 Factory Grip X2 29x160 |
| Shock | Rockshox Super Deluxe Select + 205x65 | Fox Float X2 Factory 205x65 | Fox Float X2 Factory 205x65 |
| Derailleur | Sram Eagle 90 Transmission | Sram Eagle 90 Transmission | Sram Eagle 90 Transmission |
| Brakes | Sram Maven Silver 200/200 | Sram Maven Silver 200/200 | GR4 brakes & Floating 200/200mm |
| Display | DP100 display Full function 2” OLED touch screen | DP100 display Full function 2” OLED touch screen | DP100 display Full function 2” OLED touch screen |
Phase Avinox Factory: FAQ
How much does the Orange Phase Avinox Factory cost?
£8,750 (UK RRP, VAT incl.). The Phase Avinox range runs from £8,250 (Phase Avinox RS) to £9,600 (Phase Prestige). Prices vary by country and dealer.
What motor and battery does the Orange Phase Avinox Factory have?
DJI Avinox M2S (130 Nm; 150 Nm in Boost). 800 Wh battery — fixed integrated battery (3.74 kg).
How much suspension travel does the Orange Phase Avinox Factory have?
160 mm at the fork and 160 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Orange Phase Avinox Factory come in?
M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Phase Avinox Factory and the Phase Prestige?
They share the Phase Avinox frame platform and motor; the differences are in the parts — price: £8,750 vs £9,600.
