OrangePhase Avinox RS
- Motor
- DJI Avinox M2S130 Nm; 150 Nm in Boost
- Battery
- 800 WhFixed integrated battery (3.74 kg)
- Travel F / R
- 160 / 160 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Watching this bike? Get new models and updates on Telegram →
Overview
£8,250 is the starting price for the Orange Phase Avinox: DJI Avinox M2S with 800 Wh, a RockShox ZEB Select+ fork, Super Deluxe Select+ shock, SRAM Eagle 90 Transmission and Maven Silver brakes. Orange doesn't publish a weight.
The Phase Avinox RS is one of 3 builds of the Orange Phase Avinox. About the Phase Avinox range and all its builds →

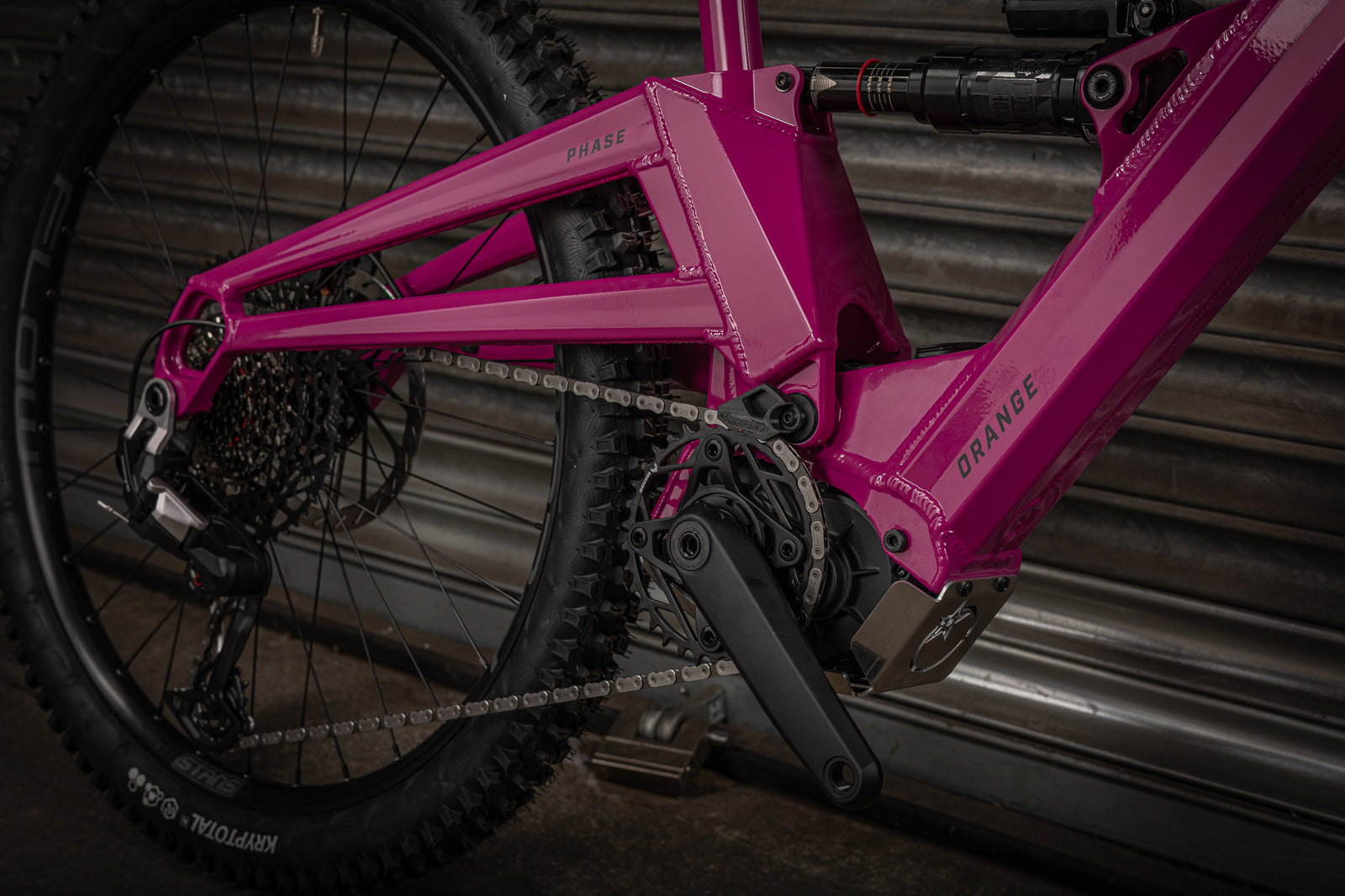

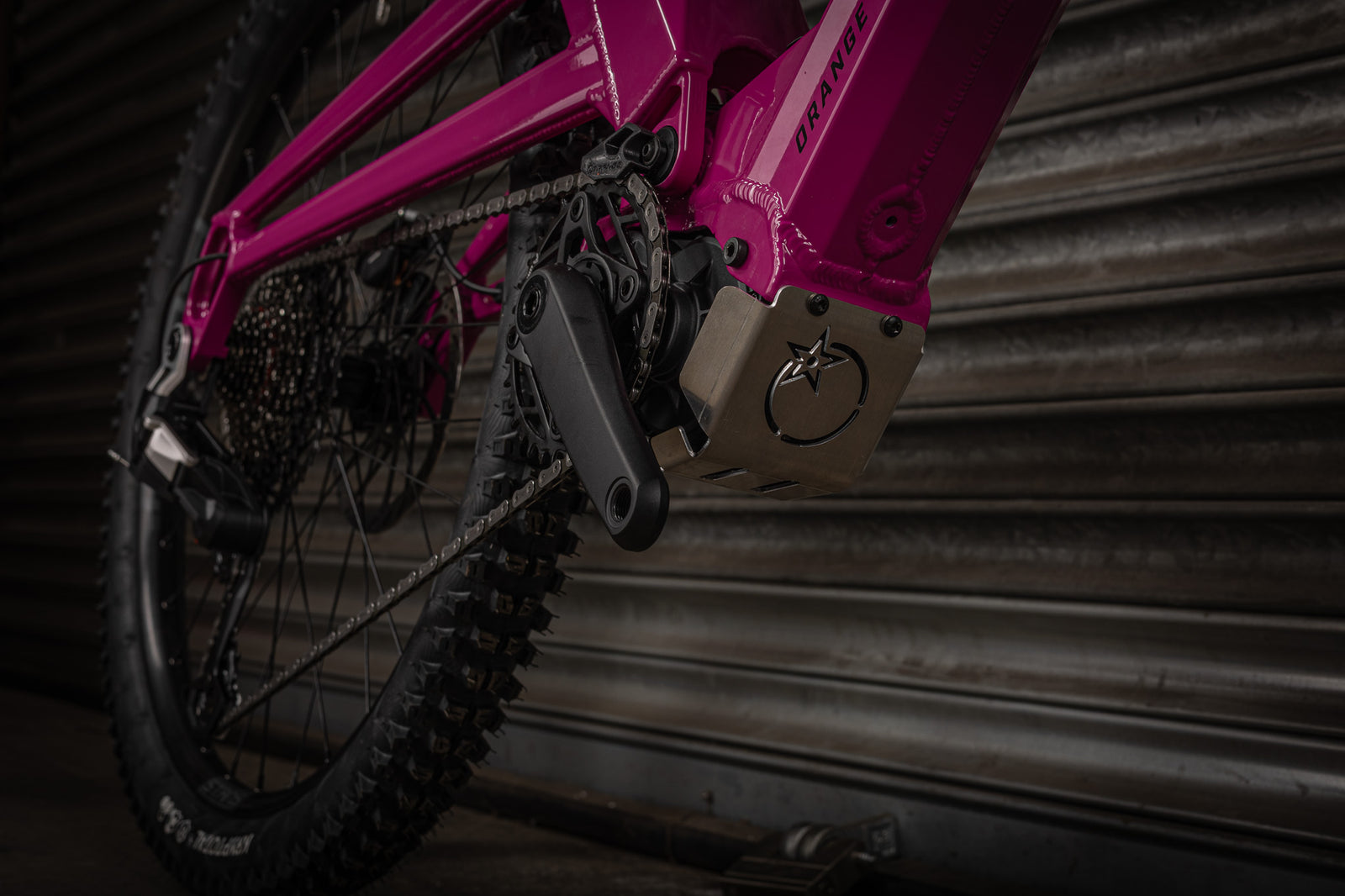

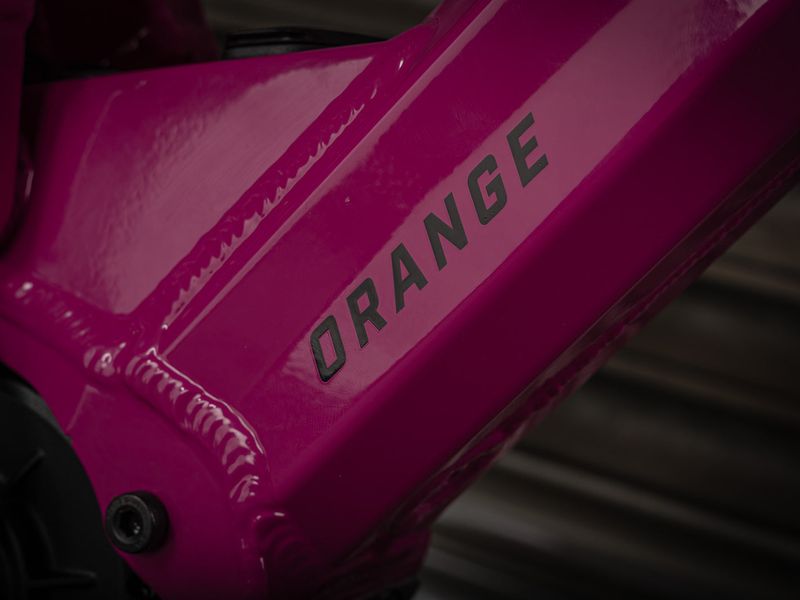

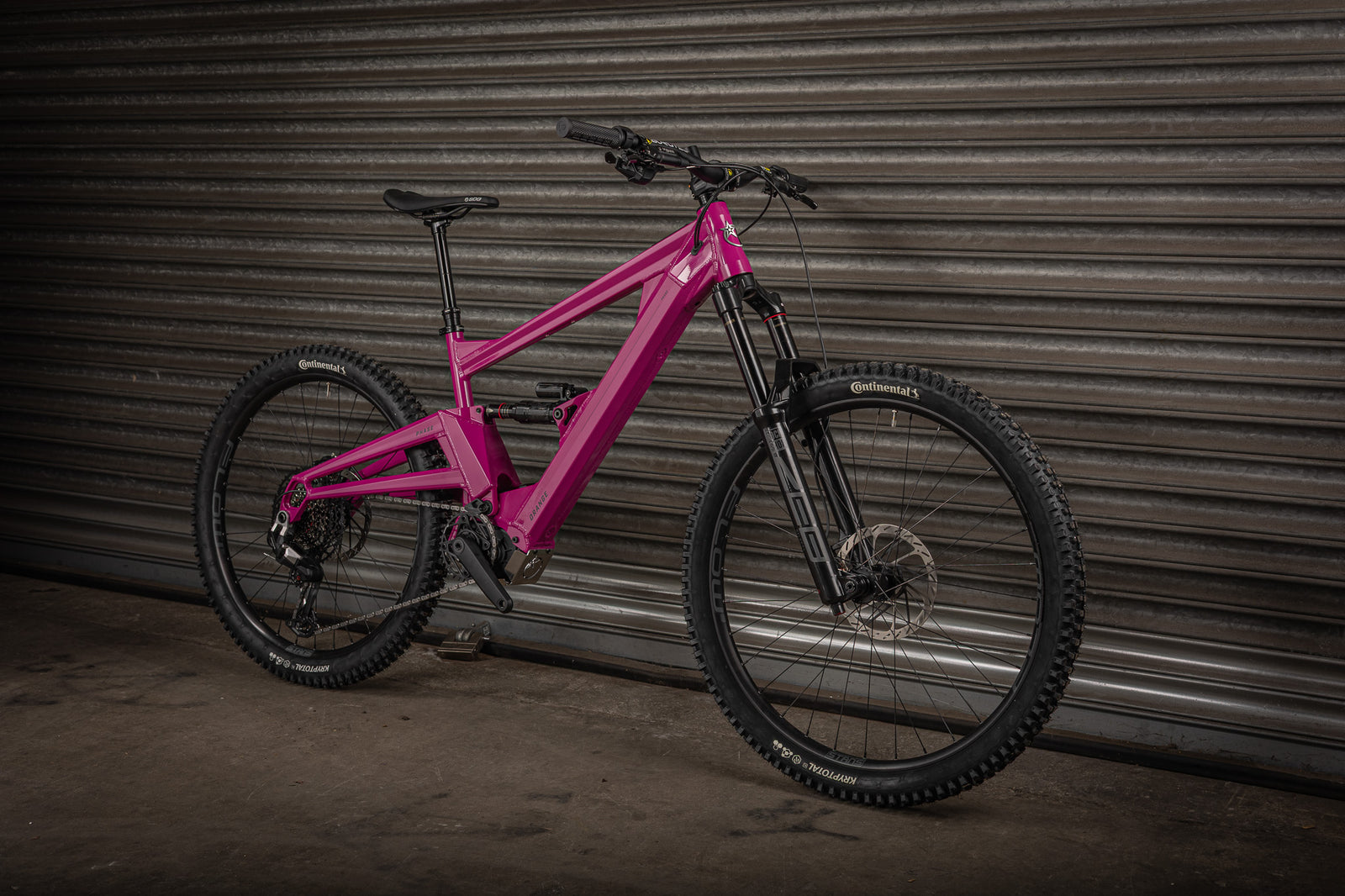

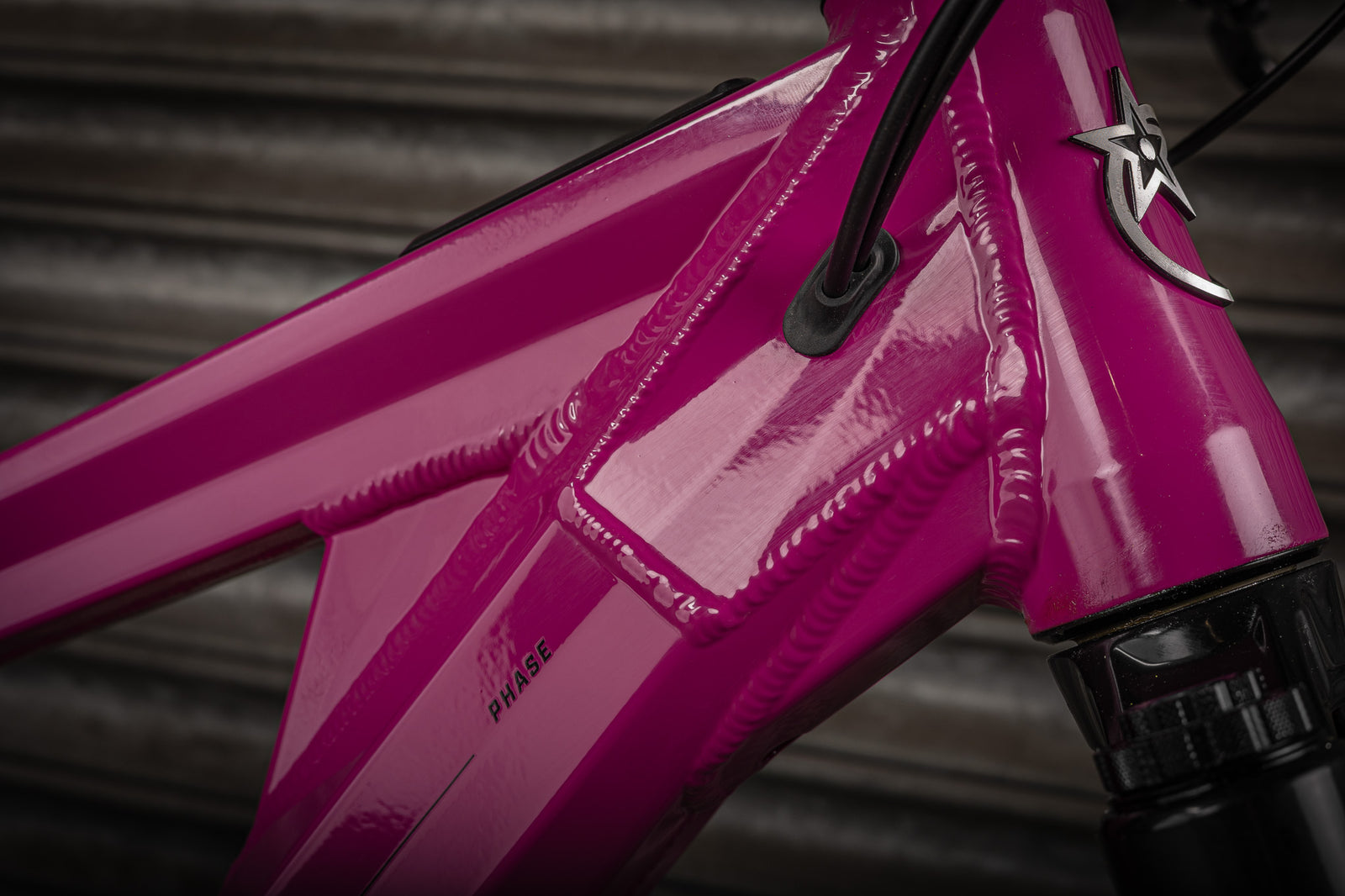

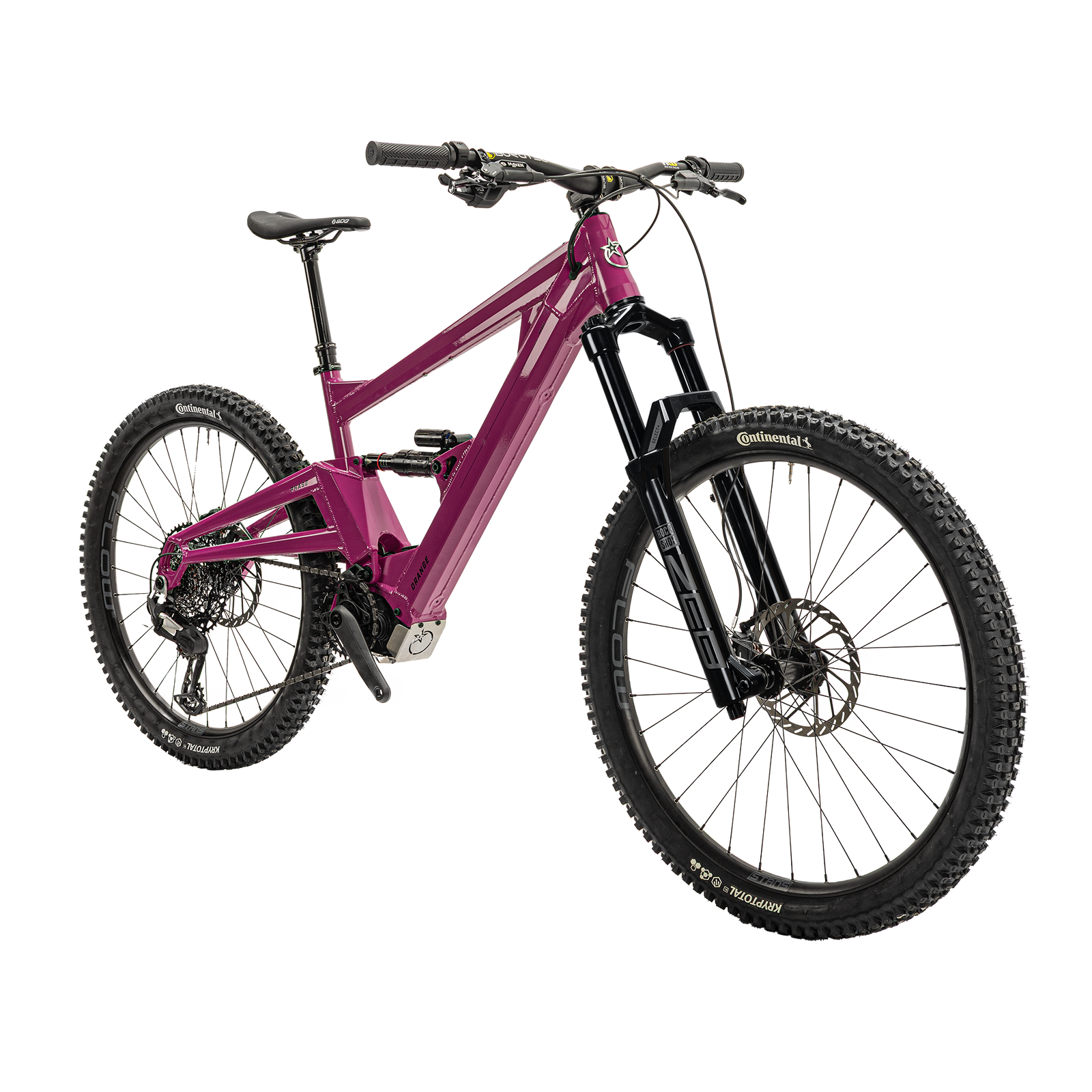

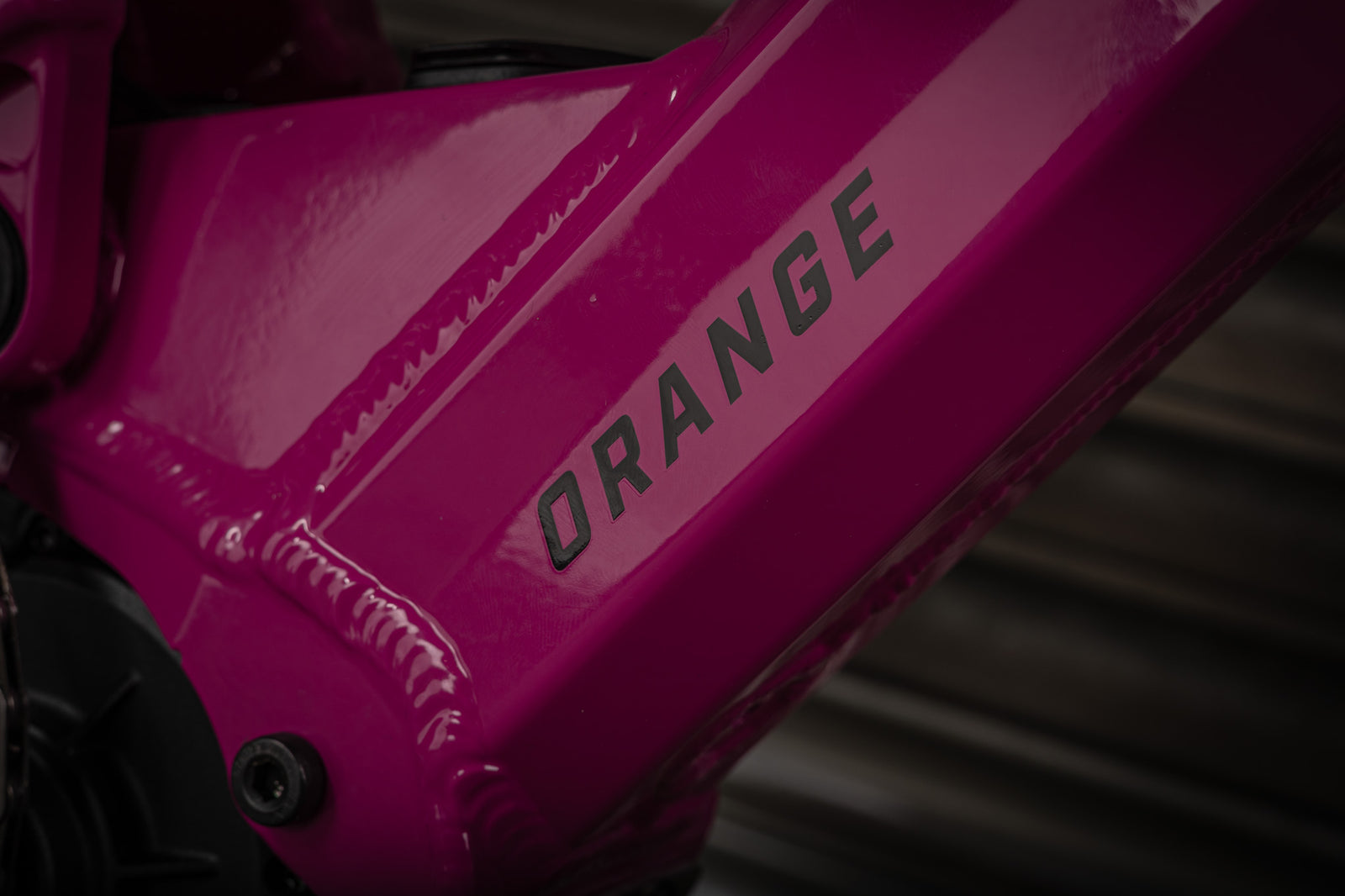

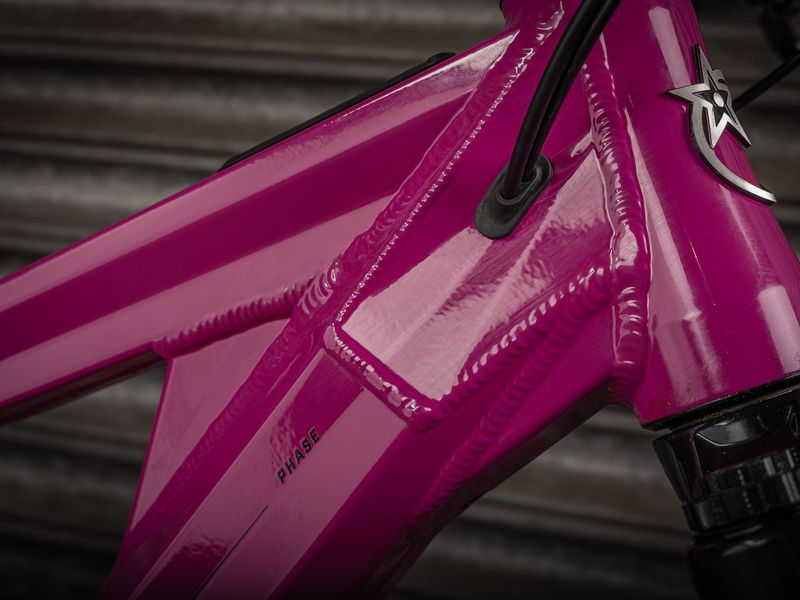

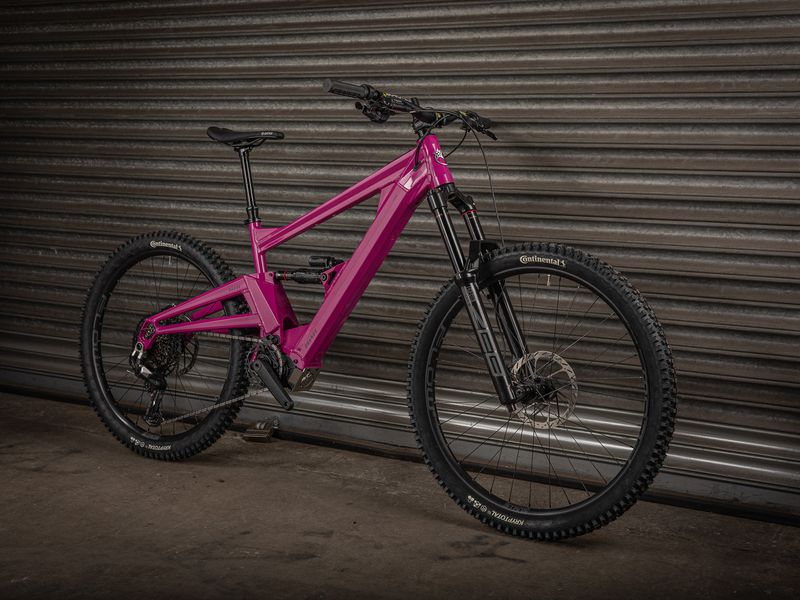

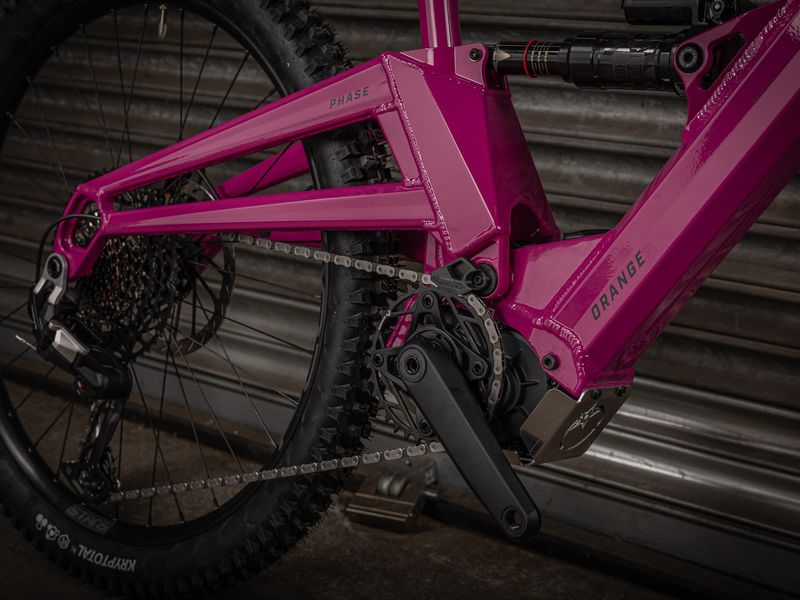

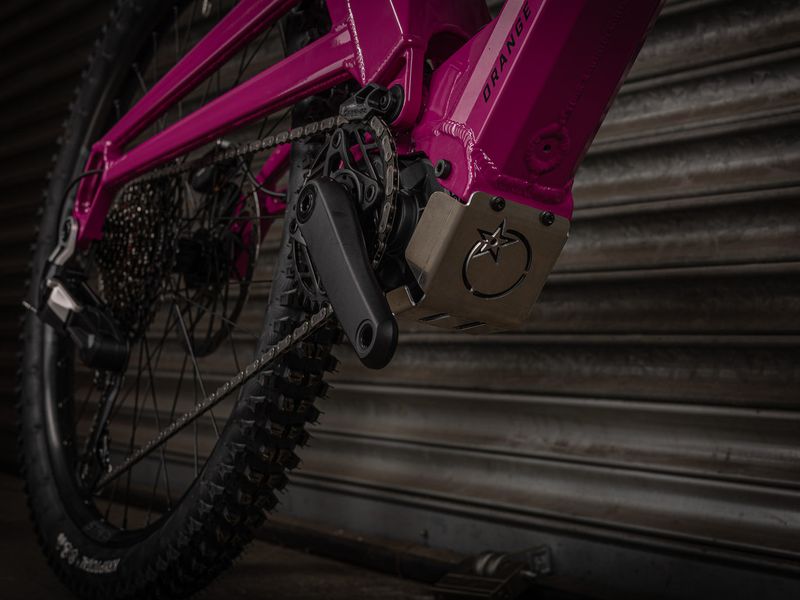

Gallery
Photos: Orange
Full specifications
Frame & suspension
- Wheel size
- 29" front / 27.5" rear (MX)
- Travel
- 160 mm fork / 160 mm rear
- Frame
- 6061-T6 Monocoque UK Formed Custom Aluminium Tubing
- Fork
- Rockshox Zeb Select + 29x160
- Rear axle
- Bolt Type Allen Key Head (Boost 12 x 148mm Hub)
- Rear shock
- Rockshox Super Deluxe Select + 205x65
- Headset
- Cane Creek ZS49/ZS56
E-system
- Motor
- M2S motor 130Nm, max 150Nm (Boost)
- Motor power
- 1300W output, max 1500w (Boost)
- Battery
- 800Wh fixed battery 3.74Kg
- Display
- DP100 display Full function 2” OLED touch screen
- Controller
- BC100 controller LH
- Charger
- 12A Fast charger
- Motor Weight
- 2.6Kg
Drivetrain
- Rear derailleur
- Sram Eagle 90 Transmission
- Chain
- Sram Eagle 70 Transmission
- Shifters
- Sram Eagle 90 Transmission
- Cassette
- Sram 1270 Eagle Transmission 10-52t
- Bottom Bracket
- DJI Avinox
- Crankset
- Sram Eagle 90 Transmission 165mm 34t
Brakes
- Brakes
- Sram Maven Silver 200/200
Wheels & tyres
- Wheelset
- Hope Pro 5 Hubs & Stans Flow S2
- Tyres
- Continental Kryptotal Soft 2.4
Cockpit
- Stem
- Burgtec Enduro 40mm
- Saddle
- SDG Strange Bel Air III
- Handlebars
- Burgtec Ridewide 800 x 42.5mm
- Grips
- Strange Grappler Lock-On
- Dropper post
- KS Ragei 170mm
- Seat Clamp
- Strange Bolted
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Phase Avinox geometry
| Size | M | L | XL |
|---|---|---|---|
| Seat Tube Length | 16" | 17" | 18" |
| AHead Angle | 64° | 64° | 64° |
| BSeat Angle (Effective) | 76° | 76° | 76° |
| DTop Tube (effective) | 625 mm | 645 mm | 665 mm |
| EBB Height (from ground) | 343 mm | 343 mm | 343 mm |
| BB height (from axles) | -11 mm | -11 mm | -11 mm |
| FChainstay | 443 mm | 443 mm | 443 mm |
| GHead Tube | 130 mm | 140 mm | 150 mm |
| HWheel base | 1259 mm | 1281 mm | 1303 mm |
| JReach | 464 mm | 478.6 mm | 500 mm |
| KStack | 641 mm | 650 mm | 659 mm |
| TRear Travel | 160 mm | 160 mm | 160 mm |
Source: Orange. The RS page lists 443 mm chainstay and 464/478.6/500 mm reach, while the Factory page lists 448 mm and 465/480/500 mm.
Phase Avinox: builds compared
Phase Avinox range →| Phase Avinox RS | Phase Avinox Factory | Phase Prestige | |
|---|---|---|---|
| Price | £8,250 | £8,750 | £9,600 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Zeb Select + 29x160 | Fox 38 Factory Grip X2 29x160 | Fox 38 Factory Grip X2 29x160 |
| Shock | Rockshox Super Deluxe Select + 205x65 | Fox Float X2 Factory 205x65 | Fox Float X2 Factory 205x65 |
| Derailleur | Sram Eagle 90 Transmission | Sram Eagle 90 Transmission | Sram Eagle 90 Transmission |
| Brakes | Sram Maven Silver 200/200 | Sram Maven Silver 200/200 | GR4 brakes & Floating 200/200mm |
| Display | DP100 display Full function 2” OLED touch screen | DP100 display Full function 2” OLED touch screen | DP100 display Full function 2” OLED touch screen |
Phase Avinox RS: FAQ
What is the difference between the Phase Avinox RS and the Phase Avinox Factory?
They share the Phase Avinox frame platform and motor; the differences are in the parts: fork: Rockshox Zeb Select + 29x160 vs Fox 38 Factory Grip X2 29x160; shock: Rockshox Super Deluxe Select + 205x65 vs Fox Float X2 Factory 205x65; price: £8,250 vs £8,750.
