OrangePatriot Avinox

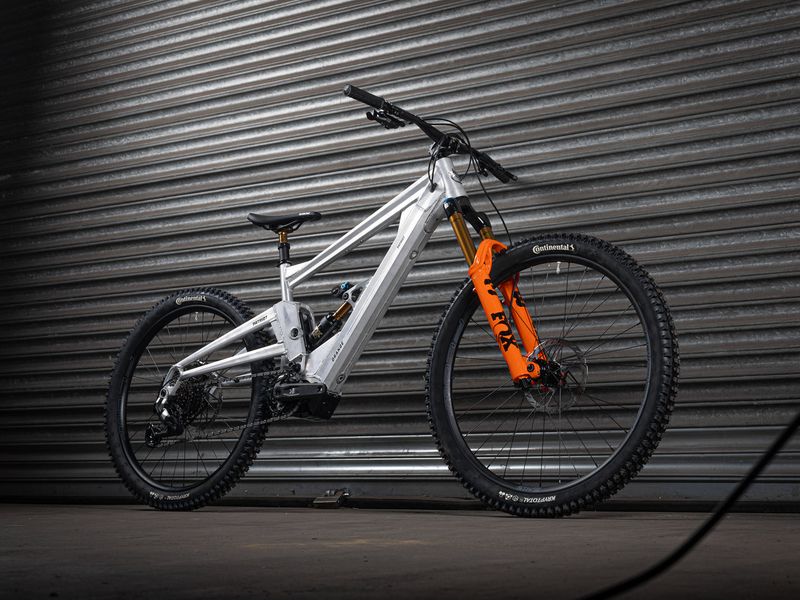

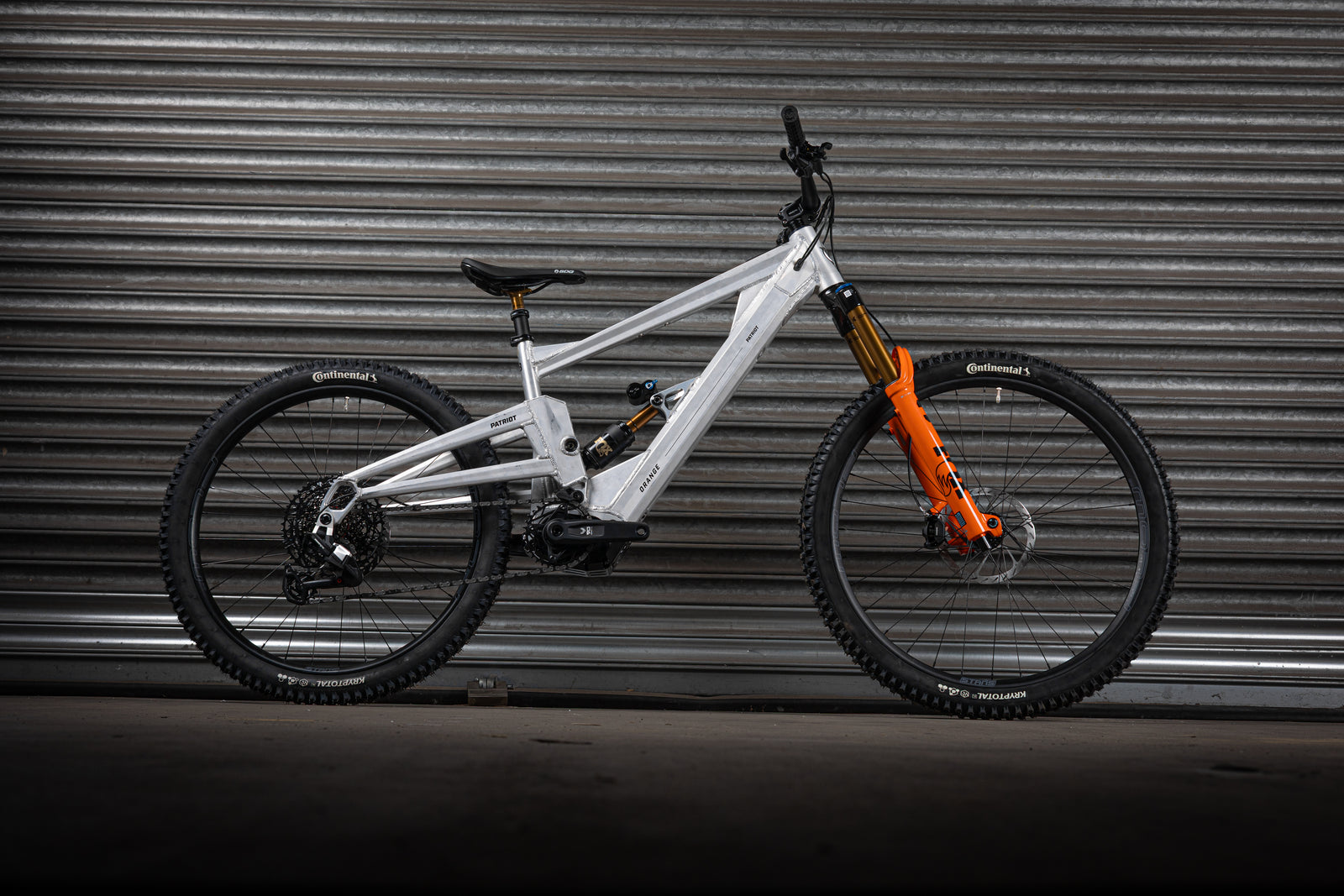

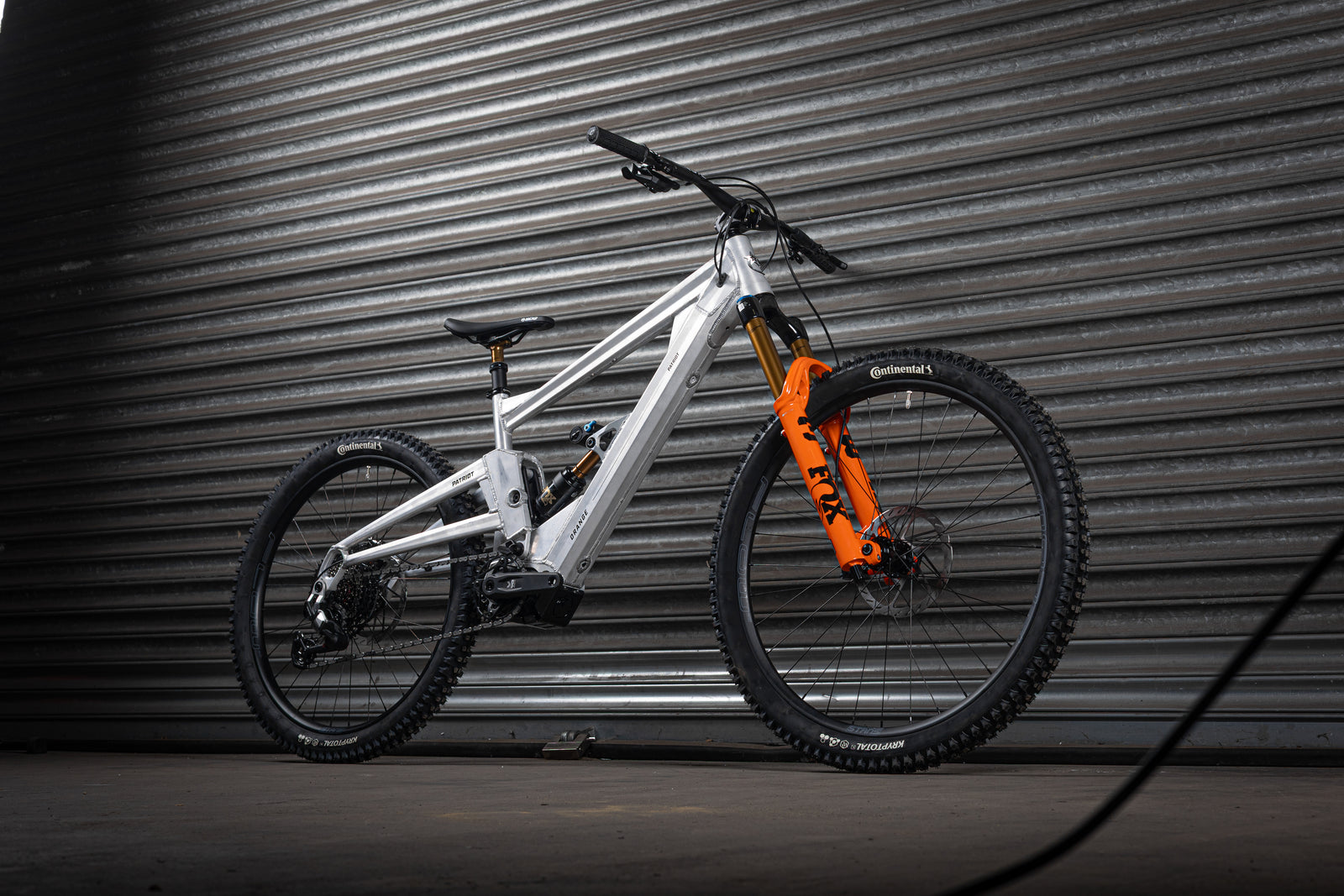

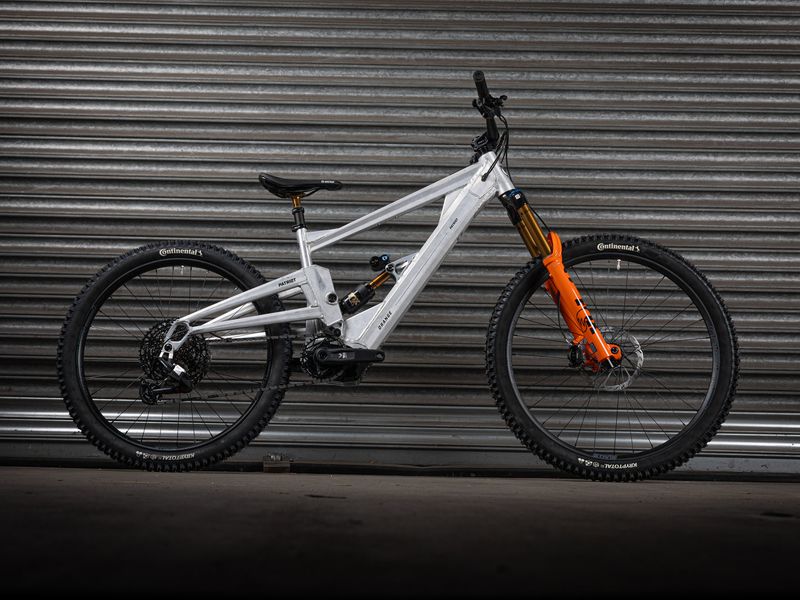

The Orange Patriot Avinox (£9,500) is the only build of the Patriot Avinox: DJI Avinox M2S motor with 800 Wh, Fox 38 Factory Grip X2 29x180 fork, Fox Float X2 Factory 205x65 shock, Sram Eagle 90 Transmission and Sram Maven Silver 200/200 brakes. Orange does not publish a claimed weight.

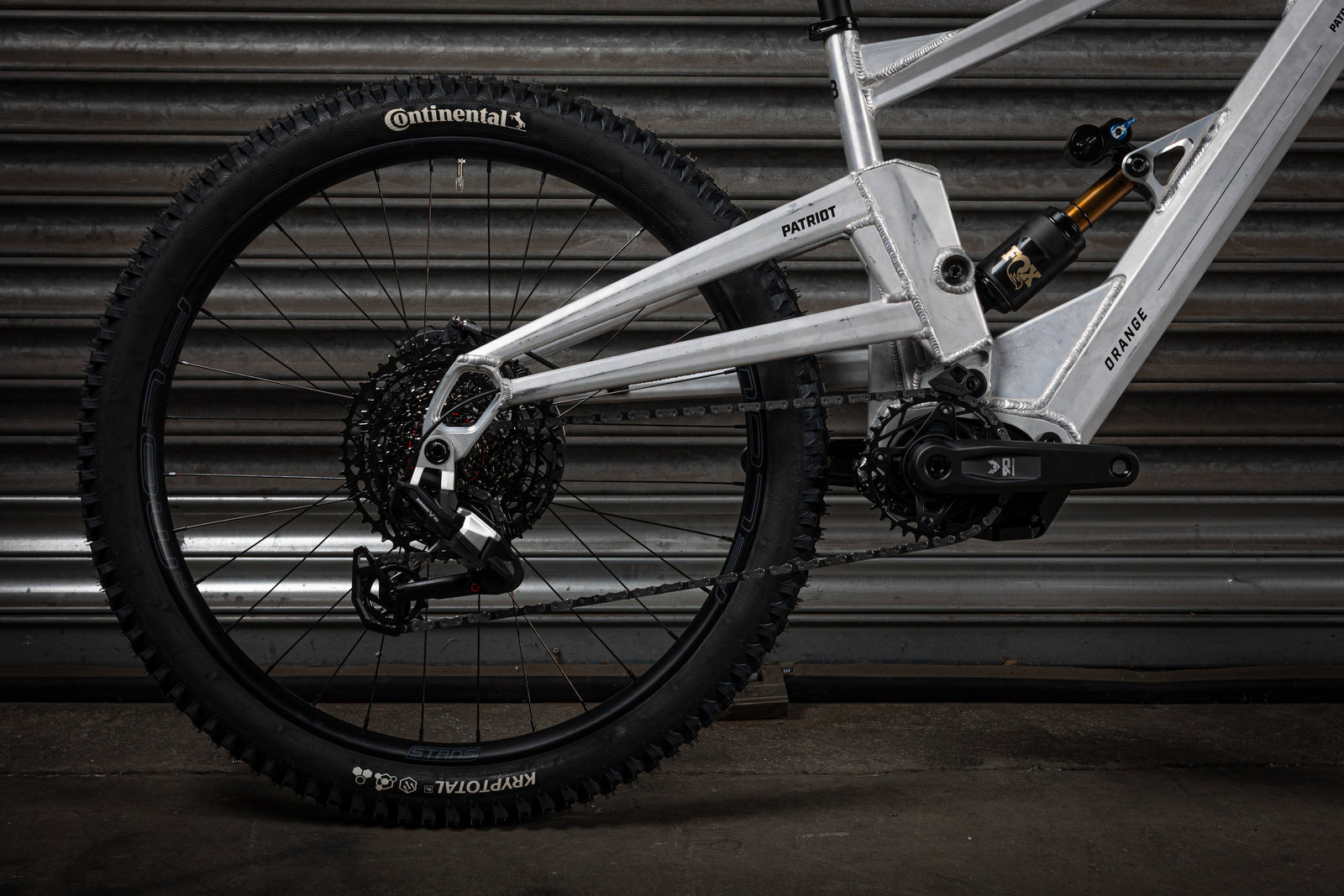

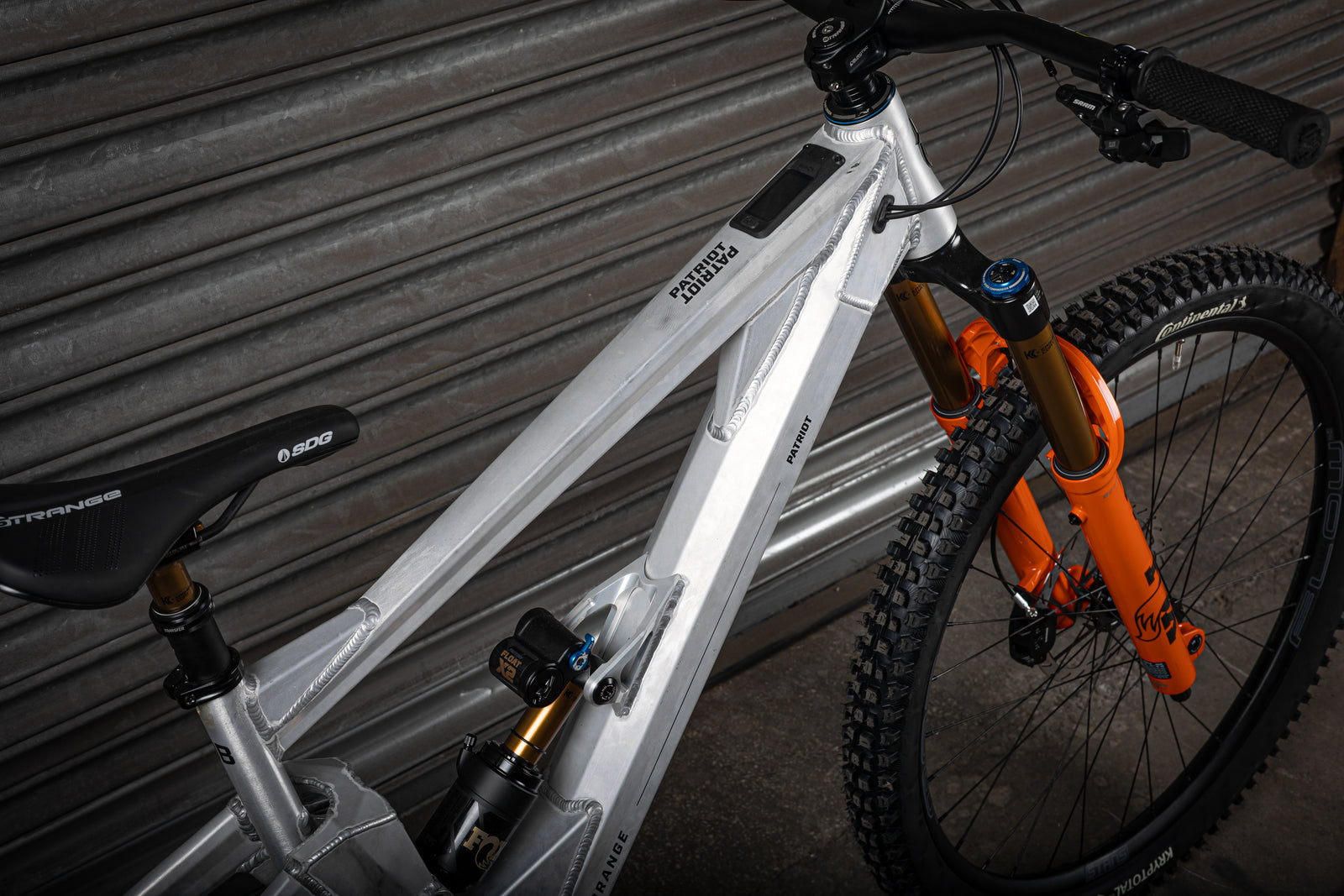

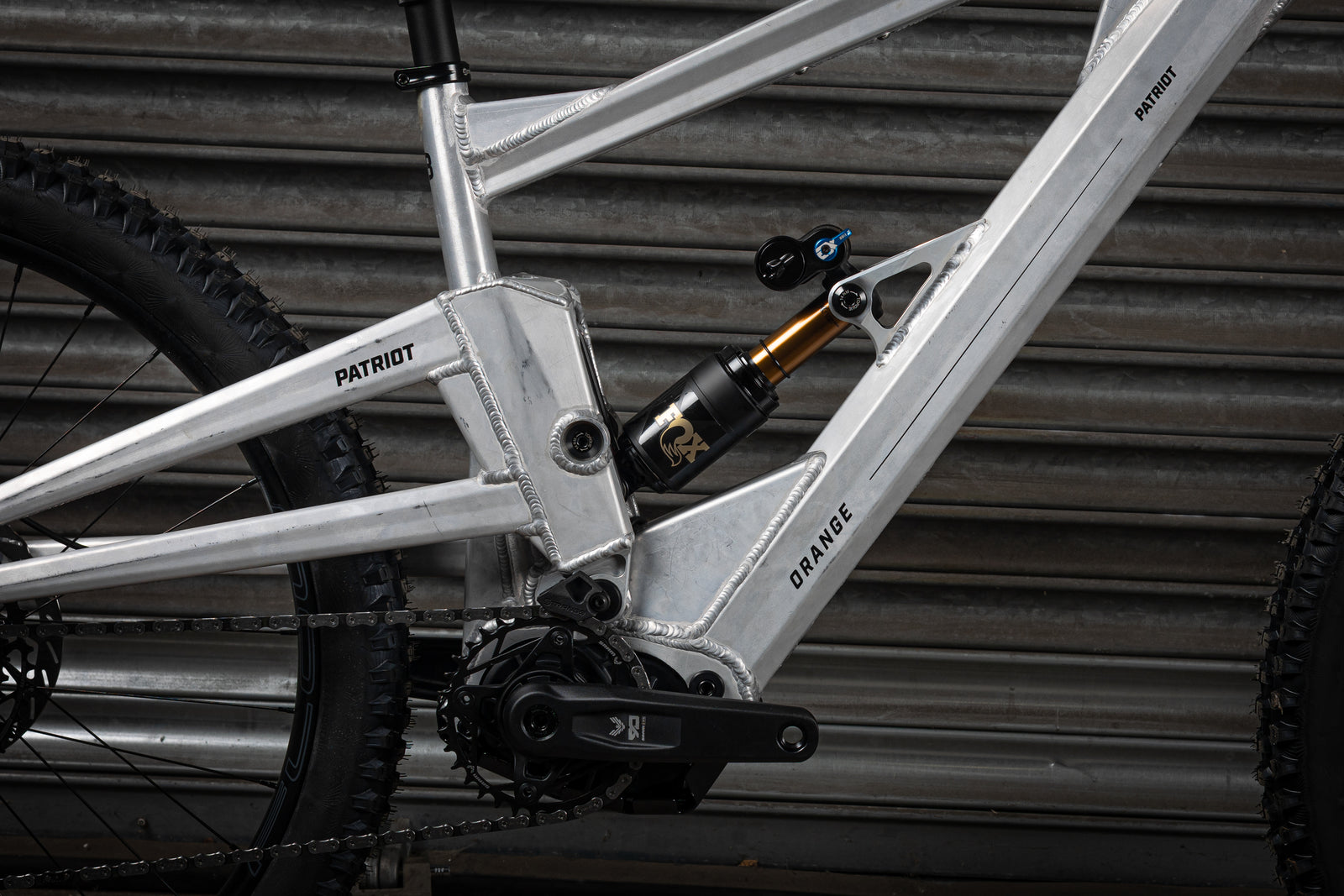

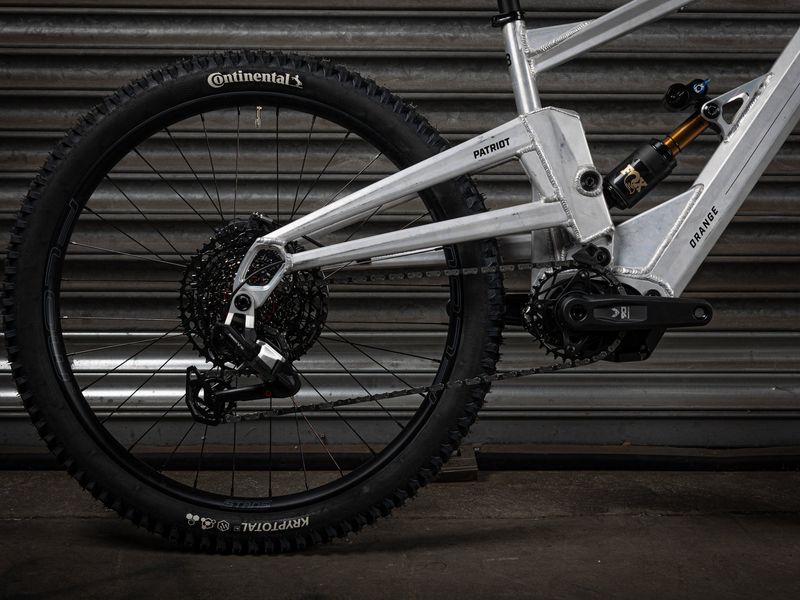

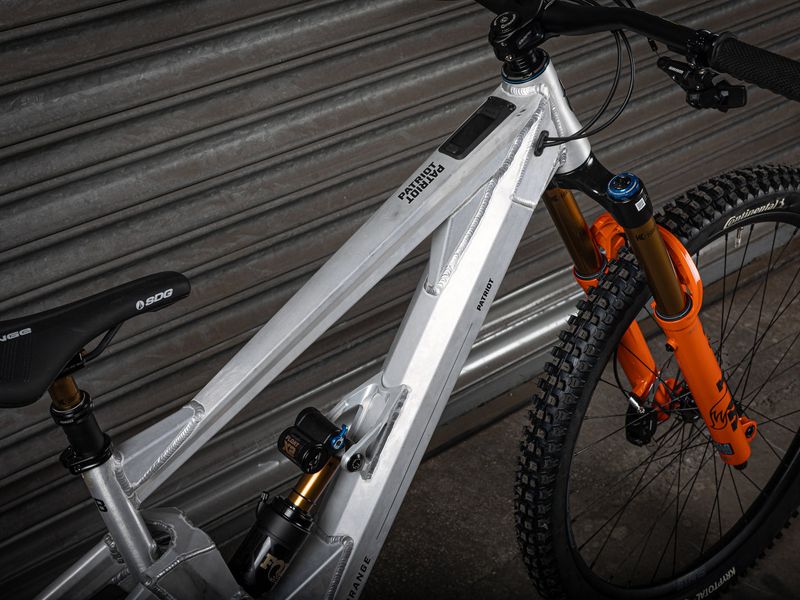

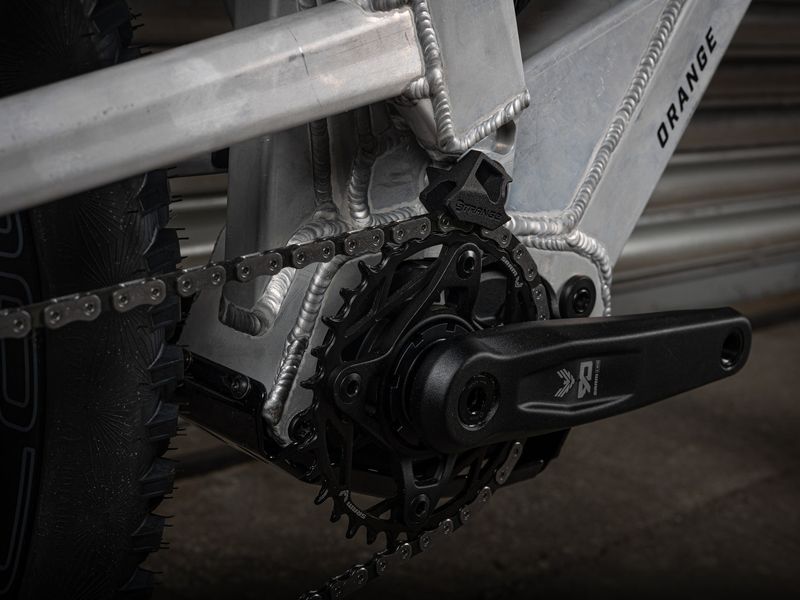

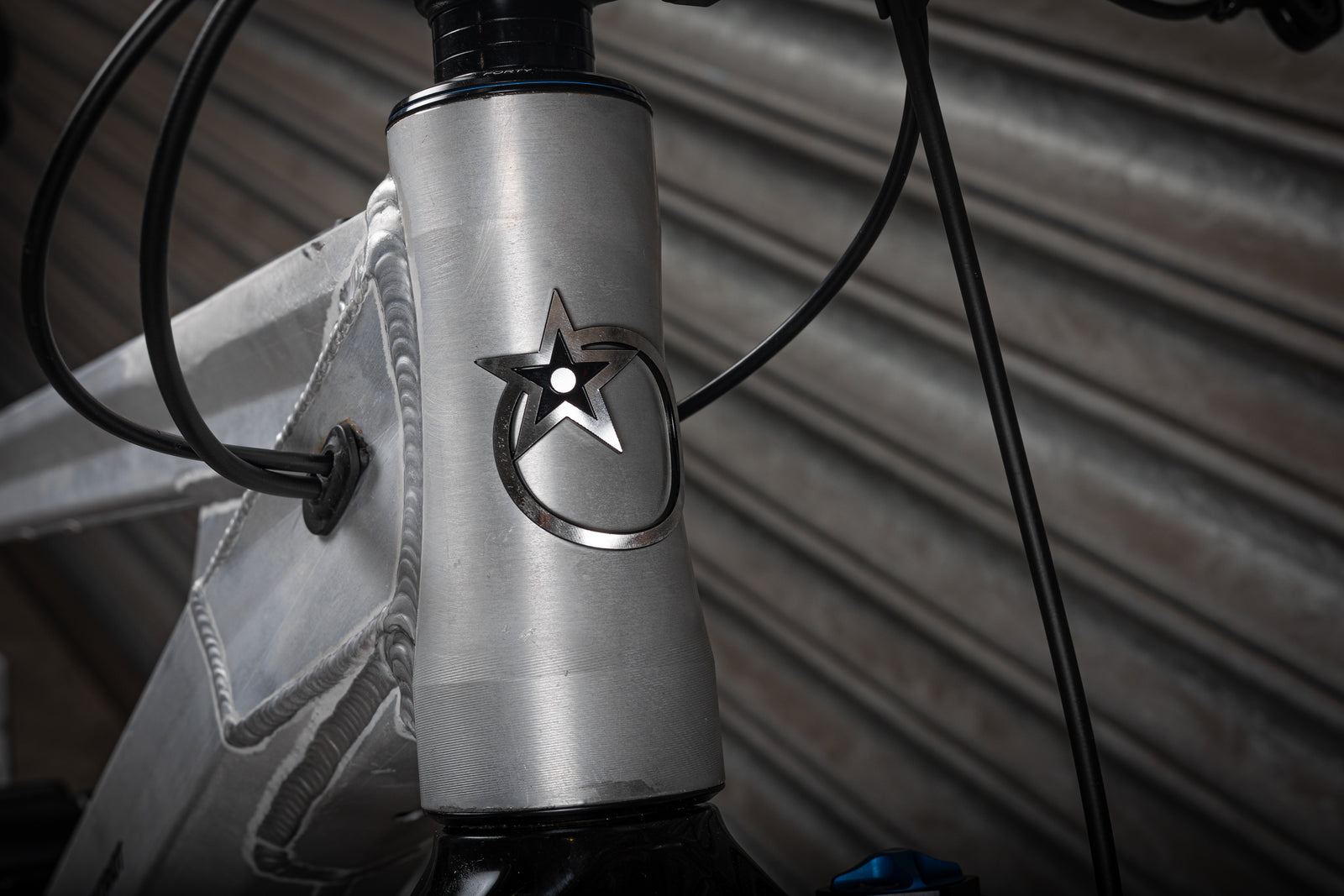

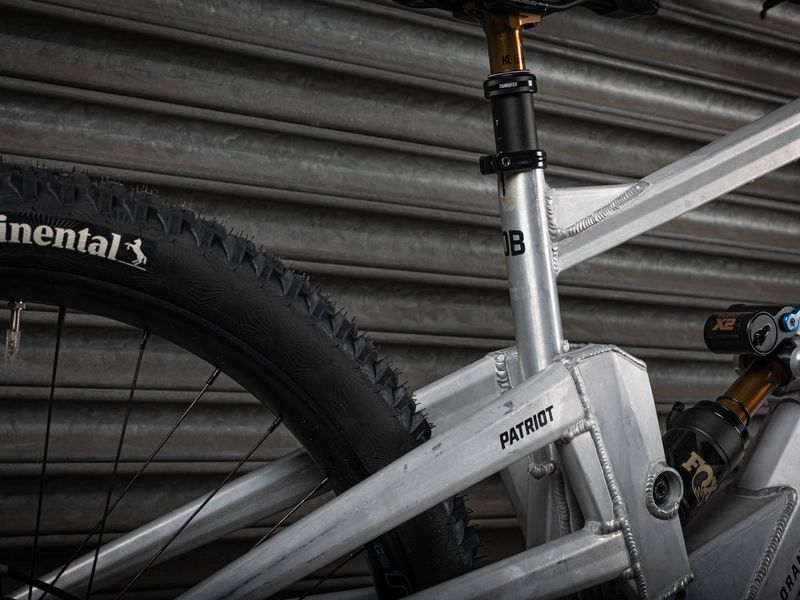

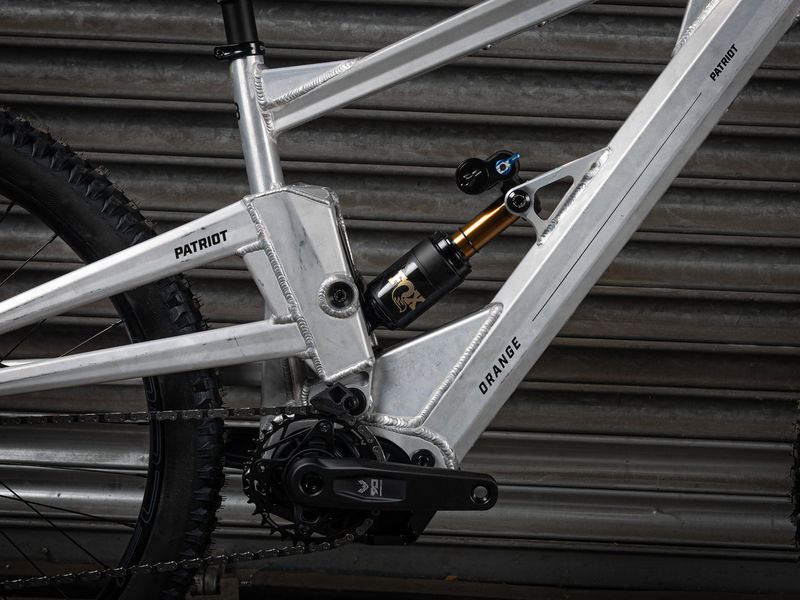

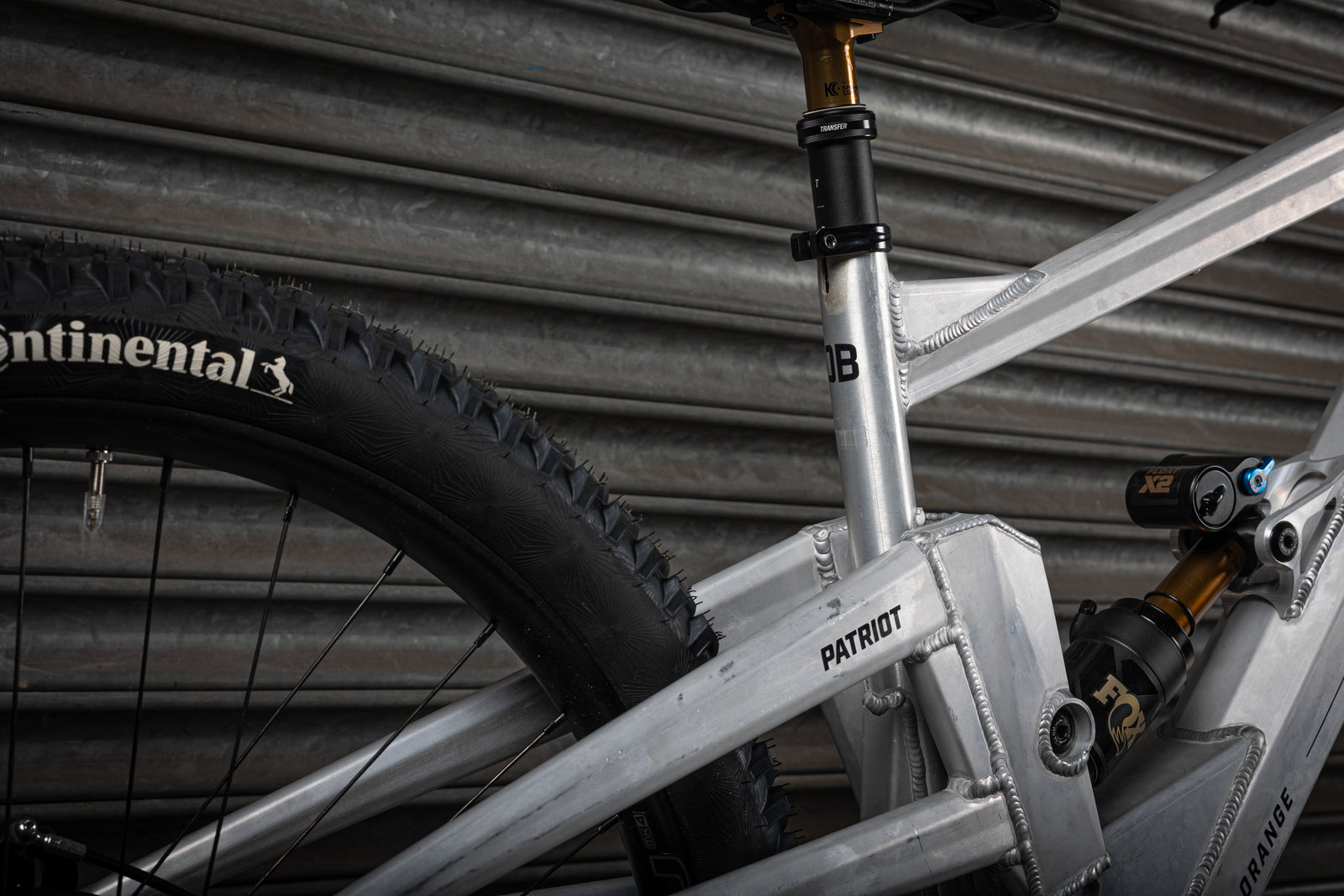

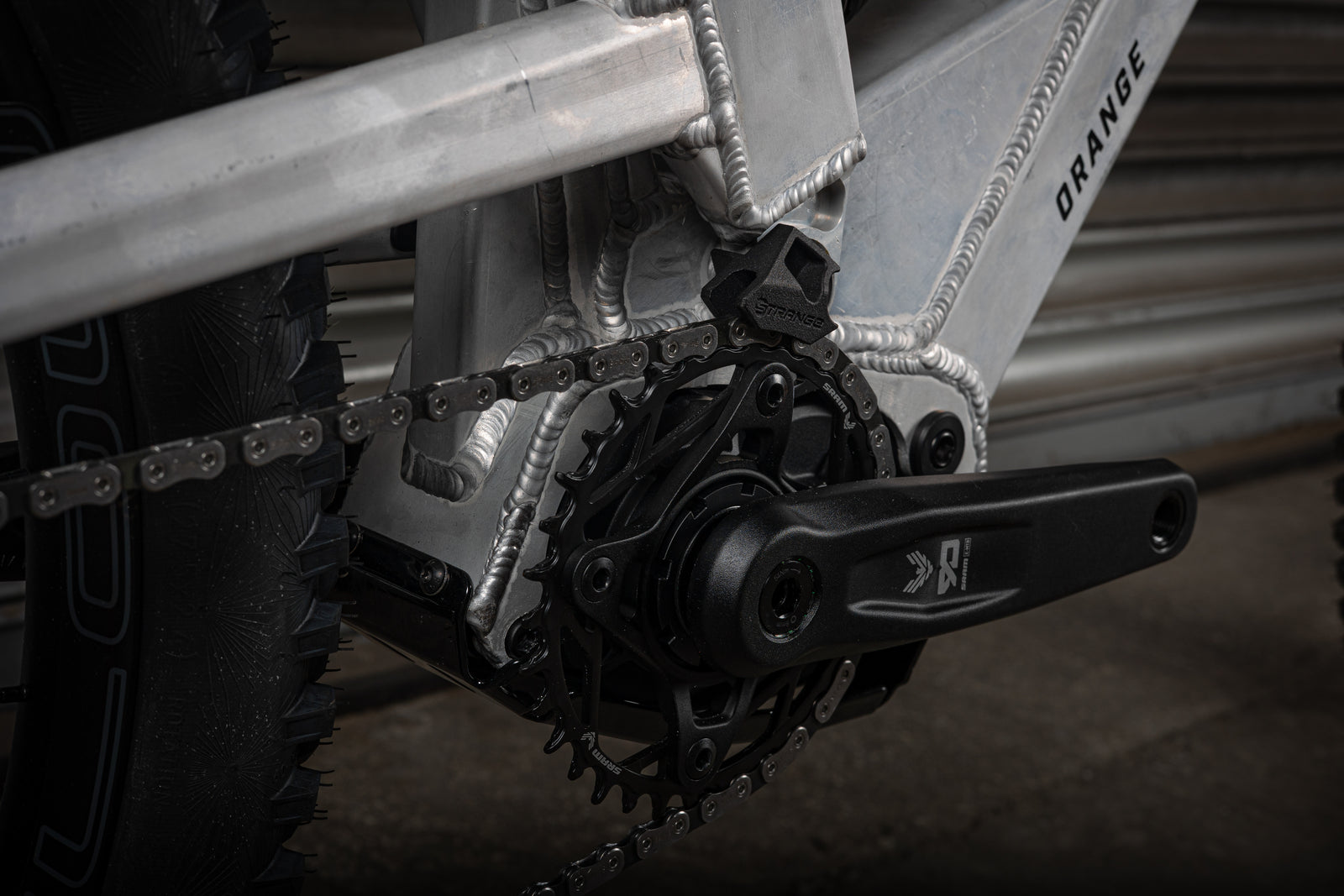

The Patriot is Orange's long-travel gravity e-MTB, rebuilt around a new frame with the DJI Avinox M2S drive unit (130 Nm, 150 Nm in Boost) and an integrated 800 Wh battery. Like the Phase, the frame is made in Orange's UK factory from 6061-T6 aluminium monocoque tubing, with a trunnion-mounted shock, aluminium bashguard and UDH dropout.

It runs MX wheels with a 180 mm fork and 170 mm of rear travel, a 62.5° head angle, 78° seat angle, reduced-offset fork and 481 mm reach in size L, with a 448 mm chainstay. Frames carry a 5-year warranty with limited lifetime crash replacement.

• DJI Avinox M2S: 130 Nm (150 Nm Boost), 800 Wh
• 180 mm fork / 170 mm rear, MX wheels
• 62.5° head angle, 78° seat angle
• UK-made aluminium frame, trunnion shock, UDH
