OrangePhase Avinox
- Price
- £8,250 – £9,600
- Motor
- DJI Avinox M2S130 Nm; 150 Nm in Boost
- Battery
- 800 WhFixed integrated battery (3.74 kg)
- Travel F / R
- 160 / 160 mm
- Wheels
- Mullet 29" / 27.5"
Overview
The Phase is Orange's 160 mm trail/all-mountain e-MTB, now powered by the DJI Avinox M2S drive unit (130 Nm, 150 Nm in Boost; 1300 W, 1500 W in Boost) with a fixed 800 Wh battery. The frame is made in Orange's UK factory from 6061-T6 aluminium sheet folded into a monocoque front end, with a 205x65 trunnion shock, Boost 148 rear, UDH dropout and an aluminium bashguard.
It rolls on MX wheels (29" front, 27.5" rear) with 160 mm of travel front and rear and a reduced-offset fork. Orange quotes a 64° head angle, 76° seat angle and around 480 mm reach in size L; the new tube set houses the Avinox display in the top tube and uses shorter seat tubes for longer droppers. Frames carry a 5-year warranty with limited lifetime crash replacement.
- DJI Avinox M2S: 130 Nm (150 Nm Boost), 800 Wh
- 160 mm front and rear, MX wheels
- UK-made 6061-T6 aluminium monocoque frame
- 64° head angle, 76° seat angle, UDH
Orange Phase Avinox builds
Phase Avinox builds compared

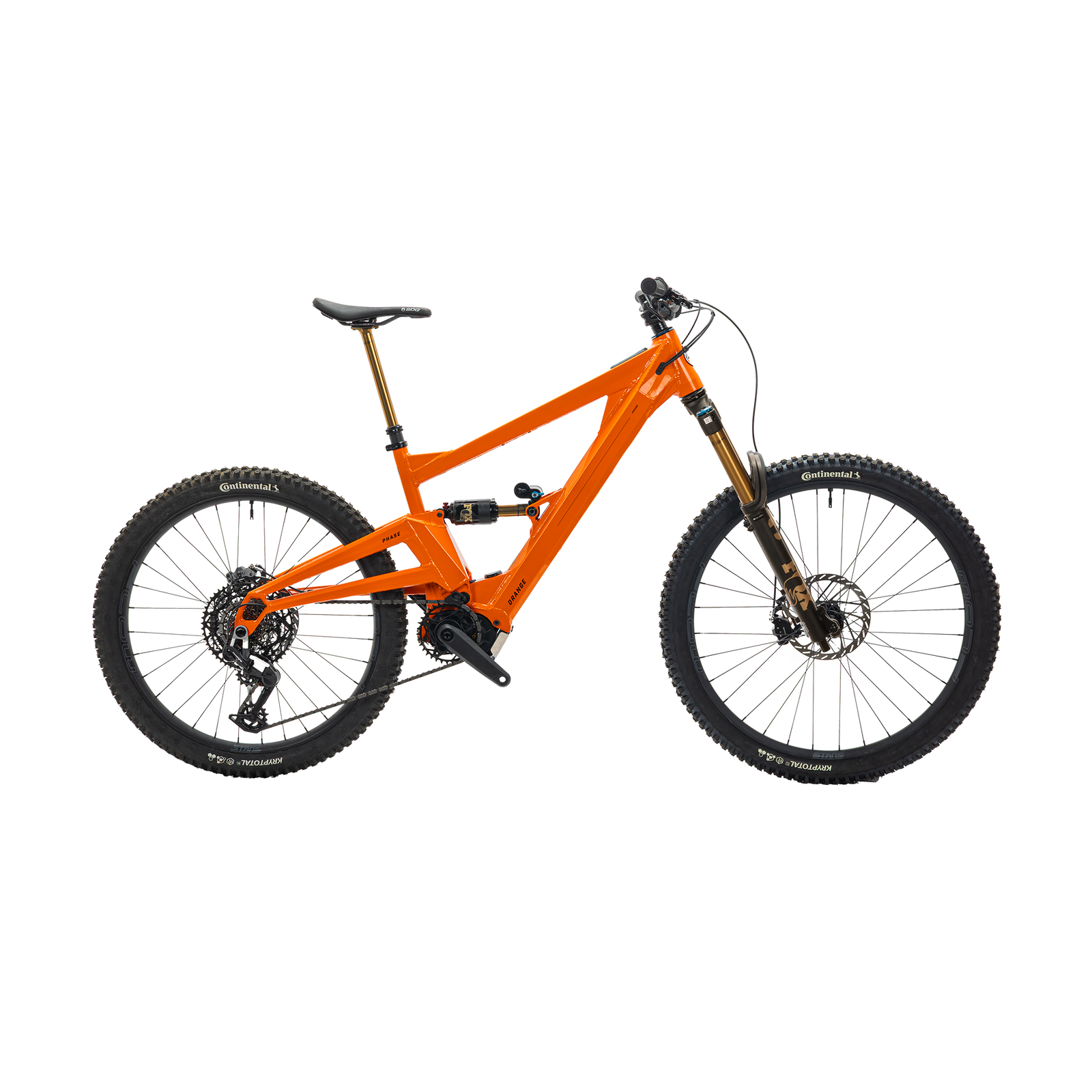

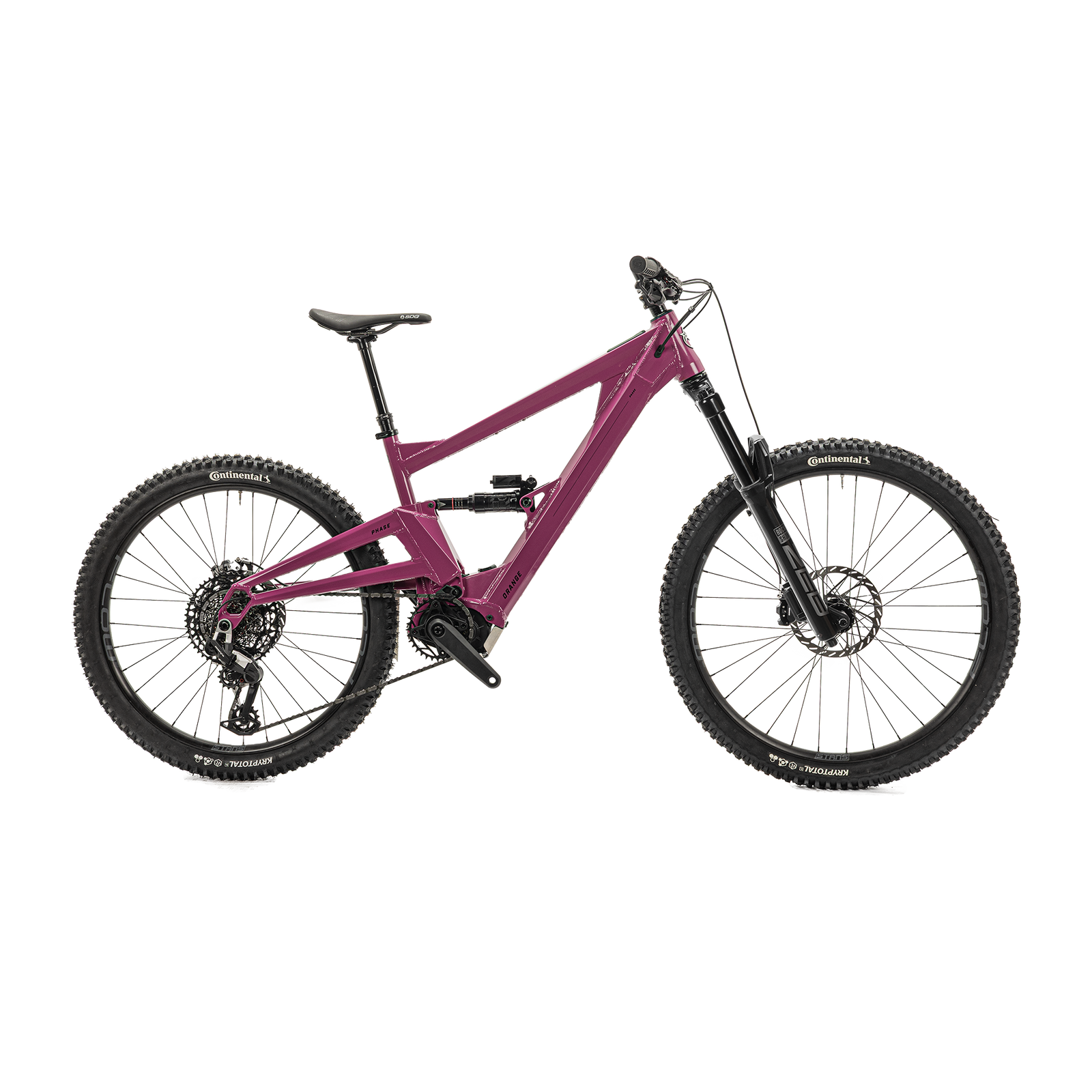

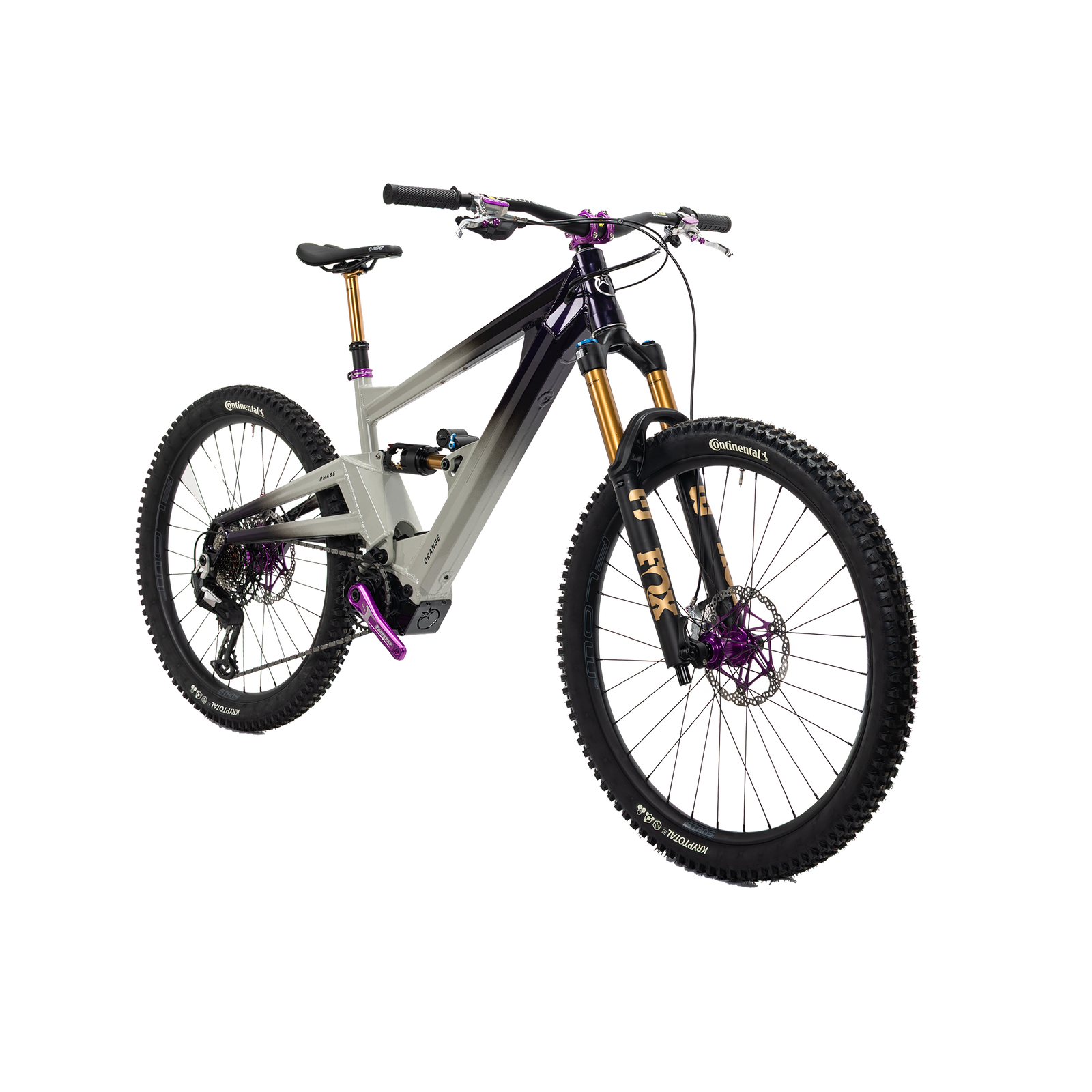

| Phase Avinox RS | Phase Avinox Factory | Phase Prestige | |
|---|---|---|---|
| Price | £8,250 | £8,750 | £9,600 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Rockshox Zeb Select + 29x160 | Fox 38 Factory Grip X2 29x160 | Fox 38 Factory Grip X2 29x160 |
| Shock | Rockshox Super Deluxe Select + 205x65 | Fox Float X2 Factory 205x65 | Fox Float X2 Factory 205x65 |
| Derailleur | Sram Eagle 90 Transmission | Sram Eagle 90 Transmission | Sram Eagle 90 Transmission |
| Brakes | Sram Maven Silver 200/200 | Sram Maven Silver 200/200 | GR4 brakes & Floating 200/200mm |
| Display | DP100 display Full function 2” OLED touch screen | DP100 display Full function 2” OLED touch screen | DP100 display Full function 2” OLED touch screen |
Phase Avinox geometry
| Size | M | L | XL |
|---|---|---|---|
| Seat Tube Length | 16" | 17" | 18" |
| AHead Angle | 64° | 64° | 64° |
| BSeat Angle (Effective) | 76° | 76° | 76° |
| DTop Tube (effective) | 625 mm | 645 mm | 665 mm |
| EBB Height (from ground) | 343 mm | 343 mm | 343 mm |
| BB height (from axles) | -11 mm | -11 mm | -11 mm |
| FChainstay | 443 mm | 443 mm | 443 mm |
| GHead Tube | 130 mm | 140 mm | 150 mm |
| HWheel base | 1259 mm | 1281 mm | 1303 mm |
| JReach | 464 mm | 478.6 mm | 500 mm |
| KStack | 641 mm | 650 mm | 659 mm |
| TRear Travel | 160 mm | 160 mm | 160 mm |
Source: Orange. The RS page lists 443 mm chainstay and 464/478.6/500 mm reach, while the Factory page lists 448 mm and 465/480/500 mm.
Orange Phase Avinox: FAQ
How much does the Orange Phase Avinox cost?
£8,250 – £9,600 depending on the build (Phase Avinox RS £8,250, Phase Avinox Factory £8,750, Phase Prestige £9,600); UK RRP, VAT incl..
How many Orange Phase Avinox builds are there?
3: Phase Avinox RS, Phase Avinox Factory, Phase Prestige. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Orange Phase Avinox use?
DJI Avinox M2S (130 Nm; 150 Nm in Boost) with a 800 Wh battery (fixed integrated battery (3.74 kg)).
How much travel does the Orange Phase Avinox have?
160 mm fork and 160 mm rear travel on mullet 29" / 27.5" wheels.
