Full-power eMTBEnduro / All mountain

MondrakerZendit XR

€12,499RRP Germany, VAT incl.

Motor: DJI Avinox M2S150 Nm; 1300 W peak
Battery: 800 WhIntegrated, non-removable
Travel F / R: 170 / 165 mm
Wheels: Mullet 29" / 27.5"
Frame: Stealth Air carbon
Weight: 22.9 kgManufacturer figure

Compare 5 builds Compare with…Official page →

Overview

The Zendit XR is the €12,499 flagship: Fox Podium Factory fork and Float X2 Factory shock, SRAM X0 Eagle AXS Transmission and Maven Ultimate brakes with a 220 mm front rotor. DT Swiss HXC 1500 carbon wheels, a RockShox Reverb AXS dropper and a 12 A charger complete it; Mondraker quotes 22.9 kg.

Zendit is Mondraker's flagship full-power enduro eMTB, built around the DJI Avinox M2S motor (up to 150 Nm and 1,300 W) and an integrated 800 Wh battery. It runs a mullet wheel setup with a 170 mm fork and 165 mm of rear travel from the ZERO suspension system, flip-chip adjustable geometry with a 63.5° head angle and five sizes from S to XL.

The XR, RR S and RR use a full Stealth Air carbon frame that can also be set up with a 29" rear wheel. The R and S, added in October 2026, pair the same carbon front triangle with an alloy swingarm and rocker link and are mullet-only.

DJI Avinox M2S: up to 150 Nm and 1,300 W
Integrated 800 Wh battery
170 mm fork, 165 mm rear travel, mullet wheels
Flip-chip geometry, 63.5° head angle

Gallery

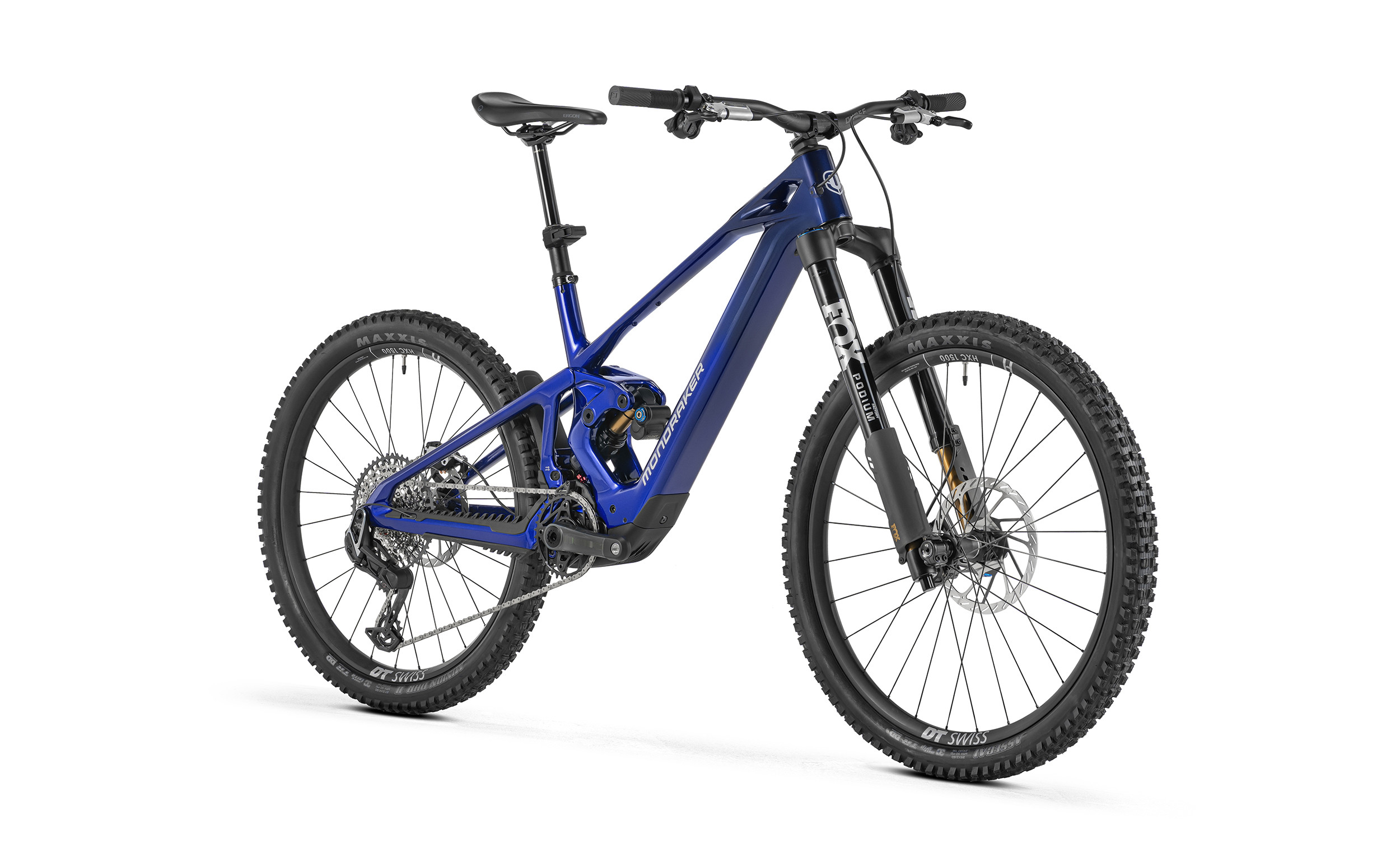

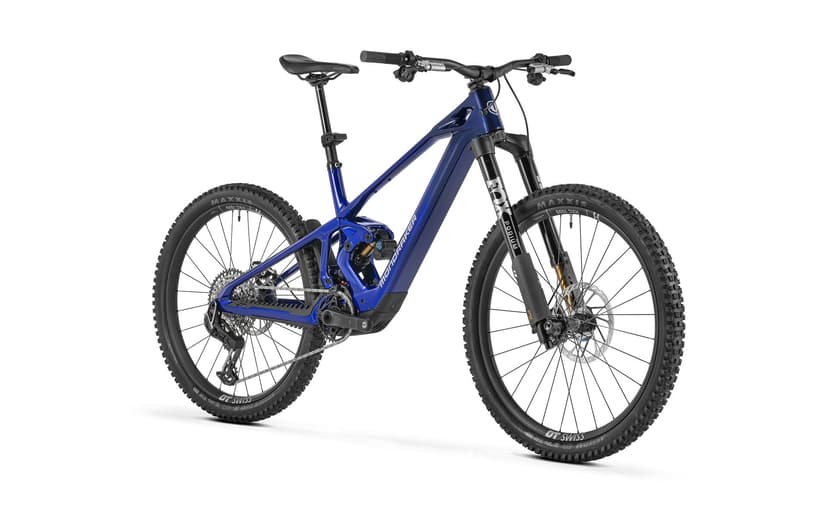

Mondraker Zendit XR e-MTB in blue, front three-quarter view

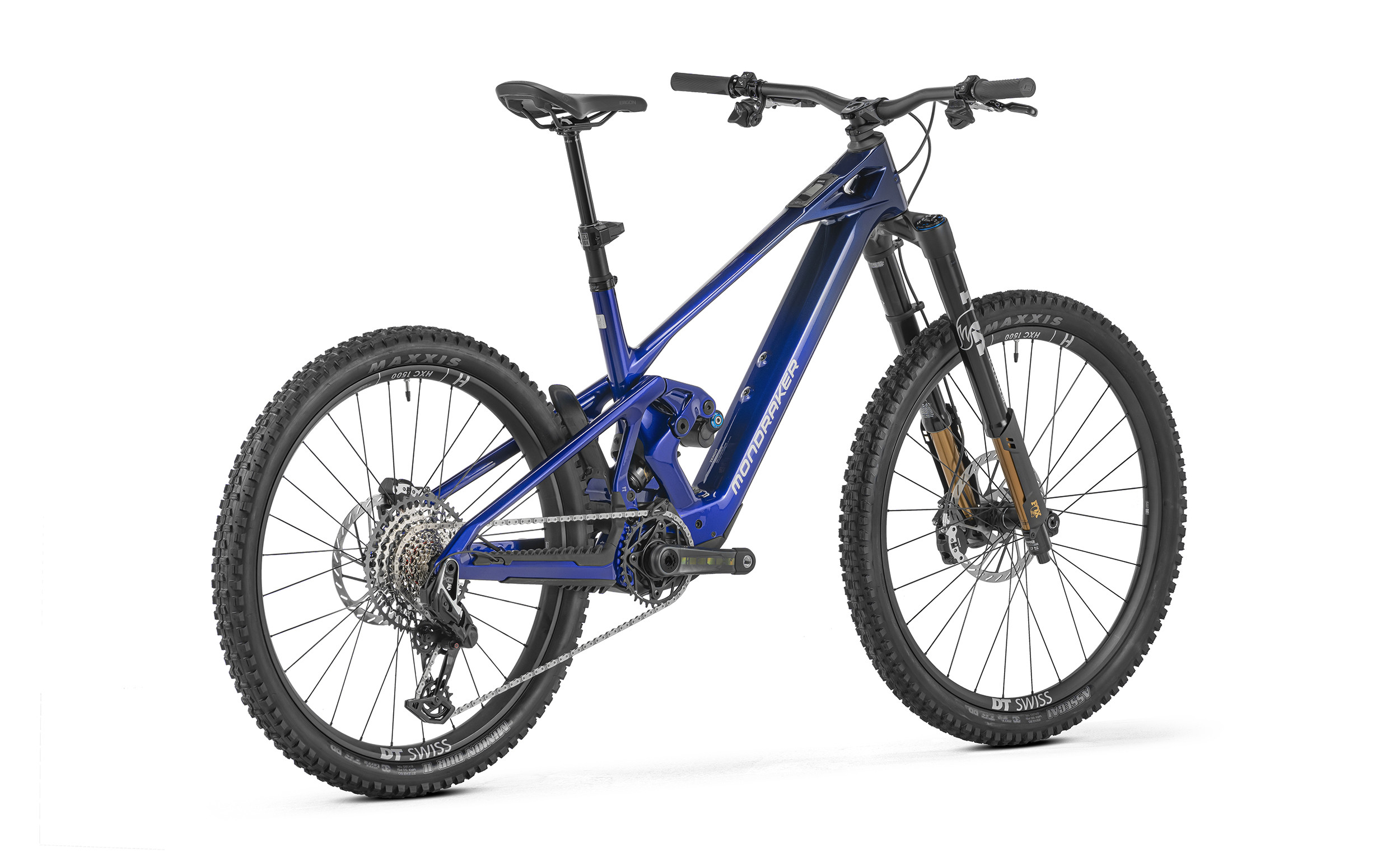

Mondraker Zendit XR e-MTB in blue, rear three-quarter view

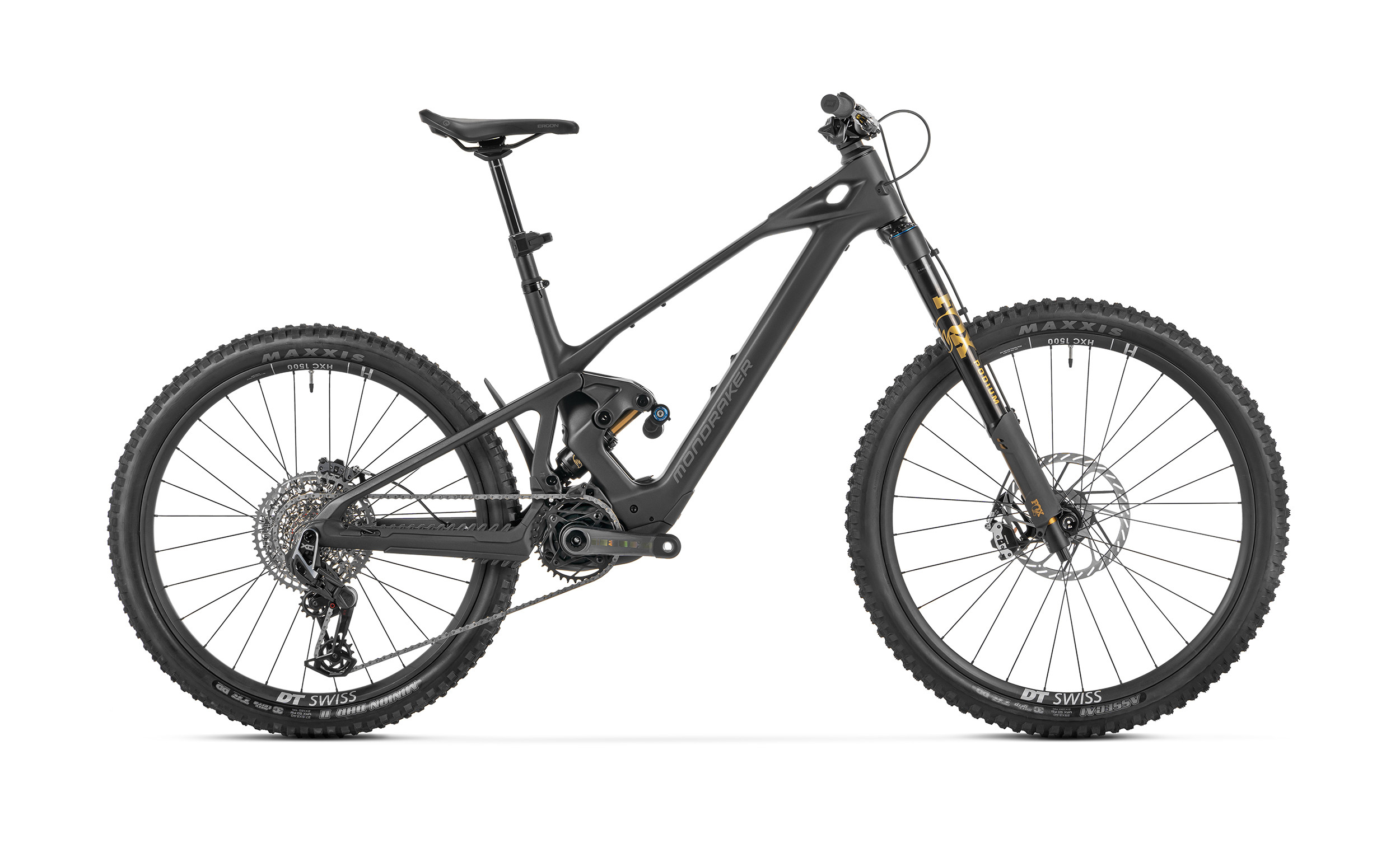

Mondraker Zendit XR e-MTB in black, side view

Rider jumping a carbon Mondraker Zendit e-MTB in a forest

Photos: Mondraker

Full specifications

Frame & suspension

Frame: Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
Sizes: S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
Rear shock: Fox Float X2 Factory Kashima 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
Shock settings: CS 30 compression, 1,1 Bleed, RS40 rebound, Rezi B40, LML, Long MCU, 0 volume spacers.
Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

E-system

Display: Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
Motor: Avinox M2S
Battery: Avinox 800Wh Battery / Avinox 12A Charger

Drivetrain

Crankset: e*thirteen Helix Race Carbon e*spec. All sizes: 155mm
Chainring: Sram Eagle 36T T-Type, 104BCD, steel, CL55
Chain: Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
Rear derailleur: Sram X0 Eagle AXS T-Type, 12s
Shift levers: Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s
Cassette

Zendit geometry

Size	S	M	M/L	L	XL
ASeat tube length	380 mm	410 mm	435 mm	460 mm	490 mm
BTop tube length	586 mm	606 mm	628 mm	650 mm	672 mm
CBottom bracket drop	6 mm	6 mm	6 mm	6 mm	6 mm
DBottom bracket height	345 mm	345 mm	345 mm	345 mm	345 mm
EChainstay length	450 mm	450 mm	450 mm	455 mm	455 mm
FSeat tube angle	73.5°	73.5°	73.5°	73.5°	73.5°
GEffective seat tube angle	77°	77°	77°	77°	77°
HHead tube angle	63.5°	63.5°	63.5°	63.5°	63.5°
IFork Offset	44 mm	44 mm	44 mm	44 mm	44 mm
JWheelbase	1241 mm	1261 mm	1286 mm	1315 mm	1339 mm
KHead tube length	110 mm	110 mm	120 mm	130 mm	140 mm
LReach	440 mm	460 mm	480 mm	500 mm	520 mm
MStack	631 mm	631 mm	640 mm	649 mm	658 mm

Standard flip-chip position (the low setting slackens the head angle to 63.15° and lowers the bottom bracket by 5 mm). Source: Mondraker.

Zendit: builds compared

Zendit range →

	Zendit S	Zendit R	Zendit RR	Zendit RR S	Zendit XR
Price	€6,499	€7,499	€8,499	€10,499	€12,499
Frame	Carbon front, alloy rear	Carbon front, alloy rear	Stealth Air carbon	Stealth Air carbon	Stealth Air carbon
Fork	RockShox ZEB Base 29, Delta RC	Fox 38 29 Float GRIP Performance, 170mm	Fox 38 29 Float GRIP X2 Factory Kashima, 170mm	Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm	Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm
Shock	RockShox Super Deluxe Select	Fox Float-X LV Performance	Fox Float X Factory Kashima Evol LV 205x65mm	Fox Float X Factory Kashima Evol LV 205x65mm	Fox Float X2 Factory Kashima 205x65mm
Derailleur	Sram 70 Eagle	Sram S1000 Eagle AXS	Sram S1000 Eagle AXS	Sram X0 Eagle AXS T-Type	Sram X0 Eagle AXS T-Type
Brakes	Sram Maven Base	Sram Maven Base	Sram Maven Base	Sram Maven Silver	Sram Maven Ultimate
Wheels	Mavic E-Access XR30, aluminium	DT Swiss Hybrid H 1900 SPLINE, aluminum	DT Swiss Hybrid H 1900 SPLINE, aluminum	DT Swiss Hybrid HX 1700 Spline, 30mm internal width	DT Swiss Hybrid HXC 1500 Spline, Carbon
Display	Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)	Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

Zendit XR: FAQ

How much does the Mondraker Zendit XR cost?

€12,499 (RRP Germany, VAT incl.). The Zendit range runs from €6,499 (Zendit S) to €12,499 (Zendit XR). Prices vary by country and dealer.

How much does the Mondraker Zendit XR weigh?

Mondraker quotes 22.9 kg. The lightest Zendit build is the Zendit RR at 22.8 kg.

What motor and battery does the Mondraker Zendit XR have?

DJI Avinox M2S (150 Nm; 1300 W peak). 800 Wh battery — integrated, non-removable.

How much suspension travel does the Mondraker Zendit XR have?

170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.

What sizes does the Mondraker Zendit XR come in?

S, M, M/L, L, XL. Check the geometry table to compare reach and stack between sizes.

What is the difference between the Zendit XR and the Zendit RR S?

They share the Zendit frame platform and motor; the differences are in the parts — shock: Fox Float X2 Factory Kashima 205x65mm vs Fox Float X Factory Kashima Evol LV 205x65mm; brakes: Sram Maven Ultimate vs Sram Maven Silver; claimed weight: 22.9 kg vs 22.8 kg; price: €12,499 vs €10,499.
