MondrakerZendit RR S
- Motor
- DJI Avinox M2S150 Nm; 1300 W peak
- Battery
- 800 WhIntegrated, non-removable
- Travel F / R
- 170 / 165 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Stealth Air carbon
- Weight
- 22.8 kgManufacturer figure
Overview
The €10,499 Zendit RR S pairs a Fox Podium Factory fork with a Float X Factory shock, SRAM X0 Eagle AXS Transmission and Maven Silver brakes on a full carbon frame. DT Swiss HX 1700 wheels and a Fox Transfer Factory dropper round it off; claimed weight is 22.8 kg.
Zendit is Mondraker's flagship full-power enduro eMTB, built around the DJI Avinox M2S motor (up to 150 Nm and 1,300 W) and an integrated 800 Wh battery. It runs a mullet wheel setup with a 170 mm fork and 165 mm of rear travel from the ZERO suspension system, flip-chip adjustable geometry with a 63.5° head angle and five sizes from S to XL.
The XR, RR S and RR use a full Stealth Air carbon frame that can also be set up with a 29" rear wheel. The R and S, added in October 2026, pair the same carbon front triangle with an alloy swingarm and rocker link and are mullet-only.
- DJI Avinox M2S: up to 150 Nm and 1,300 W
- Integrated 800 Wh battery
- 170 mm fork, 165 mm rear travel, mullet wheels
- Flip-chip geometry, 63.5° head angle
Gallery
Full specifications
Frame & suspension
- Frame
- Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.
- Sizes
- S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm
- Rear shock

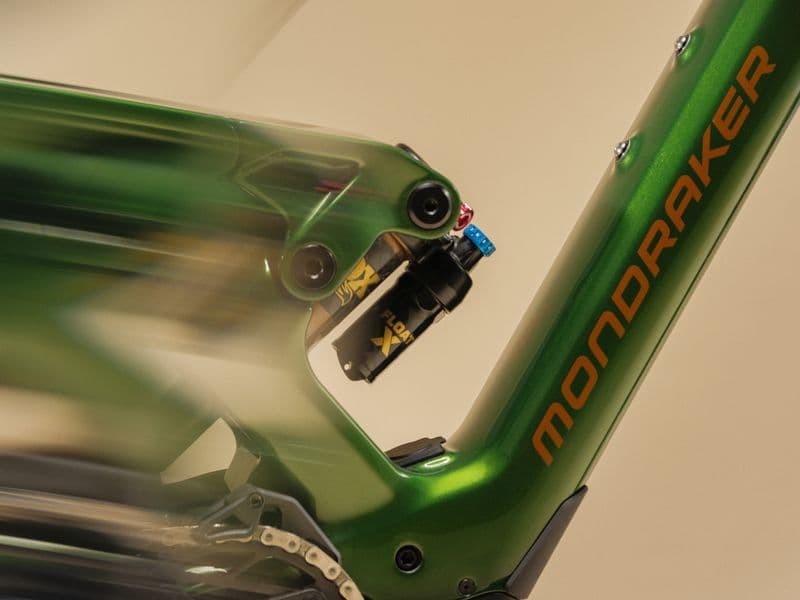

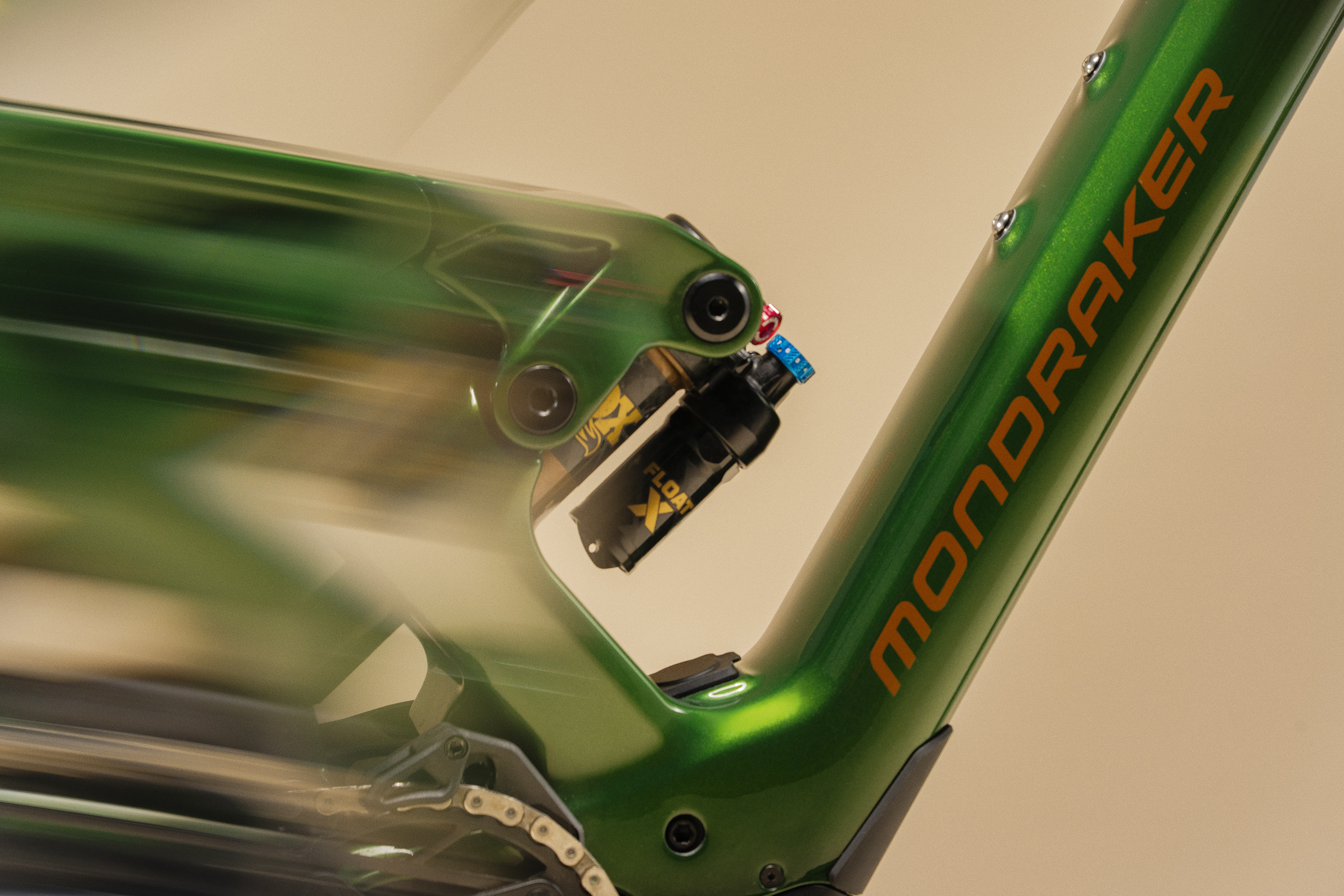

- Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.
- Shock settings
- CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers
- Fork
- Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.
E-system
- Display
- Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)
- Motor
- Avinox M2S
- Battery
- Avinox 800Wh Battery / Avinox 4A Charger
Drivetrain
- Crankset
- e*thirteen Helix Race e*spec alloy. All sizes: 155mm
- Chainring
- Sram Eagle 36T T-Type, 104BCD, steel, CL55
- Chain
- Sram GX Eagle T-Type, 12s Flattop, w/Powerlock
- Rear derailleur
- Sram X0 Eagle AXS T-Type, 12s
- Shift levers
- Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s
Zendit geometry
| Size | S | M | M/L | L | XL |
|---|---|---|---|---|---|
| ASeat tube length | 380 mm | 410 mm | 435 mm | 460 mm | 490 mm |
| BTop tube length | 586 mm | 606 mm | 628 mm | 650 mm | 672 mm |
| CBottom bracket drop | 6 mm | 6 mm | 6 mm | 6 mm | 6 mm |
| DBottom bracket height | 345 mm | 345 mm | 345 mm | 345 mm | 345 mm |
| EChainstay length | 450 mm | 450 mm | 450 mm | 455 mm | 455 mm |
| FSeat tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| GEffective seat tube angle | 77° | 77° | 77° | 77° | 77° |
| HHead tube angle | 63.5° | 63.5° | 63.5° | 63.5° | 63.5° |
| IFork Offset | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1241 mm | 1261 mm | 1286 mm | 1315 mm | 1339 mm |
| KHead tube length | 110 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| LReach | 440 mm | 460 mm | 480 mm | 500 mm | 520 mm |
| MStack | 631 mm | 631 mm | 640 mm | 649 mm | 658 mm |
Standard flip-chip position (the low setting slackens the head angle to 63.15° and lowers the bottom bracket by 5 mm). Source: Mondraker.
Zendit: builds compared
Zendit range →| Zendit S | Zendit R | Zendit RR | Zendit RR S | Zendit XR | |
|---|---|---|---|---|---|
| Price | €6,499 | €7,499 | €8,499 | €10,499 | €12,499 |
| Frame | Carbon front, alloy rear | Carbon front, alloy rear | Stealth Air carbon | Stealth Air carbon | Stealth Air carbon |
| Fork | RockShox ZEB Base 29, Delta RC | Fox 38 29 Float GRIP Performance, 170mm | Fox 38 29 Float GRIP X2 Factory Kashima, 170mm | Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm | Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm |
| Shock | RockShox Super Deluxe Select | Fox Float-X LV Performance | Fox Float X Factory Kashima Evol LV 205x65mm | Fox Float X Factory Kashima Evol LV 205x65mm | Fox Float X2 Factory Kashima 205x65mm |
| Derailleur | Sram 70 Eagle | Sram S1000 Eagle AXS | Sram S1000 Eagle AXS | Sram X0 Eagle AXS T-Type | Sram X0 Eagle AXS T-Type |
| Brakes | Sram Maven Base | Sram Maven Base | Sram Maven Base | Sram Maven Silver | Sram Maven Ultimate |
| Wheels | Mavic E-Access XR30, aluminium | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid H 1900 SPLINE, aluminum | DT Swiss Hybrid HX 1700 Spline, 30mm internal width | DT Swiss Hybrid HXC 1500 Spline, Carbon |
| Display | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) | Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R) |
Zendit RR S: FAQ
How much does the Mondraker Zendit RR S cost?
€10,499 (RRP Germany, VAT incl.). The Zendit range runs from €6,499 (Zendit S) to €12,499 (Zendit XR). Prices vary by country and dealer.
How much does the Mondraker Zendit RR S weigh?
Mondraker quotes 22.8 kg. The lightest Zendit build is the Zendit RR at 22.8 kg.
What motor and battery does the Mondraker Zendit RR S have?
DJI Avinox M2S (150 Nm; 1300 W peak). 800 Wh battery — integrated, non-removable.
How much suspension travel does the Mondraker Zendit RR S have?
170 mm at the fork and 165 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Mondraker Zendit RR S come in?
S, M, M/L, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Zendit RR S and the Zendit XR?
They share the Zendit frame platform and motor; the differences are in the parts — shock: Fox Float X Factory Kashima Evol LV 205x65mm vs Fox Float X2 Factory Kashima 205x65mm; brakes: Sram Maven Silver vs Sram Maven Ultimate; claimed weight: 22.8 kg vs 22.9 kg; price: €10,499 vs €12,499.
