PivotShuttle AMP'd Pro X0 Eagle Transmission
- Motor
- DJI Avinox M2S150 Nm; 1300 W peak
- Battery
- 800 WhAvinox integrated battery (3.74 kg)
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon
Overview

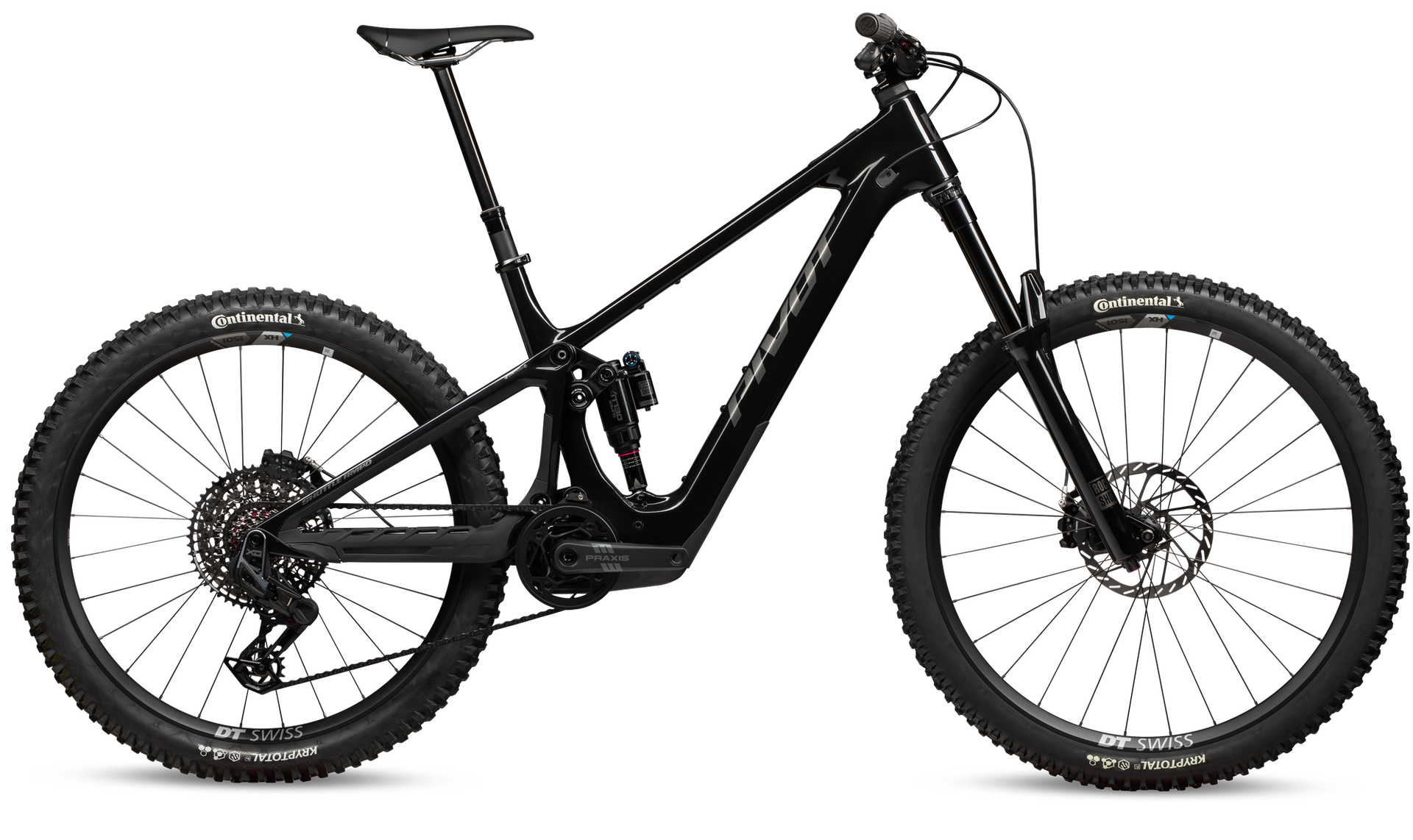

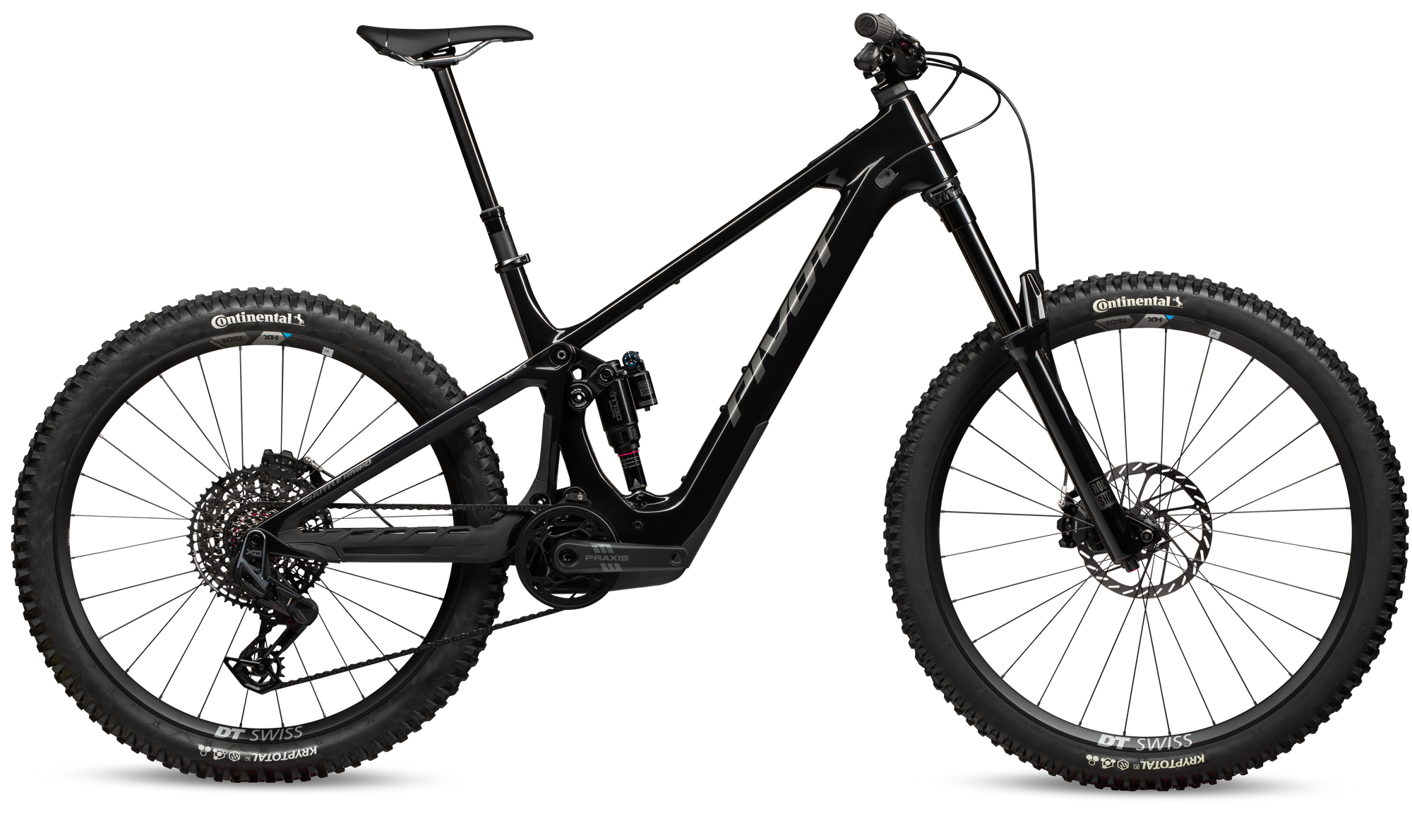

The Pivot Shuttle AMP'd Pro X0 Eagle Transmission ($11,999) is a mid-range build of the Shuttle AMP'd: DJI Avinox M2S (150 Nm) with 800 Wh, RockShox Zeb Ultimate fork, RockShox Super Deluxe Ultimate shock, SRAM X0 Eagle Transmission 12-Speed and SRAM Maven Silver 4-piston brakes.

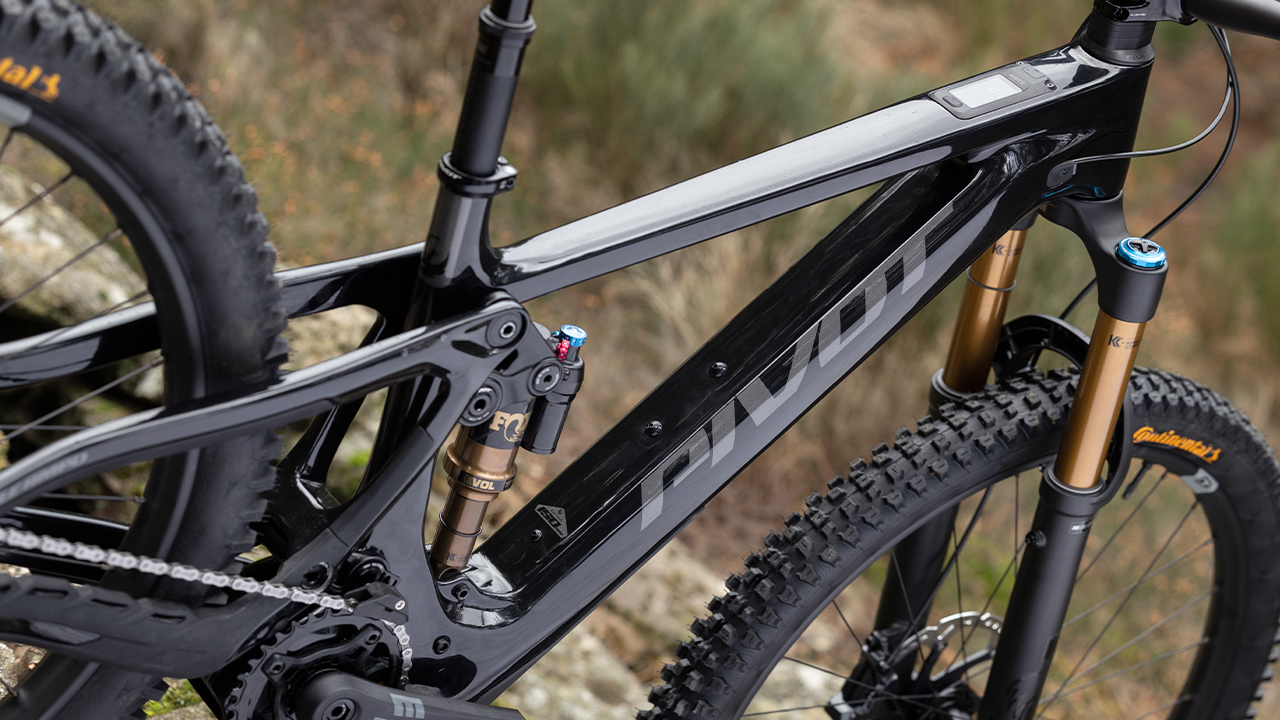

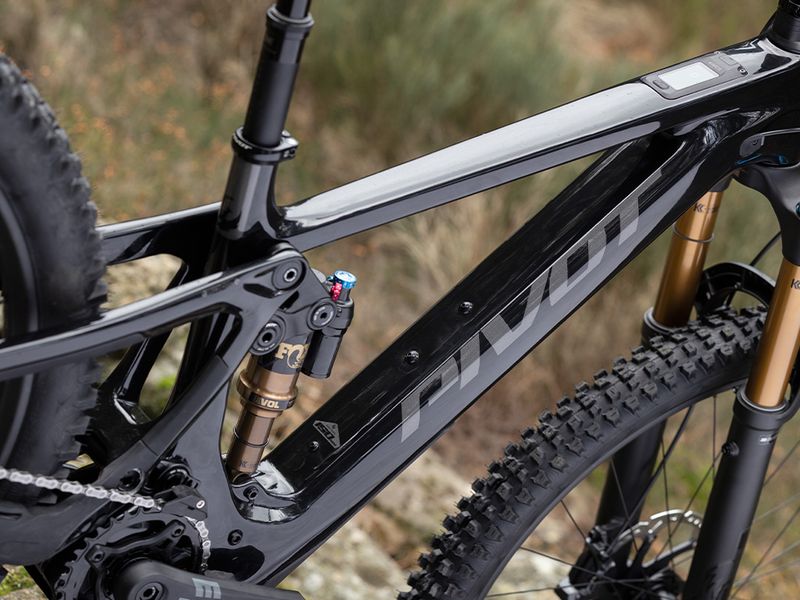

The Shuttle AMP'd is Pivot's carbon full-power e-MTB built around the DJI Avinox M2S drive unit and an integrated 800 Wh battery. It has 150 mm of dw-link rear travel, a 160 mm fork, mixed wheels (29-inch front, 27.5-inch rear), a geometry flip chip and five frame sizes from XS to XL.
The Avinox system adds a colour OLED touchscreen, wireless remotes, Smart-Assist traction control and SmoothShift, which works with the SRAM Eagle Transmission derailleur wired to the main battery. Pro and Team builds come with the 508 W Avinox fast charger, and Pivot quotes 21.5 kg for the Team build.
- DJI Avinox M2S, 1300 W peak
- 800 Wh integrated battery
- 150 mm rear / 160 mm fork, mixed wheels
- Sizes XS to XL, OLED touchscreen
Gallery
Photos: Pivot
Full specifications
Frame & suspension
- Frame
- Shuttle AMPD
- Fork
- RockShox Zeb Ultimate 29", 44mm offset, 160mm
- Rear shock
- RockShox Super Deluxe Ultimate
- Headset
- Pivot Precision Sealed Cartridge
- Sizes
- XS, S, M, L, XL
- Colours
- Black Metallic Stone / Burgundy Berry Freeze
E-system

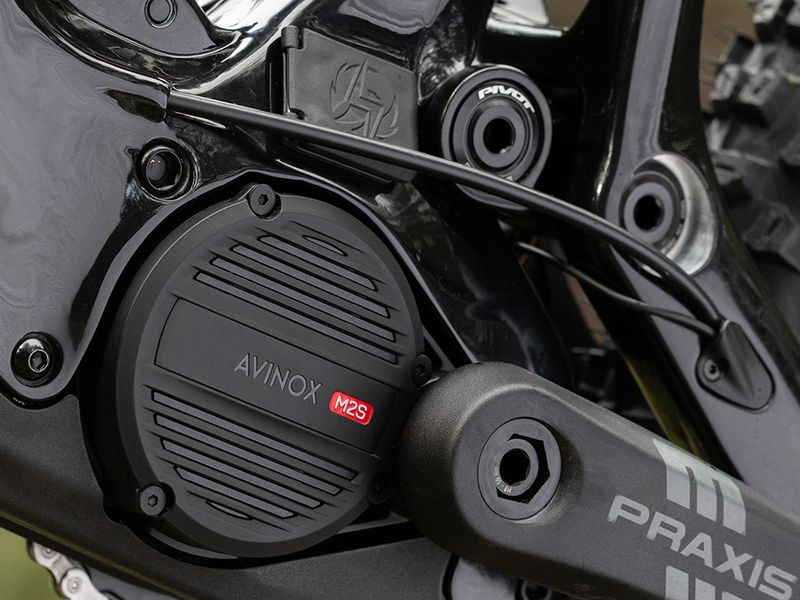

- Motor

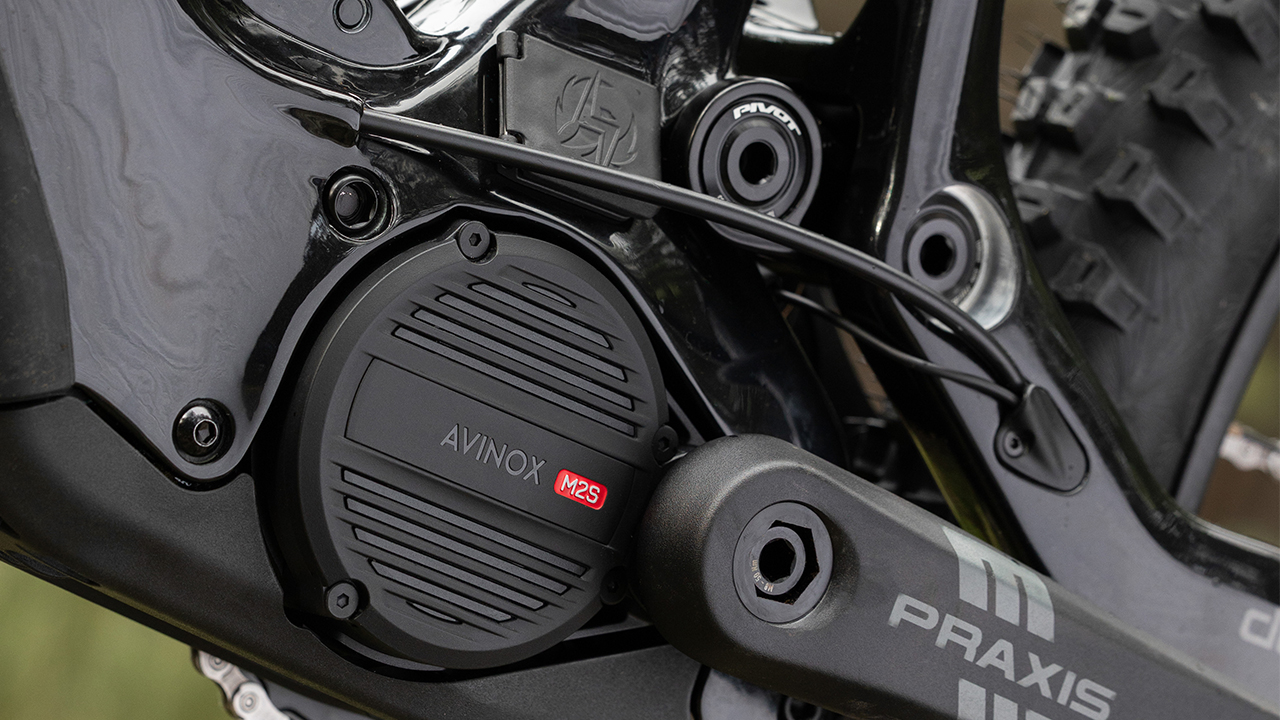

- Avinox M2S (150 Nm, 1300 W peak)
- Battery
- Avinox 800 Wh, integrated
- Display

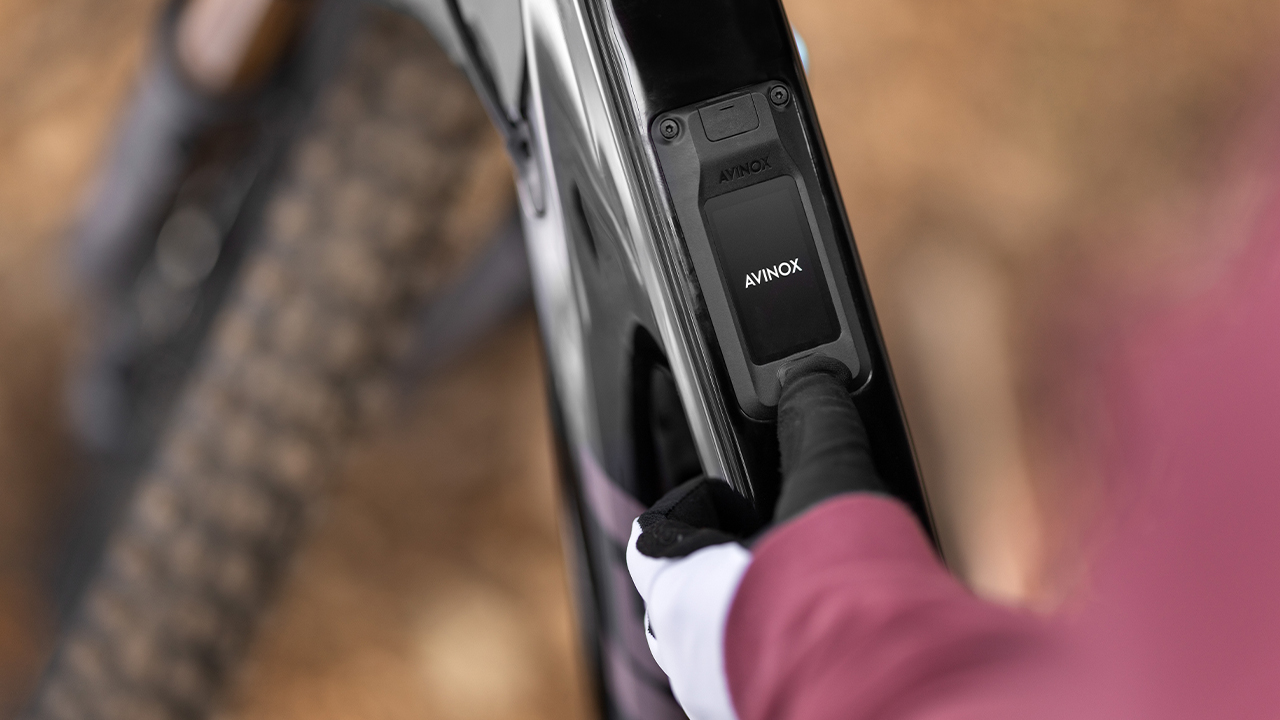

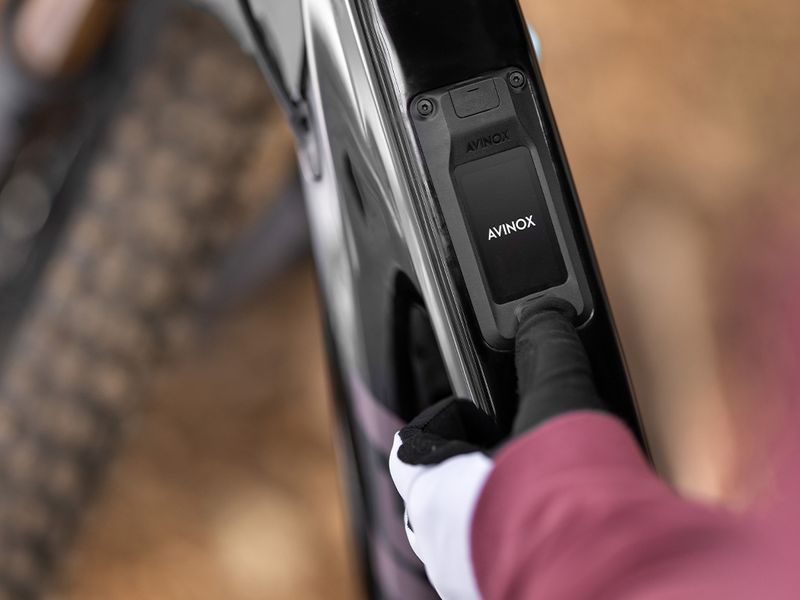

- Avinox colour OLED touchscreen
- Remote
- Avinox wireless remotes
- Charger
- Avinox 508 W fast charger
Drivetrain
- Shifter
- SRAM AXS Pod Controller
- Rear derailleur
- SRAM X0 Eagle Transmission 12-Speed
- Cassette
- SRAM GX 1275 Eagle Transmission 10-52t
- Chain
- SRAM X0 Eagle Flattop 12-Speed
- Crankset
- Praxis Alloy eCranks E-MTB 34t - 155mm
Brakes
- Brakes
- SRAM Maven Silver 4-piston
- Rotors
- SRAM HS2 6 bolt - 200mm (front) / SRAM HS2 6 bolt - 200mm (rear)
Wheels & tyres
- Wheelset
- DT Swiss Hybrid HX1700 w/ 350 DEG, 30mm - Mixed 15x110 F/12x157 R
- Tyres
- Continental Kryptotal-F 29" x 2.4" Super Soft Compound Enduro Casing (front) / Continental Kryptotal-R 27.5" x 2.6" Soft Compound Enduro Casing (rear)
Cockpit
- Handlebar
- Phoenix Team Carbon - 20mm Rise 760mm(XS), 20mm Rise 780mm(SM), 35mm Rise 780mm(MD-XL)
- Stem
- Phoenix Team Enduro V2- 32mm(XS), 40mm(SM-LG), 50mm(XL)
- Grips
- Phoenix Factory Lock-On
- Seatpost
- OneUp Dropper V3 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL)
- Saddle
- Pivot Pro E-Bike
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Shuttle AMP'd geometry
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| ASeat Tube Length (C-T) | 343 mm | 378 mm | 398.7 mm | 431.8 mm | 470 mm |
| BTop Tube Length (Eff.) | 574.6 / 575.7 mm | 604.4 / 605.5 mm | 631.8 / 632.9 mm | 649.1 / 650.3 mm | 671.5 / 672.7 mm |
| CHead Tube Length | 95 mm | 110 mm | 120 mm | 130 mm | 140 mm |
| DHead Tube Angle | 63.7° / 63.3° | 63.7° / 63.3° | 63.7° / 63.3° | 63.7° / 63.3° | 63.7° / 63.4° |
| ESeat Tube Angle (Eff.) | 76.5° / 76.1° | 76.5° / 76.1° | 76.5° / 76.1° | 76.5° / 76.1° | 76.5° / 76.1° |
| FChain Stay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| GBottom Bracket Height | 340 / 335 mm | 340 / 335 mm | 340 / 335 mm | 340 / 335 mm | 340 / 335 mm |
| HBottom Bracket Drop | 18 / 23 mm | 18 / 23 mm | 18 / 23 mm | 18 / 23 mm | 18 / 23 mm |
| IStandover Height | 645 / 640 mm | 663 / 658 mm | 671 / 666 mm | 671 / 666 mm | 682 / 677 mm |
| JWheelbase | 1187.8 / 1189 mm | 1217.6 / 1218.6 mm | 1246.9 / 1247.9 mm | 1266.2 / 1267.2 mm | 1290.5 / 1291.5 mm |
| Stack | 613.4 / 616.3 mm | 633 / 636 mm | 642.2 / 645.3 mm | 651.4 / 654.5 mm | 660.5 / 663.8 mm |
| Reach | 420 / 416 mm | 435 / 431 mm | 460 / 456 mm | 475 / 471 mm | 495 / 491 mm |
Where two values are given: High / Low flip-chip position. Source: Pivot Cycles. Pivot uses the High position for the stock mixed-wheel setup.
Shuttle AMP'd: builds compared
Shuttle AMP'd range →| Shuttle AMP'd Ride GX Eagle Transmission | Shuttle AMP'd Pro X0 Eagle Transmission | Shuttle AMP'd Team XX Eagle Transmission | |
|---|---|---|---|
| Price | $9,499 | $11,999 | $14,499 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Fox Performance 38 29", 44mm offset | RockShox Zeb Ultimate 29", 44mm offset | Fox Factory 38 29", 44mm offset |
| Shock | Fox Performance Float X | RockShox Super Deluxe Ultimate | Fox Factory Float X |
| Derailleur | SRAM GX Eagle Transmission 12-Speed | SRAM X0 Eagle Transmission 12-Speed | SRAM XX Eagle Transmission 12-Speed |
| Brakes | SRAM Maven 4-piston | SRAM Maven Silver 4-piston | SRAM Maven Ultimate 4-piston |
| Display | Avinox colour OLED touchscreen | Avinox colour OLED touchscreen | Avinox colour OLED touchscreen |
| Weight | — | — | 21.5 kg |
Shuttle AMP'd Pro X0 Eagle Transmission: FAQ
How much does the Pivot Shuttle AMP'd Pro X0 Eagle Transmission cost?
$11,999 (US RRP (MSRP), excl. sales tax; bike only, without range extender.). The Shuttle AMP'd range runs from $9,499 (Shuttle AMP'd Ride GX Eagle Transmission) to $14,499 (Shuttle AMP'd Team XX Eagle Transmission). Prices vary by country and dealer.
What motor and battery does the Pivot Shuttle AMP'd Pro X0 Eagle Transmission have?
DJI Avinox M2S (150 Nm; 1300 W peak). 800 Wh battery — avinox integrated battery (3.74 kg).
How much suspension travel does the Pivot Shuttle AMP'd Pro X0 Eagle Transmission have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Pivot Shuttle AMP'd Pro X0 Eagle Transmission come in?
XS, S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Shuttle AMP'd Pro X0 Eagle Transmission and the Shuttle AMP'd Team XX Eagle Transmission?
They share the Shuttle AMP'd frame platform and motor; the differences are in the parts — fork: RockShox Zeb Ultimate 29" vs Fox Factory 38 29"; shock: RockShox Super Deluxe Ultimate vs Fox Factory Float X; derailleur: SRAM X0 Eagle Transmission 12-Speed vs SRAM XX Eagle Transmission 12-Speed; price: $11,999 vs $14,499.
