Components · 62 models · 9 brands
Brakes
Four-piston disc brakes and rotors that can handle the extra weight and speed of an eMTB.
Formula brakes
brand page →
Hayes brakes
brand page →
TRP brakes
brand page →

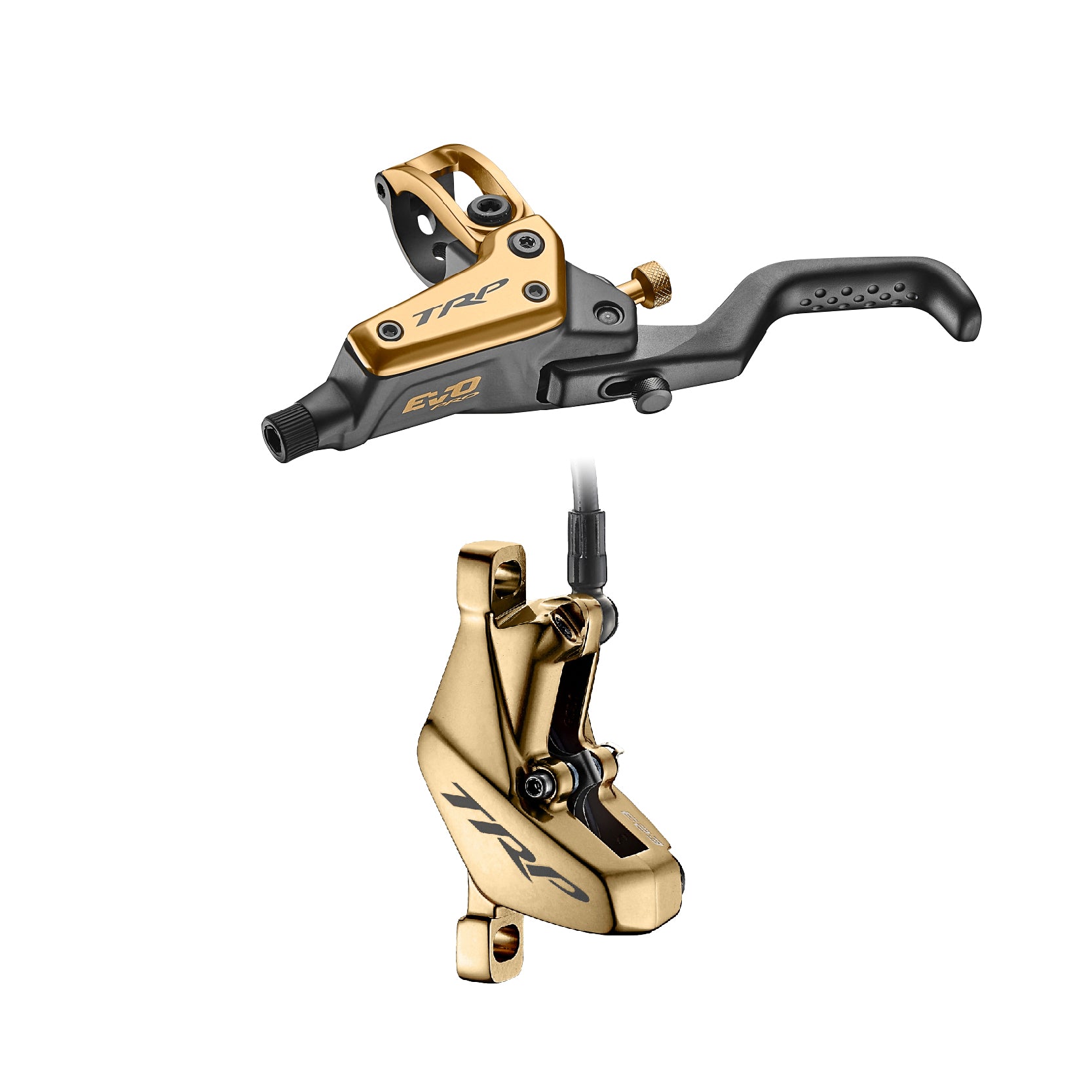

E-bike ratedEVO Pro4 (high-flow caliper) · 180 / 203 / 220 / 223 mm, 2.3 mm thick

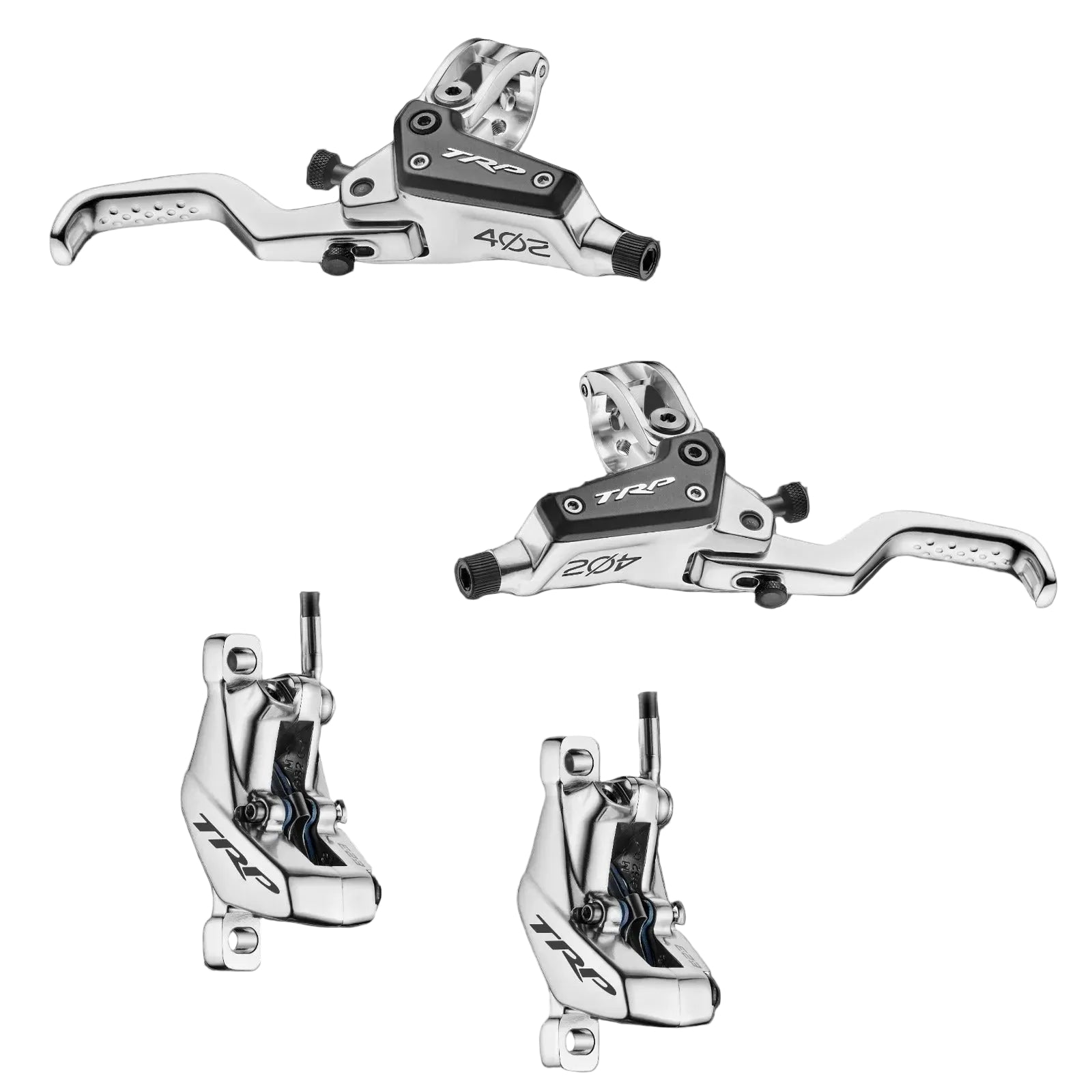

E-bike ratedEVO Pro Limited Edition4 (high-flow caliper) · 180 / 203 / 220 / 223 mm, 2.3 mm thick

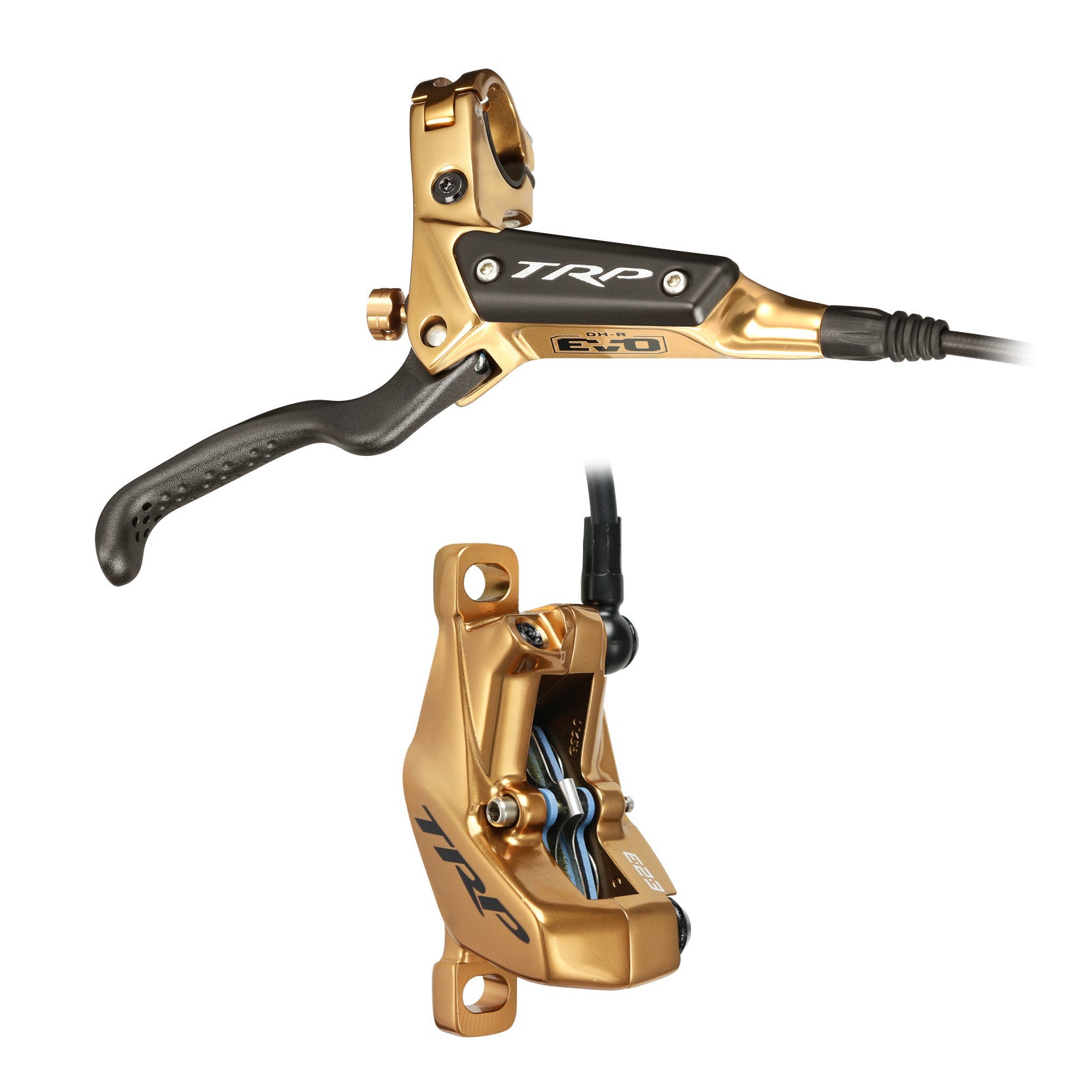

E-bike ratedDH-R EVO4, lightweight hybrid · 2.3 mm

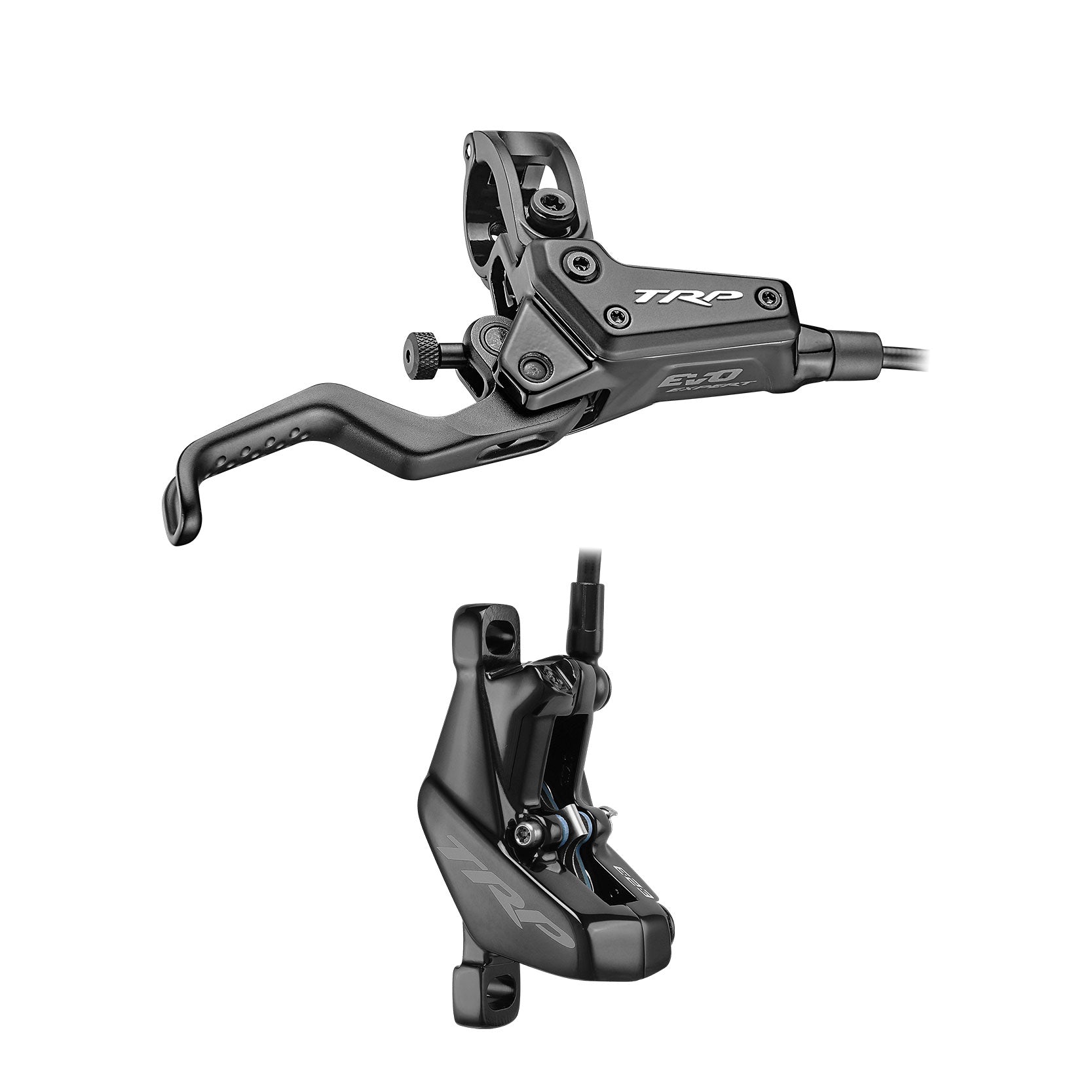

E-bike ratedEVO Expert4 (high-flow caliper) · 2.3 mm

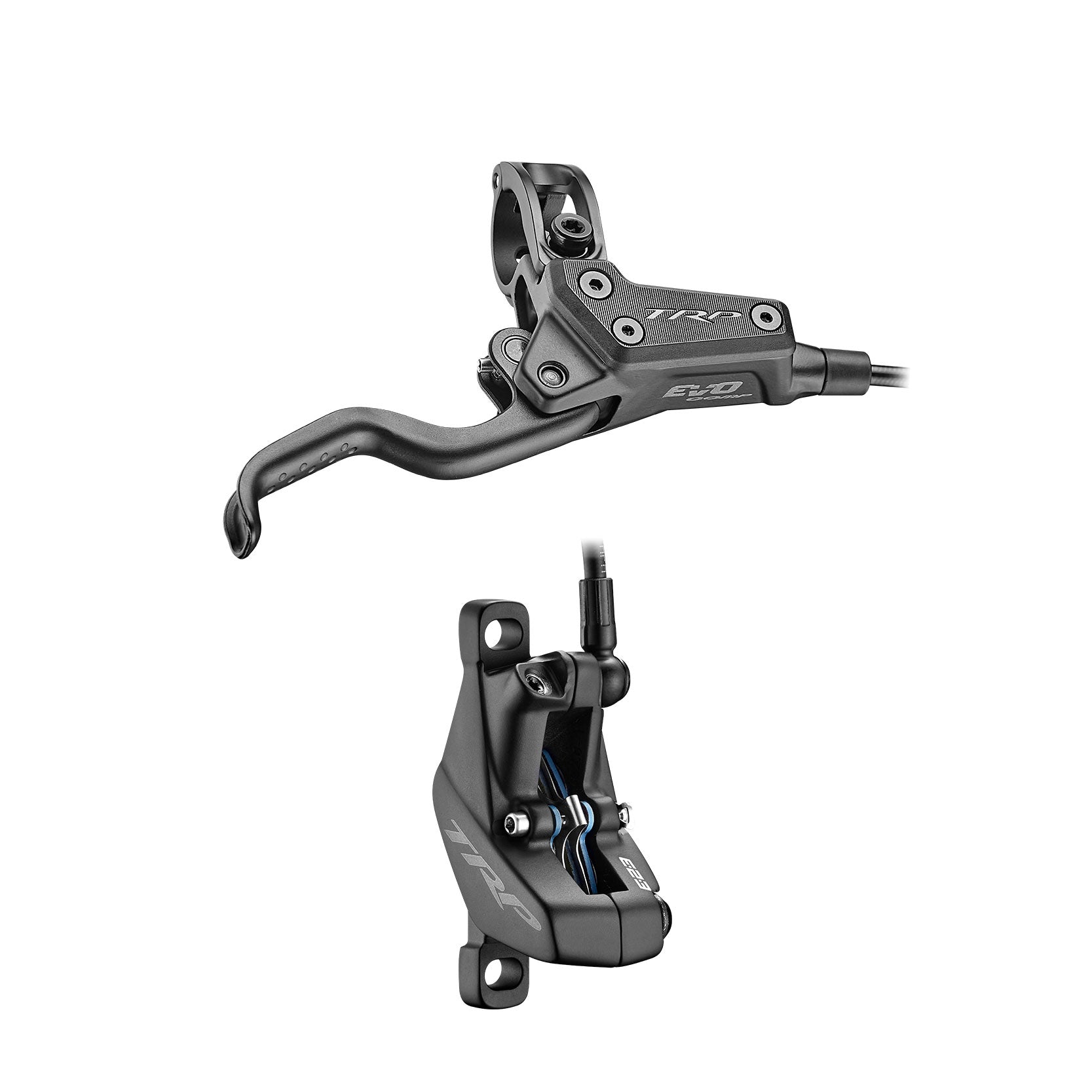

E-bike ratedEVO Comp4 (high-flow caliper) · 2.3 mm

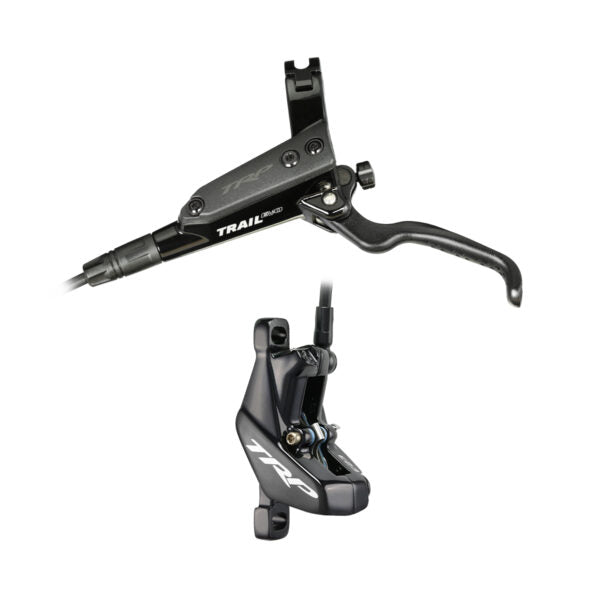

E-bike ratedTrail EVO4, stainless steel · 2.3 mm

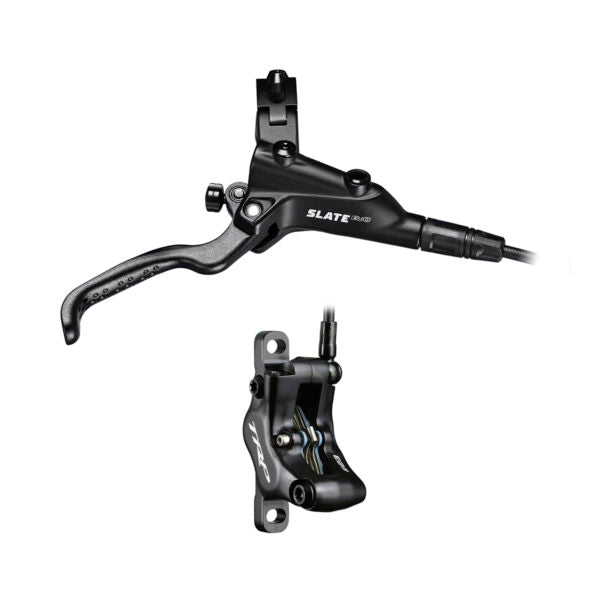

E-bike ratedSlate EVO4, stainless steel · 2.3 mm

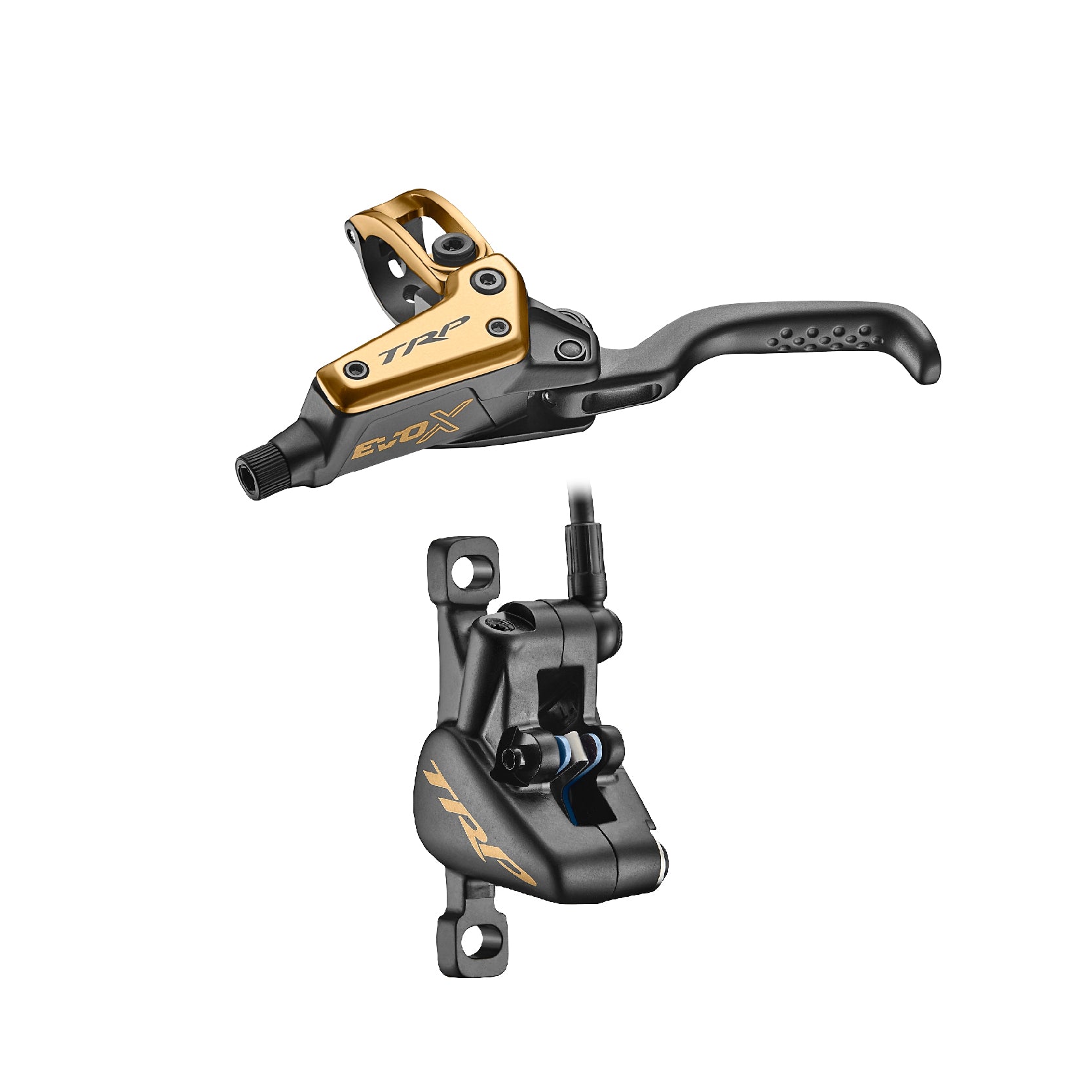

EVO X2 · 1.8 mm

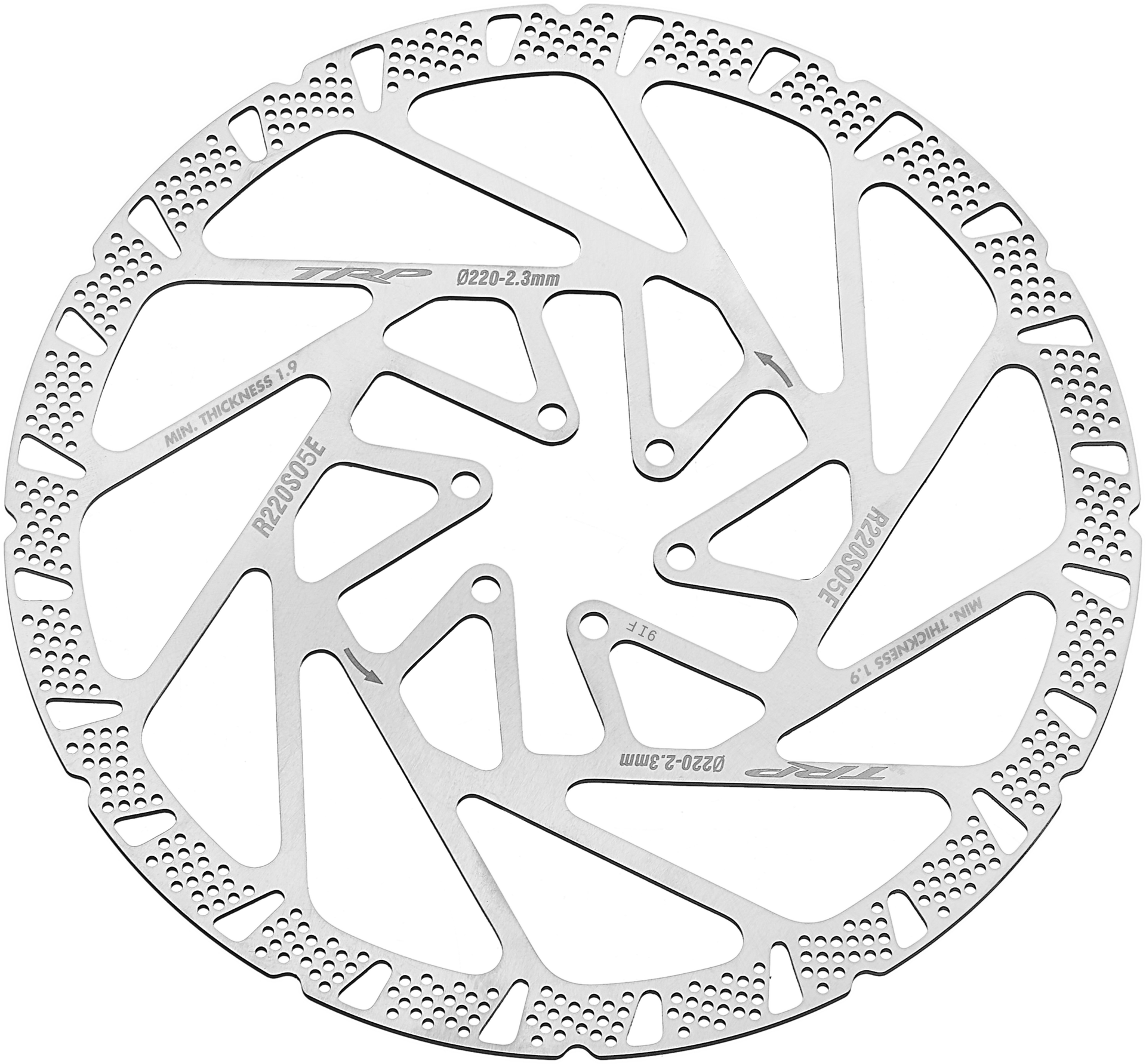

RS05E Race Rotor203 / 220 mm · 2.3 mm (min. 1.9 mm)

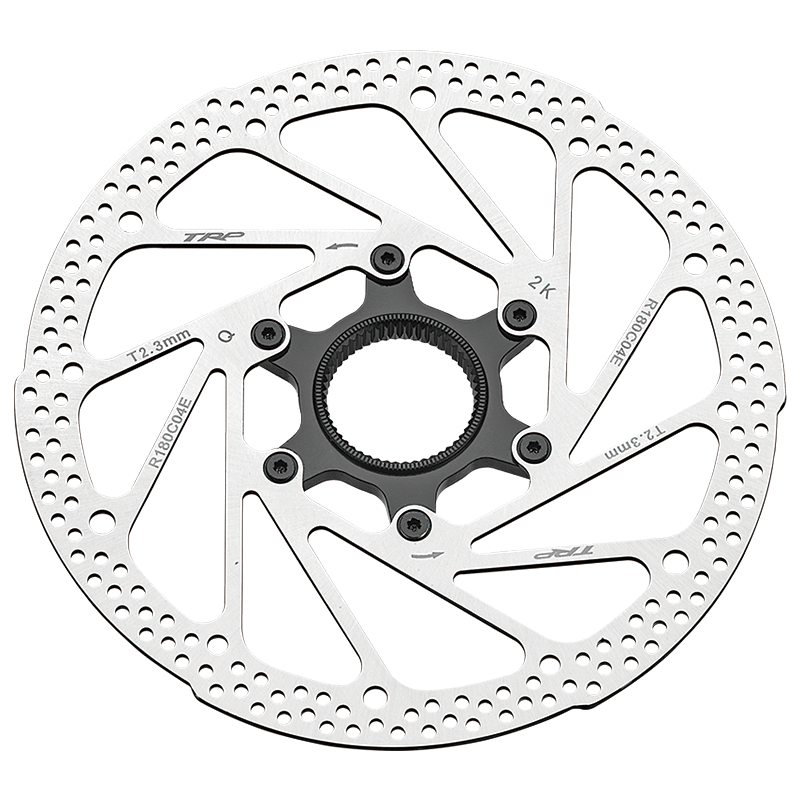

RC04E Rotor180 / 203 mm · 2.3 mm (min. 1.8 mm)
SRAM brakes
brand page →
E-bike ratedMaven Ultimate4 × 18 mm · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)€325
E-bike ratedMaven Silver4 × 18 mm · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)€290
E-bike ratedMaven Bronze4 × 18 mm · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)

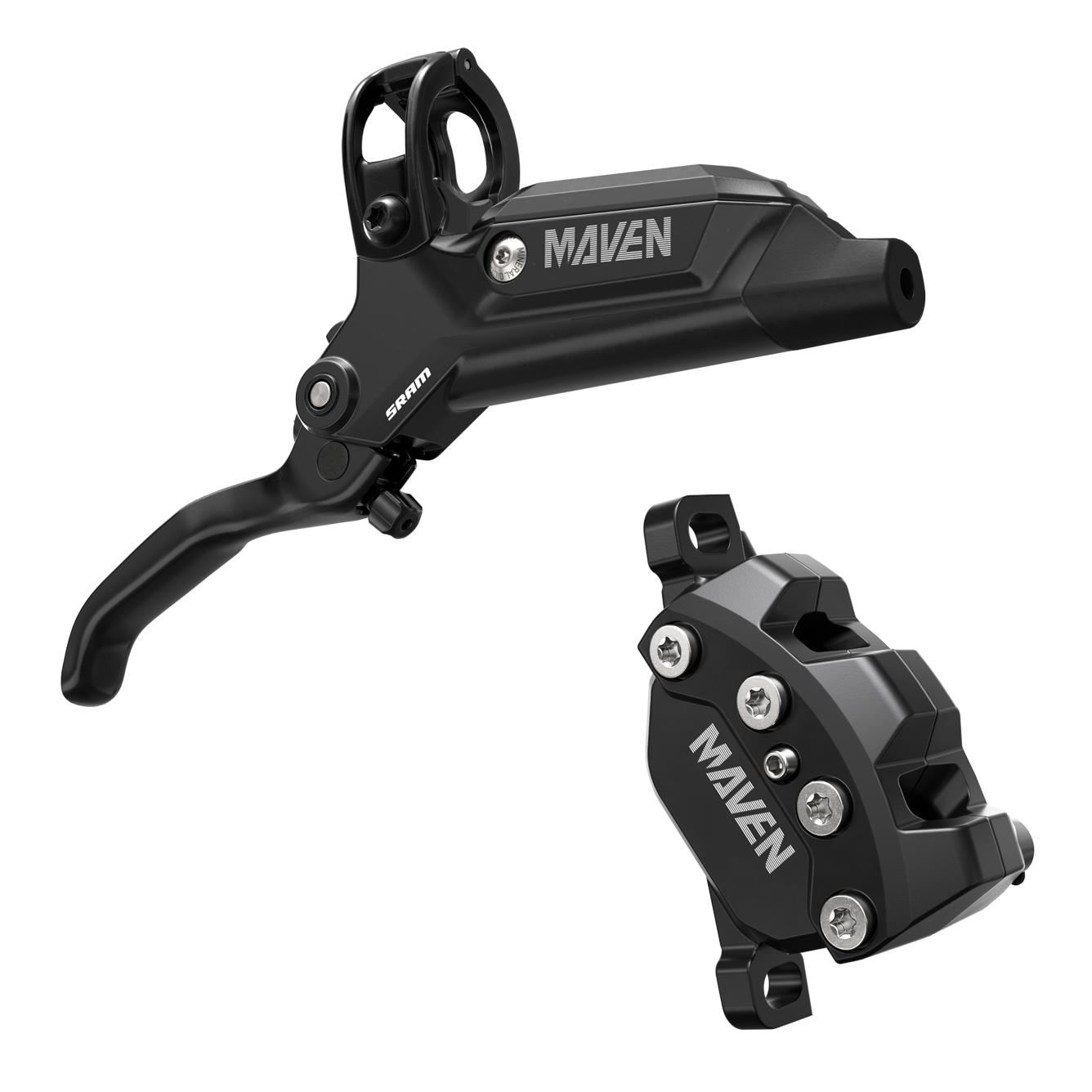

Maven Base4 × 18 mm · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)€200

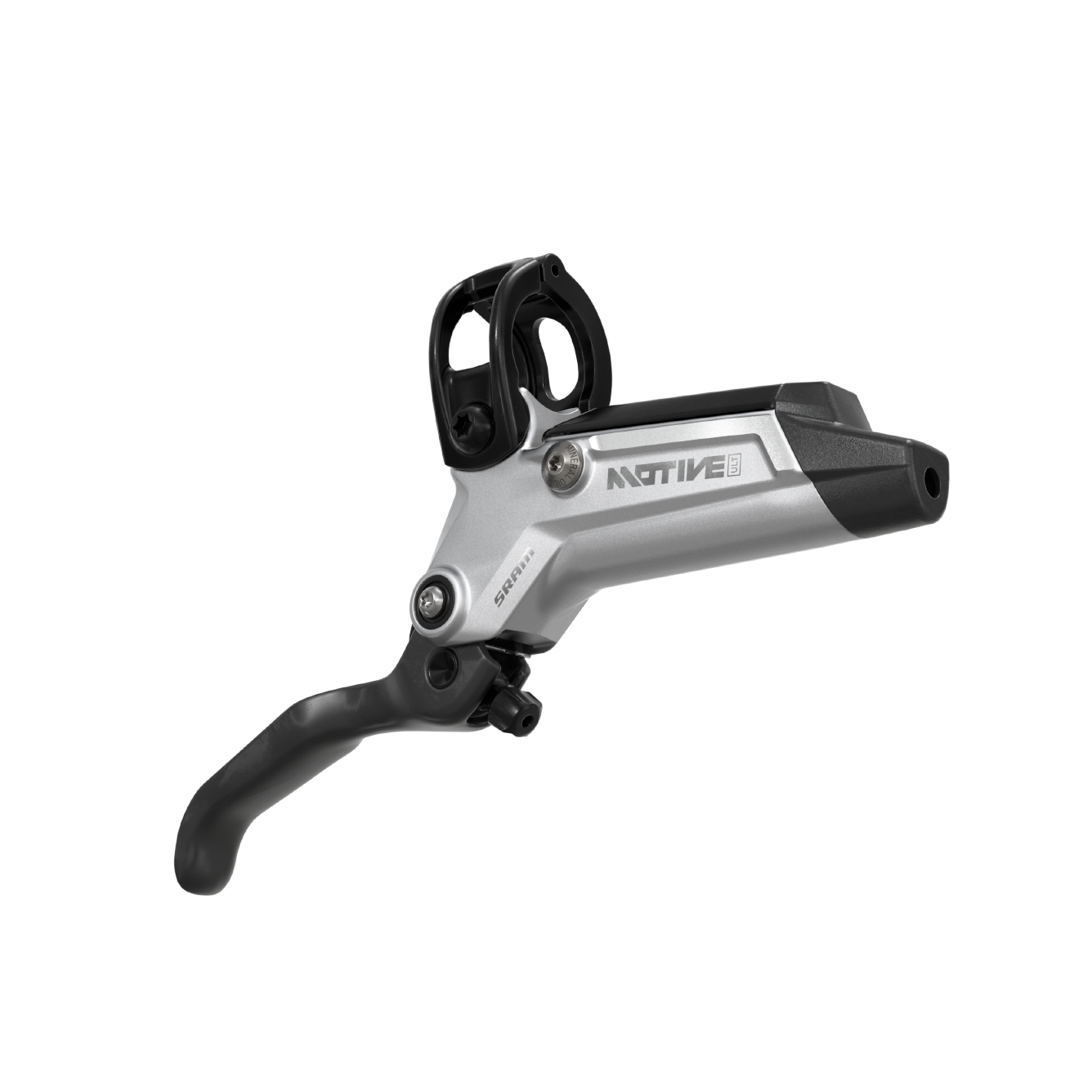

Motive Ultimate4 · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)€300

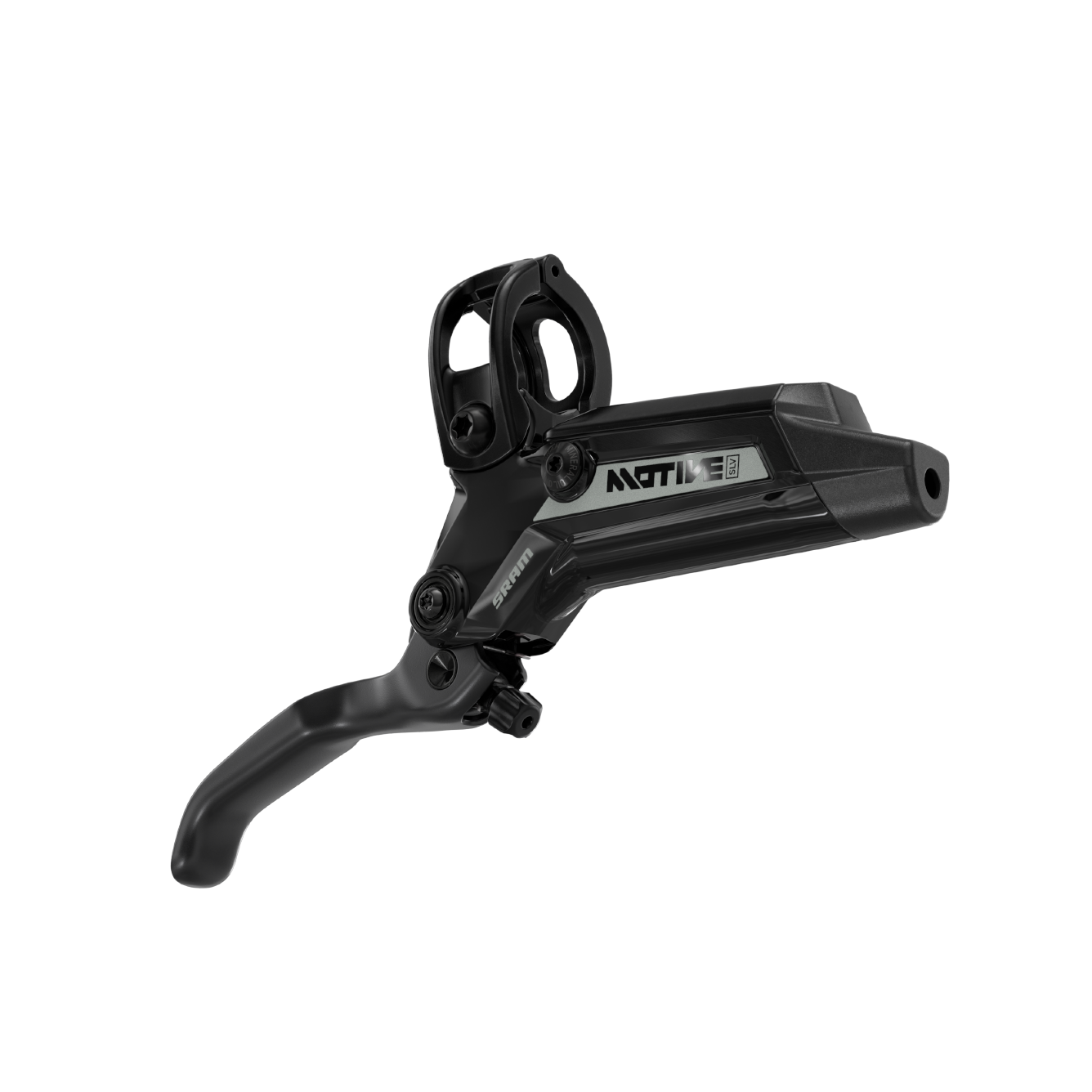

Motive Silver4 · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)€245
Motive Bronze4 · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)€190

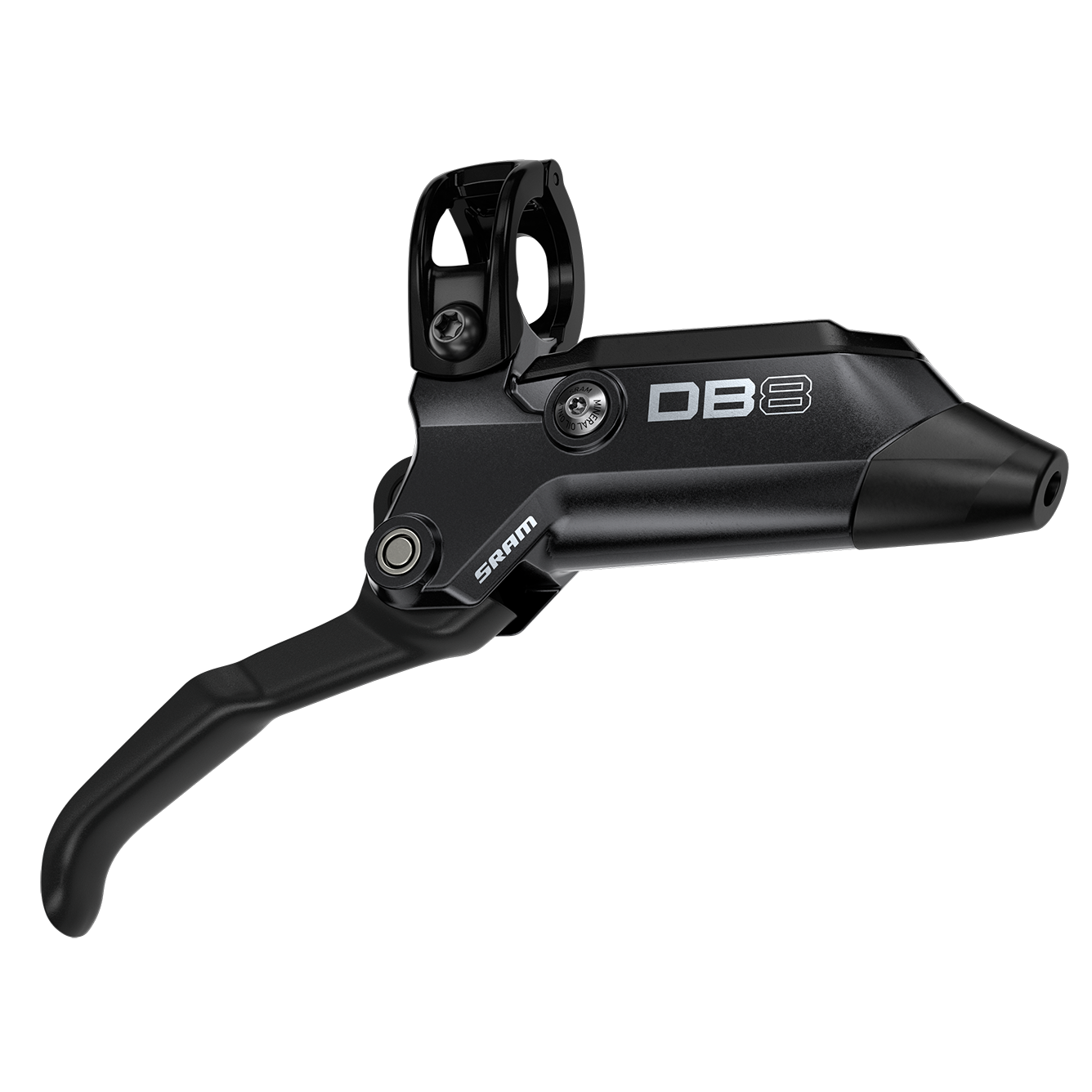

DB8 Stealth4 (Heavy Duty collection) · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)€148

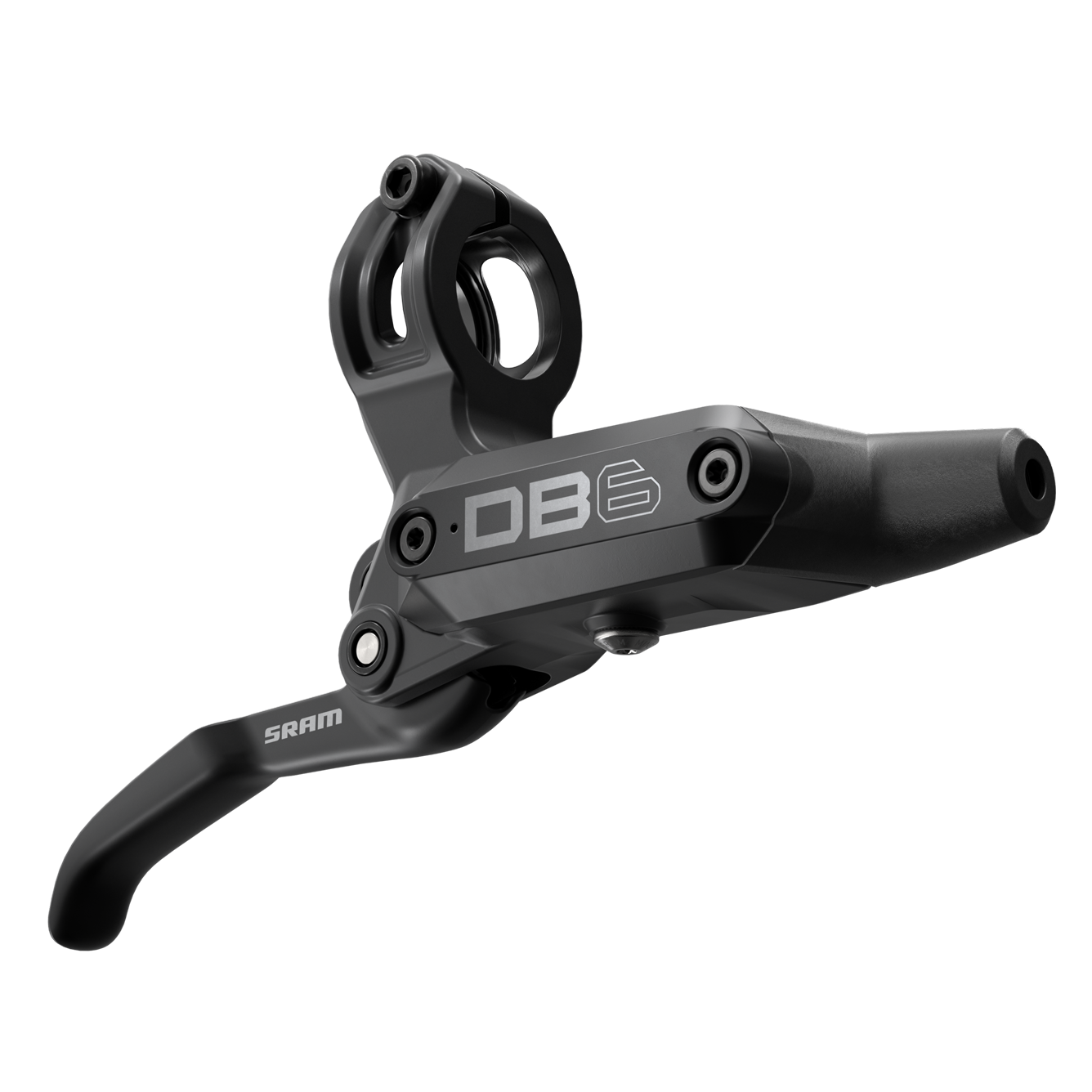

DB64 (Heavy Duty collection) · 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)

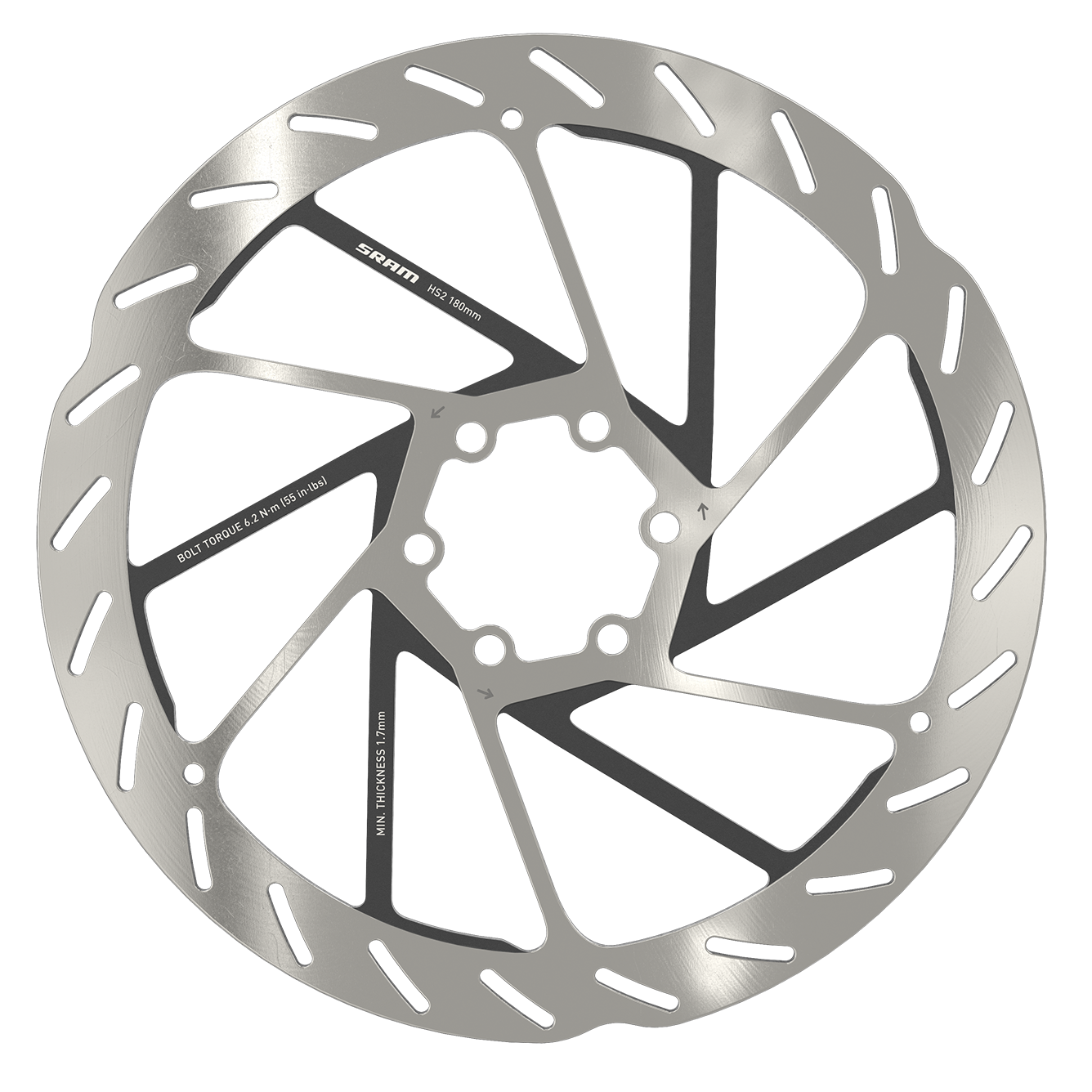

HS2 Rotor160mm, 180mm, 200mm, 220mm · 2.0 mm€58
Trickstuff brakes
brand page →

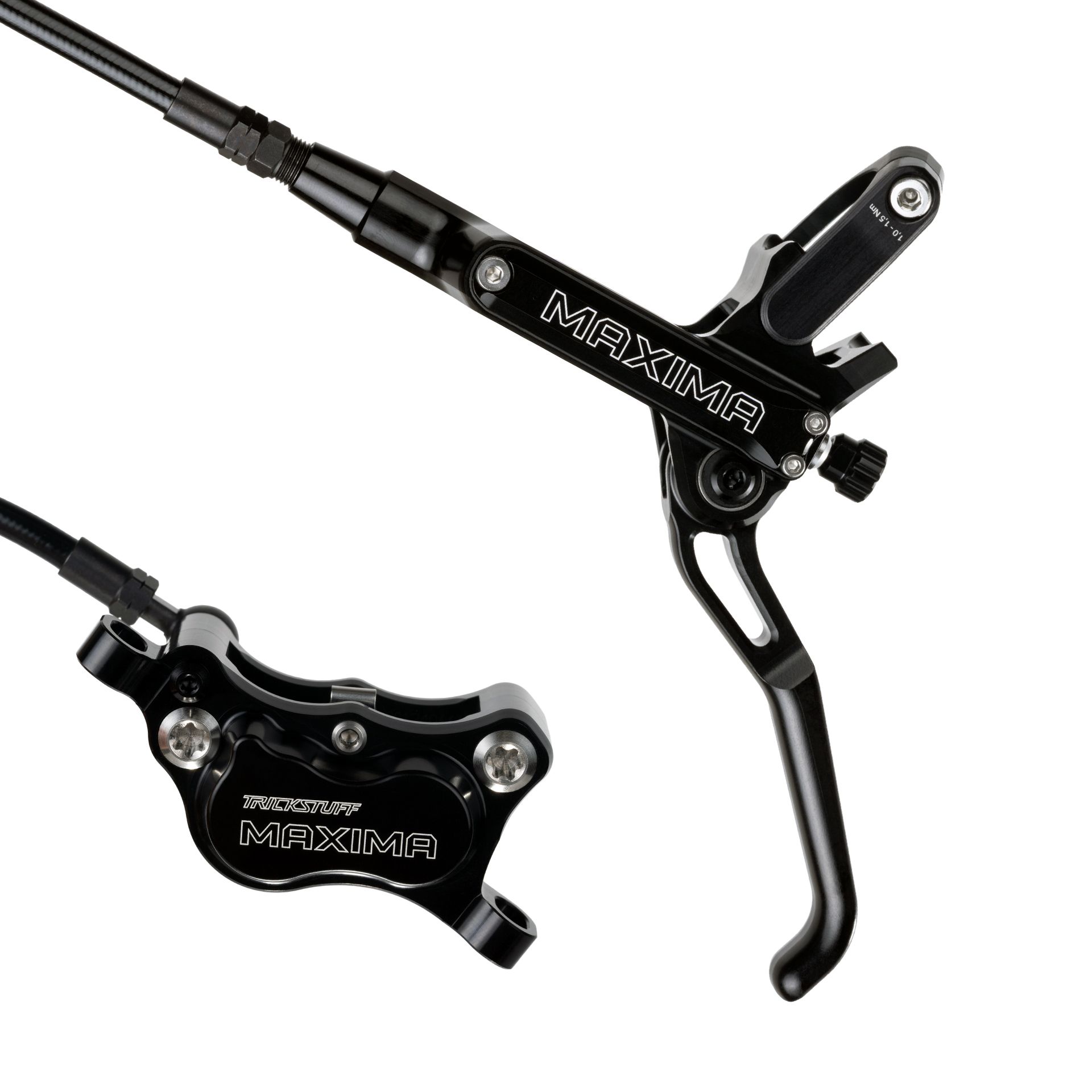

Maxima4 (16/17 mm, stainless steel) · 2.30 mm€1,300

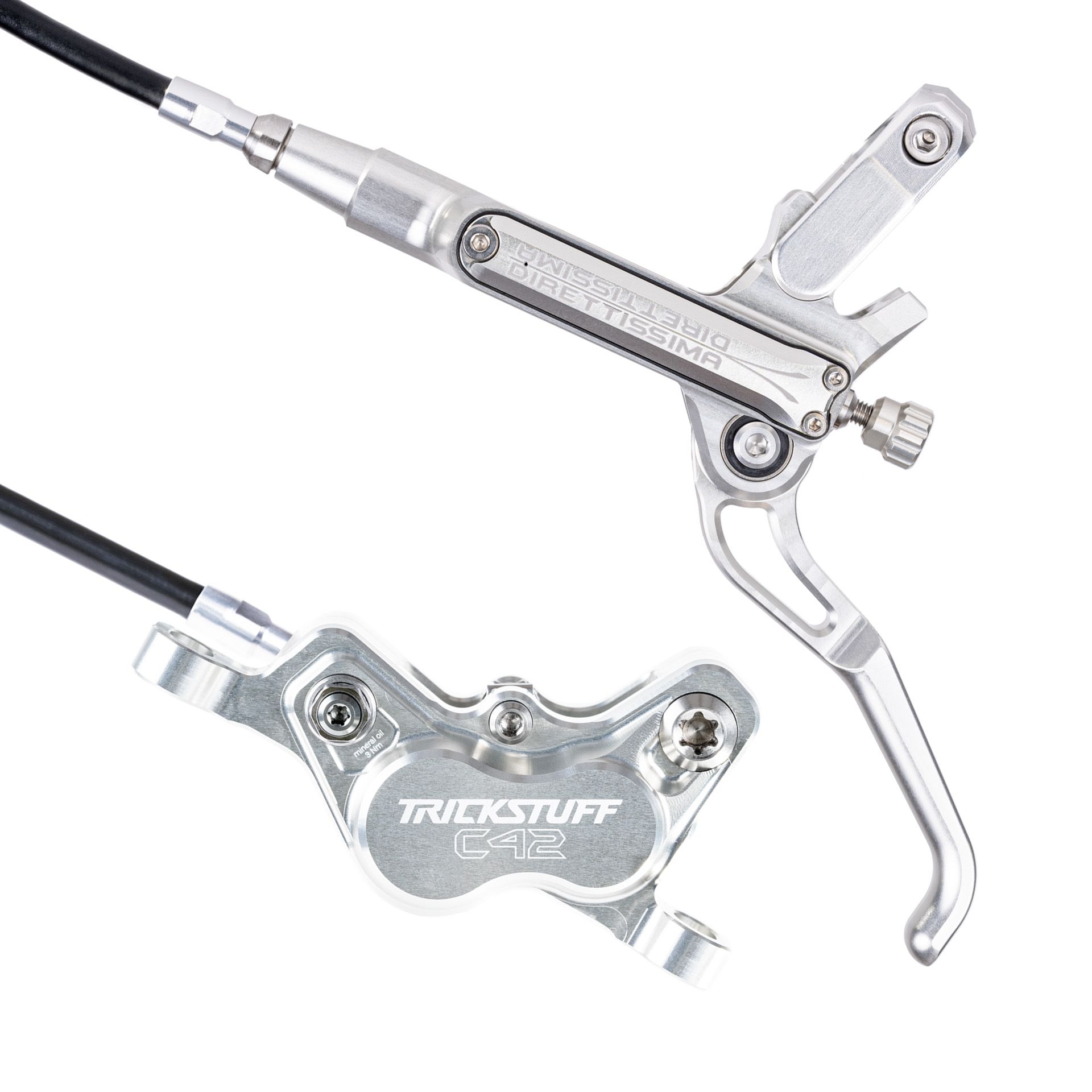

Direttissima4 (14/17 mm, stainless steel) · 2.10 mm€1,100

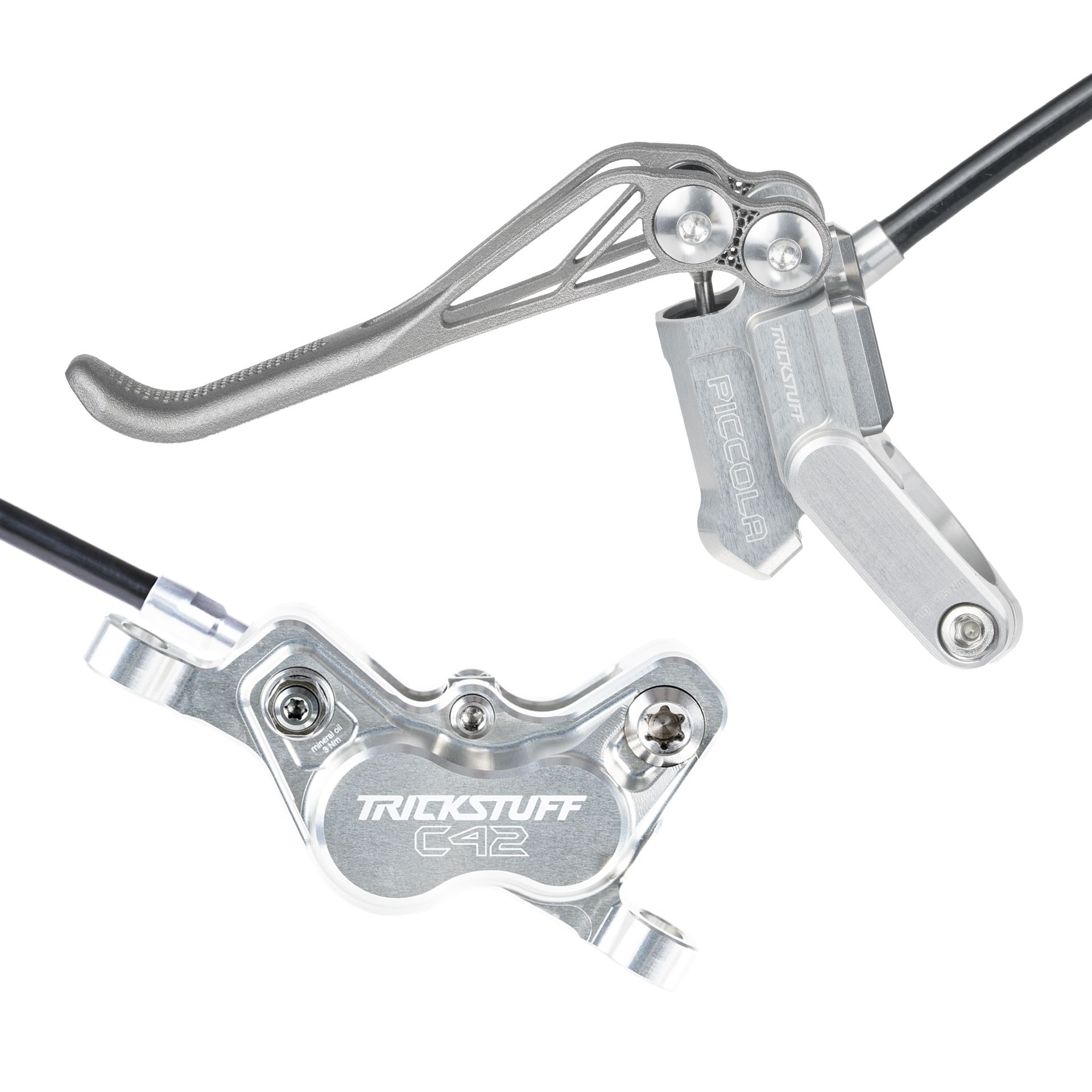

Piccola HD Titanium4 (14/17 mm, stainless steel) · 2.10 mm€1,100

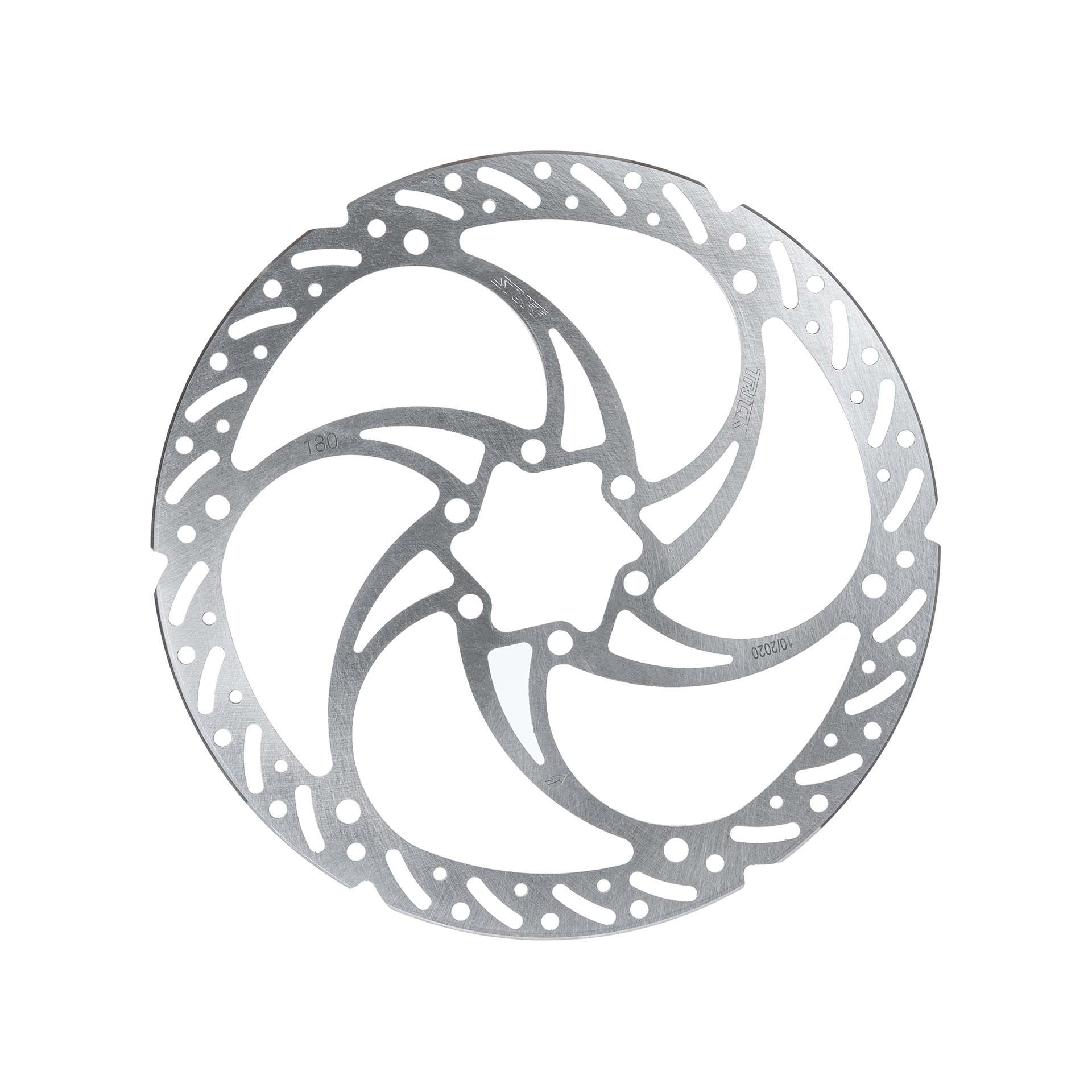

Dächle Disc HD160 / 180 / 203 mm · 2.05 mm€34

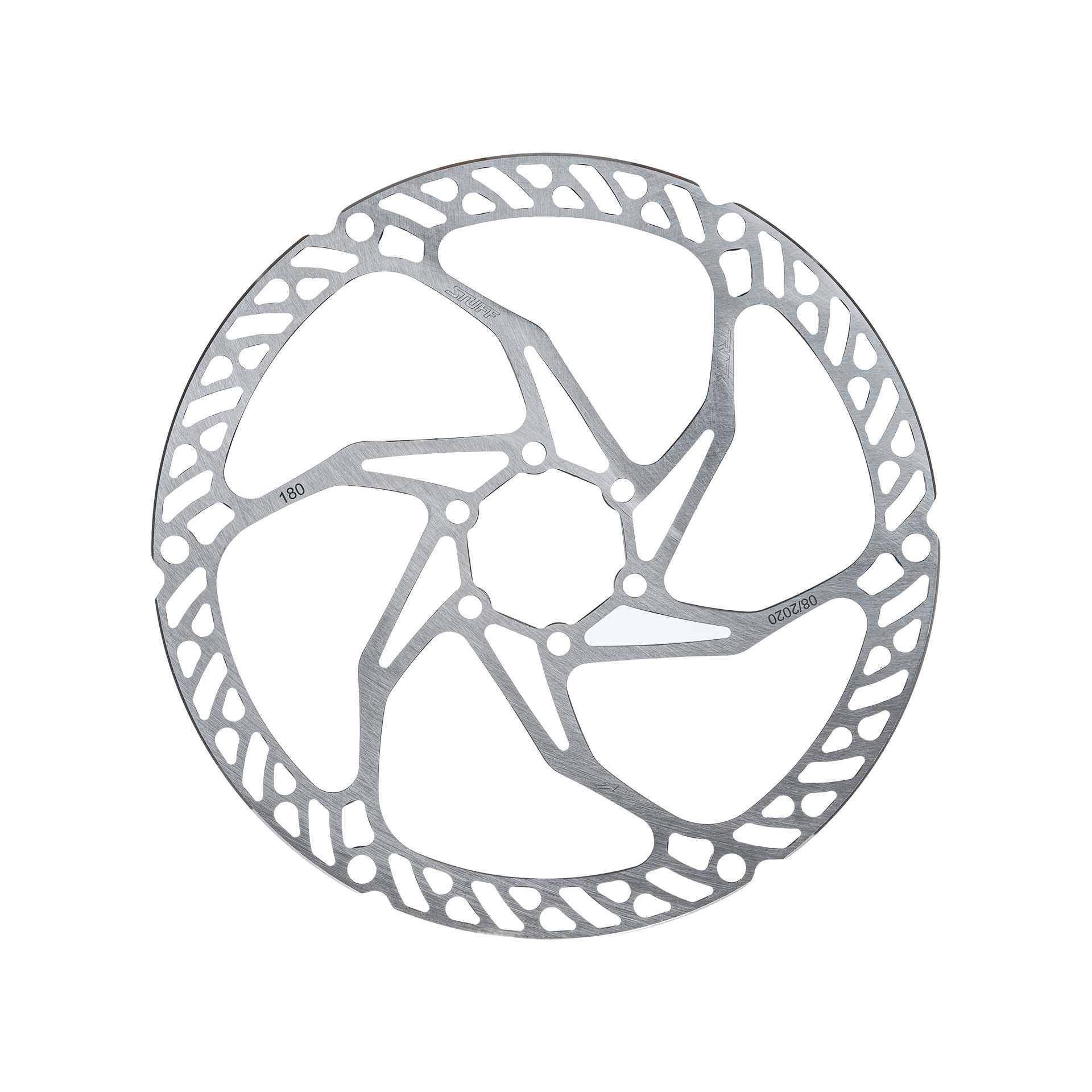

Dächle Disc UL140 / 160 / 180 / 203 mm · 1.85 mm (140/160), 2.05 mm (180/203)€34

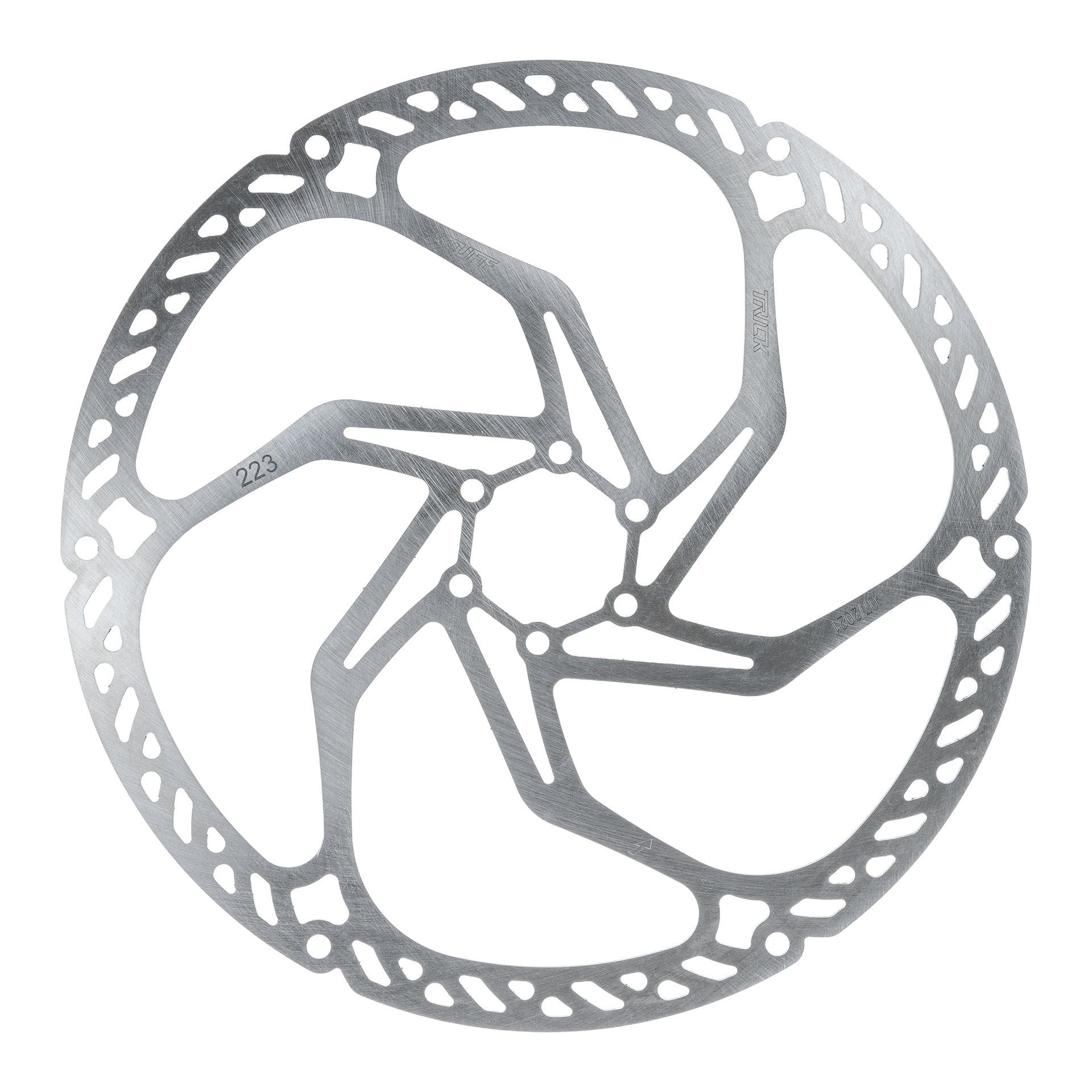

Downhill Disc223 mm · 2.05 mm€74
Magura brakes
brand page →

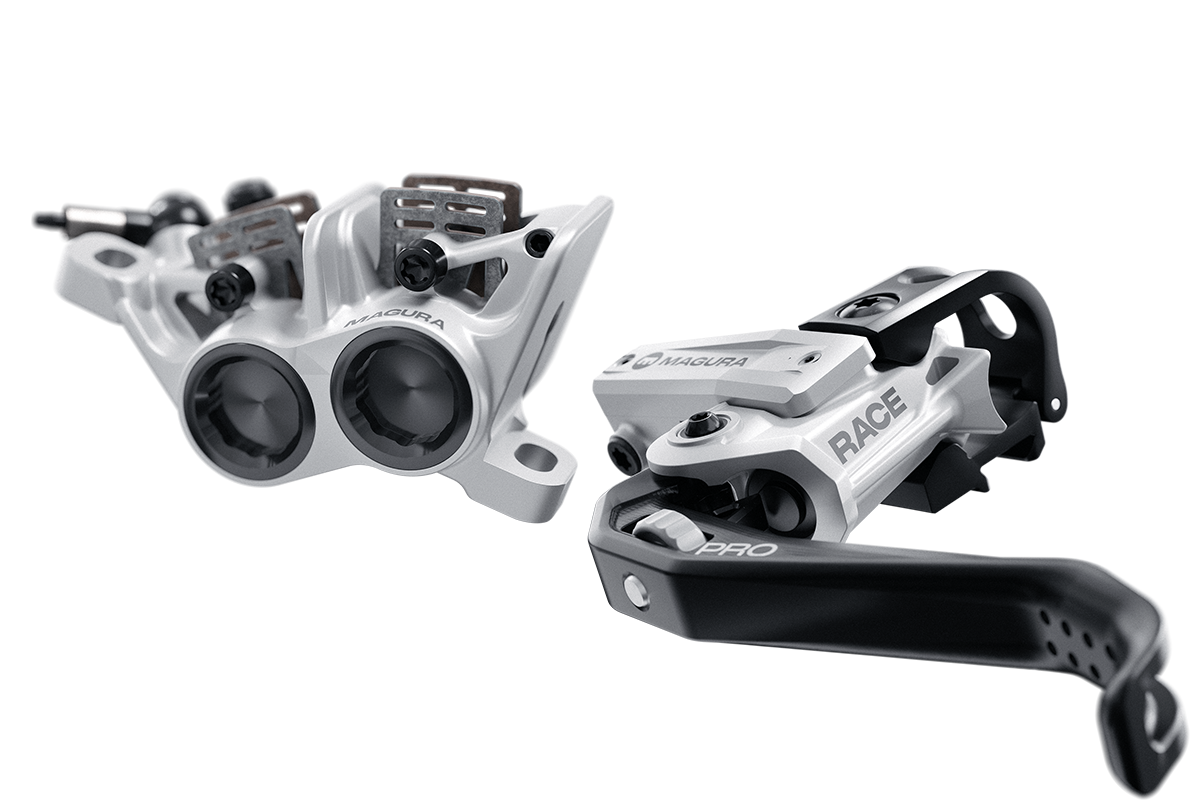

E-bike ratedRace Pro4 x 19 mm caliper, 12 mm radial master · 180–220 mm€699.90

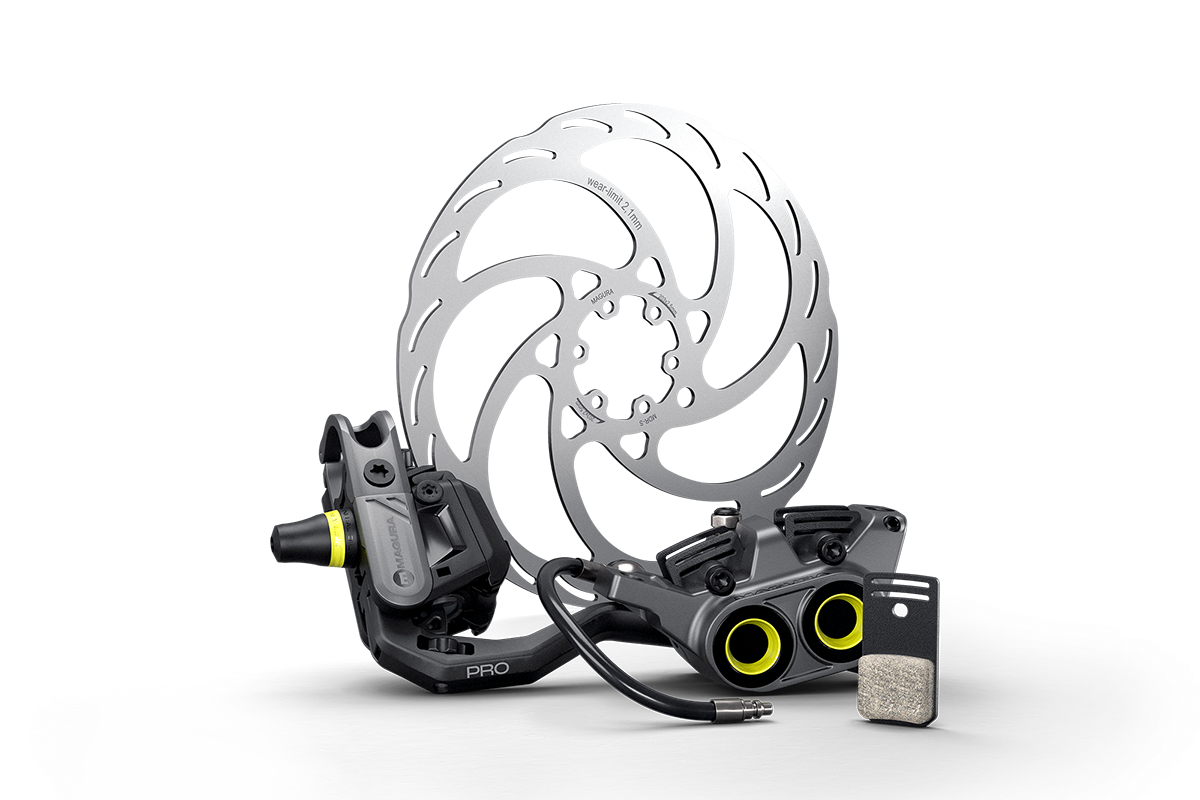

E-bike ratedGustav Pro4 x 19 mm caliper, 12 mm radial master · 2.0 or 2.5 mm€304.90

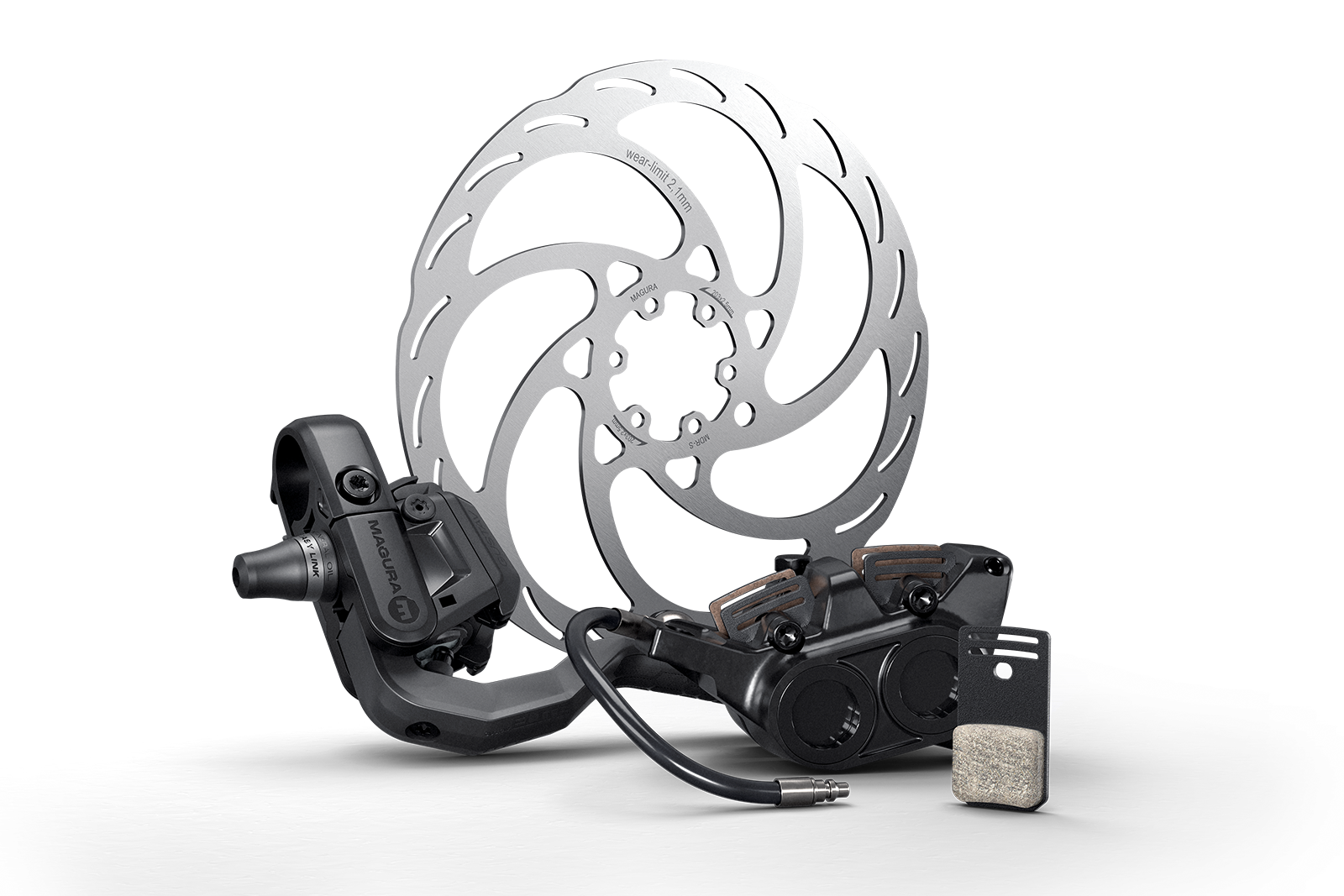

E-bike ratedGustav Elite4 x 19 mm caliper, 12 mm radial master · 2.0 or 2.5 mm€204.90

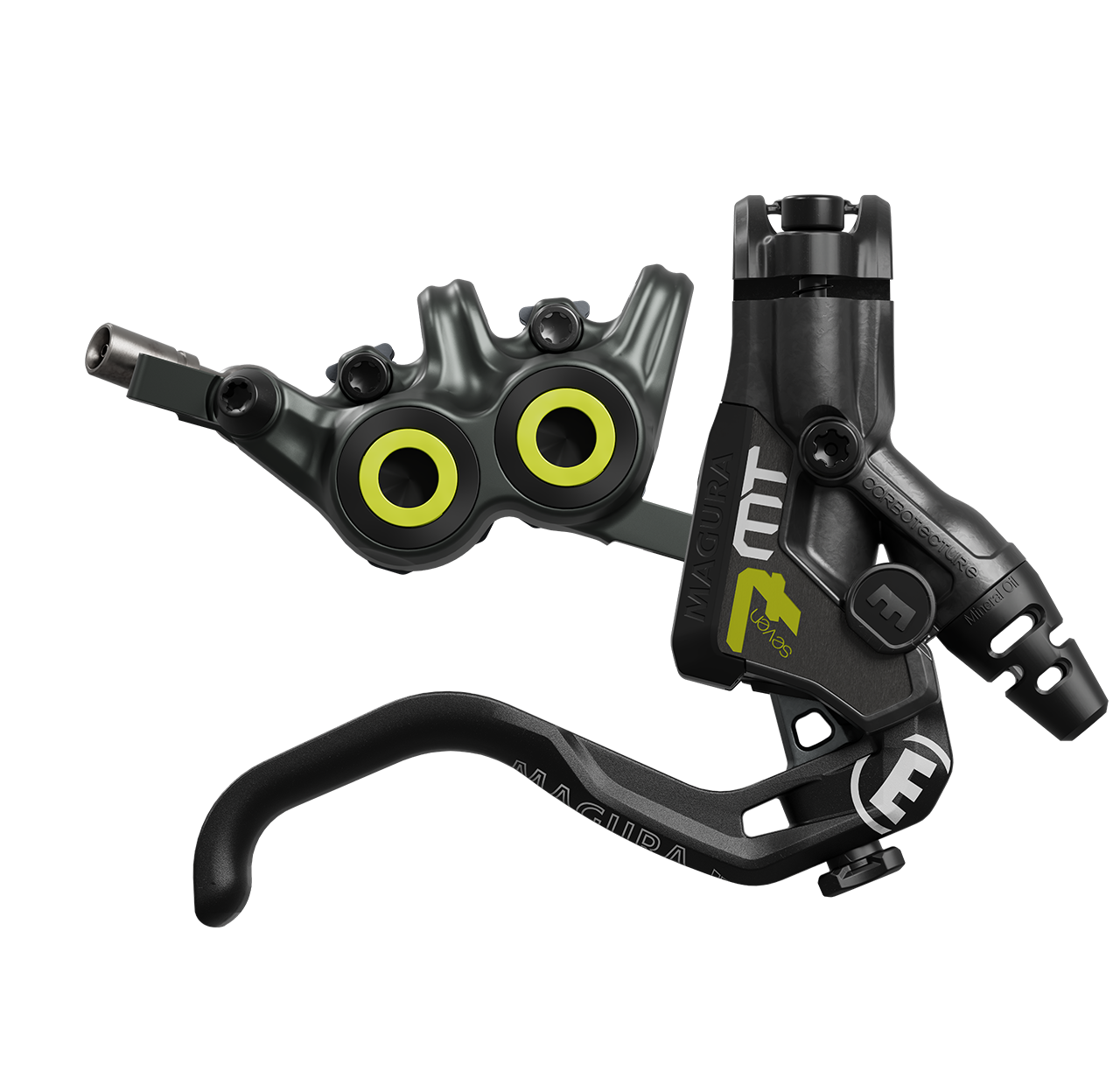

E-bike ratedMT7 Pro4 x 17 mm caliper, 10 mm radial master · 2.0 mm€226.90

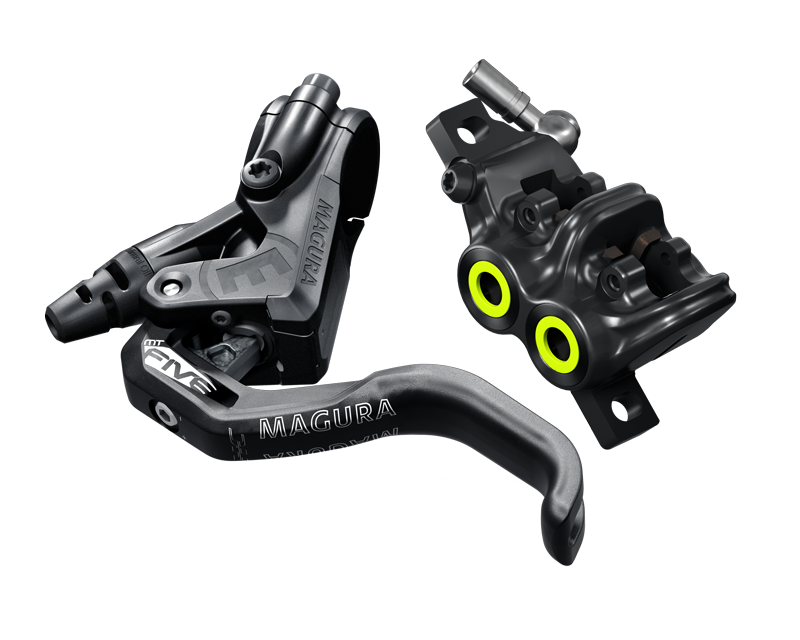

MT5 Pro4 (one-piece forged caliper) · 2.0 mm€133.90
MT54 (one-piece forged caliper) · 2.0 mm€112.90

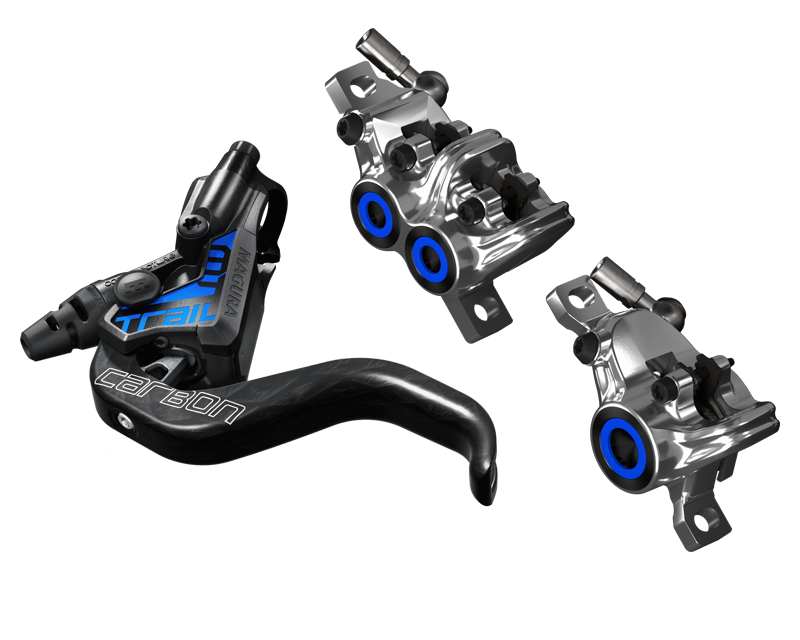

MT Trail SL4 front / 2 rear · 2.0 mm€596.90

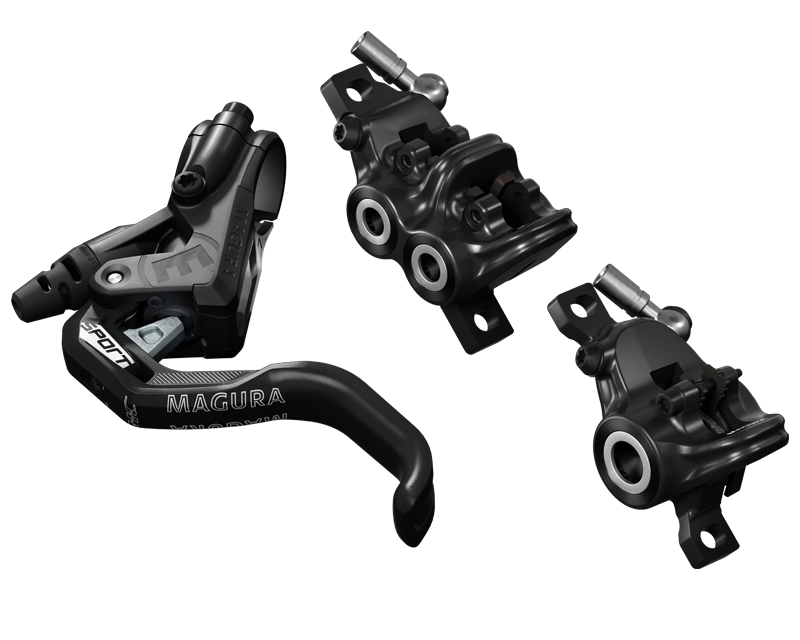

MT Trail Sport4 front / 2 rear · 2.0 mm€226.90

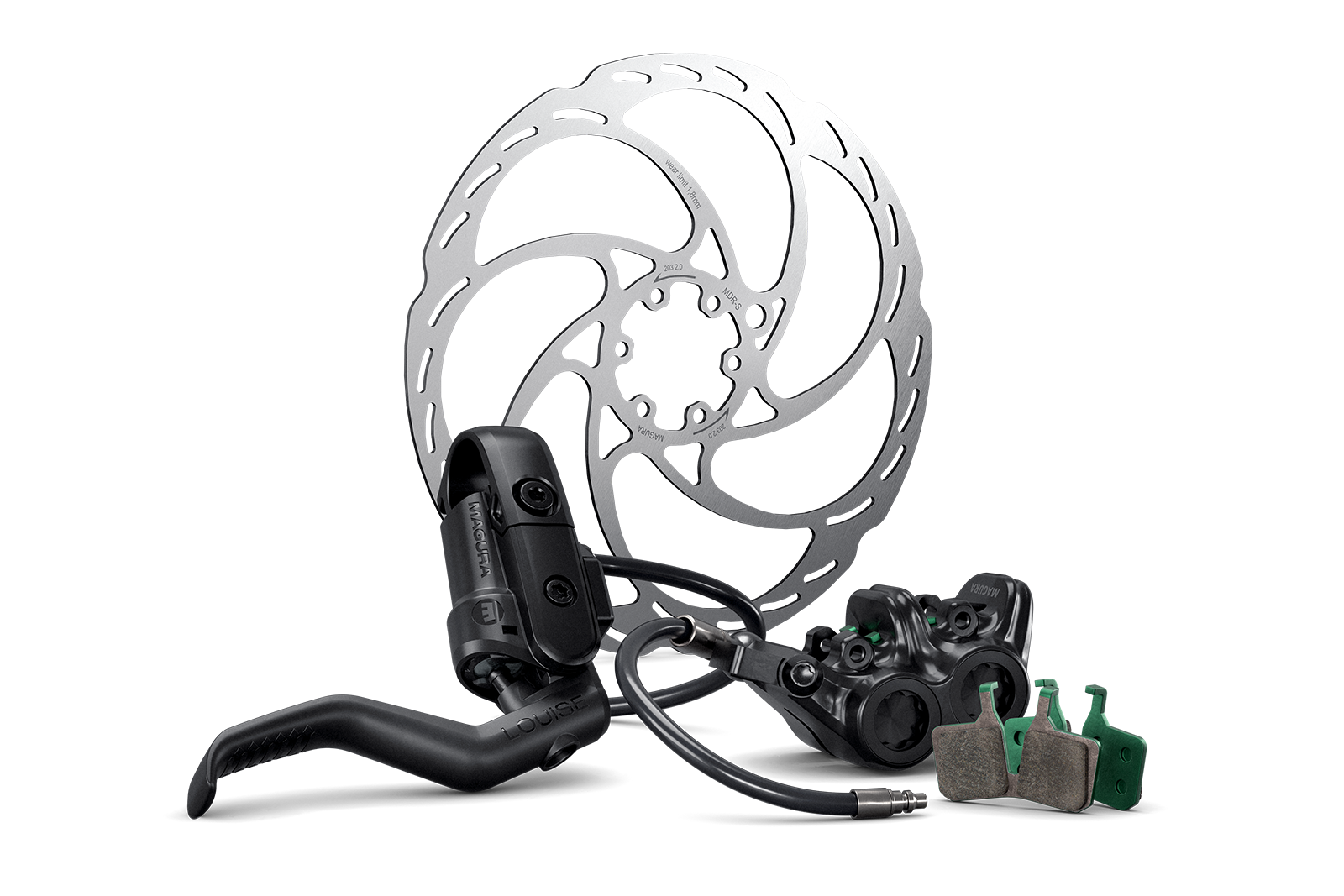

Louise Elite4 (one-piece forged caliper) · 2.0 mm€109.90
MT42 (one-piece forged caliper) · 2.0 mm€92.90

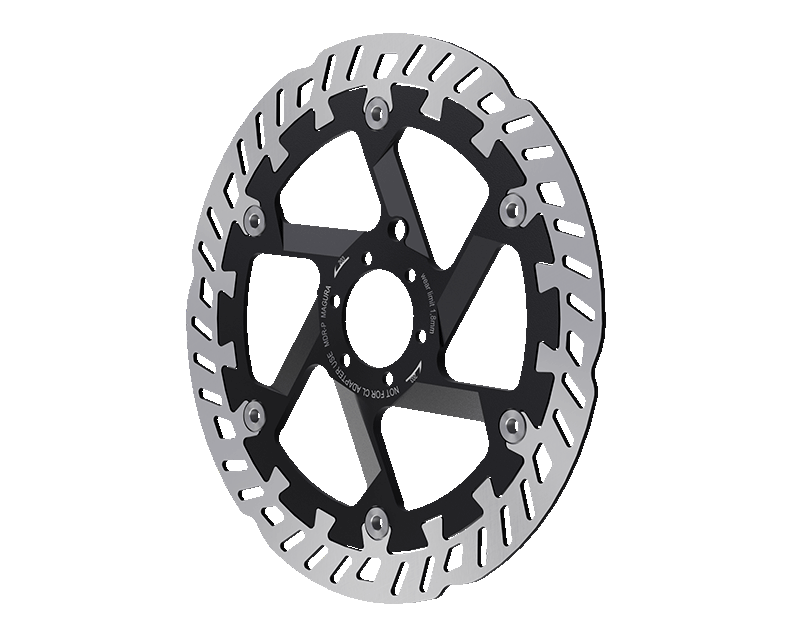

MDR-P180 / 203 / 220 mm · 2.0 mm (wear limit 1.8 mm)€55.90

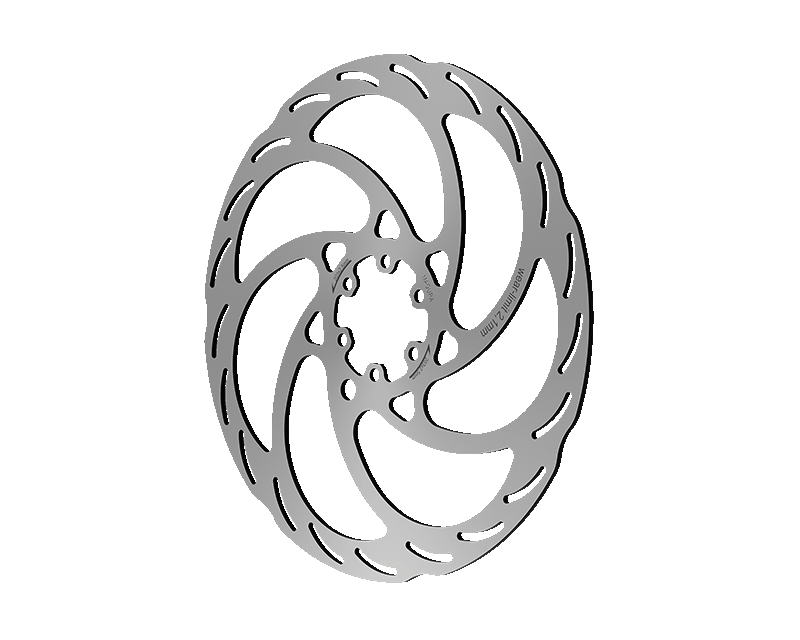

MDR-S 2.5180 / 203 mm · 2.5 mm (wear limit 2.1 mm)€55.90

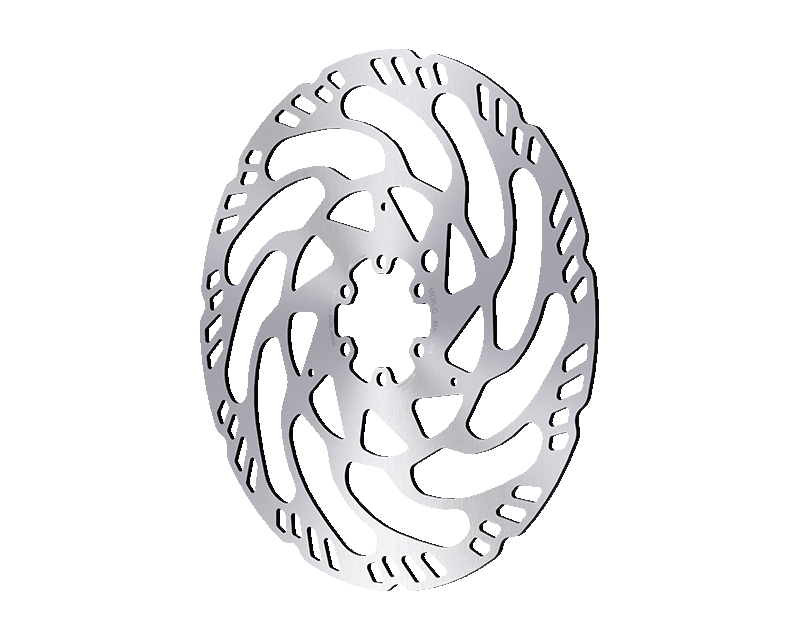

MDR-C160 / 180 / 203 / 220 mm · 2.0 mm (wear limit 1.8 mm)€30.90

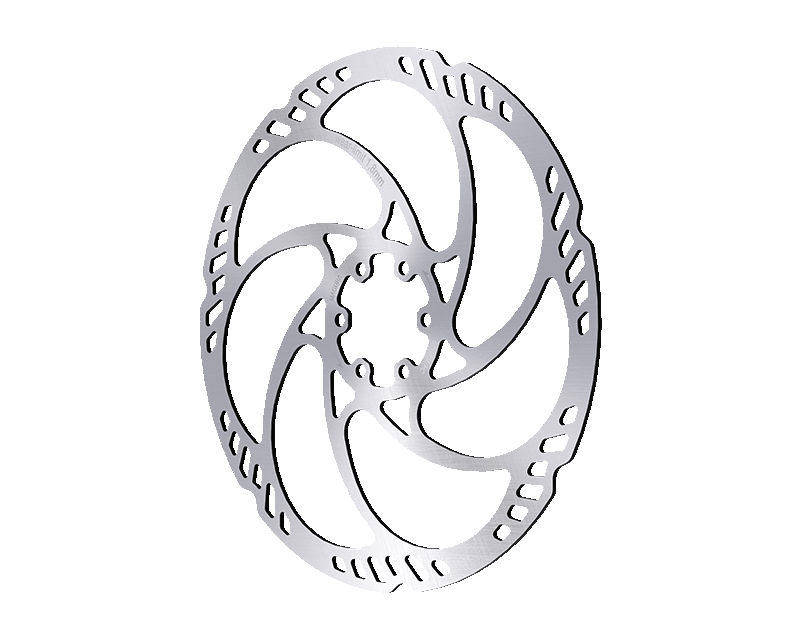

Storm HC160 / 180 / 203 mm · 2.0 mm (wear limit 1.8 mm)€30.90
Hope brakes
brand page →

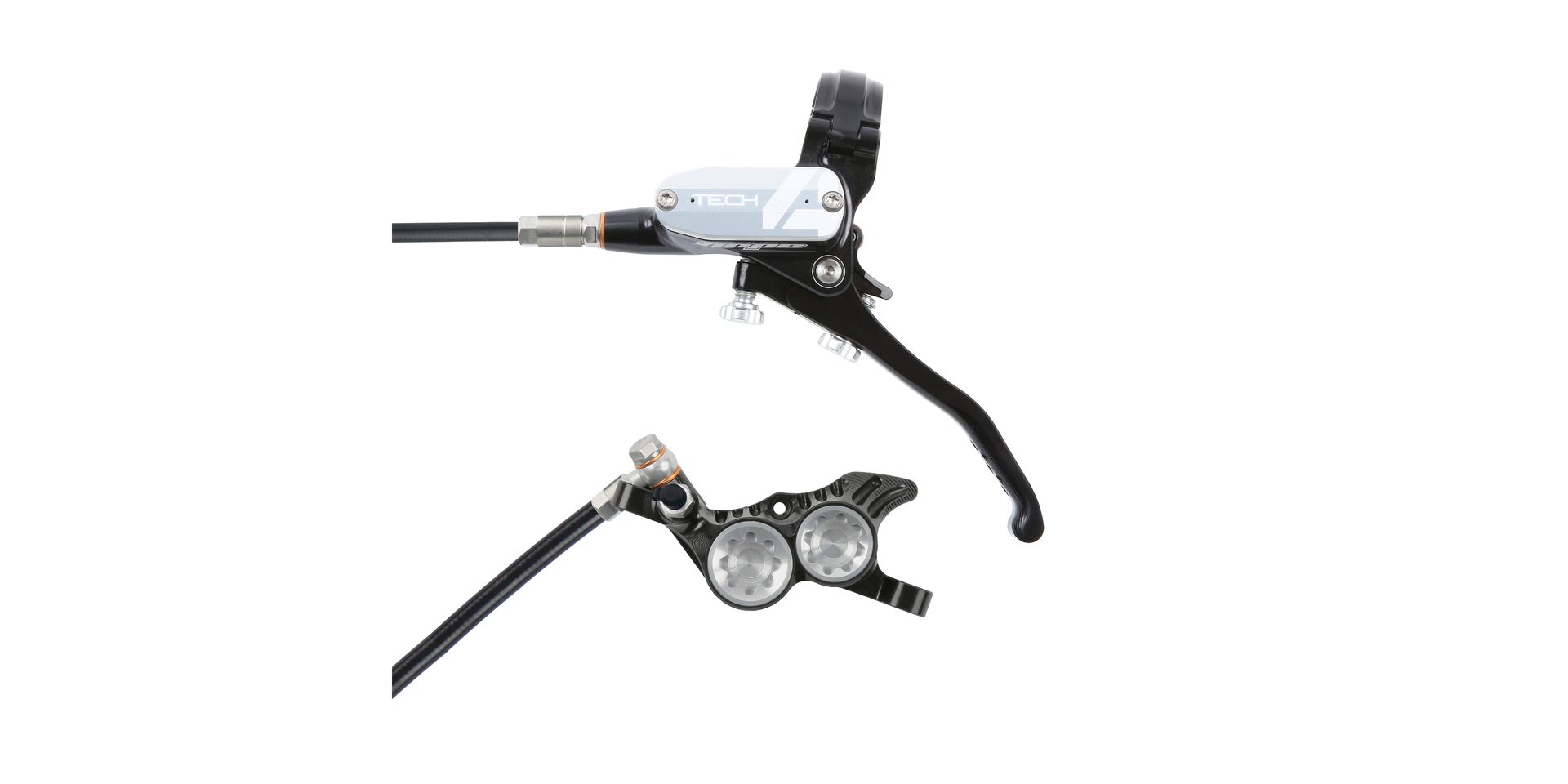

E-bike ratedTech 4 V44 (hybrid stainless/phenolic) · One-piece CNC, post mount£240

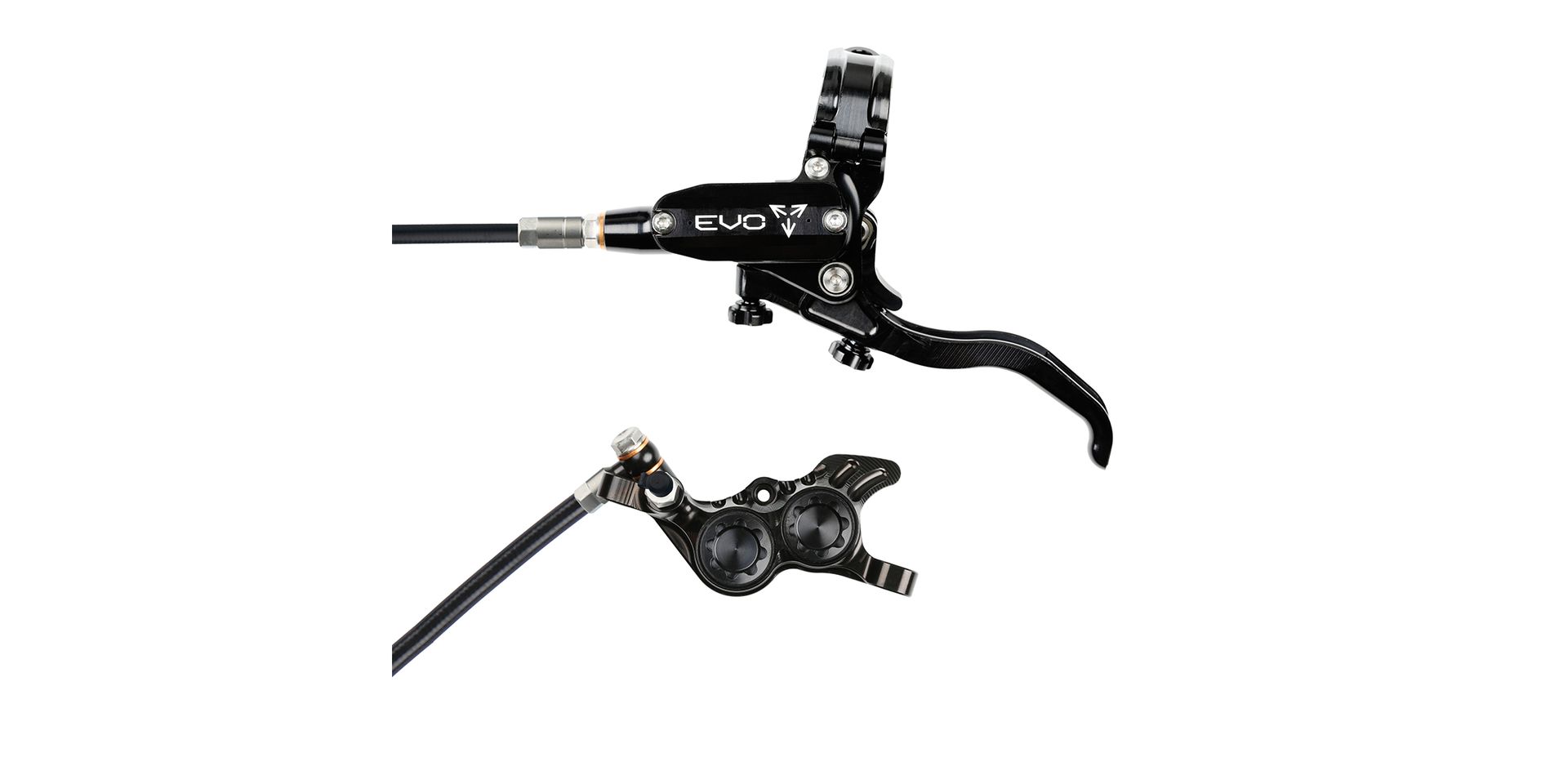

E-bike ratedEVO GR44 · One-piece£240

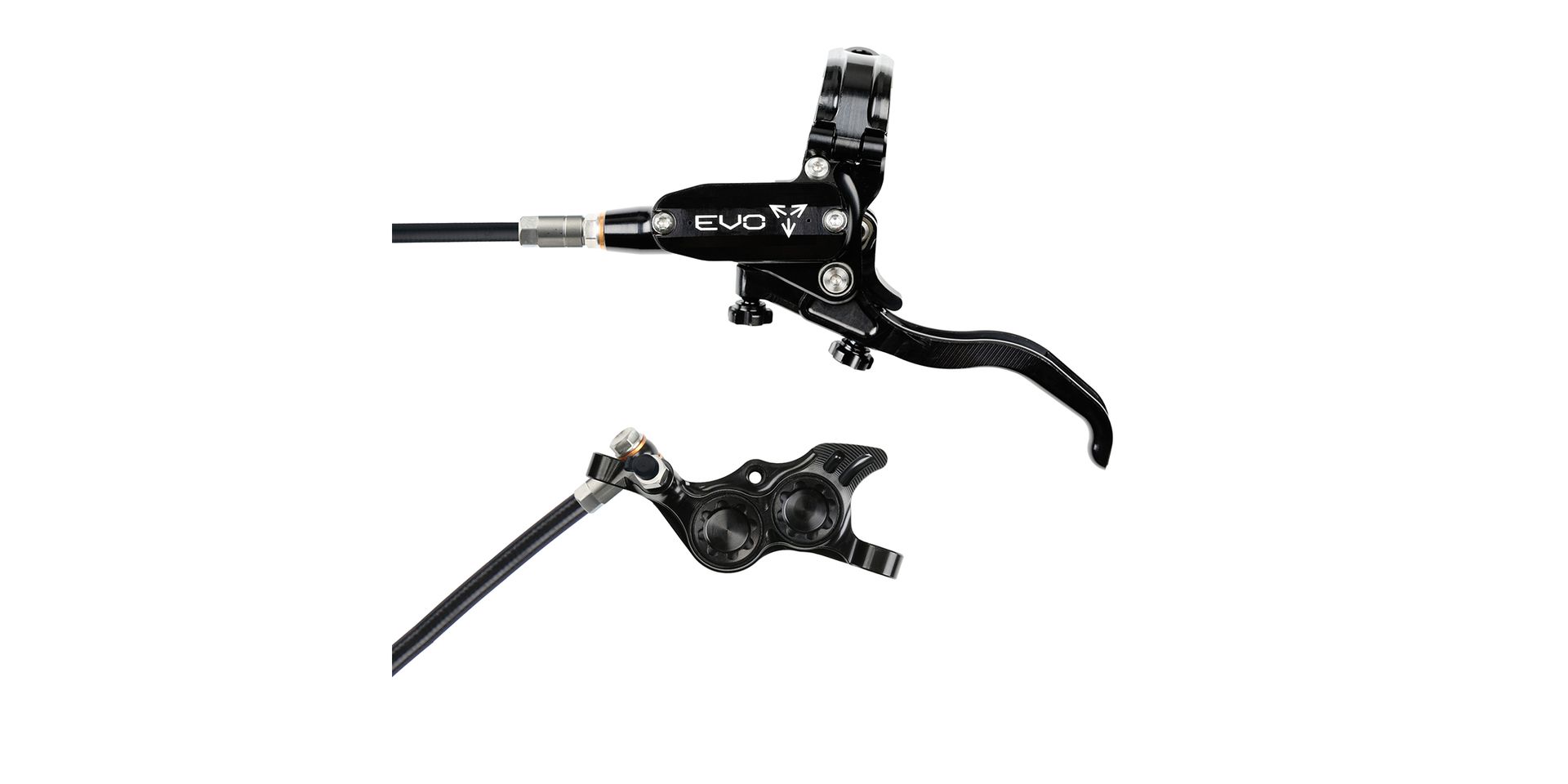

EVO TR44 · One-piece£225
EVO X22 (hybrid) · One-piece CNC£205

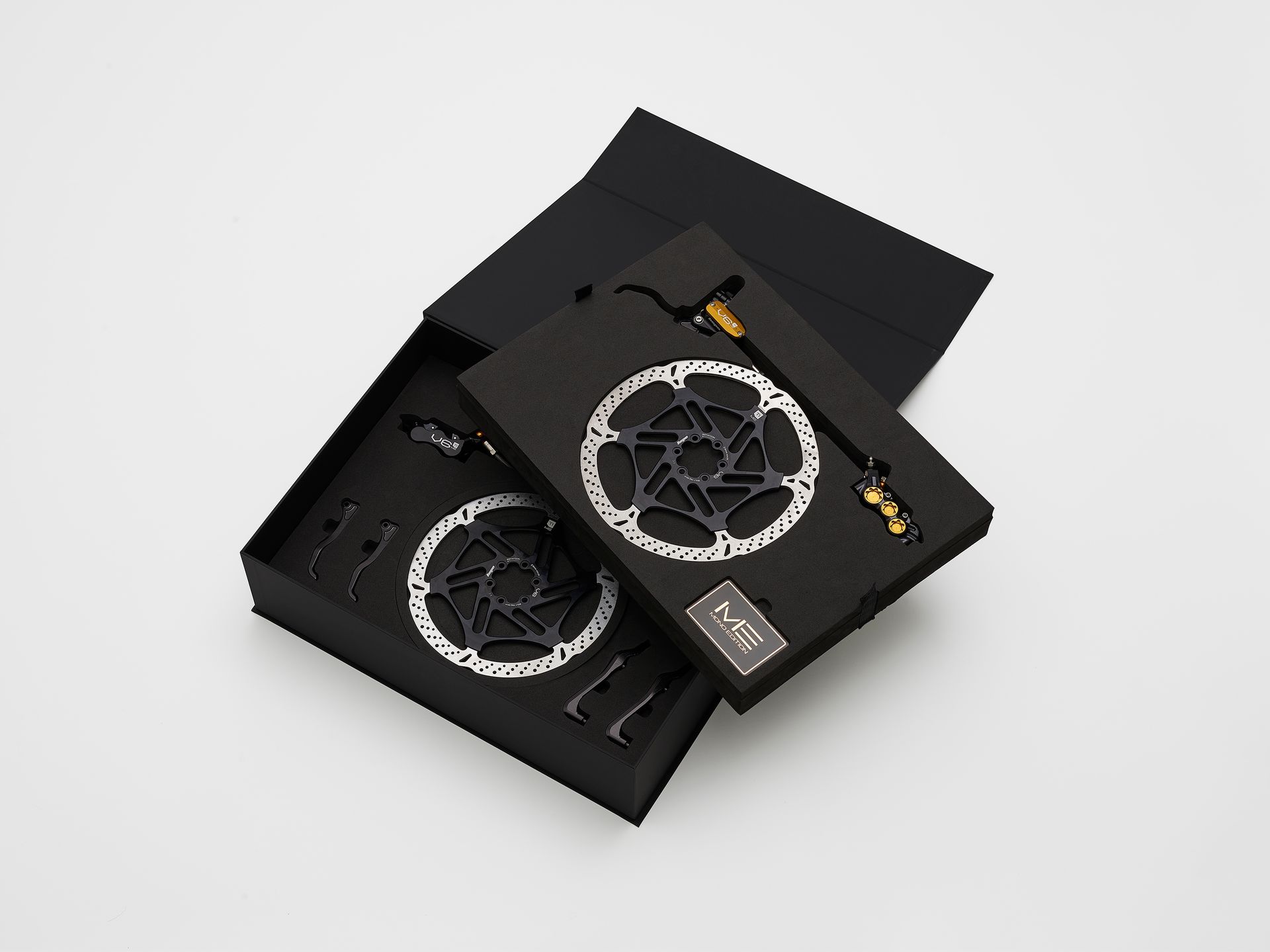

E-bike ratedEVO V6Ti6, titanium, Ti-Nitride coated · Single-piece CNC, radial mount£1,400

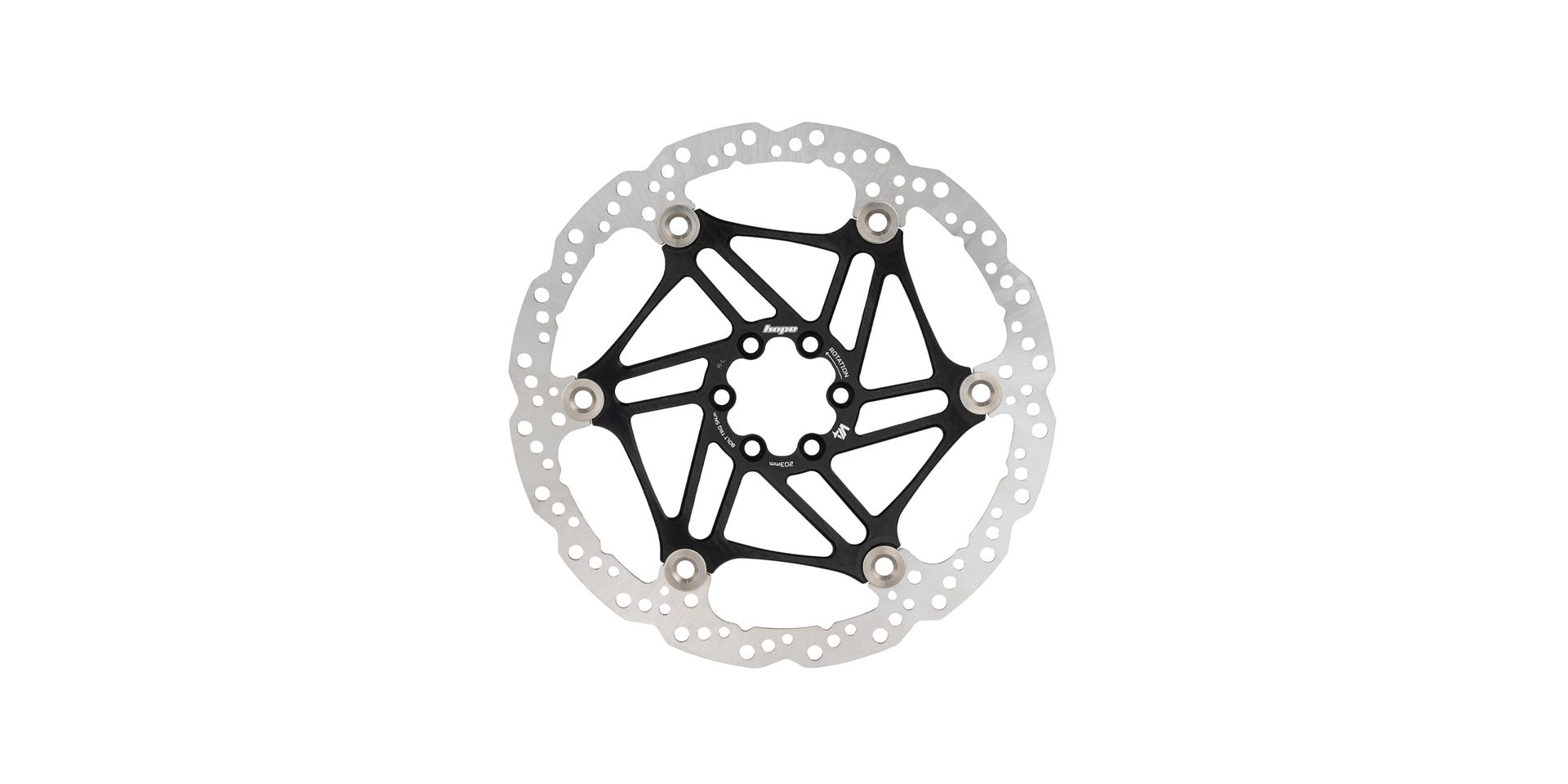

E-bike ratedVented Rotor203 / 220 mm · 3.3 mm£135

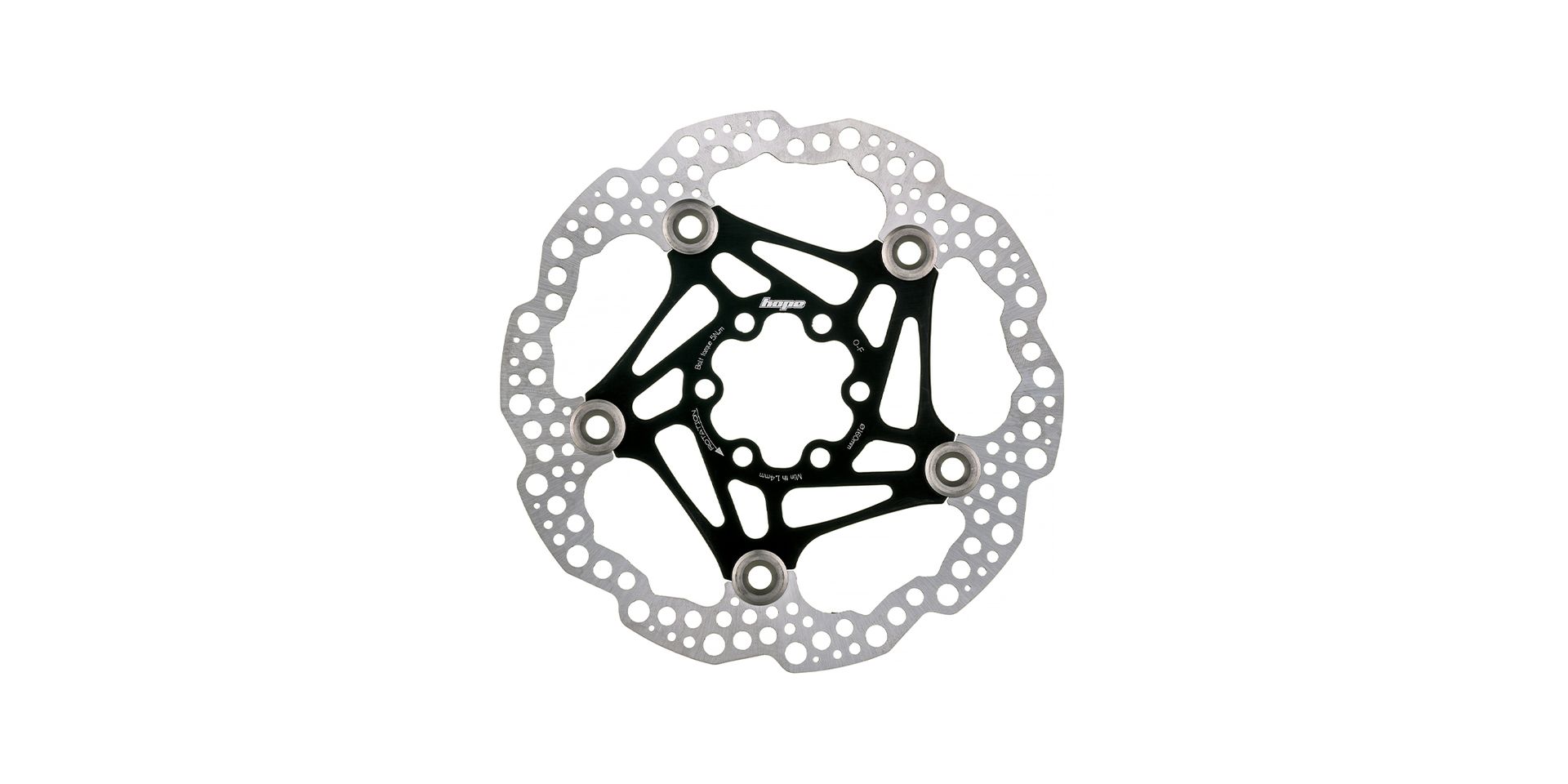

Floating Rotor140, 160, 180, 200, 203, 220 mm · 1.8 mm£60

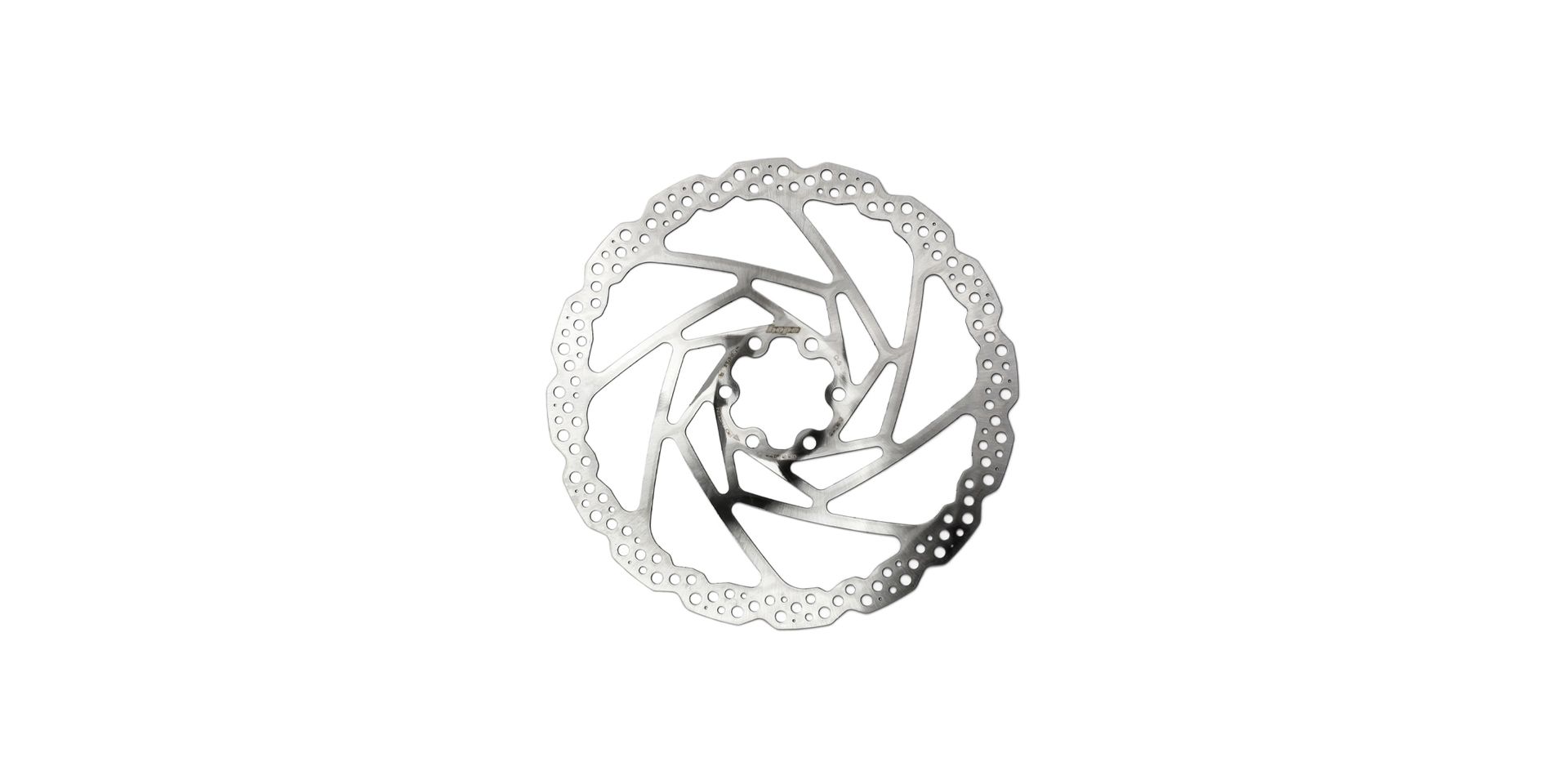

E-bike ratedFixed Rotor120-225 mm · 1.8 mm (120-160) / 2.3 mm (180-225)£57

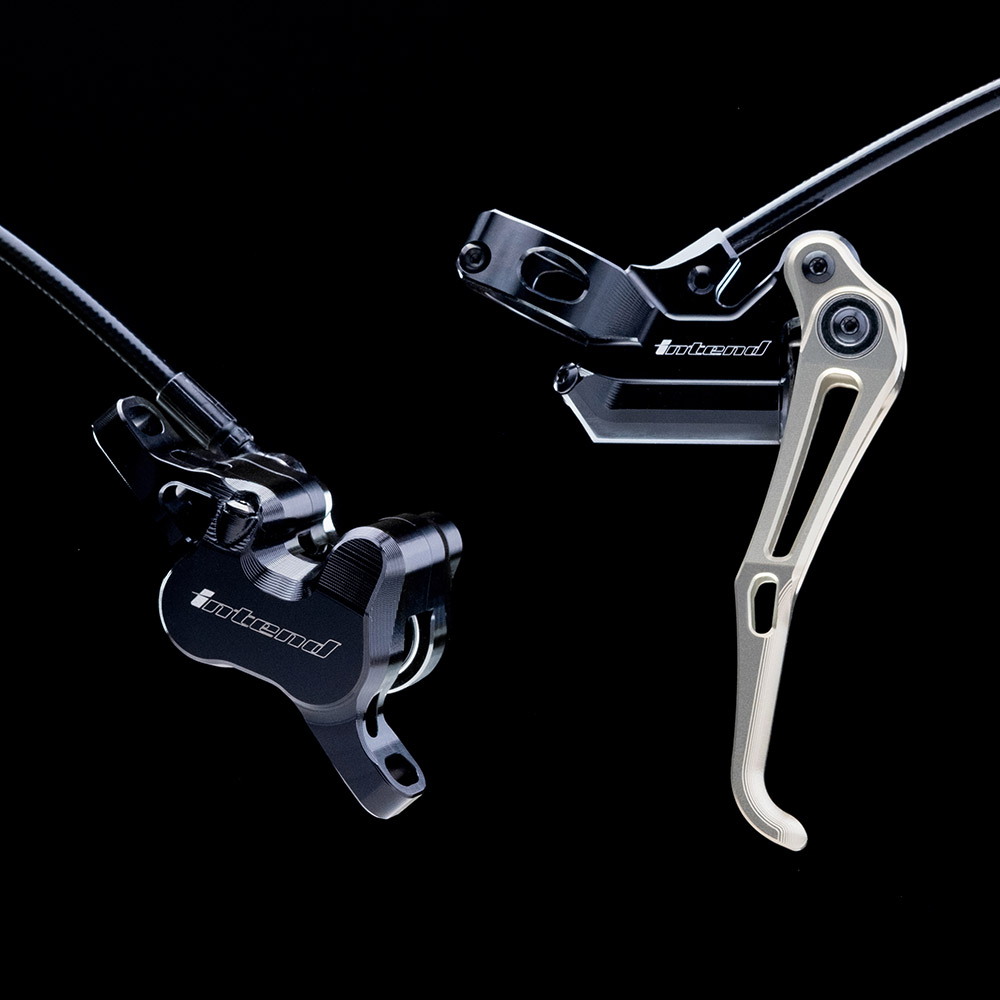

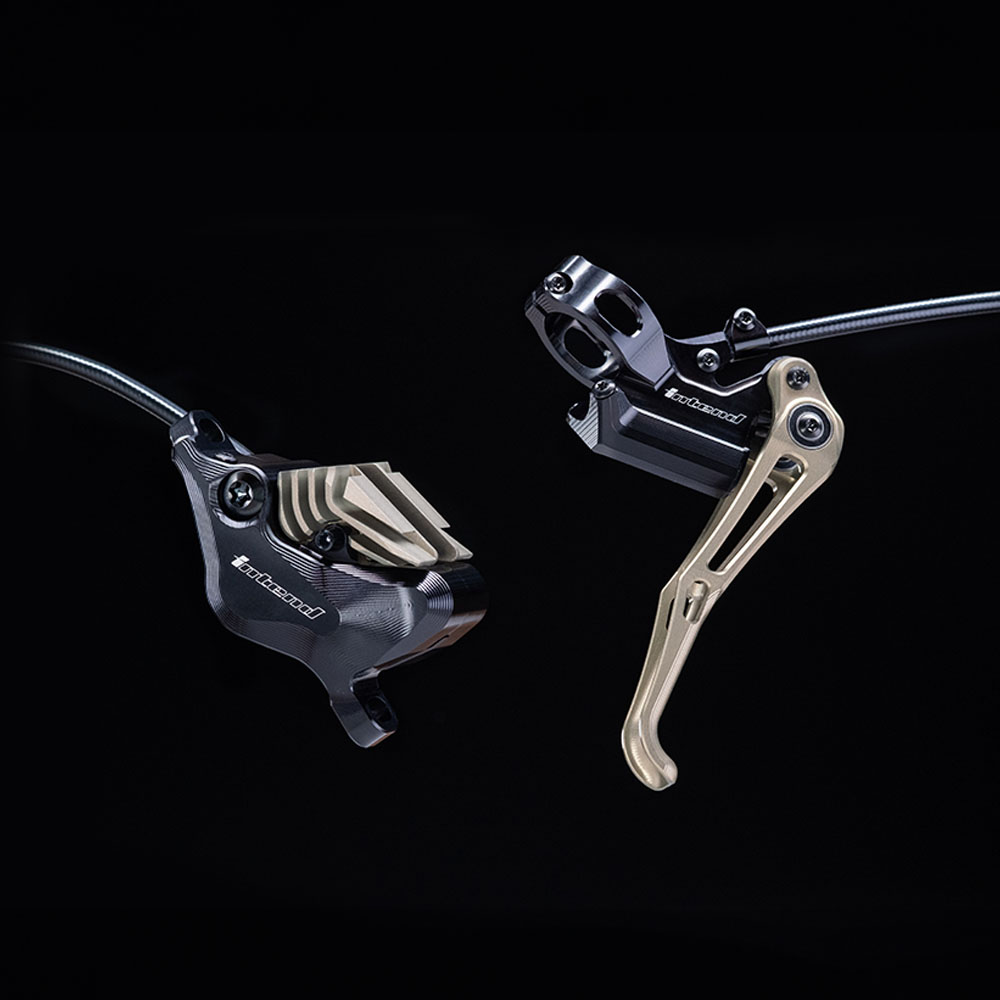

Intend brakes
brand page →
Shimano brakes
brand page →
Brakes: FAQ
Which brakes brands are in the catalog?
Formula, Hayes, TRP, SRAM, Trickstuff, Magura, Hope, Intend, Shimano — 62 models in total.
Which brakes are e-bike rated?

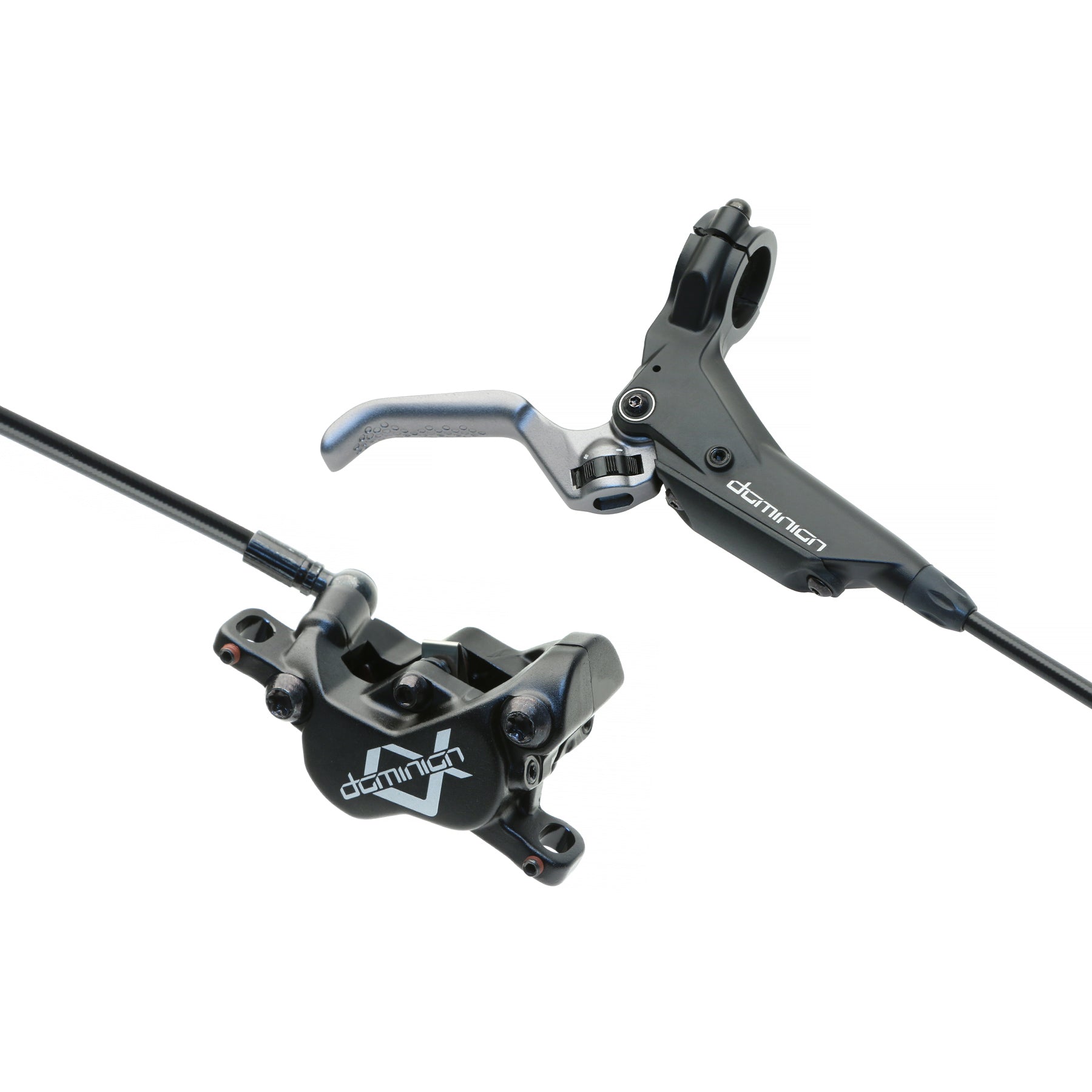

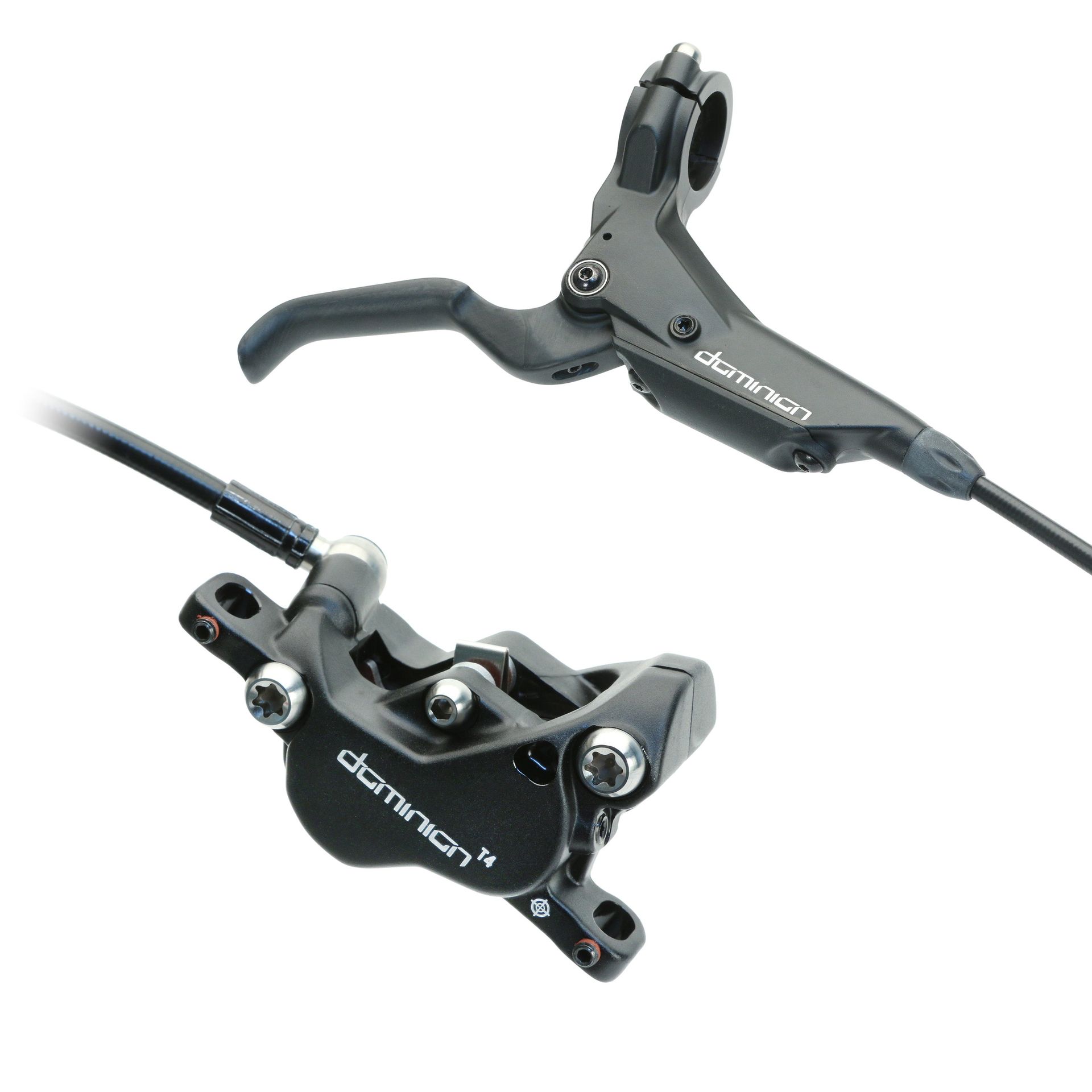

20 of 62 models are marked e-bike rated or e-bike specific by their makers, for example Hayes Dominion A4, TRP EVO Pro, SRAM Maven Ultimate, Magura Race Pro.
What is the lightest model?
The Trickstuff Dächle Disc UL at a claimed 119 g.
How much do they cost?
From €30.90 (Magura MDR-C) to £1,400 (Hope EVO V6Ti), manufacturer RRPs.
