TRPSlate EVO
No EUR/GBP price on trpcycling.com (US/Canada store only, USD); US store lists US$149.99 per brake (shown sold out at time of check)
- Pistons
- 4, stainless steel
- Rotor thickness
- 2.3 mm
- Lever piston
- 10 mm
- Pads
- Resin (not metallic-compatible)
- Weight
- 307 g front
- Weight
- 307 gfront brake without rotor and adapter, claimed
Overview
TRP's value four-piston Slate EVO, tuned for aggressive XC, trail and E-MTB with 2.3 mm rotors and 10 mm master piston, 307 g front; US$149.99 per brake.
The Slate EVO takes technology proven in World Cup downhill and tunes it for aggressive XC, trail and E-MTB bikes, with TRP promising a new level of modulation and braking power for the money. It received a new ergonomic lever blade, new pad compounds, new hydraulic oil, the 5 mm hose system, CNC-machined adapters and a revised oil flow inside the caliper.

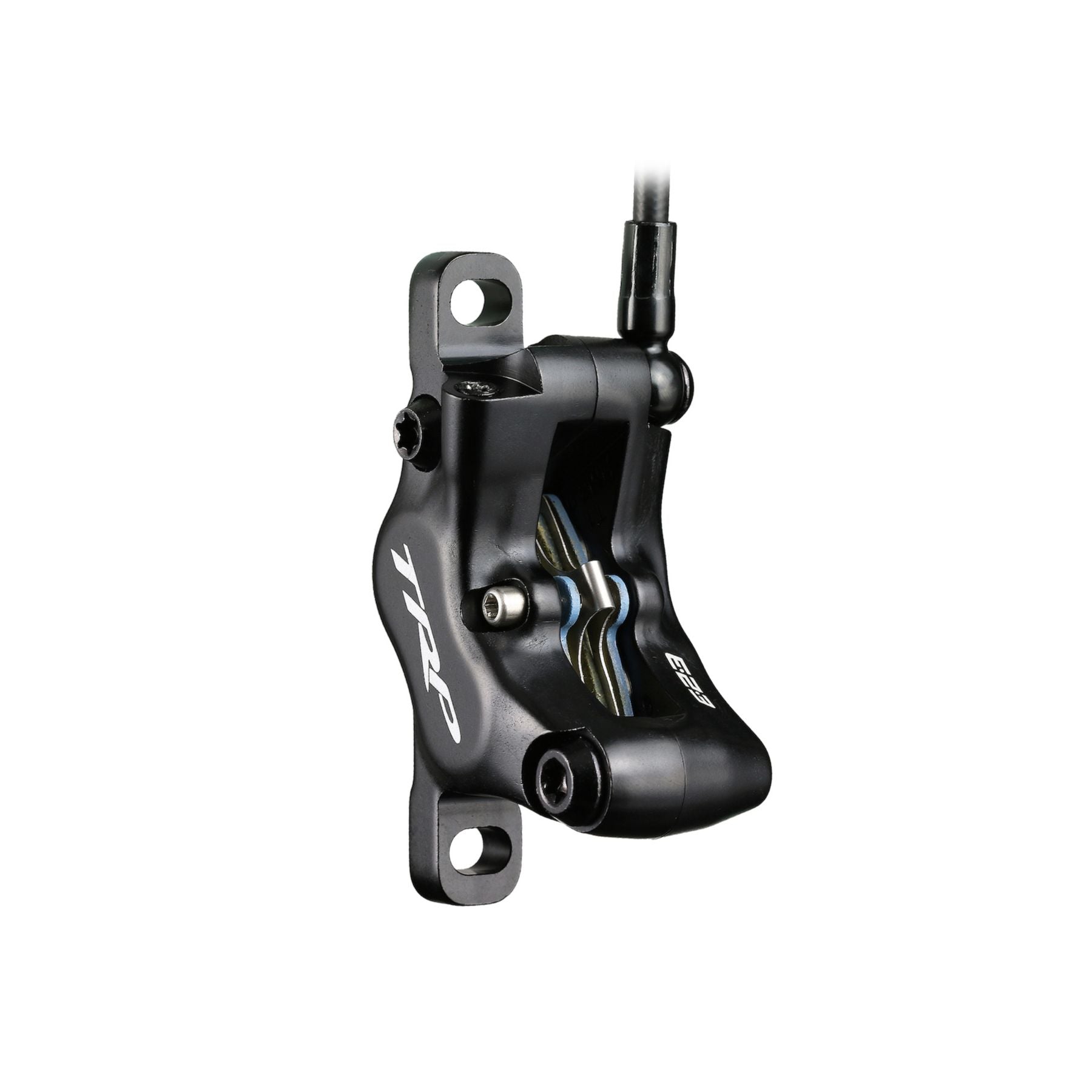

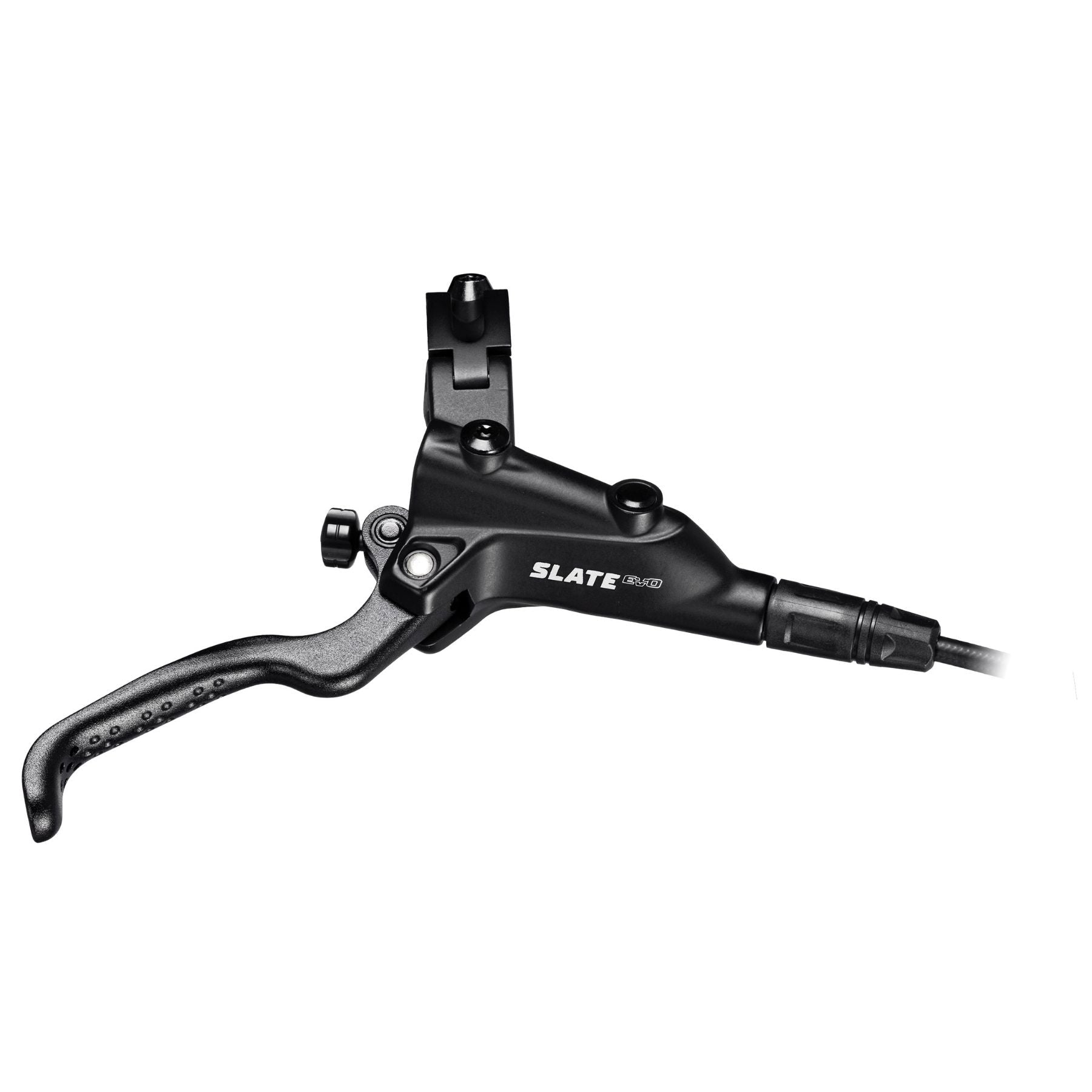

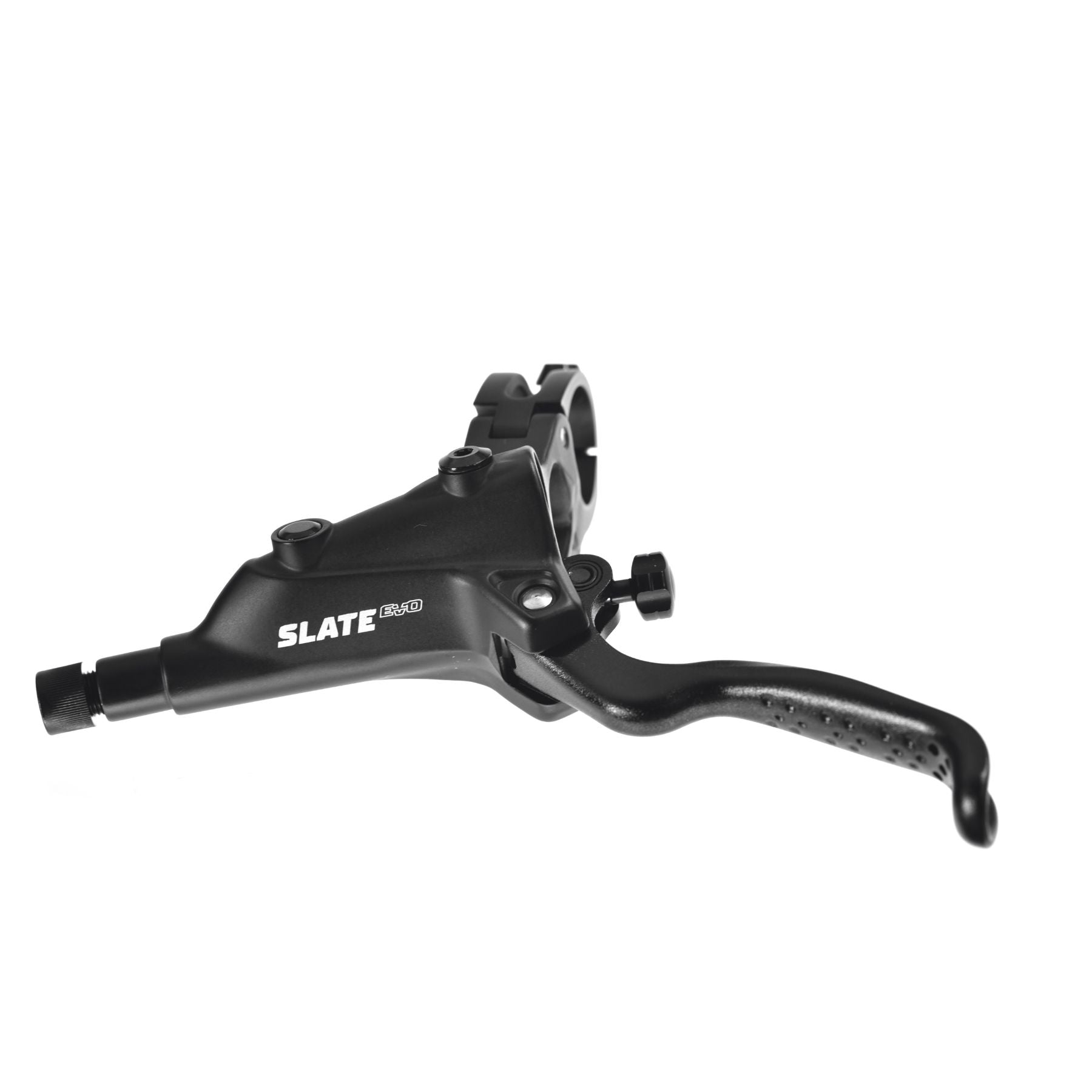

The four-piston caliper with stainless-steel pistons is made for 2.3 mm rotors and top-loading resin pads (metallic pads are not compatible). The lever uses a 10 mm master piston, adjustable reach and a hinged clamp, with I-Spec B compatibility, an I-Spec EV adapter option and TRP/MMX shifter adapters. TRP quotes 307 g for the front brake.
- Tuned for aggressive XC, trail and E-MTB
- Four stainless-steel pistons, 2.3 mm rotors
- 10 mm master piston, adjustable reach
- Resin pads only (no metallic)
- 307 g front
Gallery
Full specifications
Caliper
- Caliper
- 4-piston, optimised hydraulic flow
- Pistons
- Stainless steel
- Pads
- Top loading, new resin pad
- Pad compatibility
- Not compatible with metallic brake pads
- Intended rotor thickness
- 2.3 mm
Lever
- Lever piston
- 10 mm internal
- Reach adjust
- Adjustable
- Clamp
- Hinged
- Shifter compatibility
- I-Spec B; I-Spec EV adapter option; TRP and MMX shifter adapter available
Hydraulics
- Fluid
- Newly formulated mineral oil
- Hose
- 5 mm
- Connection
- Banjo
General
- Weight
- 307 g (front without rotor and adapter)
- Finish
- Matte black
- US price
- US$149.99 per brake
Manufacturer specification — TRP. Specs and prices can change; check with the brand or your dealer.
eMTBs that come with the TRP Slate EVO
TRP Slate EVO: FAQ
How much does the TRP Slate EVO weigh?
TRP quotes 307 g (front brake without rotor and adapter, claimed).
Is the TRP Slate EVO suitable for e-bikes?
Yes — TRP lists it as e-bike rated or e-bike specific.
What are the key specs of the TRP Slate EVO?
Pistons: 4, stainless steel; Rotor thickness: 2.3 mm; Lever piston: 10 mm; Pads: Resin (not metallic-compatible); Weight: 307 g front.
