TRPTrail EVO
No EUR/GBP price on trpcycling.com (US/Canada store only, USD); US store lists US$224.99 per brake
- Pistons
- 4, stainless steel
- Rotor thickness
- 2.3 mm
- Lever piston
- 10 mm
- Fluid
- Mineral oil
- Weight
- 307 g front
- Weight
- 307 gfront brake without rotor and adapter, claimed
Overview
TRP's four-piston Trail EVO, designed around the extra heat of e-bikes: 2.3 mm rotors, 10 mm lever piston, 307 g front; US$224.99 per brake.
TRP designed the Trail EVO for the specific needs of modern mountain bikes, explicitly citing the added speed and weight of an electric motor and battery, which makes such bikes generate more heat than a typical mountain bike. TRP says it is not a rebranded downhill brake but a system that combines its latest braking technology with know-how from the World Cup downhill circuit.

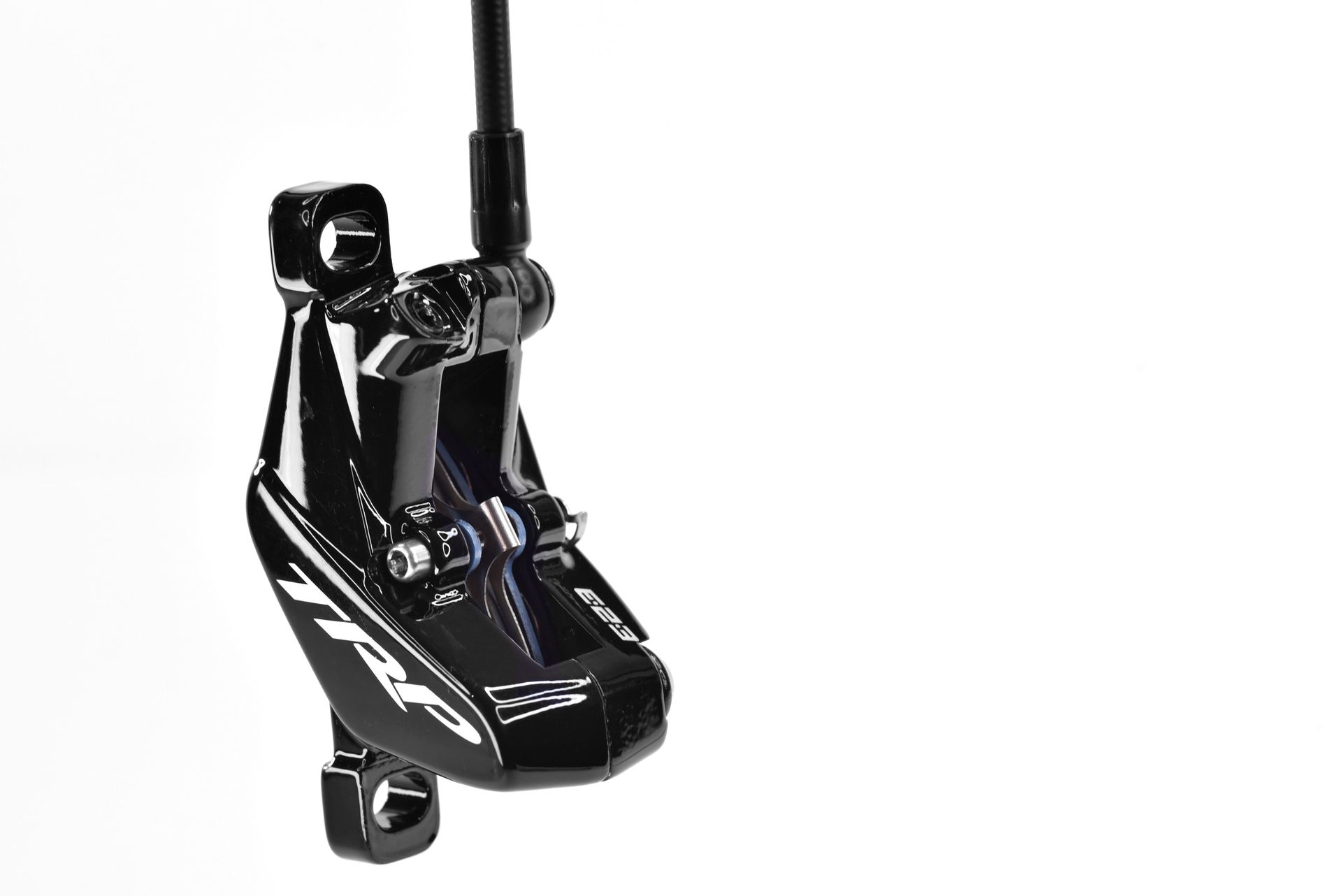

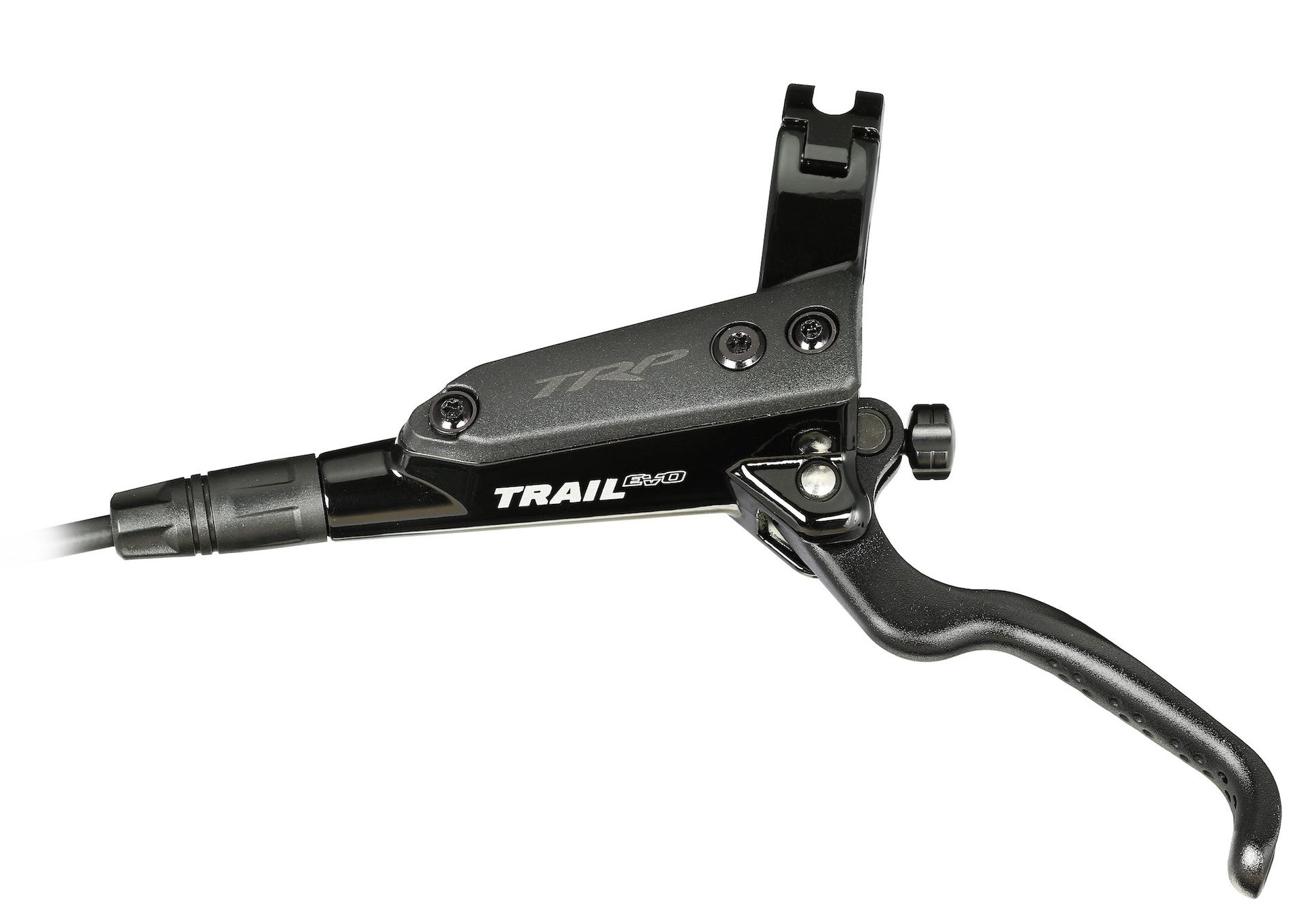

The four-piston caliper with stainless-steel pistons and optimised hydraulic flow is made for 2.3 mm rotors, with top-loading resin pads, 5 mm hose with banjo and newly formulated mineral oil. The lever has a 10 mm piston, adjustable reach, a hinged clamp, I-Spec II compatibility with an I-Spec EV adapter option and TRP/MMX shifter adapters. TRP quotes 307 g for the front brake.
- Designed with eMTB heat and weight in mind
- Four stainless-steel pistons, 2.3 mm rotors
- 10 mm lever piston, adjustable reach
- I-Spec II / EV and MMX shifter options
- 307 g front
Gallery
Full specifications
Caliper
- Caliper
- 4-piston, optimised hydraulic flow
- Pistons
- Stainless steel
- Pads
- Top loading, new resin pad
- Intended rotor thickness
- 2.3 mm
Lever
- Lever piston
- 10 mm internal
- Reach adjust
- Adjustable
- Clamp
- Hinged
- Shifter compatibility
- I-Spec II; I-Spec EV adapter option; TRP and MMX shifter adapter available
Hydraulics
- Fluid
- Newly formulated mineral oil
- Hose
- 5 mm
- Connection
- Banjo
General
- Weight
- 307 g (front without rotor and adapter)
- Finish
- Matte black
- US price
- US$224.99 per brake
Manufacturer specification — TRP. Specs and prices can change; check with the brand or your dealer.
TRP Trail EVO: FAQ
How much does the TRP Trail EVO weigh?
TRP quotes 307 g (front brake without rotor and adapter, claimed).
Is the TRP Trail EVO suitable for e-bikes?
Yes — TRP lists it as e-bike rated or e-bike specific.
What are the key specs of the TRP Trail EVO?
Pistons: 4, stainless steel; Rotor thickness: 2.3 mm; Lever piston: 10 mm; Fluid: Mineral oil; Weight: 307 g front.
