IntendTrinity TR
€950 Front + rear set; shop price (net €798.32 + 19% VAT); listed out of stock at time of scraping
- Pistons
- 4 x 17 mm
- Min. rotor sizes
- 180 mm front / 160 mm rear
- Fluid
- Mineral oil
- Weight
- 197 g per brake
- Mount
- Post mount 74 mm
- Weight
- 197 gper brake incl. hose, pads, oil; excl. mounting bolts
Overview
Intend Trinity TR is a lightweight four-piston trail brake (82 g caliper, 197 g per end) with magnetic pistons; €950 per set incl. VAT (shop).
Trinity TR is the lighter trail/enduro version of Intend's Trinity brake, aiming for the weight of competitive two-piston brakes without giving up braking power. It keeps four 17 mm stainless-steel pistons and Avid Code style pads, but the caliper is closed on top, has no pad bolt or retaining spring, and holds the pads with magnetic piston inserts, for an 82 g caliper.
Intend notes the lower caliper mass means less heat capacity than the EN/DH Trinity, so it suits lighter enduro riders and trail use rather than heavy riders with unlimited downhill ambitions.
- Four 17 mm stainless pistons, magnetic pad retention
- 82 g caliper, 197 g per brake
- Gentle modulation, radial lever
- Mineral oil, Avid Code style pads
- CNC 7075 aluminium

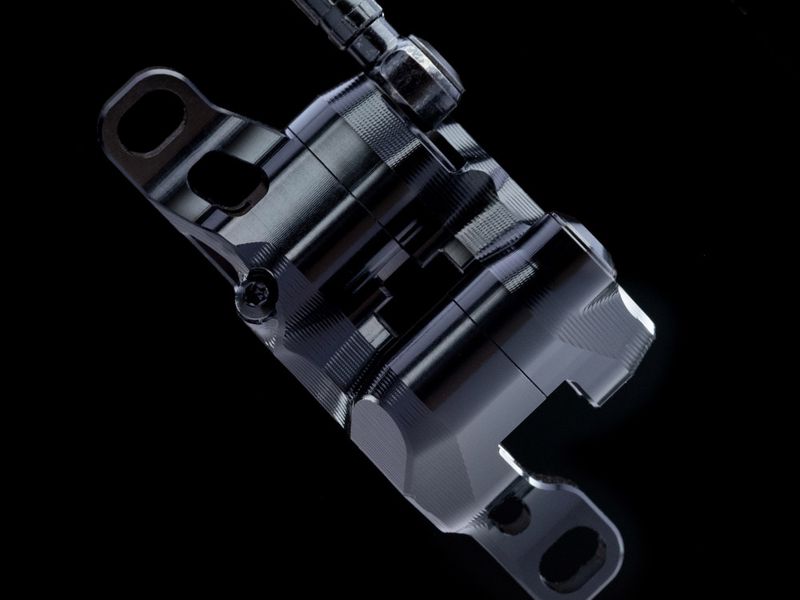

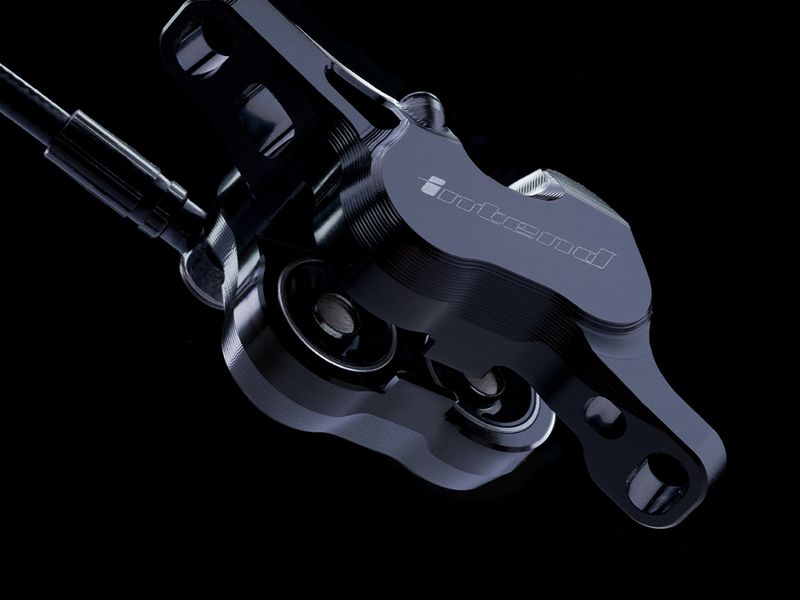

Gallery
Full specifications
General
- Ride style
- Trail / Enduro
- Min. rotor size
- Front 180 mm, rear 160 mm
- Weight
- 197 g incl. hose, pads, oil (caliper 82 g)
- Hoses
- Front 85 cm, rear 200 cm
- Pad retention
- Magnetic piston inserts, no pad bolt
- Optional
- Brake Mount Fit Kit
- Mounting standard
- Post mount 74 mm
- Max rotor thickness
- 2.3 mm
- Pistons
- 4 x 17 mm
- Pads
- Avid Code style
- Adjustments
- Lever reach (no stroke adjustment)
- Fluid
- Mineral oil (Putoline 2.5 recommended)
- Material
- 7075 aluminium, CNC
- Colour
- Black anodized
- Delivery content
- Front and rear brake, pads, bleed puck, 2 syringes, 50 ml oil, spare fitting, seals and bolts
Manufacturer specification — Intend. Specs and prices can change; check with the brand or your dealer.
Intend Trinity versions compared
| Trinity 2.0 | Trinity TR | |
|---|---|---|
| Price | €970 | €950 |
| Pistons | 4 x 17 mm | 4 x 17 mm |
| Min. rotor sizes | 200 mm front / 180 mm rear | 180 mm front / 160 mm rear |
| Fluid | Mineral oil | Mineral oil |
| Weight | 244 g (EN) / 257 g (DH) | 197 g per brake |
| Mount | Post mount 74 mm | Post mount 74 mm |
| Weight | 244 g | 197 g |
| E-bike rated | — | — |
Intend Trinity TR: FAQ
How much does the Intend Trinity TR cost?
€950 (Front + rear set; shop price (net €798.32 + 19% VAT); listed out of stock at time of scraping). Prices vary by country and retailer.
How much does the Intend Trinity TR weigh?
Intend quotes 197 g (per brake incl. hose, pads, oil; excl. mounting bolts).
Is the Intend Trinity TR suitable for e-bikes?
Intend does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Intend Trinity TR?
Pistons: 4 x 17 mm; Min. rotor sizes: 180 mm front / 160 mm rear; Fluid: Mineral oil; Weight: 197 g per brake; Mount: Post mount 74 mm.
What other versions of the Intend Trinity are there?
Trinity 2.0 (€970).
