MaguraRace Pro
€699.90 RRP Germany, VAT incl. (19%), set of 2 brakes
- Pistons
- 4 x 19 mm caliper, 12 mm radial master
- Rotor sizes
- 180–220 mm
- Rotor thickness
- 2.0 mm
- Pads
- MDP 13 SILVER
- Hose
- MAGURA Disctube 2.2, EASY LINK valve
- Weight
- 310 g (1 m hose)
- Weight
- 310 gper brake with 1 m hose, claimed
Overview
Magura's CNC-machined 4-piston flagship brake with 12/19 mm pistons, 310 g per brake and E-MTB in its field of application; RRP 699.90 EUR per set (two brakes).

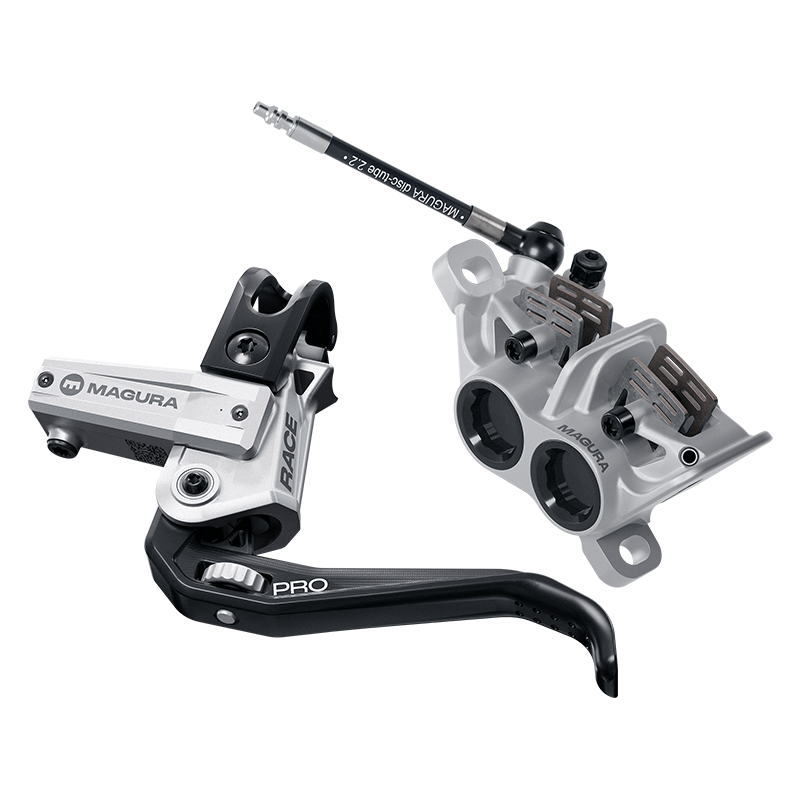

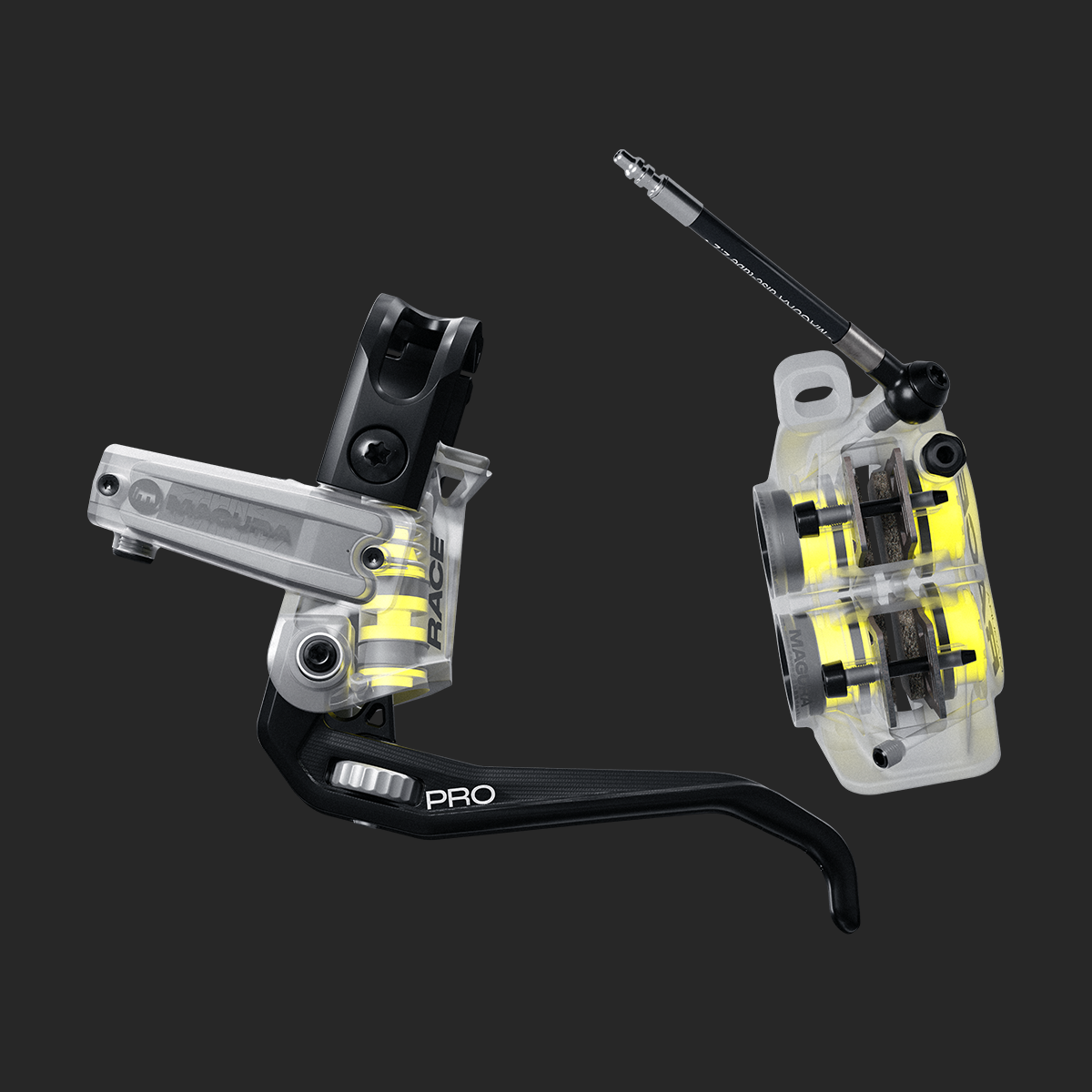

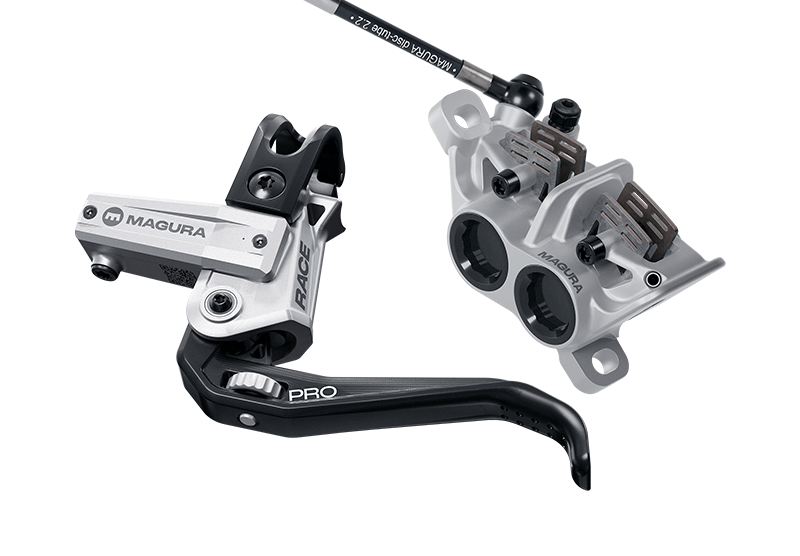

The RACE PRO is Magura's new flagship disc brake: master and one-piece forged caliper are both CNC-machined from aluminium after forging, which Magura says combines downhill power with cross-country weight. It uses the GUSTAV's 12 mm master piston and four 19 mm caliper pistons for a lower hydraulic pressure level and a clearly defined bite point, plus a ball-bearing lever pivot and a constant leverage ratio across the lever throw.

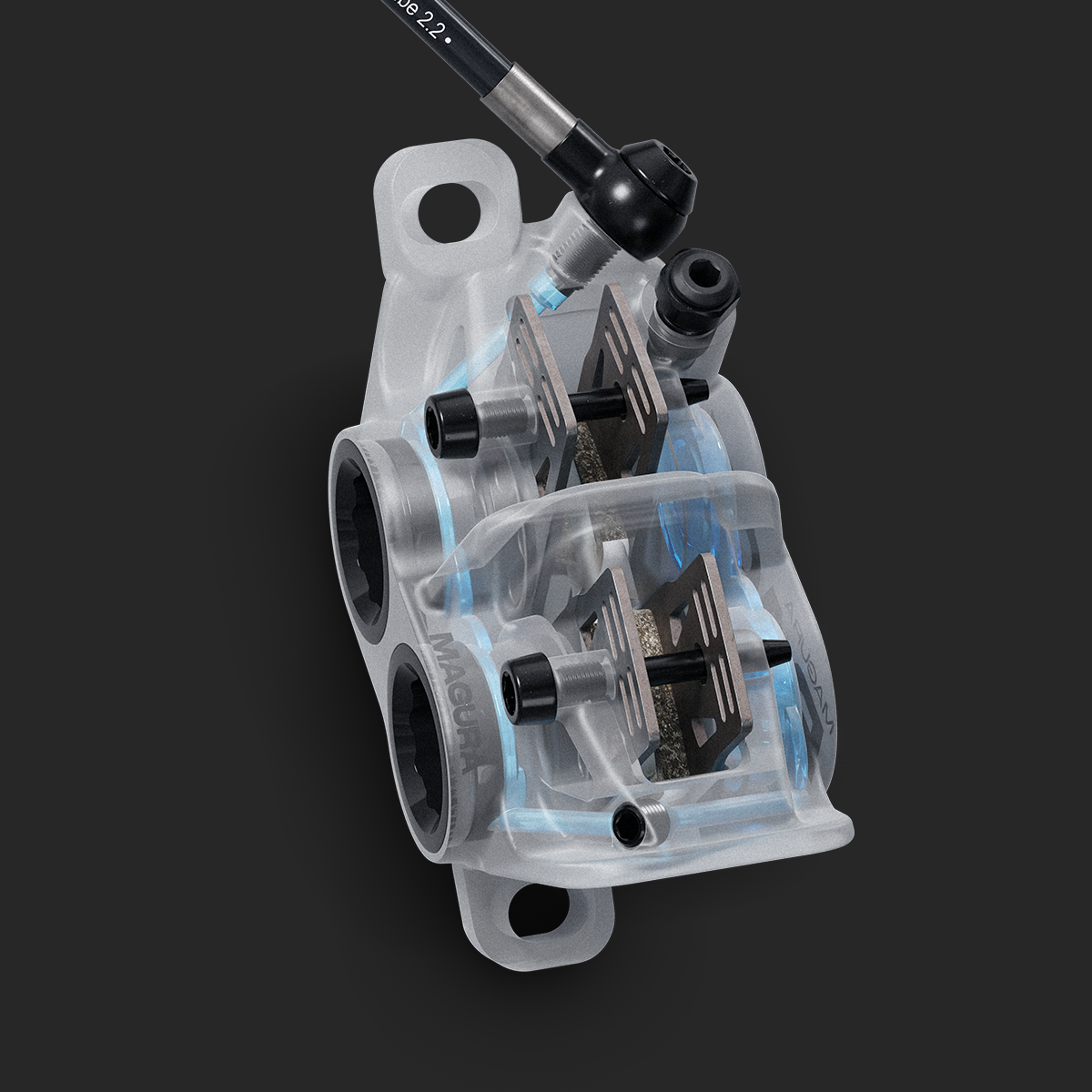

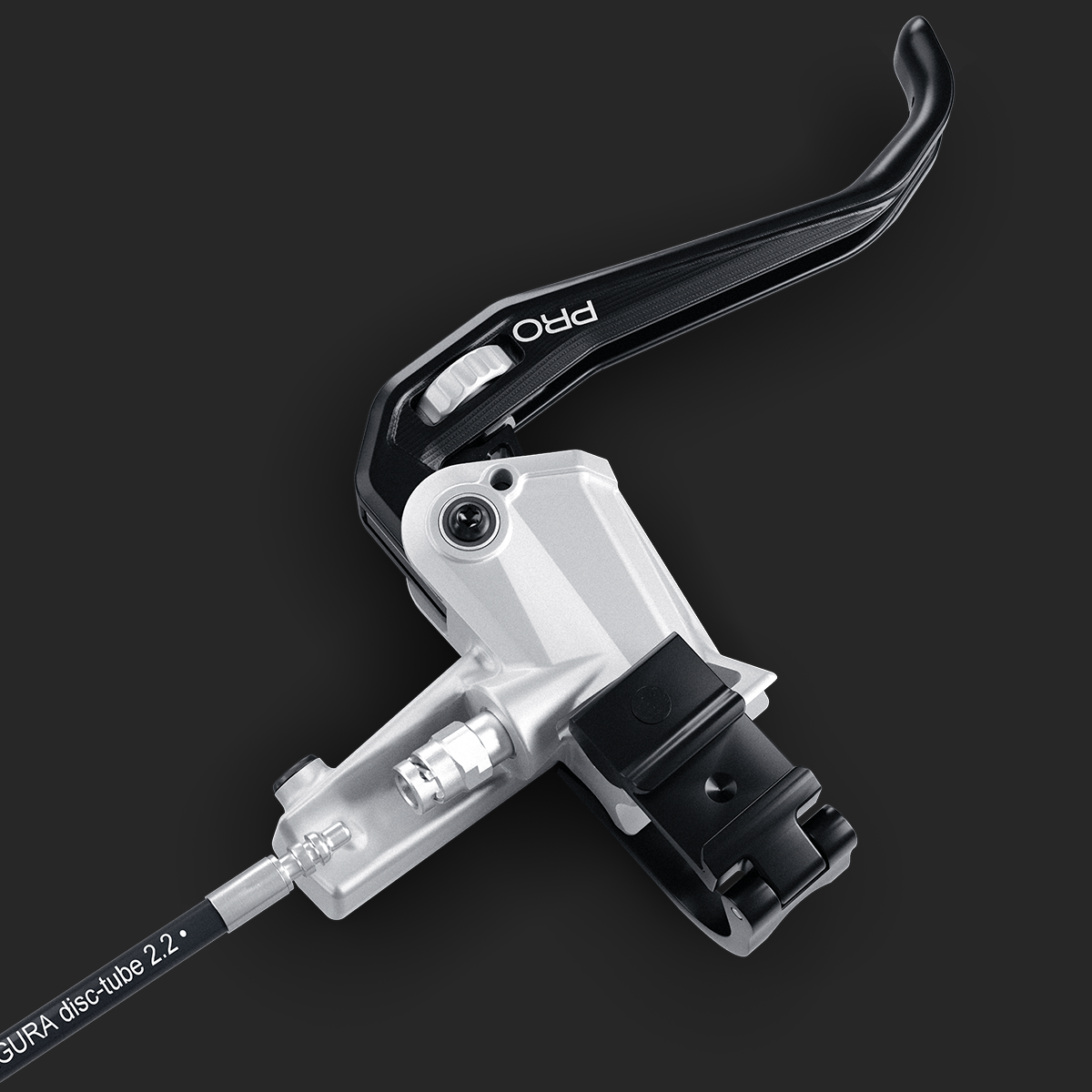

Magura claims 16% more braking power than the GUSTAV PRO and 20% less lever flex than the MT7, at 310 g per brake (with 1 m hose). It features the EASY LINK hose coupling with a sealed valve at the master, a bleed valve with a dead-end-free oil channel, and an integrated Shiftmix interface. Field of application listed by Magura: DH, E-MTB, Enduro, Trail and CC.
- CNC-machined forged aluminium master and one-piece caliper
- 12 mm master / 4 x 19 mm caliper pistons
- Claimed 16% more power than GUSTAV PRO, 310 g per brake
- Ball-bearing lever pivot, constant leverage ratio

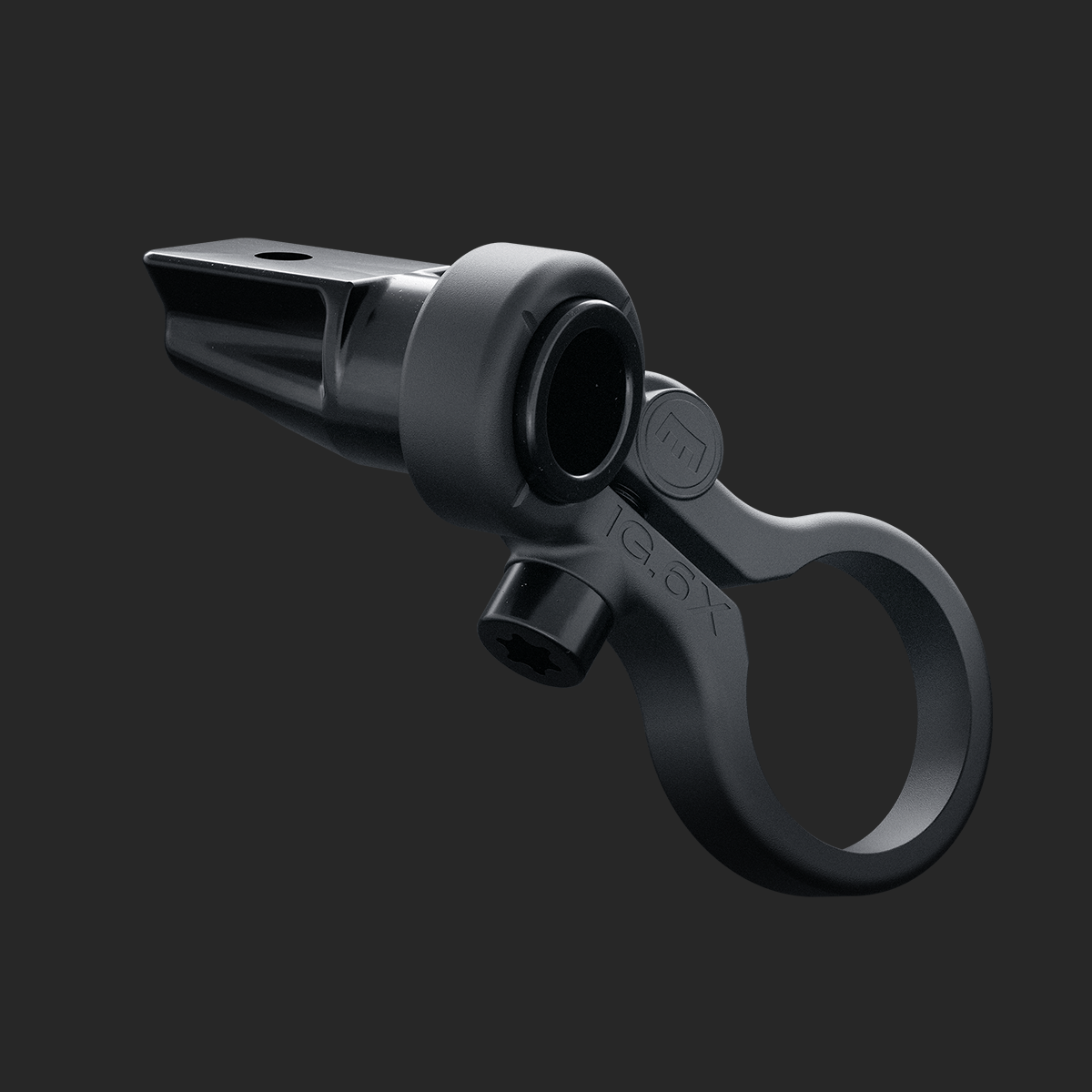

- EASY LINK valve, bleed valve, Shiftmix IG
Gallery
Full specifications
General
- Field of application
- DH, E-MTB, Enduro, Trail, CC
- Colour
- silver matte, black
- Weight
- 310 g (1m hose length)
- Guarantee
- 5 Year leak-proof guarantee
Caliper
- Caliper
- Aluminum, forged & CNC machined, 4 pistons
- Brake pad
- MDP 13 SILVER
- Caliper pistons
- 4 x 19 mm
Hydraulics
- Bleeding
- Bleeding valve
- Brake master hose connection
- EASY LINK valve
- Brake hose
- MAGURA Disctube 2.2, 2200 mm, rotatable banjo
- Master piston
- 12 mm (radial)
Lever & master
- Brake master material
- Aluminum, forged & CNC machined
- Clamp
- Aluminum, Integrated Shiftmix IG option
- Lever
- PRO lever, Aluminum CNC, ball bearing
- Reach adjust
- toolless
Rotor
- Rotor thickness
- 2.0 mm
- Rotor options
- 180 – 220 mm
Manufacturer specification — Magura. Specs and prices can change; check with the brand or your dealer.
eMTBs that come with the Magura Race
Magura Race Pro: FAQ
How much does the Magura Race Pro cost?
€699.90 (RRP Germany, VAT incl. (19%), set of 2 brakes). Prices vary by country and retailer.
How much does the Magura Race Pro weigh?
Magura quotes 310 g (per brake with 1 m hose, claimed).
Is the Magura Race Pro suitable for e-bikes?
Yes — Magura lists it as e-bike rated or e-bike specific.
What are the key specs of the Magura Race Pro?
Pistons: 4 x 19 mm caliper, 12 mm radial master; Rotor sizes: 180–220 mm; Rotor thickness: 2.0 mm; Pads: MDP 13 SILVER; Hose: MAGURA Disctube 2.2, EASY LINK valve; Weight: 310 g (1 m hose).
