MaguraMT7 Pro
€226.90 RRP Germany, VAT incl. (19%), per brake
- Pistons
- 4 x 17 mm caliper, 10 mm radial master
- Rotor thickness
- 2.0 mm
- Pads
- MDP 8 BLACK (4 individual pads)
- Lever
- HC 1-finger, toolless reach
- Weight
- 255 gper brake, claimed
Overview
Magura's classic forged 4-piston MT7 PRO with 10/17 mm pistons, Carbotecture SL master and HC lever; 255 g, RRP 226.90 EUR per brake.

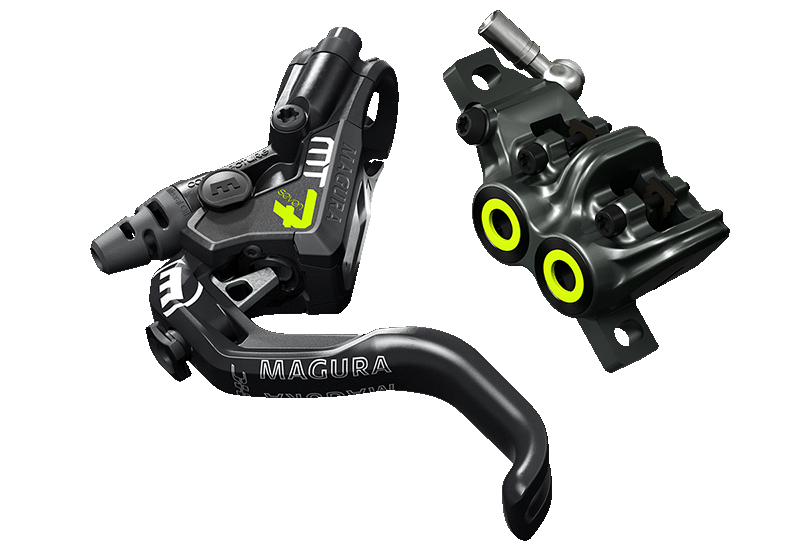

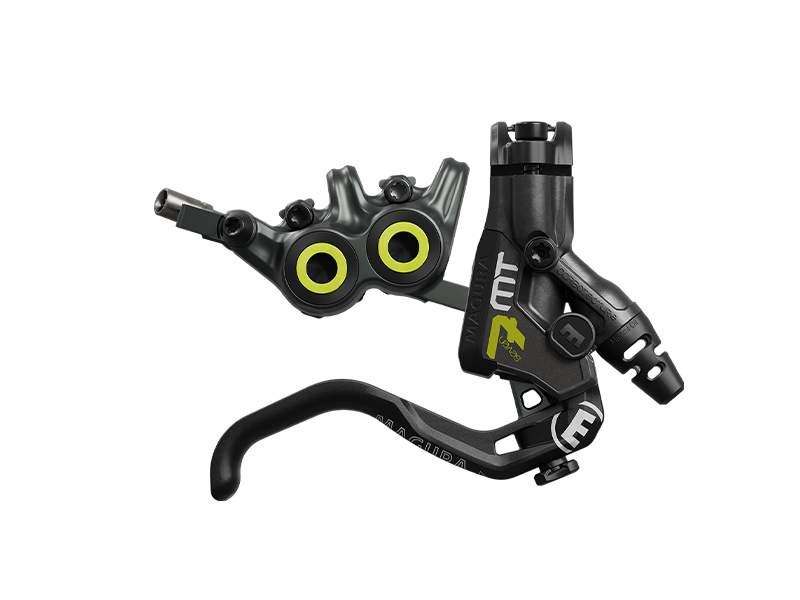

The MT7 PRO is Magura's long-standing 4-piston gravity and trail brake, raced to DH world championship titles and used by riders such as Fabio Wibmer and Danny MacAskill. Its one-piece caliper is forged under 1000 tonnes of pressure for stiffness, and four individual brake pads sit on four 17 mm pistons, driven by a 10 mm radial master piston that moves perpendicular to the handlebar.

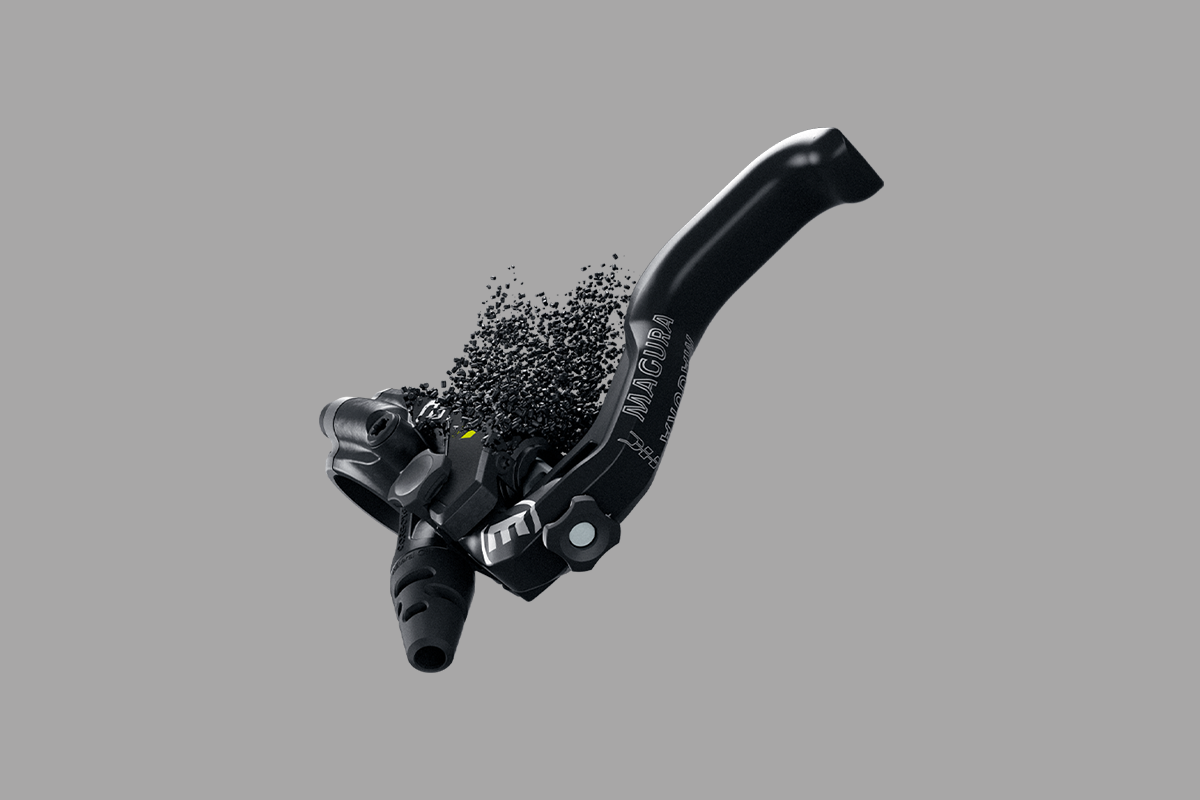

The master is made from Carbotecture SL (polymer with embedded carbon fibre), it ships with the 1-finger HC lever with toolless reach adjust, and riders can choose between five lever shapes, three pad compounds and optional 40/90-degree master banjos. Magura lists E-MTB among its fields of application; with the 10 mm master piston the MT7 is compatible with the Bosch ABS Race mode.
- One-piece forged 4-piston caliper, 4 individual pads
- 10 mm radial master / 4 x 17 mm caliper pistons
- Carbotecture SL master, HC 1-finger lever
- Compatible with Bosch eBike ABS (Race mode)
- Field of application incl. Trail, Gravity, E-MTB
Gallery
Full specifications
General
- Field of application
- Allroad, CC, Trail, Gravity, E-MTB
- Colour
- black, mystic grey, yellow
- Weight
- 255 g
- Guarantee
- 5 Year leak-proof guarantee
Caliper
- Caliper
- Aluminum one-piece, 4 pistons, postmount
- Brake pad
- MDP 8 BLACK
- Caliper pistons
- 4 x 17 mm
Lever & master
- Brake master material
- Carbotecture SL
- Clamp
- Aluminum
- Lever
- 1-finger HC, Aluminum
- Reach adjust
- toolless
Rotor
- Rotor thickness
- 2.0 mm
Hydraulics
- Brake master hose connection
- MAGURA olive and insert
- Brake hose
- MAGURA Disctube 2.2, 2200 mm
- Master piston
- 10 mm (radial)
Manufacturer specification — Magura. Specs and prices can change; check with the brand or your dealer.
Magura MT versions compared
| MT7 Pro | MT5 Pro | MT5 | MT4 | |
|---|---|---|---|---|
| Price | €226.90 | €133.90 | €112.90 | €92.90 |
| Pistons | 4 x 17 mm caliper, 10 mm radial master | 4 (one-piece forged caliper) | 4 (one-piece forged caliper) | 2 (one-piece forged caliper) |
| Rotor thickness | 2.0 mm | 2.0 mm | 2.0 mm | 2.0 mm |
| Pads | MDP 8 BLACK (4 individual pads) | MDP 9 BLACK | MDP 9 BLACK | MDP 7 BLACK |
| Lever | HC 1-finger, toolless reach | HC 1-finger, aluminium | 2-finger, aluminium | 2-finger, aluminium |
| Weight | 255 g | 250 g | 255 g | 230 g |
| E-bike rated | Yes | — | — | — |
Magura MT7 Pro: FAQ
How much does the Magura MT7 Pro cost?
€226.90 (RRP Germany, VAT incl. (19%), per brake). Prices vary by country and retailer.
How much does the Magura MT7 Pro weigh?
Magura quotes 255 g (per brake, claimed).
Is the Magura MT7 Pro suitable for e-bikes?
Yes — Magura lists it as e-bike rated or e-bike specific.
What are the key specs of the Magura MT7 Pro?
Pistons: 4 x 17 mm caliper, 10 mm radial master; Rotor thickness: 2.0 mm; Pads: MDP 8 BLACK (4 individual pads); Lever: HC 1-finger, toolless reach.
What other versions of the Magura MT are there?
MT5 Pro (€133.90), MT5 (€112.90), MT4 (€92.90).
