MaguraMDR-P
€55.90 RRP Germany, VAT incl. (19%), per rotor
- Rotor sizes
- 180 / 203 / 220 mm
- Thickness
- 2.0 mm (wear limit 1.8 mm)
- Mount
- 6-bolt or Center Lock (MDR-P CL)
- Construction
- Two-piece alloy/steel
- Weight
- 216 g203 mm, 6-bolt, claimed (180 mm 190 g, 220 mm 241 g)
Overview
Magura's two-piece high-heat rotor in 180/203/220 mm (6-bolt) or Center Lock; 216 g at 203 mm, RRP 55.90 EUR.

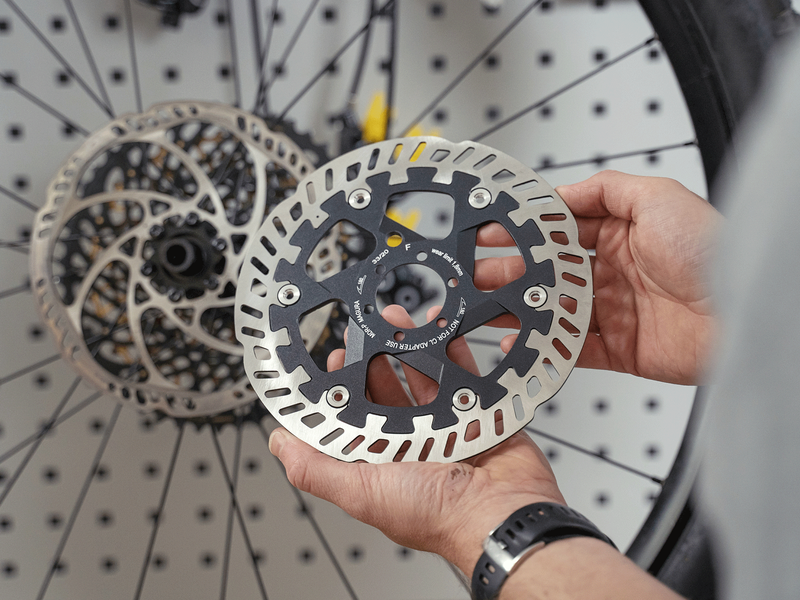

The MDR-P is Magura's two-piece rotor for the highest braking force and heat resistance, intended for prolonged braking and high system weights. It combines an aluminium-magnesium-silicon alloy carrier with a martensitic chrome steel friction ring, which keeps weight moderate and makes it particularly vibration-resistant.
It is 2.0 mm thick (1.8 mm wear limit) and available for 6-bolt mounts in 180, 203 and 220 mm, and as the MDR-P CL Center Lock version in 180 and 203 mm (60.90 EUR).
- Two-piece: alloy carrier, steel friction ring
- Highest braking force and heat resistance in Magura's range
- 180 / 203 / 220 mm, 6-bolt; CL version 180 / 203 mm
- 2.0 mm thickness
Gallery
Full specifications
General
- Inner ring material
- Aluminium-Mag-Silicon alloy
- Outer ring Material
- Martensitic chrome steel, Anti rust properties
- Production process
- Punched, Heat-treated, Dip painted, Corrosion protection, Sanded
- Rotor mount
- 6 hole
- Rotor diameter
- 180 mm, 203 mm, 220 mm
- Rotor thickness
- 2 mm (wear limit 1.8 mm)
- Weight
- 190 g, 216 g, 241 g
- Scope of delivery
- 1 Rotor, 6 Steel mounting screws
Variants

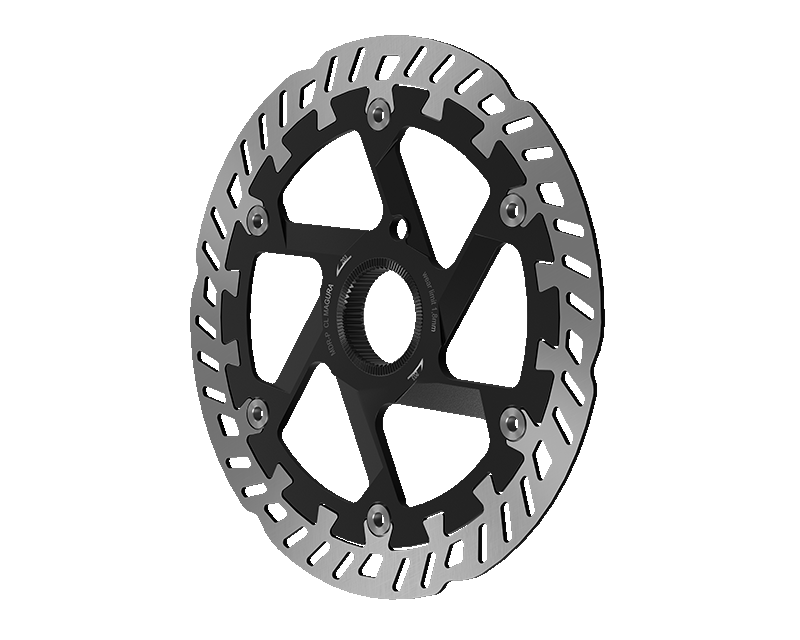

- MDR-P CL
- Center Lock, 180 / 203 mm, 211 / 226 g, RRP 60.90 EUR
Manufacturer specification — Magura. Specs and prices can change; check with the brand or your dealer.
Magura Rotors versions compared
| MDR-P | MDR-S 2.5 | MDR-C | Storm HC | |
|---|---|---|---|---|
| Price | €55.90 | €55.90 | €30.90 | €30.90 |
| Rotor sizes | 180 / 203 / 220 mm | 180 / 203 mm | 160 / 180 / 203 / 220 mm | 160 / 180 / 203 mm |
| Thickness | 2.0 mm (wear limit 1.8 mm) | 2.5 mm (wear limit 2.1 mm) | 2.0 mm (wear limit 1.8 mm) | 2.0 mm (wear limit 1.8 mm) |
| Mount | 6-bolt or Center Lock (MDR-P CL) | 6-bolt | 6-bolt | 6-bolt |
| Construction | Two-piece alloy/steel | — | — | — |
| Material | — | Martensitic chrome steel | Martensitic chrome steel | Martensitic chrome steel |
| Weight | 216 g | 266 g | 222 g | 182 g |
| E-bike rated | — | — | — | — |
Magura MDR-P: FAQ
How much does the Magura MDR-P cost?
€55.90 (RRP Germany, VAT incl. (19%), per rotor). Prices vary by country and retailer.
How much does the Magura MDR-P weigh?
Magura quotes 216 g (203 mm, 6-bolt, claimed (180 mm 190 g, 220 mm 241 g)).
Is the Magura MDR-P suitable for e-bikes?
Magura does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Magura MDR-P?
Rotor sizes: 180 / 203 / 220 mm; Thickness: 2.0 mm (wear limit 1.8 mm); Mount: 6-bolt or Center Lock (MDR-P CL); Construction: Two-piece alloy/steel.
What other versions of the Magura Rotors are there?
MDR-S 2.5 (€55.90), MDR-C (€30.90), Storm HC (€30.90).
