MaguraMT5 Pro
€133.90 RRP Germany, VAT incl. (19%), per brake
- Pistons
- 4 (one-piece forged caliper)
- Rotor thickness
- 2.0 mm
- Pads
- MDP 9 BLACK
- Lever
- HC 1-finger, aluminium
- Weight
- 250 gper brake, claimed
Overview

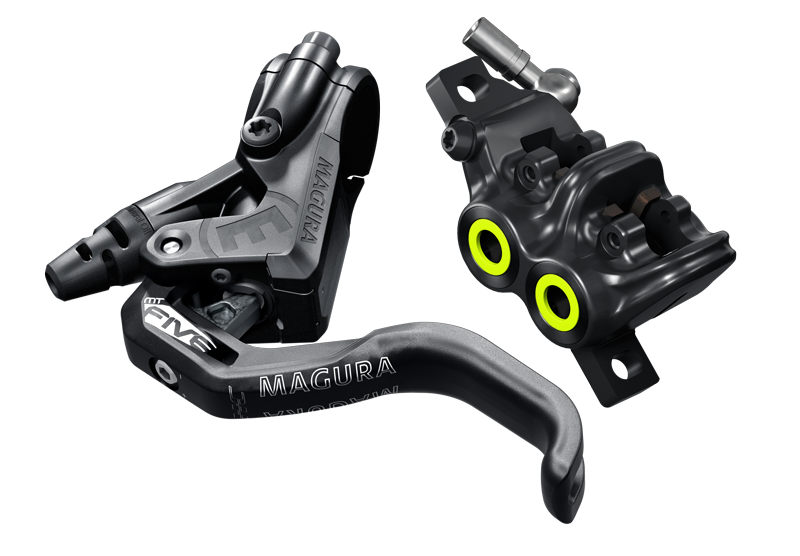

MT5 with the shorter 1-finger HC lever for a harder bite point; forged 4-piston caliper, 250 g, RRP 133.90 EUR per brake.
The MT5 is Magura's award-winning value 4-piston brake for bike park, enduro, trail and all-road use, built around a one-piece forged 4-piston caliper and a radial Carbotecture master.
The MT5 PRO swaps the standard 2-finger lever for the 12 mm shorter 1-finger HC aluminium lever, giving a harder bite point and different ergonomics, with SW3 reach adjust. It uses MDP 9 BLACK pads, 2.0 mm rotors and the MAGURA Disctube 2.2 hose.

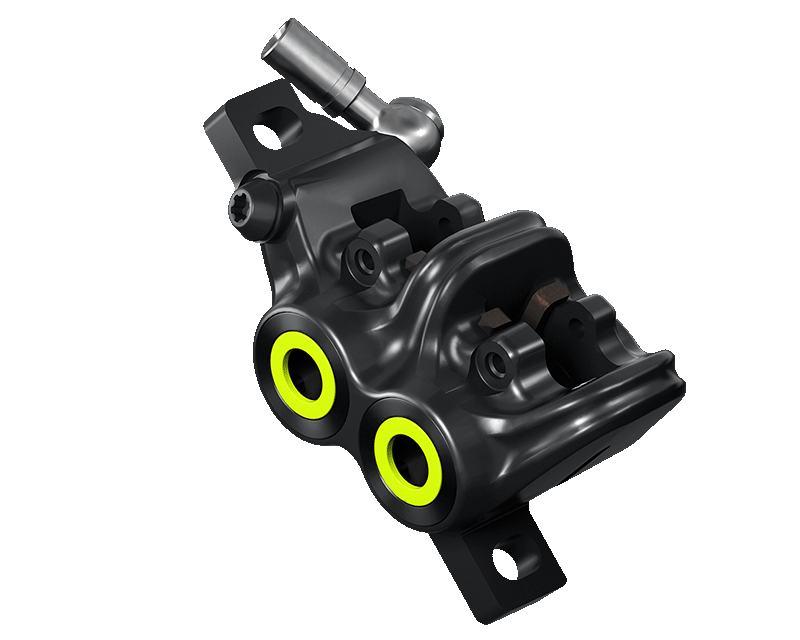

- One-piece forged 4-piston caliper
- Radial Carbotecture master

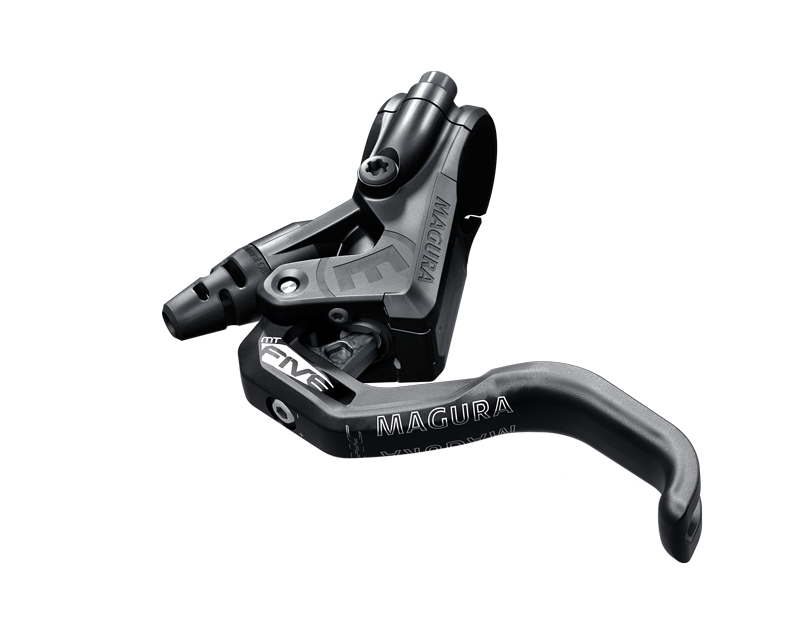

- 1-finger HC aluminium lever (12 mm shorter than MT5)
- Available in black or yellow
Gallery
Full specifications
General
- Field of application
- City, Allroad, CC, Trail, Gravity
- Colour
- black, yellow
- Weight
- 250 g
- Guarantee
- 5 Year leak-proof guarantee
Caliper
- Caliper
- Aluminum one-piece forged, 4 pistons, postmount
- Brake pad
- MDP 9 BLACK
Lever & master
- Brake master material
- Carbotecture
- Clamp
- Carbotecture
- Lever
- 1-finger HC, Aluminum
- Reach adjust
- SW3
Rotor
- Rotor thickness
- 2.0 mm
Hydraulics
- Brake master hose connection
- MAGURA olive and insert
- Brake hose
- MAGURA Disctube 2.2, 2200 mm
Manufacturer specification — Magura. Specs and prices can change; check with the brand or your dealer.
Magura MT versions compared
| MT7 Pro | MT5 Pro | MT5 | MT4 | |
|---|---|---|---|---|
| Price | €226.90 | €133.90 | €112.90 | €92.90 |
| Pistons | 4 x 17 mm caliper, 10 mm radial master | 4 (one-piece forged caliper) | 4 (one-piece forged caliper) | 2 (one-piece forged caliper) |
| Rotor thickness | 2.0 mm | 2.0 mm | 2.0 mm | 2.0 mm |
| Pads | MDP 8 BLACK (4 individual pads) | MDP 9 BLACK | MDP 9 BLACK | MDP 7 BLACK |
| Lever | HC 1-finger, toolless reach | HC 1-finger, aluminium | 2-finger, aluminium | 2-finger, aluminium |
| Weight | 255 g | 250 g | 255 g | 230 g |
| E-bike rated | Yes | — | — | — |
Magura MT5 Pro: FAQ
How much does the Magura MT5 Pro cost?
€133.90 (RRP Germany, VAT incl. (19%), per brake). Prices vary by country and retailer.
How much does the Magura MT5 Pro weigh?
Magura quotes 250 g (per brake, claimed).
Is the Magura MT5 Pro suitable for e-bikes?
Magura does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Magura MT5 Pro?
Pistons: 4 (one-piece forged caliper); Rotor thickness: 2.0 mm; Pads: MDP 9 BLACK; Lever: HC 1-finger, aluminium.
What other versions of the Magura MT are there?
MT7 Pro (€226.90), MT5 (€112.90), MT4 (€92.90).
