MaguraGustav Pro
€304.90 RRP Germany, VAT incl. (19%), per brake
- Pistons
- 4 x 19 mm caliper, 12 mm radial master
- Rotor thickness
- 2.0 or 2.5 mm
- Pads
- MDP 13 BLACK
- Lever
- PRO lever, aluminium, toolless reach
- ABS
- Bosch eBike ABS ready
- Weight
- 348 gper brake, claimed
Overview
Magura's e-MTB and gravity brake with 12/19 mm pistons, 2.5 mm rotor compatibility, Bosch ABS readiness and EASY LINK; 348 g, RRP 304.90 EUR per brake.

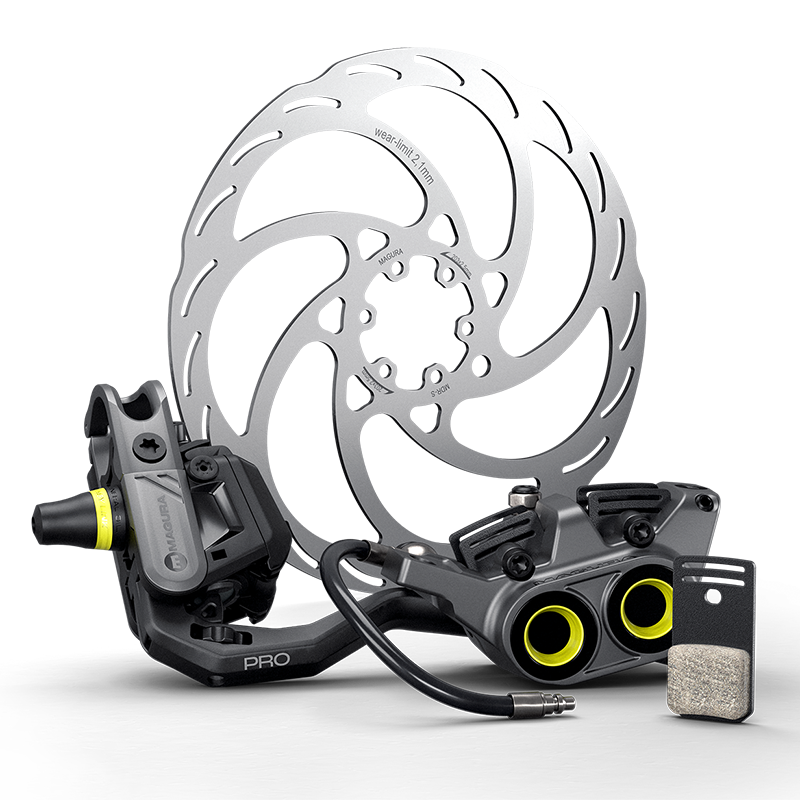

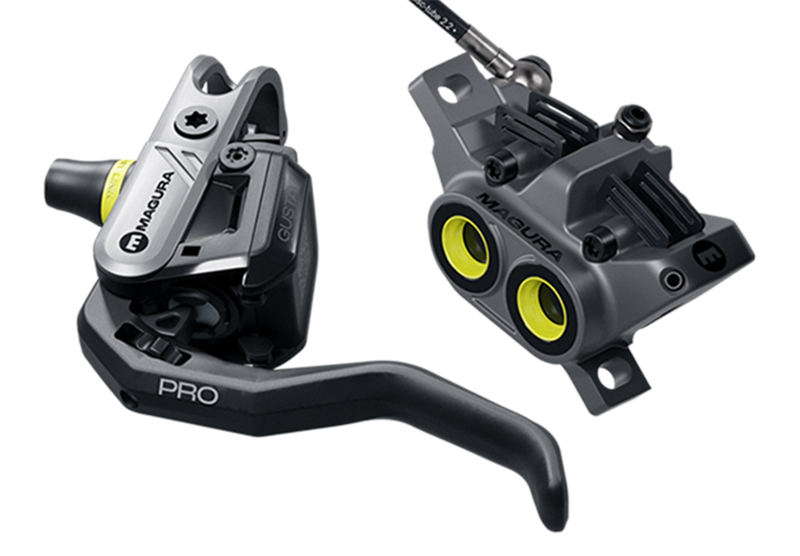

The GUSTAV PRO is Magura's heavy-duty 4-piston brake developed for powerful e-bikes and gravity bikes. Compared with the MT7 (10 mm master / 17 mm caliper pistons) it uses 12 mm master and 19 mm caliper pistons, lowering system pressure for a defined pressure point and good modulation, and it was the first MTB disc brake designed around 2.5 mm thick MDR-S rotors (2.1 mm wear limit); 2.0 mm rotors also fit without refilling.

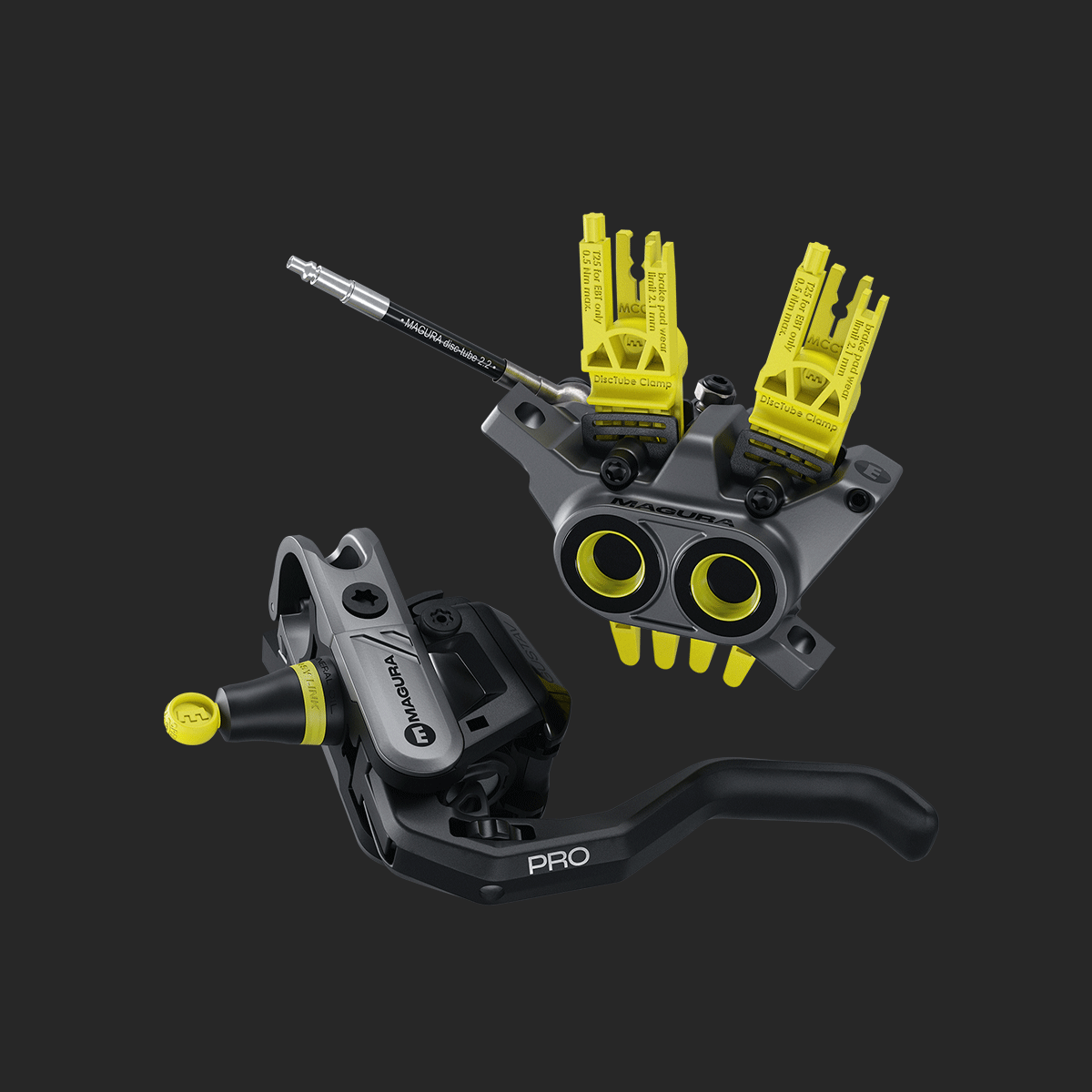

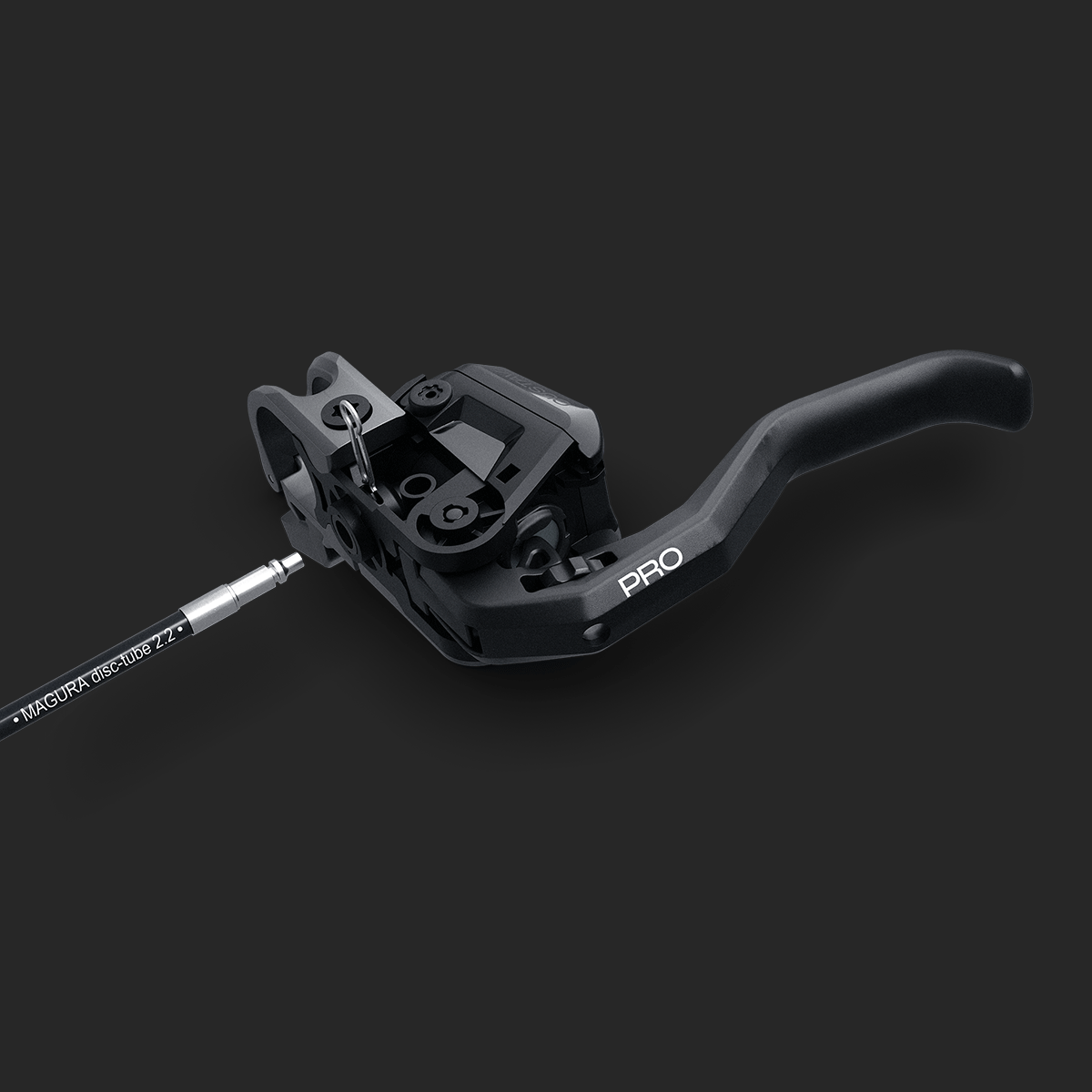

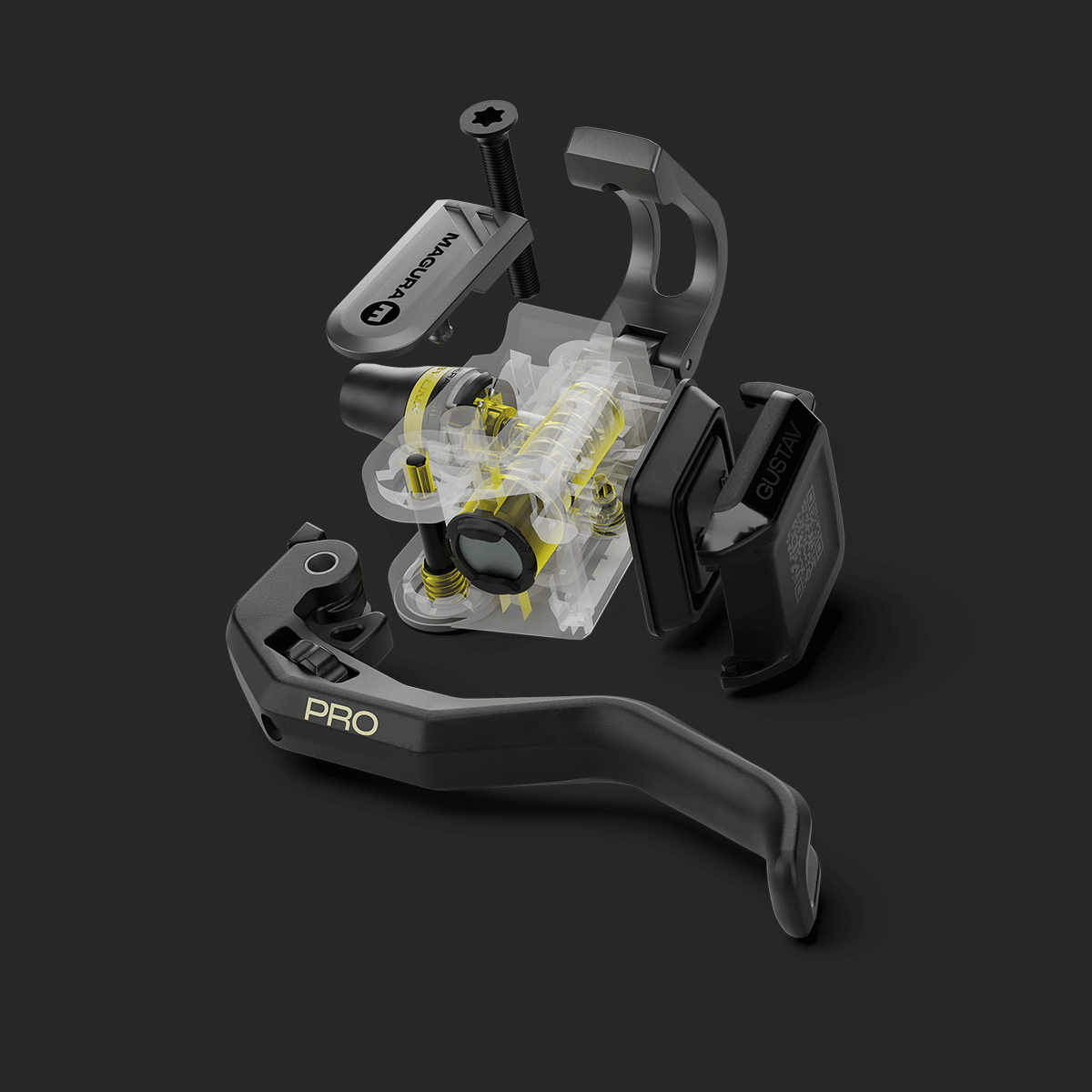

The Carbotecture master holds 7 ml of oil, almost twice the MT7, and is optimised for the Bosch eBike ABS. EASY LINK lets the hose be connected and disconnected tool-free, caliper and master come pre-filled, and the 13.S pad offers 76% more pad volume than the MT7. The PRO lever is derived from the HC-W lever developed with Loic Bruni.
- 12 mm master / 4 x 19 mm caliper pistons
- Designed for 2.5 mm MDR-S rotors (2.0 mm compatible)

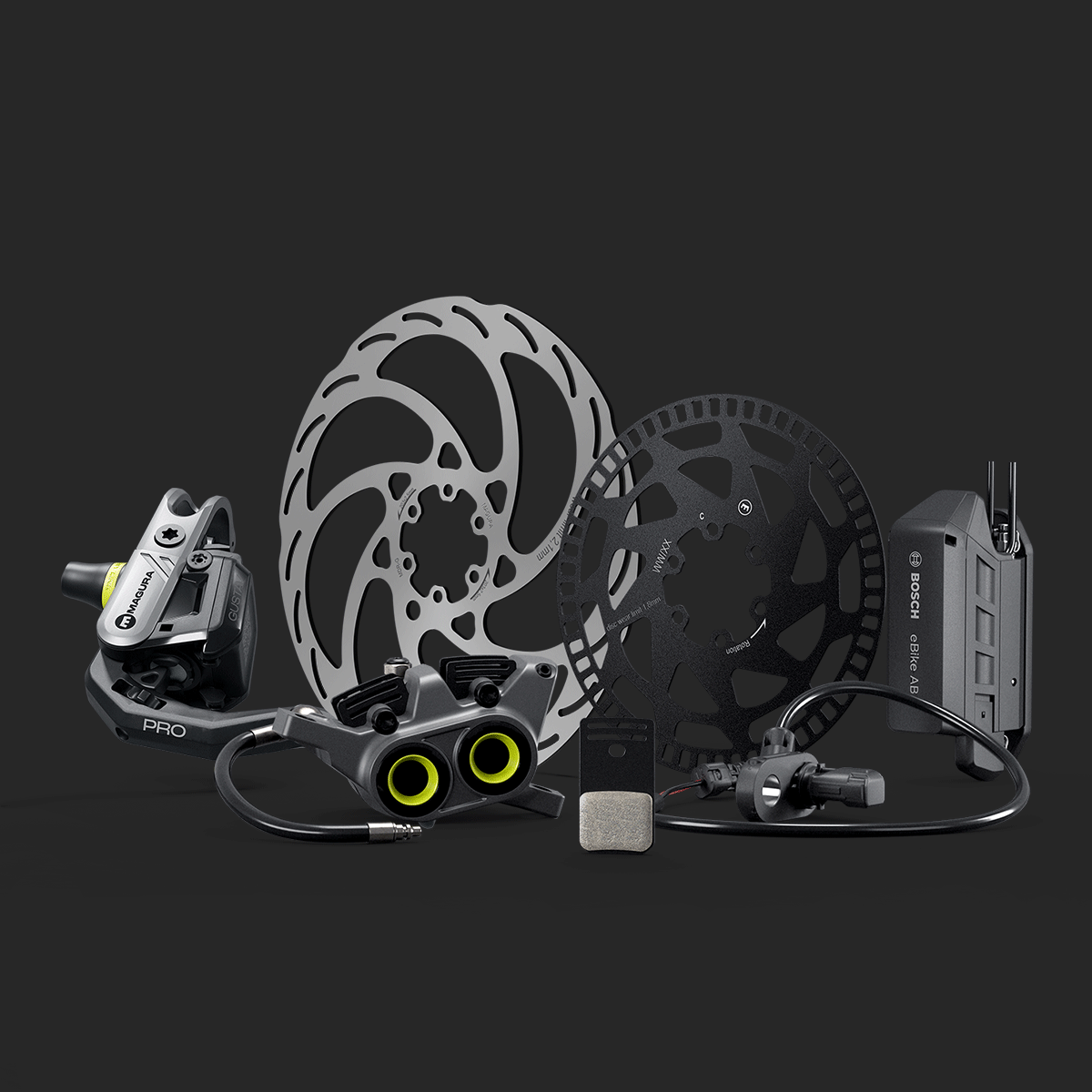

- Optimised for Bosch eBike ABS
- EASY LINK tool-free hose connection, pre-filled parts
- Field of application: E-MTB, Gravity, SUV, Allroad
Gallery
Full specifications
General
- Field of application
- E-MTB, Gravity, SUV, Allroad
- Colour
- black, grey
- Weight
- 348 g
- Guarantee
- 5 Year leak-proof guarantee
Caliper
- Caliper
- Aluminum, one-piece forged, 4 pistons
- Brake pad
- MDP 13 BLACK
- Caliper pistons
- 4 x 19 mm
Lever & master
- Brake master material
- Carbotecture
- Clamp
- Aluminum, Integrated Shiftmix IG option
- Lever
- PRO lever, Aluminum
- Reach adjust
- toolless
Rotor
- Rotor thickness
- 2.0 or 2.5 mm
Hydraulics
- Brake master hose connection
- EASY LINK
- Brake hose
- MAGURA Disctube 2.2, 2200 mm, rotatable banjo
- Master piston
- 12 mm (radial)
- Reservoir oil volume
- 7 ml
Manufacturer specification — Magura. Specs and prices can change; check with the brand or your dealer.
Magura Gustav versions compared
| Gustav Pro | Gustav Elite | |
|---|---|---|
| Price | €304.90 | €204.90 |
| Pistons | 4 x 19 mm caliper, 12 mm radial master | 4 x 19 mm caliper, 12 mm radial master |
| Rotor thickness | 2.0 or 2.5 mm | 2.0 or 2.5 mm |
| Pads | MDP 13 BLACK | MDP 13 BLACK |
| Lever | PRO lever, aluminium, toolless reach | Textured Carbotecture, T25 reach |
| ABS | Bosch eBike ABS ready | — |
| Max total weight | — | 250 kg |
| Weight | 348 g | 328 g |
| E-bike rated | Yes | Yes |
eMTBs that come with the Magura Gustav
Magura Gustav Pro: FAQ
How much does the Magura Gustav Pro cost?
€304.90 (RRP Germany, VAT incl. (19%), per brake). Prices vary by country and retailer.
How much does the Magura Gustav Pro weigh?
Magura quotes 348 g (per brake, claimed).
Is the Magura Gustav Pro suitable for e-bikes?
Yes — Magura lists it as e-bike rated or e-bike specific.
What are the key specs of the Magura Gustav Pro?
Pistons: 4 x 19 mm caliper, 12 mm radial master; Rotor thickness: 2.0 or 2.5 mm; Pads: MDP 13 BLACK; Lever: PRO lever, aluminium, toolless reach; ABS: Bosch eBike ABS ready.
What other versions of the Magura Gustav are there?
Gustav Elite (€204.90).
