MaguraGustav Elite
€204.90 RRP Germany, VAT incl. (19%), per brake
- Pistons
- 4 x 19 mm caliper, 12 mm radial master
- Rotor thickness
- 2.0 or 2.5 mm
- Max total weight
- 250 kg
- Pads
- MDP 13 BLACK
- Lever
- Textured Carbotecture, T25 reach
- Weight
- 328 gper brake, claimed
Overview
The more affordable GUSTAV: 4 x 19 mm pistons, 2.5 mm rotors, approved to 250 kg total weight and E-MTB listed; 328 g, RRP 204.90 EUR per brake.
The GUSTAV ELITE brings the GUSTAV platform to a lower price point. It keeps the oversized one-piece forged 4-piston caliper with 19 mm pistons and a 12 mm radial master piston, uses 2.5 mm thick rotors with a 2.1 mm wear limit, and is approved by Magura for bikes up to 250 kg total weight.

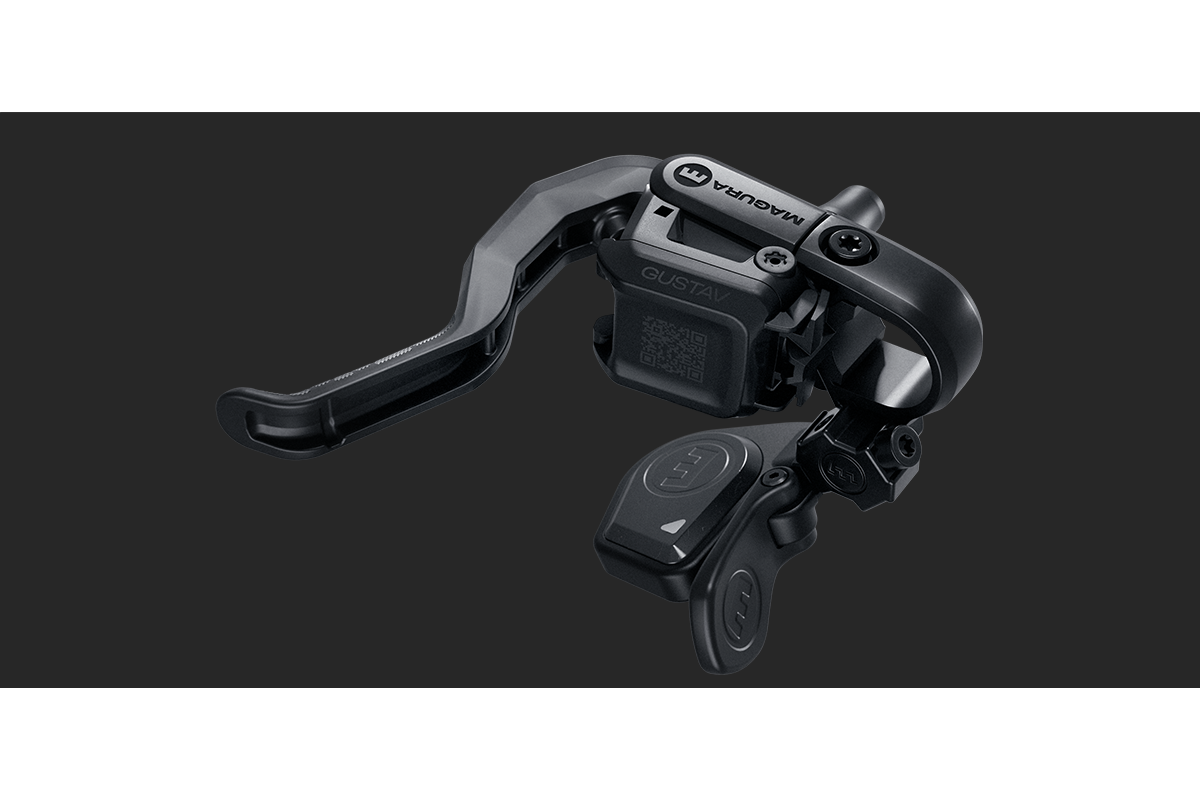

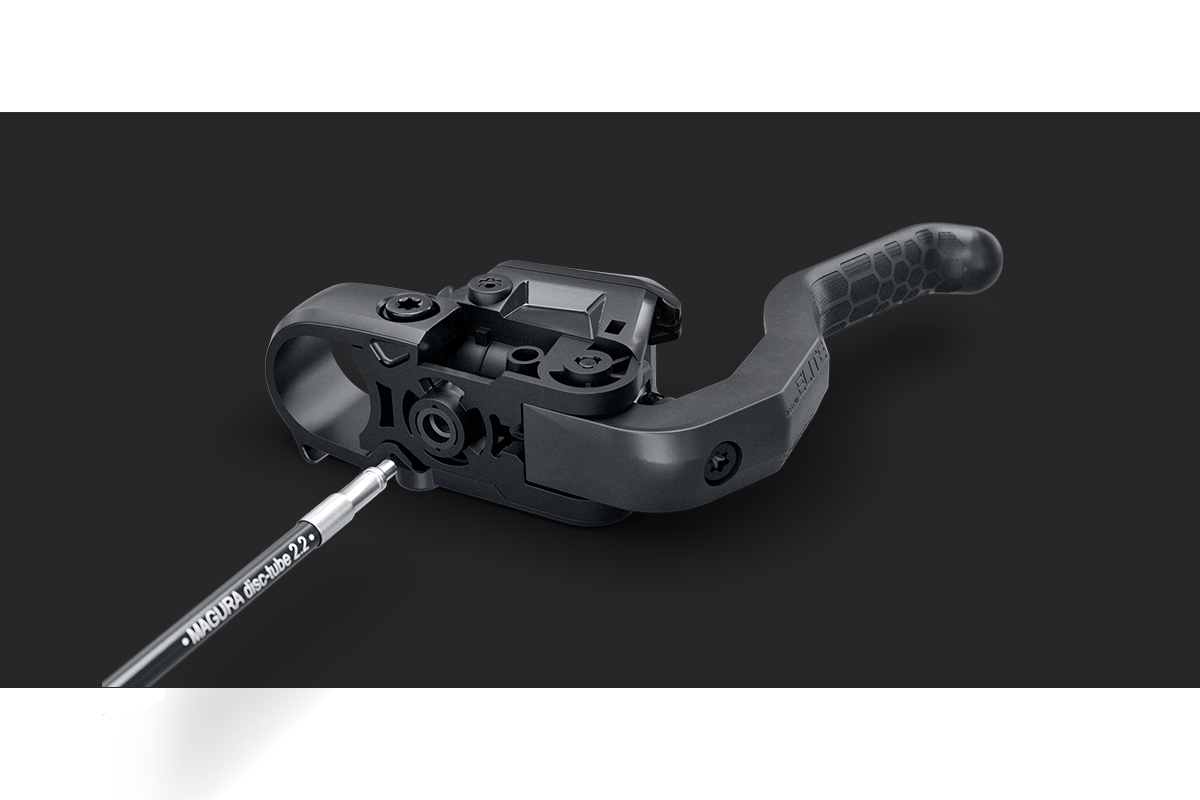

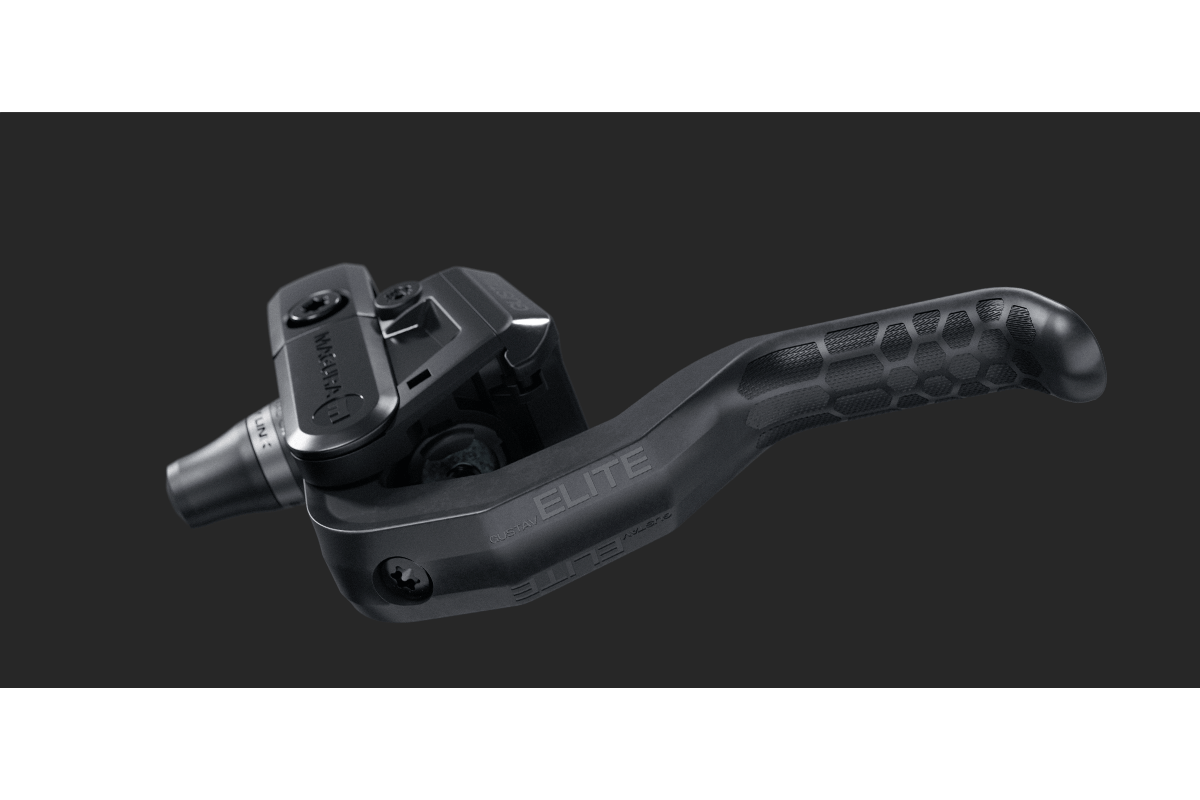

The lever is made from Carbotecture with textured polygons in the grip area, the master connects to the hose via EASY LINK, and an optional switch lever can activate a rear brake light. Magura quotes 194% pad wear volume compared with an MT A2 and lists E-MTB, Gravity, SUV and Allroad as fields of application.
- 12 mm master / 4 x 19 mm caliper pistons
- 2.5 mm rotors, up to 250 kg system weight
- Textured Carbotecture lever, T25 reach adjust
- EASY LINK, optional brake-light switch lever
- Field of application: E-MTB, Gravity, SUV, Allroad
Gallery
Full specifications
General
- Field of application
- E-MTB, Gravity, SUV, Allroad
- Colour
- black, grey
- Weight
- 328 g
- Guarantee
- 5 Year leak-proof guarantee
- Max. total weight
- 250 kg
Caliper
- Caliper
- Aluminum, one-piece forged, 4 pistons
- Brake pad
- MDP 13 BLACK
- Caliper pistons
- 4 x 19 mm
Lever & master
- Brake master material
- Carbotecture
- Clamp
- Carbotecture, Integrated Shiftmix IG option
- Lever
- textured brake lever, Carbotecture
- Reach adjust
- T25
Rotor
- Rotor thickness
- 2.0 or 2.5 mm
Hydraulics
- Brake master hose connection
- EASY LINK
- Brake hose
- MAGURA Disctube 2.2, 2200 mm, rotatable banjo
- Master piston
- 12 mm (radial)
Manufacturer specification — Magura. Specs and prices can change; check with the brand or your dealer.
Magura Gustav versions compared
| Gustav Pro | Gustav Elite | |
|---|---|---|
| Price | €304.90 | €204.90 |
| Pistons | 4 x 19 mm caliper, 12 mm radial master | 4 x 19 mm caliper, 12 mm radial master |
| Rotor thickness | 2.0 or 2.5 mm | 2.0 or 2.5 mm |
| Pads | MDP 13 BLACK | MDP 13 BLACK |
| Lever | PRO lever, aluminium, toolless reach | Textured Carbotecture, T25 reach |
| ABS | Bosch eBike ABS ready | — |
| Max total weight | — | 250 kg |
| Weight | 348 g | 328 g |
| E-bike rated | Yes | Yes |
eMTBs that come with the Magura Gustav
Magura Gustav Elite: FAQ
How much does the Magura Gustav Elite cost?
€204.90 (RRP Germany, VAT incl. (19%), per brake). Prices vary by country and retailer.
How much does the Magura Gustav Elite weigh?
Magura quotes 328 g (per brake, claimed).
Is the Magura Gustav Elite suitable for e-bikes?
Yes — Magura lists it as e-bike rated or e-bike specific.
What are the key specs of the Magura Gustav Elite?
Pistons: 4 x 19 mm caliper, 12 mm radial master; Rotor thickness: 2.0 or 2.5 mm; Max total weight: 250 kg; Pads: MDP 13 BLACK; Lever: Textured Carbotecture, T25 reach.
What other versions of the Magura Gustav are there?
Gustav Pro (€304.90).
