CubeStereo Hybrid ONE77 HPC SLT 800
- Motor
- Bosch Performance Line CX-RUp to 120 Nm
- Battery
- 800 WhPowerTube 800
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon main frame, alloy rear
- Weight
- 23.5 kgManufacturer figure
All Bosch Performance Line CX-R eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview
The €8,699 SLT is the lightest ONE77 HPC at a claimed 23.5 kg, and it gets the Bosch CX-R. Fox Factory 38 and X2 suspension, SRAM XX Eagle AXS Transmission and Magura Race Pro brakes finish it off.
The Stereo Hybrid ONE77 HPC SLT 800 is one of 5 builds of the Cube Stereo Hybrid ONE77 HPC. About the Stereo Hybrid ONE77 HPC range and all its builds →

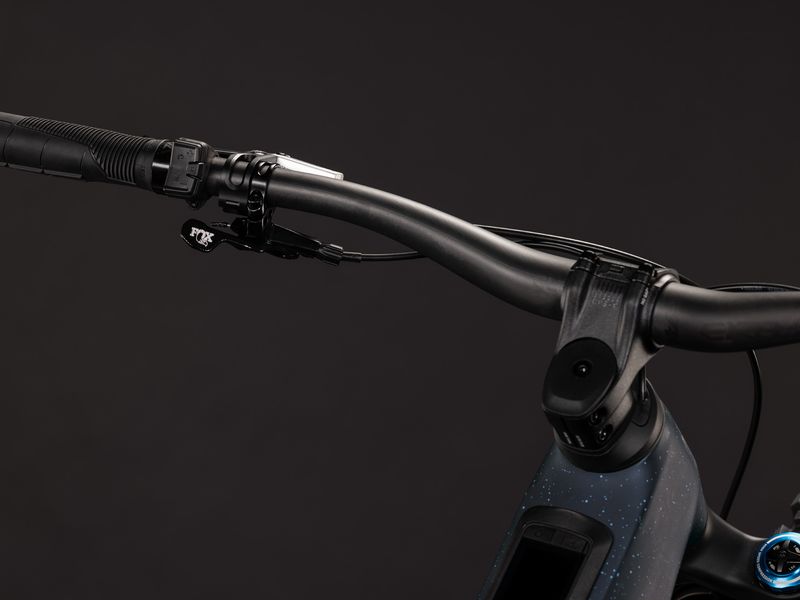

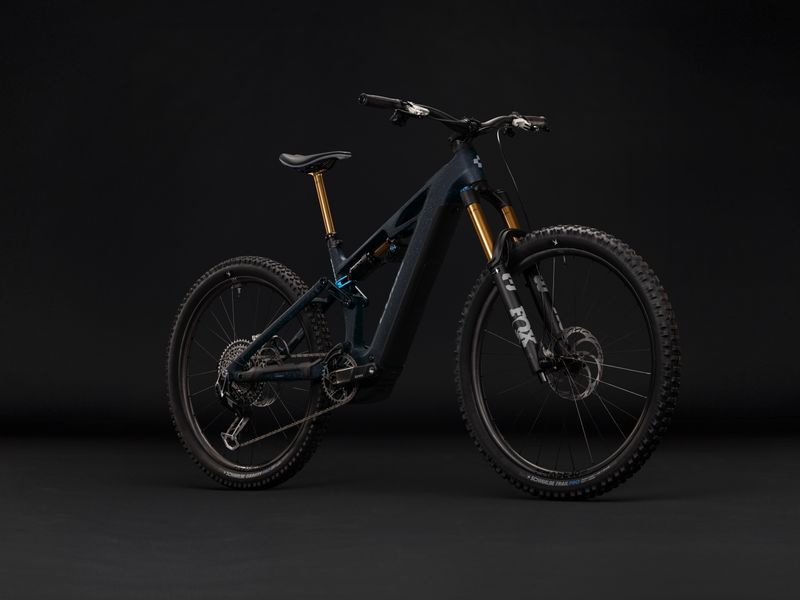

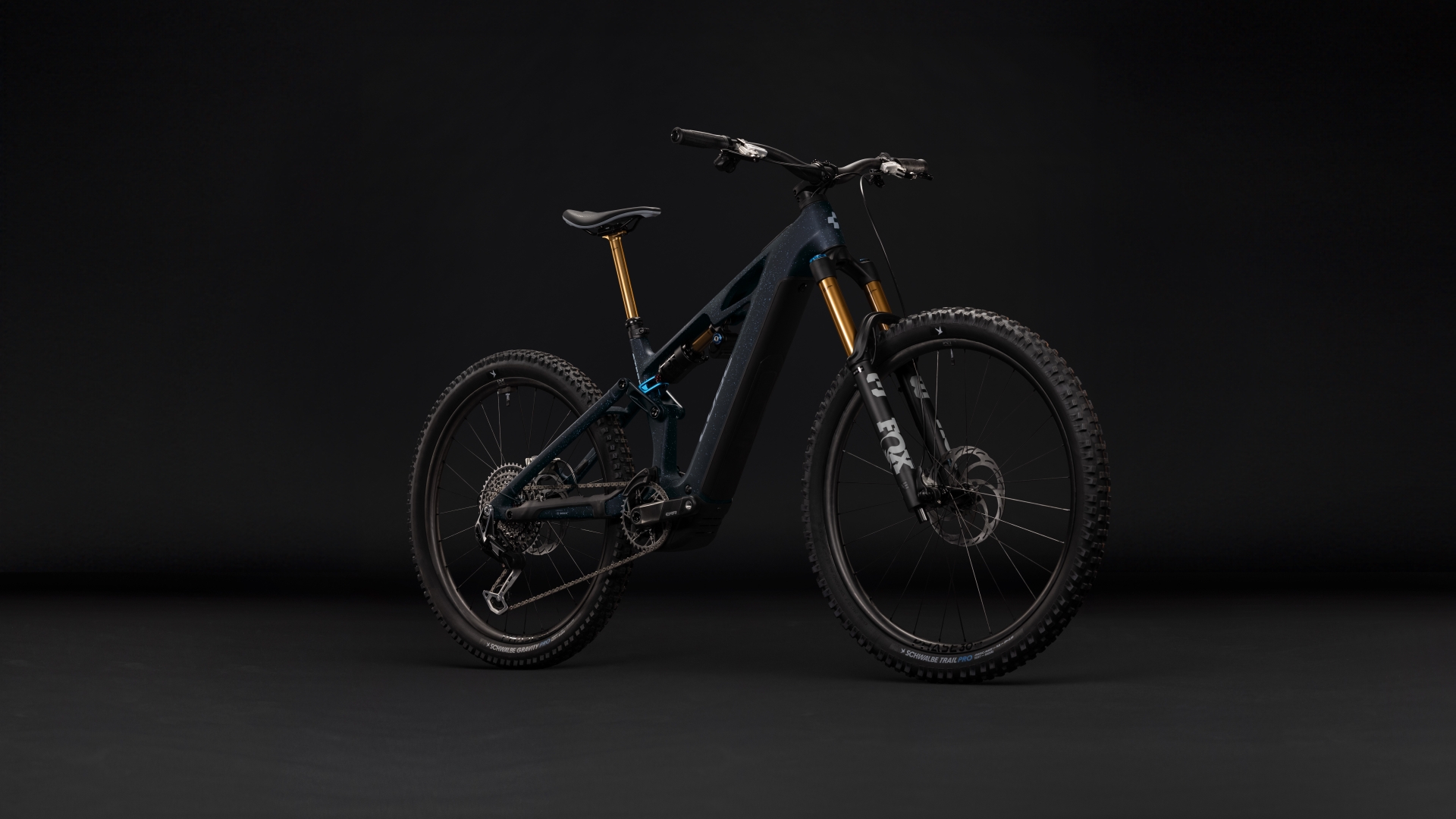

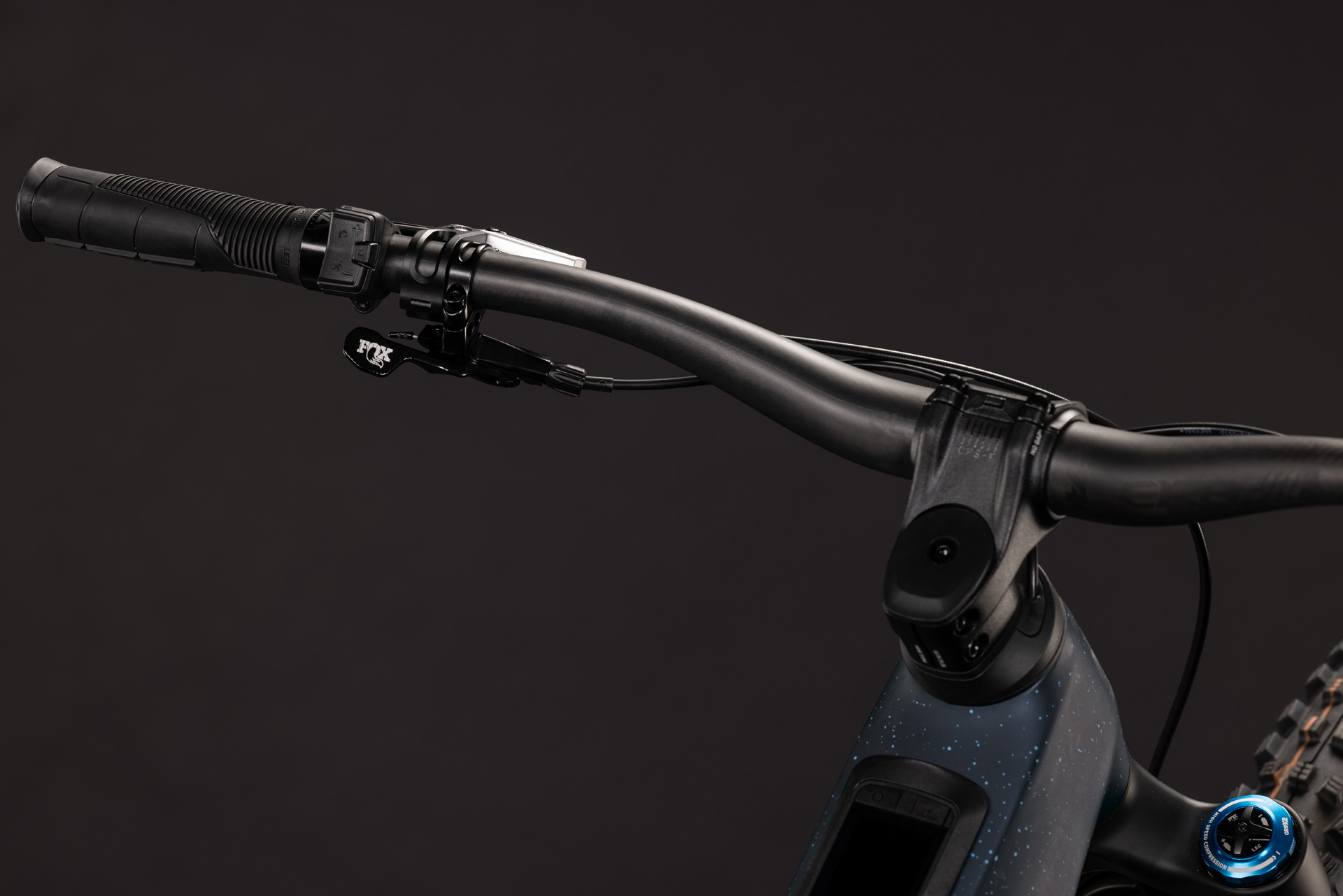

Gallery
Photos: Cube
Full specifications
Frame & suspension
- Frame
- C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
- Sizes
- S, M, L, XL
- Fork
- Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm

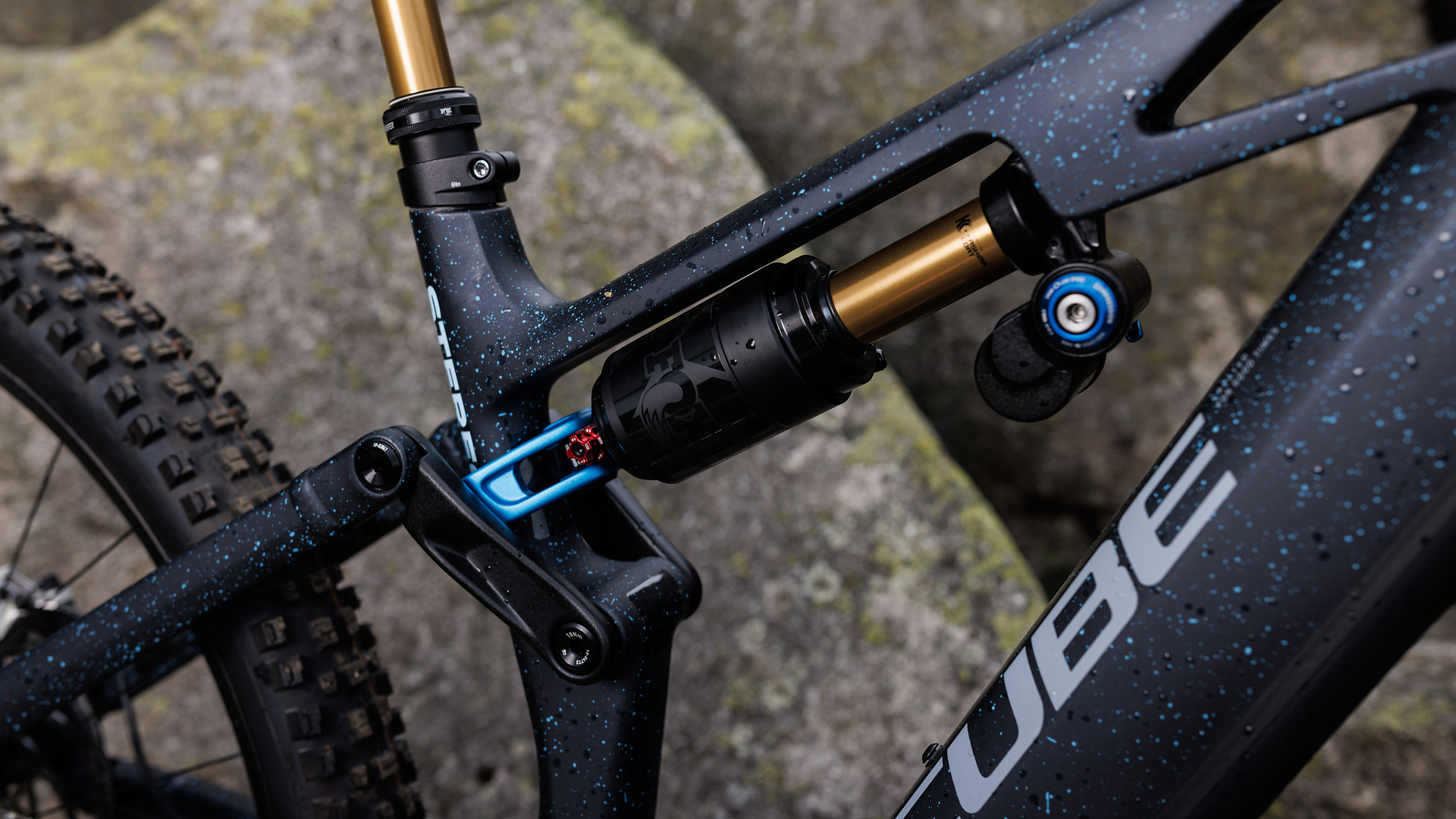

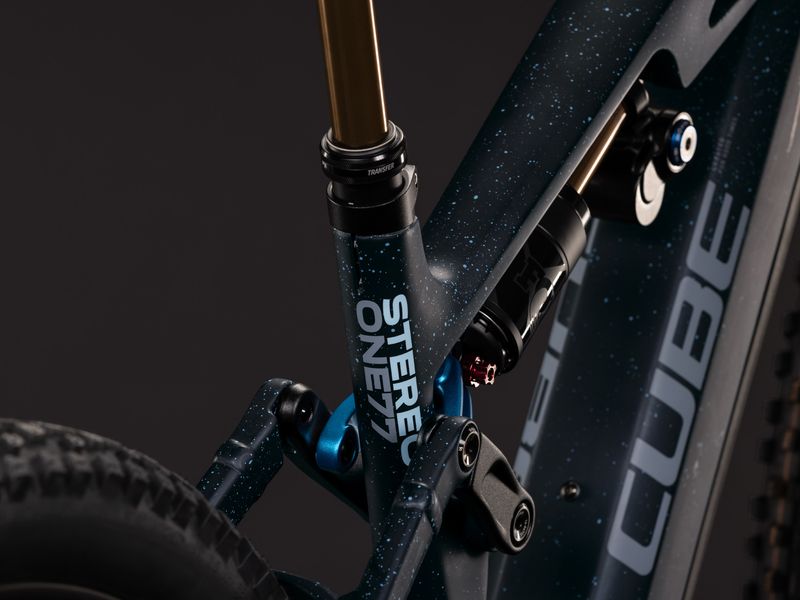

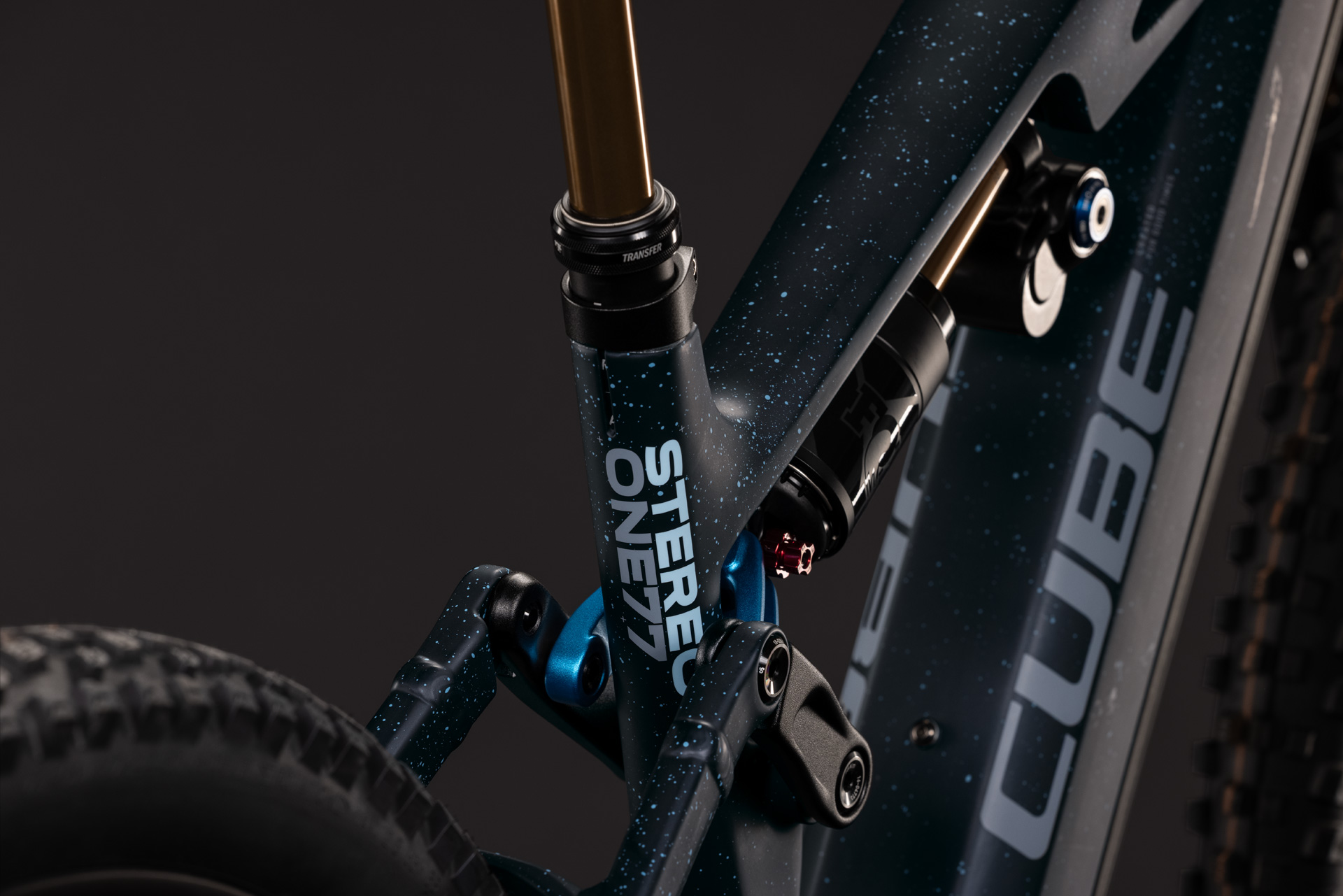

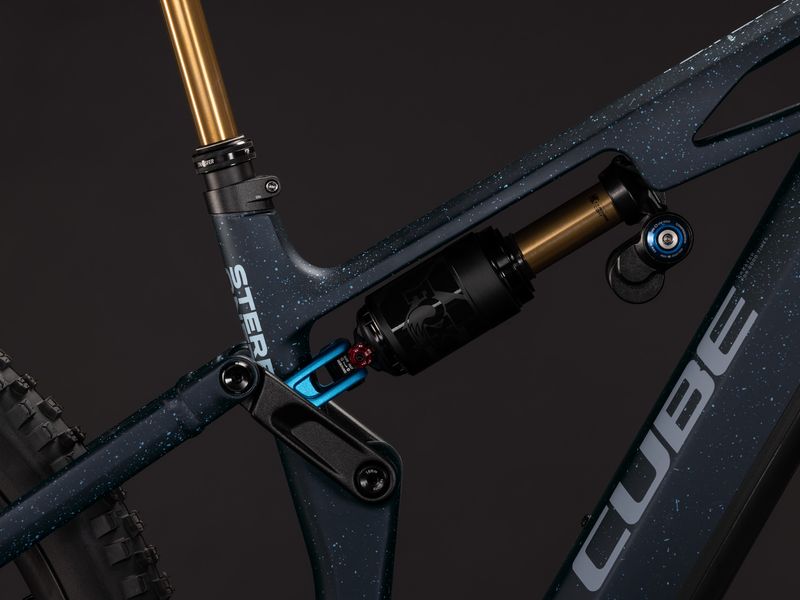

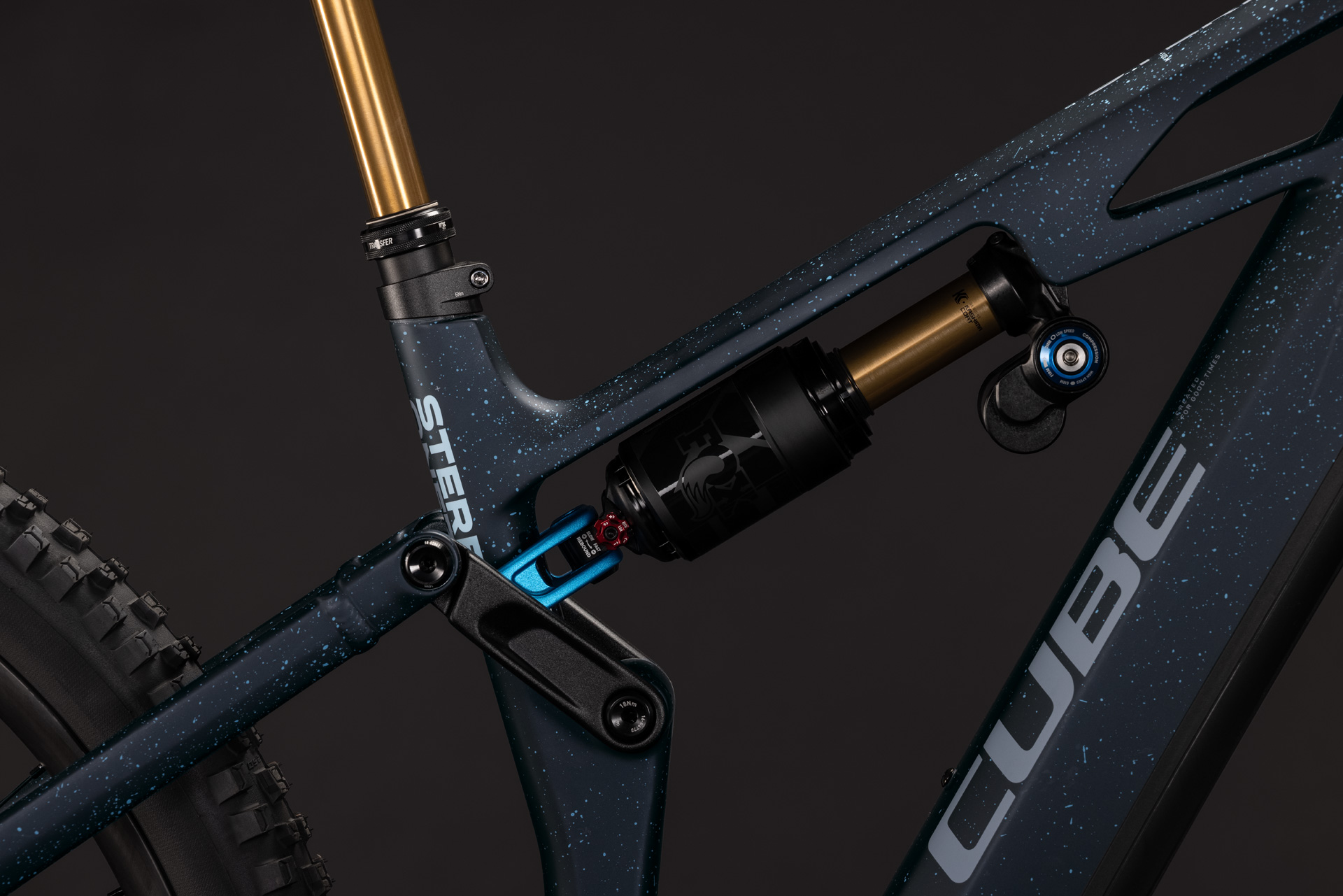

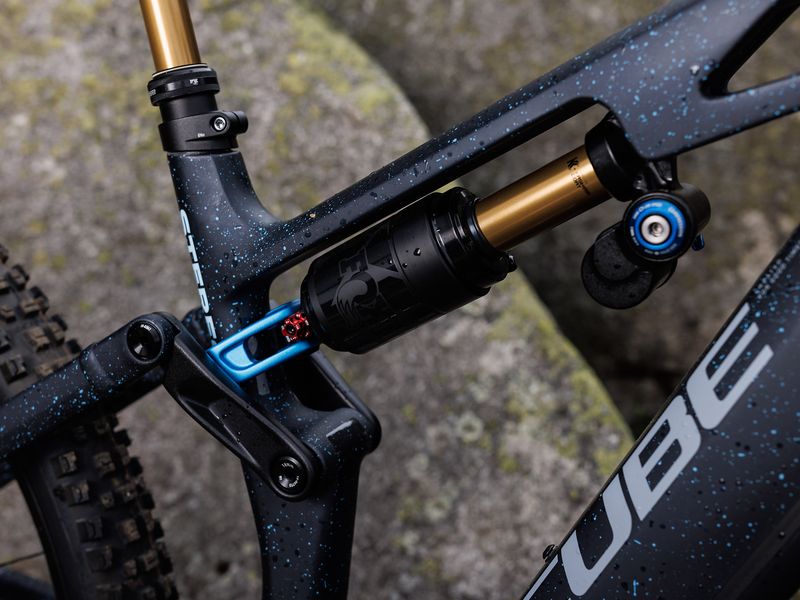

- Shock
- Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
- Shock hardware
- Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-system
- Motor
- Bosch Drive Unit Performance Line CX-R max. 120Nm (BDU38)
- Remote
- Bosch Mini Remote
- Battery
- Bosch PowerTube 800
- Display
- Bosch Kiox 400C
- Charger
- Bosch 4A
Drivetrain
- Brakes
- Magura Race Pro, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203)
- Rear derailleur
- Sram XX Eagle AXS™ Transmission, 12-Speed
- Shifter
- Sram AXS™ Pod Ultimate Controller

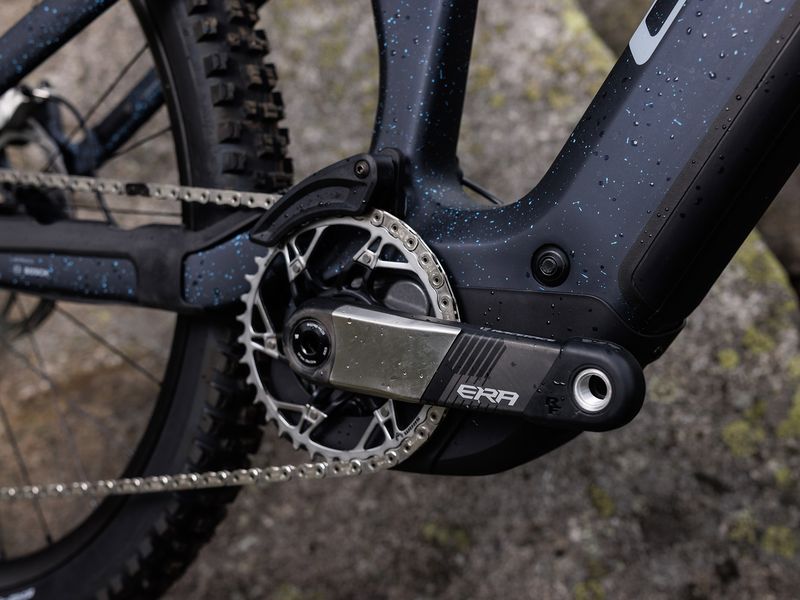

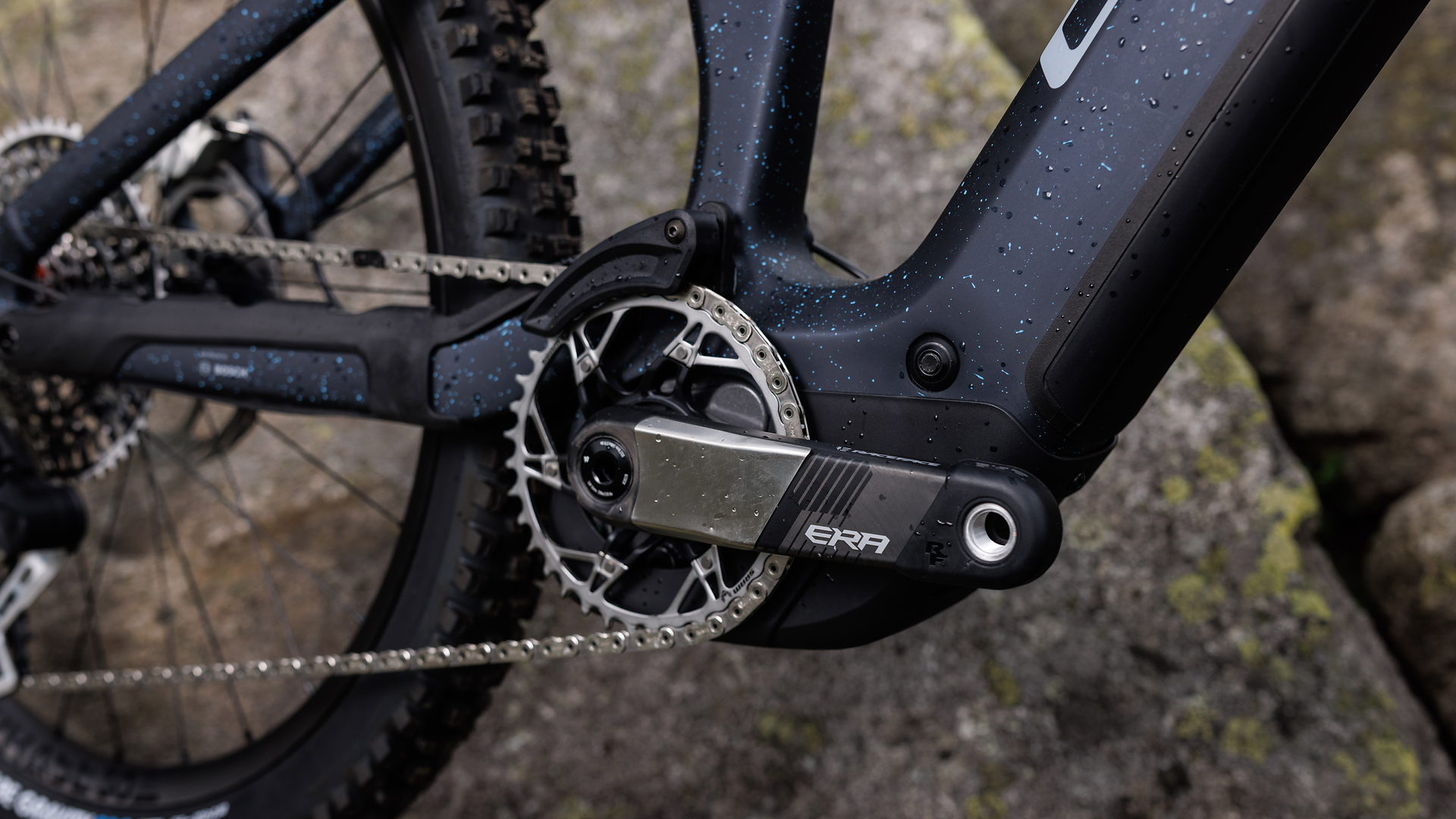

- Crankset
- Race Face ERA E-MTB, 36T
- Cassette
- Sram XS-1297, 10-52T
- Chain
- Sram XX Eagle Transmission
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready
- Front tyre
- Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5
- Rear tyre
- Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Cockpit
- Headset
- Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
- Stem
- CUBE Performance Stem E-MTB 35, FPI-Link
- Handlebar
- Race Face ERA 35
- Grips
- ACID Endure
- Saddle
- ACID Venec EMTB Trail 140
- Seatpost
- Fox Transfer Factory 31.6mm, Kashima Coated
- Pedals
- ACID PP MTB
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
Stereo Hybrid ONE77 HPC geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 572 / 573 mm | 597 / 598 mm | 625 / 626 mm | 659 / 661 mm |
| Seat angle | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° |
| Head angle | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° |
| Chainstay | 443 mm | 443 mm | 443 mm | 443 mm |
| Head tube | 103 mm | 103 mm | 115 mm | 130 mm |
| Wheelbase | 1213 / 1206 mm | 1238 / 1231 mm | 1269 / 1261 mm | 1305 / 1297 mm |
| BB offset (to hub axle) | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover (-80 mm) | 758 mm | 754 mm | 753 mm | 752 mm |
| Reach | 427 / 425 mm | 452 / 450 mm | 477 / 475 mm | 506 / 505 mm |
| Stack | 635 / 637 mm | 635 / 637 mm | 645 / 648 mm | 659 / 661 mm |
Where two values are given: Slack/Moderate geometry setting. Source: Cube.
Stereo Hybrid ONE77 HPC: builds compared
Stereo Hybrid ONE77 HPC range →| Stereo Hybrid ONE77 HPC Race 800 | Stereo Hybrid ONE77 HPC SLX 800 | Stereo Hybrid ONE77 HPC TM 800 | Stereo Hybrid ONE77 HPC AT 800 | Stereo Hybrid ONE77 HPC SLT 800 | |
|---|---|---|---|---|---|
| Price | €4,399 | €4,999 | €6,199 | €7,199 | €8,699 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | RockShox Domain Gold RC3 Isolator Air, Tapered | Fox 38 Float Performance GRIP, Tapered | RockShox Zeb Select+ Charger 3.2 RC2 Air, Tapered | Fox 38 Float Factory GRIPX2, Tapered | Fox 38 Float Factory GRIPX2, Tapered |
| Shock | RockShox Super Deluxe Select | Fox Float X Performance | RockShox Vivid Select | Fox Float X2 Factory | Fox Float X2 Factory |
| Derailleur | Sram Eagle 90 Transmission | Shimano XT RD-M8200-SGS | Sram GX Eagle AXS™ Transmission | Shimano XTR Di2 RD-M9260 | Sram XX Eagle AXS™ Transmission |
| Brakes | Magura Louise | Shimano XT BR-M8220 | Sram Maven Bronze | Shimano XTR BR-M9220 | Magura Race Pro |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
| Weight | 25.1 kg | 24.5 kg | 24.7 kg | 24.9 kg | 23.5 kg |
Stereo Hybrid ONE77 HPC SLT 800: FAQ
What is the difference between the Stereo Hybrid ONE77 HPC SLT 800 and the Stereo Hybrid ONE77 HPC AT 800?
They share the Stereo Hybrid ONE77 HPC frame platform; the differences are in the parts: derailleur: Sram XX Eagle AXS™ Transmission vs Shimano XTR Di2 RD-M9260; claimed weight: 23.5 kg vs 24.9 kg; price: €8,699 vs €7,199.
