CubeStereo Hybrid ONE77 HPC AT 800
- Motor
- Bosch Performance Line CXUp to 120 Nm
- Battery
- 800 WhPowerTube 800
- Travel F / R
- 170 / 170 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Carbon main frame, alloy rear
- Weight
- 24.9 kgManufacturer figure
Overview
The Cube Stereo Hybrid ONE77 HPC AT 800 (€7,199) is a mid-range build of the Stereo Hybrid ONE77 HPC: Bosch Performance Line CX with 800 Wh, Fox 38 Float Factory GRIPX2 fork, Fox Float X2 Factory shock, Shimano XTR Di2 RD-M9260 and Shimano XTR BR-M9220 brakes. Claimed weight is 24.9 kg.
The Stereo Hybrid ONE77 HPC is Cube's long-travel e-enduro: a C:62 carbon main frame with an alloy rear end, 170 mm of travel front and rear and a mullet wheel setup (29-inch front, 27.5-inch rear), powered by the Bosch Performance Line CX (CX-R on the SLT) and a PowerTube 800.
- 170 mm travel front and rear
- Mullet wheels
- Bosch CX / CX-R, 800 Wh
- Carbon main frame

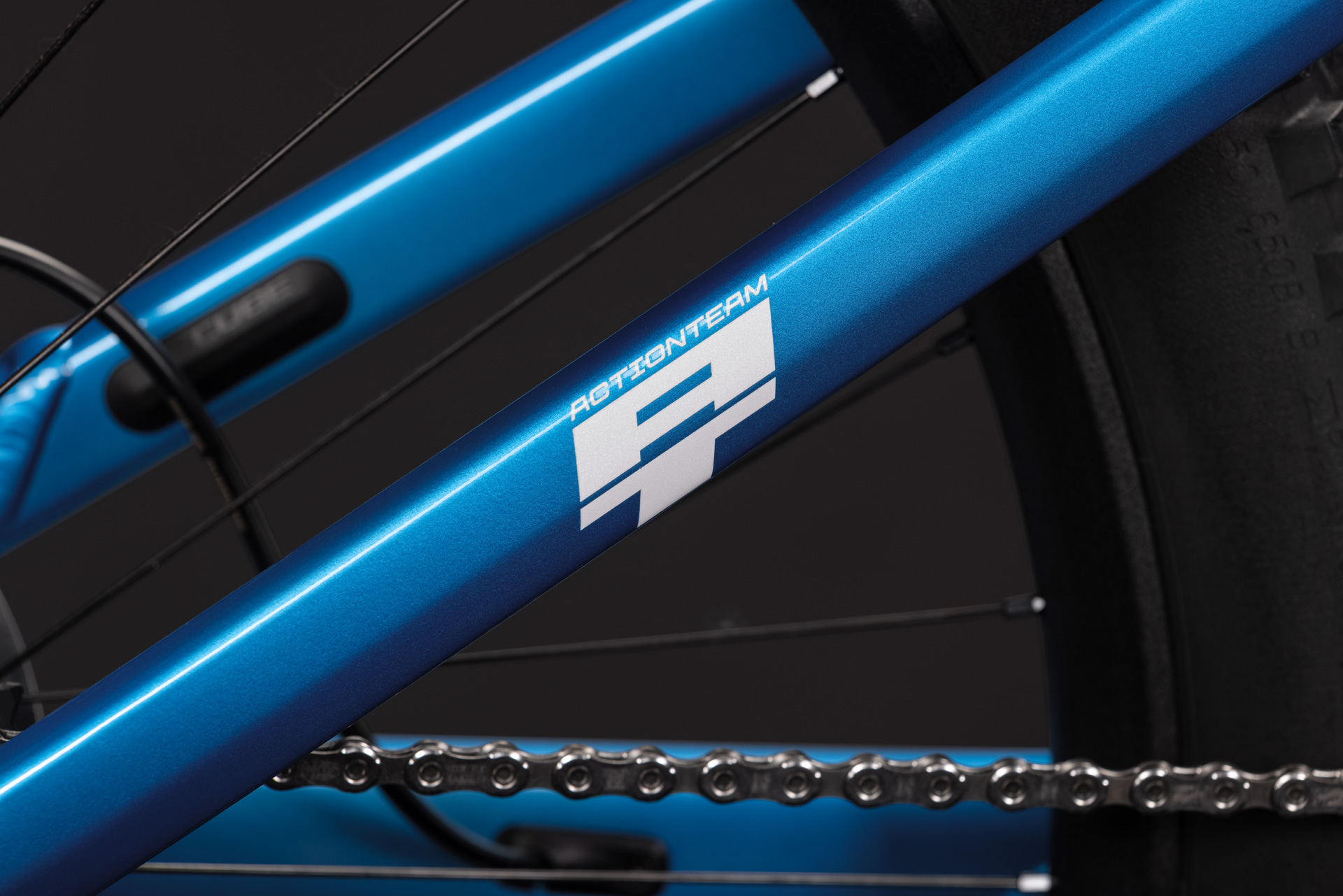

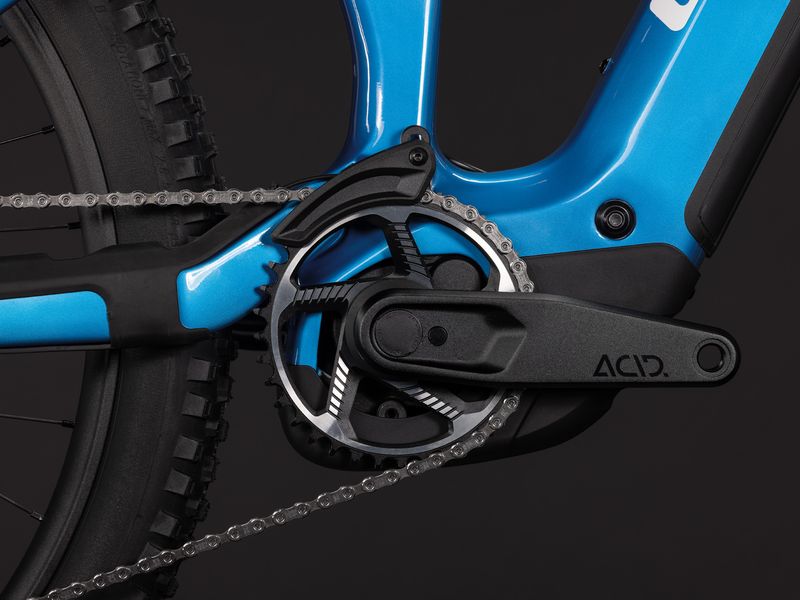

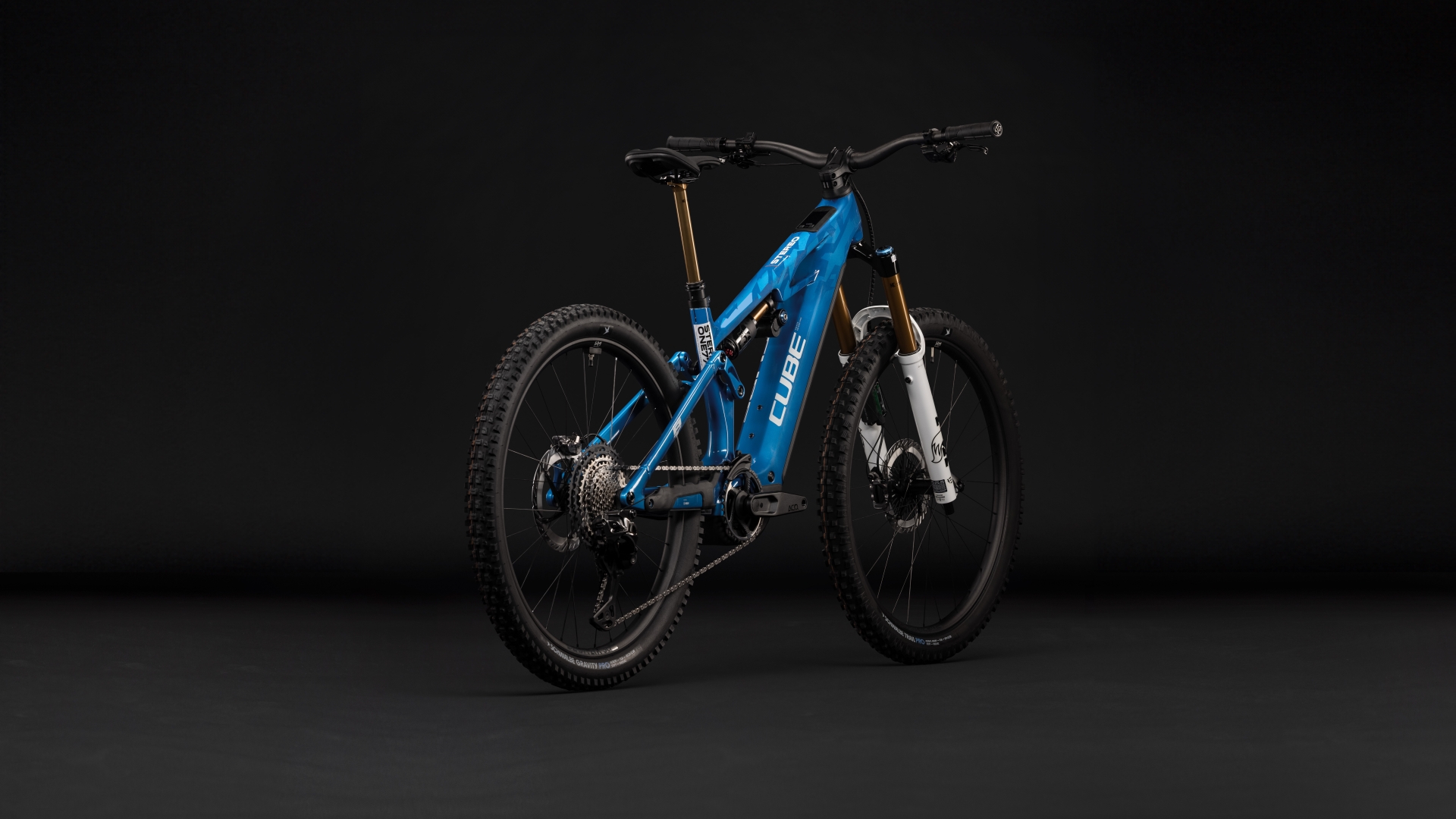

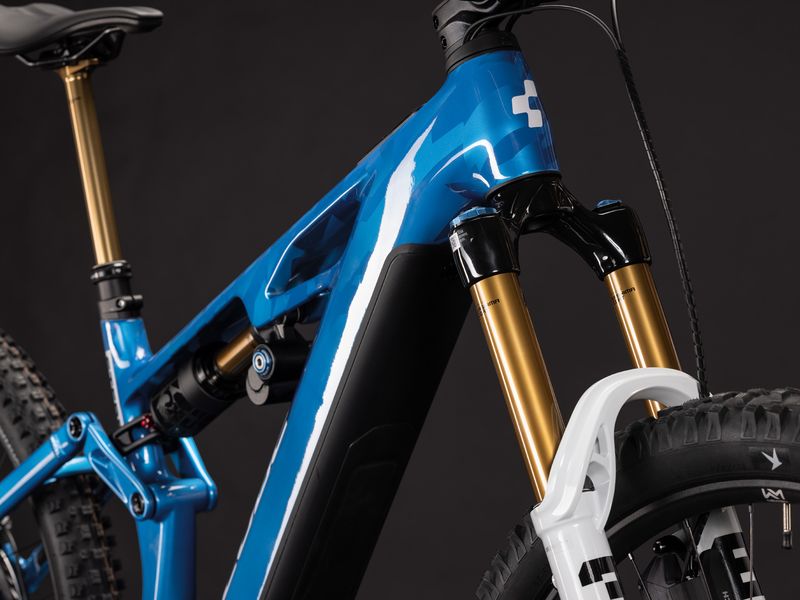

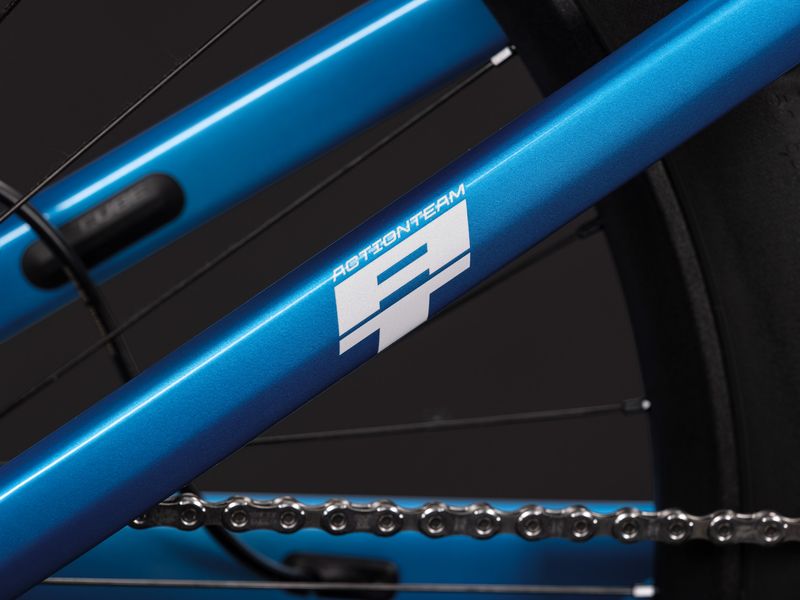

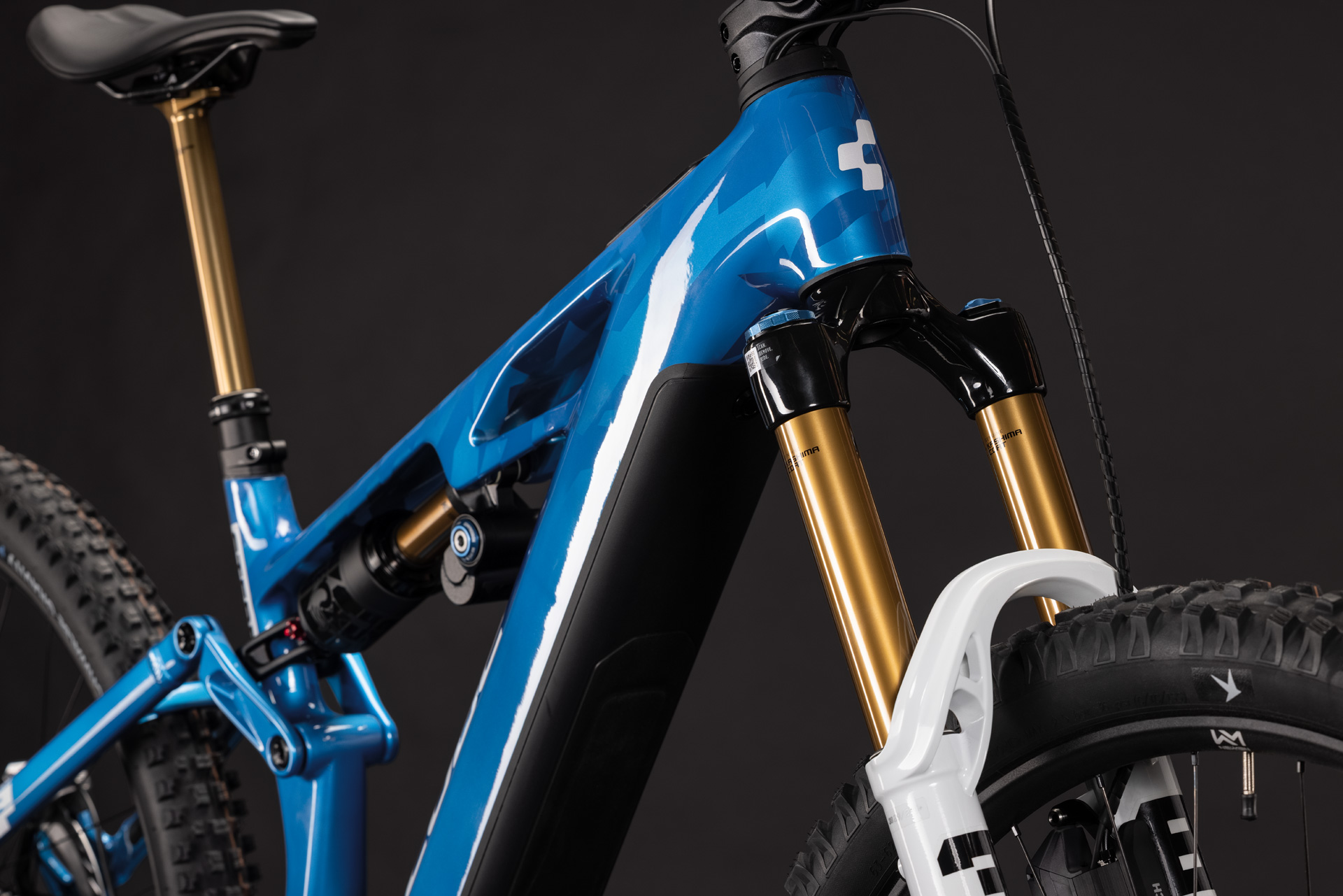

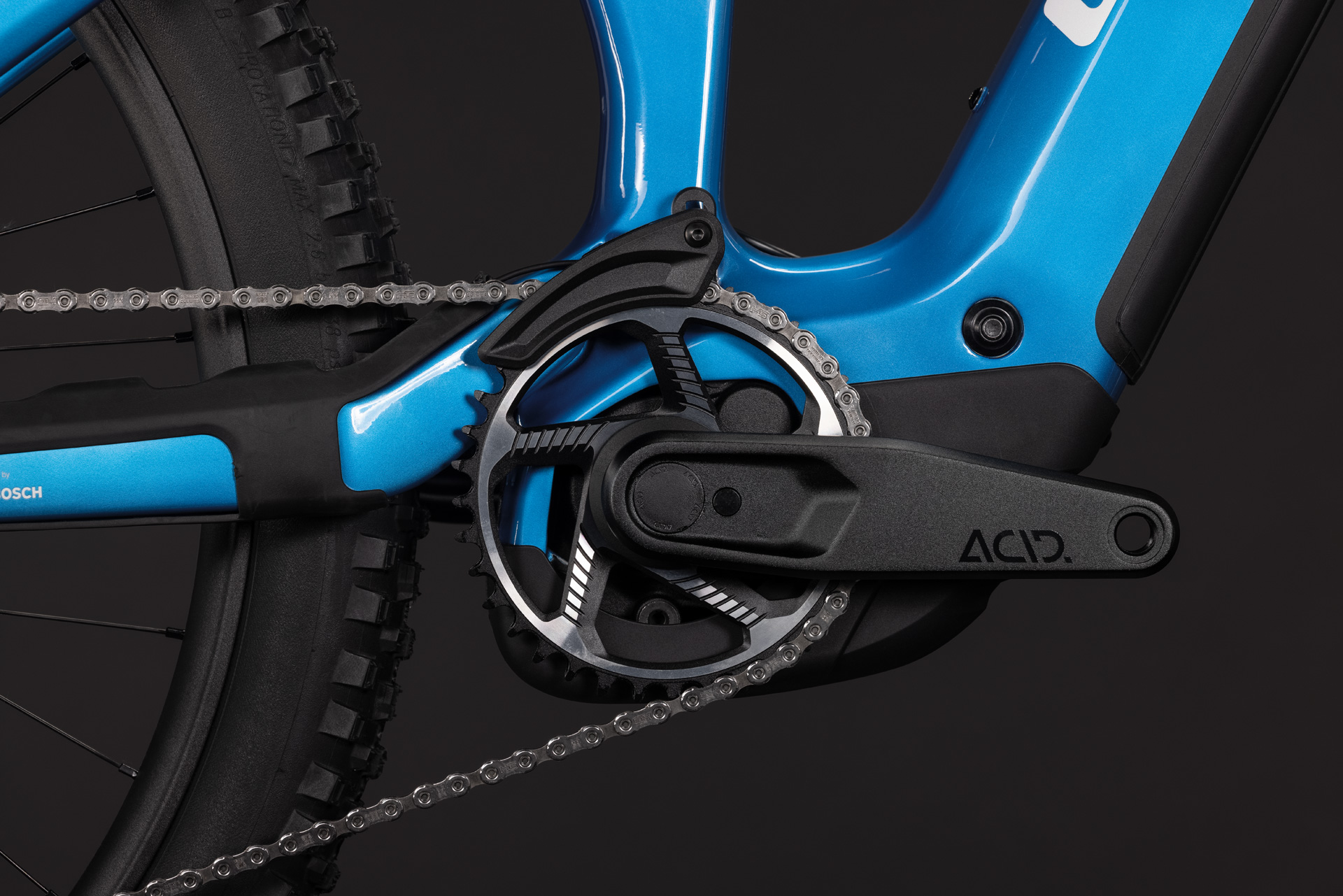

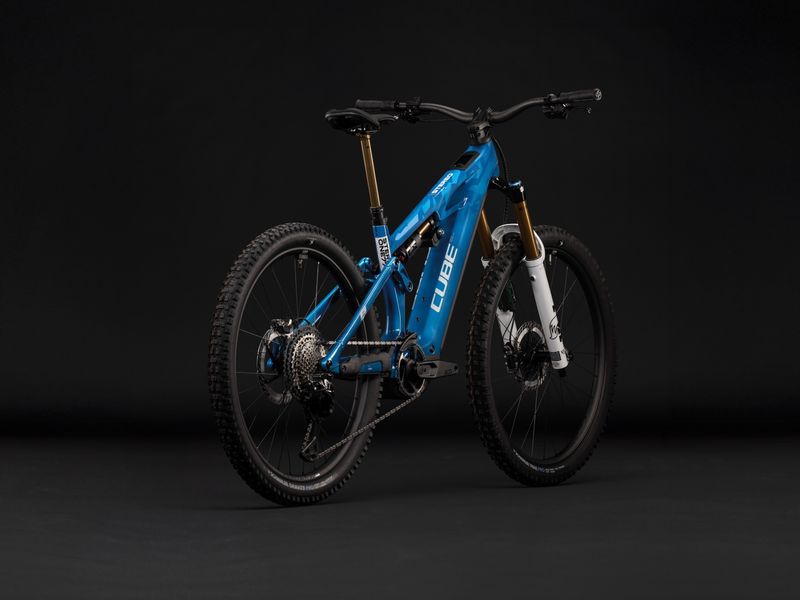

Gallery
Photos: Cube
Full specifications
Frame & suspension
- Frame
- C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing
- Sizes
- S, M, L, XL
- Fork
- Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm
- Shock
- Fox Float X2 Factory, 230x65mm, High/Low Speed Rebound & Compression w/ 2-Position Lever, Kashima Coated
- Shock hardware
- Front: 30x8mm, Rear: DU-Bushing 12.7mm
E-system
- Motor
- Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
- Remote
- Bosch Mini Remote
- Battery
- Bosch PowerTube 800
- Display
- Bosch Kiox 400C
- Charger
- Bosch 4A
Drivetrain
- Brakes
- Shimano XTR BR-M9220, Hydr. Disc Brake w/ Front ABS (203/203)
- Rear derailleur
- Shimano XTR Di2 RD-M9260, 12-Speed, Electronic Shifting System
- Shifter
- Shimano XTR Di2 SW-M9250-I, Direct Attach
- Crankset
- ACID MTB Hybrid Pro, 36T
- Cassette
- Shimano XT CS-M8200, 10-51T
- Chain
- Shimano XT CN-M8100
- Chain guide
- Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Wheels & tyres
- Wheelset
- Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready
- Front tyre
- Schwalbe Magic Mary Trail Pro, Addix Soft, Kevlar, 2.5
- Rear tyre
- Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5
Cockpit
- Headset
- Acros AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface
- Stem
- CUBE Performance Stem E-MTB 35, FPI-Link
- Handlebar
- Race Face ERA 35
- Grips
- ACID Endure
- Saddle
- ACID Venec EMTB Trail 140
- Seatpost
- Fox Transfer Factory 31.6mm, Kashima Coated
- Pedals
- ACID PP MTB
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Stereo Hybrid ONE77 HPC geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 370 mm | 405 mm | 420 mm | 480 mm |
| Top tube (horizontal) | 572 / 573 mm | 597 / 598 mm | 625 / 626 mm | 659 / 661 mm |
| Seat angle | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° | 76.7° / 76.5° |
| Head angle | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° | 63.8° / 64.4° |
| Chainstay | 443 mm | 443 mm | 443 mm | 443 mm |
| Head tube | 103 mm | 103 mm | 115 mm | 130 mm |
| Wheelbase | 1213 / 1206 mm | 1238 / 1231 mm | 1269 / 1261 mm | 1305 / 1297 mm |
| BB offset (to hub axle) | 13 mm | 13 mm | 13 mm | 13 mm |
| Standover (-80 mm) | 758 mm | 754 mm | 753 mm | 752 mm |
| Reach | 427 / 425 mm | 452 / 450 mm | 477 / 475 mm | 506 / 505 mm |
| Stack | 635 / 637 mm | 635 / 637 mm | 645 / 648 mm | 659 / 661 mm |
Where two values are given: Slack/Moderate geometry setting. Source: Cube.
Stereo Hybrid ONE77 HPC: builds compared
Stereo Hybrid ONE77 HPC range →| Stereo Hybrid ONE77 HPC Race 800 | Stereo Hybrid ONE77 HPC SLX 800 | Stereo Hybrid ONE77 HPC TM 800 | Stereo Hybrid ONE77 HPC AT 800 | Stereo Hybrid ONE77 HPC SLT 800 | |
|---|---|---|---|---|---|
| Price | €4,399 | €4,999 | €6,199 | €7,199 | €8,699 |
| Frame | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear | Carbon main frame, alloy rear |
| Fork | RockShox Domain Gold RC3 Isolator Air, Tapered | Fox 38 Float Performance GRIP, Tapered | RockShox Zeb Select+ Charger 3.2 RC2 Air, Tapered | Fox 38 Float Factory GRIPX2, Tapered | Fox 38 Float Factory GRIPX2, Tapered |
| Shock | RockShox Super Deluxe Select | Fox Float X Performance | RockShox Vivid Select | Fox Float X2 Factory | Fox Float X2 Factory |
| Derailleur | Sram Eagle 90 Transmission | Shimano XT RD-M8200-SGS | Sram GX Eagle AXS™ Transmission | Shimano XTR Di2 RD-M9260 | Sram XX Eagle AXS™ Transmission |
| Brakes | Magura Louise | Shimano XT BR-M8220 | Sram Maven Bronze | Shimano XTR BR-M9220 | Magura Race Pro |
| Display | — | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C | Bosch Kiox 400C |
| Weight | 25.1 kg | 24.5 kg | 24.7 kg | 24.9 kg | 23.5 kg |
Stereo Hybrid ONE77 HPC AT 800: FAQ
How much does the Cube Stereo Hybrid ONE77 HPC AT 800 cost?
€7,199 (RRP Germany (UVP), VAT incl.). The Stereo Hybrid ONE77 HPC range runs from €4,399 (Stereo Hybrid ONE77 HPC Race 800) to €8,699 (Stereo Hybrid ONE77 HPC SLT 800). Prices vary by country and dealer.
How much does the Cube Stereo Hybrid ONE77 HPC AT 800 weigh?
Cube quotes 24.9 kg. The lightest Stereo Hybrid ONE77 HPC build is the Stereo Hybrid ONE77 HPC SLT 800 at 23.5 kg.
What motor and battery does the Cube Stereo Hybrid ONE77 HPC AT 800 have?
Bosch Performance Line CX (Up to 120 Nm). 800 Wh battery — powerTube 800.
How much suspension travel does the Cube Stereo Hybrid ONE77 HPC AT 800 have?
170 mm at the fork and 170 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Cube Stereo Hybrid ONE77 HPC AT 800 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Stereo Hybrid ONE77 HPC AT 800 and the Stereo Hybrid ONE77 HPC SLT 800?
They share the Stereo Hybrid ONE77 HPC frame platform; the differences are in the parts — derailleur: Shimano XTR Di2 RD-M9260 vs Sram XX Eagle AXS™ Transmission; claimed weight: 24.9 kg vs 23.5 kg; price: €7,199 vs €8,699.
