SRAMDB8 Stealth
€148 SRAM MSRP (EUR, Germany region), per brake
- Pistons
- 4 (Heavy Duty collection)
- Rotor sizes
- 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)
- Fluid
- SRAM Mineral Oil (Maxima)
- Lever blade
- Aluminum
- Adjustments
- Reach: Tooled
Overview
DB8 Stealth is SRAM's simple, robust Heavy Duty brake with Code-like power and a stealth lever body – €148 per brake.
The DB family is SRAM's simple, robust and powerful Heavy Duty brake line for riders who prefer to set and forget, using a low-maintenance mineral oil system and Code-like power from a caliper architecture shared with Code (uses existing Code/SRAM Large pads).
SRAM groups its mountain brakes into Heavy Duty (four-piston brakes with set-it-and-forget-it simplicity: Motive and DB) and Extreme Duty (Maven, the most progressive power for gravity and heavy braking). All use SRAM's proprietary seals with mineral oil co-developed with Maxima, and work with 160, 180, 200 and 220 mm rotors in 6-bolt and Centerlock.
- Code-like heavy-duty power

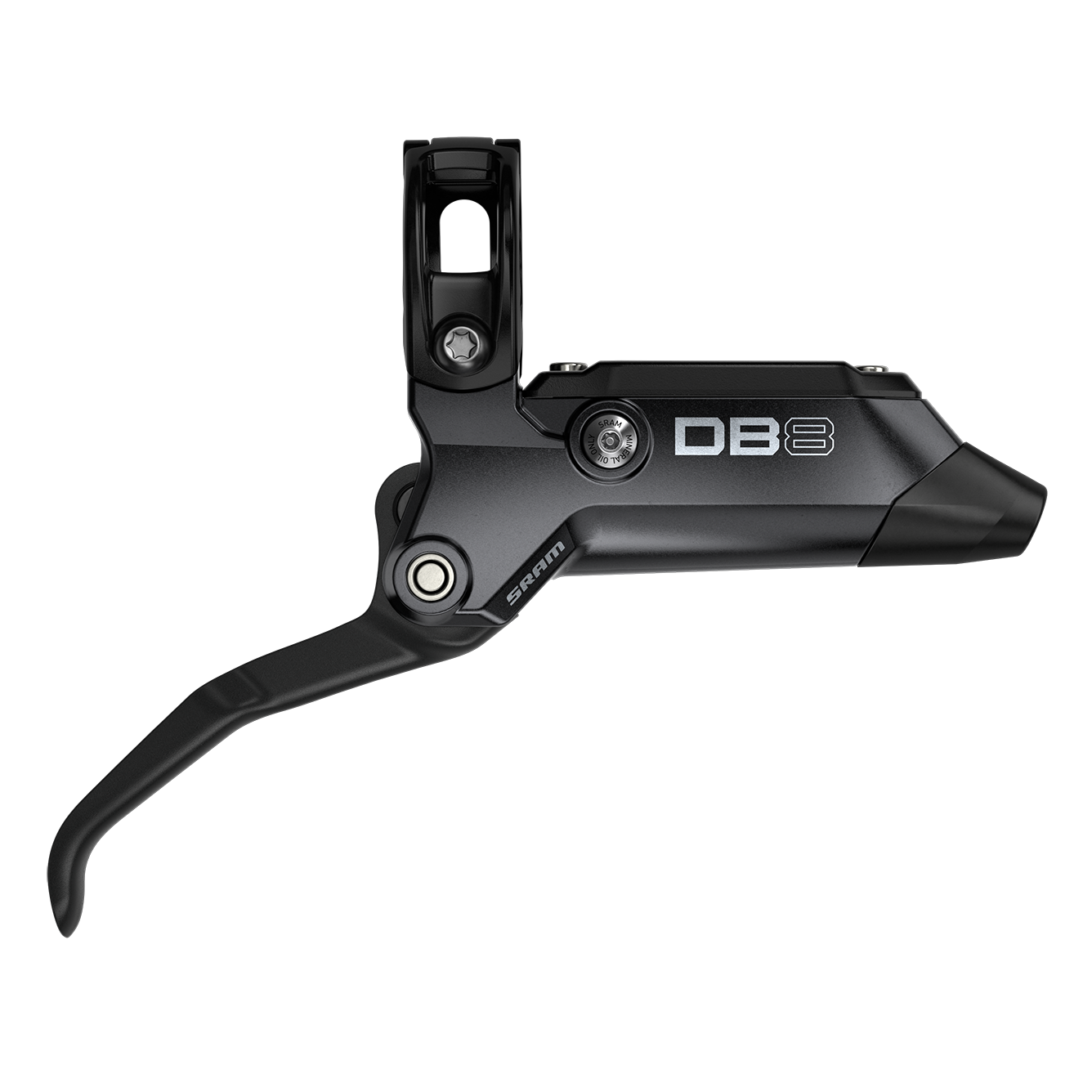

- Stealth lever with hose parallel to the bar
- Mineral oil, low maintenance
- Uses existing Code pads
- Tooled reach adjust
Gallery
Full specifications
Brake
- Application (DB)
- MTB
- Brake type
- Hydraulic
- Blade material
- Aluminum
- Contact adjust
- No
- Color (DB)
- Diffusion Black Anodized
- Orientation
- Front, Rear
- Pad type (Disc)
- Steel-backed metal sintered, Steel-backed organic
- Bracket (Disc Brake)
- Direct mount DIR
- Reach adjust
- Tooled
- Hydraulic fluid
- SRAM Mineral Oil
- Lever pivot
- Bushing
Compatibility
- Rotor sizes
- 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)
Features
- Feature
- Stealth lever architecture for a sleeker, more modern ride
- Feature
- Code-like heavy duty power
- Feature
- Tooled lever reach adjust
- Feature
- Uses existing Code pads
- Feature
- Designed for use with Maxima Mineral Oil only
- Feature
- Designed for use with SRAM Mineral Oil Bleed Kit only
Manufacturer specification — SRAM. Specs and prices can change; check with the brand or your dealer.
SRAM DB versions compared
| DB8 Stealth | DB6 | |
|---|---|---|
| Price | €148 | — |
| Pistons | 4 (Heavy Duty collection) | 4 (Heavy Duty collection) |
| Rotor sizes | 160 / 180 / 200 / 220 mm (6-bolt & Centerlock) | 160 / 180 / 200 / 220 mm (6-bolt & Centerlock) |
| Fluid | SRAM Mineral Oil (Maxima) | SRAM Mineral Oil (Maxima) |
| Lever blade | Aluminum | Aluminum |
| Adjustments | Reach: Tooled | Reach: Tooled |
| Weight | — | 364 g |
| E-bike rated | — | — |
SRAM DB8 Stealth: FAQ
How much does the SRAM DB8 Stealth cost?
€148 (SRAM MSRP (EUR, Germany region), per brake). Prices vary by country and retailer.
Is the SRAM DB8 Stealth suitable for e-bikes?
SRAM does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the SRAM DB8 Stealth?
Pistons: 4 (Heavy Duty collection); Rotor sizes: 160 / 180 / 200 / 220 mm (6-bolt & Centerlock); Fluid: SRAM Mineral Oil (Maxima); Lever blade: Aluminum; Adjustments: Reach: Tooled.
What other versions of the SRAM DB are there?
DB6.
