SRAMMaven Bronze
No MSRP published on sram.com (likely OE)
- Pistons
- 4 × 18 mm
- Rotor sizes
- 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)
- Fluid
- SRAM Mineral Oil (Maxima)
- Lever blade
- Aluminum - Forged
- Adjustments
- Reach: Tool-free
Overview
Maven Bronze is the entry point to the latest Maven Extreme Duty family, with four 18 mm pistons, SwingLink and a forged lever blade.
Maven is SRAM's Extreme Duty brake family – according to SRAM, the benchmark of power for modern riders on ever-more demanding terrain, with a stiff 4-bolt, 4-piston caliper that manages heat so the last corner feels like the first. SRAM says Maven is easily tuneable across gravity, E-MTB, enduro and trail bikes.
SRAM groups its mountain brakes into Heavy Duty (four-piston brakes with set-it-and-forget-it simplicity: Motive and DB) and Extreme Duty (Maven, the most progressive power for gravity and heavy braking). All use SRAM's proprietary seals with mineral oil co-developed with Maxima, and work with 160, 180, 200 and 220 mm rotors in 6-bolt and Centerlock.
- Four 18 mm pistons
- Re-designed SwingLink lever
- New lightweight forged lever blade
- Tool-free reach adjust
- Black anodized finish

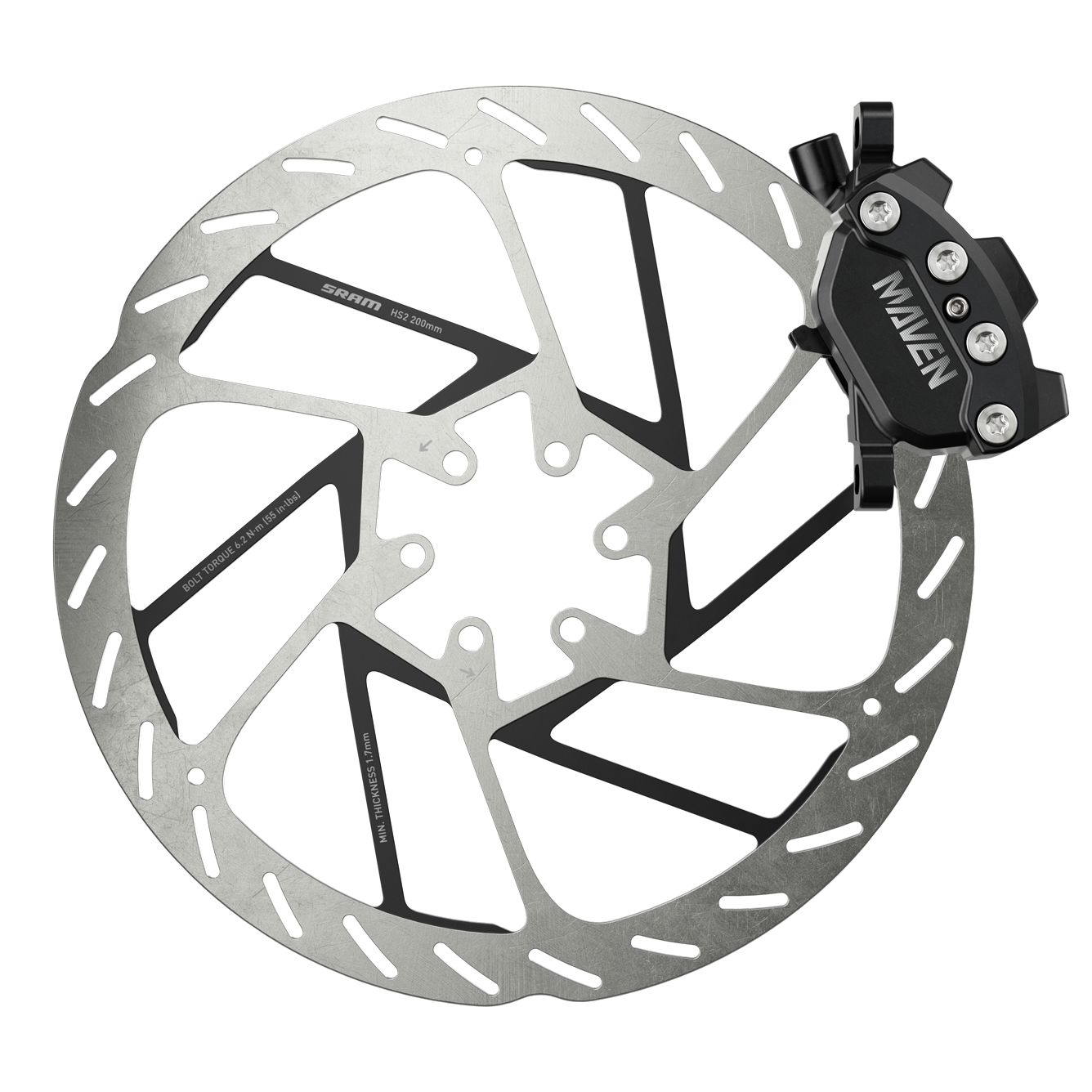

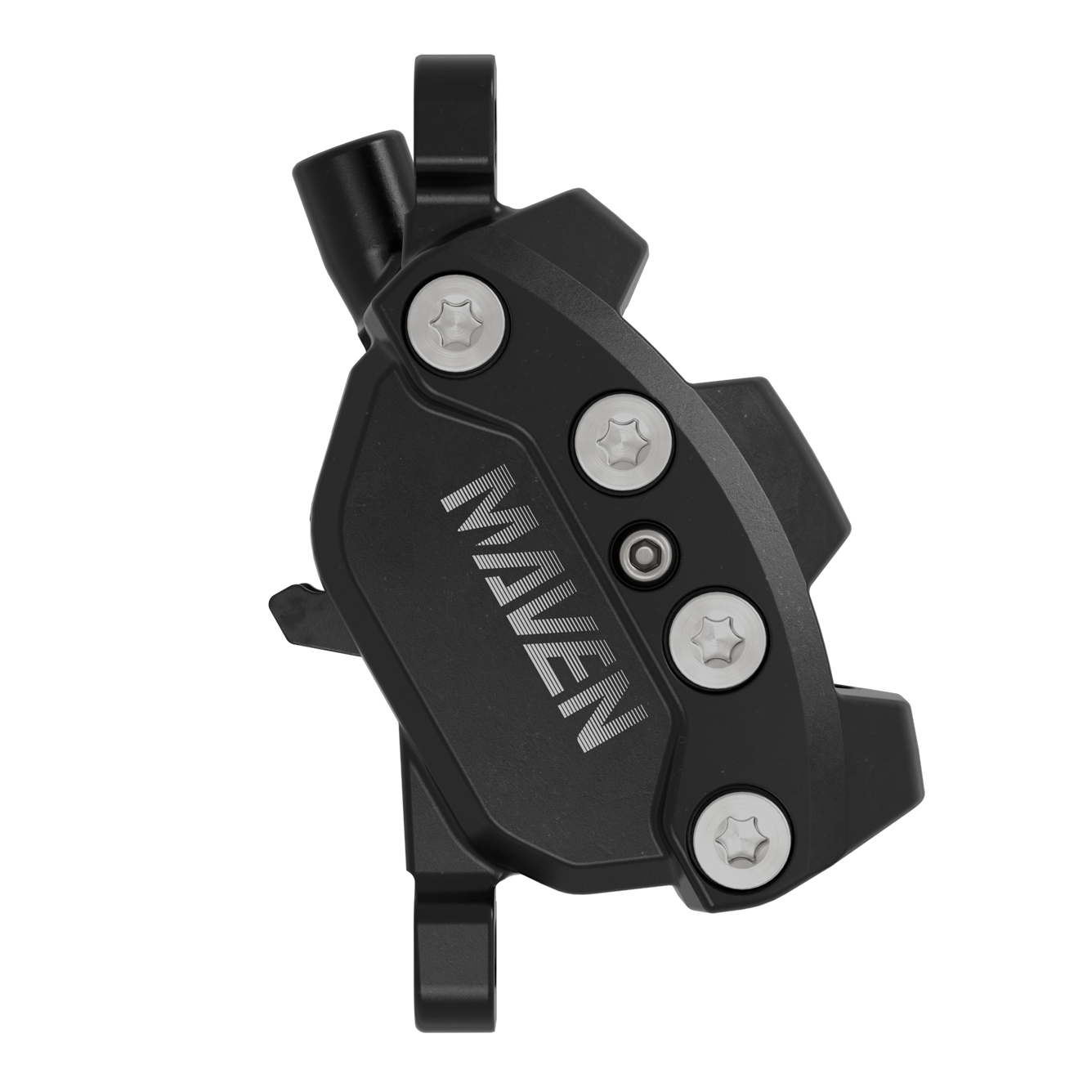

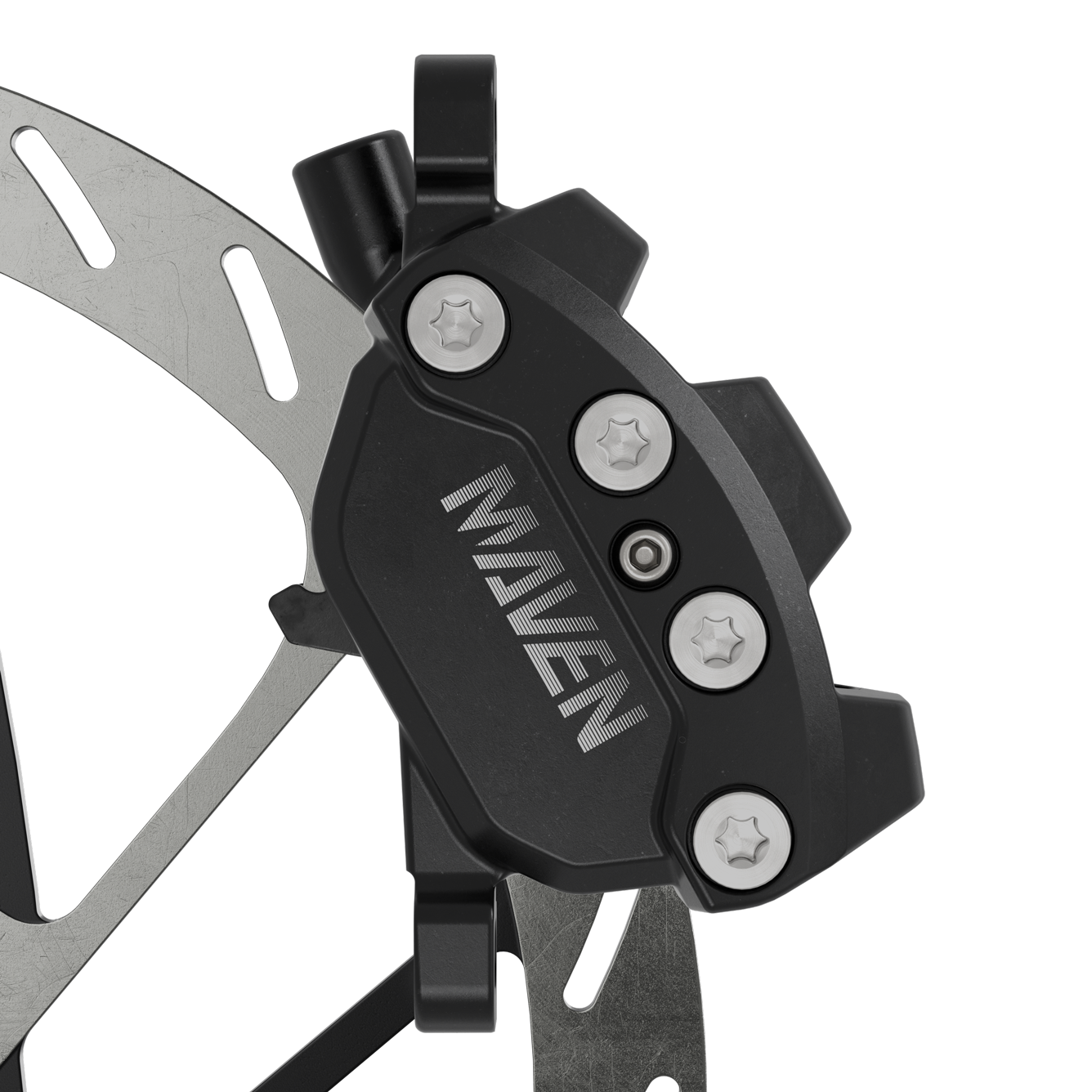

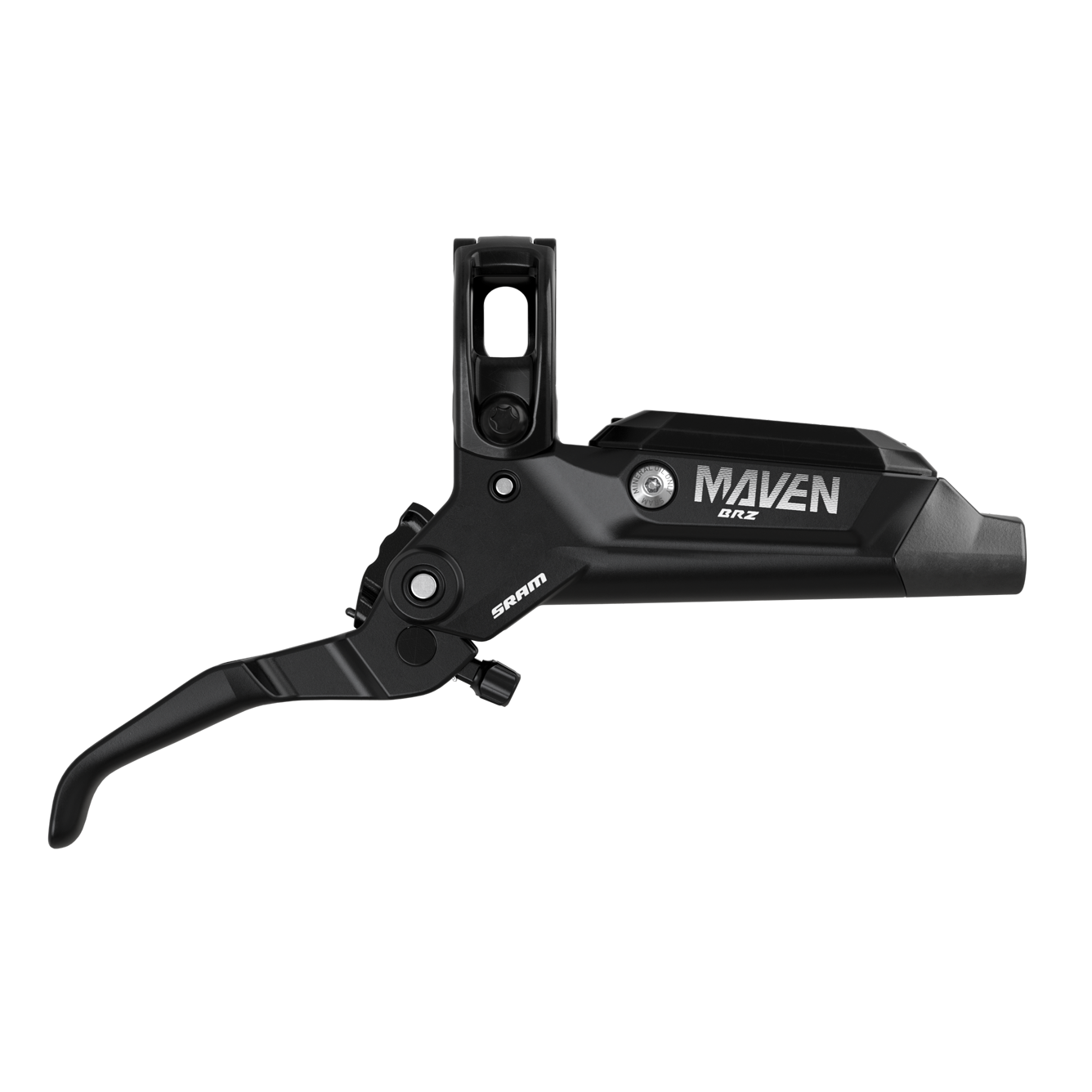

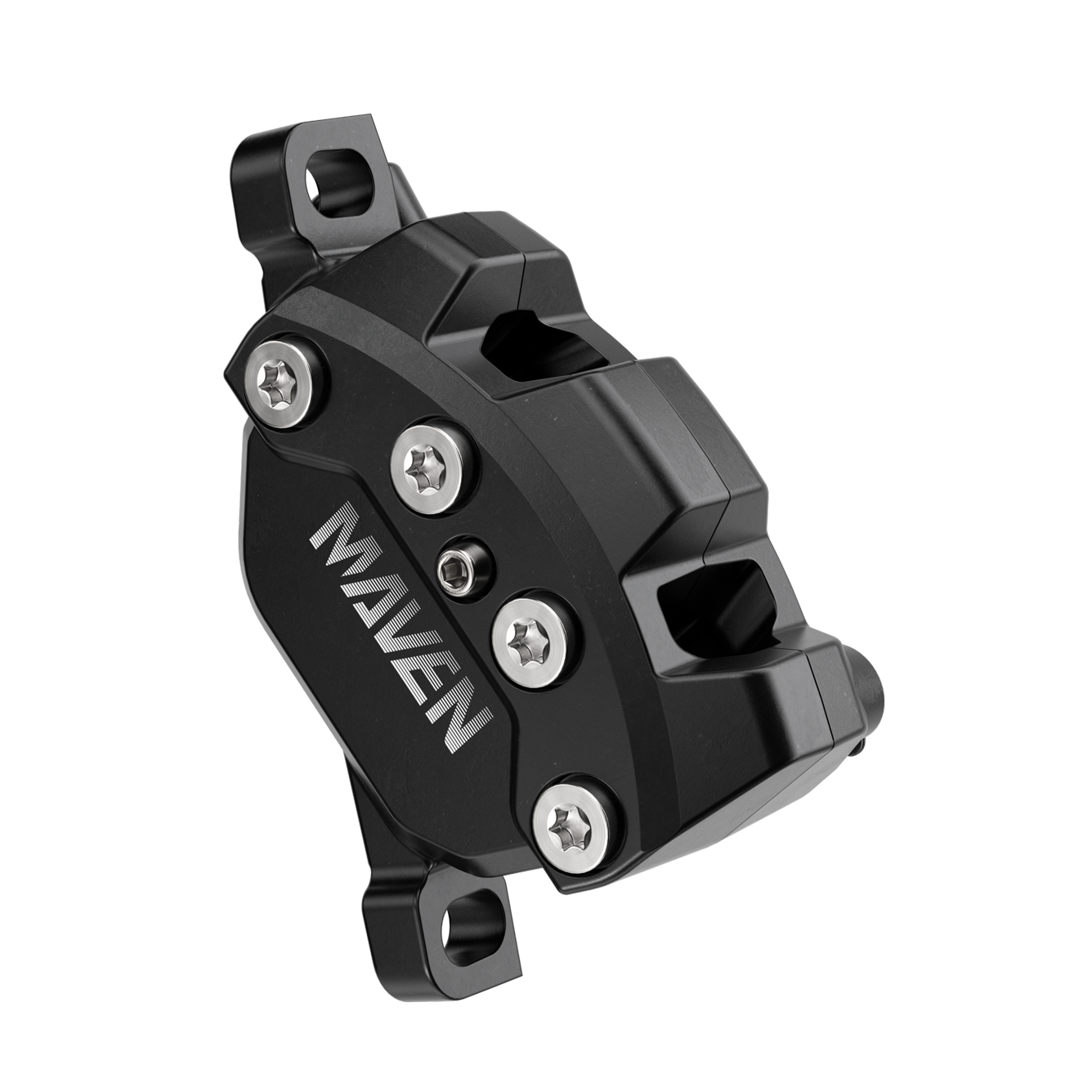

Gallery
Full specifications
Brake
- Application (DB)
- MTB
- Brake type
- Hydraulic
- Blade material
- Aluminum - Forged
- Contact adjust
- No, Yes
- Color (DB)
- Diffusion Black Anodized
- Orientation
- Front, n/a, Rear
- Pad type (Disc)
- Steel-backed metal sintered, Steel-backed organic
- Bracket (Disc Brake)
- Direct mount DIR
- Reach adjust
- Tool-free
- Hydraulic fluid
- SRAM Mineral Oil
- Lever pivot
- Bearing, Bushing
Compatibility
- Rotor sizes
- 160 / 180 / 200 / 220 mm (6-bolt & Centerlock)
Features
- Feature
- Re-designed SwingLink architecture for more predictable power delivery and lighter engagement for a broader range of ergonomic preferences
- Feature
- 18-millimeter pistons for best-in-class power
- Feature
- Easily tuneable across Gravity, E-MTB, Enduro and Trail bikes
- Feature
- Stiff 4-piston caliper with best heat management
- Feature
- Stealth lever architecture for a sleeker, more modern ride
- Feature
- Mineral Oil for low maintenance and performance
- Feature
- Designed for use with Maxima Mineral Brake Oil only
- Feature
- Sleek black anodized finish fits any build
- Feature
- New lightweight forged lever blade
- Feature
- Tool-free Reach Adjust
Manufacturer specification — SRAM. Specs and prices can change; check with the brand or your dealer.
SRAM Maven versions compared
| Maven Ultimate | Maven Silver | Maven Bronze | Maven Base | |
|---|---|---|---|---|
| Price | €325 | €290 | — | €200 |
| Pistons | 4 × 18 mm | 4 × 18 mm | 4 × 18 mm | 4 × 18 mm |
| Rotor sizes | 160 / 180 / 200 / 220 mm (6-bolt & Centerlock) | 160 / 180 / 200 / 220 mm (6-bolt & Centerlock) | 160 / 180 / 200 / 220 mm (6-bolt & Centerlock) | 160 / 180 / 200 / 220 mm (6-bolt & Centerlock) |
| Fluid | SRAM Mineral Oil (Maxima) | SRAM Mineral Oil (Maxima) | SRAM Mineral Oil (Maxima) | SRAM Mineral Oil (Maxima) |
| Lever blade | Carbon | Aluminum - CNC Forged | Aluminum - Forged | Aluminum |
| Adjustments | Reach: Tool-free; contact point | Reach: Tool-free; contact point | Reach: Tool-free | Reach: Tool-free |
| Weight | — | — | — | 381 g |
| E-bike rated | Yes | Yes | Yes | — |
eMTBs that come with the SRAM Maven
SRAM Maven Bronze: FAQ
Is the SRAM Maven Bronze suitable for e-bikes?
Yes — SRAM lists it as e-bike rated or e-bike specific.
What are the key specs of the SRAM Maven Bronze?
Pistons: 4 × 18 mm; Rotor sizes: 160 / 180 / 200 / 220 mm (6-bolt & Centerlock); Fluid: SRAM Mineral Oil (Maxima); Lever blade: Aluminum - Forged; Adjustments: Reach: Tool-free.
What other versions of the SRAM Maven are there?
Maven Ultimate (€325), Maven Silver (€290), Maven Base (€200).
