GhostE-Riot Advanced
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhBosch InTube
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
- Frame
- Carbon
Overview

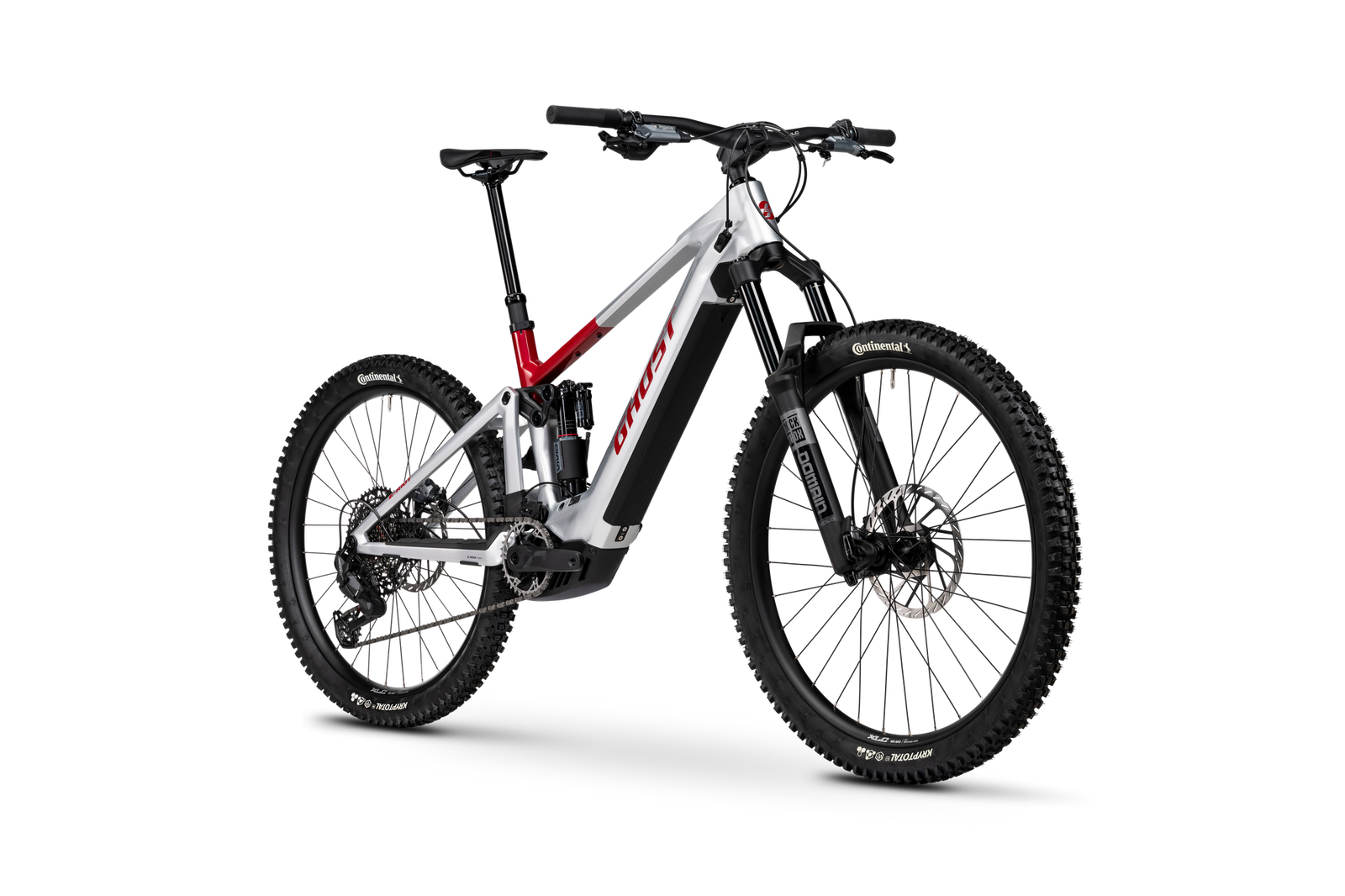

The Ghost E-Riot Advanced (€6,499) is the entry build of the E-Riot CF: Bosch Performance Line CX with 800 Wh, Rockshox Domain Gold Isolator RC3 Debonair fork, Rockshox Vivid Select shock, Sram Eagle 70 T-Type 12s and Sram DB Maven Base brakes.
The E-Riot CF is Ghost's carbon e-enduro bike in the "Built for the Rough" line: 170 mm of fork travel, 160 mm at the rear via a trunnion-mount 205x65 mm shock, and a 64° head angle with 445 mm chainstays.
All four builds use a Bosch Performance Line motor with an 800 Wh battery and a Kiox 400C display; the Advanced and Pro get the Performance Line CX with an InTube battery, while the Full Party and LTD step up to the CX-R with a PowerTube. Builds range from RockShox Domain/Vivid to FOX Factory 38/Float X2 suspension.
- Carbon frame, 170/160 mm travel
- Bosch Performance Line CX or CX-R
- 800 Wh battery, Kiox 400C display
- 64° head angle, 445 mm chainstays
Gallery
Photos: Ghost
Full specifications
Frame & suspension
- Frame
- HIGH Carbon Uni
- Max system weight
- 150 kg
- Fork

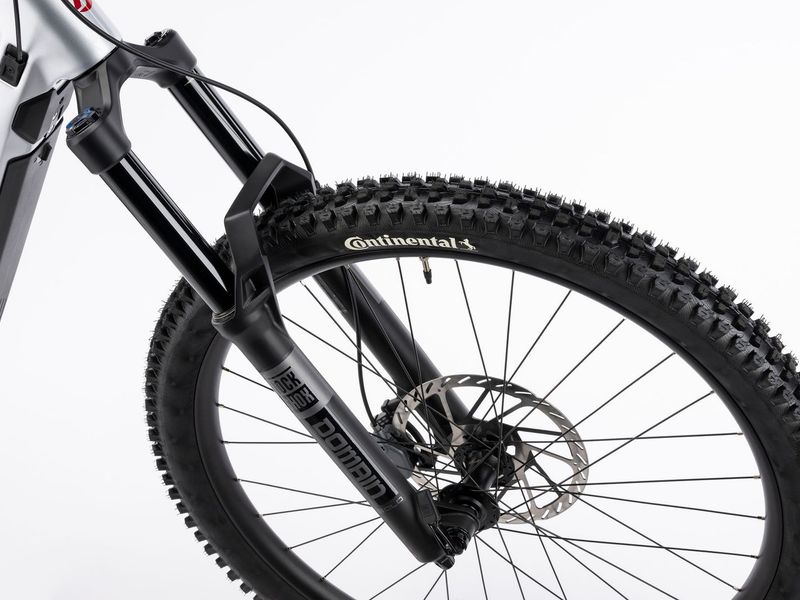

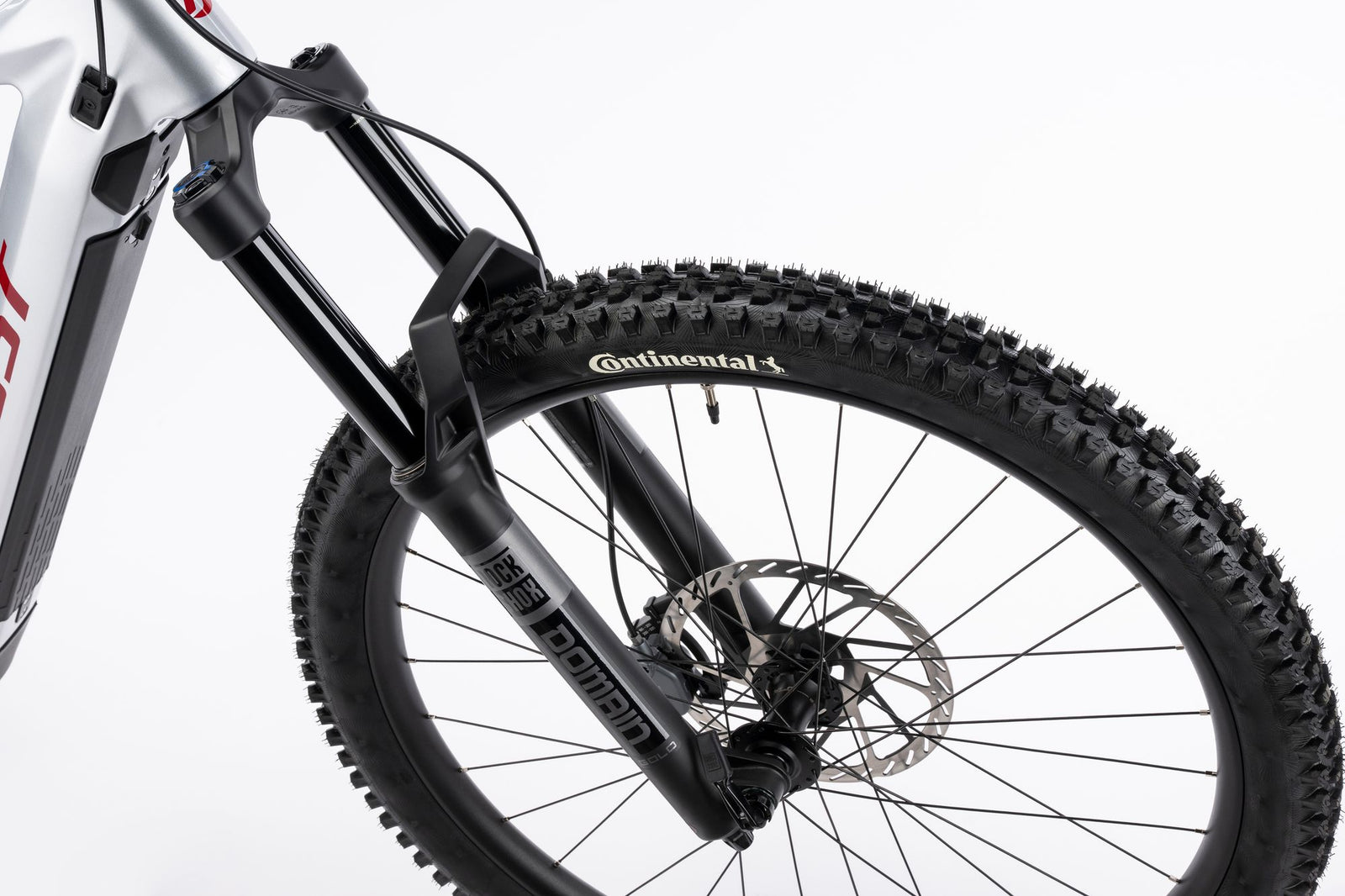

- Rockshox Domain Gold Isolator RC3 Debonair 170 mm
- Rear shock

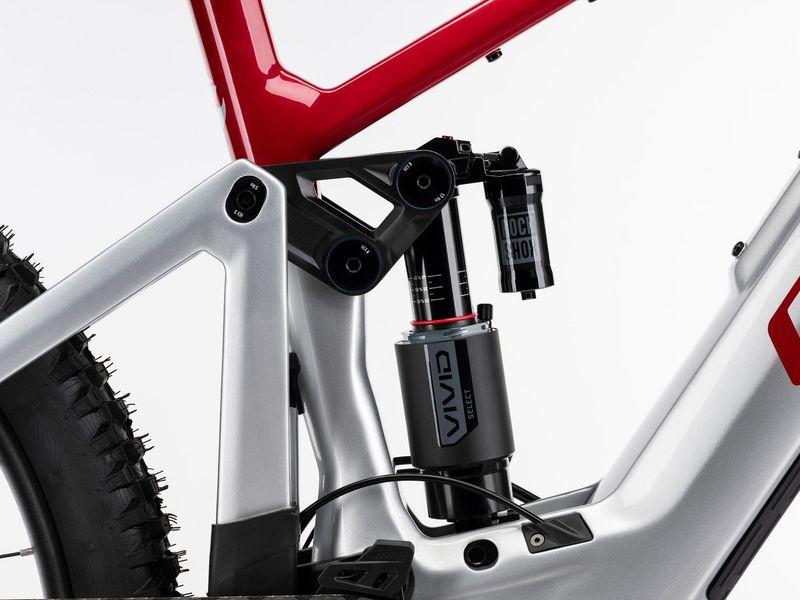

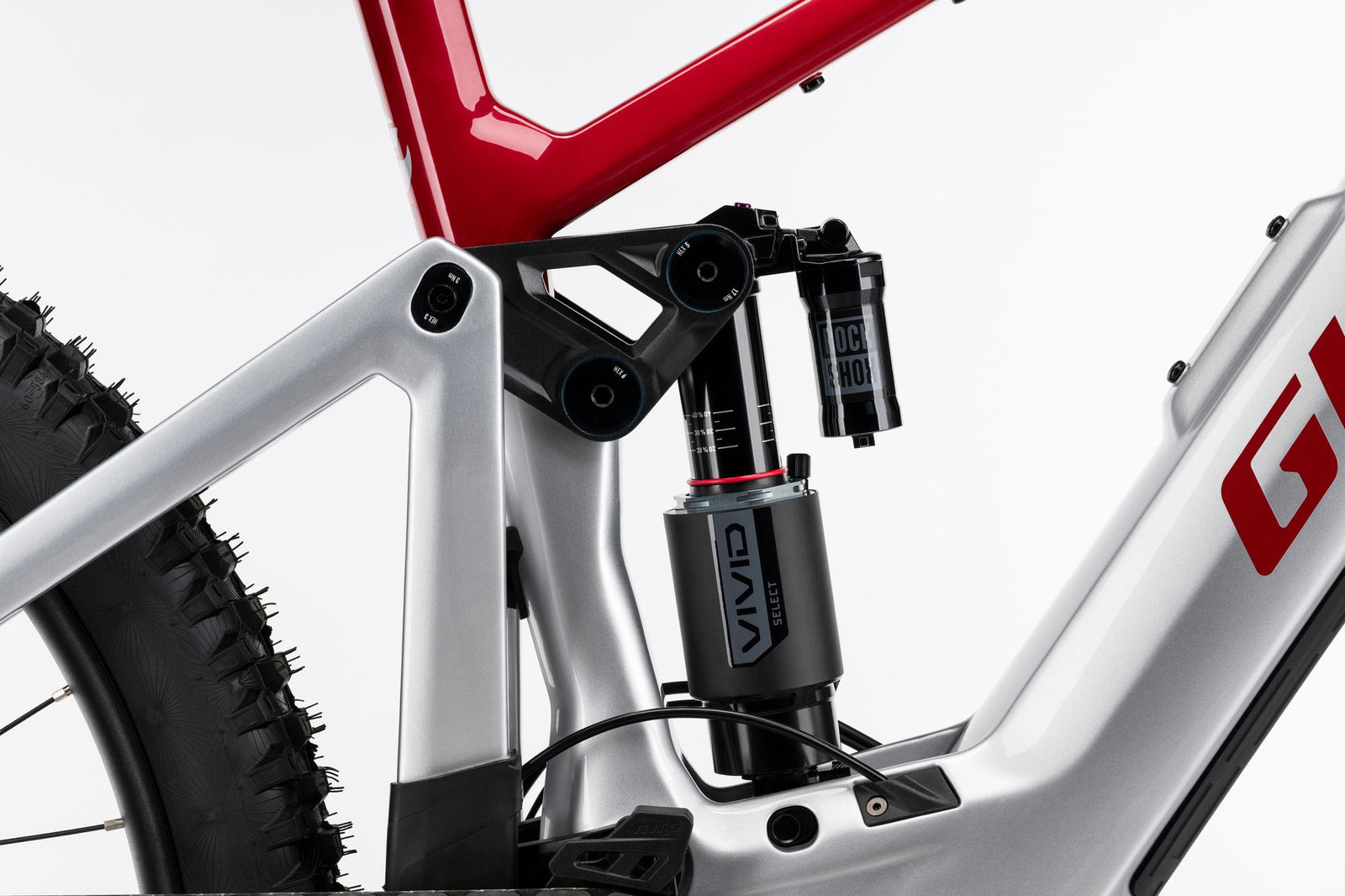

- Rockshox Vivid Select 205x65mm Vivid Air, Trunnion
- Rear Travel
- 160 mm
E-system
- Battery
- Bosch InTube 800 Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Kiox 400C + Mini Remote
- Motor

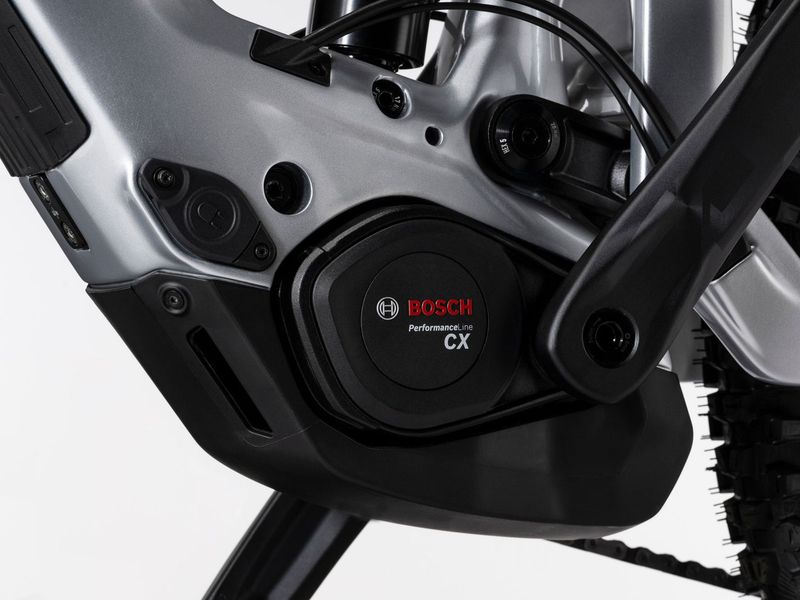

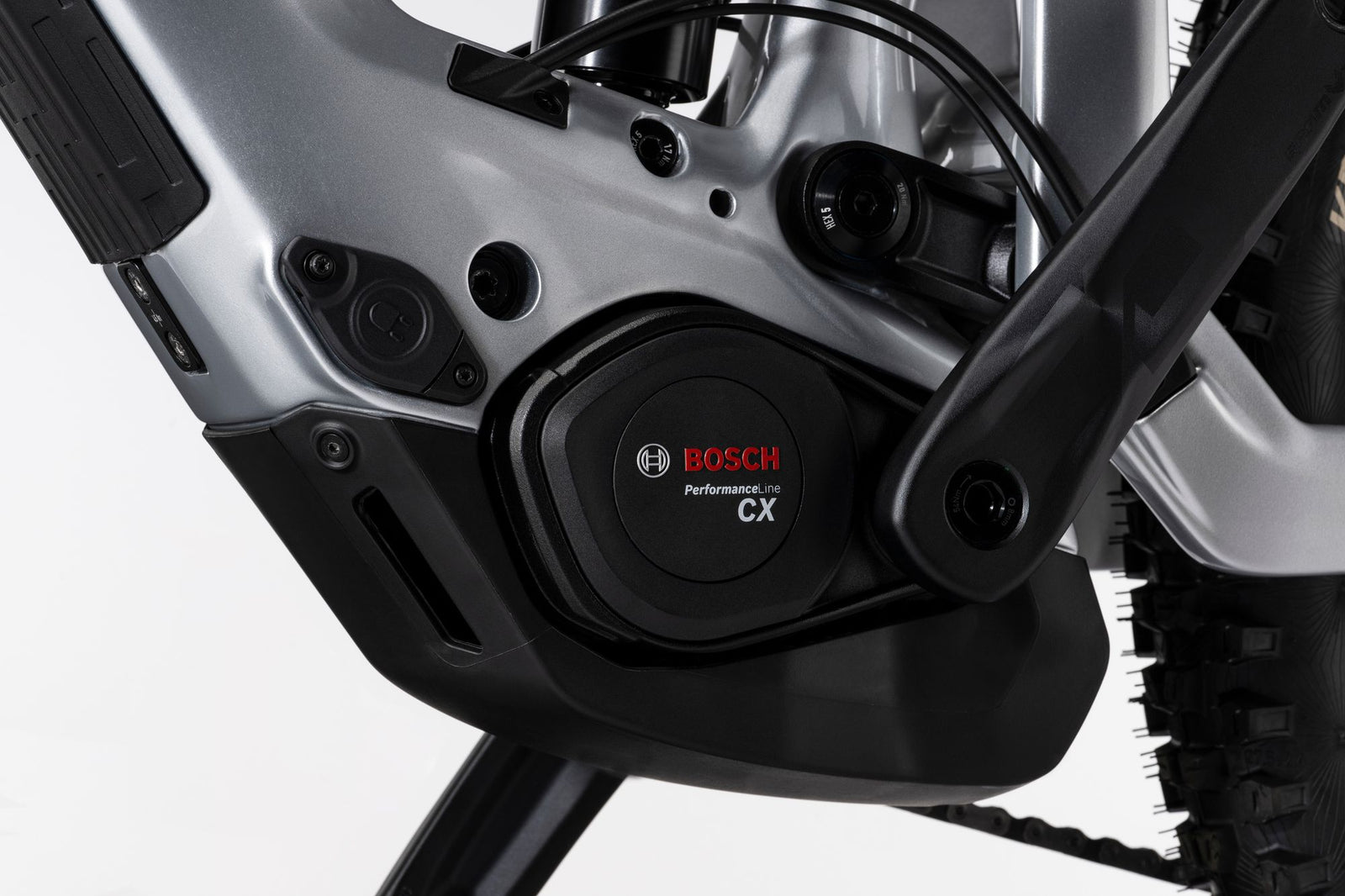

- Bosch Performance Line CX
Drivetrain
- Chain

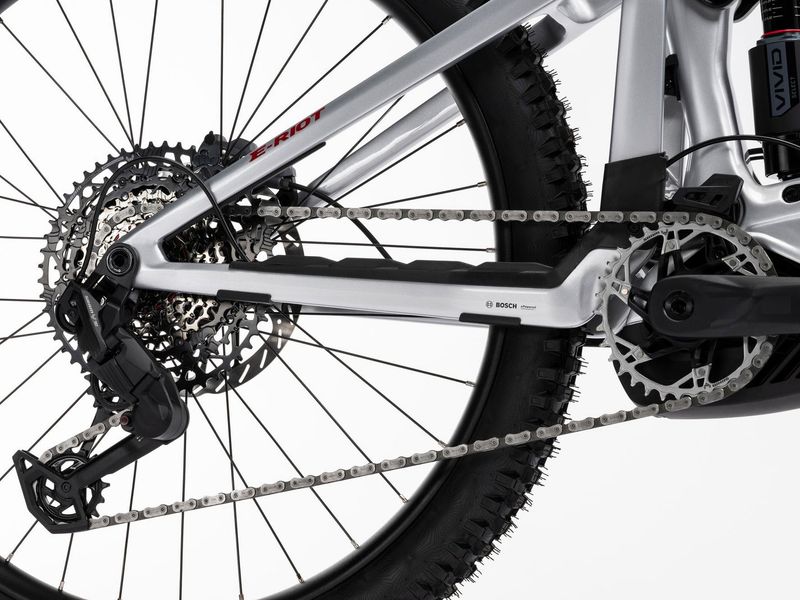

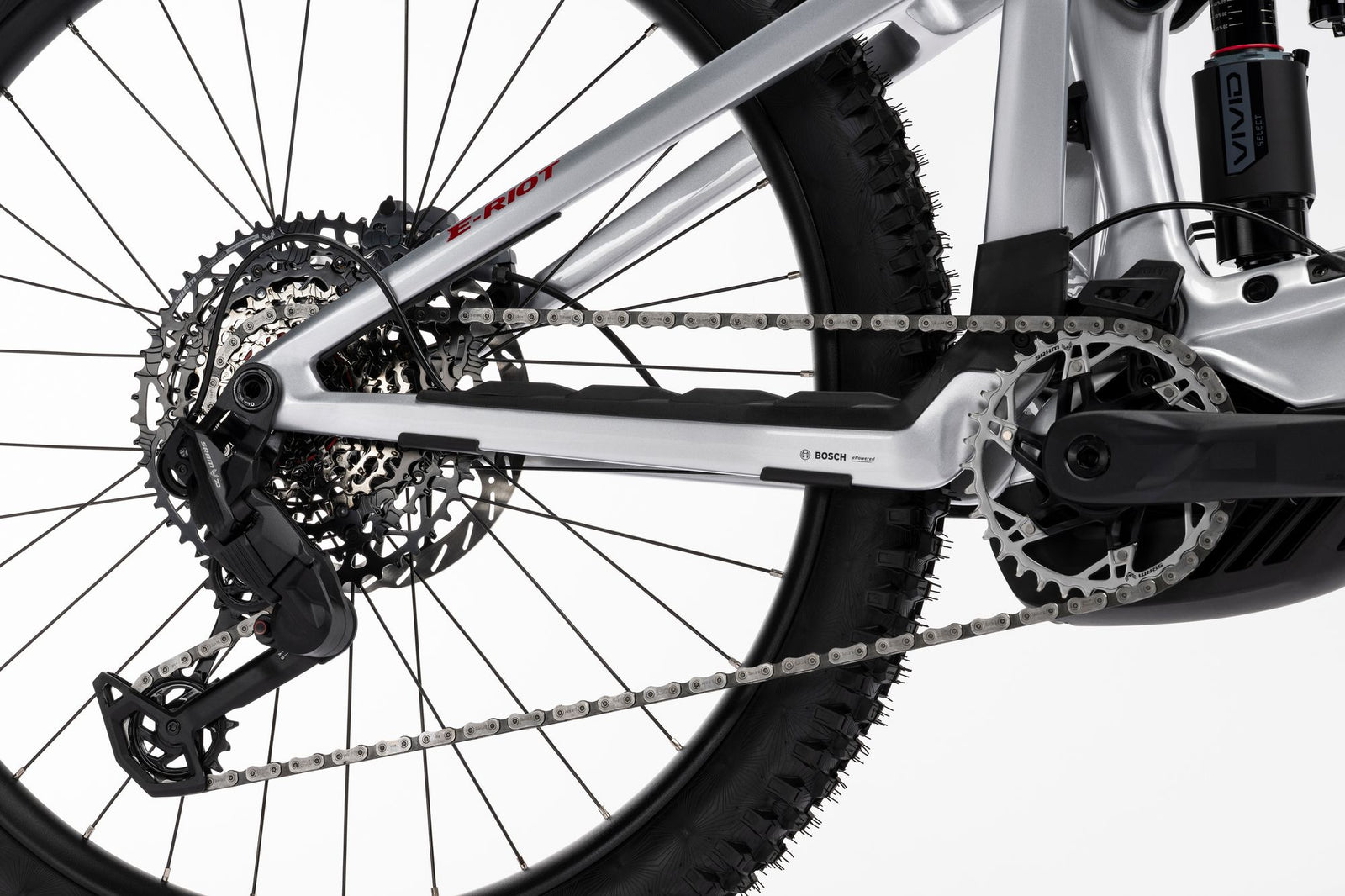

- Sram Eagle 70 T-Type 12s
- Crankset
- Eagle 70 ISIS Cranks + CR XX Bosch DU38 DM T-Type
- Rear derailleur
- Sram Eagle 70 T-Type 12s
- Gears
- 12
- Shifter
- Sram Triggershift Eagle 70 T-Type Single Click Trigger
Brakes
- Front Brake
- Sram Hydraulic Disc brake DB Maven Base, 4 pistons, organic pad, 220 mm
- Rear Brake
- Sram Hydraulic Disc brake DB Maven Base, 4 pistons, organic pad, 200 mm
Wheels & tyres
- Rims
- XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve
- Tyres
- Continental Kryptotal-Fr Enduro Super Soft, TR 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar

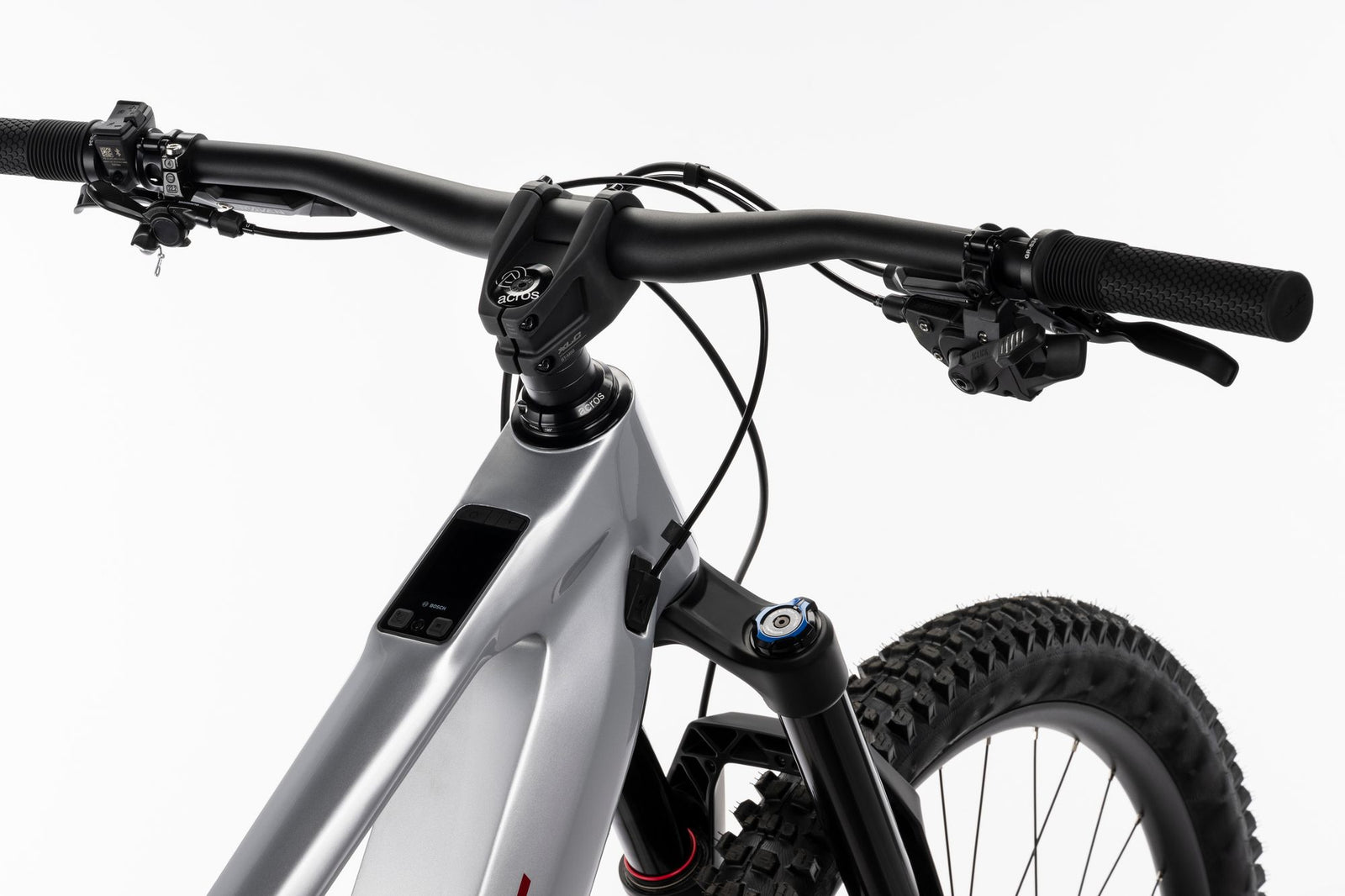

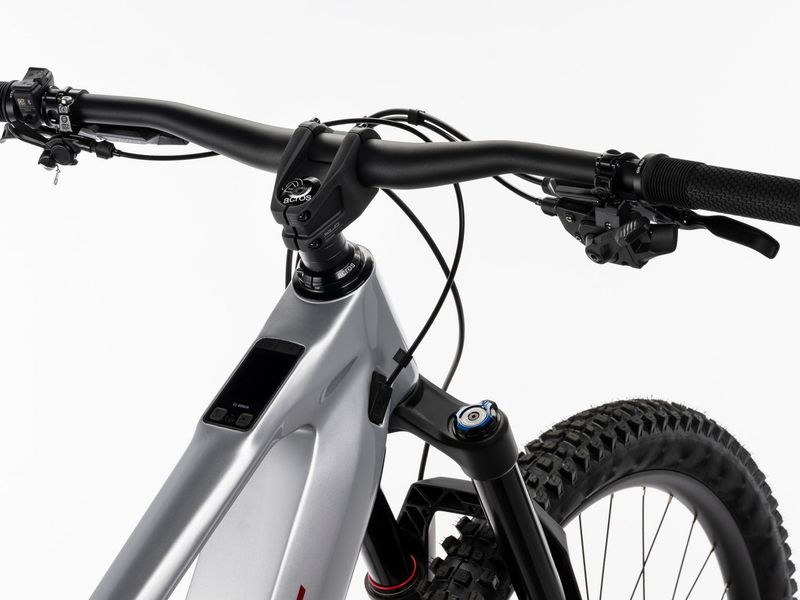

- XLC Riser Bar HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9°
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- Prologo MTB Proxim Nembo Steel rail 145 mm
- Seatpost
- XLC Dropperpost Dropper SP-T21, Dia. 34.9 mm, Travel: 170 mm 500 mm
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
E-Riot CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 384 mm | 409 mm | 424 mm | 474 mm |
| BTop tube length | 572 mm | 604 mm | 632 mm | 660 mm |
| CHead tube length | 90 mm | 100 mm | 115 mm | 130 mm |
| DHead angle | 64° | 64° | 64° | 64° |
| ESeat angle | 77.5° | 77.5° | 77.5° | 77.5° |
| FChainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| GWheelbase | 1216.43 mm | 1250.81 mm | 1282.38 mm | 1313.96 mm |
| HStack | 617.9 mm | 626.89 mm | 640.37 mm | 653.85 mm |
| IReach | 435 mm | 465 mm | 490 mm | 515 mm |
| JStandover height | 763.63 mm | 760.61 mm | 760.29 mm | 759.73 mm |
| KBottom bracket drop | 10 mm | 10 mm | 10 mm | 10 mm |
Source: Ghost.
E-Riot CF: builds compared
E-Riot CF range →| E-Riot Advanced | E-Riot Pro | E-Riot Full Party | E-Riot LTD | |
|---|---|---|---|---|
| Price | €6,499 | €8,000 | €9,500 | €11,000 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Rockshox Domain Gold Isolator RC3 Debonair 170 mm | FOX Factory 38 Float Performance eMTB+, GRIP | Rockshox ZEB ULTIMATE CHARGER 3.1 RC2 Debonair, 170 mm | FOX Factory 38 Factory EMTB - GRIP X2, FLOAT |
| Shock | Rockshox Vivid Select 205x65mm Vivid Air | FOX Factory FLOAT X2 Performance | Rockshox Vivid Ultimate 205x65mm Vivid Air | FOX Factory FLOAT X2 Factory |
| Derailleur | Sram Eagle 70 T-Type 12s | Sram Eagle 90 T-Type 12s | Sram GX Eagle AXS T-Type 12s | Shimano XTR RD-M9260 12s |
| Brakes | Sram Hydraulic Disc brake DB Maven Base | Shimano Hydraulic Disc brake Deore BR-M6120 | Sram Hydraulic Disc brake DB Maven Silver | Shimano Hydraulic Disc brake Deore XT BR-M8220 |
| Wheels | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve | DT Swiss H 1900 Spline 29 | DT Swiss HXC 1501 Spline One 29 |
| Display | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote |
E-Riot Advanced: FAQ
How much does the Ghost E-Riot Advanced cost?
€6,499 (RRP Germany, VAT incl.). The E-Riot CF range runs from €6,499 (E-Riot Advanced) to €11,000 (E-Riot LTD). Prices vary by country and dealer.
What motor and battery does the Ghost E-Riot Advanced have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — bosch InTube.
How much suspension travel does the Ghost E-Riot Advanced have?
170 mm at the fork and 160 mm at the rear, on 29" wheels.
What sizes does the Ghost E-Riot Advanced come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the E-Riot Advanced and the E-Riot Pro?
They share the E-Riot CF frame platform and motor; the differences are in the parts — fork: Rockshox Domain Gold Isolator RC3 Debonair 170 mm vs FOX Factory 38 Float Performance eMTB+; shock: Rockshox Vivid Select 205x65mm Vivid Air vs FOX Factory FLOAT X2 Performance; derailleur: Sram Eagle 70 T-Type 12s vs Sram Eagle 90 T-Type 12s; brakes: Sram Hydraulic Disc brake DB Maven Base vs Shimano Hydraulic Disc brake Deore BR-M6120; price: €6,499 vs €8,000.
