GhostPath Riot Advanced
- Motor
- Fazua Ride 6060 Nm
- Battery
- 480 WhFazua Energy
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Carbon
Overview
The Ghost Path Riot Advanced (€6,999) is the entry build of the Path Riot: Fazua Ride 60 with 480 Wh, Rockshox Lyrik Select Charger RC fork, Rockshox Super Deluxe Select RT shock, Shimano Deore RD-M6100-SGS 12s and Shimano BR-MT520 brakes.
The Path Riot is Ghost's carbon light e-MTB, built around the Fazua Ride 60 motor (60 Nm) and a 480 Wh Fazua Energy battery, controlled via the Ring Control remote and LED Hub.
It has 140 mm of rear travel on a 185x55 mm shock with 150 to 160 mm forks and 29-inch wheels. The Advanced uses RockShox Lyrik Select and Shimano Deore; the CF Full Party and CF LTD move to Lyrik Ultimate or FOX Factory 36 suspension, SRAM AXS wireless shifting and DT Swiss wheels. Maximum system weight is 120 kg.
- Light e-MTB with Fazua Ride 60 (60 Nm)
- 480 Wh Fazua Energy battery
- Carbon frame, 140 mm rear travel
- 150–160 mm fork, 29-inch wheels

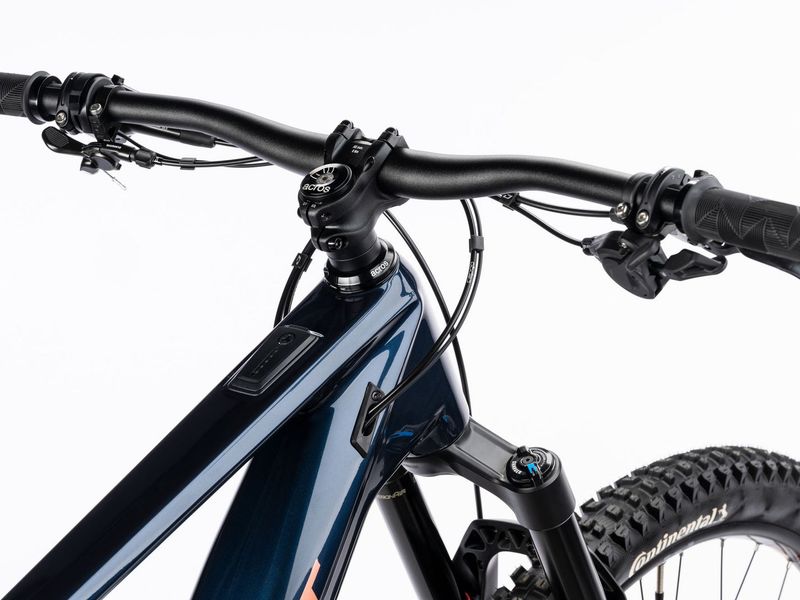

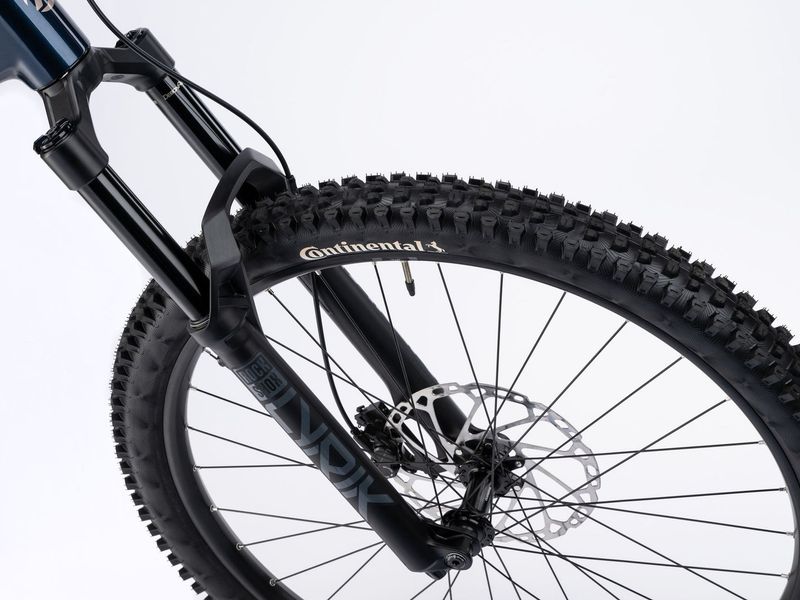

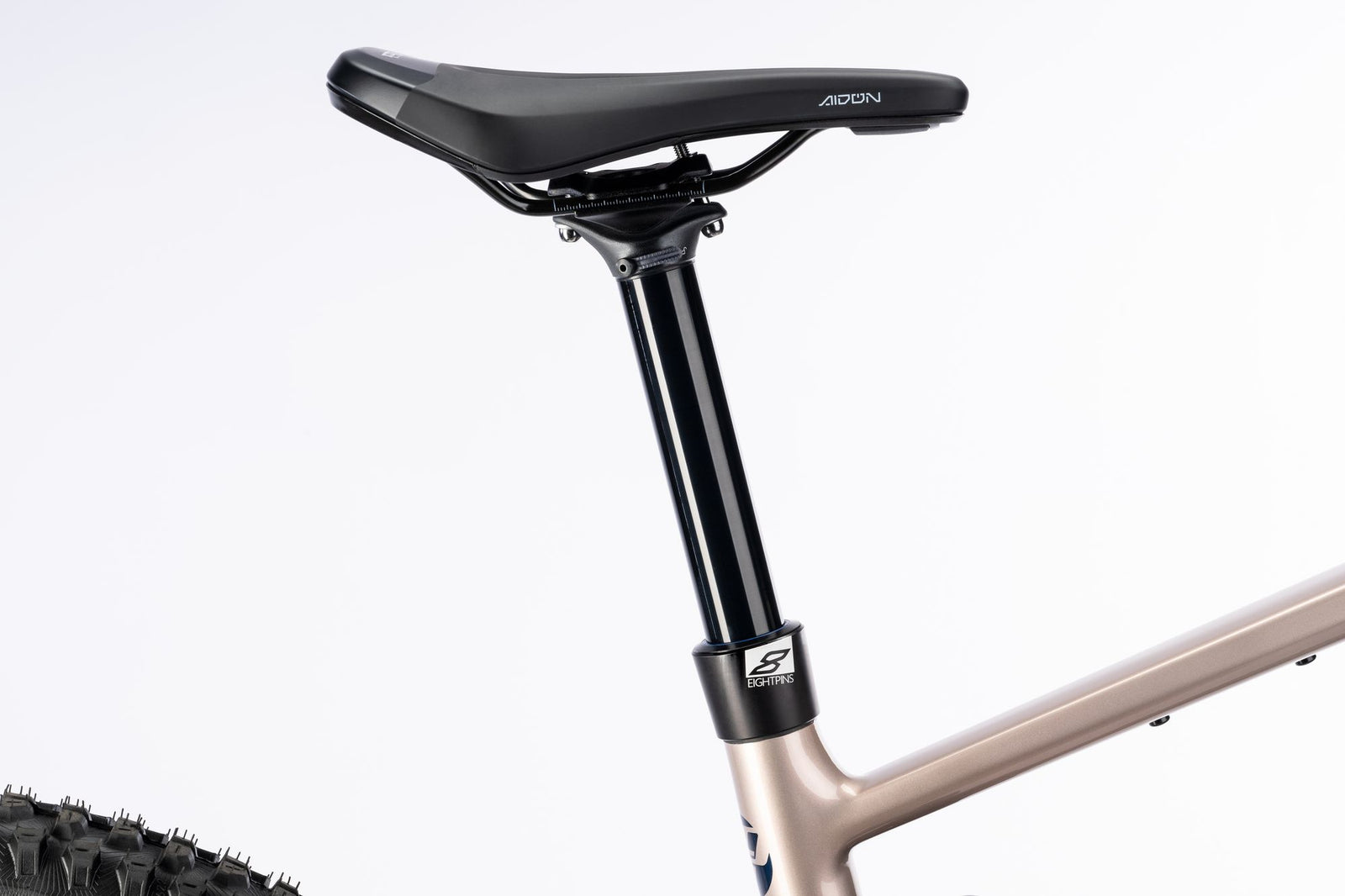

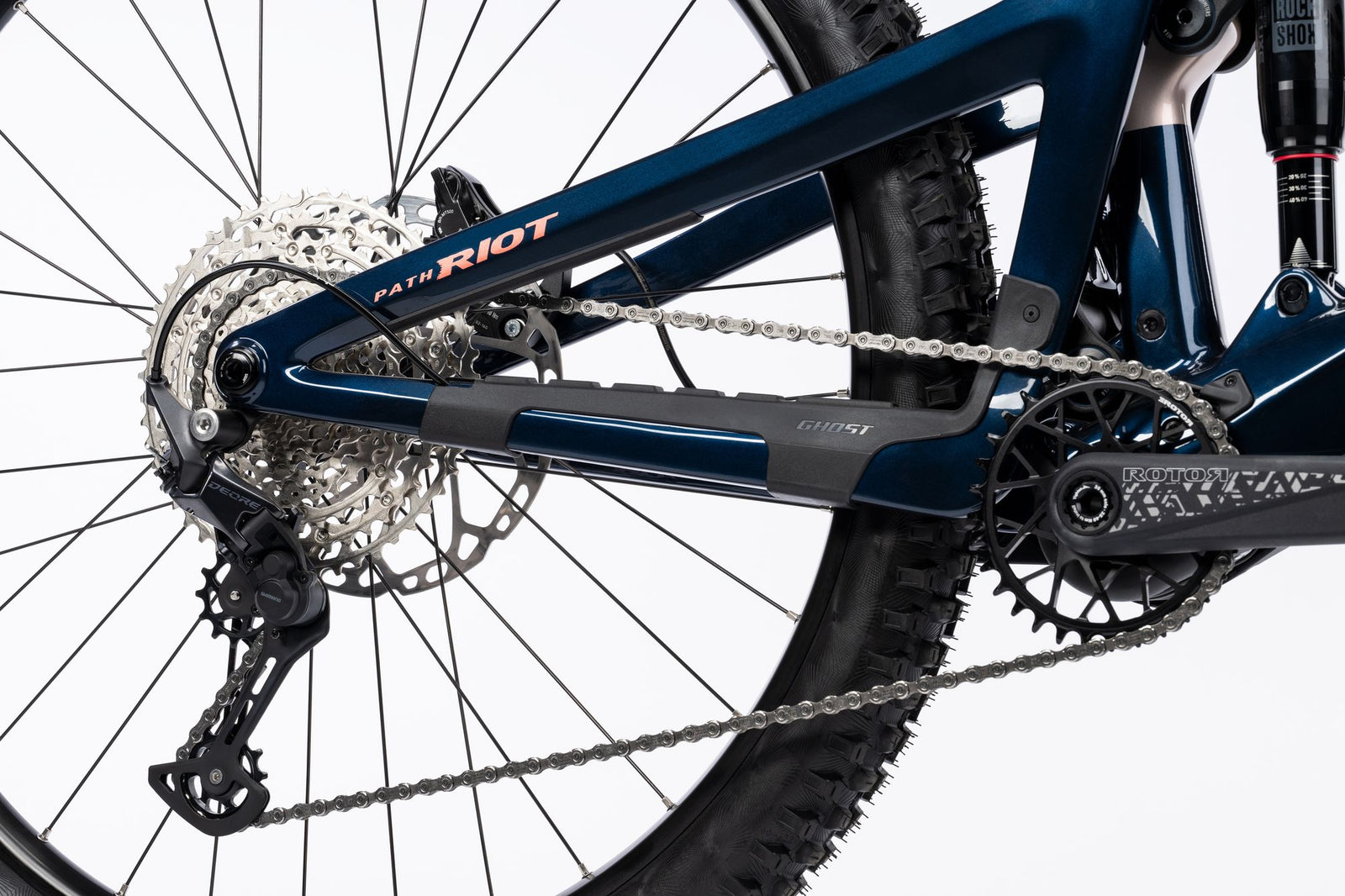

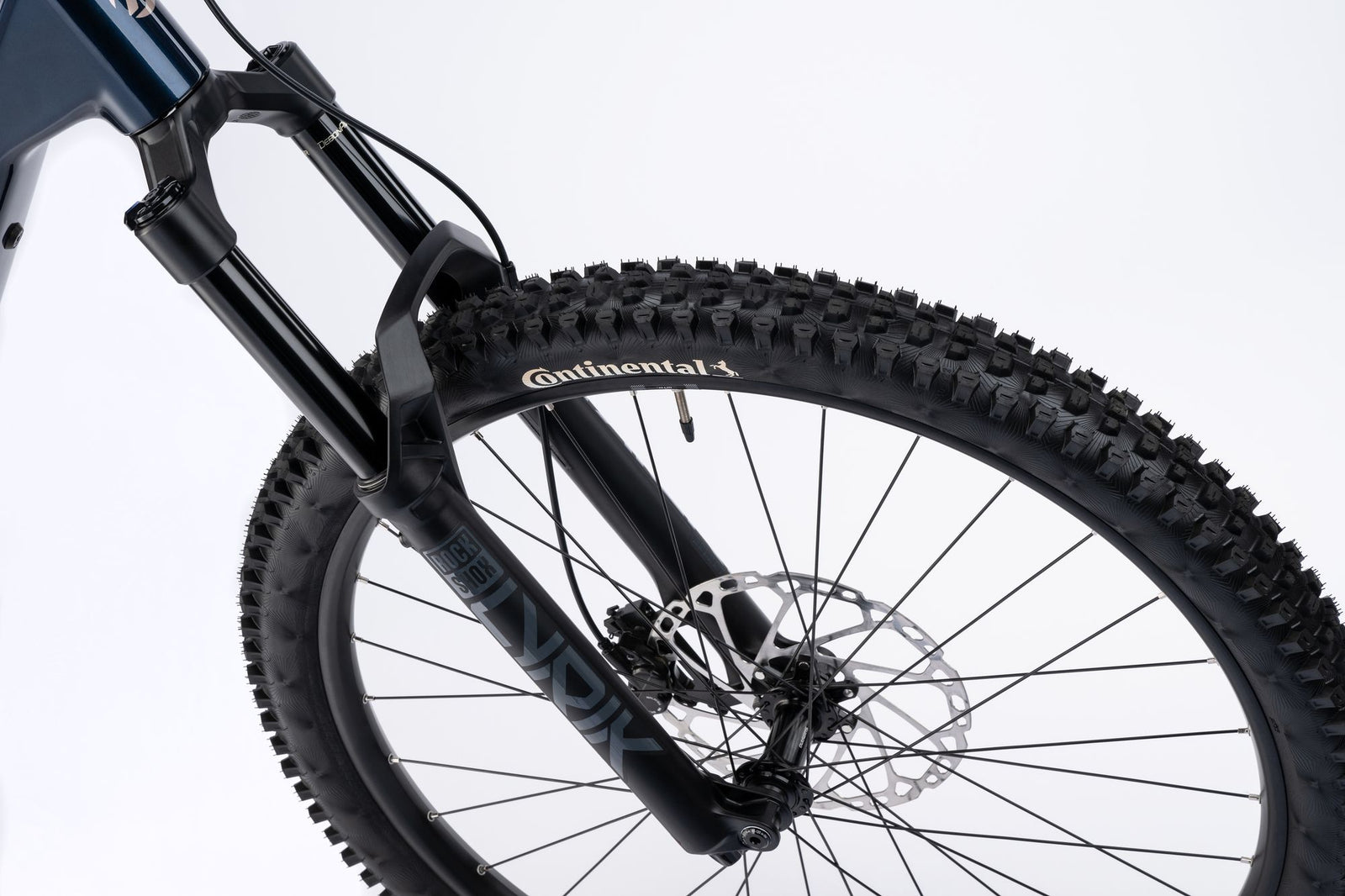

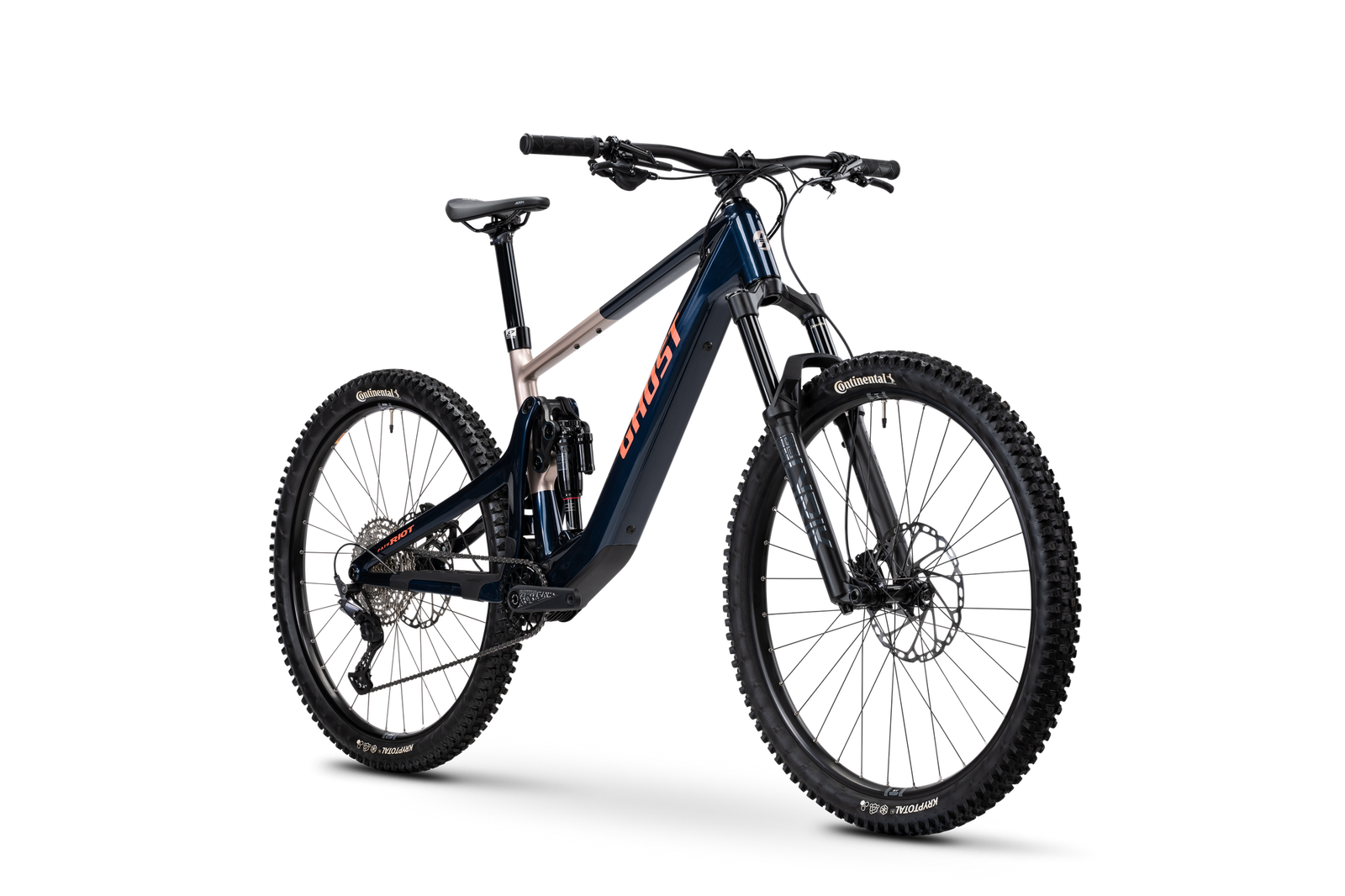

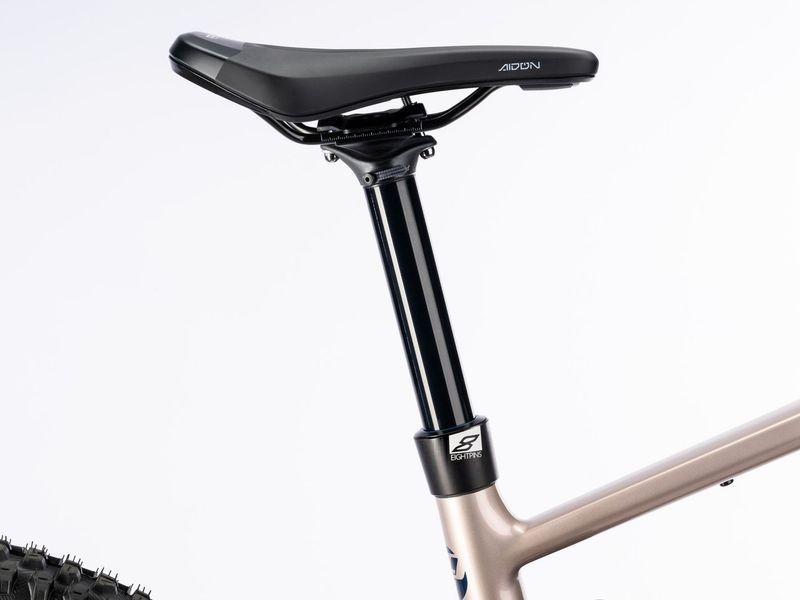

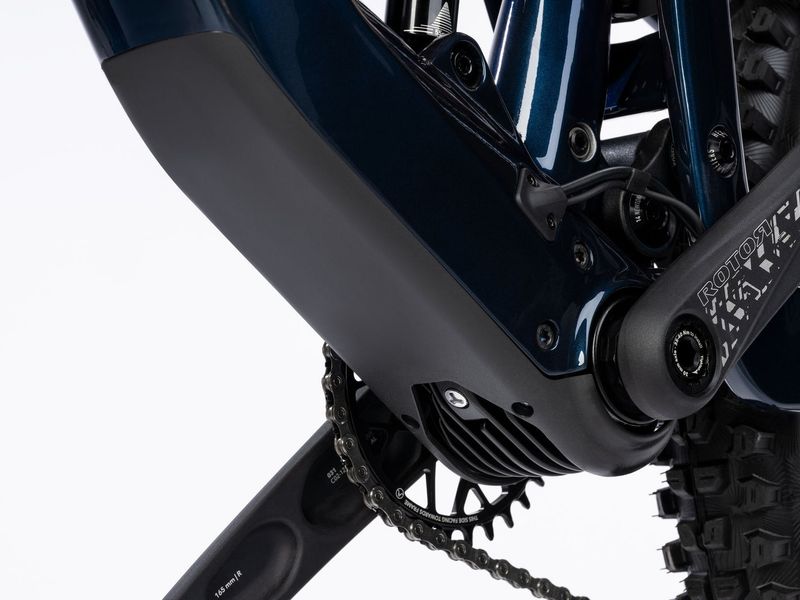

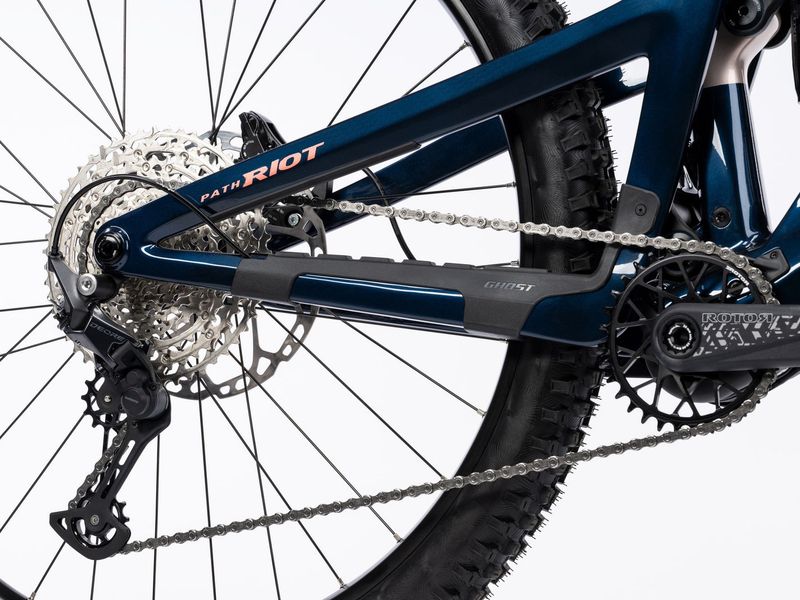

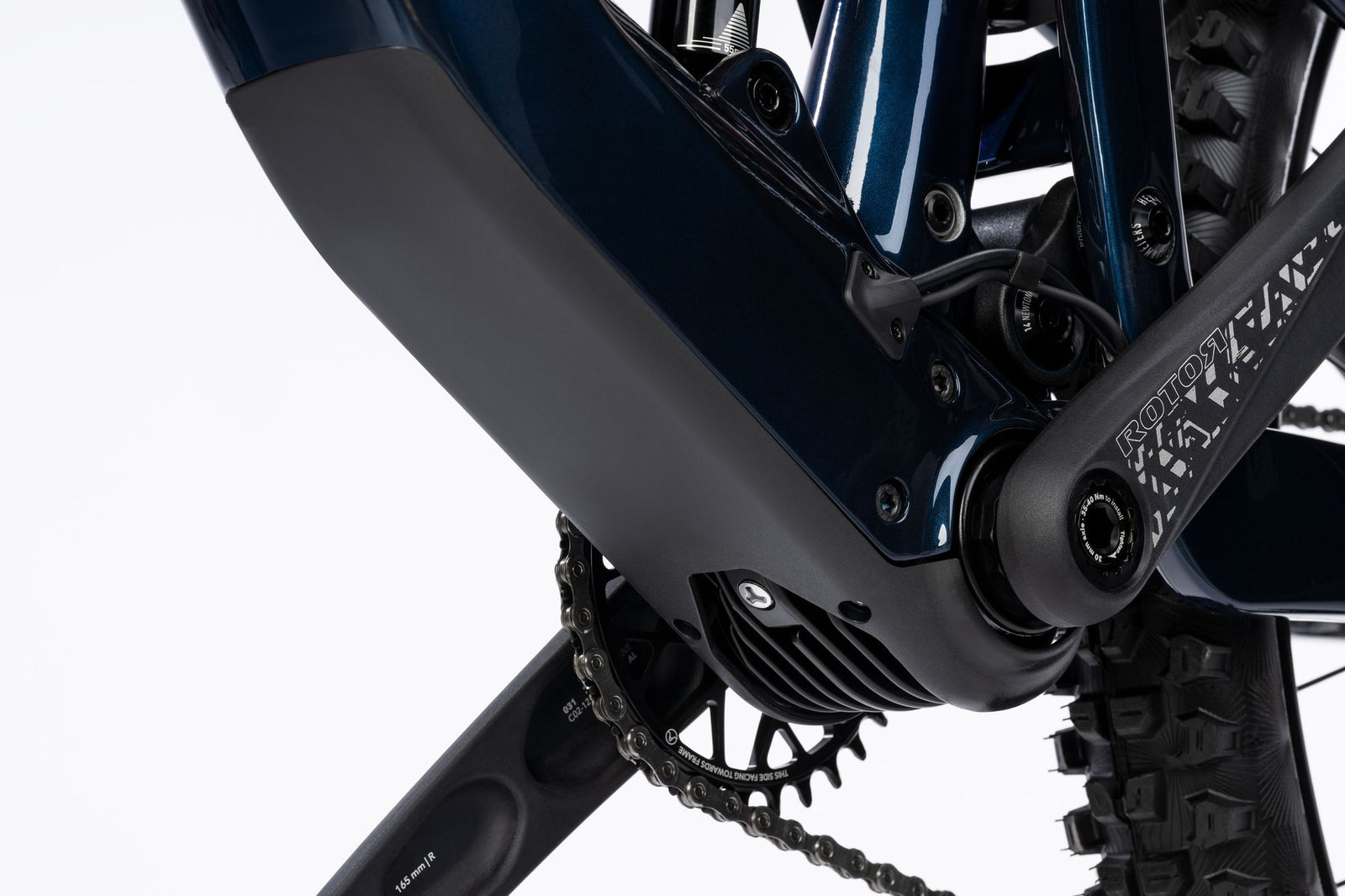

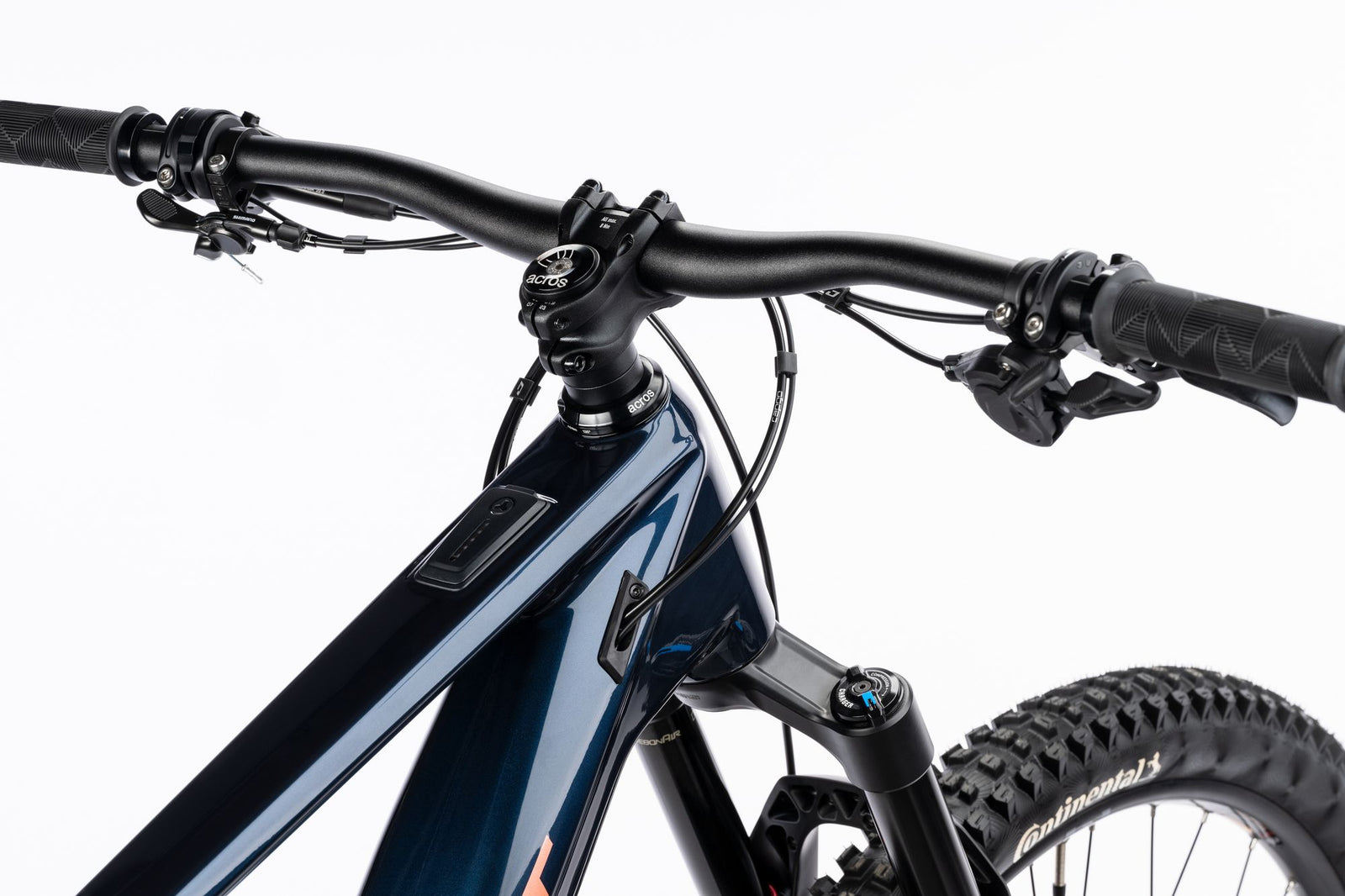

Gallery
Photos: Ghost
Full specifications
Frame & suspension
- Frame
- HIGH Carbon Uni
- Max system weight
- 120 kg
- Fork
- Rockshox Lyrik Select Charger RC, DebonAir+, Boost 150 mm
- Rear shock
- Rockshox Super Deluxe Select RT 185x55mm, DebonAir Prog.
- Rear Travel
- 140 mm
E-system
- Battery
- Fazua Energy 480 Wh
- Charger
- Fazua Charger 3A, 230V
- Display
- Fazua Ride 60 LED Hub + Ring Control
- Motor
- Fazua Ride 60
Drivetrain
- Chain
- Shimano Deore CN-M6100 12s
- Crankset
- E-Kapic Crankarms + Chainring for FAZUA Ride 60
- Rear derailleur
- Shimano Deore RD-M6100-SGS 12s, Shadow+
- Gears
- 12
- Shifter
- Shimano Triggershift Deore SL-M6100-R, Rapidfire+
Brakes
- Front Brake
- Shimano Hydraulic Disc brake BR-MT520, 4 pistons, resin pad, 203 mm
- Rear Brake
- Shimano Hydraulic Disc brake BR-MT520, 4 pistons, resin pad, 203 mm
Wheels & tyres
- Rims
- WTB ST Light i30 29 TCS 2.0, 32H, Single eyelets
- Tyres
- Continental Kryptotal-Fr Trail Soft, foldable skin SL, TR 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar
- XLC Riser Bar MTB Dia. 31.8 mm, Rise: 20 mm, backsweep 9°
- Pedals
- VP VPE-527 Alloy w/ Reflector
- Saddle
- Fizik MTB Terra Aidon X5 145 mm
- Seatpost
- Eightpins Dropperpost H01 Hydraulic, telescope, Dia. 34.9 mm, 6X-S
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
Path Riot geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 417 mm | 441 mm | 465 mm | 489 mm |
| BTop tube length | 580 mm | 614 mm | 646 mm | 680 mm |
| CHead tube length | 90 mm | 110 mm | 140 mm | 160 mm |
| DHead angle | 64° | 64° | 64° | 64° |
| ESeat angle | 77° | 77° | 77° | 77° |
| FChainstay length | 446 mm | 446 mm | 455 mm | 455 mm |
| GWheelbase | 1219 mm | 1257 mm | 1306 mm | 1345 mm |
| HStack | 604 mm | 622 mm | 644 mm | 662 mm |
| IReach | 440 mm | 470 mm | 497 mm | 527 mm |
| JStandover height | 742 mm | 757 mm | 783 mm | 801 mm |
| KBottom bracket drop | 38.1 mm | 38.1 mm | 33.2 mm | 33.2 mm |
Source: Ghost.
Path Riot: builds compared
Path Riot range →| Path Riot Advanced | Path Riot CF Full Party | Path Riot CF LTD | |
|---|---|---|---|
| Price | €6,999 | €8,500 | €11,000 |
| Frame | Carbon | Carbon | Carbon |
| Fork | Rockshox Lyrik Select Charger RC, DebonAir+ | Rockshox Lyrik Ultimate Charger 3.1 RC2, DebonAir+ 160 mm | FOX Factory 36 FLOAT Factory GRIP X2, E-Optimized |
| Shock | Rockshox Super Deluxe Select RT 185x55mm | Rockshox Super Deluxe Ultimate 185x55mm | FOX Factory FLOAT X Factory |
| Derailleur | Shimano Deore RD-M6100-SGS 12s | Sram S1000 Eagle AXS T-Type 12s | Sram X0 Eagle AXS T-Type 12s |
| Brakes | Shimano Hydraulic Disc brake BR-MT520 | Sram Hydraulic Disc brake DB Maven Silver | Shimano Hydraulic Disc brake Deore XT BR-M8220 |
| Wheels | WTB ST Light i30 29 TCS 2.0, 32H | DT Swiss H 1900 Spline LS | DT Swiss HXC 1501 Spline One |
| Display | Fazua Ride 60 LED Hub + Ring Control | Fazua Ride 60 LED Hub + Ring Control | Fazua Ride 60 LED Hub + Ring Control |
Path Riot Advanced: FAQ
How much does the Ghost Path Riot Advanced cost?
€6,999 (RRP Germany, VAT incl.). The Path Riot range runs from €6,999 (Path Riot Advanced) to €11,000 (Path Riot CF LTD). Prices vary by country and dealer.
What motor and battery does the Ghost Path Riot Advanced have?
Fazua Ride 60 (60 Nm). 480 Wh battery — fazua Energy.
How much suspension travel does the Ghost Path Riot Advanced have?
150 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Ghost Path Riot Advanced come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the Path Riot Advanced and the Path Riot CF Full Party?
They share the Path Riot frame platform and motor; the differences are in the parts — fork: Rockshox Lyrik Select Charger RC vs Rockshox Lyrik Ultimate Charger 3.1 RC2; shock: Rockshox Super Deluxe Select RT 185x55mm vs Rockshox Super Deluxe Ultimate 185x55mm; derailleur: Shimano Deore RD-M6100-SGS 12s vs Sram S1000 Eagle AXS T-Type 12s; brakes: Shimano Hydraulic Disc brake BR-MT520 vs Sram Hydraulic Disc brake DB Maven Silver; price: €6,999 vs €8,500.
