GhostE-Riot CF
- Price
- €6,499 – €11,000
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhBosch InTube
- Travel F / R
- 170 / 160 mm
- Wheels
- 29"
Overview

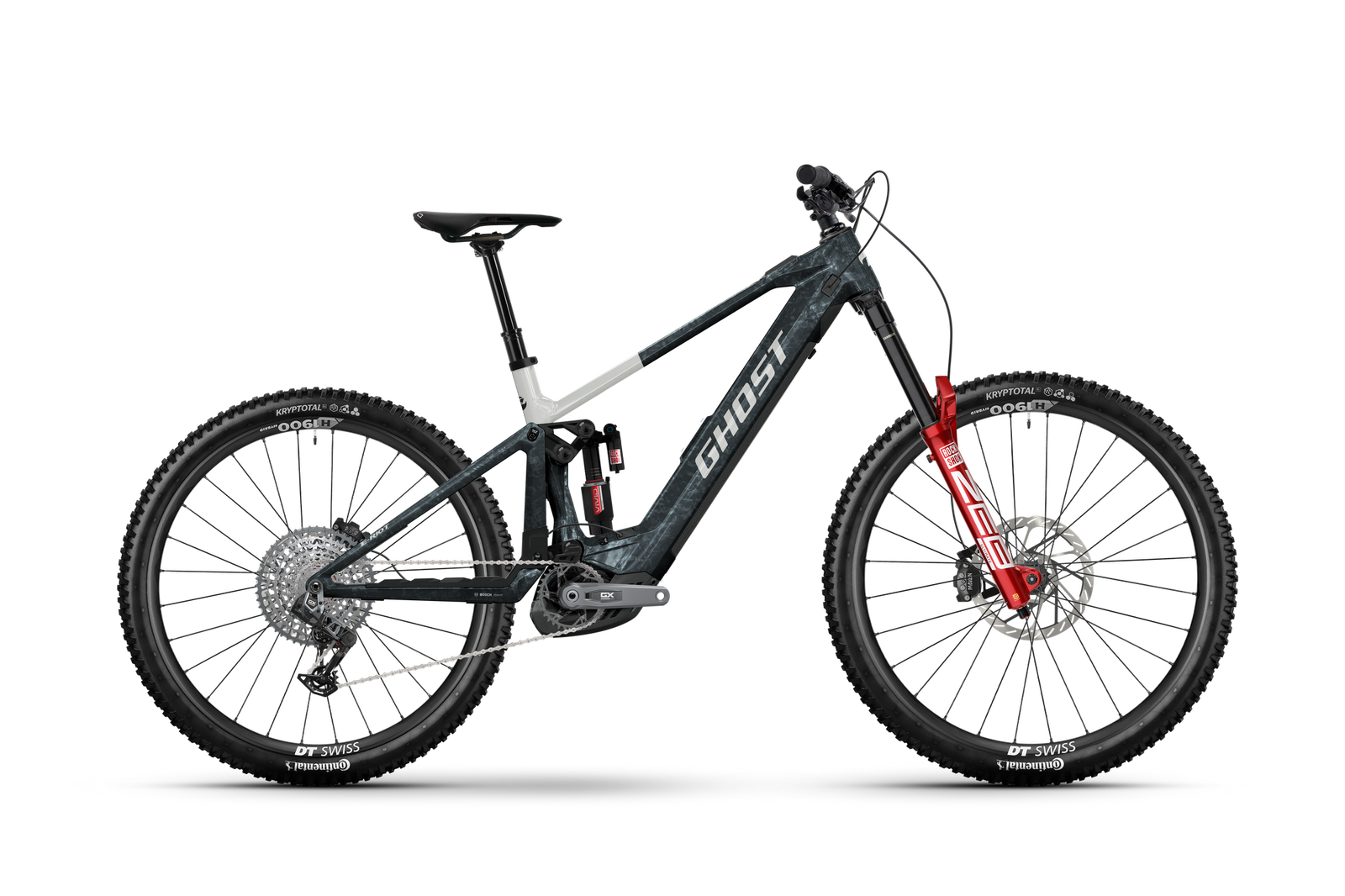

The E-Riot CF is Ghost's carbon e-enduro bike in the "Built for the Rough" line: 170 mm of fork travel, 160 mm at the rear via a trunnion-mount 205x65 mm shock, and a 64° head angle with 445 mm chainstays.
All four builds use a Bosch Performance Line motor with an 800 Wh battery and a Kiox 400C display; the Advanced and Pro get the Performance Line CX with an InTube battery, while the Full Party and LTD step up to the CX-R with a PowerTube. Builds range from RockShox Domain/Vivid to FOX Factory 38/Float X2 suspension.
- Carbon frame, 170/160 mm travel
- Bosch Performance Line CX or CX-R
- 800 Wh battery, Kiox 400C display
- 64° head angle, 445 mm chainstays
Ghost E-Riot CF builds
E-Riot CF builds compared
| E-Riot Advanced | E-Riot Pro | E-Riot Full Party | E-Riot LTD | |
|---|---|---|---|---|
| Price | €6,499 | €8,000 | €9,500 | €11,000 |
| Frame | Carbon | Carbon | Carbon | Carbon |
| Fork | Rockshox Domain Gold Isolator RC3 Debonair 170 mm | FOX Factory 38 Float Performance eMTB+, GRIP | Rockshox ZEB ULTIMATE CHARGER 3.1 RC2 Debonair, 170 mm | FOX Factory 38 Factory EMTB - GRIP X2, FLOAT |
| Shock | Rockshox Vivid Select 205x65mm Vivid Air | FOX Factory FLOAT X2 Performance | Rockshox Vivid Ultimate 205x65mm Vivid Air | FOX Factory FLOAT X2 Factory |
| Derailleur | Sram Eagle 70 T-Type 12s | Sram Eagle 90 T-Type 12s | Sram GX Eagle AXS T-Type 12s | Shimano XTR RD-M9260 12s |
| Brakes | Sram Hydraulic Disc brake DB Maven Base | Shimano Hydraulic Disc brake Deore BR-M6120 | Sram Hydraulic Disc brake DB Maven Silver | Shimano Hydraulic Disc brake Deore XT BR-M8220 |
| Wheels | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve | DT Swiss H 1900 Spline 29 | DT Swiss HXC 1501 Spline One 29 |
| Display | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote |
E-Riot CF geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| ASeat tube length | 384 mm | 409 mm | 424 mm | 474 mm |
| BTop tube length | 572 mm | 604 mm | 632 mm | 660 mm |
| CHead tube length | 90 mm | 100 mm | 115 mm | 130 mm |
| DHead angle | 64° | 64° | 64° | 64° |
| ESeat angle | 77.5° | 77.5° | 77.5° | 77.5° |
| FChainstay length | 445 mm | 445 mm | 445 mm | 445 mm |
| GWheelbase | 1216.43 mm | 1250.81 mm | 1282.38 mm | 1313.96 mm |
| HStack | 617.9 mm | 626.89 mm | 640.37 mm | 653.85 mm |
| IReach | 435 mm | 465 mm | 490 mm | 515 mm |
| JStandover height | 763.63 mm | 760.61 mm | 760.29 mm | 759.73 mm |
| KBottom bracket drop | 10 mm | 10 mm | 10 mm | 10 mm |
Source: Ghost.
Ghost E-Riot CF: FAQ
How much does the Ghost E-Riot CF cost?
€6,499 – €11,000 depending on the build (E-Riot Advanced €6,499, E-Riot Pro €8,000, E-Riot Full Party €9,500, E-Riot LTD €11,000); RRP Germany, VAT incl..
How many Ghost E-Riot CF builds are there?
4: E-Riot Advanced, E-Riot Pro, E-Riot Full Party, E-Riot LTD. They share the frame platform and differ mainly in suspension, drivetrain, wheels and weight.
What motor and battery does the Ghost E-Riot CF use?
Bosch Performance Line CX (85 Nm) with a 800 Wh battery (bosch intube).
How much travel does the Ghost E-Riot CF have?
170 mm fork and 160 mm rear travel on 29" wheels.
