TrickstuffDächle Disc UL
€34 MSRP per disc, from; Germany, EUR
- Rotor sizes
- 140 / 160 / 180 / 203 mm
- Thickness
- 1.85 mm (140/160), 2.05 mm (180/203)
- Friction ring width
- 13.75 / 14.25 mm
- Mount
- 6-bolt (IS)
- Weight
- 70–152 g
- Weight
- 119 g180 mm, claimed (140: 70 g, 160: 88 g, 203: 152 g)
Overview
Trickstuff Dächle Disc UL: lightweight 6-bolt rotor in 140–203 mm (70–152 g), 2.05 mm thick in 180/203 mm, from €34 (MSRP).
The Dächle Disc UL is Trickstuff's lightweight rotor, designed to be as light as possible but as strong as necessary. Slim spokes and the UL hole pattern save material and prevent pad glazing.
Disc thickness rises from 1.85 mm on the 140 and 160 mm sizes to 2.05 mm on the 180 and 203 mm sizes to absorb and dissipate braking heat and keep it fade-resistant. It is made from hardened stainless steel with a 6-bolt IS interface.
- Weight-optimised spokes and UL hole pattern
- 1.85 mm (140/160) or 2.05 mm (180/203) thickness
- Hardened stainless steel
- 140 / 160 / 180 / 203 mm, 6-bolt

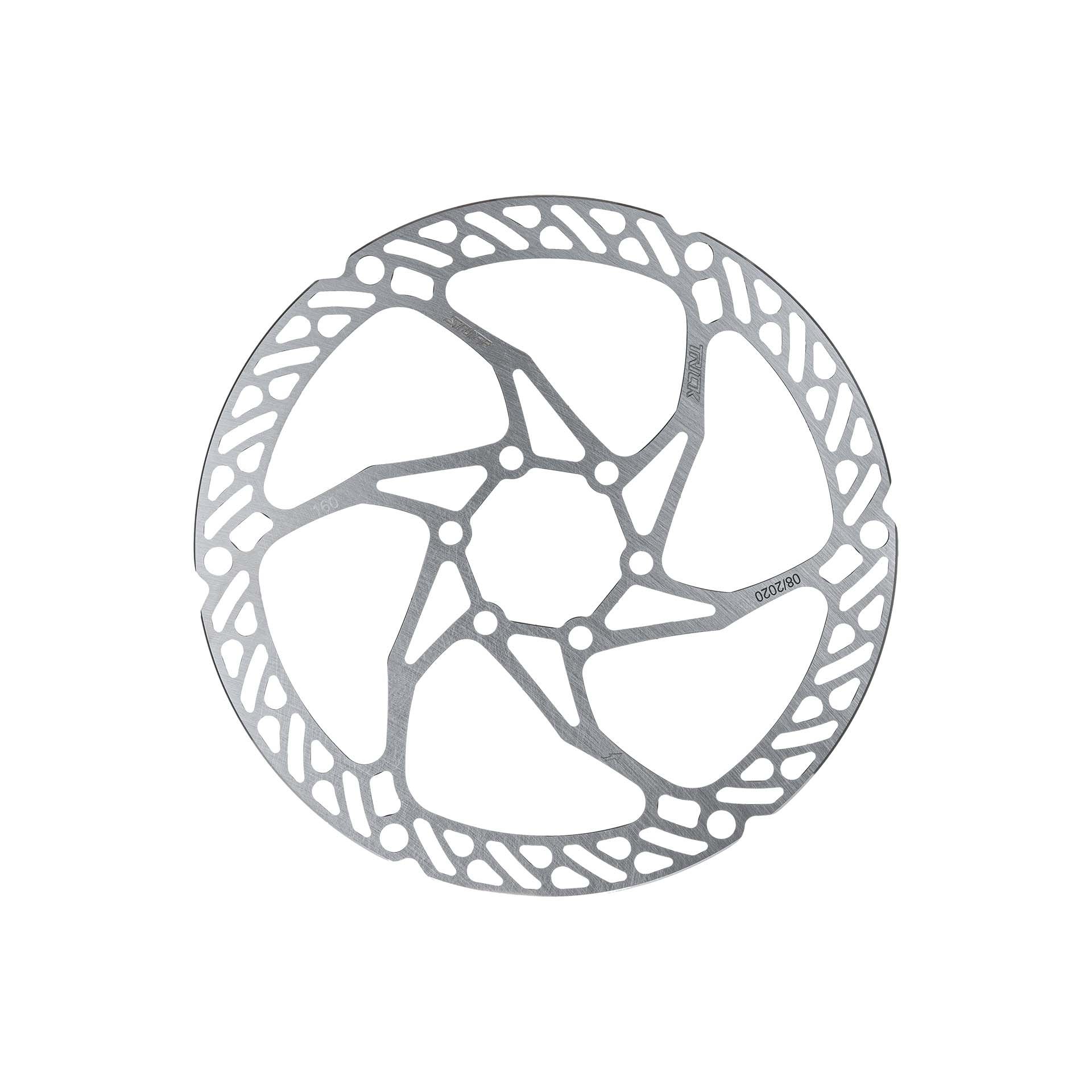

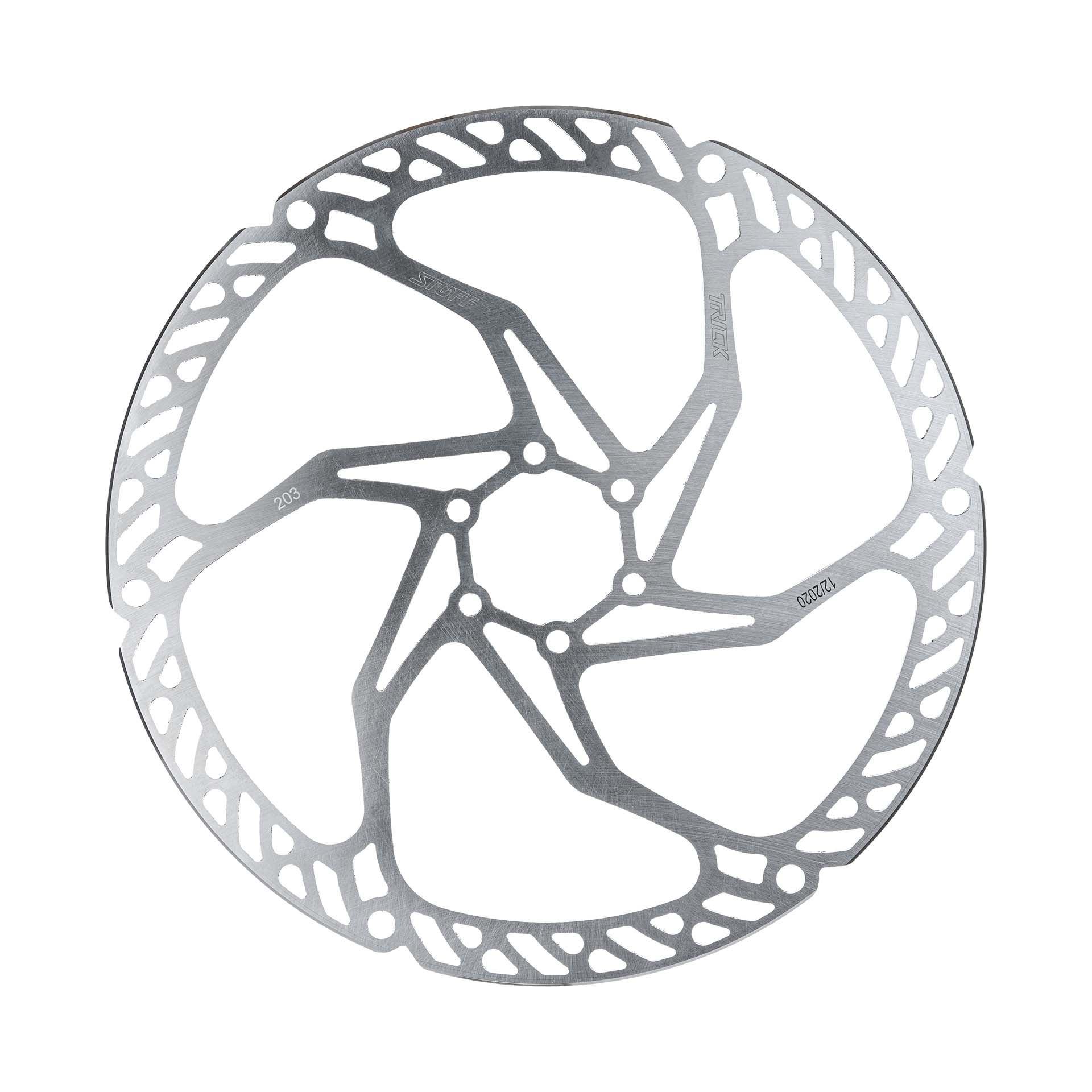

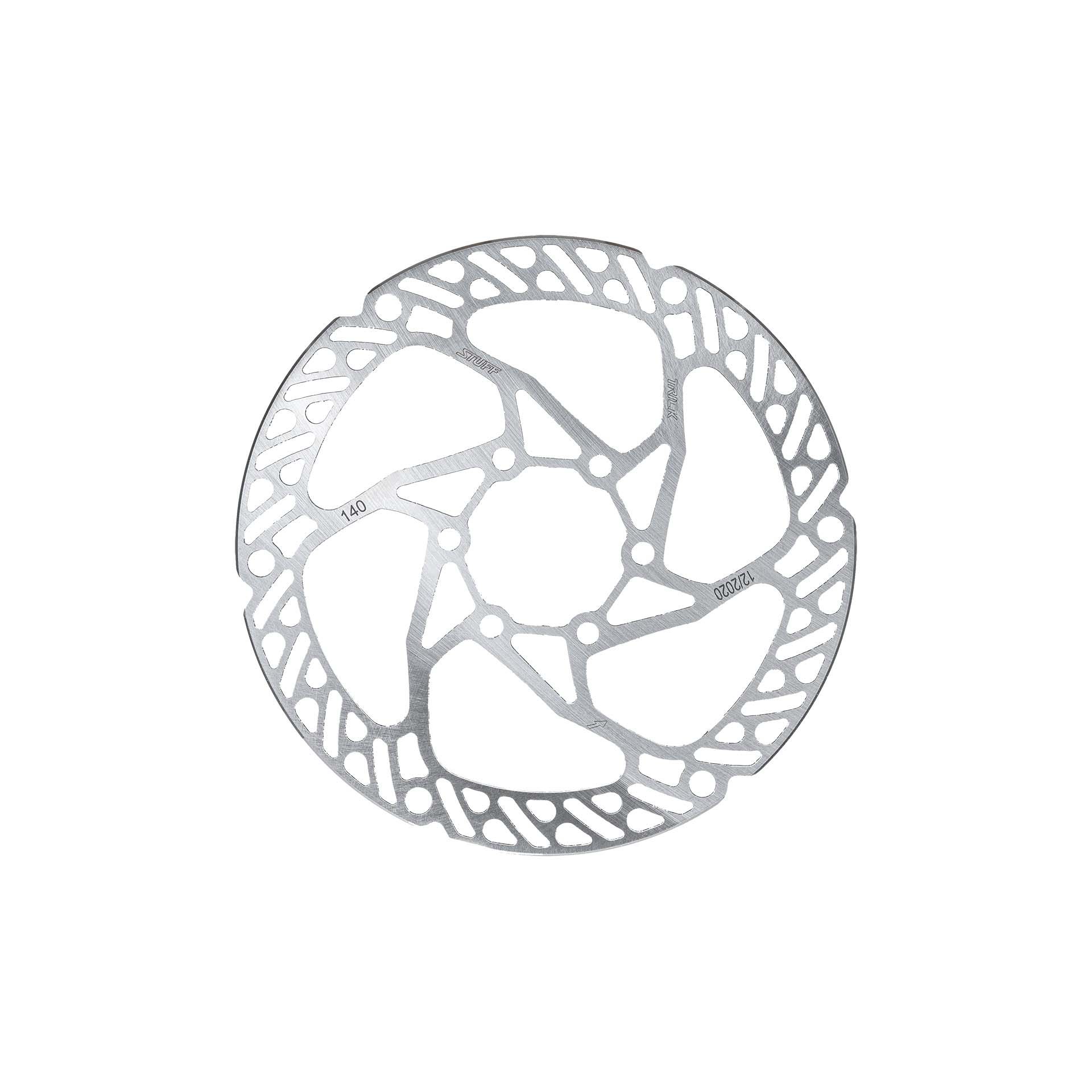

Gallery
Full specifications
General
- Brake interface
- Disc IS (6-bolt)
- Material
- Stainless steel, hardened
Brake Disc
- Disc diameter
- 140, 160, 180, 203 mm
- Brake disc thickness
- 1.85 mm (140, 160), 2.05 mm (180, 203)
- Friction ring width
- 13.75 mm (140–180), 14.25 mm (203)
- Weight 140 mm
- 70 g
- Weight 160 mm
- 88 g
- Weight 180 mm
- 119 g
- Weight 203 mm
- 152 g
Manufacturer specification — Trickstuff. Specs and prices can change; check with the brand or your dealer.
Trickstuff Dächle Disc versions compared
| Dächle Disc HD | Dächle Disc UL | |
|---|---|---|
| Price | €34 | €34 |
| Rotor sizes | 160 / 180 / 203 mm | 140 / 160 / 180 / 203 mm |
| Thickness | 2.05 mm | 1.85 mm (140/160), 2.05 mm (180/203) |
| Friction ring width | 15.5 mm | 13.75 / 14.25 mm |
| Mount | 6-bolt (IS) | 6-bolt (IS) |
| Weight | 120–195 g | 70–152 g |
| Weight | 150 g | 119 g |
| E-bike rated | — | — |
Trickstuff Dächle Disc UL: FAQ
How much does the Trickstuff Dächle Disc UL cost?
€34 (MSRP per disc, from; Germany, EUR). Prices vary by country and retailer.
How much does the Trickstuff Dächle Disc UL weigh?
Trickstuff quotes 119 g (180 mm, claimed (140: 70 g, 160: 88 g, 203: 152 g)).
Is the Trickstuff Dächle Disc UL suitable for e-bikes?
Trickstuff does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Trickstuff Dächle Disc UL?
Rotor sizes: 140 / 160 / 180 / 203 mm; Thickness: 1.85 mm (140/160), 2.05 mm (180/203); Friction ring width: 13.75 / 14.25 mm; Mount: 6-bolt (IS); Weight: 70–152 g.
What other versions of the Trickstuff Dächle Disc are there?
Dächle Disc HD (€34).
