HopeEVO TR4
£225 UK RRP per brake, black hose; braided hose £235
- Pistons
- 4
- Caliper
- One-piece
- Use
- Trail / medium duty
- Pads
- Shared with GR4
Overview
Hope EVO TR4: four-piston trail brake for medium-duty use with the EVO lever and GR4-sized pads, £225 UK RRP per end.
The EVO TR4 is Hope's four-piston trail brake for medium-duty use, balancing impressive power with a firm and consistent lever feel. Super-smooth lever actuation gives clear braking feedback.

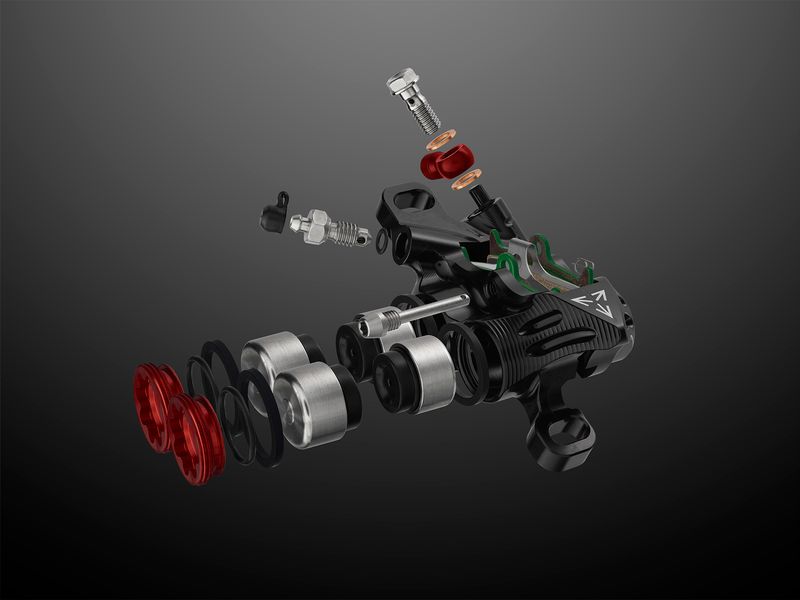

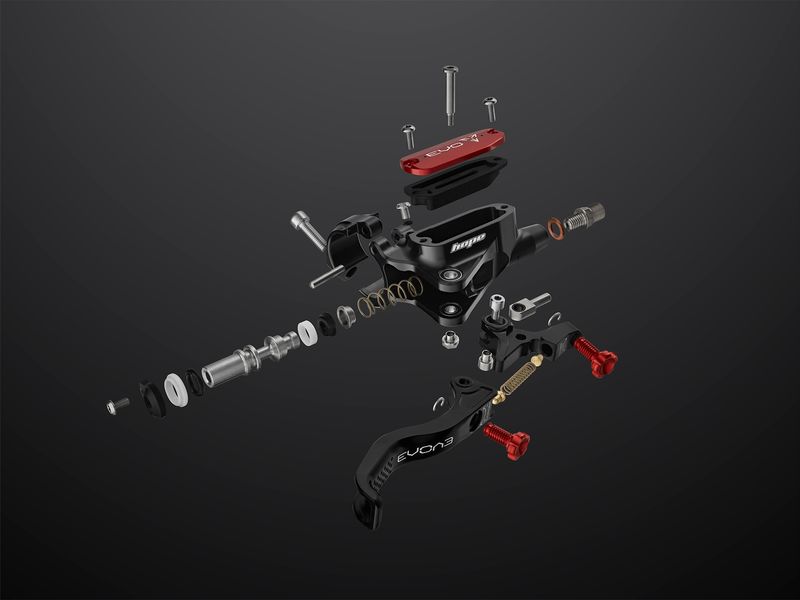

It shares the EVO lever with the GR4 - increased lever hook, dimpled blade, revised cam, roller bearing pivot and a bleed port on the master cylinder body - and uses a one-piece caliper with larger pistons and the same larger pad as the GR4 for improved lever feel and consistency.
- Four-piston one-piece trail caliper
- Shares larger pad with GR4
- EVO lever with roller bearing pivot
- Firmer bite point, shorter free stroke
- Black or Silver with 7 accent colours
Gallery
Full specifications
Lever
- Lever hook
- Increased lever hook for control during aggressive riding
- Lever blade
- Dimpled blade for comfort and grip in all weather
- Cam
- New cam design reduces free stroke while keeping modulation
- Pivot
- Roller bearing main pivot
- Piston guidance
- 2 guide bushes
- Bleed port
- On master cylinder body, bleed without removing lid
Caliper
- Caliper
- One-piece design
- Pistons
- 4, larger pistons for higher ratio
- Bore caps
- New design reduces caliper width
- Pads
- Larger pad shared with GR4
General
- Colours
- Black or Silver with Black, Silver, Smoke, Blue, Red, Purple, Orange accents
- Hose
- Black or braided
Manufacturer specification — Hope. Specs and prices can change; check with the brand or your dealer.
Hope EVO versions compared
| EVO GR4 | EVO TR4 | EVO X2 | EVO V6Ti | |
|---|---|---|---|---|
| Price | £240 | £225 | £205 | £1,400 |
| Pistons | 4 | 4 | 2 (hybrid) | 6, titanium, Ti-Nitride coated |
| Caliper | One-piece | One-piece | One-piece CNC | Single-piece CNC, radial mount |
| Use | Gravity / e-bike | Trail / medium duty | Downcountry / XC / trail | — |
| Rotor note | Not compatible with Vented rotors | — | — | — |
| Pads | — | Shared with GR4 | — | — |
| Mount | — | — | Post mount / flat mount | — |
| Rotor sizes | — | — | — | 200 / 220 mm |
| Rotor thickness | — | — | — | 2.3 mm or 3.3 mm (Vented) |
| Weight | — | — | — | — |
| E-bike rated | Yes | — | — | Yes |
Hope EVO TR4: FAQ
How much does the Hope EVO TR4 cost?
£225 (UK RRP per brake, black hose; braided hose £235). Prices vary by country and retailer.
Is the Hope EVO TR4 suitable for e-bikes?
Hope does not specifically rate it for e-bikes. Check the manufacturer’s approval and your bike maker’s recommendations before fitting it to an eMTB.
What are the key specs of the Hope EVO TR4?
Pistons: 4; Caliper: One-piece; Use: Trail / medium duty; Pads: Shared with GR4.
What other versions of the Hope EVO are there?
EVO GR4 (£240), EVO X2 (£205), EVO V6Ti (£1,400).
