DT SwissM 1900 SPLINE
€479 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site
- Wheel size
- 29" / 27.5"
- Inner width
- 30 mm
- Hub
- 370, Ratchet LN 18
- Rim
- Aluminum, Hooked / Crotchet tubeless TC
- Max. system weight
- 120 kg
- E-bike approved
- Yes (max. 32Km/h or max. 250W)
- Weight
- 1,894 gPer set (front + rear), lightest configuration, claimed
Overview
M 1900 SPLINE is an aluminum All Mountain wheelset from DT Swiss with 370 hubs (Ratchet LN 18) and 30 mm inner width, in 29" / 27.5"; from 1894 g per set. MSRP from €479 per set.
Feel the MTB thrills with these budget all mountain wheels and collect the freewheeling moments of the trails.
The M 1900 SPLINE is part of DT Swiss's All Mountain wheel range for trail riding; DT Swiss approves it for e-bike use (pedelecs up to 32 km/h / 250 W). It is offered in 29" and 27.5" with 30 mm inner width, with Center Lock brake interfaces and Shimano MTB, SRAM XD, Shimano Micro Spline freehub options.
- 370 hub with Ratchet LN 18 freehub
- Aluminum rim, Hooked / Crotchet tubeless TC, 30 mm inner width
- Spokes: DT champion® Straightpull
- Approved for e-bikes, max. system weight 120 kg

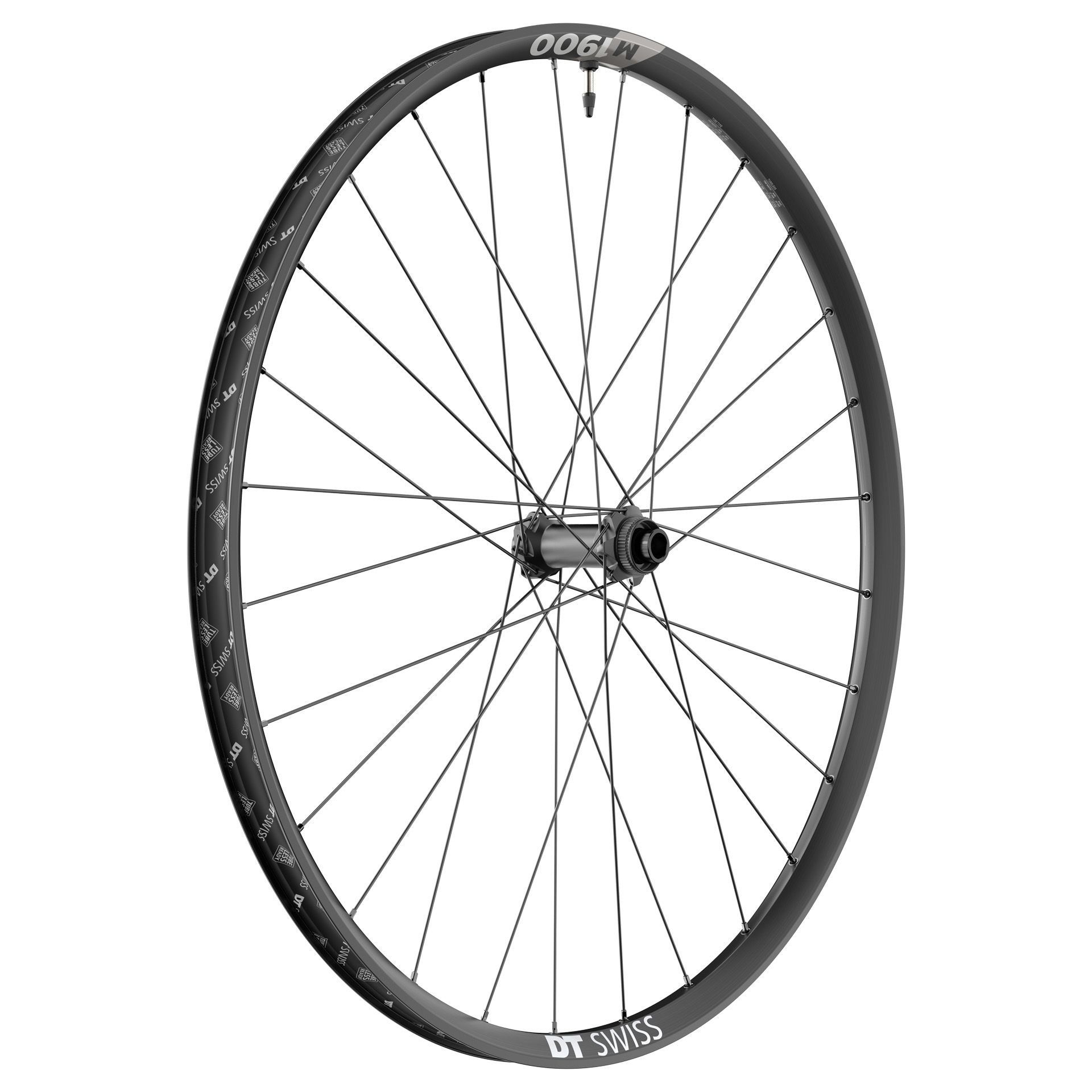

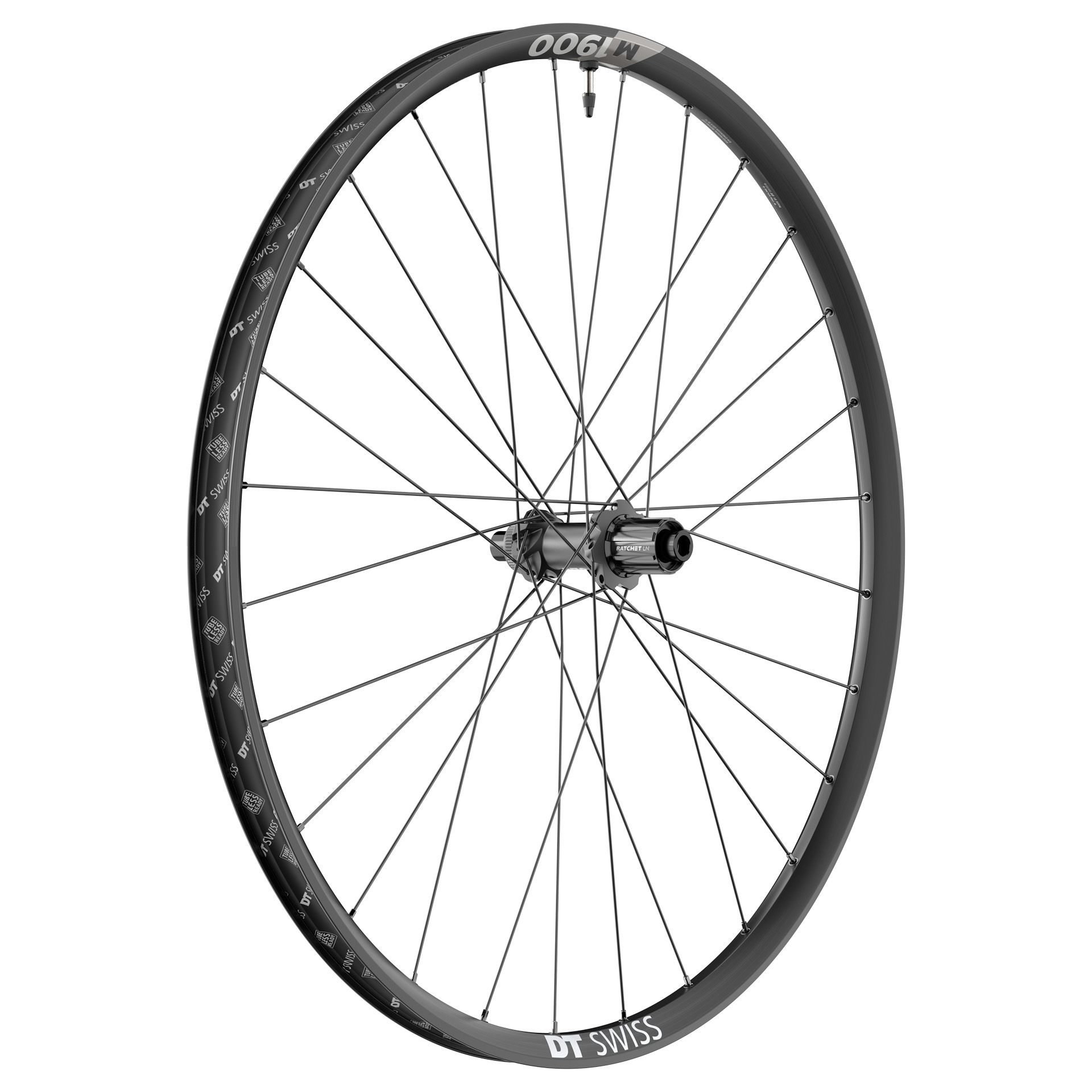

Gallery
Full specifications
General
- Weight front wheel
- 890–951 g
- Weight rear wheel
- 1004–1086 g
- Weight per set
- from 1894 g
- Max. system weight
- 120 kg
- ASTM classification
- 4
- Approved for e-bikes
- Yes (max. 32Km/h or max. 250W)
Rim
- Material
- Aluminum
- Rim joint
- Sleeve joint
- Tire interface
- Hooked / Crotchet tubeless TC
- Valve hole
- Presta
- Rim diameter
- 29" / 700C; 27.5" / 650B
- Rim height
- 20 mm
- Inner width
- 30 mm
- Outer width
- 35 mm
Hub
- Hub type
- 370
- Axle system (front)
- 15 mm Thru Axle
- Axle system (rear)
- 12 mm Thru Axle
- Built-in dimension (front)
- 100 mm; 110 mm Boost
- Built-in dimension (rear)
- 142 mm; 148 mm Boost
- Brake interface
- Disc Center Lock
- Cassette interface
- Shimano MTB; Sram XD; Shimano Micro Spline
- Freehub body
- Shimano Forged (ASF); SRAM XD MTB (ASRAM); Shim. 12SP Light (ASL12)
- Freehub system
- Ratchet LN 18
Spokes & Nipples
- Spokes left
- DT champion® Straightpull
- Spokes right
- DT champion® Straightpull
- Spoke pattern
- Three-cross (1:1)
- Nipples
- DT ProLock Squorx ProHead alu
Inclusive
- Inclusive
- Tubeless tape 32 mm Tubeless valve MTB 32 mm IS 6-bolt adapter MTB
Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.
DT Swiss All Mountain versions compared
| M 1900 SPLINE | XM 1700 SPLINE | XMC 1500 SPLINE | XMC 1200 SPLINE | |
|---|---|---|---|---|
| Price | €479 | €749 | €1,699 | €2,499 |
| Wheel size | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" |
| Inner width | 30 mm | 30 mm | 30 mm | 30 mm |
| Hub | 370, Ratchet LN 18 | 350, Ratchet DEG 72 | 240, Ratchet DEG 90 | 180, Ratchet DEG 90 / Ratchet EXP 54 |
| Rim | Aluminum, Hooked / Crotchet tubeless TC | Aluminum, Hooked / Crotchet tubeless TC | Carbon, Hookless tubeless TSS | Carbon, Hookless tubeless TSS |
| Max. system weight | 120 kg | 130 kg | 130 kg | 130 kg |
| E-bike approved | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) |
| Weight | 1,894 g | 1,825 g | 1,599 g | 1,485 g |
DT Swiss M 1900 SPLINE: FAQ
How much does the DT Swiss M 1900 SPLINE cost?
€479 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.
How much does the DT Swiss M 1900 SPLINE weigh?
DT Swiss quotes 1,894 g (Per set (front + rear), lightest configuration, claimed).
Is the DT Swiss M 1900 SPLINE suitable for e-bikes?
Yes — DT Swiss lists it as e-bike rated or e-bike specific.
What are the key specs of the DT Swiss M 1900 SPLINE?
Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 370, Ratchet LN 18; Rim: Aluminum, Hooked / Crotchet tubeless TC; Max. system weight: 120 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).
What other versions of the DT Swiss All Mountain are there?
XM 1700 SPLINE (€749), XMC 1500 SPLINE (€1,699), XMC 1200 SPLINE (€2,499).
