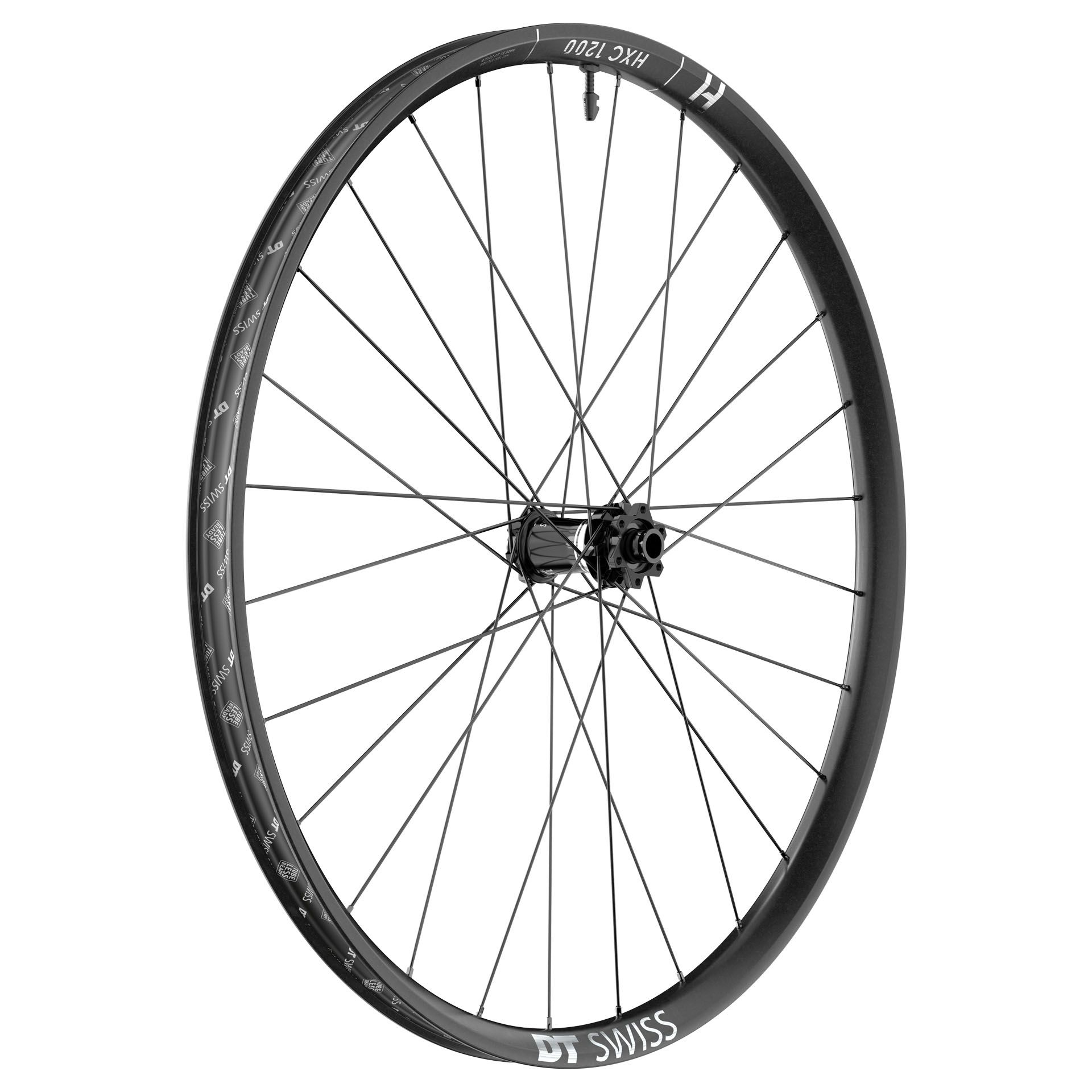

DT SwissHXC 1200 SPLINE

€2,499 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site

Wheel size: 29" / 27.5"
Inner width: 30 mm
Hub: 180, Ratchet EXP OS 42
Rim: Carbon, Hookless tubeless TSS
Max. system weight: 140 kg
E-bike approved: Yes (max. 32Km/h or max. 250W)
Weight: 1,809 gPer set (front + rear), lightest configuration, claimed

Compare 4 versions Compare with…Official page →

Overview

HXC 1200 SPLINE is a carbon Hybrid MTB wheelset from DT Swiss with 180 hubs (Ratchet EXP OS 42) and 30 mm inner width, in 29" / 27.5"; from 1809 g per set. MSRP from €2499 per set.

Light to save battery & durable enough to reach the unreached. This high-end eMTB carbon wheelset will take you to new heights.

The HXC 1200 SPLINE is part of DT Swiss's Hybrid MTB range, which is built specifically for e-MTBs: reinforced hybrid spokes, hardened freehub interfaces and rims chosen for higher system weight and motor torque. It is offered in 29" and 27.5" with 30 mm inner width, with IS (6-bolt), Center Lock brake interfaces and Shimano Micro Spline freehub options.

180 hub with Ratchet EXP OS 42 freehub
Carbon rim, Hookless tubeless TSS, 30 mm inner width
Spokes: DT complite® hybrid t-head
Approved for e-bikes, max. system weight 140 kg

Gallery

Full specifications

General

Weight front wheel: 841–900 g
Weight rear wheel: 968–1022 g
Weight per set: from 1809 g
Max. system weight: 140 kg
ASTM classification: 4
Approved for e-bikes: Yes (max. 32Km/h or max. 250W)

Rim

Material: Carbon
Tire interface: Hookless tubeless TSS
Valve hole: Presta
Rim diameter: 29" / 700C; 27.5" / 650B
Rim height: 22 mm
Inner width: 30 mm
Outer width: 37.2 mm

Hub

Hub type: 180
Axle system (front): 15 mm Thru Axle
Axle system (rear): 12 mm Thru Axle
Built-in dimension (front): 110 mm Boost
Built-in dimension (rear): 148 mm Boost
Brake interface: Disc IS (6-bolt); Disc Center Lock
Cassette interface: Shimano Micro Spline
Freehub body: Shimano 12SP Steel (SS12) (mounted)
Freehub system: Ratchet EXP OS 42

Spokes & Nipples

Spokes left: DT complite® hybrid t-head
Spokes right: DT complite® hybrid t-head
Spoke pattern: Three-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

Inclusive

Inclusive: Wheel bag Tubeless tape 32 mm TL valve alu black 18-25 mm Sram XD freehub body kit; Wheel bag Tubeless tape 32 mm TL valve alu black 18-25 mm

Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.

DT Swiss Hybrid MTB versions compared

	H 1900 SPLINE	HX 1700 SPLINE	HXC 1500 SPLINE	HXC 1200 SPLINE
Price	€499	€759	€1,729	€2,499
Wheel size	29" / 27.5"	29" / 27.5"	29" / 27.5"	29" / 27.5"
Inner width	30 mm / 35 mm	30 mm	30 mm	30 mm
Hub	370, Ratchet LN 18	350, Ratchet DEG 60	240, Ratchet DEG 60	180, Ratchet EXP OS 42
Rim	Aluminum, Hooked / Crotchet tubeless TC	Aluminum, Hooked / Crotchet tubeless TC	Carbon, Hookless tubeless TSS	Carbon, Hookless tubeless TSS
Max. system weight	150 kg	150 kg	140 kg	140 kg
E-bike approved	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)
Weight	2,066 g	2,019 g	1,835 g	1,809 g

DT Swiss HXC 1200 SPLINE: FAQ

How much does the DT Swiss HXC 1200 SPLINE cost?

€2,499 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.

How much does the DT Swiss HXC 1200 SPLINE weigh?

DT Swiss quotes 1,809 g (Per set (front + rear), lightest configuration, claimed).

Is the DT Swiss HXC 1200 SPLINE suitable for e-bikes?

Yes — DT Swiss lists it as e-bike rated or e-bike specific.

What are the key specs of the DT Swiss HXC 1200 SPLINE?

Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 180, Ratchet EXP OS 42; Rim: Carbon, Hookless tubeless TSS; Max. system weight: 140 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).

What other versions of the DT Swiss Hybrid MTB are there?

H 1900 SPLINE (€499), HX 1700 SPLINE (€759), HXC 1500 SPLINE (€1,729).
