DT SwissHXC 1500 SPLINE

€1,729 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site

Wheel size: 29" / 27.5"
Inner width: 30 mm
Hub: 240, Ratchet DEG 60
Rim: Carbon, Hookless tubeless TSS
Max. system weight: 140 kg
E-bike approved: Yes (max. 32Km/h or max. 250W)
Weight: 1,835 gPer set (front + rear), lightest configuration, claimed

Compare 4 versions Compare with…Official page →

Overview

HXC 1500 SPLINE is a carbon Hybrid MTB wheelset from DT Swiss with 240 hubs (Ratchet DEG 60) and 30 mm inner width, in 29" / 27.5"; from 1835 g per set. MSRP from €1729 per set.

The HXC 1500 SPLINE carbon wheelset ensures maximum reliability so you can focus on what’s important. Get going, the form will follow the flow.

The HXC 1500 SPLINE is part of DT Swiss's Hybrid MTB range, which is built specifically for e-MTBs: reinforced hybrid spokes, hardened freehub interfaces and rims chosen for higher system weight and motor torque. It is offered in 29" and 27.5" with 30 mm inner width, with Center Lock brake interfaces and SRAM XD freehub options.

240 hub with Ratchet DEG 60 freehub
Carbon rim, Hookless tubeless TSS, 30 mm inner width
Spokes: DT complite® hybrid t-head
DF anti-pedal-kickback system (DF HYB 0°/10°)
Approved for e-bikes, max. system weight 140 kg

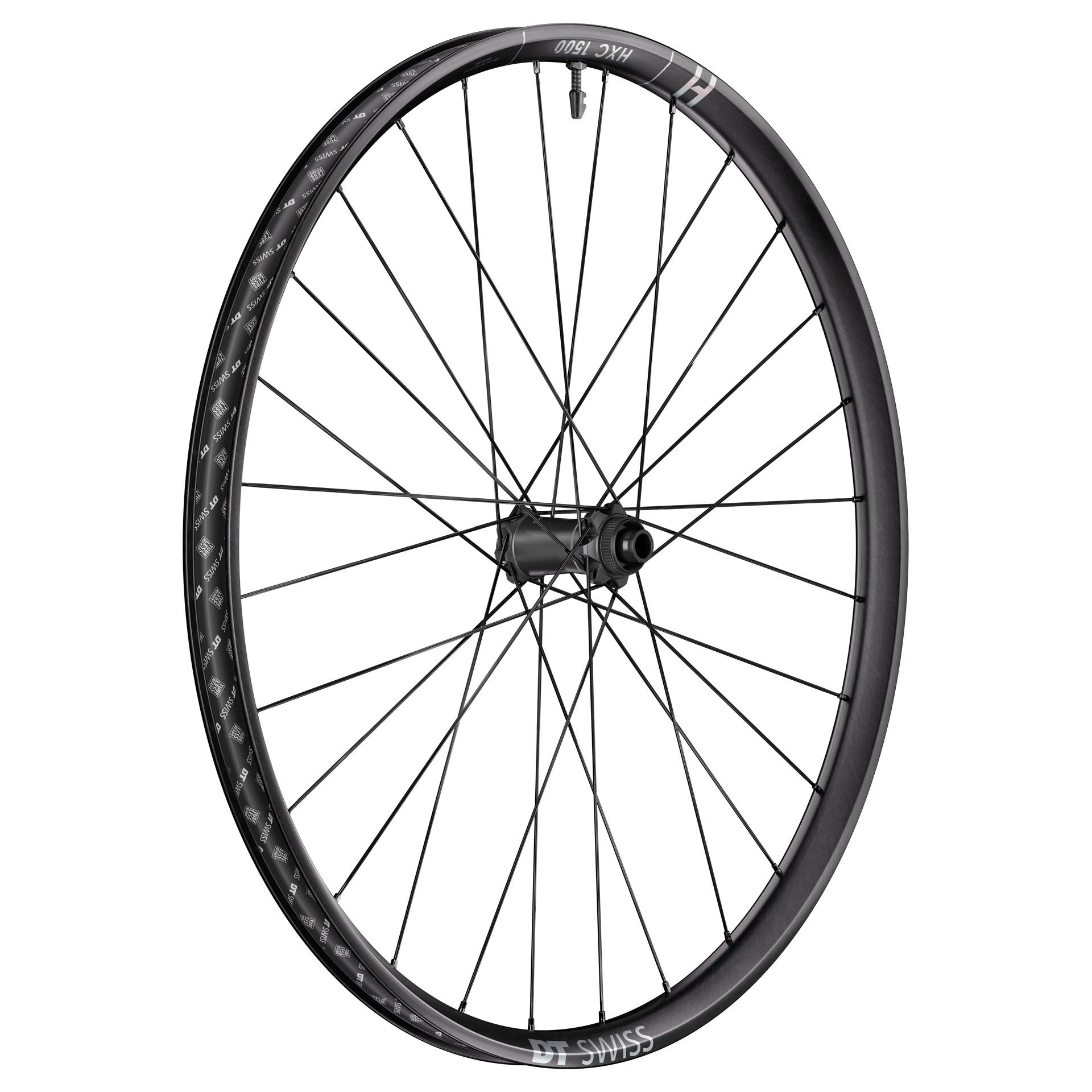

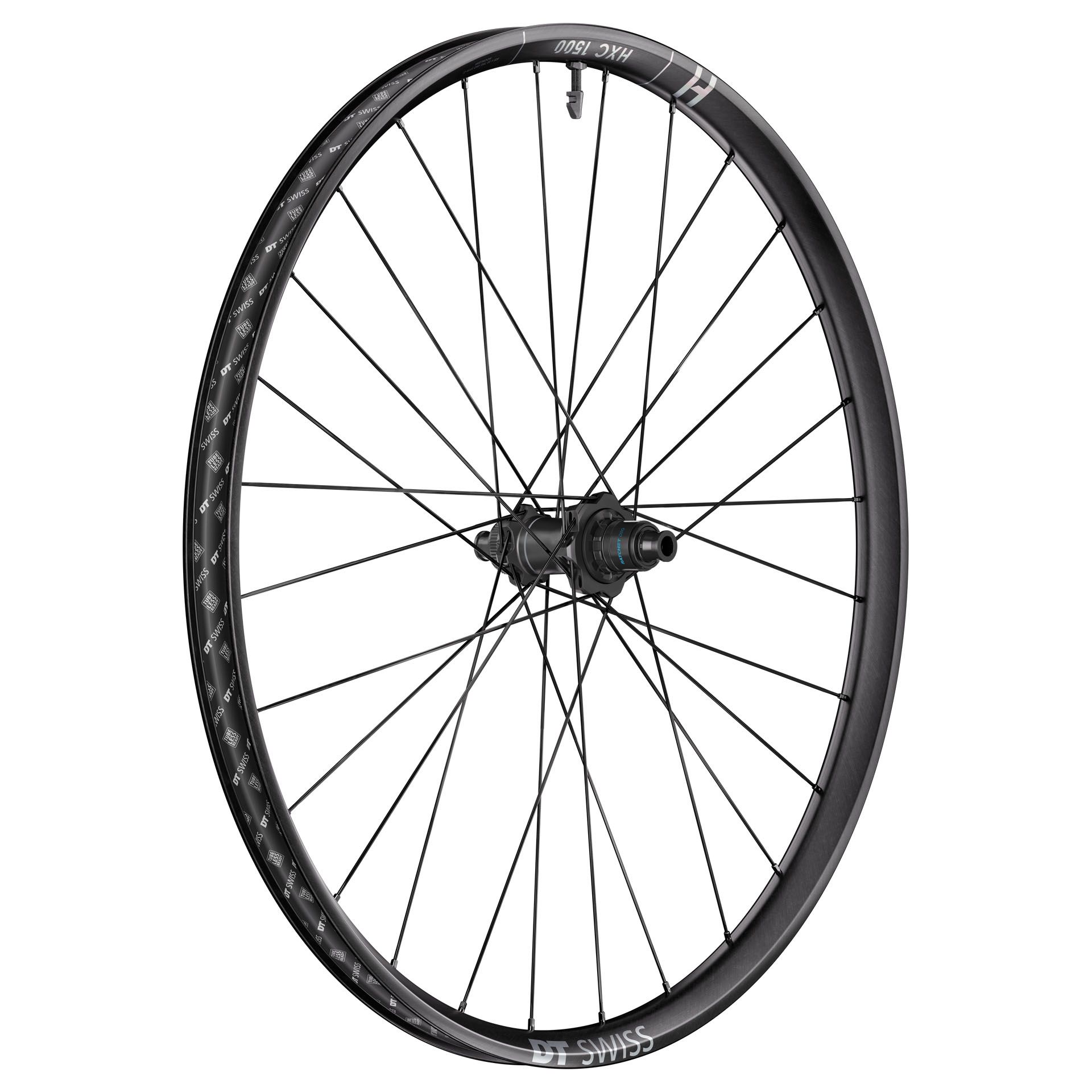

Gallery

Full specifications

General

Weight front wheel: 824–876 g
Weight rear wheel: 1011–1063 g
Weight per set: from 1835 g
Max. system weight: 140 kg
ASTM classification: 4
Approved for e-bikes: Yes (max. 32Km/h or max. 250W)

Rim

Material: Carbon
Tire interface: Hookless tubeless TSS
Valve hole: Presta
Rim diameter: 29" / 700C; 27.5" / 650B
Rim height: 22 mm
Inner width: 30 mm
Outer width: 37.2 mm

Hub

Hub type: 240
Axle system (front): 15 mm Thru Axle
Axle system (rear): 12 mm Thru Axle
Built-in dimension (front): 110 mm Boost
Built-in dimension (rear): 148 mm Boost
Brake interface: Disc Center Lock
Cassette interface: Sram XD
Freehub body: SRAM XD Steel (SSRAM) (mounted)
Freehub system: Ratchet DEG 60
Anti-Pedal Kickback System: DF HYB 0°/10°

Spokes & Nipples

Spokes left: DT complite® hybrid t-head
Spokes right: DT complite® hybrid t-head
Spoke pattern: Three-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

Inclusive

Inclusive: Tubeless tape 32 mm TL valve alu black 18-25 mm IS 6-bolt adapter MTB Shim Micro Spline freehub kit; Tubeless tape 32 mm TL valve alu black 18-25 mm IS 6-bolt adapter MTB

Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.

DT Swiss Hybrid MTB versions compared

	H 1900 SPLINE	HX 1700 SPLINE	HXC 1500 SPLINE	HXC 1200 SPLINE
Price	€499	€759	€1,729	€2,499
Wheel size	29" / 27.5"	29" / 27.5"	29" / 27.5"	29" / 27.5"
Inner width	30 mm / 35 mm	30 mm	30 mm	30 mm
Hub	370, Ratchet LN 18	350, Ratchet DEG 60	240, Ratchet DEG 60	180, Ratchet EXP OS 42
Rim	Aluminum, Hooked / Crotchet tubeless TC	Aluminum, Hooked / Crotchet tubeless TC	Carbon, Hookless tubeless TSS	Carbon, Hookless tubeless TSS
Max. system weight	150 kg	150 kg	140 kg	140 kg
E-bike approved	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)
Weight	2,066 g	2,019 g	1,835 g	1,809 g

DT Swiss HXC 1500 SPLINE: FAQ

How much does the DT Swiss HXC 1500 SPLINE cost?

€1,729 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.

How much does the DT Swiss HXC 1500 SPLINE weigh?

DT Swiss quotes 1,835 g (Per set (front + rear), lightest configuration, claimed).

Is the DT Swiss HXC 1500 SPLINE suitable for e-bikes?

Yes — DT Swiss lists it as e-bike rated or e-bike specific.

What are the key specs of the DT Swiss HXC 1500 SPLINE?

Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 240, Ratchet DEG 60; Rim: Carbon, Hookless tubeless TSS; Max. system weight: 140 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).

What other versions of the DT Swiss Hybrid MTB are there?

H 1900 SPLINE (€499), HX 1700 SPLINE (€759), HXC 1200 SPLINE (€2,499).
