DT SwissH 1900 SPLINE
€499 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site
- Wheel size
- 29" / 27.5"
- Inner width
- 30 mm / 35 mm
- Hub
- 370, Ratchet LN 18
- Rim
- Aluminum, Hooked / Crotchet tubeless TC
- Max. system weight
- 150 kg
- E-bike approved
- Yes (max. 32Km/h or max. 250W)
- Weight
- 2,066 gPer set (front + rear), lightest configuration, claimed
Overview

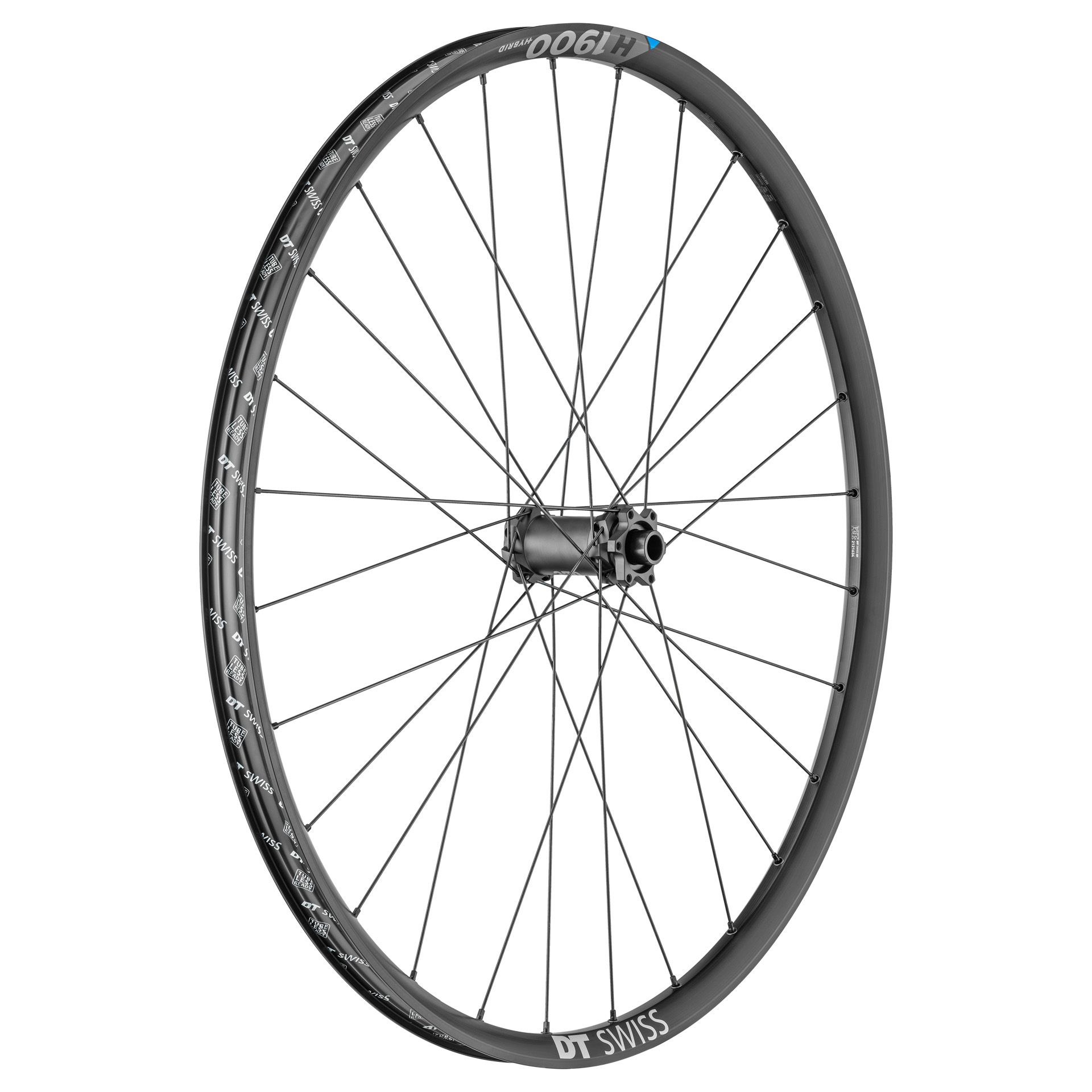

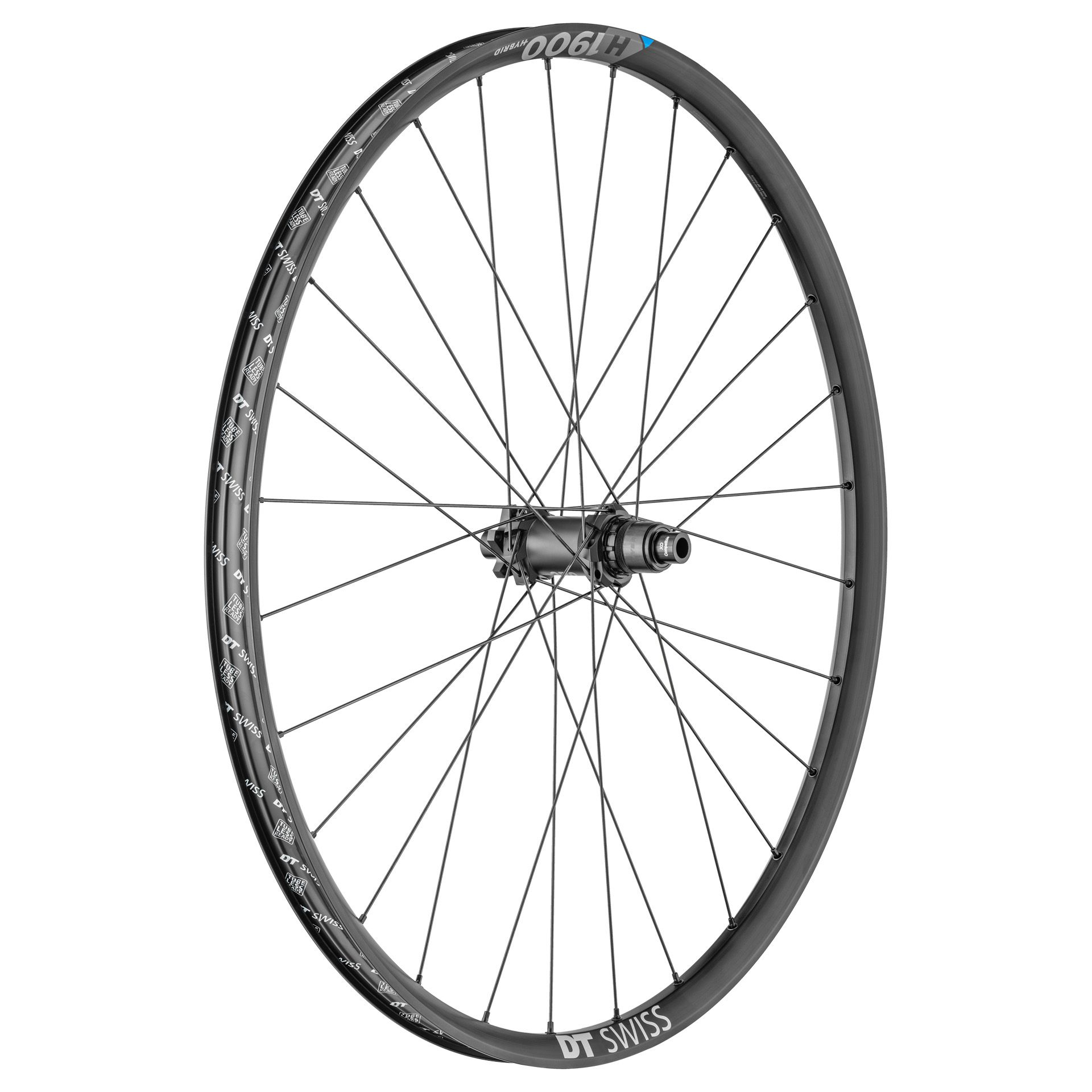

H 1900 SPLINE is an aluminum Hybrid MTB wheelset from DT Swiss with 370 hubs (Ratchet LN 18) and 30 mm / 35 mm inner width, in 29" / 27.5"; from 2066 g per set. MSRP from €499 per set.
Strong e-bike wheels made to conquer more terrain, now upgraded with the famous DT Swiss Ratchet Technology for increased durability.
The H 1900 SPLINE is part of DT Swiss's Hybrid MTB range, which is built specifically for e-MTBs: reinforced hybrid spokes, hardened freehub interfaces and rims chosen for higher system weight and motor torque. It is offered in 29" and 27.5" with 30 mm, 35 mm inner width, with IS (6-bolt), Center Lock brake interfaces and SRAM XD, Shimano Micro Spline, Shimano MTB freehub options.
- 370 hub with Ratchet LN 18 freehub
- Aluminum rim, Hooked / Crotchet tubeless TC, 30 mm / 35 mm inner width
- Spokes: DT hybrid 1 Straightpull
- Approved for e-bikes, max. system weight 150 kg
Gallery
Full specifications
General
- Weight front wheel
- 965–1086 g
- Weight rear wheel
- 1101–1252 g
- Weight per set
- from 2066 g
- Max. system weight
- 150 kg
- ASTM classification
- 4
- Approved for e-bikes
- Yes (max. 32Km/h or max. 250W)
Rim
- Material
- Aluminum
- Rim joint
- Sleeve joint
- Tire interface
- Hooked / Crotchet tubeless TC
- Valve hole
- Presta
- Rim diameter
- 27.5" / 650B; 29" / 700C
- Rim height
- 20 mm
- Inner width
- 30 mm; 35 mm
- Outer width
- 35 mm; 40 mm
Hub
- Hub type
- 370
- Axle system (front)
- 15 mm Thru Axle
- Axle system (rear)
- 12 mm Thru Axle
- Built-in dimension (front)
- 110 mm Boost
- Built-in dimension (rear)
- 148 mm Boost
- Brake interface
- Disc IS (6-bolt); Disc Center Lock
- Cassette interface
- Sram XD; Shimano Micro Spline; Shimano MTB
- Freehub body
- SRAM XD Steel (SSRAM); Shimano 12SP Steel (SS12); Shimano Steel (SS)
- Freehub system
- Ratchet LN 18
Spokes & Nipples
- Spokes left
- DT hybrid 1 Straightpull
- Spokes right
- DT hybrid 1 Straightpull
- Spoke pattern
- Three-cross (1:1)
- Nipples
- DT ProLock Squorx ProHead alu
Inclusive
- Inclusive
- Tubeless tape 32 mm Tubeless valve MTB 32 mm; Tubeless tape 37 mm Tubeless valve MTB 32 mm
Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.
DT Swiss Hybrid MTB versions compared
| H 1900 SPLINE | HX 1700 SPLINE | HXC 1500 SPLINE | HXC 1200 SPLINE | |
|---|---|---|---|---|
| Price | €499 | €759 | €1,729 | €2,499 |
| Wheel size | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" |
| Inner width | 30 mm / 35 mm | 30 mm | 30 mm | 30 mm |
| Hub | 370, Ratchet LN 18 | 350, Ratchet DEG 60 | 240, Ratchet DEG 60 | 180, Ratchet EXP OS 42 |
| Rim | Aluminum, Hooked / Crotchet tubeless TC | Aluminum, Hooked / Crotchet tubeless TC | Carbon, Hookless tubeless TSS | Carbon, Hookless tubeless TSS |
| Max. system weight | 150 kg | 150 kg | 140 kg | 140 kg |
| E-bike approved | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) |
| Weight | 2,066 g | 2,019 g | 1,835 g | 1,809 g |
DT Swiss H 1900 SPLINE: FAQ
How much does the DT Swiss H 1900 SPLINE cost?
€499 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.
How much does the DT Swiss H 1900 SPLINE weigh?
DT Swiss quotes 2,066 g (Per set (front + rear), lightest configuration, claimed).
Is the DT Swiss H 1900 SPLINE suitable for e-bikes?
Yes — DT Swiss lists it as e-bike rated or e-bike specific.
What are the key specs of the DT Swiss H 1900 SPLINE?
Wheel size: 29" / 27.5"; Inner width: 30 mm / 35 mm; Hub: 370, Ratchet LN 18; Rim: Aluminum, Hooked / Crotchet tubeless TC; Max. system weight: 150 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).
What other versions of the DT Swiss Hybrid MTB are there?
HX 1700 SPLINE (€759), HXC 1500 SPLINE (€1,729), HXC 1200 SPLINE (€2,499).
