DT SwissEX 1700 CLASSIC
€749 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site
- Wheel size
- 29" / 27.5"
- Inner width
- 30 mm
- Hub
- 350, Ratchet DEG 72
- Rim
- Aluminum, Hooked / Crotchet tubeless TC
- Max. system weight
- 130 kg
- E-bike approved
- Yes (max. 32Km/h or max. 250W)
- Weight
- 1,916 gPer set (front + rear), lightest configuration, claimed
Overview
EX 1700 CLASSIC is an aluminum Enduro wheelset from DT Swiss with 350 hubs (Ratchet DEG 72) and 30 mm inner width, in 29" / 27.5"; from 1916 g per set. MSRP from €749 per set.
When you're fully committed to having fun and not always riding the planned lines, the EX 1700 CLASSIC is ready to get rowdy.
The EX 1700 CLASSIC is part of DT Swiss's Enduro wheel range; DT Swiss approves it for e-bike use (pedelecs up to 32 km/h / 250 W). It is offered in 29" and 27.5" with 30 mm inner width, with IS (6-bolt), Center Lock brake interfaces and Shimano HG Slim, SRAM XD Slim, Shimano Micro Spline, Shimano MTB, SRAM XD freehub options.
- 350 hub with Ratchet DEG 72 freehub
- Aluminum rim, Hooked / Crotchet tubeless TC, 30 mm inner width
- Spokes: DT competition® race
- DF anti-pedal-kickback system (DF 0°/10°/20°)
- Approved for e-bikes, max. system weight 130 kg
Gallery
Full specifications
General
- Weight front wheel
- 849–957 g
- Weight rear wheel
- 1067–1140 g
- Weight per set
- from 1916 g
- Max. system weight
- 130 kg
- ASTM classification
- 5
- Approved for e-bikes
- Yes (max. 32Km/h or max. 250W)
Rim
- Material
- Aluminum
- Rim joint
- Welded
- Tire interface
- Hooked / Crotchet tubeless TC
- Valve hole
- Presta
- Rim diameter
- 27.5" / 650B; 29" / 700C

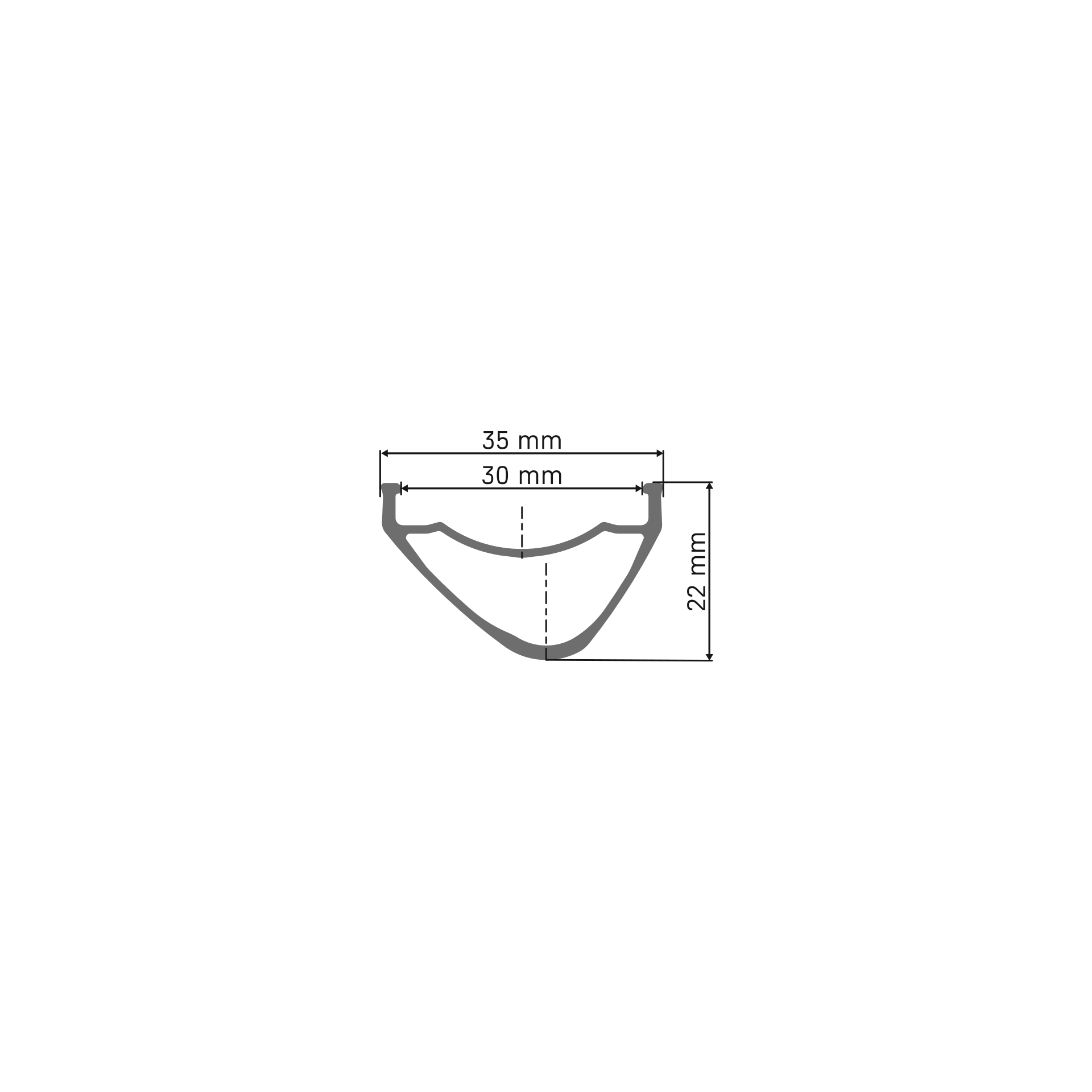

- Rim Height (front)
- 21 mm
- Rim Height (rear)
- 22 mm
- Inner width
- 30 mm
- Outer width (front)
- 34.7 mm
- Outer width (rear)
- 35 mm
Hub
- Hub type
- 350
- Axle system (front)
- 15 mm Thru Axle; 20 mm Thru Axle
- Axle system (rear)
- 12 mm Thru Axle
- Built-in dimension (front)
- 110 mm Boost
- Built-in dimension (rear)
- 148 mm Boost; 157 mm
- Brake interface
- Disc IS (6-bolt); Disc Center Lock
- Cassette interface
- Shimano HG Slim; Sram XD Slim; Shimano Micro Spline; Shimano MTB; Sram XD
- Freehub body
- Shimano HG Slim (ASHGS); SRAM XD Slim (AXDS); Shim. 12SP Light (ASL12); Shimano Light (ASL); SRAM XD MTB (ASRAM)
- Freehub system
- Ratchet DEG 72
- Anti-Pedal Kickback System
- DF 0°/10°/20°
Spokes & Nipples
- Spokes left
- DT competition® race
- Spokes right
- DT competition® race
- Spoke pattern
- Three-cross (1:1)
- Nipples
- DT ProLock Squorx ProHead alu
Inclusive
- Inclusive
- Tubeless tape 32 mm TL valve Asy Alu black18-25 mm
Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.
DT Swiss Enduro versions compared
| E 1900 SPLINE | EX 1700 CLASSIC | EXC 1500 CLASSIC | EXC 1200 CLASSIC | |
|---|---|---|---|---|
| Price | €479 | €749 | €1,699 | €2,499 |
| Wheel size | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" |
| Inner width | 30 mm | 30 mm | 30 mm | 30 mm |
| Hub | 370, Ratchet LN 18 | 350, Ratchet DEG 72 | 240, Ratchet DEG 90 | 180, Ratchet DEG 90 |
| Rim | Aluminum, Hooked / Crotchet tubeless TC | Aluminum, Hooked / Crotchet tubeless TC | Carbon, Hookless tubeless TSS | Carbon, Hookless tubeless TSS |
| Max. system weight | 130 kg | 130 kg | 130 kg | 130 kg |
| E-bike approved | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) |
| Weight | 1,994 g | 1,916 g | 1,683 g | 1,644 g |
eMTBs that come with the DT Swiss Enduro
DT Swiss EX 1700 CLASSIC: FAQ
How much does the DT Swiss EX 1700 CLASSIC cost?
€749 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.
How much does the DT Swiss EX 1700 CLASSIC weigh?
DT Swiss quotes 1,916 g (Per set (front + rear), lightest configuration, claimed).
Is the DT Swiss EX 1700 CLASSIC suitable for e-bikes?
Yes — DT Swiss lists it as e-bike rated or e-bike specific.
What are the key specs of the DT Swiss EX 1700 CLASSIC?
Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 350, Ratchet DEG 72; Rim: Aluminum, Hooked / Crotchet tubeless TC; Max. system weight: 130 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).
What other versions of the DT Swiss Enduro are there?
E 1900 SPLINE (€479), EXC 1500 CLASSIC (€1,699), EXC 1200 CLASSIC (€2,499).
