DT SwissXM 1700 SPLINE
€749 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site
- Wheel size
- 29" / 27.5"
- Inner width
- 30 mm
- Hub
- 350, Ratchet DEG 72
- Rim
- Aluminum, Hooked / Crotchet tubeless TC
- Max. system weight
- 130 kg
- E-bike approved
- Yes (max. 32Km/h or max. 250W)
- Weight
- 1,825 gPer set (front + rear), lightest configuration, claimed
Overview

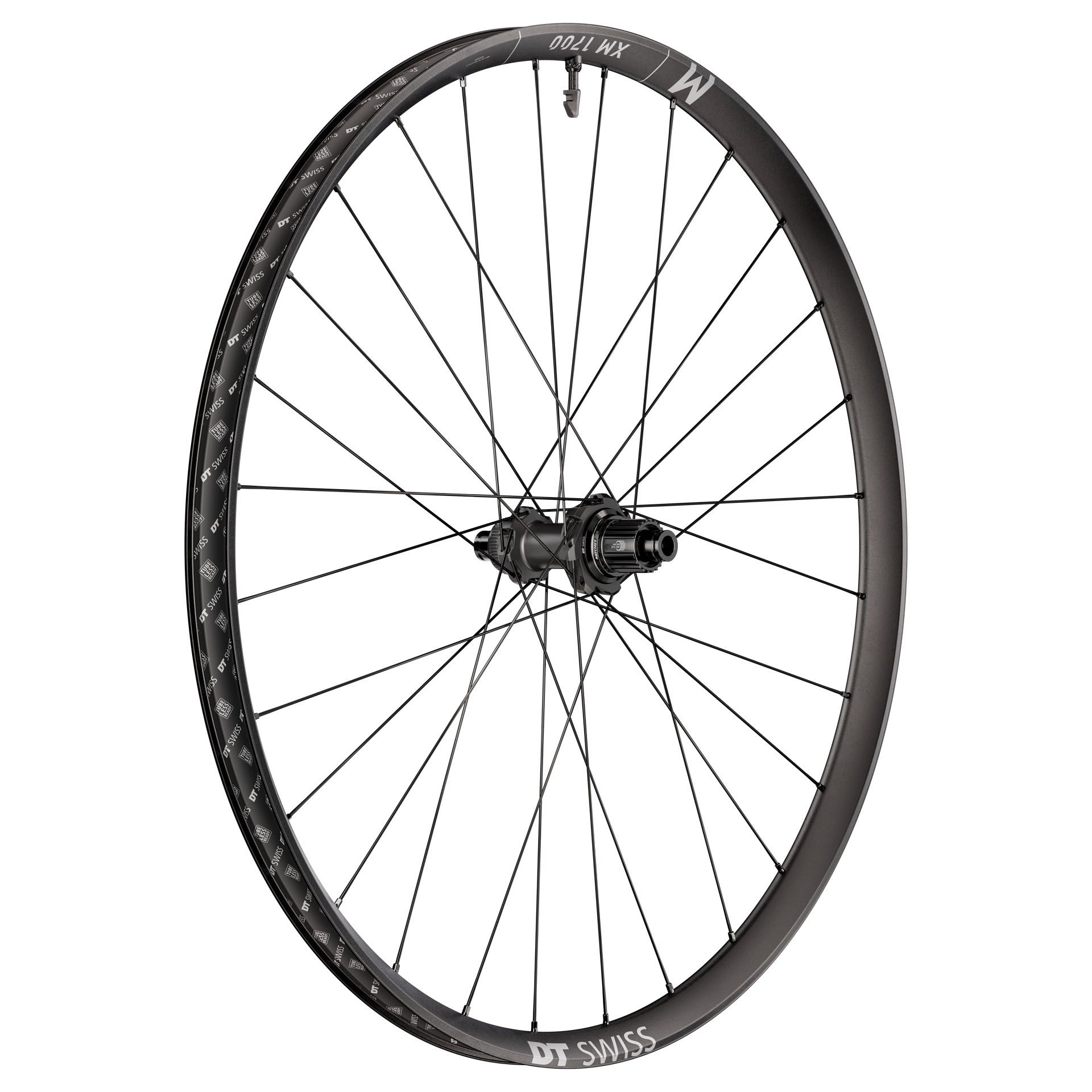

XM 1700 SPLINE is an aluminum All Mountain wheelset from DT Swiss with 350 hubs (Ratchet DEG 72) and 30 mm inner width, in 29" / 27.5"; from 1825 g per set. MSRP from €749 per set.
When you just want the fun of exploring the mountains, don’t search further, the XM 1700 SPLINE is ready to conquer the roughest terrain without any fuss.
The XM 1700 SPLINE is part of DT Swiss's All Mountain wheel range for trail riding; DT Swiss approves it for e-bike use (pedelecs up to 32 km/h / 250 W). It is offered in 29" and 27.5" with 30 mm inner width, with Center Lock brake interfaces and Shimano Micro Spline, SRAM XD freehub options.
- 350 hub with Ratchet DEG 72 freehub
- Aluminum rim, Hooked / Crotchet tubeless TC, 30 mm inner width
- Spokes: DT competition® race straightpull
- DF anti-pedal-kickback system (DF 0°/10°/20°)
- Approved for e-bikes, max. system weight 130 kg
Gallery
Full specifications
General
- Weight front wheel
- 847–859 g
- Weight rear wheel
- 978–1027 g
- Weight per set
- from 1825 g
- Max. system weight
- 130 kg
- ASTM classification
- 4
- Approved for e-bikes
- Yes (max. 32Km/h or max. 250W)
Rim
- Material
- Aluminum
- Rim joint
- Welded
- Tire interface
- Hooked / Crotchet tubeless TC
- Valve hole
- Presta
- Rim diameter
- 29" / 700C; 27.5" / 650B
- Rim Height (front)
- 20 mm; 21 mm
- Rim Height (rear)
- 21 mm
- Inner width
- 30 mm
- Outer width (front)
- 34 mm; 35 mm
- Outer width (rear)
- 35 mm
Hub
- Hub type
- 350
- Axle system (front)
- 15 mm Thru Axle
- Axle system (rear)
- 12 mm Thru Axle
- Built-in dimension (front)
- 110 mm Boost
- Built-in dimension (rear)
- 148 mm Boost
- Brake interface
- Disc Center Lock
- Cassette interface
- Shimano Micro Spline; Sram XD
- Freehub body
- Shim. 12SP Light (ASL12); SRAM XD MTB (ASRAM)
- Freehub system
- Ratchet DEG 72
- Anti-Pedal Kickback System
- DF 0°/10°/20°
Spokes & Nipples
- Spokes left
- DT competition® race straightp
- Spokes right
- DT competition® race straightp
- Spoke pattern
- Three-cross (1:1)
- Nipples
- DT ProLock Squorx ProHead alu
Inclusive
- Inclusive
- Tubeless tape 32 mm TL valve Asy Alu black18-25 mm IS 6-bolt adapter MTB
Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.
DT Swiss All Mountain versions compared
| M 1900 SPLINE | XM 1700 SPLINE | XMC 1500 SPLINE | XMC 1200 SPLINE | |
|---|---|---|---|---|
| Price | €479 | €749 | €1,699 | €2,499 |
| Wheel size | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" |
| Inner width | 30 mm | 30 mm | 30 mm | 30 mm |
| Hub | 370, Ratchet LN 18 | 350, Ratchet DEG 72 | 240, Ratchet DEG 90 | 180, Ratchet DEG 90 / Ratchet EXP 54 |
| Rim | Aluminum, Hooked / Crotchet tubeless TC | Aluminum, Hooked / Crotchet tubeless TC | Carbon, Hookless tubeless TSS | Carbon, Hookless tubeless TSS |
| Max. system weight | 120 kg | 130 kg | 130 kg | 130 kg |
| E-bike approved | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) |
| Weight | 1,894 g | 1,825 g | 1,599 g | 1,485 g |
DT Swiss XM 1700 SPLINE: FAQ
How much does the DT Swiss XM 1700 SPLINE cost?
€749 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.
How much does the DT Swiss XM 1700 SPLINE weigh?
DT Swiss quotes 1,825 g (Per set (front + rear), lightest configuration, claimed).
Is the DT Swiss XM 1700 SPLINE suitable for e-bikes?
Yes — DT Swiss lists it as e-bike rated or e-bike specific.
What are the key specs of the DT Swiss XM 1700 SPLINE?
Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 350, Ratchet DEG 72; Rim: Aluminum, Hooked / Crotchet tubeless TC; Max. system weight: 130 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).
What other versions of the DT Swiss All Mountain are there?
M 1900 SPLINE (€479), XMC 1500 SPLINE (€1,699), XMC 1200 SPLINE (€2,499).
