DT SwissXMC 1500 SPLINE
€1,699 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site
- Wheel size
- 29" / 27.5"
- Inner width
- 30 mm
- Hub
- 240, Ratchet DEG 90
- Rim
- Carbon, Hookless tubeless TSS
- Max. system weight
- 130 kg
- E-bike approved
- Yes (max. 32Km/h or max. 250W)
- Weight
- 1,599 gPer set (front + rear), lightest configuration, claimed
Overview
XMC 1500 SPLINE is a carbon All Mountain wheelset from DT Swiss with 240 hubs (Ratchet DEG 90) and 30 mm inner width, in 29" / 27.5"; from 1599 g per set. MSRP from €1699 per set.
Carbon All mountain wheelset with premium components to make every ride unforgettable. Get out there and the form will follow the flow.
The XMC 1500 SPLINE is part of DT Swiss's All Mountain wheel range for trail riding; DT Swiss approves it for e-bike use (pedelecs up to 32 km/h / 250 W). It is offered in 29" and 27.5" with 30 mm inner width, with Center Lock brake interfaces and SRAM XD freehub options.
- 240 hub with Ratchet DEG 90 freehub
- Carbon rim, Hookless tubeless TSS, 30 mm inner width
- Spokes: DT complite® t-head
- DF anti-pedal-kickback system (DF 0°/10°/20°)
- Approved for e-bikes, max. system weight 130 kg
Gallery
Full specifications
General
- Weight front wheel
- 682–730 g
- Weight rear wheel
- 872–917 g
- Weight per set
- from 1599 g
- Max. system weight
- 130 kg
- ASTM classification
- 4
- Approved for e-bikes
- Yes (max. 32Km/h or max. 250W)
Rim
- Material
- Carbon
- Tire interface
- Hookless tubeless TSS
- Valve hole
- Presta
- Rim diameter
- 29" / 700C; 27.5" / 650B

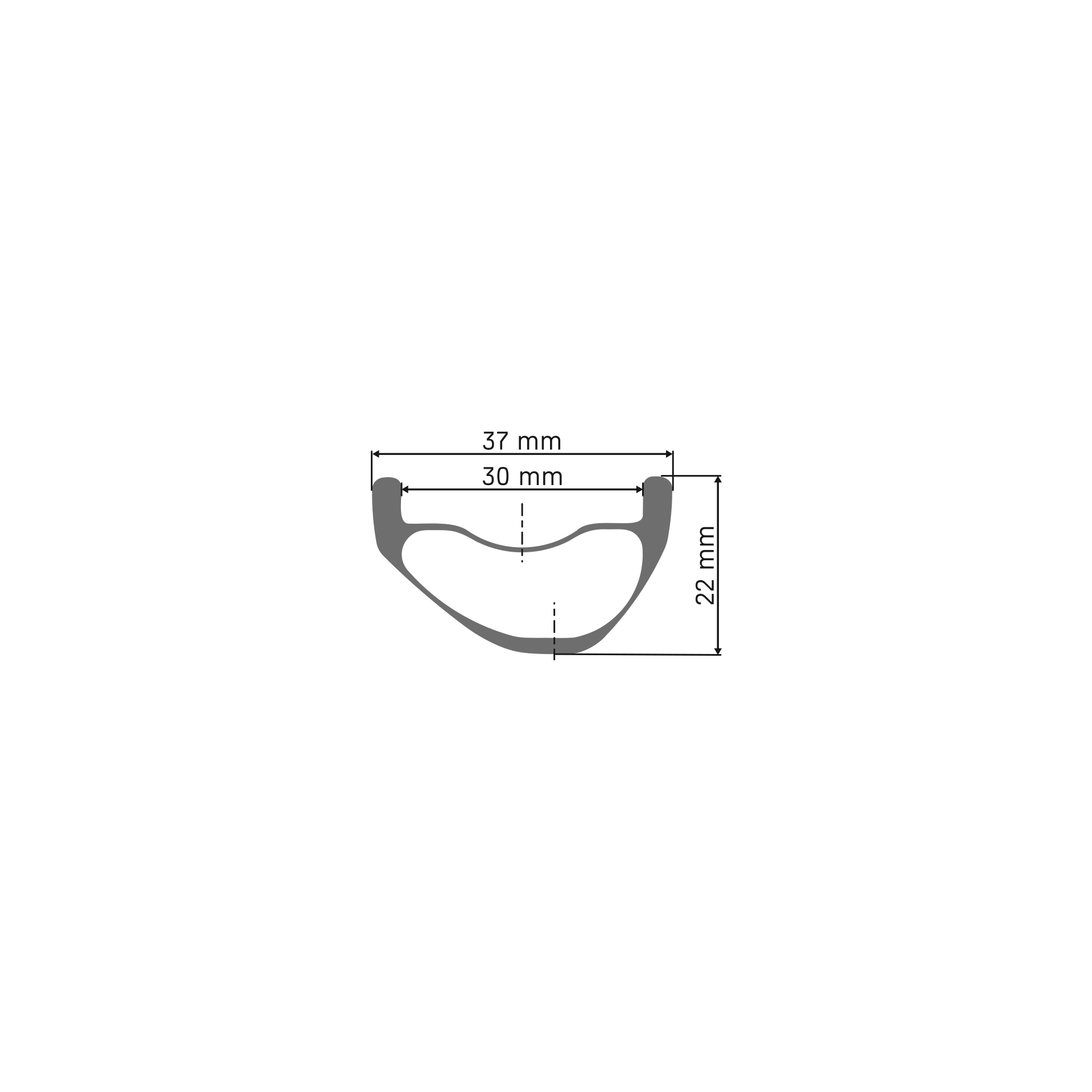

- Rim Height (front)
- 20 mm; 22 mm
- Rim Height (rear)
- 22 mm
- Inner width
- 30 mm
- Outer width (front)
- 36 mm; 36.8 mm
- Outer width (rear)
- 36.8 mm
Hub
- Hub type
- 240
- Axle system (front)
- 15 mm Thru Axle
- Axle system (rear)
- 12 mm Thru Axle
- Built-in dimension (front)
- 110 mm Boost
- Built-in dimension (rear)
- 148 mm Boost
- Brake interface
- Disc Center Lock
- Cassette interface
- Sram XD
- Freehub body
- SRAM XD MTB (ASRAM) (mounted)
- Freehub system
- Ratchet DEG 90
- Anti-Pedal Kickback System
- DF 0°/10°/20°
Spokes & Nipples
- Spokes left
- DT complite® t-head
- Spokes right
- DT complite® t-head
- Spoke pattern
- Three-cross (1:1)
- Nipples
- DT ProLock Squorx ProHead alu
Inclusive
- Inclusive
- Tubeless tape 32 mm TL valve alu black 18-25 mm IS 6-bolt adapter MTB Shim Micro Spline freehub kit; Tubeless tape 32 mm TL valve alu black 18-25 mm IS 6-bolt adapter MTB
Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.
DT Swiss All Mountain versions compared
| M 1900 SPLINE | XM 1700 SPLINE | XMC 1500 SPLINE | XMC 1200 SPLINE | |
|---|---|---|---|---|
| Price | €479 | €749 | €1,699 | €2,499 |
| Wheel size | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" | 29" / 27.5" |
| Inner width | 30 mm | 30 mm | 30 mm | 30 mm |
| Hub | 370, Ratchet LN 18 | 350, Ratchet DEG 72 | 240, Ratchet DEG 90 | 180, Ratchet DEG 90 / Ratchet EXP 54 |
| Rim | Aluminum, Hooked / Crotchet tubeless TC | Aluminum, Hooked / Crotchet tubeless TC | Carbon, Hookless tubeless TSS | Carbon, Hookless tubeless TSS |
| Max. system weight | 120 kg | 130 kg | 130 kg | 130 kg |
| E-bike approved | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) |
| Weight | 1,894 g | 1,825 g | 1,599 g | 1,485 g |
DT Swiss XMC 1500 SPLINE: FAQ
How much does the DT Swiss XMC 1500 SPLINE cost?
€1,699 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.
How much does the DT Swiss XMC 1500 SPLINE weigh?
DT Swiss quotes 1,599 g (Per set (front + rear), lightest configuration, claimed).
Is the DT Swiss XMC 1500 SPLINE suitable for e-bikes?
Yes — DT Swiss lists it as e-bike rated or e-bike specific.
What are the key specs of the DT Swiss XMC 1500 SPLINE?
Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 240, Ratchet DEG 90; Rim: Carbon, Hookless tubeless TSS; Max. system weight: 130 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).
What other versions of the DT Swiss All Mountain are there?
M 1900 SPLINE (€479), XM 1700 SPLINE (€749), XMC 1200 SPLINE (€2,499).
