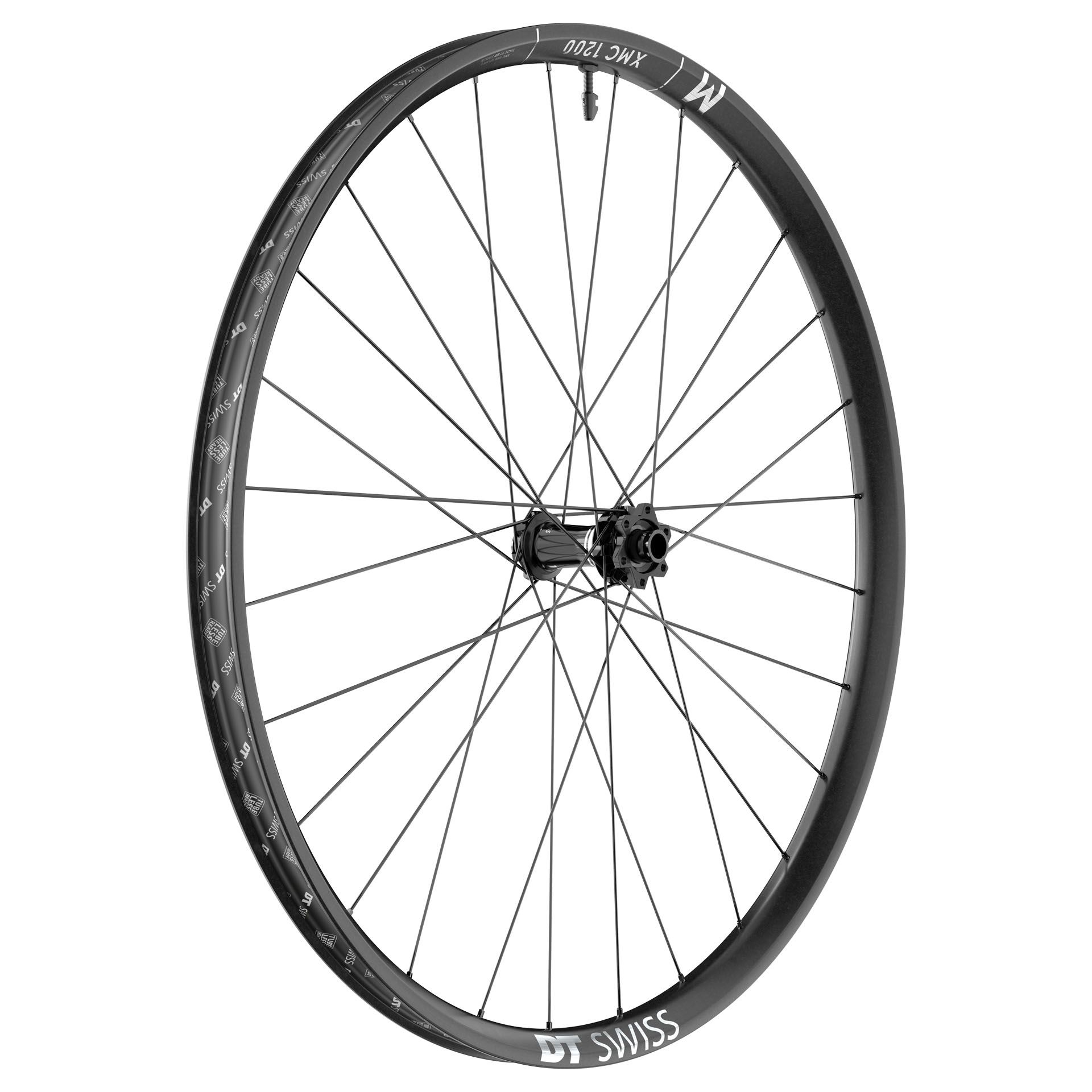

DT SwissXMC 1200 SPLINE

€2,499 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site

Wheel size: 29" / 27.5"
Inner width: 30 mm
Hub: 180, Ratchet DEG 90 / Ratchet EXP 54
Rim: Carbon, Hookless tubeless TSS
Max. system weight: 130 kg
E-bike approved: Yes (max. 32Km/h or max. 250W)
Weight: 1,485 gPer set (front + rear), lightest configuration, claimed

Compare 4 versions Compare with…Official page →

Overview

XMC 1200 SPLINE is a carbon All Mountain wheelset from DT Swiss with 180 hubs (Ratchet DEG 90 / Ratchet EXP 54) and 30 mm inner width, in 29" / 27.5"; from 1485 g per set. MSRP from €2499 per set.

Our highest quality carbon all mountain wheels, tough and light in order to ride every trail fast and confidently.

The XMC 1200 SPLINE is part of DT Swiss's All Mountain wheel range for trail riding; DT Swiss approves it for e-bike use (pedelecs up to 32 km/h / 250 W). It is offered in 29" and 27.5" with 30 mm inner width, with IS (6-bolt), Center Lock brake interfaces and SRAM XD freehub options.

180 hub with Ratchet DEG 90 / Ratchet EXP 54 freehub
Carbon rim, Hookless tubeless TSS, 30 mm inner width
Spokes: DT revolite® t-head
Approved for e-bikes, max. system weight 130 kg

Gallery

Full specifications

General

Weight front wheel: 650–712 g
Weight rear wheel: 792–894 g
Weight per set: from 1485 g
Max. system weight: 130 kg
ASTM classification: 4
Approved for e-bikes: Yes (max. 32Km/h or max. 250W)

Rim

Material: Carbon
Tire interface: Hookless tubeless TSS
Valve hole: Presta
Rim diameter: 29" / 700C; 27.5" / 650B
Rim Height (front): 20 mm; 22 mm
Rim Height (rear): 22 mm
Inner width: 30 mm
Outer width (front): 36 mm; 36.8 mm
Outer width (rear): 36.8 mm

Hub

Hub type: 180
Axle system (front): 15 mm Thru Axle
Axle system (rear): 12 mm Thru Axle
Built-in dimension (front): 110 mm Boost
Built-in dimension (rear): 148 mm Boost
Brake interface: Disc IS (6-bolt); Disc Center Lock
Cassette interface: Sram XD
Freehub body: SRAM XD MTB (ASRAM) (mounted)
Freehub system: Ratchet DEG 90; Ratchet EXP 54

Spokes & Nipples

Spokes left: DT revolite® t-head
Spokes right: DT revolite® t-head
Spoke pattern: Three-cross (1:1)
Nipples: DT ProLock Squorx ProHead alu

Inclusive

Inclusive: Wheel bag Tubeless tape 32 mm TL valve alu black 18-25 mm Shim Micro Spline freehub kit; Wheel bag Tubeless tape 32 mm TL valve alu black 18-25 mm

Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.

DT Swiss All Mountain versions compared

	M 1900 SPLINE	XM 1700 SPLINE	XMC 1500 SPLINE	XMC 1200 SPLINE
Price	€479	€749	€1,699	€2,499
Wheel size	29" / 27.5"	29" / 27.5"	29" / 27.5"	29" / 27.5"
Inner width	30 mm	30 mm	30 mm	30 mm
Hub	370, Ratchet LN 18	350, Ratchet DEG 72	240, Ratchet DEG 90	180, Ratchet DEG 90 / Ratchet EXP 54
Rim	Aluminum, Hooked / Crotchet tubeless TC	Aluminum, Hooked / Crotchet tubeless TC	Carbon, Hookless tubeless TSS	Carbon, Hookless tubeless TSS
Max. system weight	120 kg	130 kg	130 kg	130 kg
E-bike approved	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)	Yes (max. 32Km/h or max. 250W)
Weight	1,894 g	1,825 g	1,599 g	1,485 g

DT Swiss XMC 1200 SPLINE: FAQ

How much does the DT Swiss XMC 1200 SPLINE cost?

€2,499 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.

How much does the DT Swiss XMC 1200 SPLINE weigh?

DT Swiss quotes 1,485 g (Per set (front + rear), lightest configuration, claimed).

Is the DT Swiss XMC 1200 SPLINE suitable for e-bikes?

Yes — DT Swiss lists it as e-bike rated or e-bike specific.

What are the key specs of the DT Swiss XMC 1200 SPLINE?

Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 180, Ratchet DEG 90 / Ratchet EXP 54; Rim: Carbon, Hookless tubeless TSS; Max. system weight: 130 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).

What other versions of the DT Swiss All Mountain are there?

M 1900 SPLINE (€479), XM 1700 SPLINE (€749), XMC 1500 SPLINE (€1,699).
