DT SwissHXC 1501 SPLINE ONE LS
€1,769 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site
- Wheel size
- 29" / 27.5"
- Inner width
- 30 mm
- Hub
- 240, Ratchet EXP OS 30
- Rim
- Carbon, Hookless tubeless TSS
- Max. system weight
- 130 kg
- E-bike approved
- Yes (max. 32Km/h or max. 250W)
- Weight
- 1,691 gPer set (front + rear), lightest configuration, claimed
Overview
HXC 1501 SPLINE ONE LS is a carbon Hybrid MTB Light Support wheelset from DT Swiss with 240 hubs (Ratchet EXP OS 30) and 30 mm inner width, in 29" / 27.5"; from 1691 g per set. MSRP from €1769 per set.
These extra lightweight carbon eMTB wheels are engineered for riders looking for outstanding agility. Thanks to the low weight carbon rims, riders benefit from increased agility and dynamism when going uphill and downhill, while withstanding the increased torques of eMTBs.
The HXC 1501 SPLINE ONE LS is part of DT Swiss's Hybrid MTB Light Support (LS) range, developed for lighter e-MTBs with lower-torque motors, keeping weight down without giving up e-bike durability. It is offered in 29" and 27.5" with 30 mm inner width, with Center Lock brake interfaces and Shimano Micro Spline, SRAM XD freehub options.
- 240 hub with Ratchet EXP OS 30 freehub
- Carbon rim, Hookless tubeless TSS, 30 mm inner width
- Spokes: DT hybrid 4 Straightpull
- Approved for e-bikes, max. system weight 130 kg
Gallery
Full specifications
General
- Weight front wheel
- 808–847 g
- Weight rear wheel
- 883–929 g
- Weight per set
- from 1691 g
- Max. system weight
- 130 kg
- ASTM classification
- 4
- Approved for e-bikes
- Yes (max. 32Km/h or max. 250W)
Rim
- Material
- Carbon
- Tire interface
- Hookless tubeless TSS
- Valve hole
- Presta
- Rim diameter
- 29" / 700C; 27.5" / 650B

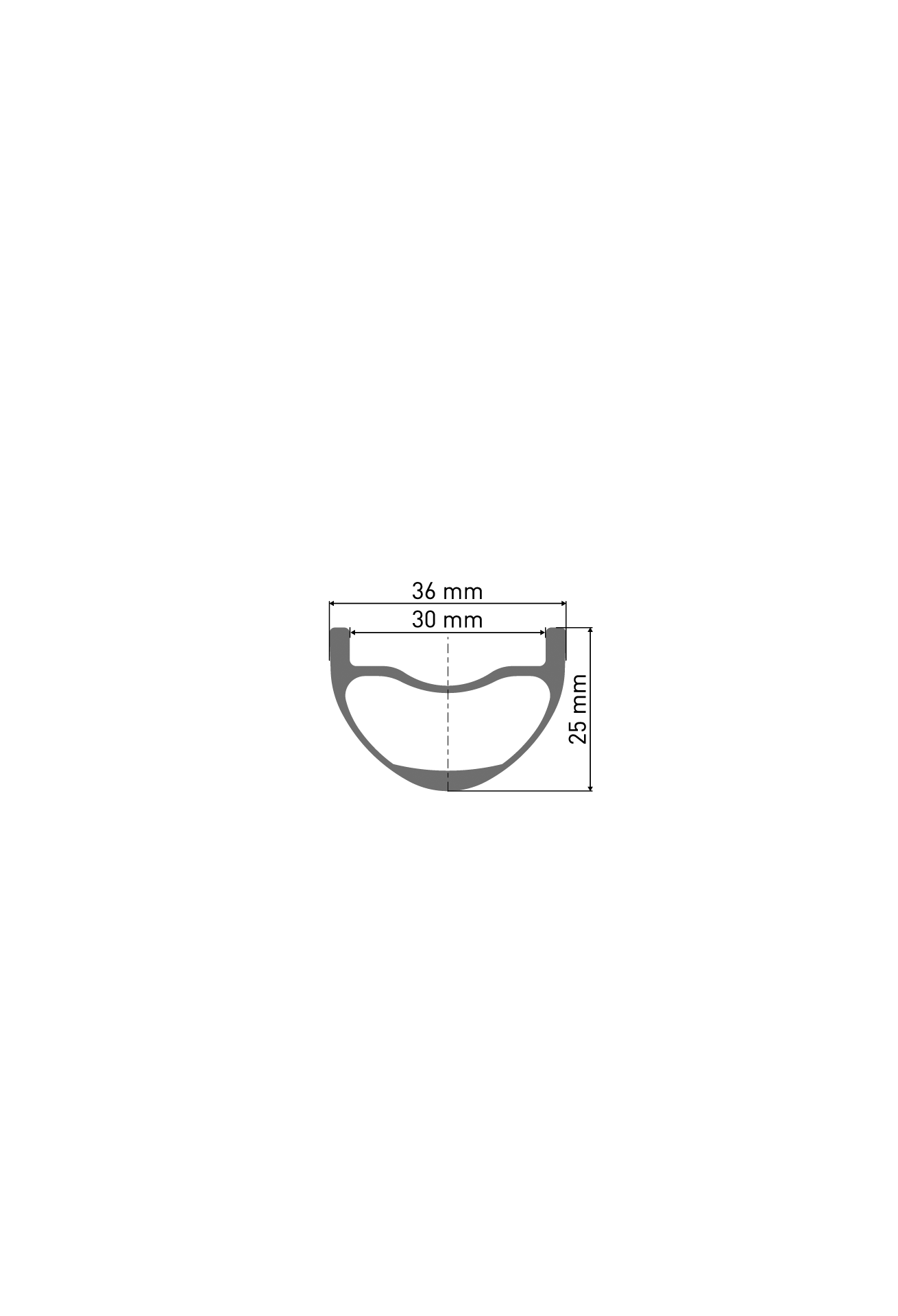

- Rim height
- 25 mm
- Inner width
- 30 mm
- Outer width
- 36 mm
Hub
- Hub type
- 240
- Axle system (front)
- 15 mm Thru Axle
- Axle system (rear)
- 12 mm Thru Axle
- Built-in dimension (front)
- 110 mm Boost
- Built-in dimension (rear)
- 148 mm Boost
- Brake interface
- Disc Center Lock
- Cassette interface
- Shimano Micro Spline; Sram XD
- Freehub body
- Shim. 12SP Light (ASL12); SRAM XD MTB (ASRAM)
- Freehub system
- Ratchet EXP OS 30
Spokes & Nipples
- Spokes left
- DT hybrid 4 Straightpull
- Spokes right
- DT hybrid 4 Straightpull
- Spoke pattern
- Three-cross (1:1)
- Nipples
- DT ProLock Squorx ProHead alu
Inclusive
- Inclusive
- Tubeless tape 32 mm TL valve alu black 18-25 mm IS 6-bolt adapter MTB
Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.
DT Swiss Hybrid MTB Light Support versions compared
| HX 1700 SPLINE LS | HXC 1501 SPLINE ONE LS | |
|---|---|---|
| Price | €849 | €1,769 |
| Wheel size | 29" / 27.5" | 29" / 27.5" |
| Inner width | 30 mm | 30 mm |
| Hub | 350, Ratchet System 24 | 240, Ratchet EXP OS 30 |
| Rim | Aluminum, Hooked / Crotchet tubeless TC | Carbon, Hookless tubeless TSS |
| Max. system weight | 130 kg | 130 kg |
| E-bike approved | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) |
| Weight | 1,909 g | 1,691 g |
DT Swiss HXC 1501 SPLINE ONE LS: FAQ
How much does the DT Swiss HXC 1501 SPLINE ONE LS cost?
€1,769 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.
How much does the DT Swiss HXC 1501 SPLINE ONE LS weigh?
DT Swiss quotes 1,691 g (Per set (front + rear), lightest configuration, claimed).
Is the DT Swiss HXC 1501 SPLINE ONE LS suitable for e-bikes?
Yes — DT Swiss lists it as e-bike rated or e-bike specific.
What are the key specs of the DT Swiss HXC 1501 SPLINE ONE LS?
Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 240, Ratchet EXP OS 30; Rim: Carbon, Hookless tubeless TSS; Max. system weight: 130 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).
What other versions of the DT Swiss Hybrid MTB Light Support are there?
HX 1700 SPLINE LS (€849).
