DT SwissHX 1700 SPLINE LS
€849 MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site
- Wheel size
- 29" / 27.5"
- Inner width
- 30 mm
- Hub
- 350, Ratchet System 24
- Rim
- Aluminum, Hooked / Crotchet tubeless TC
- Max. system weight
- 130 kg
- E-bike approved
- Yes (max. 32Km/h or max. 250W)
- Weight
- 1,909 gPer set (front + rear), lightest configuration, claimed
Overview

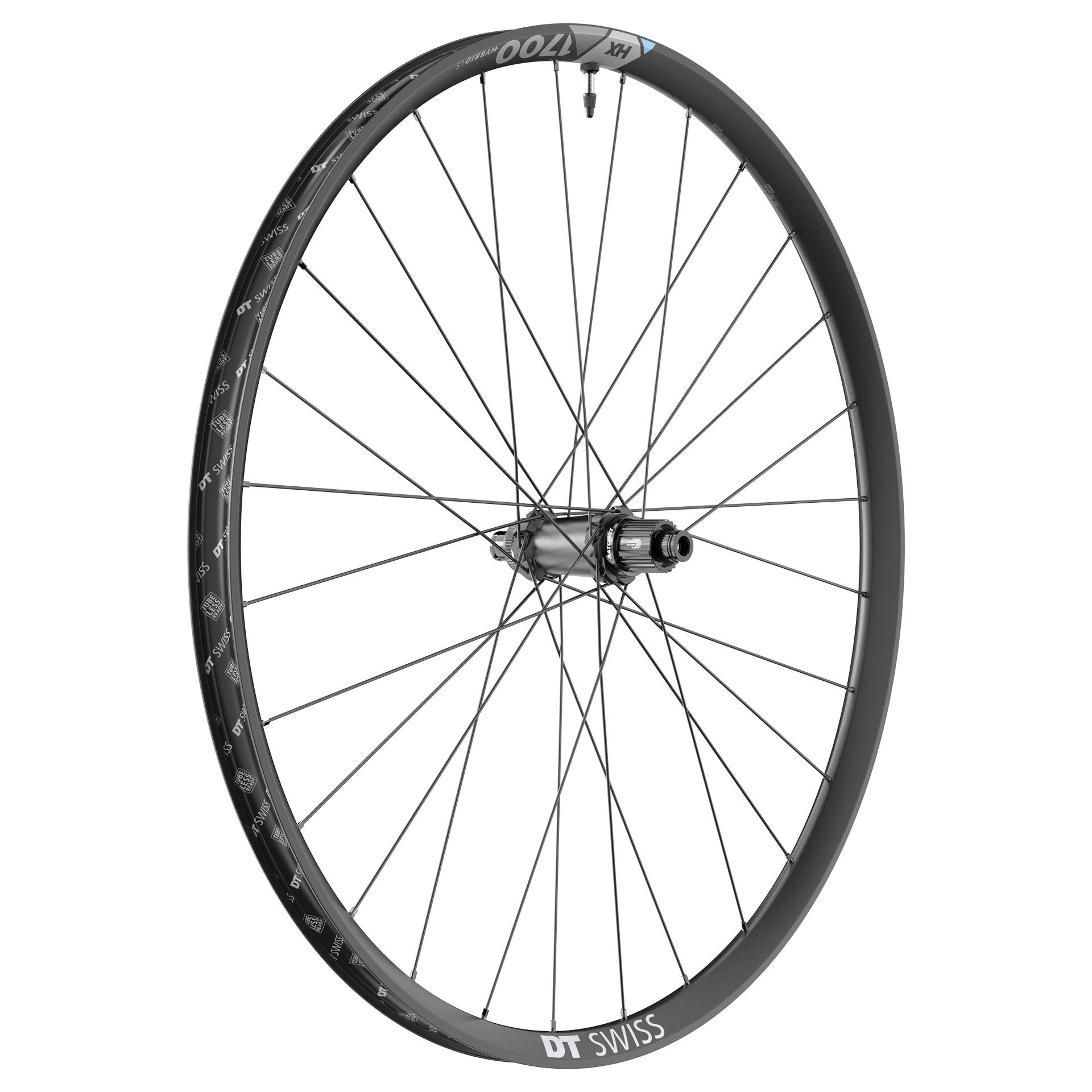

HX 1700 SPLINE LS is an aluminum Hybrid MTB Light Support wheelset from DT Swiss with 350 hubs (Ratchet System 24) and 30 mm inner width, in 29" / 27.5"; from 1909 g per set. MSRP from €849 per set.
Increase the agility of lightweight eMTBs using this specific aluminum wheelset. Aligned to the purpose of lightweight eMTBs, the HX 1700 SPLINE LS aim for the right balance between lightness and resistance for more dynamic handling.
The HX 1700 SPLINE LS is part of DT Swiss's Hybrid MTB Light Support (LS) range, developed for lighter e-MTBs with lower-torque motors, keeping weight down without giving up e-bike durability. It is offered in 29" and 27.5" with 30 mm inner width, with Center Lock brake interfaces and Shimano Micro Spline, SRAM XD freehub options.
- 350 hub with Ratchet System 24 freehub
- Aluminum rim, Hooked / Crotchet tubeless TC, 30 mm inner width
- Spokes: DT hybrid 3 Straightpull
- Approved for e-bikes, max. system weight 130 kg
Gallery
Full specifications
General
- Weight front wheel
- 879–944 g
- Weight rear wheel
- 1030–1086 g
- Weight per set
- from 1909 g
- Max. system weight
- 130 kg
- ASTM classification
- 4
- Approved for e-bikes
- Yes (max. 32Km/h or max. 250W)
Rim
- Material
- Aluminum
- Rim joint
- Welded
- Tire interface
- Hooked / Crotchet tubeless TC
- Valve hole
- Presta
- Rim diameter
- 29" / 700C; 27.5" / 650B
- Rim height
- 21 mm
- Inner width
- 30 mm
- Outer width
- 35 mm
Hub
- Hub type
- 350
- Axle system (front)
- 15 mm Thru Axle
- Axle system (rear)
- 12 mm Thru Axle
- Built-in dimension (front)
- 110 mm Boost
- Built-in dimension (rear)
- 148 mm Boost
- Brake interface
- Disc Center Lock
- Cassette interface
- Shimano Micro Spline; Sram XD
- Freehub body
- Shim. 12SP Light (ASL12); SRAM XD MTB (ASRAM)
- Freehub system
- Ratchet System 24
Spokes & Nipples
- Spokes left
- DT hybrid 3 Straightpull
- Spokes right
- DT hybrid 3 Straightpull
- Spoke pattern
- Three-cross (1:1)
- Nipples
- DT ProLock Squorx ProHead alu
Inclusive
- Inclusive
- Tubeless tape 32 mm Tubeless valve MTB 32 mm IS 6-bolt adapter MTB
Manufacturer specification — DT Swiss. Specs and prices can change; check with the brand or your dealer.
DT Swiss Hybrid MTB Light Support versions compared
| HX 1700 SPLINE LS | HXC 1501 SPLINE ONE LS | |
|---|---|---|
| Price | €849 | €1,769 |
| Wheel size | 29" / 27.5" | 29" / 27.5" |
| Inner width | 30 mm | 30 mm |
| Hub | 350, Ratchet System 24 | 240, Ratchet EXP OS 30 |
| Rim | Aluminum, Hooked / Crotchet tubeless TC | Carbon, Hookless tubeless TSS |
| Max. system weight | 130 kg | 130 kg |
| E-bike approved | Yes (max. 32Km/h or max. 250W) | Yes (max. 32Km/h or max. 250W) |
| Weight | 1,909 g | 1,691 g |
DT Swiss HX 1700 SPLINE LS: FAQ
How much does the DT Swiss HX 1700 SPLINE LS cost?
€849 (MSRP per wheelset, "from" price (lowest configuration), DT Swiss EU site). Prices vary by country and retailer.
How much does the DT Swiss HX 1700 SPLINE LS weigh?
DT Swiss quotes 1,909 g (Per set (front + rear), lightest configuration, claimed).
Is the DT Swiss HX 1700 SPLINE LS suitable for e-bikes?
Yes — DT Swiss lists it as e-bike rated or e-bike specific.
What are the key specs of the DT Swiss HX 1700 SPLINE LS?
Wheel size: 29" / 27.5"; Inner width: 30 mm; Hub: 350, Ratchet System 24; Rim: Aluminum, Hooked / Crotchet tubeless TC; Max. system weight: 130 kg; E-bike approved: Yes (max. 32Km/h or max. 250W).
What other versions of the DT Swiss Hybrid MTB Light Support are there?
HXC 1501 SPLINE ONE LS (€1,769).
