RockShoxVivid Ultimate
€850 MSRP shown on sram.com (Germany region, EUR); from €850 to €870 depending on size/configuration
- Damper
- RC2T Adj. Hydraulic Bottom Out
- Spring
- Air (LinearXL)
- Eye-to-eye
- 185–250 mm (standard & trunnion)
- Rebound tunes
- R25, R55, R85
- E-bike rated
- Yes (E-bike Approved)
Overview
RockShox Vivid Ultimate: RC2T Adj. Hydraulic Bottom Out air shock in 185–250 mm (standard & trunnion) sizes, e-bike approved; MSRP €850 upwards.
Vivid is RockShox's large-volume air shock for enduro, E-MTB and downhill bikes, available in 185–250 mm eye-to-eye standard and trunnion sizes. It is listed as e-bike approved.
Vivid Ultimate uses the LinearXL air spring, an RC2T damper with HSC/LSC adjustment and Adjustable Bottom Out with five settings, plus main-piston tunes matched to the Charger 3.2 fork damper.
- LinearXL air spring with bottomless tokens
- RC2T damper with independent HSC/LSC
- Adjustable Bottom Out with five settings
- Base valve with 40% lower IFP forces and Charger 3.2-matched main piston tunes
- 20 clicks of rebound adjustment

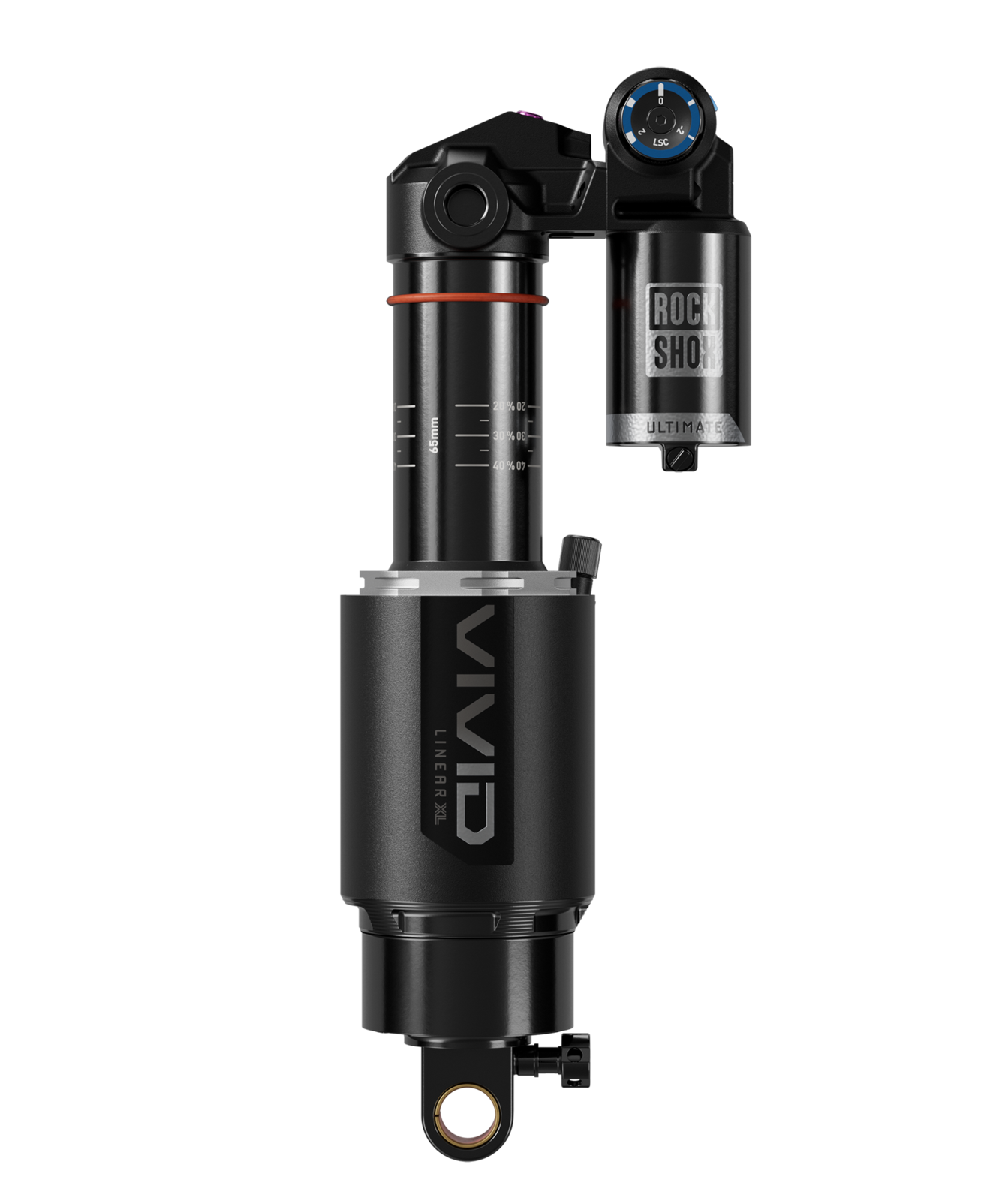

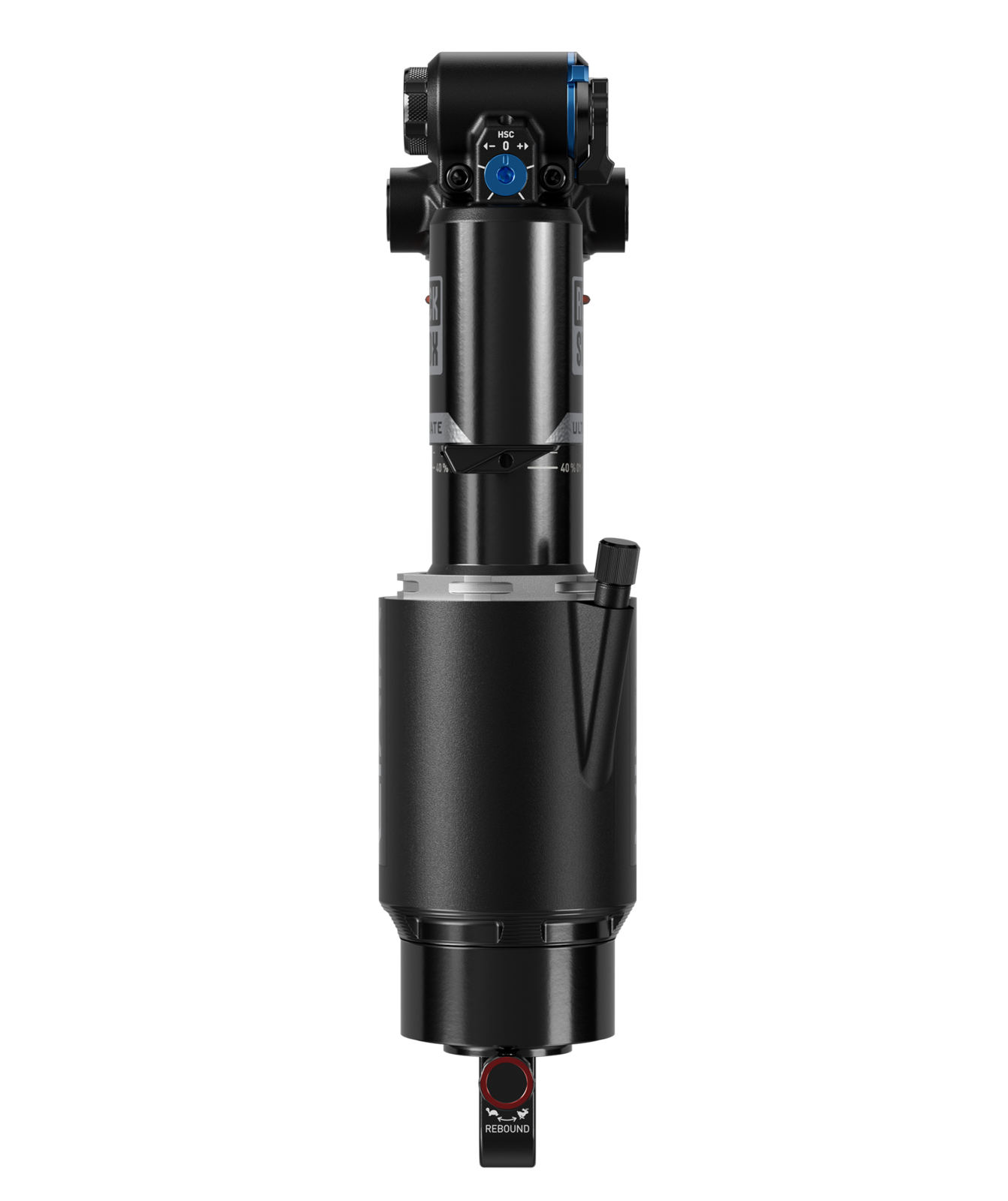

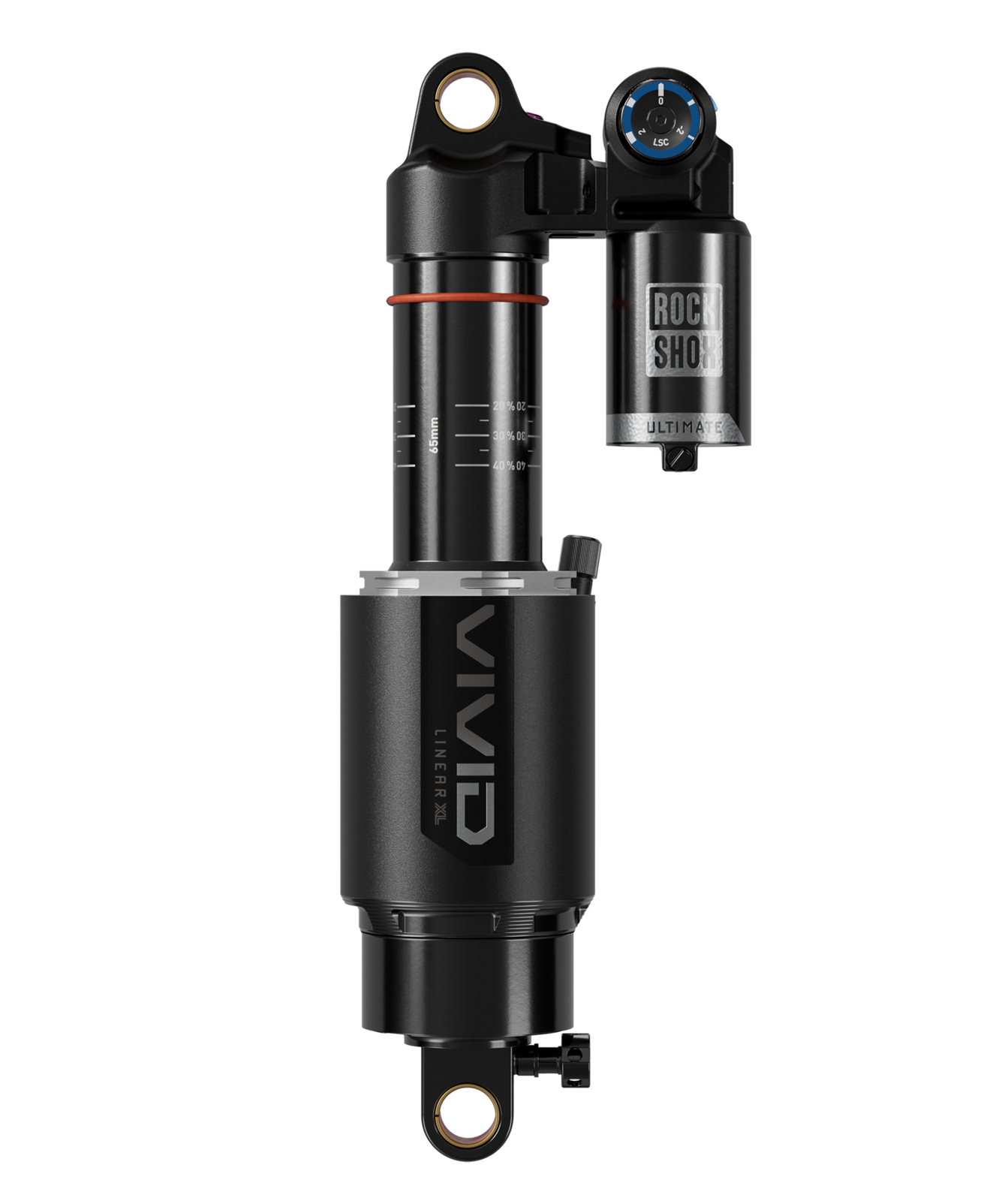

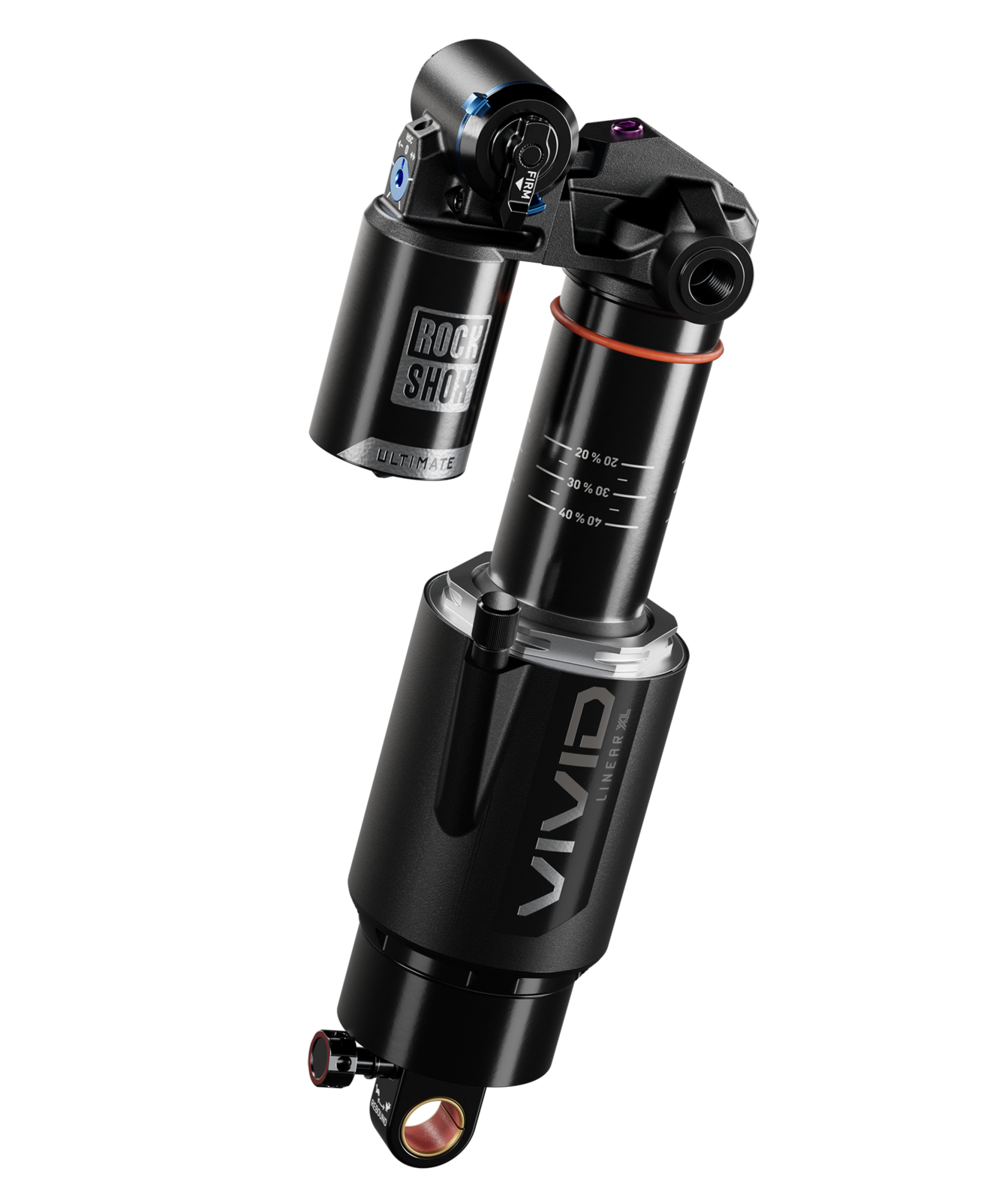

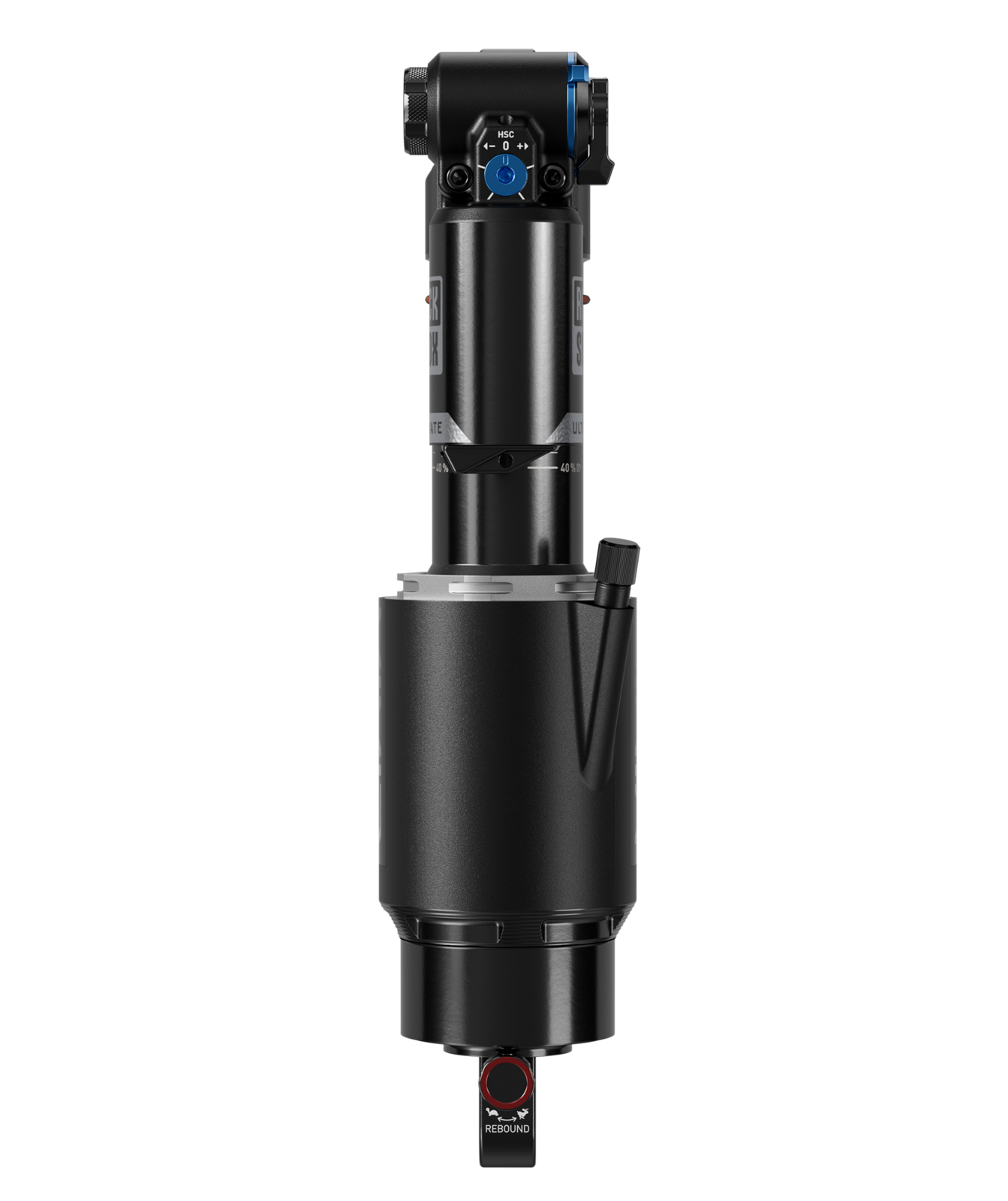

Gallery
Full specifications
Sizes
- Eye to eye / Stroke
- 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Damper
- Damper Type
- RC2T Adj. Hydraulic Bottom Out
- Rebound tune
- R25, R55, R85
- Compression tune
- C22, C26, C30, C34, C37, C40, C43, C46
- Lockout force
- X05, X25, X45
- Bottom Out
- Externally Adjustable Bottom Out
Compatibility
- Shaft Eyelet
- No Bushing, No Bushing - 270 Deg Rotation, No Bushing - 90 Deg Rotation, Standard, Standard - 180 Deg Rotation, Standard - 270 Deg Rotation, Standard - 75 Deg Rotation, Standard - 90 Deg Rotation
- Body Eyelet
- No Bushing, Standard, Standard - 90 Deg Rotation, Trunnion
General
- E-Bike Approved
- E-bike Approved
Manufacturer specification — RockShox. Specs and prices can change; check with the brand or your dealer.
eMTBs that come with the RockShox Vivid
RockShox Vivid Ultimate: FAQ
How much does the RockShox Vivid Ultimate cost?
€850 (MSRP shown on sram.com (Germany region, EUR); from €850 to €870 depending on size/configuration). Prices vary by country and retailer.
Is the RockShox Vivid Ultimate suitable for e-bikes?
Yes — RockShox lists it as e-bike rated or e-bike specific.
What are the key specs of the RockShox Vivid Ultimate?
Damper: RC2T Adj. Hydraulic Bottom Out; Spring: Air (LinearXL); Eye-to-eye: 185–250 mm (standard & trunnion); Rebound tunes: R25, R55, R85; E-bike rated: Yes (E-bike Approved).
