RockShoxSuper Deluxe Ultimate
€730 MSRP shown on sram.com (Germany region, EUR); from €730 to €765 depending on size/configuration
- Damper
- RC2T, RC2T Hydraulic Bottom Out
- Spring
- Air (LinearXL)
- Eye-to-eye
- 165–230 mm (standard & trunnion)
- Rebound tunes
- R25, R55, R85
- E-bike rated
- Yes (E-bike Approved)
- Weight
- 530 g210x55, no hardware installed, claimed
Overview
RockShox Super Deluxe Ultimate: RC2T air shock in 165–230 mm (standard & trunnion) sizes, e-bike approved; MSRP €730 upwards.
Super Deluxe is RockShox's versatile piggyback air shock, described as being easily tuned to match any frame and suited to everything from downcountry to enduro. It is offered in standard and trunnion sizes from 165 mm to 230 mm eye-to-eye and is listed as e-bike approved.
The latest generation adds the LinearXL air spring, a new bottom-out system with optional Hydraulic Bottom Out, a higher max pressure for heavier system weights and a base valve with 40% lower IFP forces. Versions include Ultimate (RC2T), Ultimate Flight Attendant (electronic RC3) and Select+ (RCT).

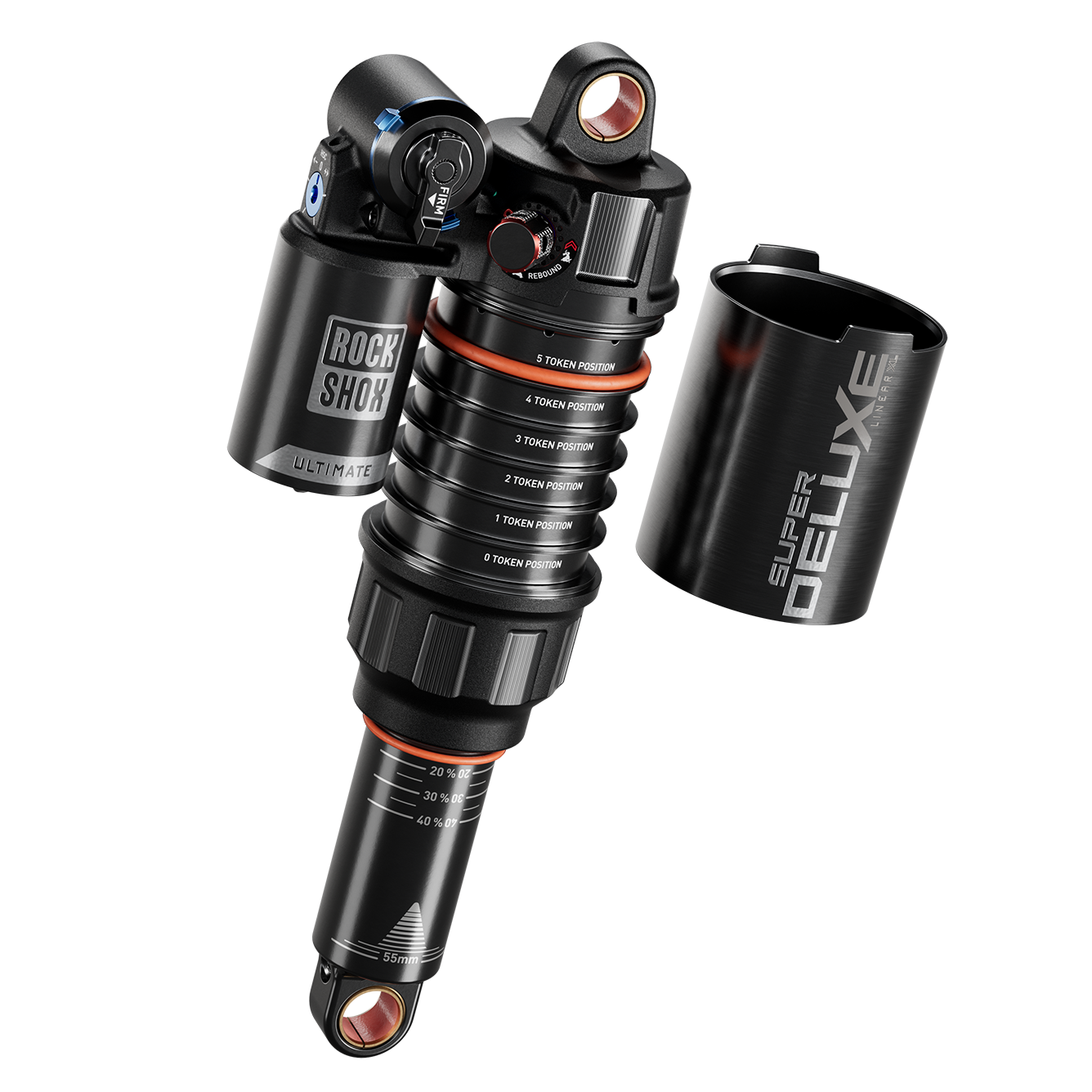

- LinearXL air spring tunable with o-ring tokens
- RC2T damper with independent HSC and LSC, numbered compression adjuster
- Base valve with 40% lower IFP forces and Charger 3.2-matched main piston tunes

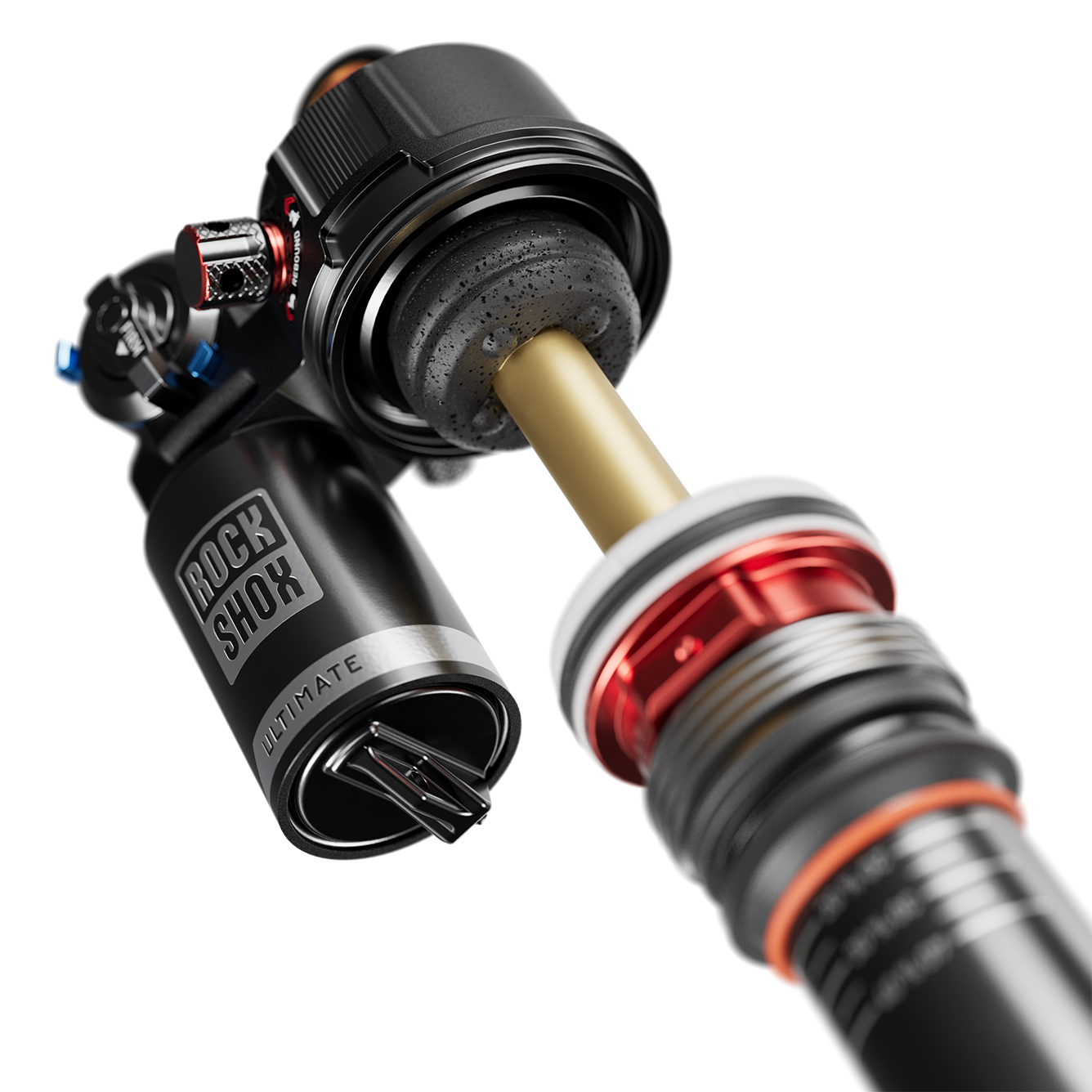

- Jounce bottom-out bumper with optional Hydraulic Bottom Out; higher max PSI
Gallery
Full specifications
Sizes
- Eye to eye / Stroke
- 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Damper
- Damper Type
- RC2T, RC2T Hydraulic Bottom Out
- Rebound tune
- R25, R55, R85
- Compression tune
- C22, C26, C30, C34, C37, C40, C43
- Lockout force
- X05, X25, X45, X65
- Bottom Out
- Hydraulic Bottom Out, n/a
Compatibility
- Shaft Eyelet
- Standard, Trunnion
- Body Eyelet
- No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 90 Deg Rotation
General
- E-Bike Approved
- E-bike Approved
- Weight (g)
- 530 (210x55, no hardware installed)
Manufacturer specification — RockShox. Specs and prices can change; check with the brand or your dealer.
RockShox Super Deluxe versions compared
| Super Deluxe Ultimate | Super Deluxe Ultimate Flight Attendant | Super Deluxe Select+ | |
|---|---|---|---|
| Price | €730 | €1,145 | — |
| Damper | RC2T, RC2T Hydraulic Bottom Out | RC3, RC3 Hydraulic Bottom Out | RCT, RCT Hydraulic Bottom Out |
| Spring | Air (LinearXL) | Air (LinearXL) | Air (LinearXL) |
| Eye-to-eye | 165–230 mm (standard & trunnion) | 165–230 mm (standard & trunnion) | 165–230 mm (standard & trunnion) |
| Rebound tunes | R25, R55, R85 | R25, R55, R85 | R25, R55, R85 |
| E-bike rated | Yes (E-bike Approved) | Yes (E-bike Approved) | Yes (E-bike Approved) |
| Weight | 530 g | — | 530 g |

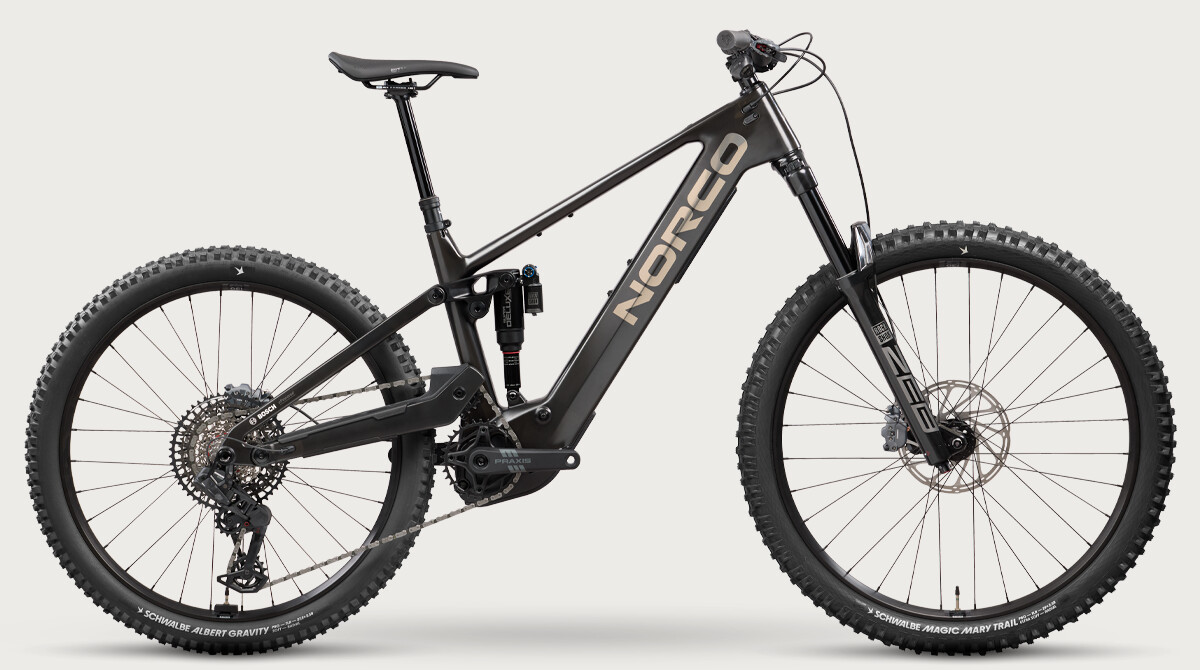

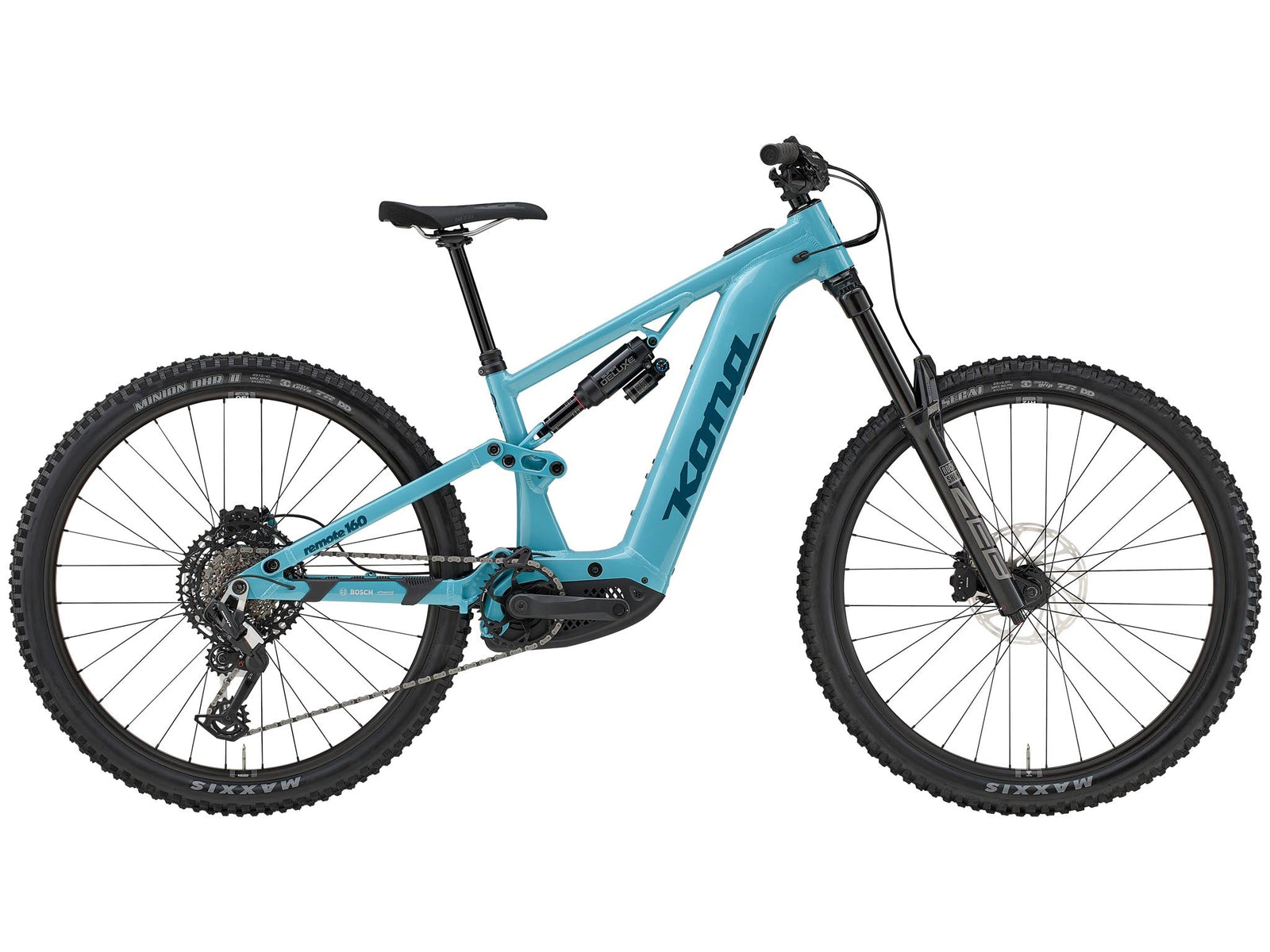

eMTBs that come with the RockShox Super Deluxe
RockShox Super Deluxe Ultimate: FAQ
How much does the RockShox Super Deluxe Ultimate cost?
€730 (MSRP shown on sram.com (Germany region, EUR); from €730 to €765 depending on size/configuration). Prices vary by country and retailer.
How much does the RockShox Super Deluxe Ultimate weigh?
RockShox quotes 530 g (210x55, no hardware installed, claimed).
Is the RockShox Super Deluxe Ultimate suitable for e-bikes?
Yes — RockShox lists it as e-bike rated or e-bike specific.
What are the key specs of the RockShox Super Deluxe Ultimate?
Damper: RC2T, RC2T Hydraulic Bottom Out; Spring: Air (LinearXL); Eye-to-eye: 165–230 mm (standard & trunnion); Rebound tunes: R25, R55, R85; E-bike rated: Yes (E-bike Approved).
What other versions of the RockShox Super Deluxe are there?
Super Deluxe Ultimate Flight Attendant (€1,145), Super Deluxe Select+.
