RockShoxDeluxe Ultimate
€435 MSRP shown on sram.com (Germany region, EUR)
- Damper
- RCT
- Spring
- Air (DebonAir+ Linear XL)
- Eye-to-eye
- 165–230 mm (standard & trunnion)
- Rebound tunes
- R25, R55, R85
- E-bike rated
- Yes (E-bike Approved)
- Weight
- 378 g210x55, no hardware installed, claimed
Overview
RockShox Deluxe Ultimate: RCT air shock in 165–230 mm (standard & trunnion) sizes, e-bike approved; MSRP €435.
Deluxe is RockShox's compact inline air shock, described as its most balanced shock for climbing efficiency and descending. It covers 165–230 mm eye-to-eye standard and trunnion sizes and is listed as e-bike approved.
The current Deluxe uses a DebonAir+ Linear XL air can, lighter compression tunes and a new bottom-out system. Ultimate adds independent low-speed compression adjustment, while Select+ offers low-speed rebound and an Open-to-Firm/Lock lever.
- Inline air shock with DebonAir+ Linear XL air can
- Independent LSC and LSR plus Open-to-Firm/Lock lever
- Lighter compression tunes and new bottom-out system
- Electric Red Signature colourway

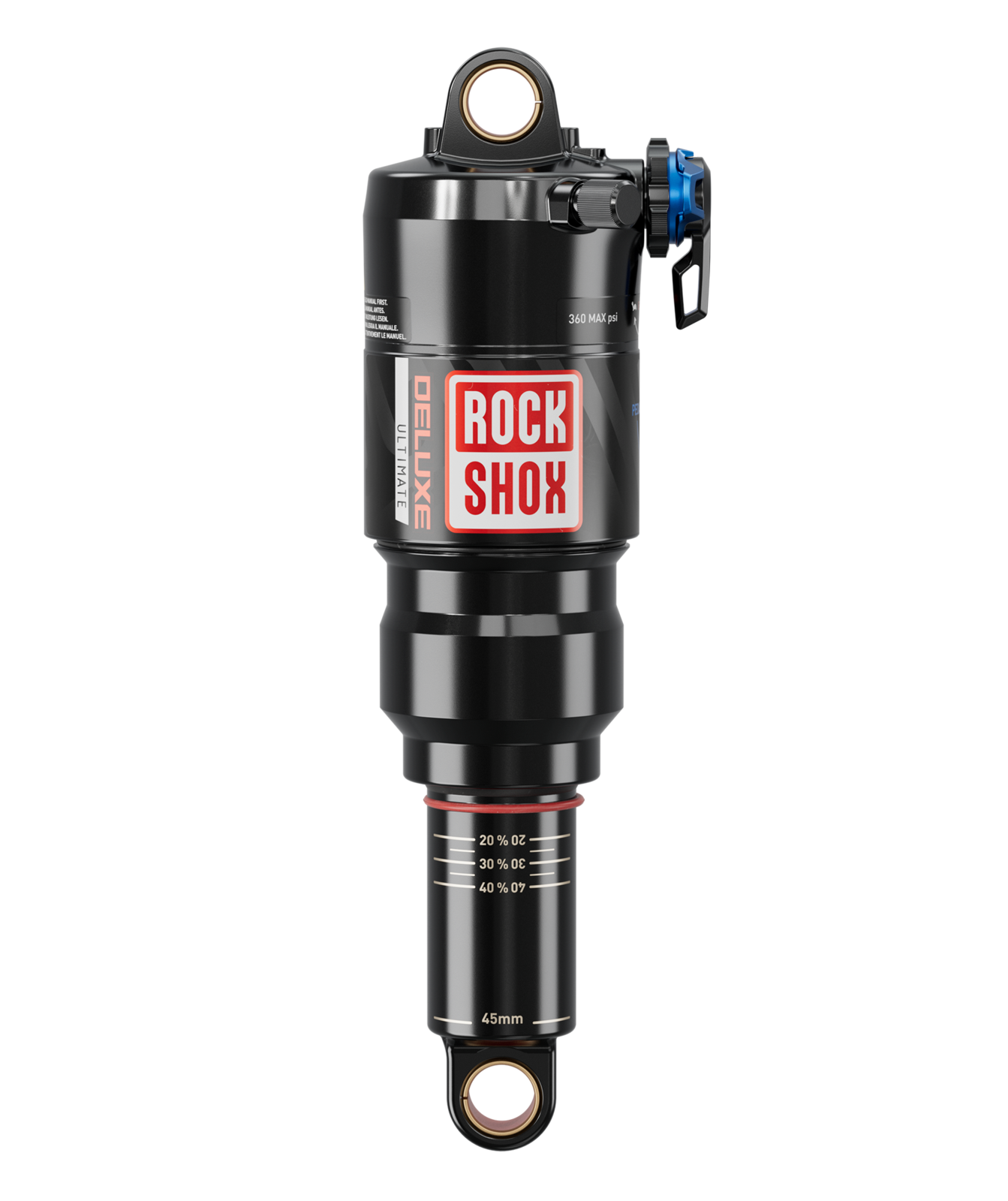

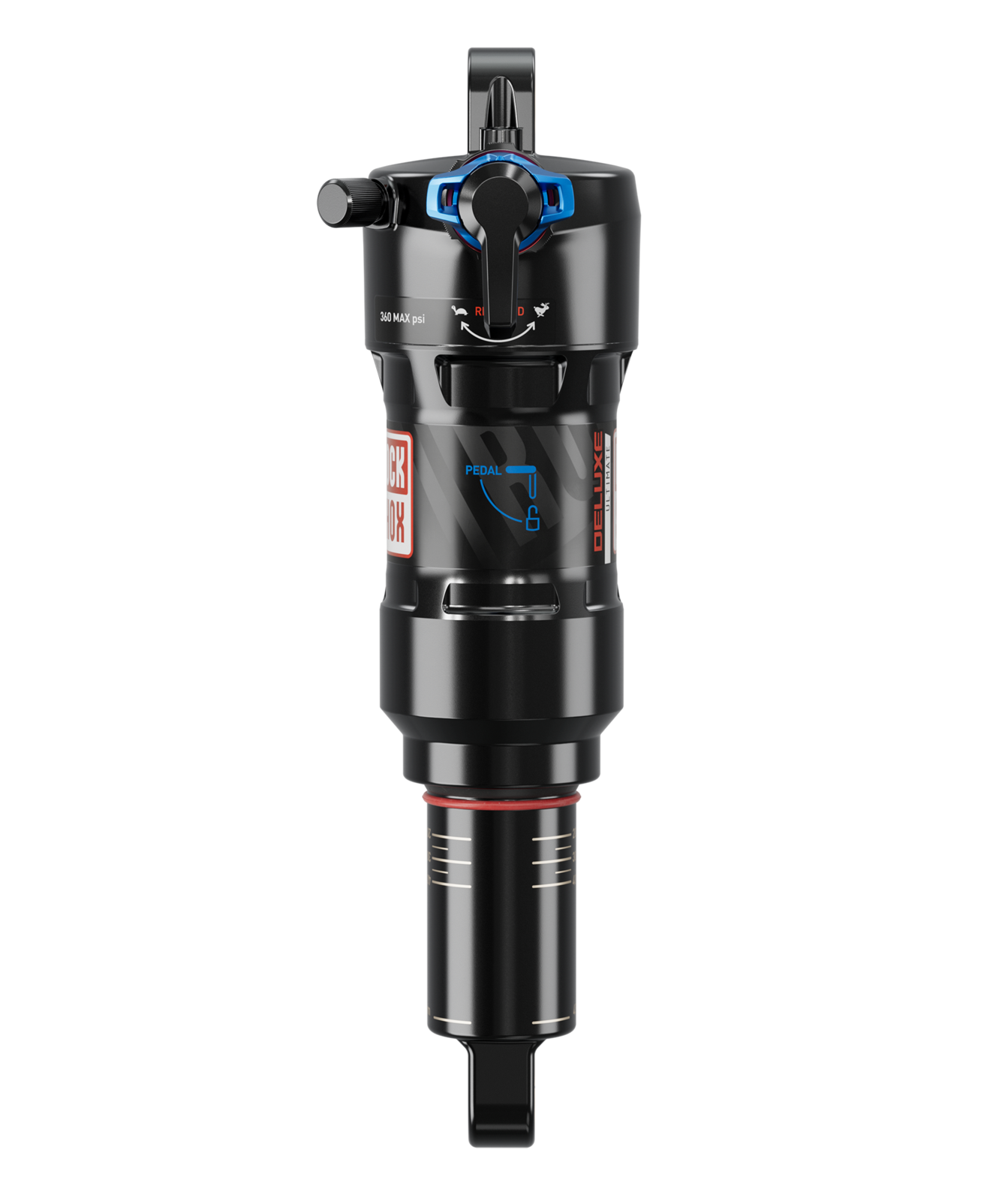

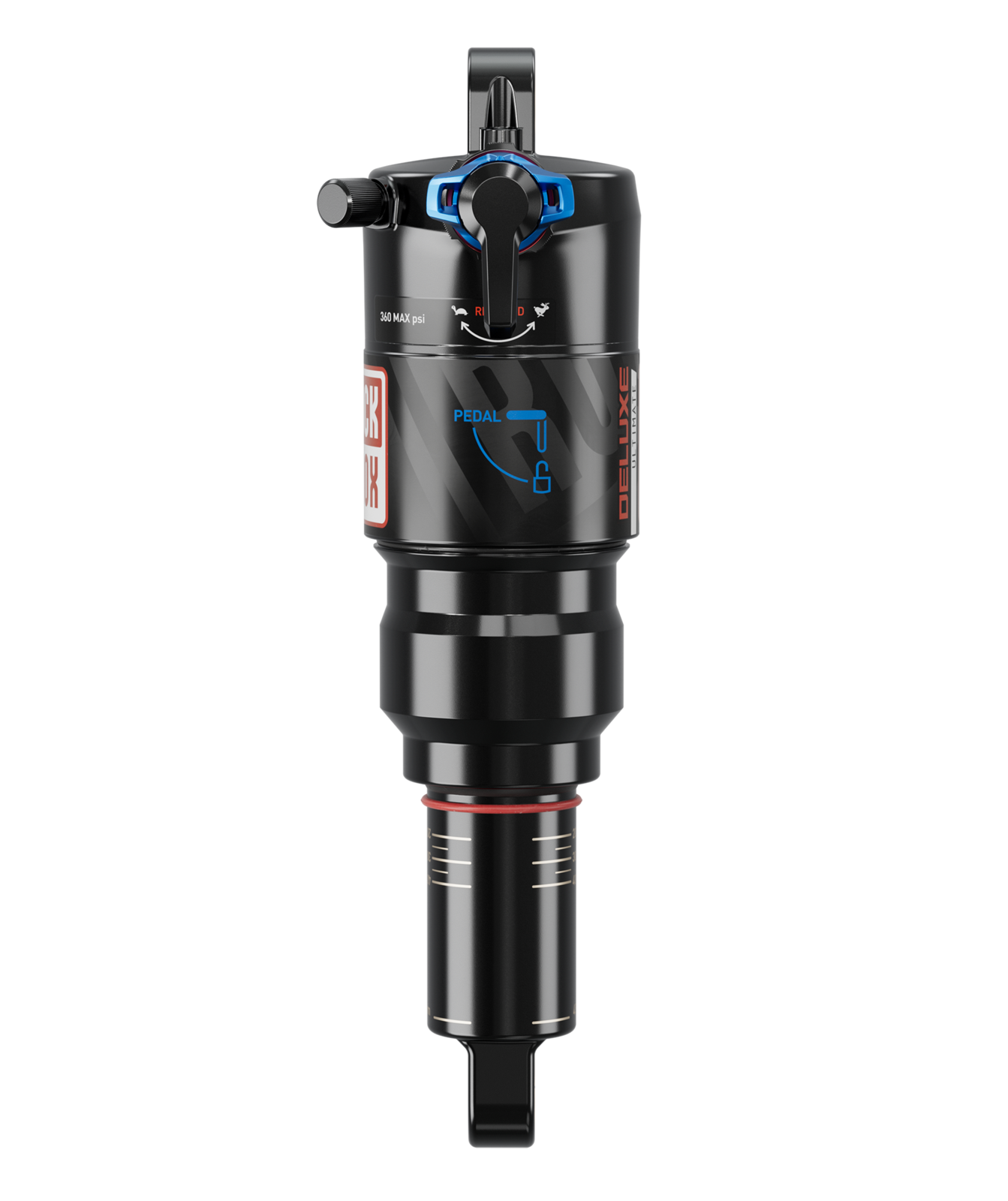

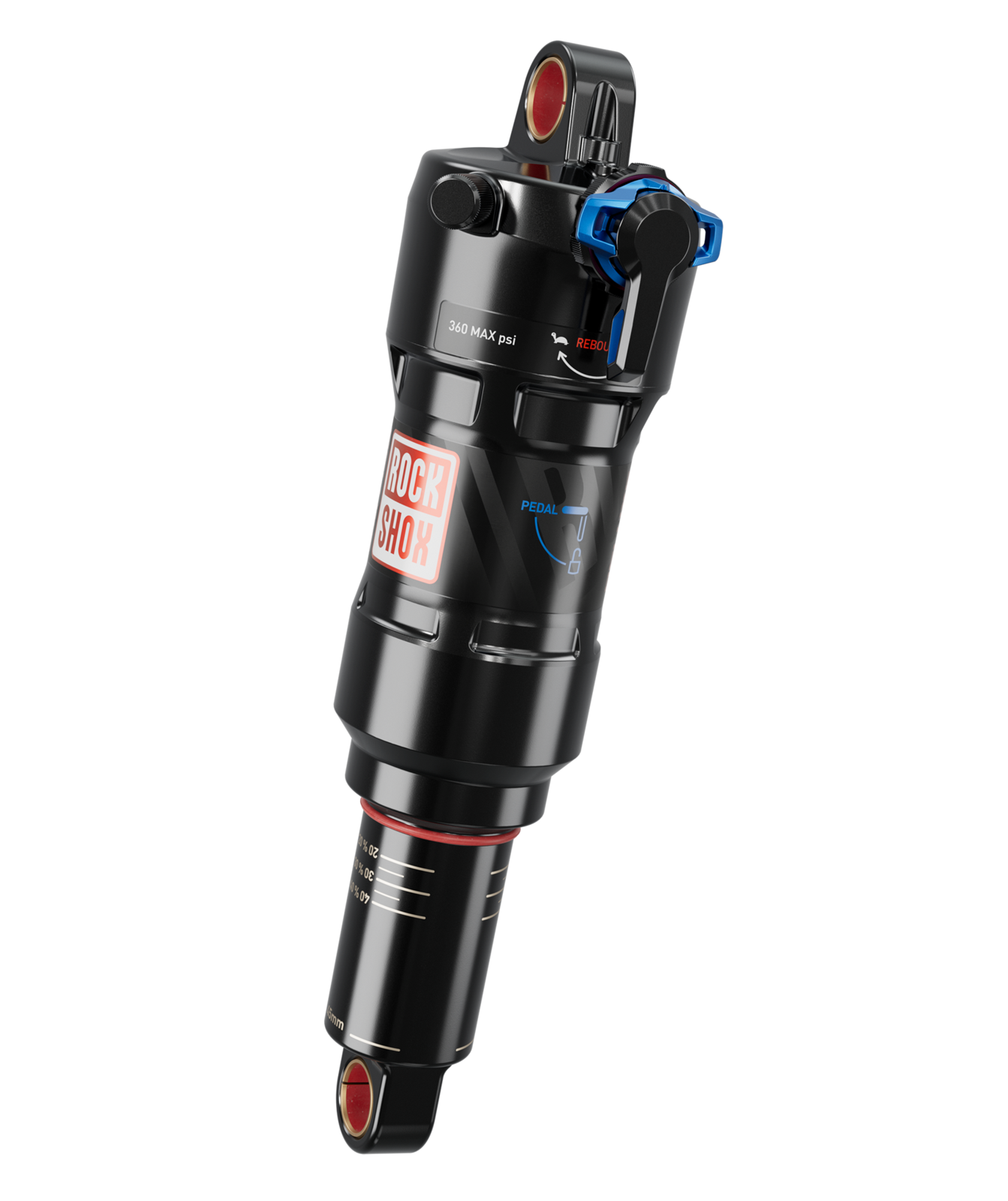

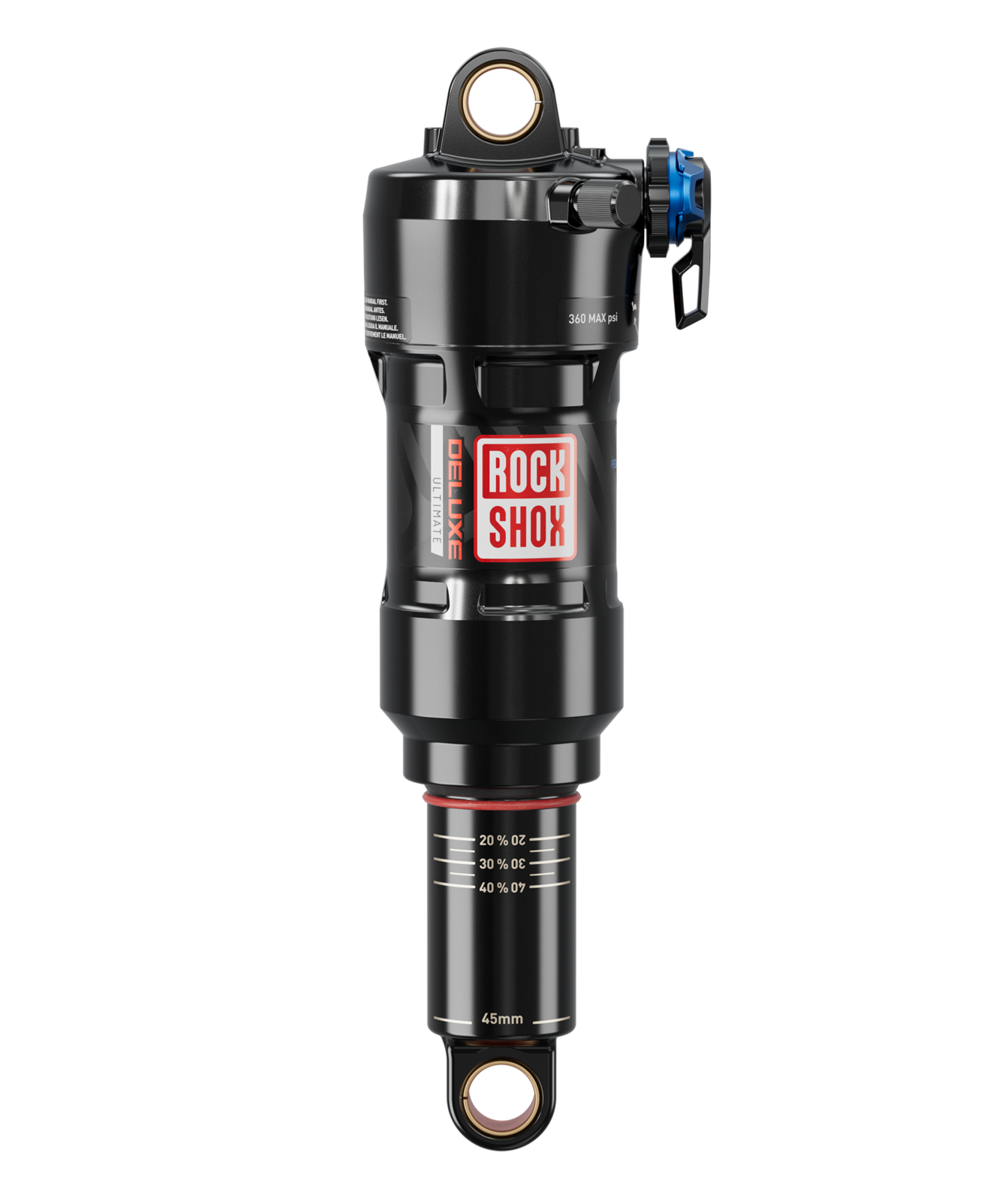

Gallery
Full specifications
Sizes
- Eye to eye / Stroke
- 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Damper
- Damper Type
- RCT
- Rebound tune
- R25, R55, R85
- Compression tune
- C22, C26, C30, C34, C37, C40
- Lockout force
- X4, X6, X8
Compatibility
- Shaft Eyelet
- Bearing, Standard, Trunnion
- Body Eyelet
- Bearing, No Bushing, No Bushing - 90 Deg Rotation, Standard, Standard - 90 Deg Rotation
General
- E-Bike Approved
- E-bike Approved
- Weight (g)
- 378 (210x55, no hardware installed)
Manufacturer specification — RockShox. Specs and prices can change; check with the brand or your dealer.
RockShox Deluxe versions compared
| Deluxe Ultimate | Deluxe Select+ | |
|---|---|---|
| Price | €435 | — |
| Damper | RCT | RL, RT |
| Spring | Air (DebonAir+ Linear XL) | Air (DebonAir+ Linear XL) |
| Eye-to-eye | 165–230 mm (standard & trunnion) | 145–230 mm (standard & trunnion) |
| Rebound tunes | R25, R55, R85 | R25, R55, R85 |
| E-bike rated | Yes (E-bike Approved) | Yes (E-bike Approved) |
| Weight | 378 g | 376 g |
eMTBs that come with the RockShox Deluxe
RockShox Deluxe Ultimate: FAQ
How much does the RockShox Deluxe Ultimate cost?
€435 (MSRP shown on sram.com (Germany region, EUR)). Prices vary by country and retailer.
How much does the RockShox Deluxe Ultimate weigh?
RockShox quotes 378 g (210x55, no hardware installed, claimed).
Is the RockShox Deluxe Ultimate suitable for e-bikes?
Yes — RockShox lists it as e-bike rated or e-bike specific.
What are the key specs of the RockShox Deluxe Ultimate?
Damper: RCT; Spring: Air (DebonAir+ Linear XL); Eye-to-eye: 165–230 mm (standard & trunnion); Rebound tunes: R25, R55, R85; E-bike rated: Yes (E-bike Approved).
What other versions of the RockShox Deluxe are there?
Deluxe Select+.
