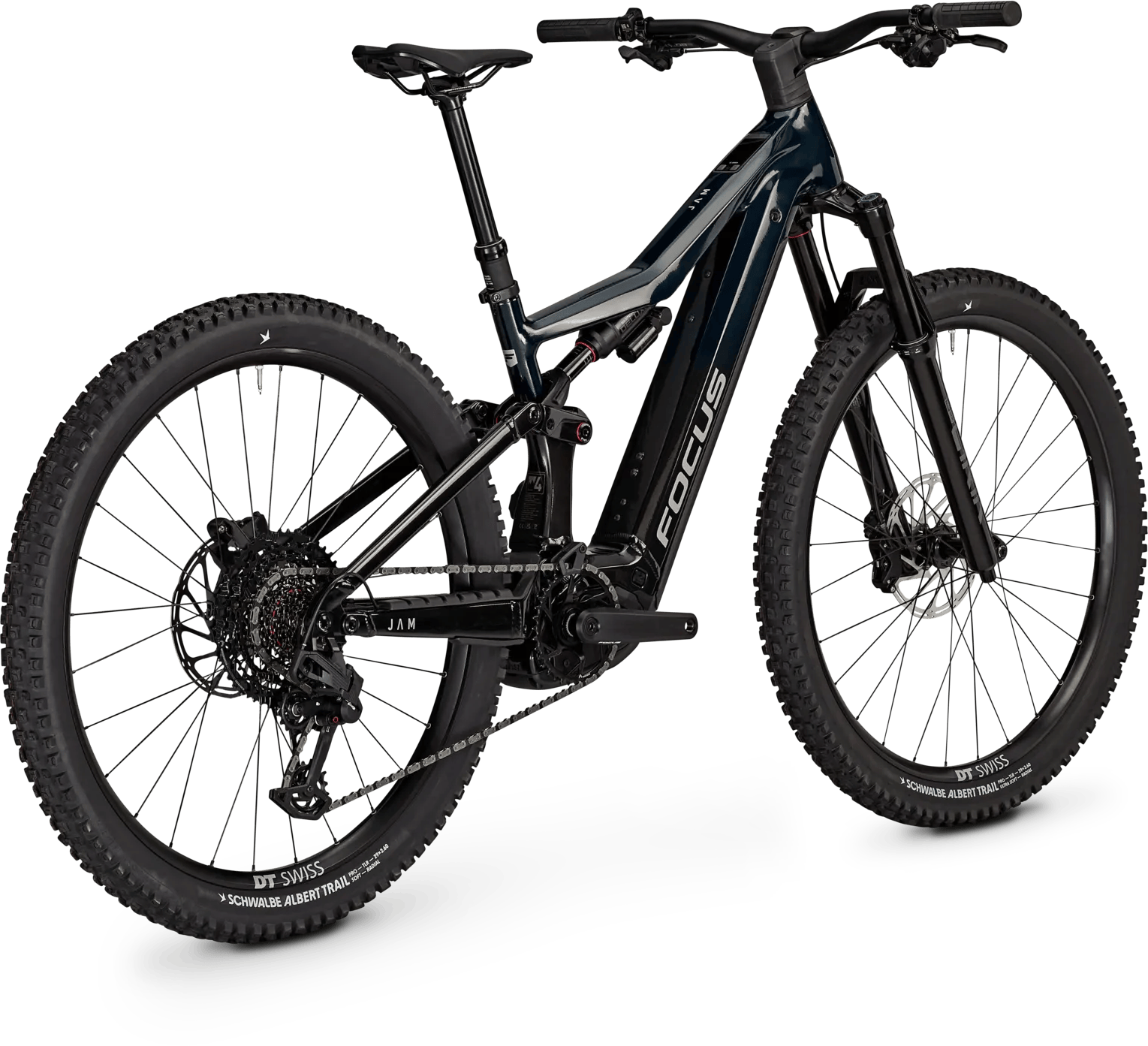

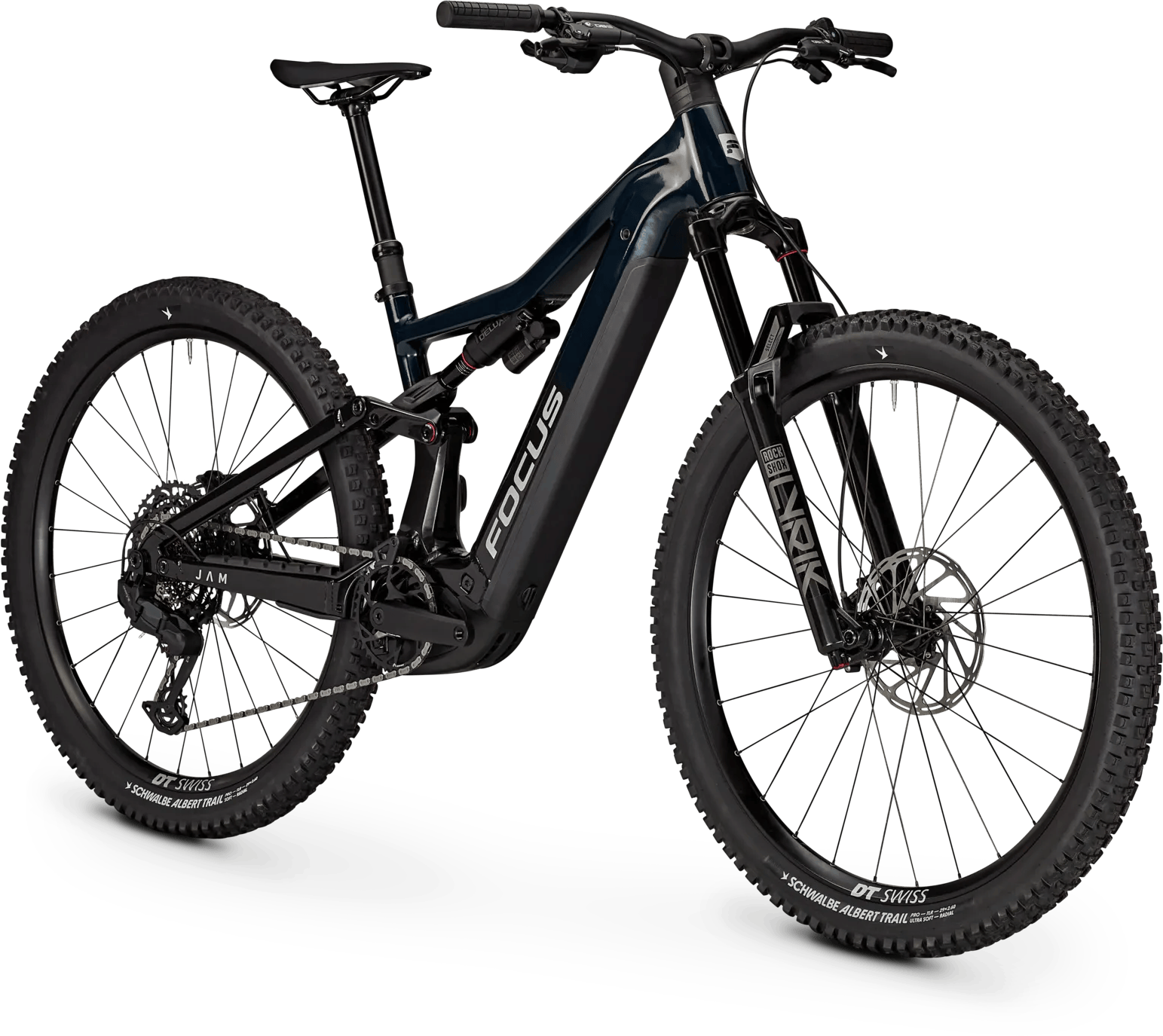

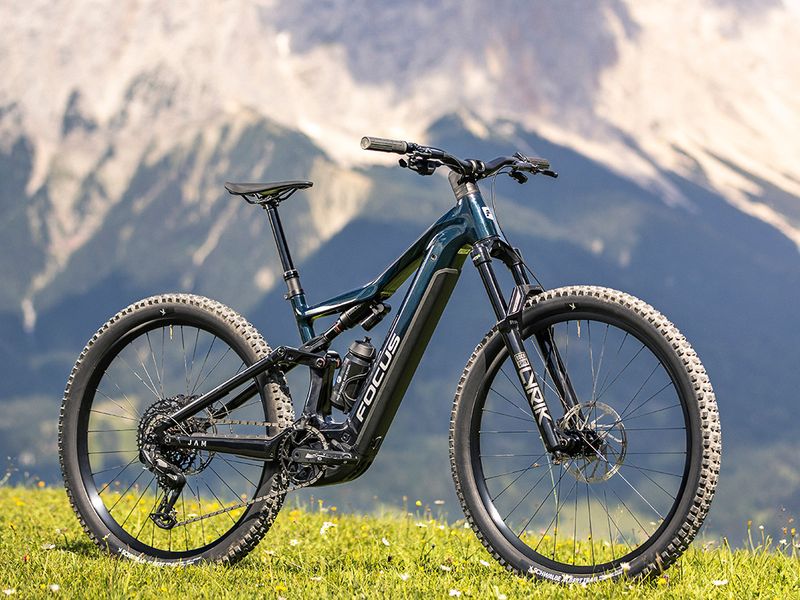

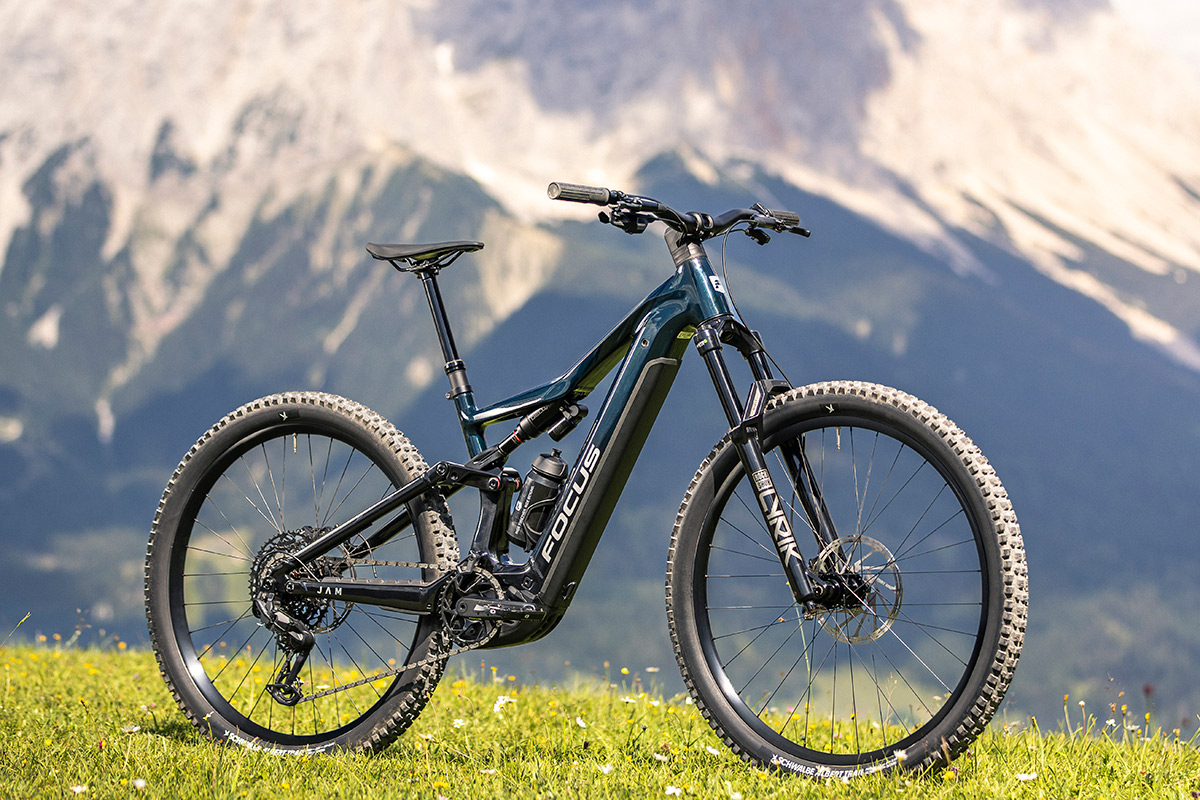

Focus JAM 8 e-MTB, side view
Photo: Focus
Full-power eMTBAll-mountain2027
JAM range · 4 builds

FocusJAM 8

€5,399RRP Germany, VAT incl. Price with 600 Wh battery; larger-battery version €5,699.
Motor
Bosch Performance Line CX85 Nm (120 Nm via eBike Flow app update)
Battery
600 WhBosch PowerTube; options: 600 Wh / 800 Wh; 250 Wh range extender compatible
Travel F / R
160 / 150 mm
Wheels
29"
Frame
Alloy
Weight
25.1 kgManufacturer figure (size M, 600 Wh battery, without pedals)

All Bosch Performance Line CX eMTBs →

Watching this bike? Get new models and updates on Telegram →

Overview

€5,399 brings a RockShox Lyrik Select fork, Super Deluxe shock, SRAM Eagle 70 and DB8 brakes, and drops the claimed weight to 25.1 kg. The sweet spot for most JAM buyers.

The JAM 8 is one of 4 builds of the Focus JAM. About the JAM range and all its builds →

Gallery

Photos: Focus

Full specifications

Frame & suspension

Frame
7005 hydroformed aluminium, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm, Kiox 400C
Special features
Tool bag (excluding size S & M), Hidden AirTag or Chipolo holder
Fork
RockShox Lyrik Select, LinearXL, Delta RC, 160 mm
Rear shock

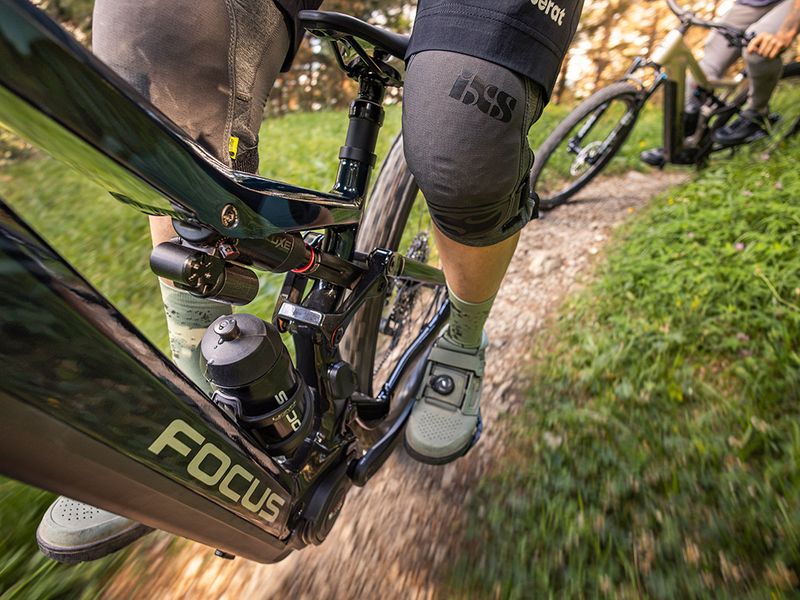

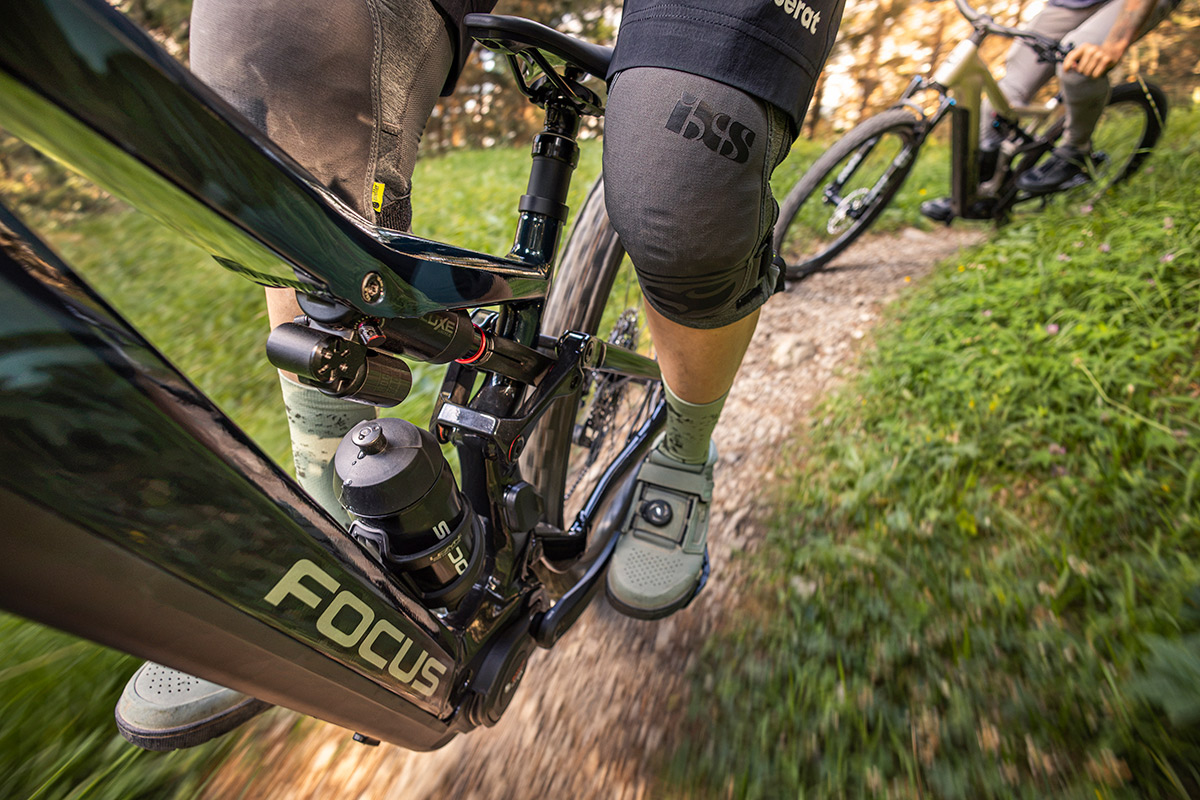

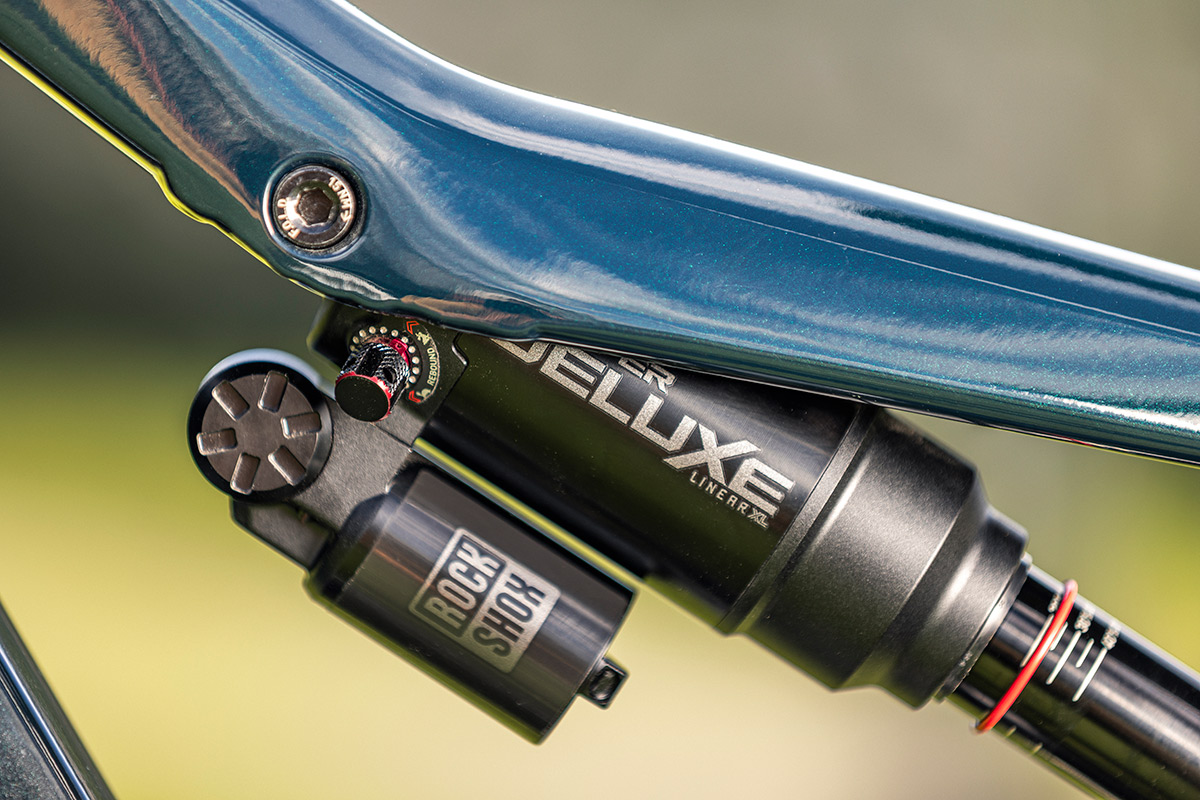

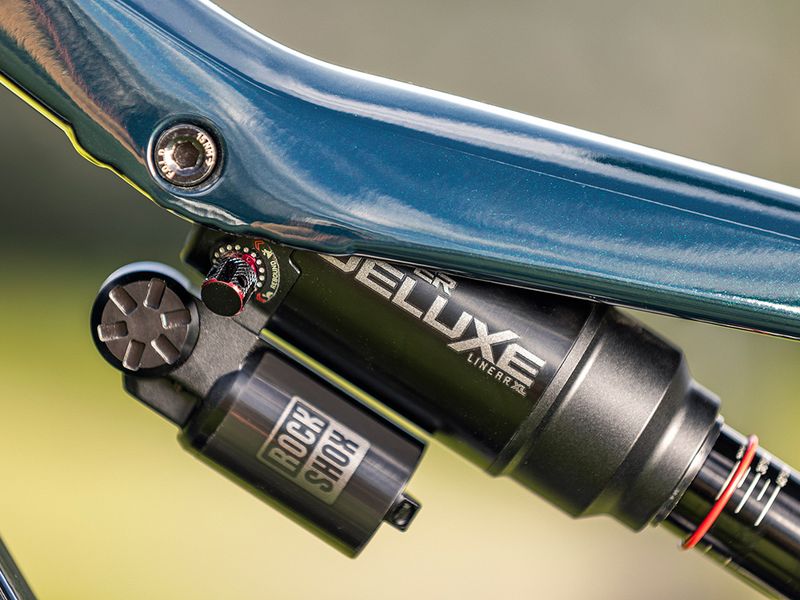

RockShox Super Deluxe Base, LinearXL, 150 mm
Sizes
S, M, L, XL
Colours
Green, Purple

E-system

Motor

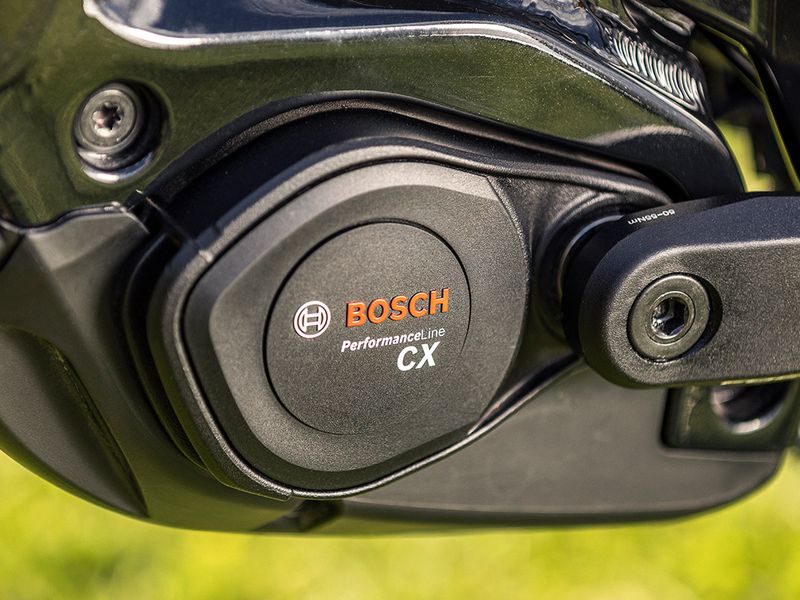

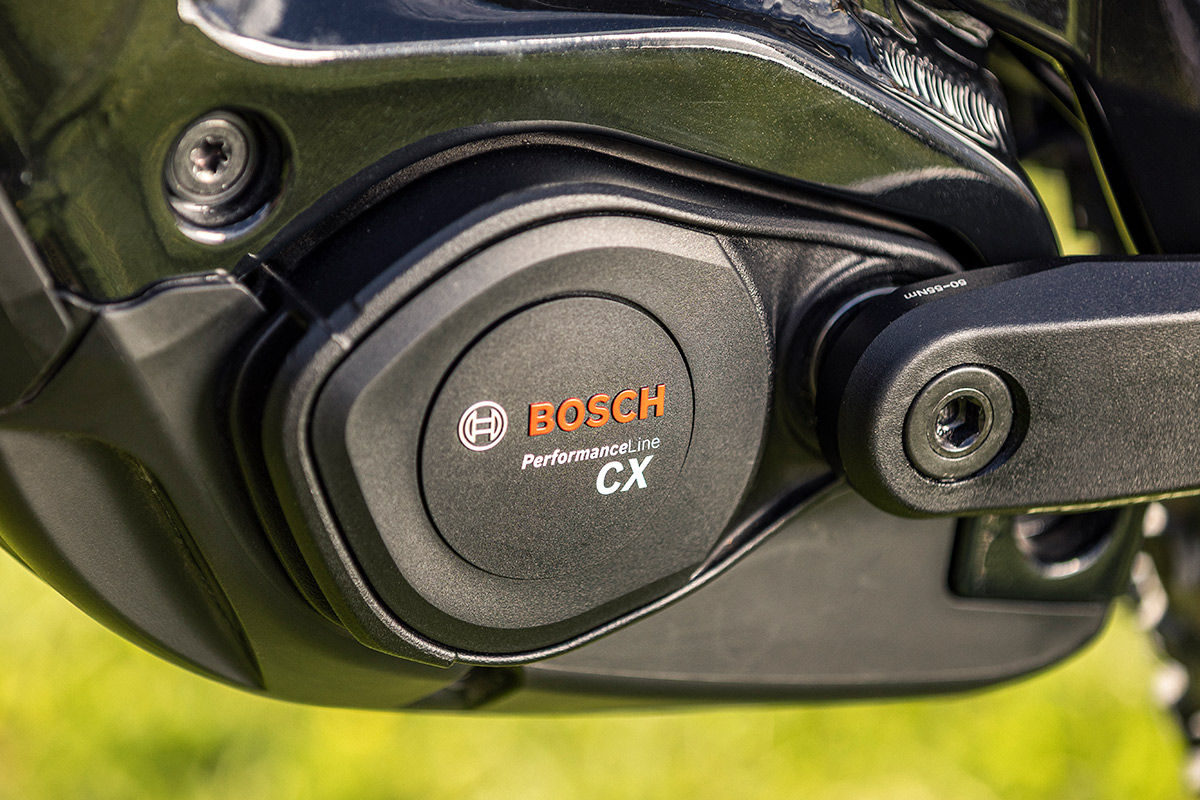

Bosch Performance Line CX, 85 NM, 120 NM update via Flow App
Battery
Bosch PowerTube Li-Ion (600 Wh) or Bosch PowerTube Li-Ion (800 Wh)
Display

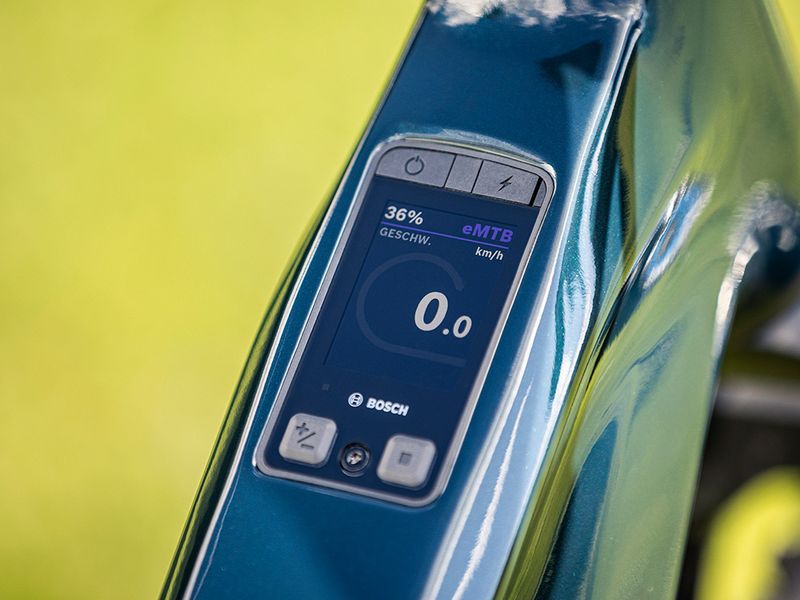

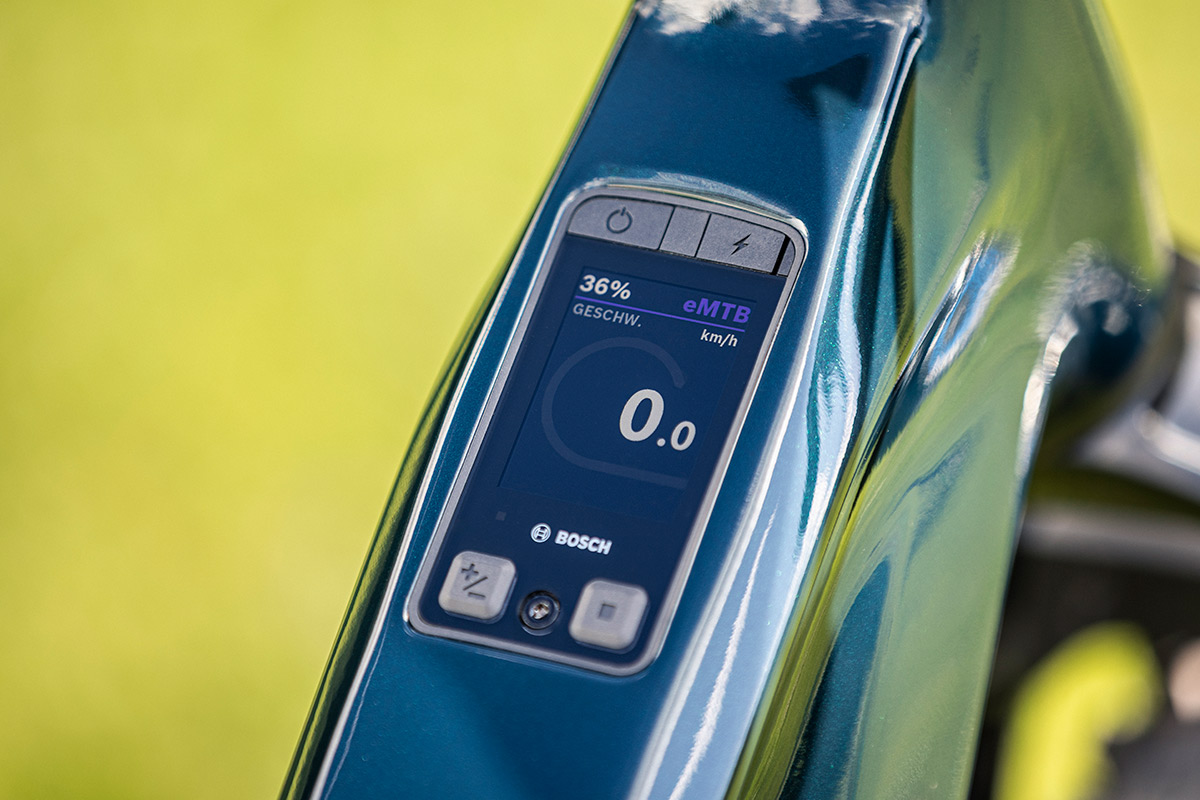

Bosch Kiox 400C + Mini Remote

Drivetrain

Shifter
SRAM Eagle 70
Rear derailleur
SRAM Eagle 70, 12-speed
Cassette
SRAM Eagle 70, XS-12701, 10-52T
Chain
SRAM Eagle 70; Sram Eagle 70
Crankset
Samox, 160 mm
Chainring
SRAM T-Type, 36 T

Brakes

Brakes

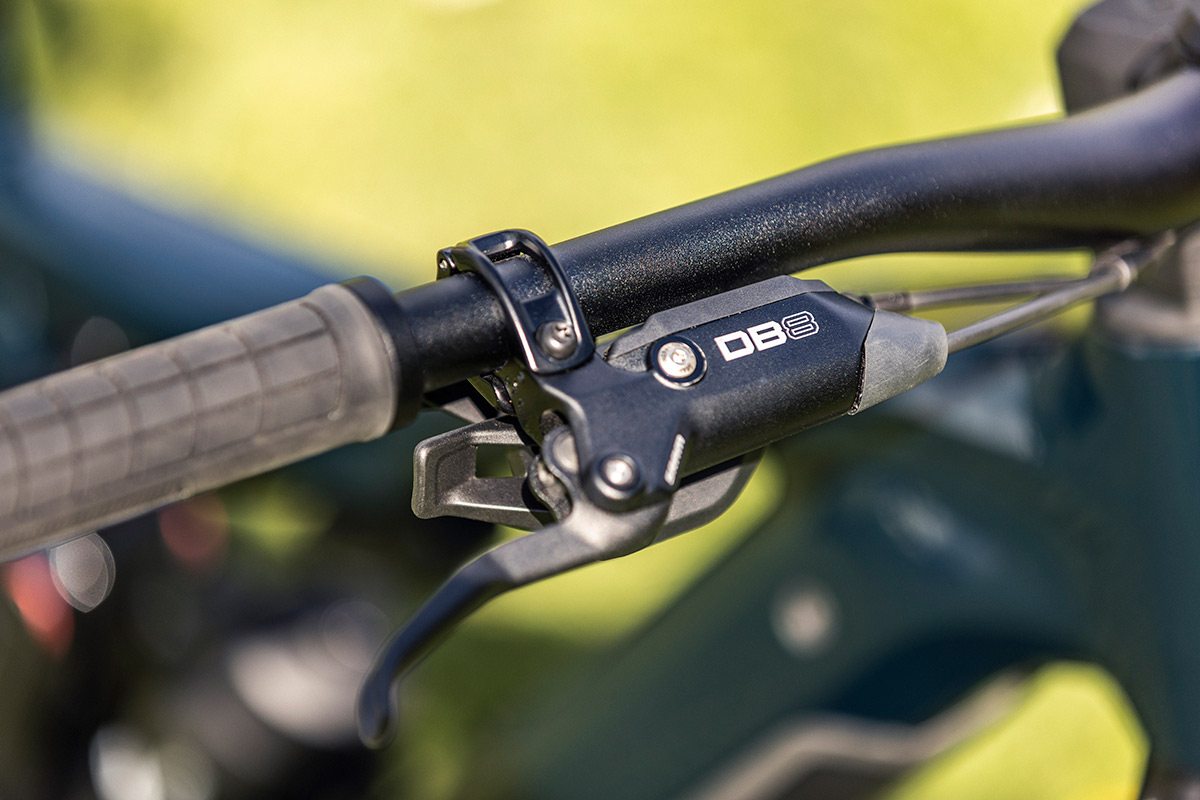

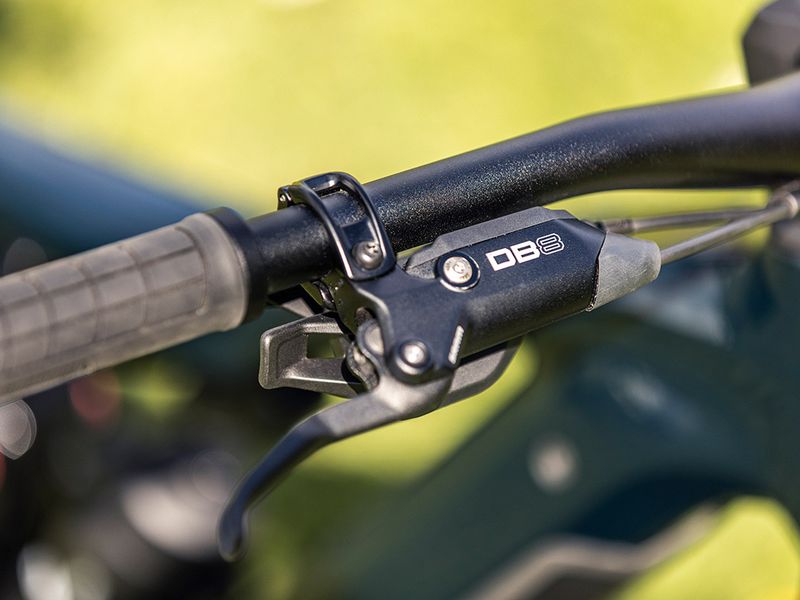

SRAM DB8 stealth, 4-piston (front and rear)
Rotors
SRAM Centerline, front: 200 mm / rear: 200 mm

Wheels & tyres

Wheelset
DT Swiss HX LN, alloy, 29"
Tyres
front: Schwalbe Albert, Trail, ADDIX Ultra Soft, 29 x 2,6"; rear: Schwalbe Albert, Trail, ADDIX Soft, 29 x 2,6"

Cockpit

Handlebar
Alloy, width: 800 mm, rise: 30 mm
Grips
VP Lock-On Grips
Stem
FOCUS C.I.S. 2.0, 40 mm
Headset
ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
Saddle
Focus
Seatpost
Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 230 mm, 34,9 mm

Other

Weight
25.1 kg (600 Wh) / 26.1 kg (800 Wh) (size M, without pedals)
Max system weight
150 kg

Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.

JAM geometry

SizeSMLXL
Handlebar width800 mm800 mm800 mm800 mm
Stem length40 mm40 mm40 mm40 mm
Crank length160 mm160 mm160 mm160 mm
ASeat tube length390 mm420 mm440 mm460 mm
BTop tube length576 mm608 mm636 mm668 mm
CHead angle65°65°65°65°
DSeat angle76.5°76.5°76.5°76.5°
EChainstay length450 mm450 mm450 mm450 mm
FBottom bracket drop25 mm25 mm25 mm25 mm
GHead tube length110 mm120 mm130 mm140 mm
HFork length575 mm575 mm575 mm575 mm
IFork offset44 mm44 mm44 mm44 mm
JWheelbase1205 mm1239 mm1268 mm1303 mm
KStack630 mm639 mm648 mm657 mm
LReach425 mm455 mm480 mm510 mm
MStandover height783 mm783 mm783 mm783 mm

Source: Focus.

JAM: builds compared

JAM range →
JAM 7JAM 8JAM 9JAM LTD
Price€4,399€5,399€6,399€7,499
FrameAlloyAlloyAlloyAlloy
ForkRockShox Psylo Silver RC, 160 mmRockShox Lyrik Select, LinearXLFOX 36 Performance Elite, Grip X2Fox 36 Factory, Grip X2
ShockRock Shox Deluxe SelectRockShox Super Deluxe BaseFOX Float X PerformanceFox Float X Factory
DerailleurShimano CuesSRAM Eagle 70SRAM Eagle 90Shimano Deore XT Di2
BrakesTEKTRO HD-M5141SRAM DB8 stealthTRP EVO ProShimano Deore XT BR-M8120
WheelsWTB STi30, alloy———
DisplayBosch Purion 200Bosch Kiox 400C + Mini RemoteBosch Kiox 400C + Mini RemoteBosch Kiox 400 + Mini Remote
Weight25.4 kg25.1 kg25.1 kg24.4 kg

JAM 8: FAQ

What is the difference between the JAM 8 and the JAM 9?

They share the JAM frame platform and motor; the differences are in the parts: fork: RockShox Lyrik Select vs FOX 36 Performance Elite; shock: RockShox Super Deluxe Base vs FOX Float X Performance; derailleur: SRAM Eagle 70 vs SRAM Eagle 90; price: €5,399 vs €6,399.
