FocusTHRON 7
- Motor
- Bosch Performance Line CX85 Nm (120 Nm via eBike Flow app update)
- Battery
- 720 WhBosch PowerTube; options: 720 Wh / 800 Wh; 250 Wh range extender compatible
- Travel F / R
- 150 / 140 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 26.5 kgManufacturer figure (size M, 720 Wh battery, without pedals)
Overview

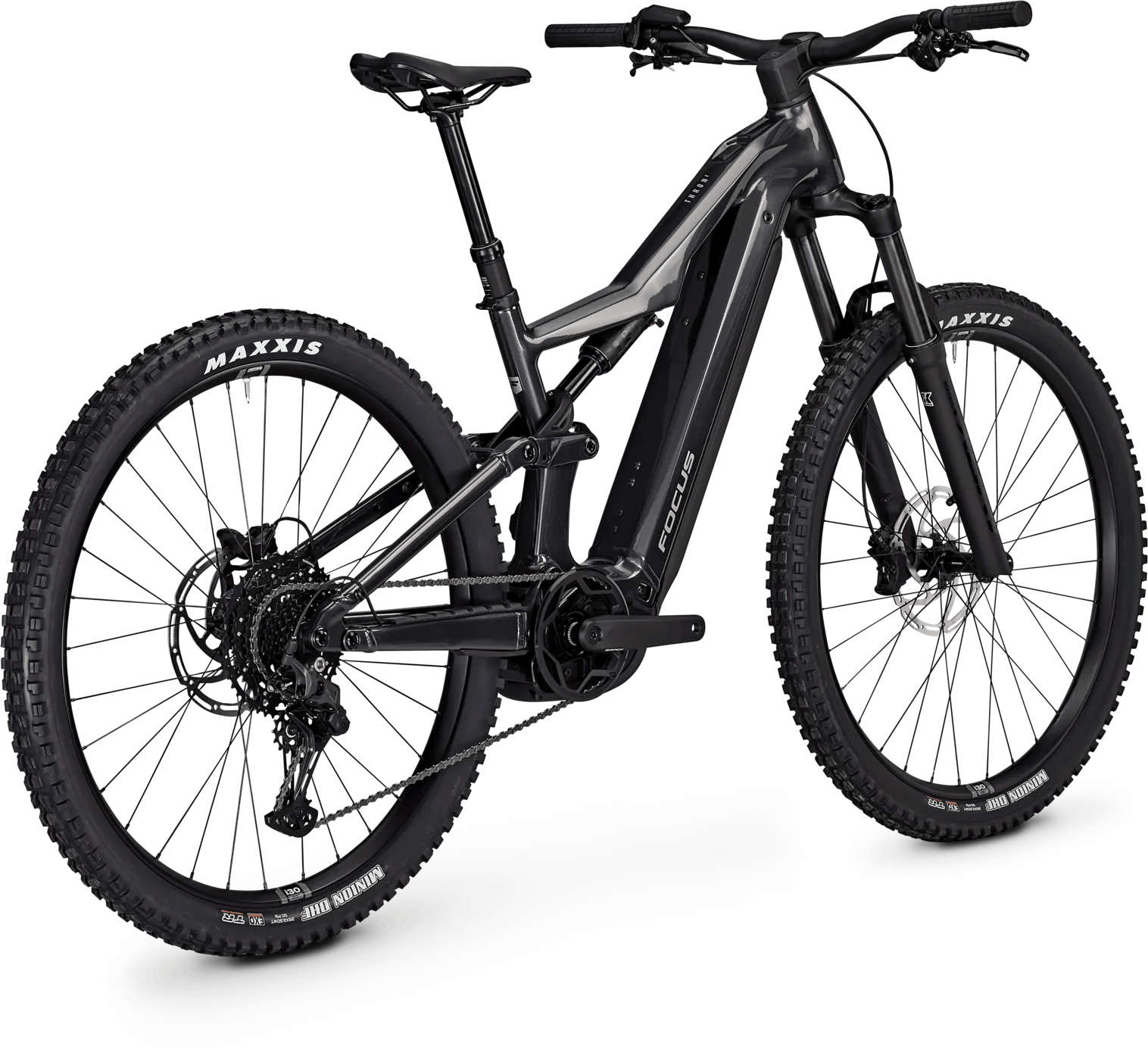

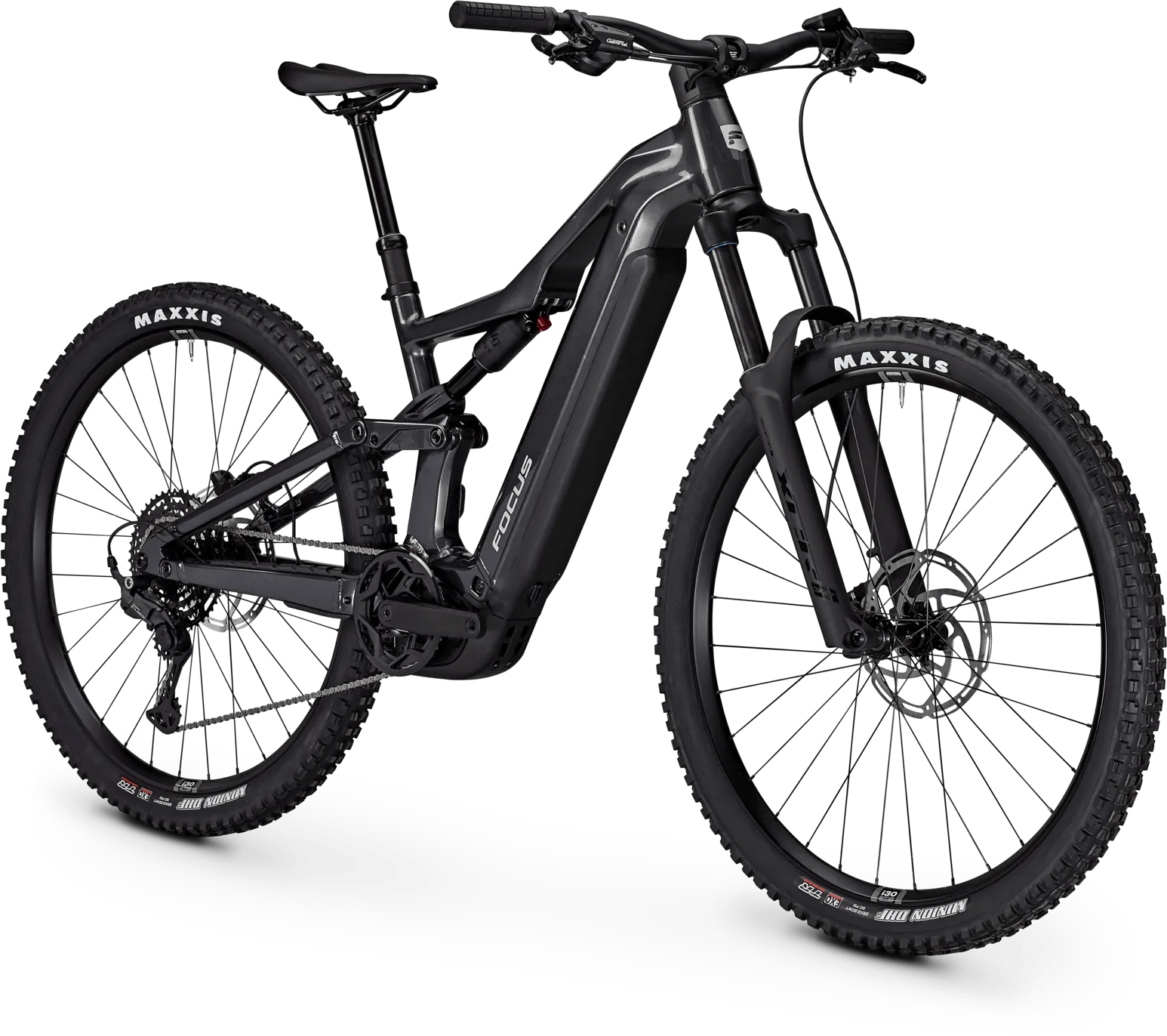

The Focus THRON 7 (€3,699) is the entry build of the THRON: Bosch Performance Line CX (85 Nm) with 720 Wh, SR SUNTOUR XCR 36 X Boost fork, SR SUNTOUR Edge-X R shock, Shimano Cues and TEKTRO Gemini SL brakes. Claimed weight is 26.5 kg.
The THRON is Focus's aluminium trail e-MTB for long rides: 140 mm of F.O.L.D. rear travel, a 150 mm fork, 29-inch wheels and 4-piston brakes with 203 mm rotors on every build. The THRON 9 adds Bosch ABS with Magura Louise Elite brakes; the THRON 8 and 9 have an integrated rear light and a pre-installed front-light cable.
All builds use the Bosch Performance Line CX (85 Nm, 120 Nm via app update) with a 720 Wh or 800 Wh battery and are compatible with the 250 Wh range extender (up to 1,050 Wh). A USB-C port on the top tube, a hidden AirTag/Chipolo holder and a dropper post are standard. Claimed weights are 25.4–26.5 kg (size M, 720 Wh).
- 140 mm rear / 150 mm fork, 29-inch
- Bosch Performance Line CX, 720 or 800 Wh
- Bosch ABS on the THRON 9
- USB-C port, AirTag holder, dropper post

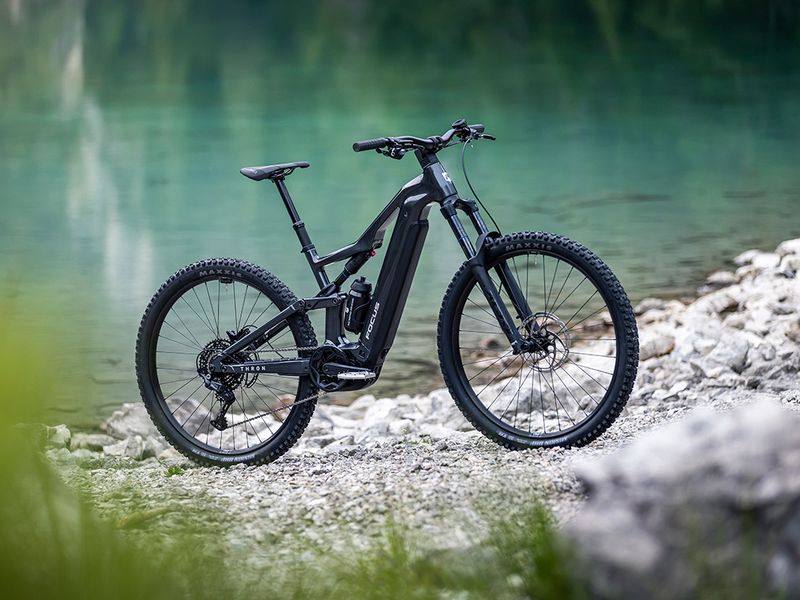

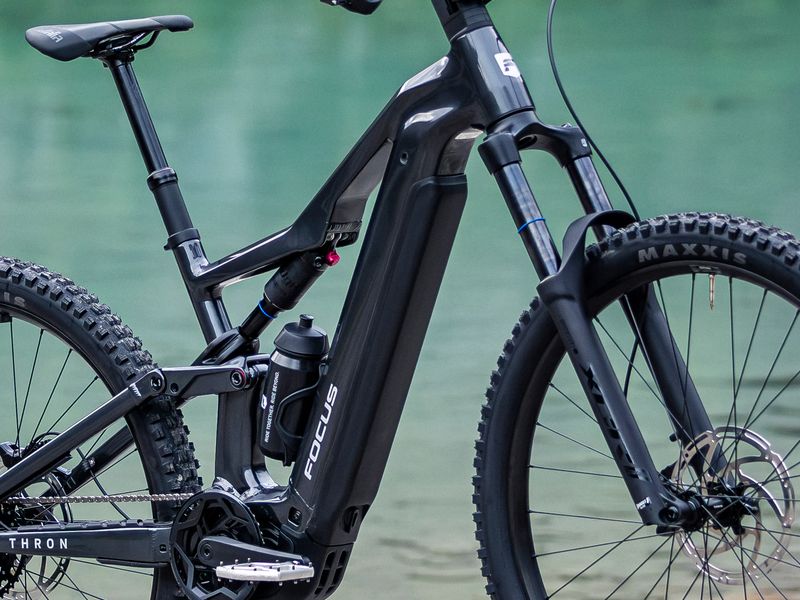

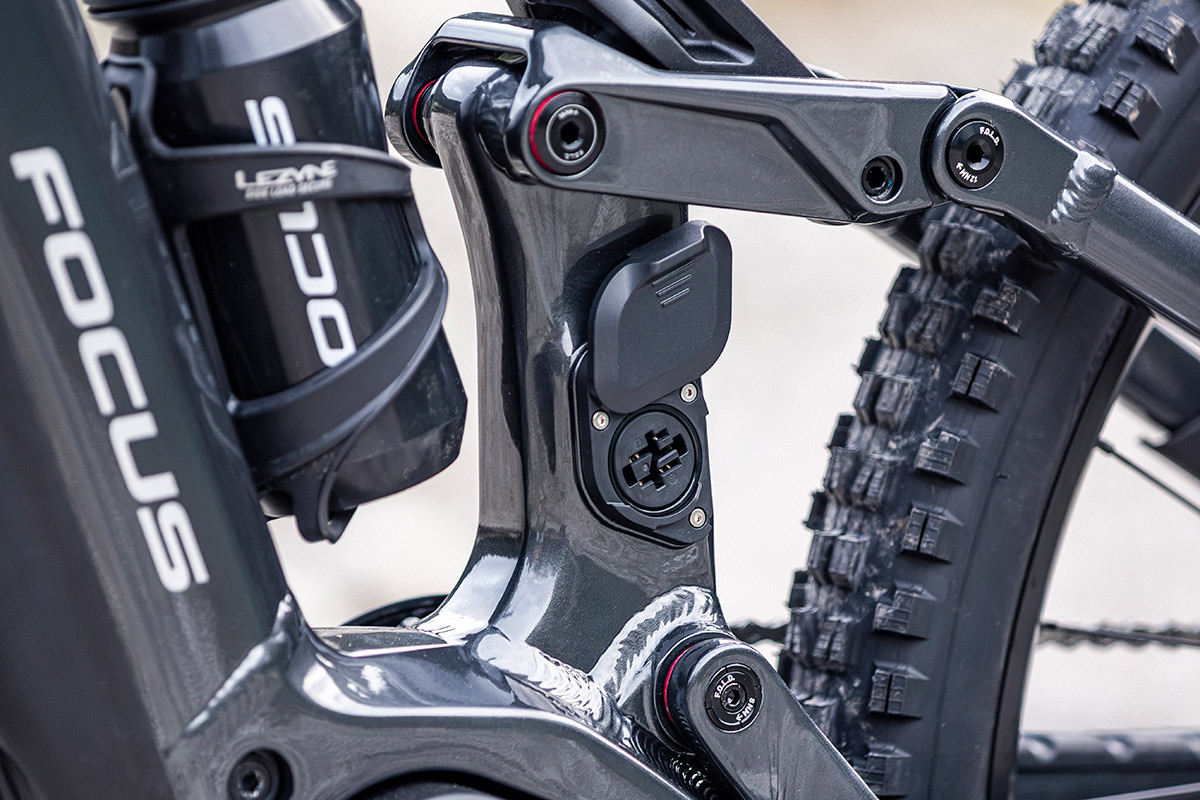

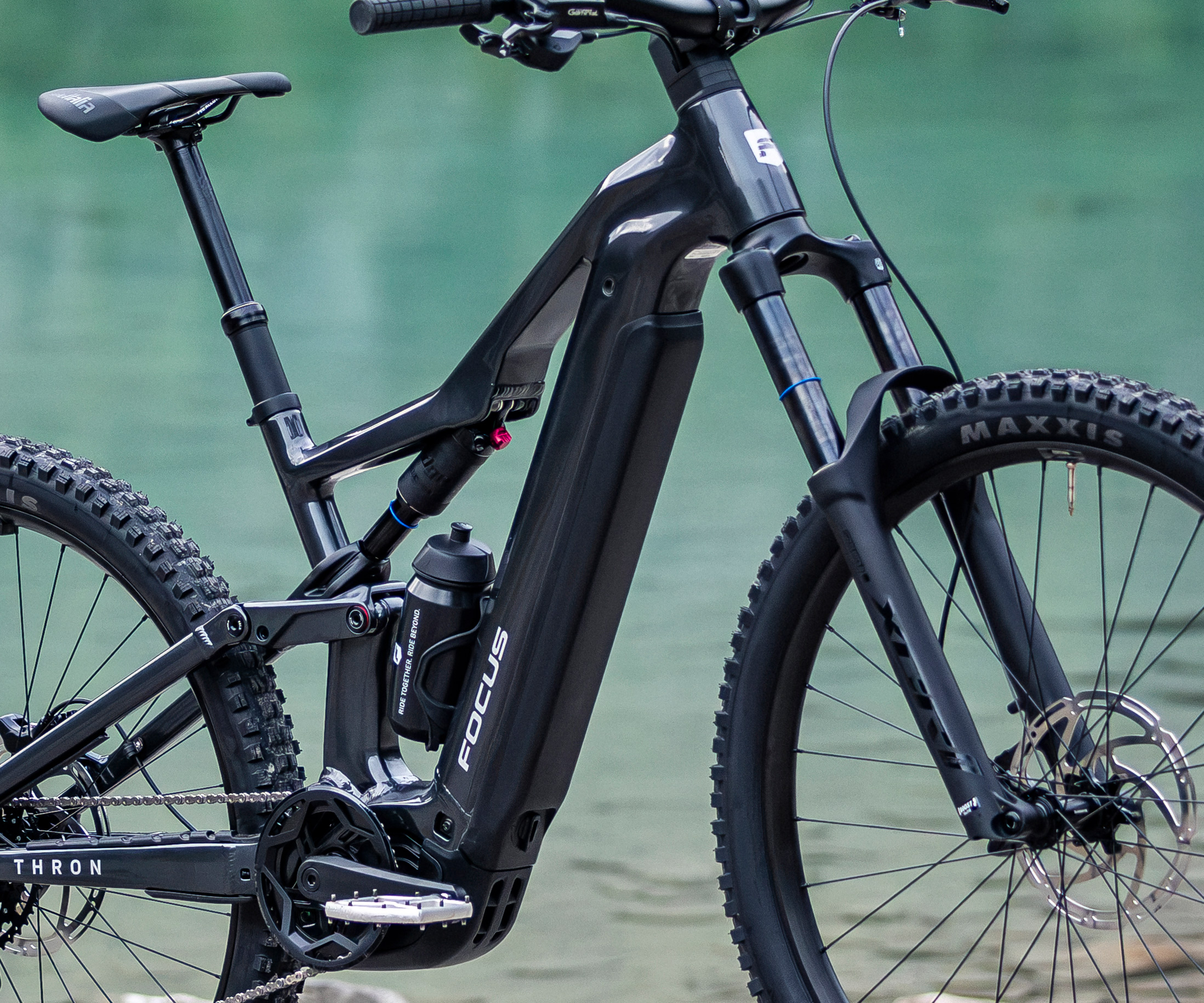

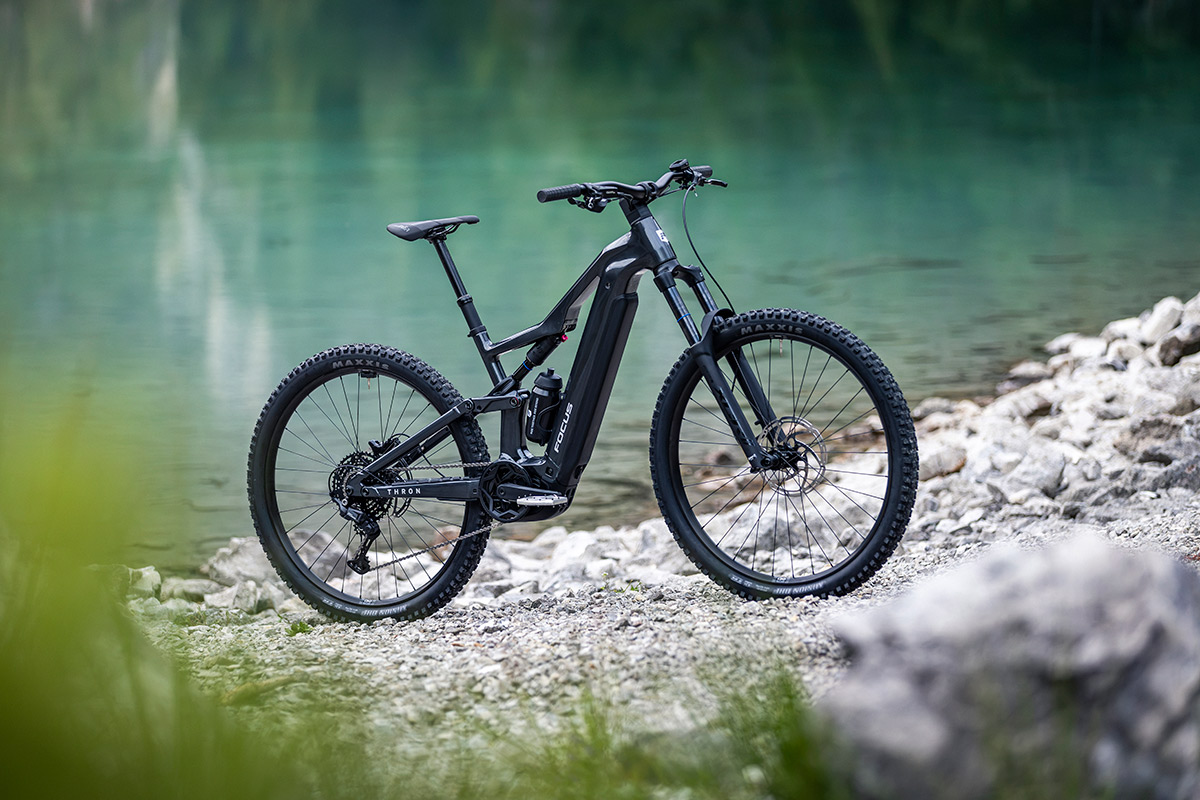

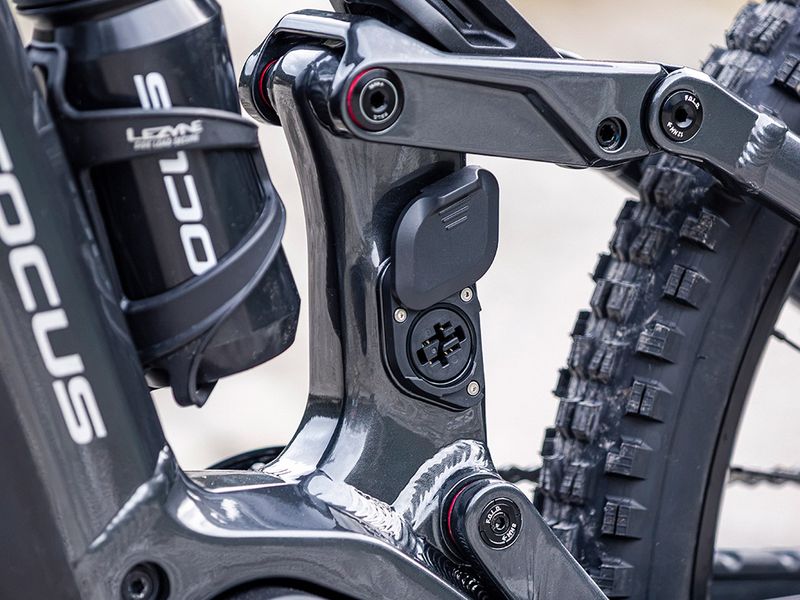

Gallery
Photos: Focus
Full specifications
Frame & suspension
- Frame
- 7005 hydroformed aluminium, 140 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
- Special features
- Hidden AirTag or Chipolo holder, USB-C charging port
- Fork
- SR SUNTOUR XCR 36 X Boost, 150 mm
- Rear shock

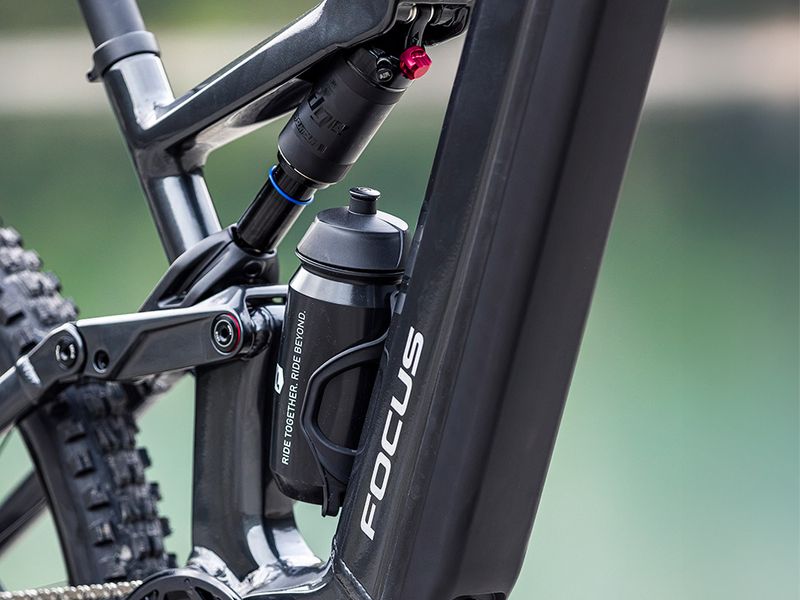

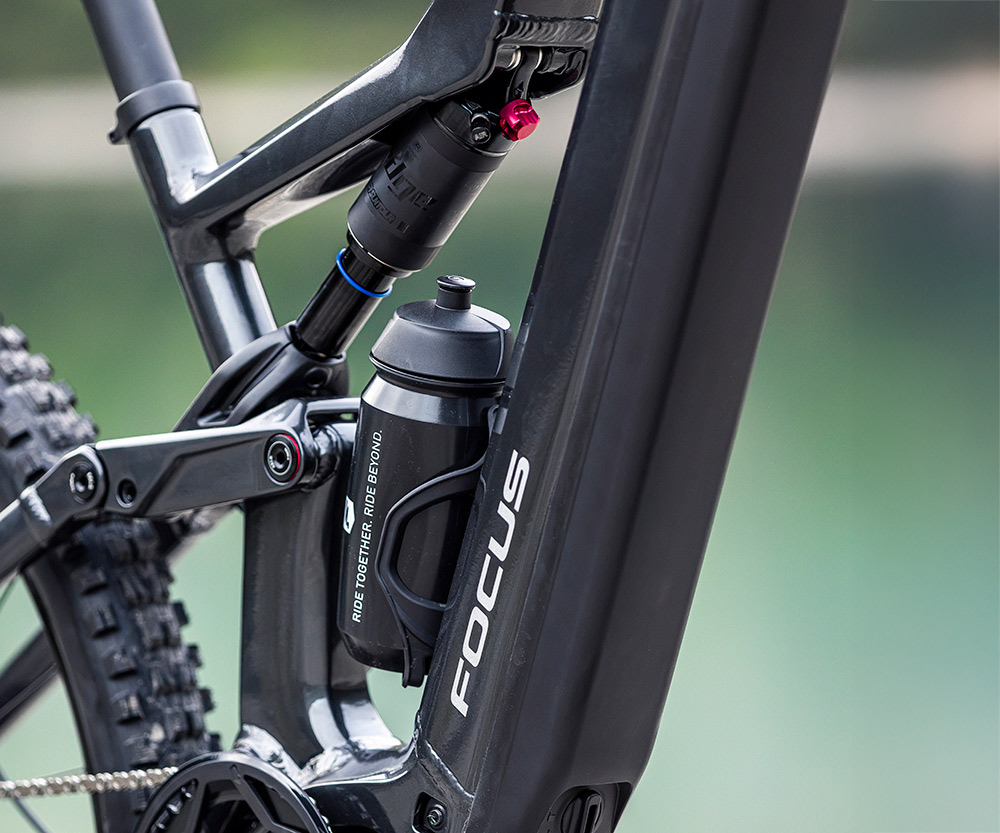

- SR SUNTOUR Edge-X R, 140 mm
- Sizes
- S, M, L, XL
- Colours
- Black, White
E-system
- Motor

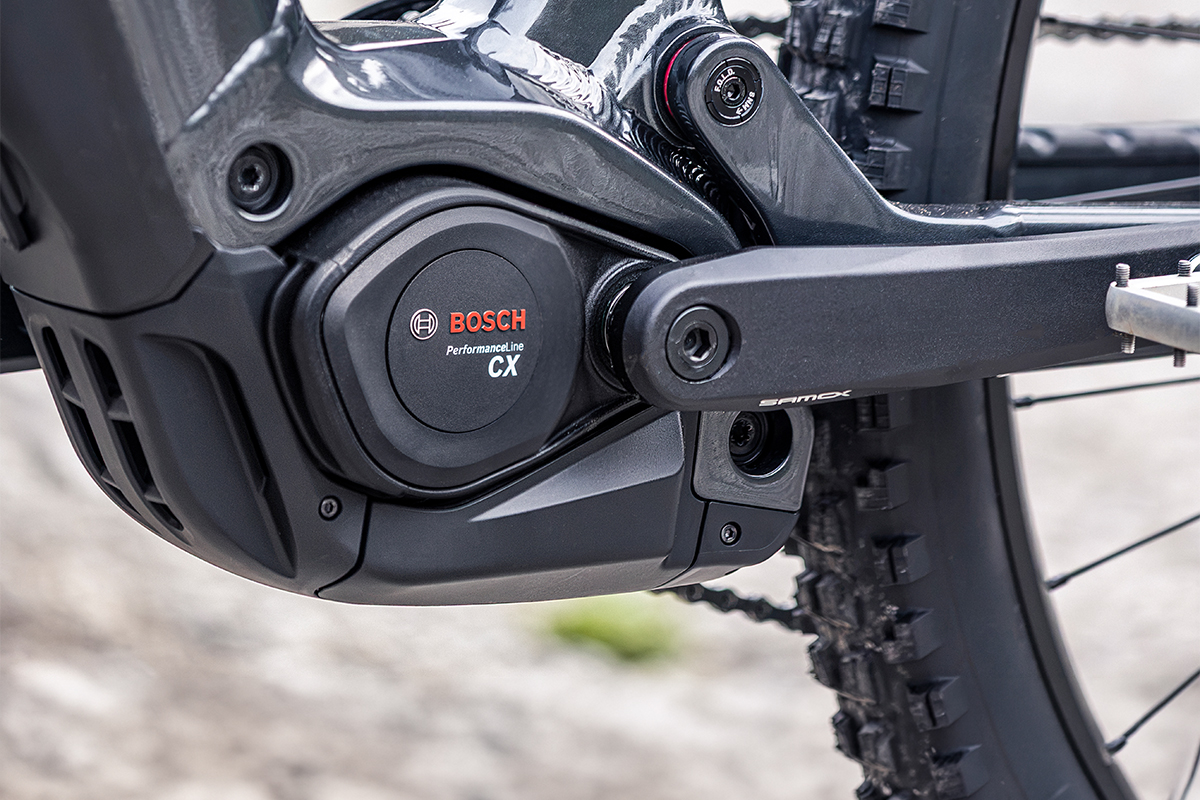

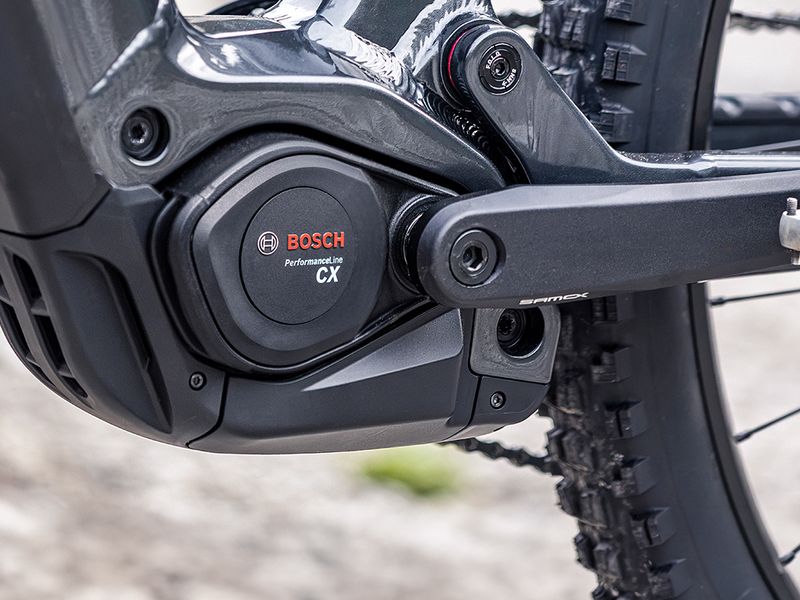

- Bosch Performance Line CX, 85 NM, 120 NM update via Flow App
- Battery
- Bosch PowerTube Li-Ion (720 Wh) or Bosch PowerTube Li-Ion (800 Wh)
- Display
- Bosch Purion 200
Drivetrain
- Shifter
- Shimano Cues
- Rear derailleur
- Shimano Cues, 10-speed
- Cassette
- Shimano CS-LG300, 11-48T
- Chain
- Shimano CN-LG500
- Crankset
- Samox, 165 mm
- Chainring
- Samox, 36 T
Brakes
- Brakes

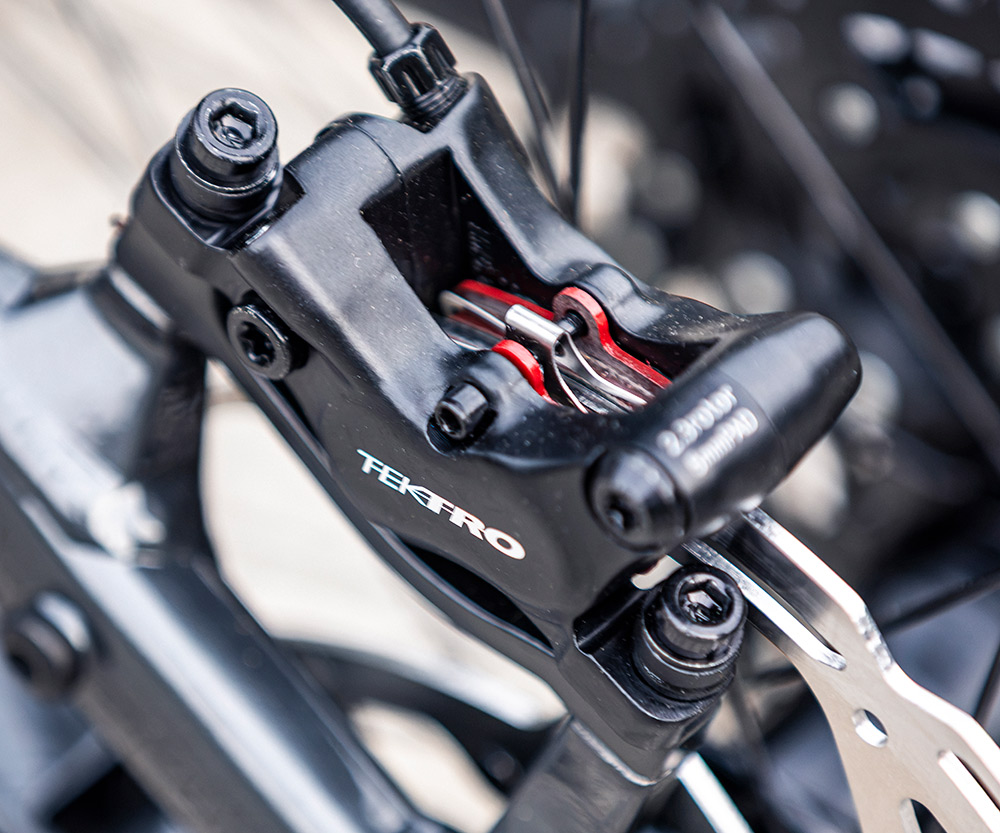

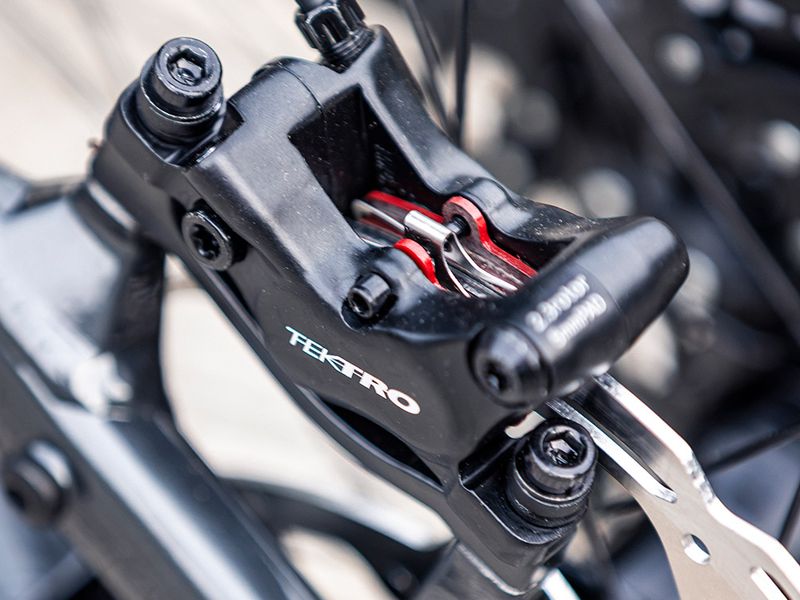

- TEKTRO Gemini SL, 4-piston (front and rear)
- Rotors
- TEKTRO TR, front: 203 mm / rear: 203 mm
Wheels & tyres
- Rims
- WTB STi30, alloy, 29" (front and rear)
- Front hub
- Shimano HB-TC500
- Rear hub
- Shimano FH-TC500
- Tyres
- Maxxis Minion DHF, EXO, 29 x 2,5" (front and rear)
Cockpit
- Handlebar
- Alloy, width: 800 mm, rise: 30 mm
- Grips
- VP Lock-On Grips
- Stem
- FOCUS C.I.S. 2.0, 50 mm
- Headset
- ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
- Saddle
- Focus
- Seatpost
- Post Moderne DP-212, S / M /L / XL: 125 / 150 / 170 / 200 mm, 34,9 mm
Other
- Weight
- 26.5 kg (720 Wh) / 26.5 kg (800 Wh) (size M, without pedals)
- Max system weight
- 150 kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
THRON geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Handlebar width | 800 mm | 800 mm | 800 mm | 800 mm |
| Stem length | 50 mm | 50 mm | 50 mm | 50 mm |
| Crank length | 165 mm | 165 mm | 165 mm | 165 mm |
| ASeat tube length | 390 mm | 420 mm | 440 mm | 460 mm |
| BTop tube length | 580 mm | 612 mm | 649 mm | 672 mm |
| CHead angle | 66° | 66° | 66° | 66° |
| DSeat angle | 75.5° | 75.5° | 75.5° | 75.5° |
| EChainstay length | 455 mm | 455 mm | 455 mm | 455 mm |
| FBottom bracket drop | 30 mm | 30 mm | 30 mm | 30 mm |
| GHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| HFork length | 570 mm | 570 mm | 570 mm | 570 mm |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1187 mm | 1221 mm | 1250 mm | 1285 mm |
| KStack | 637 mm | 646 mm | 655 mm | 664 mm |
| LReach | 415 mm | 445 mm | 470 mm | 500 mm |
| MStandover height | 785 mm | 785 mm | 785 mm | 785 mm |
Source: Focus.
THRON: builds compared
THRON range →| THRON 7 | THRON 8 | THRON 9 | |
|---|---|---|---|
| Price | €3,699 | €4,699 | €5,699 |
| Frame | Alloy | Alloy | Alloy |
| Fork | SR SUNTOUR XCR 36 X Boost, 150 mm | RockShox Psylo Silver RC, 150 mm | FOX 36 AWL HD Sport, Rail 2.0 R |
| Shock | SR SUNTOUR Edge-X R | RockShox Deluxe Select | FOX Float Rhythm |
| Derailleur | Shimano Cues | Shimano Deore | Shimano Deore M7200 |
| Brakes | TEKTRO Gemini SL | Shimano MT420 | MAGURA Louise Elite |
| Wheels | WTB STi30, alloy | WTB STi30, alloy | WTB STi30, alloy |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Kiox 300 + LED Controller |
| Weight | 26.5 kg | 25.4 kg | 25.7 kg |
THRON 7: FAQ
How much does the Focus THRON 7 cost?
€3,699 (RRP Germany, VAT incl. Price with 720 Wh battery; larger-battery version €3,999.). The THRON range runs from €3,699 (THRON 7) to €5,699 (THRON 9). Prices vary by country and dealer.
How much does the Focus THRON 7 weigh?
Focus quotes 26.5 kg. The lightest THRON build is the THRON 8 at 25.4 kg.
What motor and battery does the Focus THRON 7 have?
Bosch Performance Line CX (85 Nm (120 Nm via eBike Flow app update)). 720 Wh battery — bosch PowerTube; options: 720 Wh / 800 Wh; 250 Wh range extender compatible.
How much suspension travel does the Focus THRON 7 have?
150 mm at the fork and 140 mm at the rear, on 29" wheels.
What sizes does the Focus THRON 7 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the THRON 7 and the THRON 8?
They share the THRON frame platform and motor; the differences are in the parts — fork: SR SUNTOUR XCR 36 X Boost vs RockShox Psylo Silver RC; shock: SR SUNTOUR Edge-X R vs RockShox Deluxe Select; derailleur: Shimano Cues vs Shimano Deore; claimed weight: 26.5 kg vs 25.4 kg; price: €3,699 vs €4,699.
