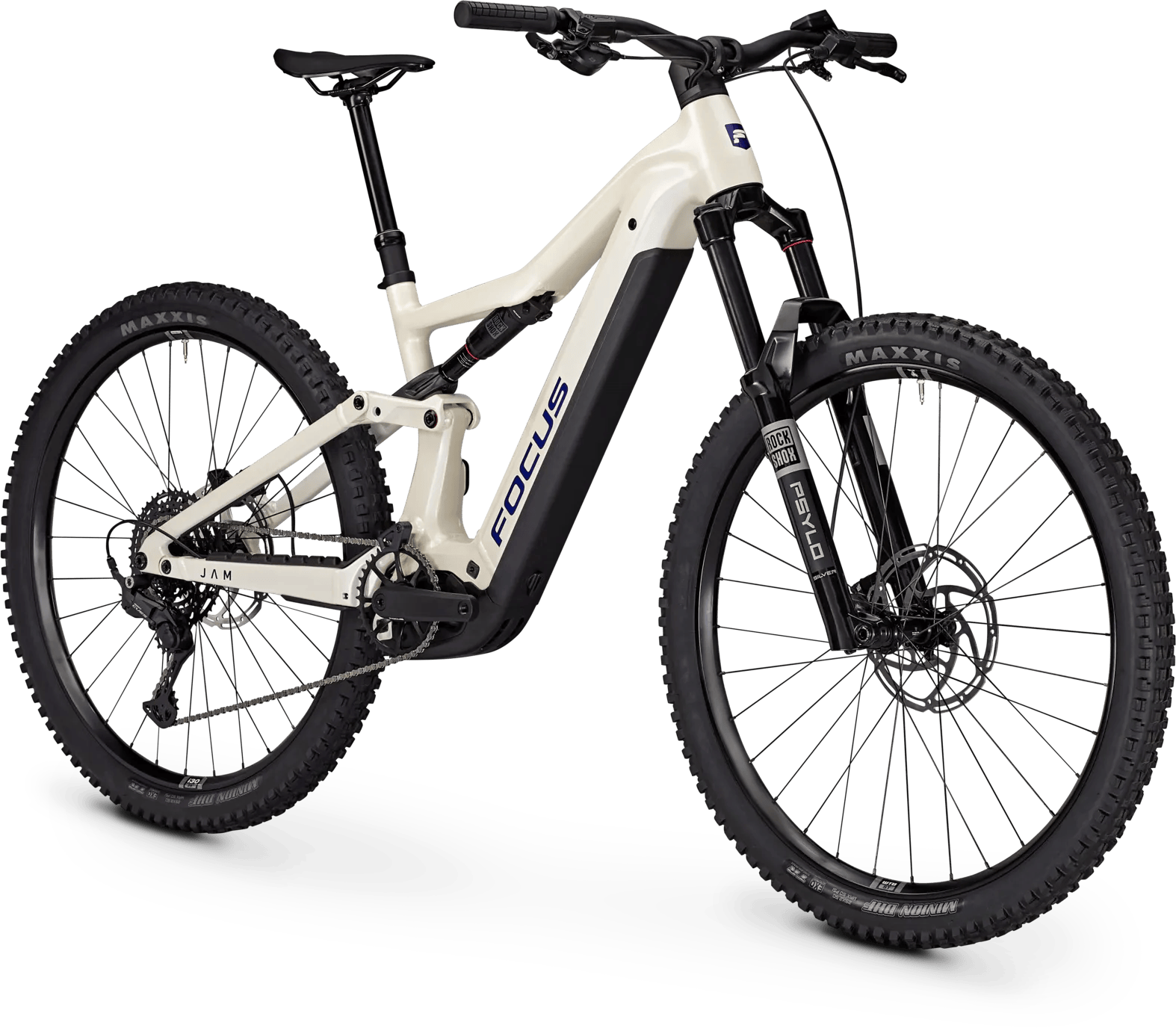

FocusJAM 7
- Motor
- Bosch Performance Line CX85 Nm (120 Nm via eBike Flow app update)
- Battery
- 600 WhBosch PowerTube; options: 600 Wh / 800 Wh; 250 Wh range extender compatible
- Travel F / R
- 160 / 150 mm
- Wheels
- 29"
- Frame
- Alloy
- Weight
- 25.4 kgManufacturer figure (size M, 600 Wh battery, without pedals)
All Bosch Performance Line CX eMTBs →
Watching this bike? Get new models and updates on Telegram →
Overview

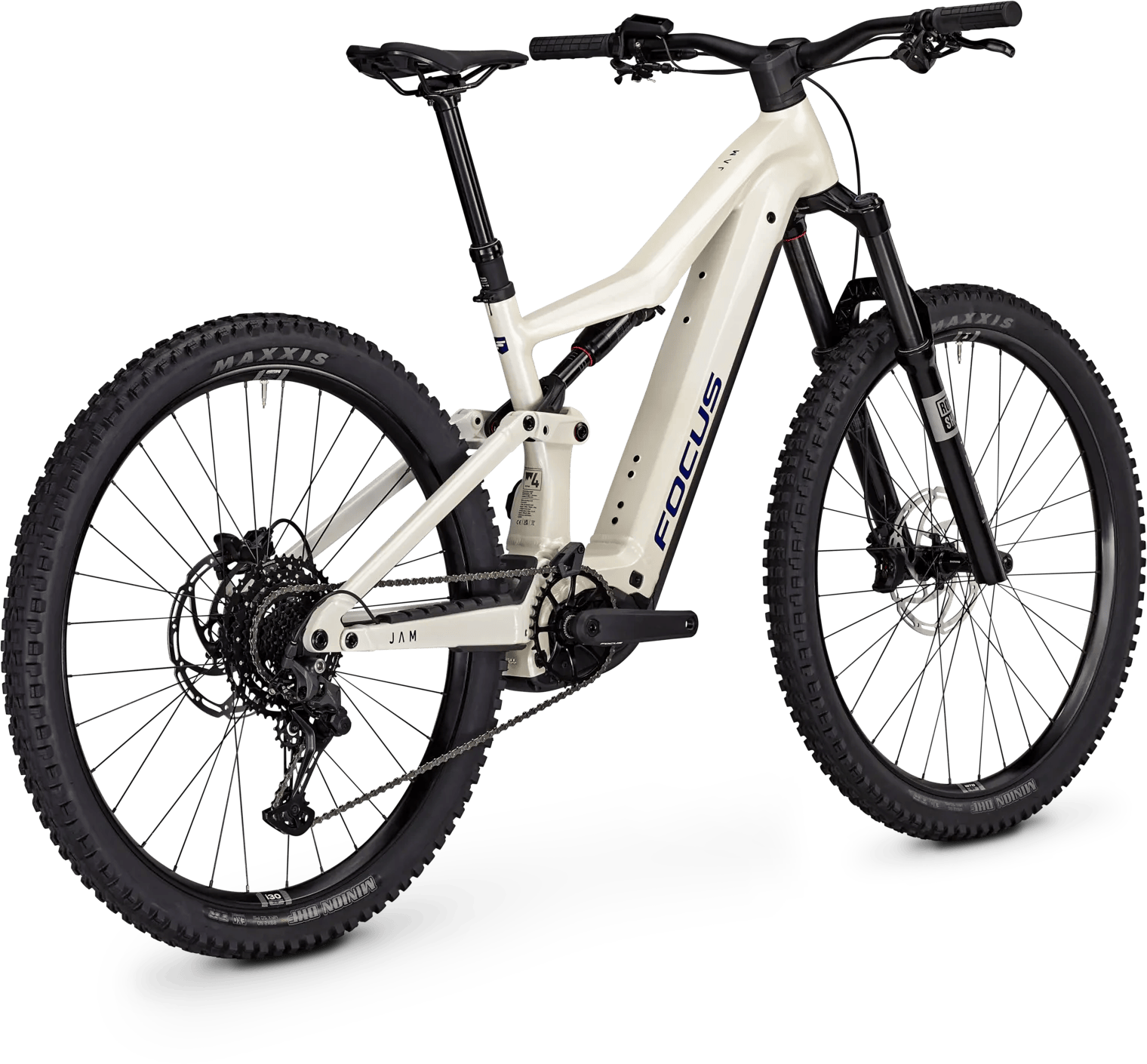

At €4,399 the JAM 7 is the cheapest JAM, with Bosch CX (85 Nm), 600 Wh, a RockShox Psylo fork, Deluxe Select shock and Shimano Cues. It weighs a claimed 25.4 kg, so it's the heaviest of the four.
The JAM 7 is one of 4 builds of the Focus JAM. About the JAM range and all its builds →
Gallery
Photos: Focus
Full specifications
Frame & suspension
- Frame

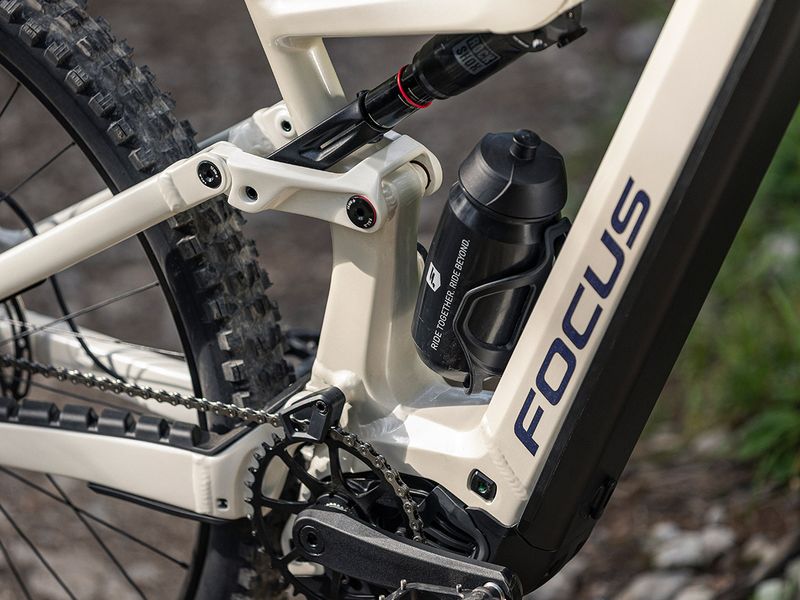

- 7005 hydroformed aluminium, 150 mm F.O.L.D. kinematics, 148x12 mm thru axle, Post Mount 180 mm
- Special features
- Tool bag (excluding size S & M), Hidden AirTag or Chipolo holder
- Fork
- RockShox Psylo Silver RC, 160 mm
- Rear shock
- Rock Shox Deluxe Select, DebonAir+, 150 mm
- Sizes
- S, M, L, XL
- Colours
- Black, White
E-system
- Motor
- Bosch Performance Line CX, 85 NM, 120 NM update via Flow App

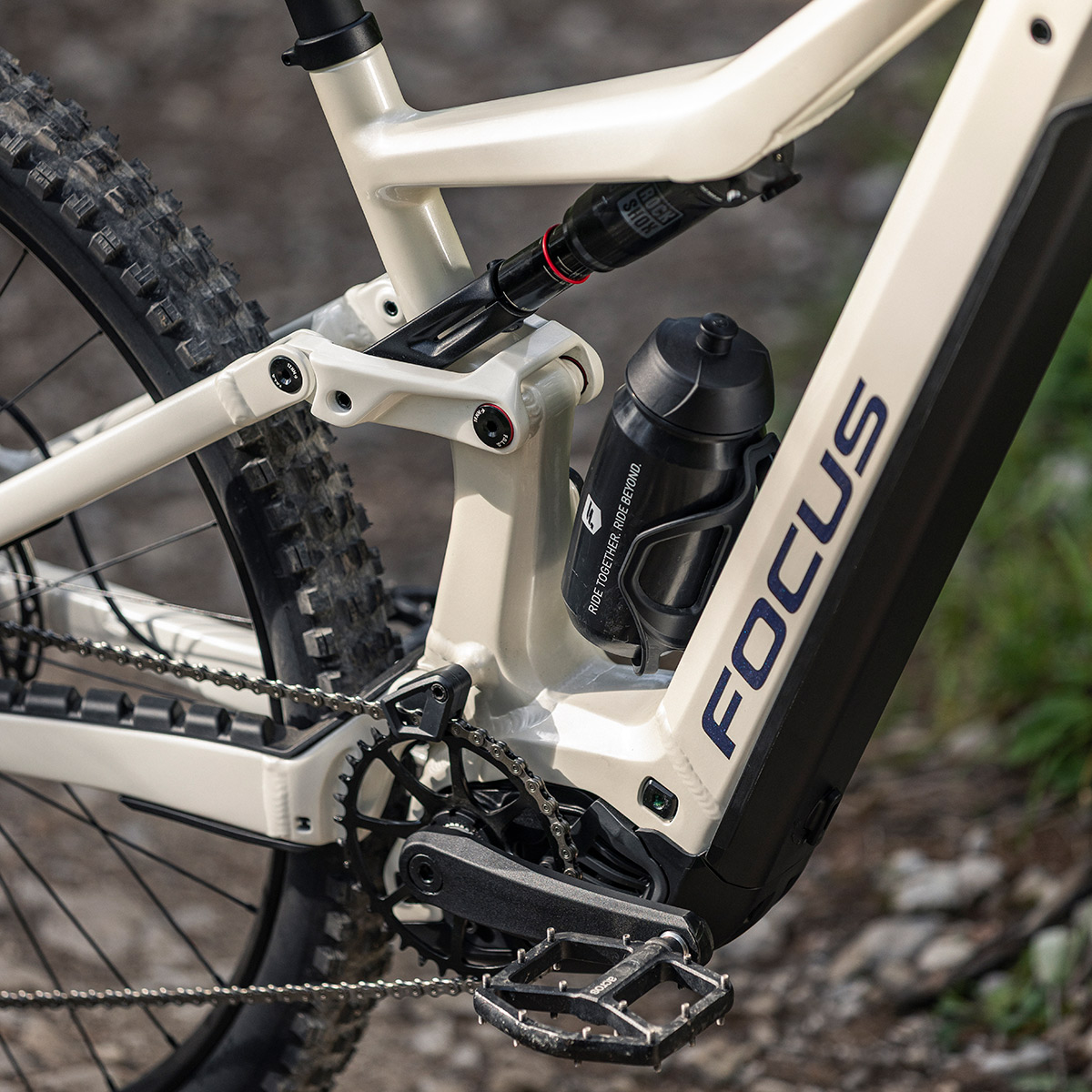

- Battery
- Bosch PowerTube Li-Ion (600 Wh) or Bosch PowerTube Li-Ion (800 Wh)

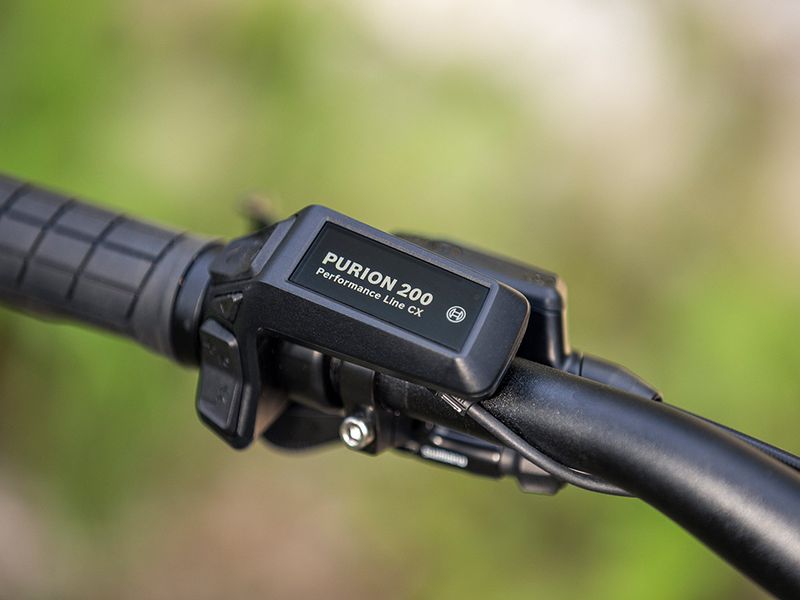

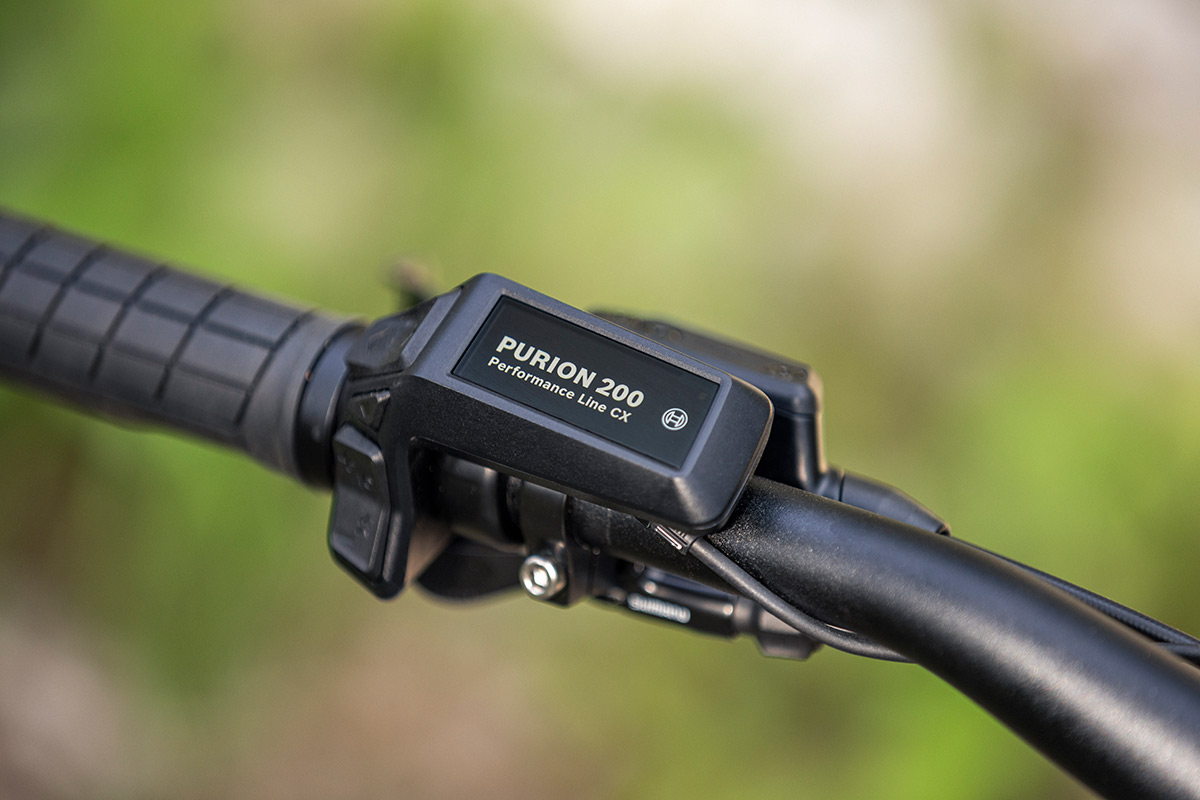

- Display
- Bosch Purion 200
Drivetrain
- Shifter
- Shimano Cues
- Rear derailleur
- Shimano Cues, 10-speed
- Cassette
- Shimano CS-LG300, 11-48T
- Chain
- Shimano CN-LG500
- Crankset
- Samox, 160 mm
- Chainring
- Samox, 36 T
Brakes

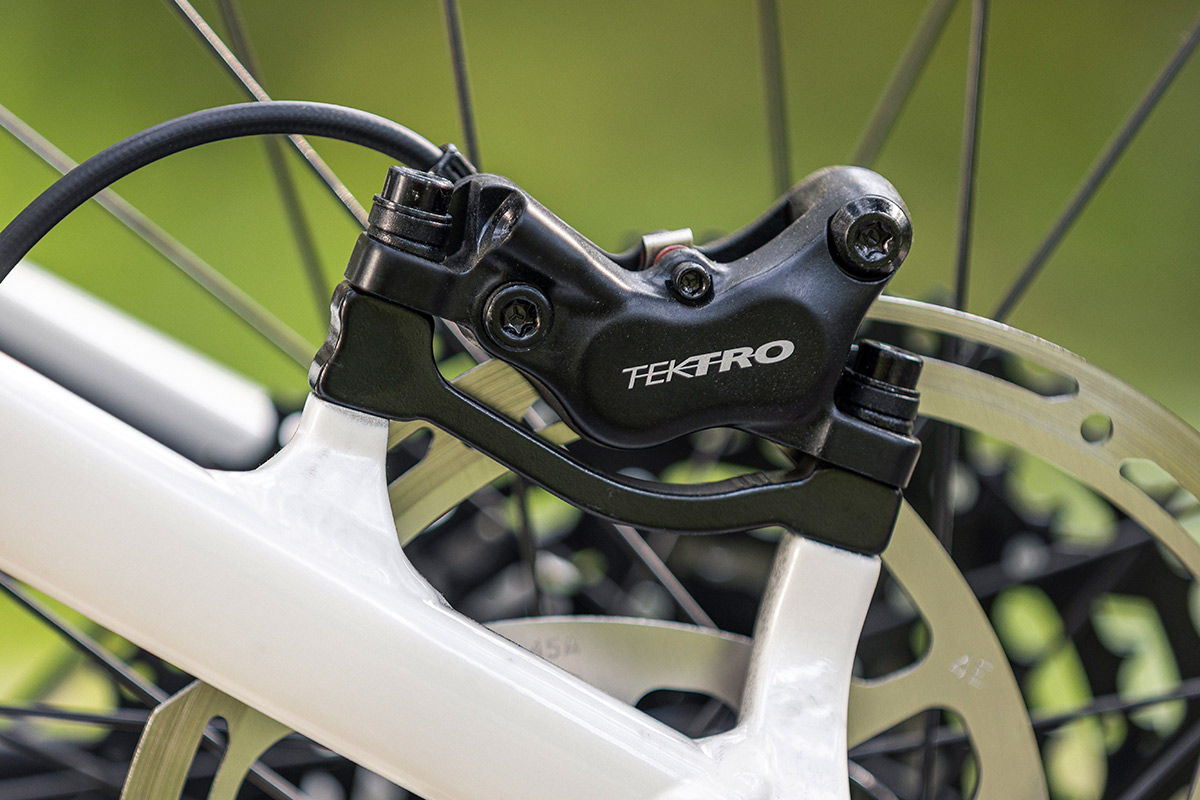

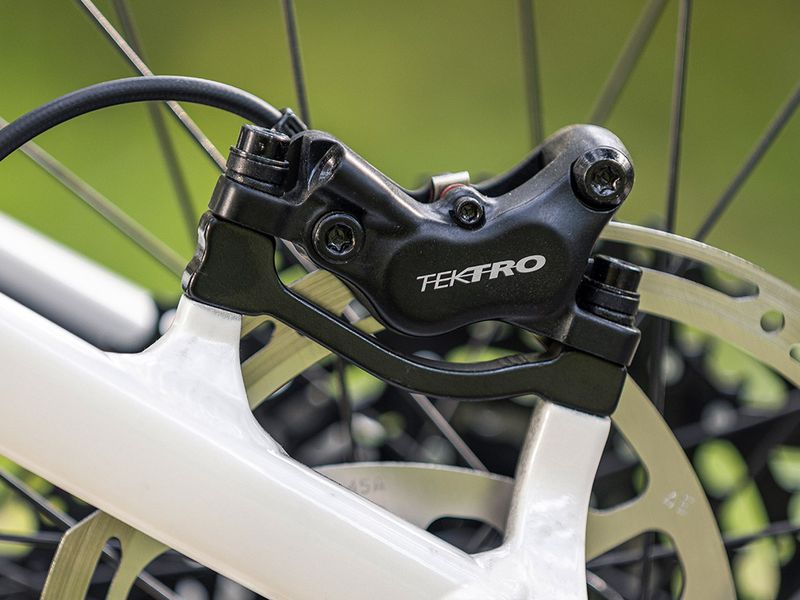

- Brakes
- TEKTRO HD-M5141, 4-piston (front and rear)
- Rotors
- TEKTRO TR, front: 203 mm / rear: 203 mm
Wheels & tyres
- Rims
- WTB STi30, alloy, 29" (front and rear)
- Front hub
- Shimano HB-TC500
- Rear hub
- Shimano FH-TC500

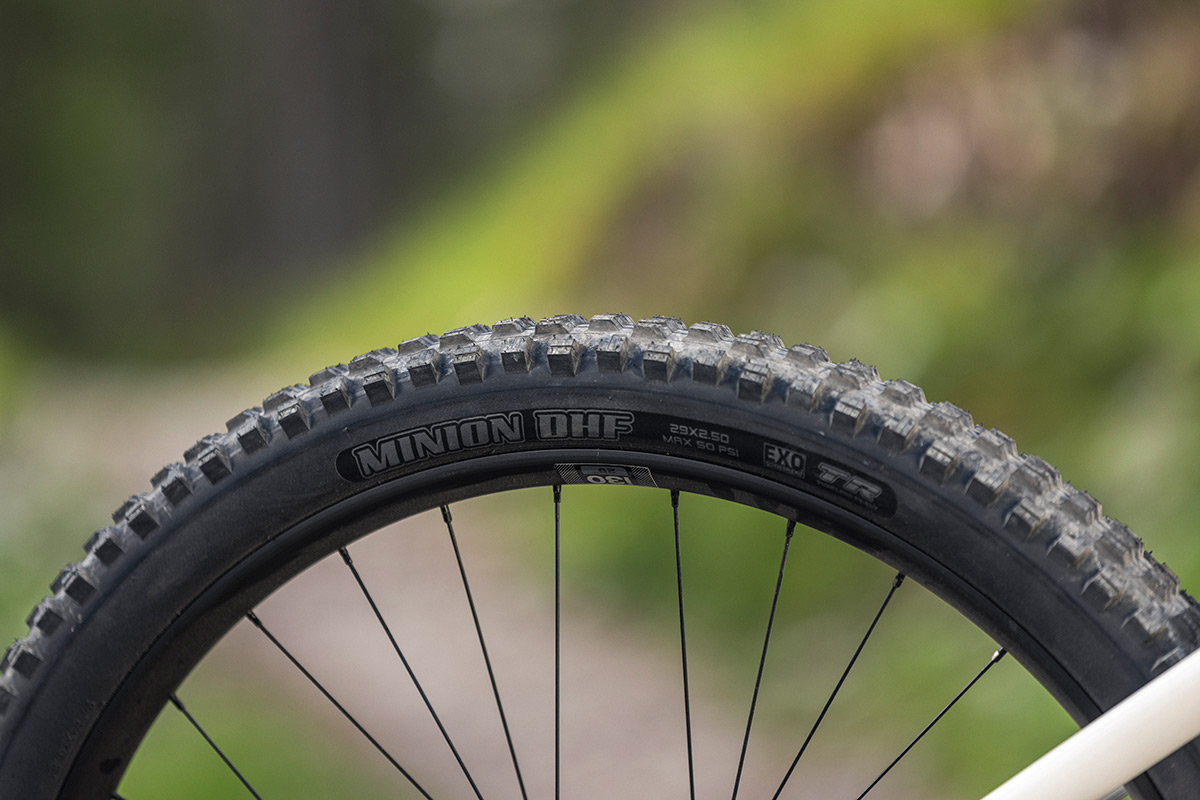

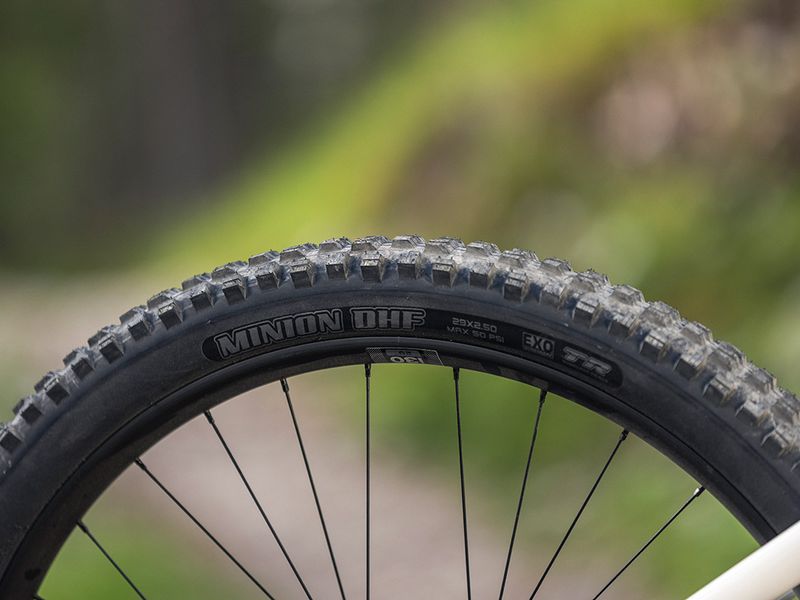

- Tyres
- Maxxis Minion DHF, TLE, EXO, 29 x 2,5" (front and rear)
Cockpit
- Handlebar
- Alloy, width: 800 mm, rise: 30 mm
- Grips
- VP Lock-On Grips
- Stem

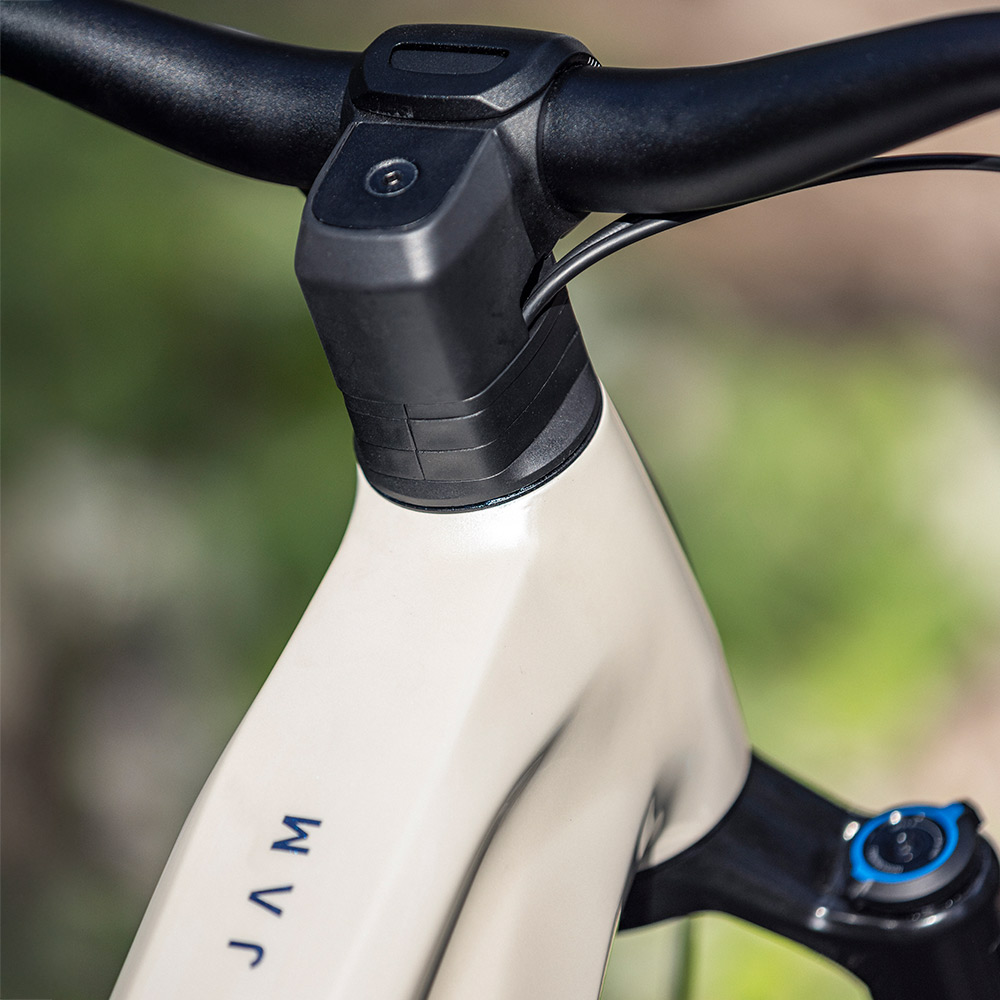

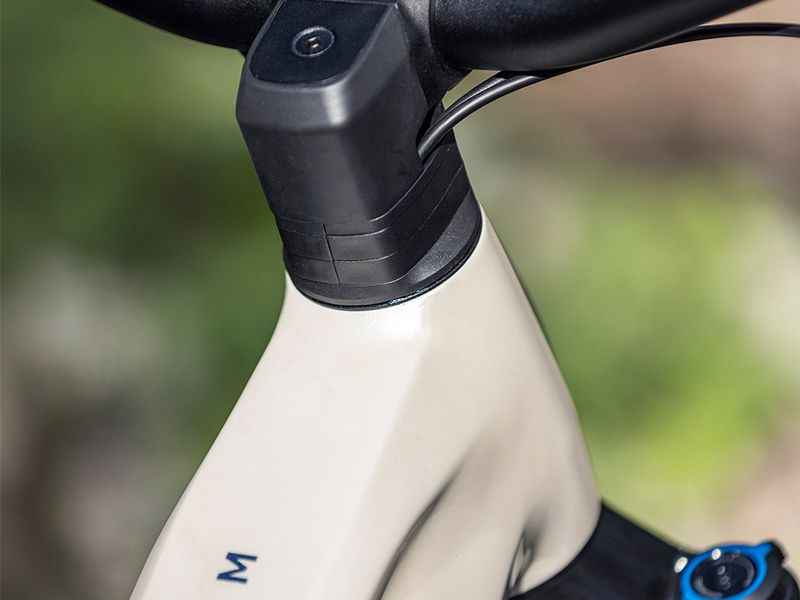

- FOCUS C.I.S. 2.0, 40 mm
- Headset
- ACROS ZS56/ZS66 (ICR), FOCUS C.I.S. Integrated
- Saddle
- Focus
- Seatpost
- Post Moderne DP-212, S / M /L / XL: 125 / 170 / 200 / 230 mm, 34,9 mm
Other
- Weight
- 25.4 kg (600 Wh) / 26.4 kg (800 Wh) (size M, without pedals)
- Max system weight
- 150 kg
Manufacturer specification (source). Specs and prices can change; check with the brand or your dealer.
JAM geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Handlebar width | 800 mm | 800 mm | 800 mm | 800 mm |
| Stem length | 40 mm | 40 mm | 40 mm | 40 mm |
| Crank length | 160 mm | 160 mm | 160 mm | 160 mm |
| ASeat tube length | 390 mm | 420 mm | 440 mm | 460 mm |
| BTop tube length | 576 mm | 608 mm | 636 mm | 668 mm |
| CHead angle | 65° | 65° | 65° | 65° |
| DSeat angle | 76.5° | 76.5° | 76.5° | 76.5° |
| EChainstay length | 450 mm | 450 mm | 450 mm | 450 mm |
| FBottom bracket drop | 25 mm | 25 mm | 25 mm | 25 mm |
| GHead tube length | 110 mm | 120 mm | 130 mm | 140 mm |
| HFork length | 575 mm | 575 mm | 575 mm | 575 mm |
| IFork offset | 44 mm | 44 mm | 44 mm | 44 mm |
| JWheelbase | 1205 mm | 1239 mm | 1268 mm | 1303 mm |
| KStack | 630 mm | 639 mm | 648 mm | 657 mm |
| LReach | 425 mm | 455 mm | 480 mm | 510 mm |
| MStandover height | 783 mm | 783 mm | 783 mm | 783 mm |
Source: Focus.
JAM: builds compared
JAM range →| JAM 7 | JAM 8 | JAM 9 | JAM LTD | |
|---|---|---|---|---|
| Price | €4,399 | €5,399 | €6,399 | €7,499 |
| Frame | Alloy | Alloy | Alloy | Alloy |
| Fork | RockShox Psylo Silver RC, 160 mm | RockShox Lyrik Select, LinearXL | FOX 36 Performance Elite, Grip X2 | Fox 36 Factory, Grip X2 |
| Shock | Rock Shox Deluxe Select | RockShox Super Deluxe Base | FOX Float X Performance | Fox Float X Factory |
| Derailleur | Shimano Cues | SRAM Eagle 70 | SRAM Eagle 90 | Shimano Deore XT Di2 |
| Brakes | TEKTRO HD-M5141 | SRAM DB8 stealth | TRP EVO Pro | Shimano Deore XT BR-M8120 |
| Wheels | WTB STi30, alloy | — | — | — |
| Display | Bosch Purion 200 | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400C + Mini Remote | Bosch Kiox 400 + Mini Remote |
| Weight | 25.4 kg | 25.1 kg | 25.1 kg | 24.4 kg |
JAM 7: FAQ
What is the difference between the JAM 7 and the JAM 8?
They share the JAM frame platform and motor; the differences are in the parts: fork: RockShox Psylo Silver RC vs RockShox Lyrik Select; shock: Rock Shox Deluxe Select vs RockShox Super Deluxe Base; derailleur: Shimano Cues vs SRAM Eagle 70; claimed weight: 25.4 kg vs 25.1 kg; price: €4,399 vs €5,399.
