HaibikeALLMTN 4
- Motor
- Bosch Performance Line CX85 Nm
- Battery
- 800 WhPowerTube
- Travel F / R
- 160 / 150 mm
- Wheels
- Mullet 29" / 27.5"
- Frame
- Alloy
Overview

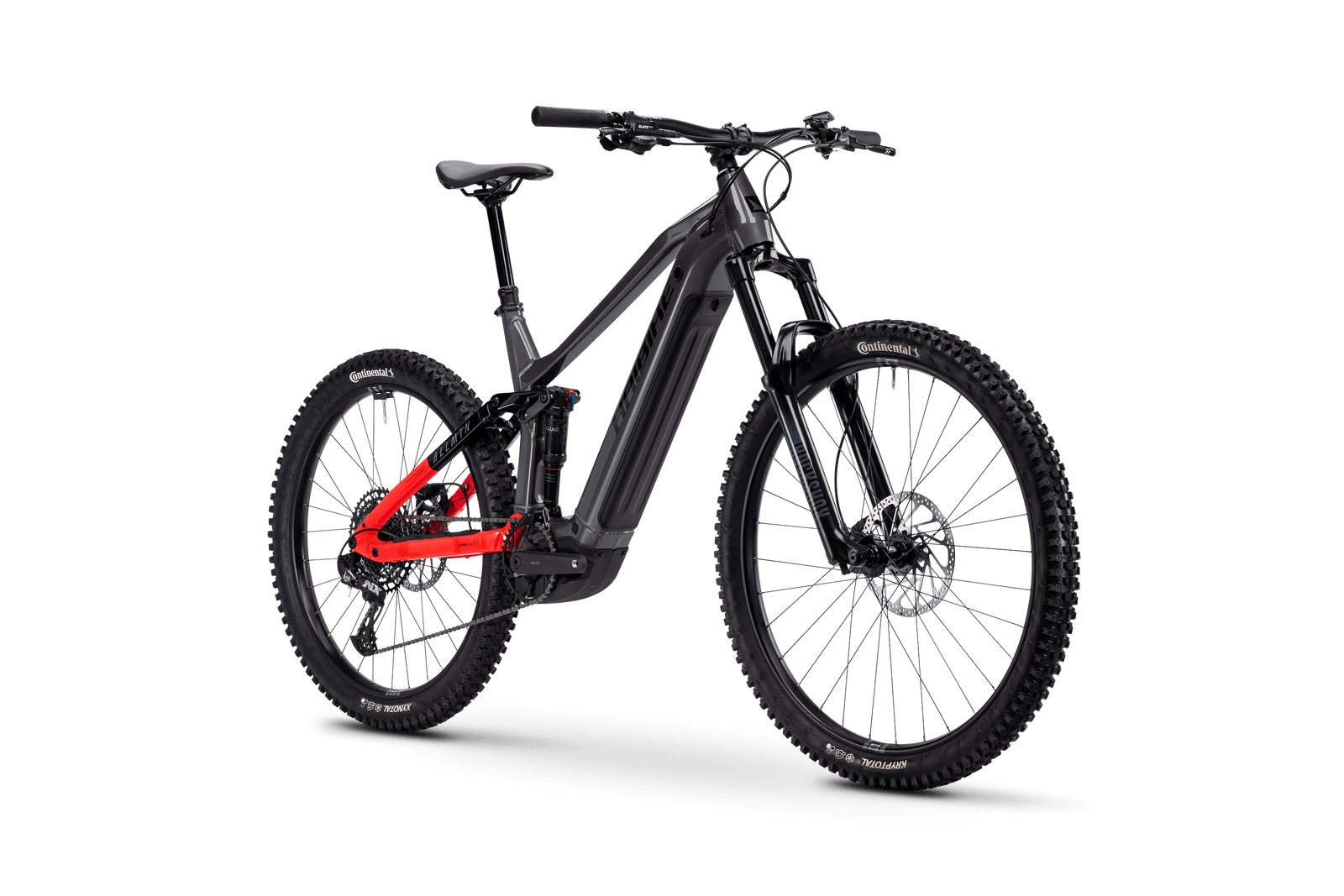

The Haibike ALLMTN 4 (€4,999) is a mid-range build of the ALLMTN range: Bosch Performance Line CX (85 Nm) with 800 Wh, RockShox Psylo Gold RC fork, RockShox Deluxe Select R 205x65mm shock, Sram Eagle 70 T-Type 12s and Sram DB8 Stealth brakes.
The aluminium ALLMTN is Haibike's all-mountain eMTB: a 160 mm fork, 150–160 mm of rear travel, a mullet wheel setup (29-inch front, 27.5-inch rear) and the Bosch Performance Line CX motor with an 800 Wh PowerTube battery, with an optional range extender.
- 160 mm fork, 150–160 mm rear
- Bosch CX, 800 Wh
- Mullet wheels
- Optional range extender
Gallery
Photos: Haibike
Full specifications
Frame & suspension
- Frame
- aluminium, disc brake Post Mount
- Fork

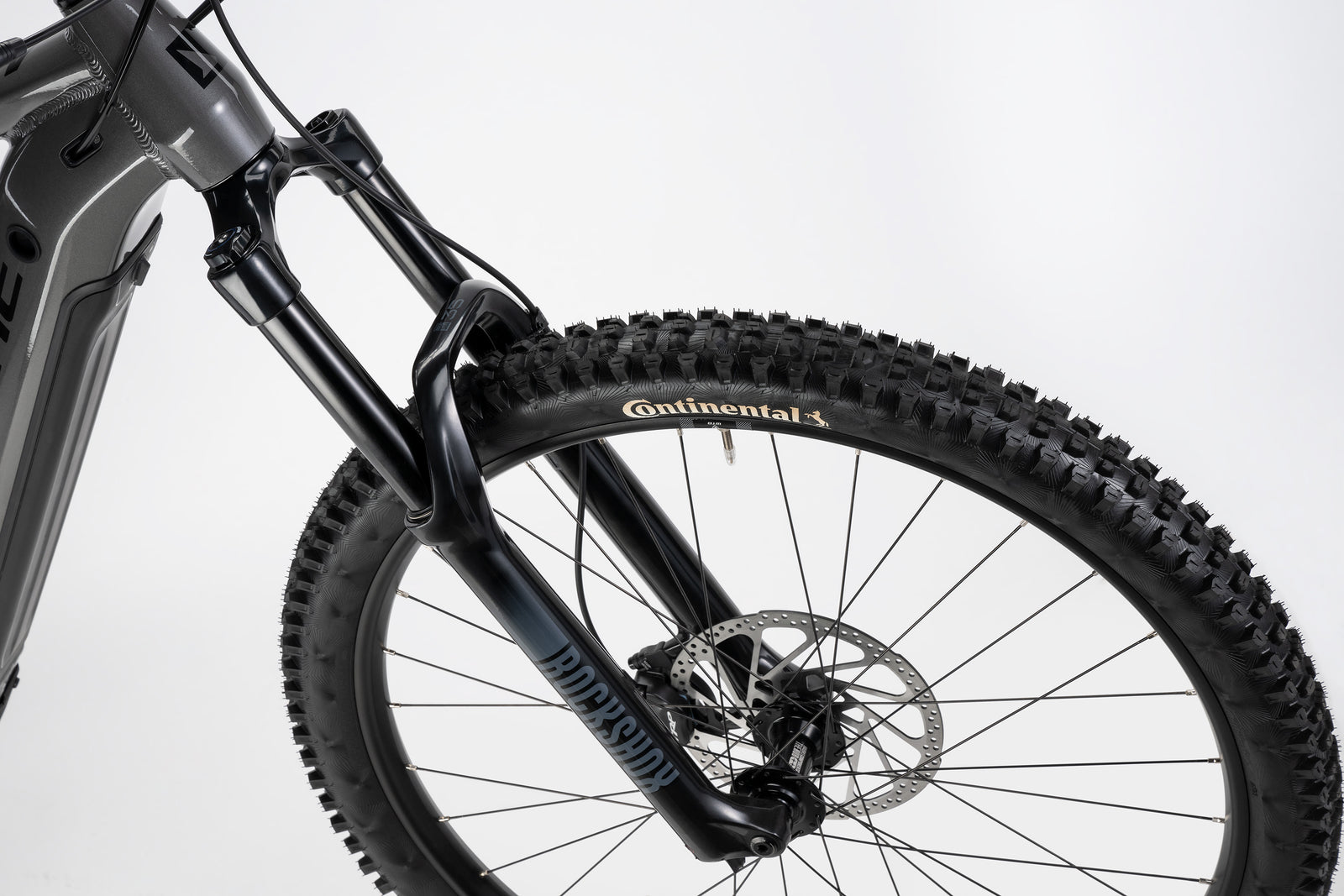

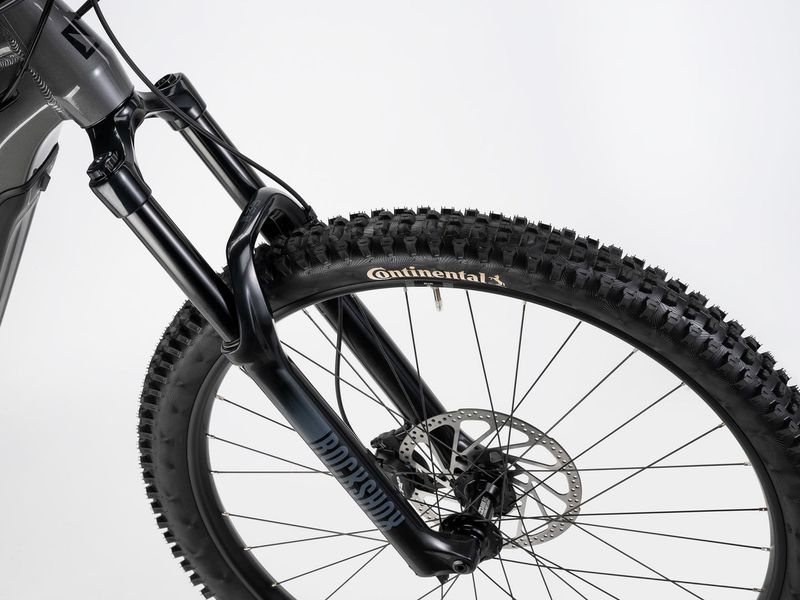

- RockShox Psylo Gold RC, Crown Adj, DebonAir, Offset: 44 mm, Travel: 160mm
- Rear shock

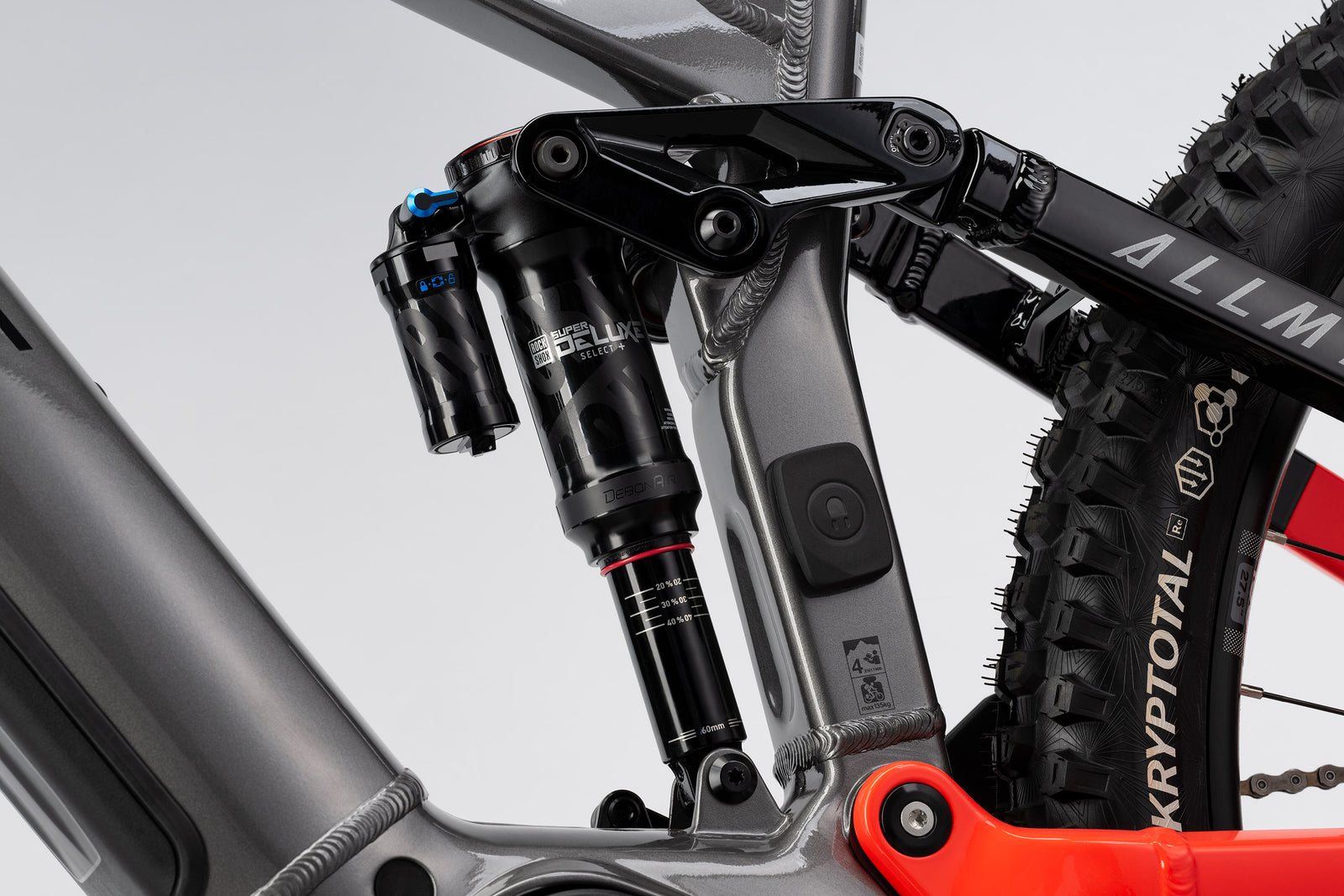

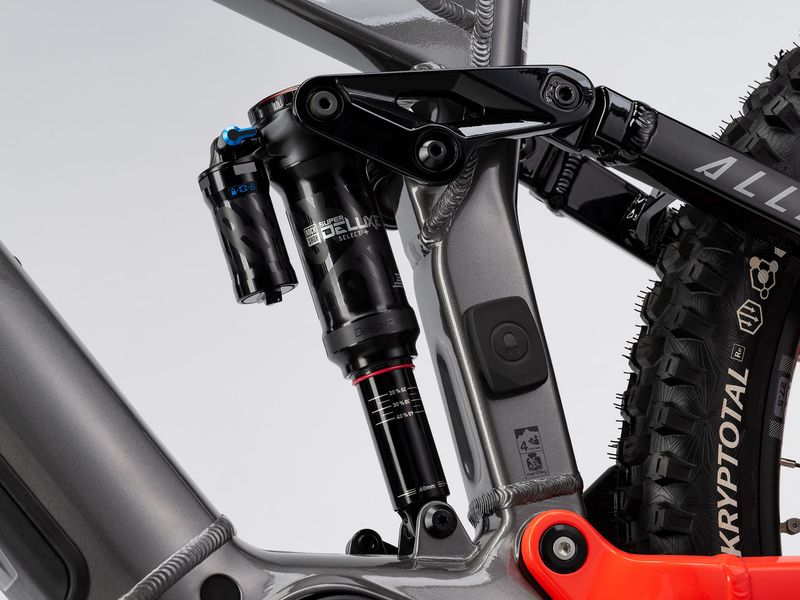

- RockShox Deluxe Select R 205x65mm, Trunnion, DebonAir
E-system
- Battery
- Bosch PowerTube 800Wh
- Charger
- Bosch Charger 4A 220-240V
- Display
- Bosch Purion 200
- Motor

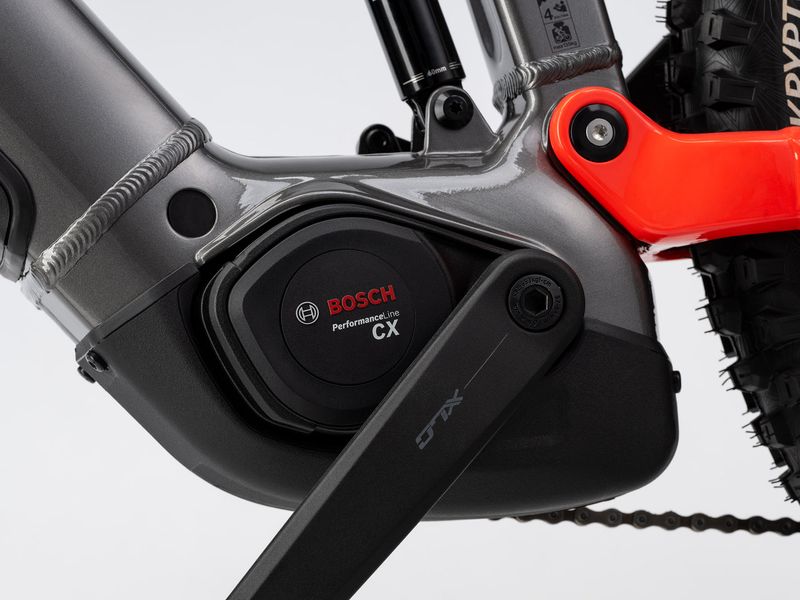

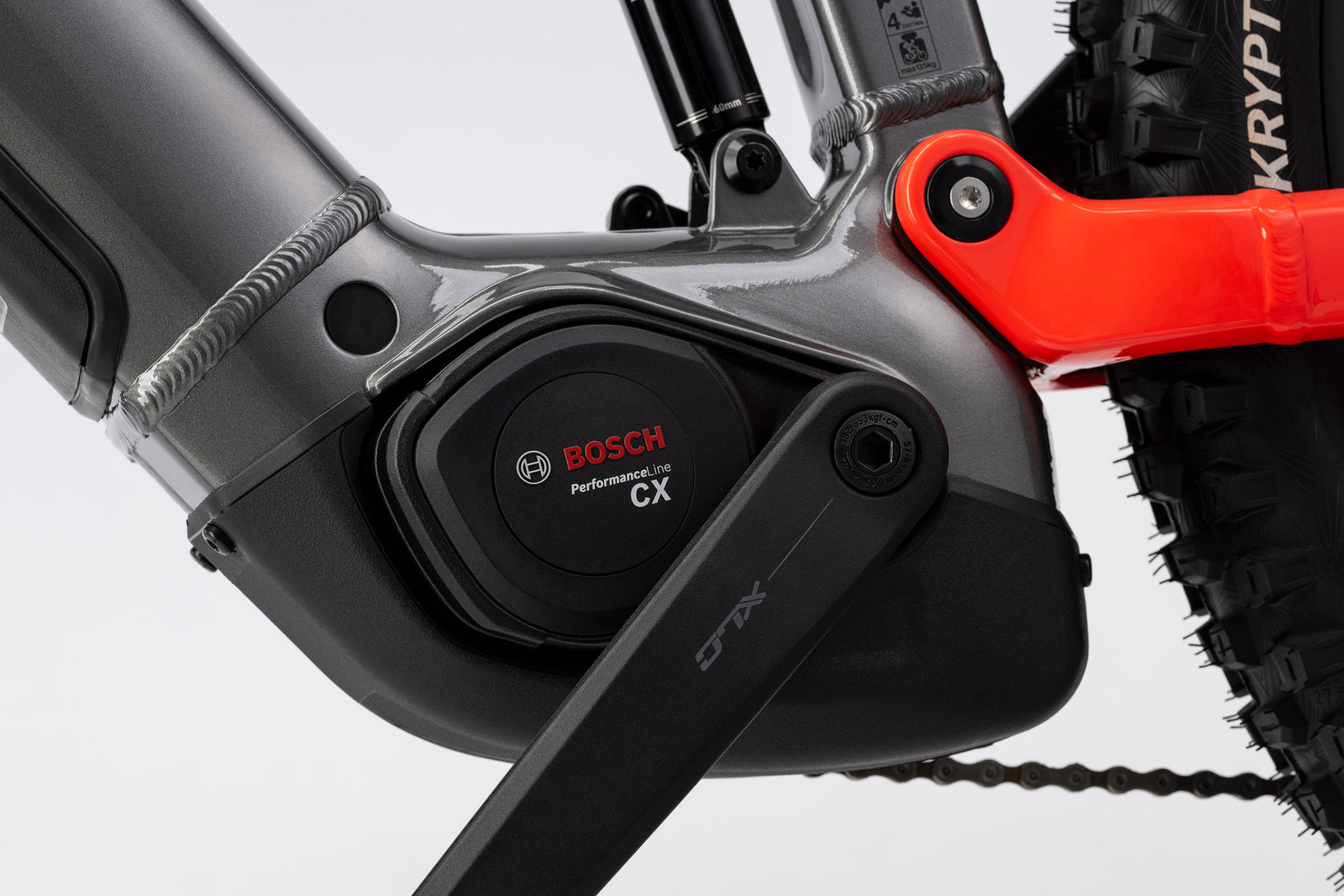

- Bosch Performance Line CX, 600W, 85Nm, 25km/h
Drivetrain
- Chain

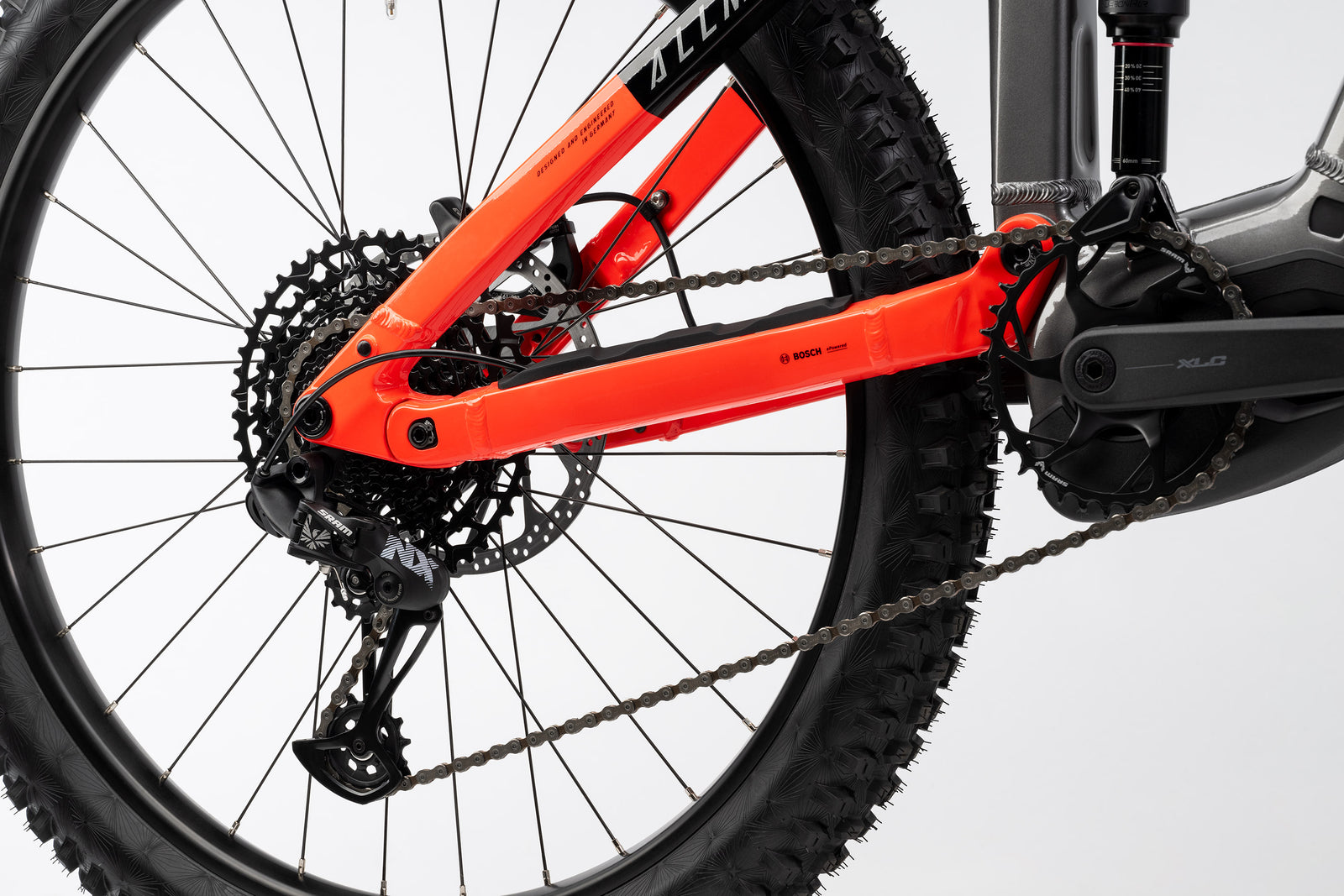

- Sram Eagle 70 T-Type 12s
- Rear derailleur

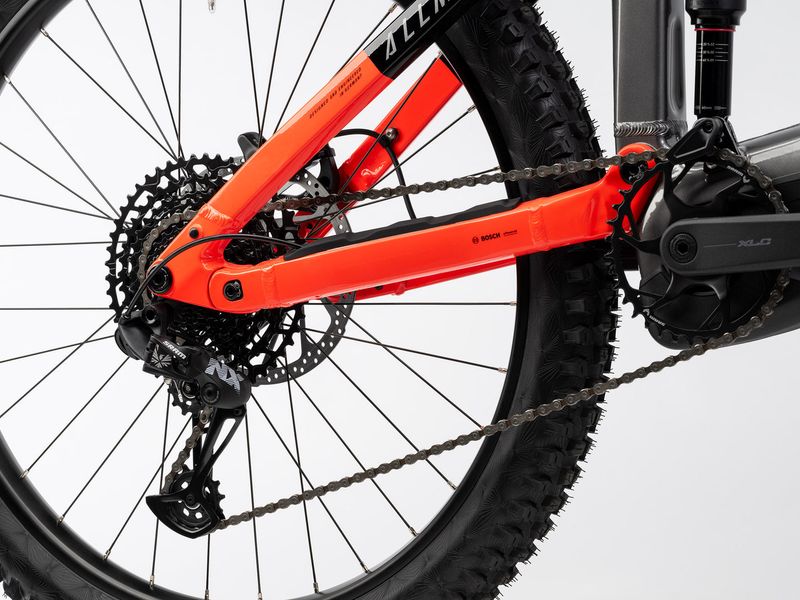

- Sram Eagle 70 T-Type 12s, 12-speed
- Gears
- 12-speed
- Shifter
- Sram Eagle 70 T-Type Single Click Trigger, Trigger shifter
Brakes
- Front brake
- Sram DB8 Stealth, 4 pistons, 200 mm
- Rear brake
- Sram DB8 Stealth, 4 pistons, 203 mm
Wheels & tyres
- Rims
- XLC WR-M39 Tryp EVO Disc 30/622 32H 6,5 mm Valve
- Tyres
- Continental Kryptotal-Fr Trail Endurance, TR, 60-622
Cockpit
- Grips
- XLC GR-S34 Gravity Grip
- Handlebar

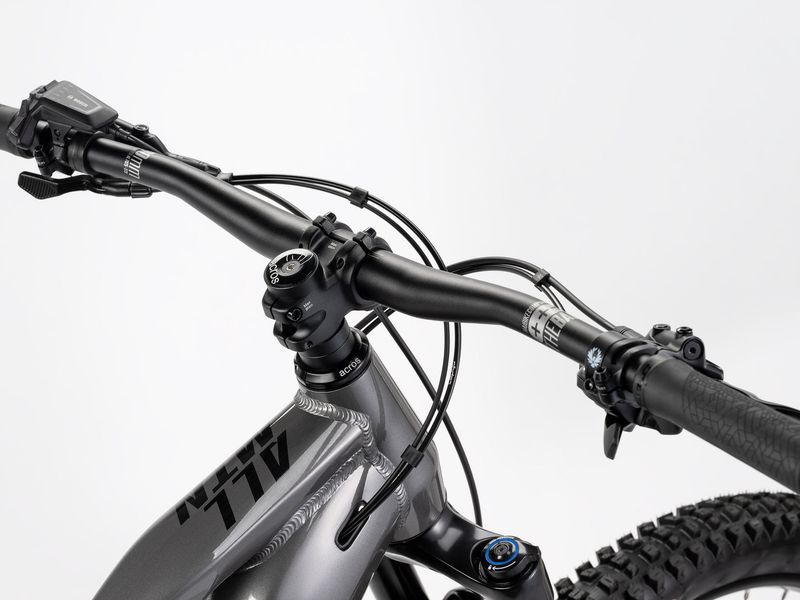

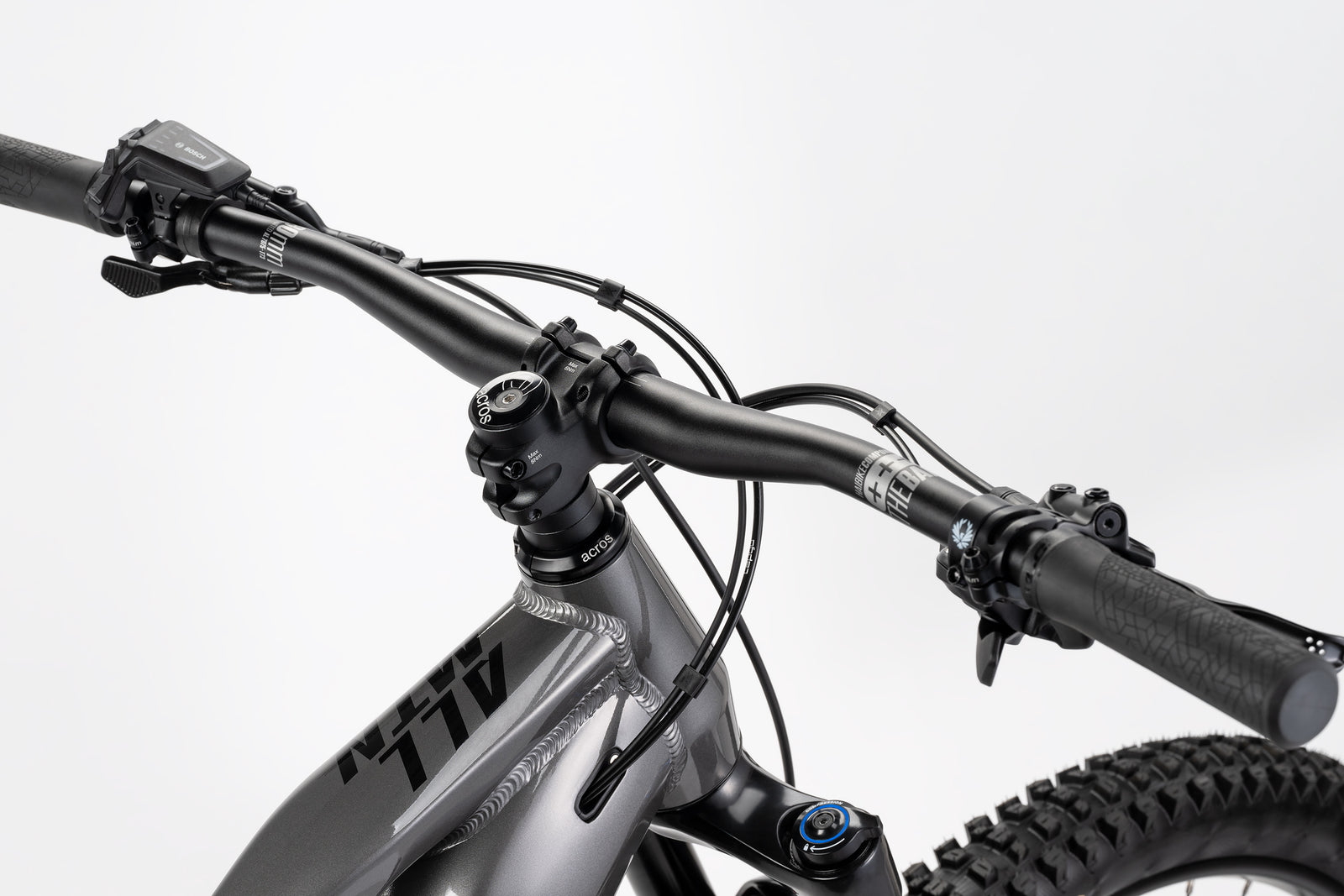

- XLC HB-M34, Dia. 35 mm, Rise: 20 mm, backsweep 9° 800 mm
- Pedals
- XLC Flat Pedal PD-M29 w/ Reflector + integrated Pins
- Saddle
- XLC SA-S10 143 mm Sport
- Seatpost
- XLC Dropper SP-T21, Dia. 34.9 mm, Travel: 170 mm, L: 495 mm
Other
- Max system weight
- 135kg
Manufacturer specification — source. Specs and prices can change; check with the brand or your dealer.
ALLMTN geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| BTop Tube length | 567 mm | 594 mm | 628 mm | 662 mm |
| CHead tube length | 130 mm | 130 mm | 135 mm | 140 mm |
| DHead Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| ESeat Tube Angle | 75° | 75° | 75° | 75° |
| FChain stay length | 455 mm | 455 mm | 455 mm | 455 mm |
| GWheelbase | 1206 mm | 1233 mm | 1268 mm | 1303 mm |
| HStack | 651 mm | 651 mm | 656 mm | 660 mm |
| IReach | 408 mm | 435 mm | 468 mm | 501 mm |
| JStand over height | 770 mm | 770 mm | 760 mm | 760 mm |
| KBottom bracket drop | 20 mm | 20 mm | 20 mm | 20 mm |
Source: Haibike.
ALLMTN: builds compared
ALLMTN range →| ALLMTN 2 | ALLMTN 4 | ALLMTN 6 | |
|---|---|---|---|
| Price | €4,499 | €4,999 | €5,499 |
| Frame | Alloy | Alloy | Alloy |
| Fork | Suntour Zeron36X-Boost EQ 2CR DS 160 mm | RockShox Psylo Gold RC, Crown Adj | RockShox Psylo Gold RC, Crown Adj |
| Shock | SR Suntour Edge-X R 205x65mm | RockShox Deluxe Select R 205x65mm | RockShox Deluxe Select+ RT 205x65mm |
| Derailleur | Shimano Deore RD-M6100-SGS 12s | Sram Eagle 70 T-Type 12s | Shimano Deore XT RD-M8100-SGS 12s |
| Brakes | Sram DB4 Stealth | Sram DB8 Stealth | Shimano Deore BR-M6120 |
| Wheels | XLC WR-M39 Tryp EVO Disc 30/622 32H 6,5 mm Valve | XLC WR-M39 Tryp EVO Disc 30/622 32H 6,5 mm Valve | XLC WR-M49 SL Disc 30/622 32H 6,5 mm Valve |
| Display | Bosch Purion 200 | Bosch Purion 200 | Bosch Kiox 300 + LED Remote |
ALLMTN 4: FAQ
How much does the Haibike ALLMTN 4 cost?
€4,999 (RRP Germany, VAT incl.). The ALLMTN range runs from €4,499 (ALLMTN 2) to €5,499 (ALLMTN 6). Prices vary by country and dealer.
What motor and battery does the Haibike ALLMTN 4 have?
Bosch Performance Line CX (85 Nm). 800 Wh battery — powerTube.
How much suspension travel does the Haibike ALLMTN 4 have?
160 mm at the fork and 150 mm at the rear, on mullet 29" / 27.5" wheels.
What sizes does the Haibike ALLMTN 4 come in?
S, M, L, XL. Check the geometry table to compare reach and stack between sizes.
What is the difference between the ALLMTN 4 and the ALLMTN 6?
They share the ALLMTN frame platform and motor; the differences are in the parts — shock: RockShox Deluxe Select R 205x65mm vs RockShox Deluxe Select+ RT 205x65mm; derailleur: Sram Eagle 70 T-Type 12s vs Shimano Deore XT RD-M8100-SGS 12s; brakes: Sram DB8 Stealth vs Shimano Deore BR-M6120; price: €4,999 vs €5,499.
